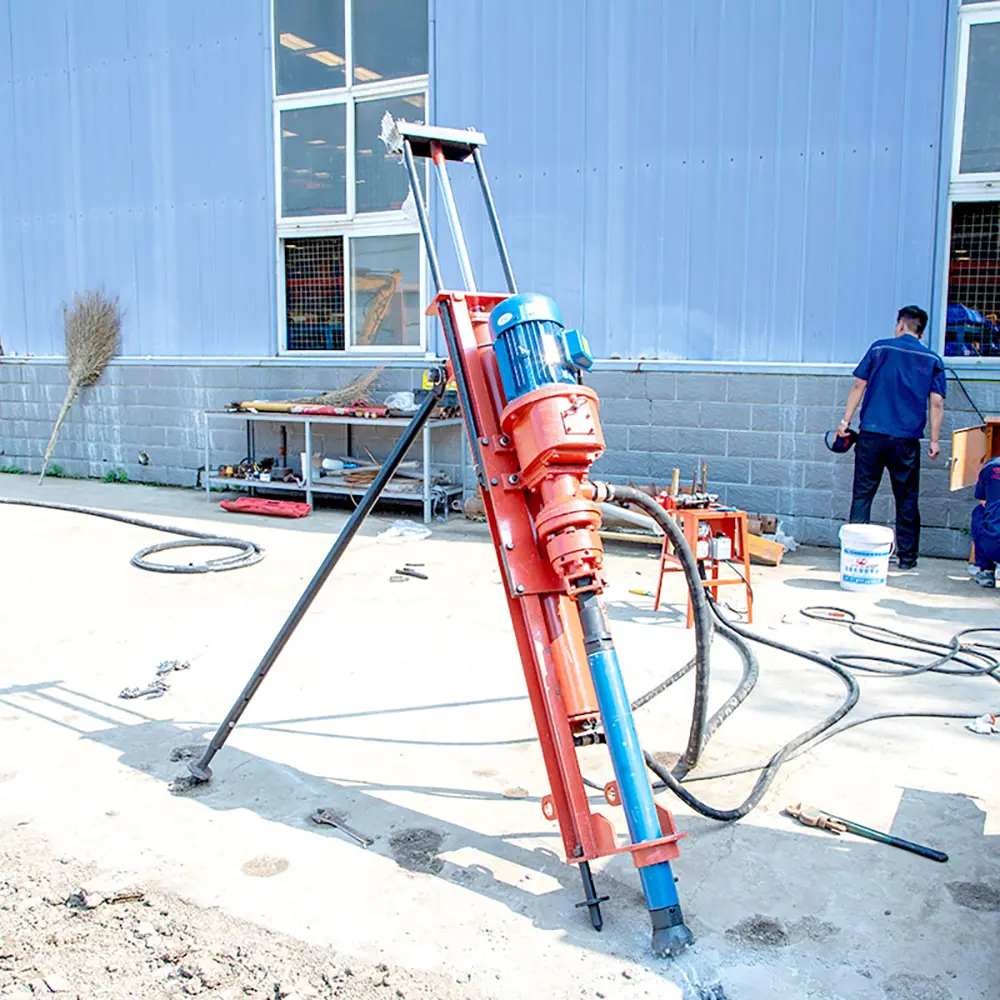

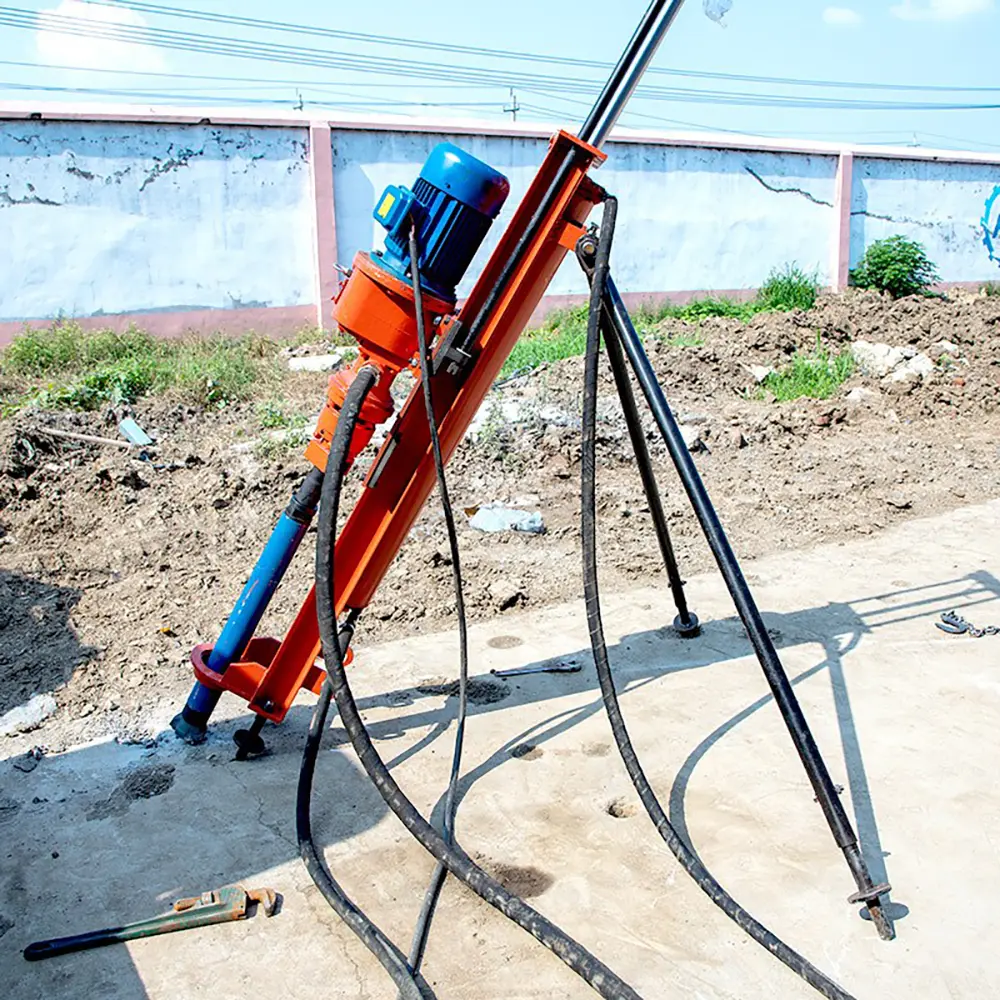

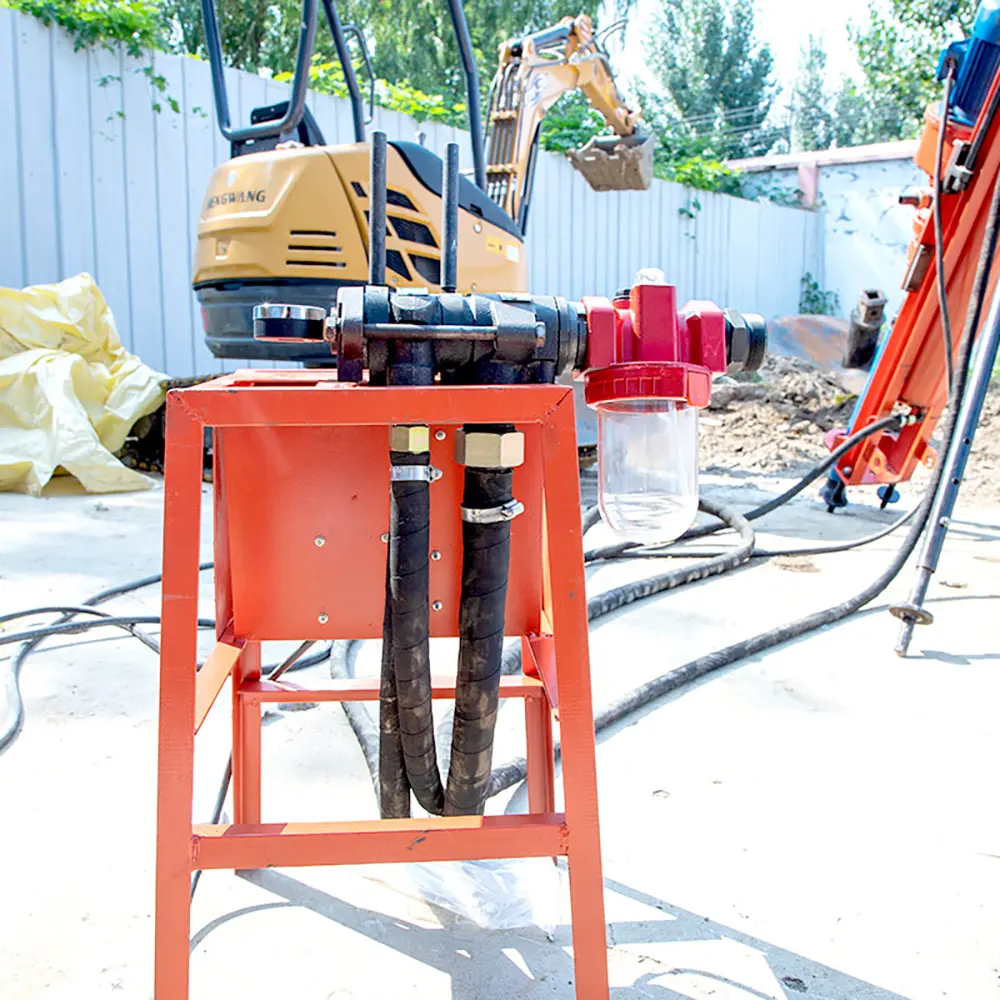

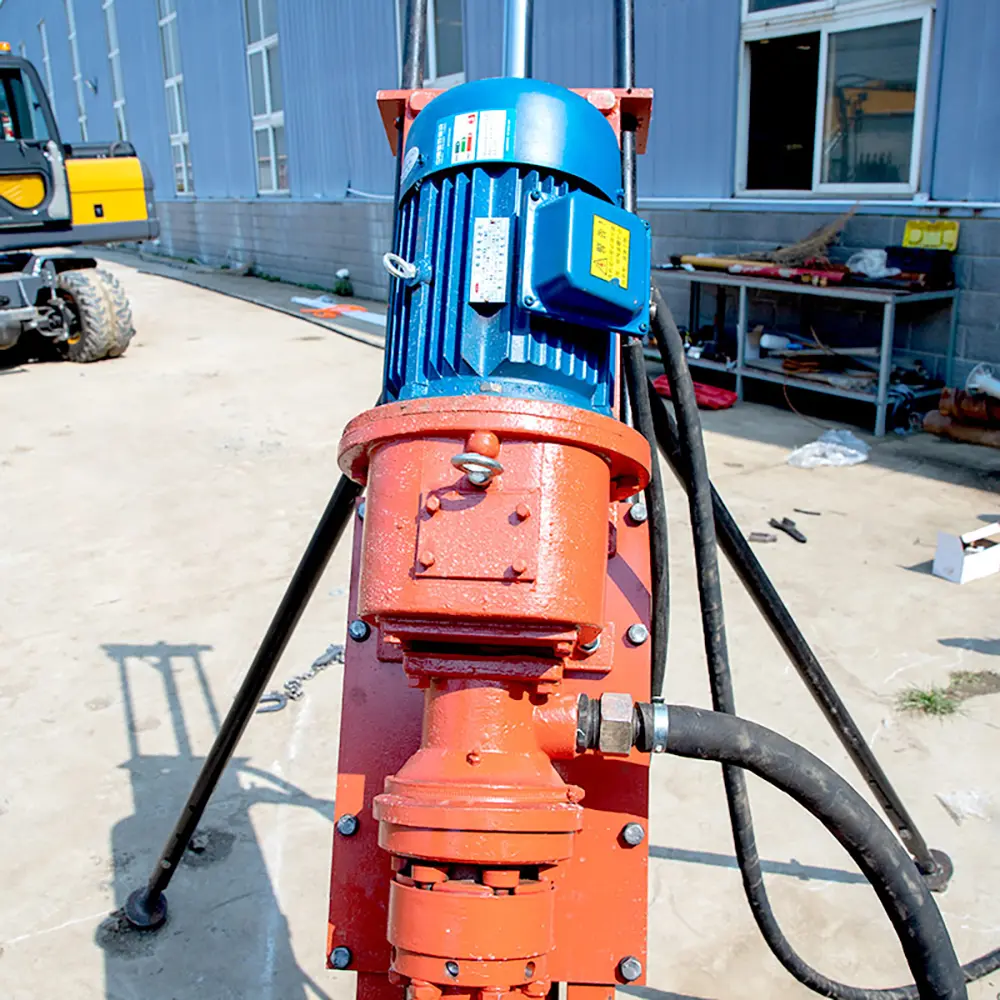

DXL-70 YQ Portable Type DTH Drilling Rig

Drilling depth:15-20m
Power:3kw
Dead load:98kg
The down-the-hole drill rig is indeed an impact rotary drill rig that operates differently from a conventional rock drill. Its internal structure features an independent gas distribution and piston reciprocating mechanism, known as the impactor. The impactor is directly connected to the drill bit at the front end and connected to the drill rod at the rear end.
During the rock drilling process, the impactor moves into the hole. Through the gas distribution device (valve), the piston (hammer body) inside the impactor reciprocates, delivering impacts to the bit shank. This action generates a rotational force on the drill bit, enabling it to effectively penetrate and impact the rock at the bottom of the hole. This impact rotary mechanism helps to enhance the drilling efficiency and overall performance of the down-the-hole drill rig.
Parameter:

Model	70D	70Q
Drilling depth	15-20m	15-20m
Drilling diameter	50-80mm	50-80mm
Drill pipe specifications	42mm	42mm
power	3kw	3kw
Host length size	1850mm	1850mm
use pressure	0.8Mpa	0.8Mpa
Air consumption	3.5m³/min	3.5m³/min
Machine weight	98KG	88KG
Hammer	70	70
drill	76	76

Indeed, due to the continuous advancements and progress in technology, there may be variations between the technical parameters and configurations provided and the actual product delivered. Manufacturers constantly strive to improve their products by incorporating the latest innovations and technologies. As a result, there may be updates and modifications to the technical specifications and configurations of the equipment to enhance its performance, efficiency, and reliability.


To ensure accurate information and up-to-date details, it is always recommended to consult with the manufacturer or authorized distributors for the most current technical parameters and configurations of the product. They can provide you with the latest information and assist you in selecting the appropriate equipment that meets your specific requirements.

DXL-70 YQ Portable Type DTH Drilling Rig
Compact Portable DTH Drilling Solution For Rock Excavation And Mining

The DXL-70 YQ Portable Type DTH Drilling Rig is a professional small-scale rock drilling machine developed for customers who need efficient drilling performance combined with excellent portability. Designed with advanced Down-The-Hole (DTH) drilling technology, this portable drilling rig provides reliable rock penetration, accurate hole formation, and convenient operation in various jobsite conditions.

Unlike large crawler-mounted drilling rigs, the DXL-70 YQ focuses on flexibility and mobility. Its lightweight structure allows easy transportation and quick installation, making it especially suitable for small mines, quarries, construction sites, and areas where large drilling equipment cannot easily access.

The machine uses compressed air-powered DTH impact technology. The impactor works close to the drill bit, transferring impact energy directly into the rock formation. This design reduces energy loss through the drill rod and improves drilling efficiency, especially in hard rock conditions.

With its compact size, reliable performance, and economical operation, the DXL-70 YQ Portable Type DTH Drilling Rig is an ideal choice for contractors, mining operators, and engineering companies requiring a practical rock drilling solution.

Portable Design Advantages

The DXL-70 YQ is designed for maximum mobility and operational flexibility.

Lightweight Structure

The compact design provides:

Easy transportation
Fast installation
Simple relocation
Reduced labor requirements
Lower transportation costs

The lightweight configuration makes it suitable for remote areas and difficult-to-access working locations.

Easy Operation

The simple mechanical structure allows operators to quickly learn and operate the machine.

Advantages include:

Simple controls
Low training requirements
Easy adjustment
Convenient maintenance
High equipment availability
Advanced DTH Drilling Technology

The DXL-70 YQ adopts proven Down-The-Hole drilling technology for efficient rock penetration.

Working Principle

Compressed air drives the internal hammer mechanism, causing the piston to repeatedly impact the drill bit. At the same time, the drill rod rotates, allowing the bit to continuously break fresh rock.

This impact-rotary drilling method provides:

High drilling efficiency
Strong rock-breaking ability
Stable hole quality
Reduced drilling deviation
Better energy utilization

Efficient Rock Drilling Performance

The DXL-70 YQ provides reliable drilling performance for small and medium drilling projects.

High Penetration Efficiency

The powerful impact system allows effective drilling in:

Granite
Limestone
Basalt
Hard rock formations
Quarry stone materials
Accurate Hole Formation

The stable drilling structure helps achieve:

Straight drilling holes
Consistent hole diameter
Improved blasting results
Reduced rework
Pneumatic Power System

The DXL-70 YQ uses a pneumatic power system to provide stable drilling performance.

Pneumatic Advantages
Simple structure
Reliable operation
Easy maintenance
Suitable for harsh environments
Long service life

Compressed air provides both impact power and drilling dust removal functions, improving drilling efficiency.

Compact Structure For Flexible Applications

The portable structure allows the DXL-70 YQ to work in areas with limited space.

Suitable environments include:

Small mines
Quarry benches
Mountain construction sites
Road projects
Slope treatment areas
Foundation engineering sites

Its compact design makes it an excellent alternative to larger drilling machines for small-scale projects.

Cost-Effective Drilling Equipment

The DXL-70 YQ provides economical drilling performance.

Cost Benefits
Lower Investment

The compact design reduces equipment purchasing costs.

Lower Transportation Expenses

Lightweight construction simplifies transportation.

Easy Maintenance

Simple components reduce maintenance costs.

Efficient Operation

Reliable drilling performance improves project productivity.

Applications Of DXL-70 YQ Portable Type DTH Drilling Rig
Small-Scale Mining

Used for:

Blast hole drilling
Rock excavation
Mineral extraction preparation
Quarry Operations

Suitable for:

Stone quarry drilling
Granite extraction
Limestone production
Aggregate preparation
Construction Projects

Used for:

Rock breaking
Foundation preparation
Excavation drilling
Slope Stabilization

Suitable for:

Anchor hole drilling
Slope reinforcement
Geological protection
Road Engineering

Used for:

Road cutting
Rock blasting
Infrastructure preparation
Technical Advantages Of DXL-70 YQ Portable Type DTH Drilling Rig
Excellent Portability

Lightweight structure allows easy movement between work locations.

Reliable Drilling Performance

DTH technology provides stable drilling in hard rock.

Simple Maintenance

Mechanical design makes servicing convenient.

Flexible Application

Suitable for various small and medium engineering projects.

High Cost Performance

Provides professional drilling capability at lower operating costs.

Why Choose Us
Professional Drilling Equipment Manufacturer

We specialize in DTH drilling rigs, rock drilling machines, mining equipment, and construction drilling solutions.

Strict Quality Control

Every drilling machine is inspected and tested before shipment.

Factory Direct Supply

Competitive factory pricing with reliable manufacturing quality.

OEM & ODM Customization

Customized solutions are available for:

Machine appearance
Technical configuration
Customer branding
Project requirements
Global Export Experience

Our drilling equipment serves customers in mining, construction, and engineering industries worldwide.

Reliable Spare Parts Supply

Fast spare parts support helps reduce downtime.

Professional After-Sales Service

We provide:

Installation guidance
Technical support
Operation training
Maintenance assistance
FAQs
1. What is the DXL-70 YQ Portable Type DTH Drilling Rig used for?

It is mainly used for mining, quarrying, rock blasting, slope stabilization, and construction drilling projects.

2. What does DTH mean?

DTH means Down-The-Hole drilling, where the hammer operates close to the drill bit for efficient rock breaking.

3. Is the DXL-70 YQ suitable for hard rock?

Yes. It is designed for drilling medium and hard rock formations.

4. What are the advantages of a portable DTH drill rig?

It provides easy transportation, flexible operation, lower cost, and convenient maintenance.

5. How deep can the DXL-70 YQ drill?

The drilling depth depends on geological conditions and configuration. Typical YQ70 models are designed for small-depth drilling applications.

6. What power source does the machine use?

The machine uses compressed air-powered pneumatic drilling technology.

7. Can it be used in remote areas?

Yes. Its lightweight and portable design make it suitable for remote job sites.

8. Is operation training required?

Basic operator training is sufficient due to its simple structure.

9. Can the machine be customized?

Yes. OEM customization options are available.

10. Do you provide spare parts and technical support?

Yes. Complete spare parts supply and professional technical support are available.
