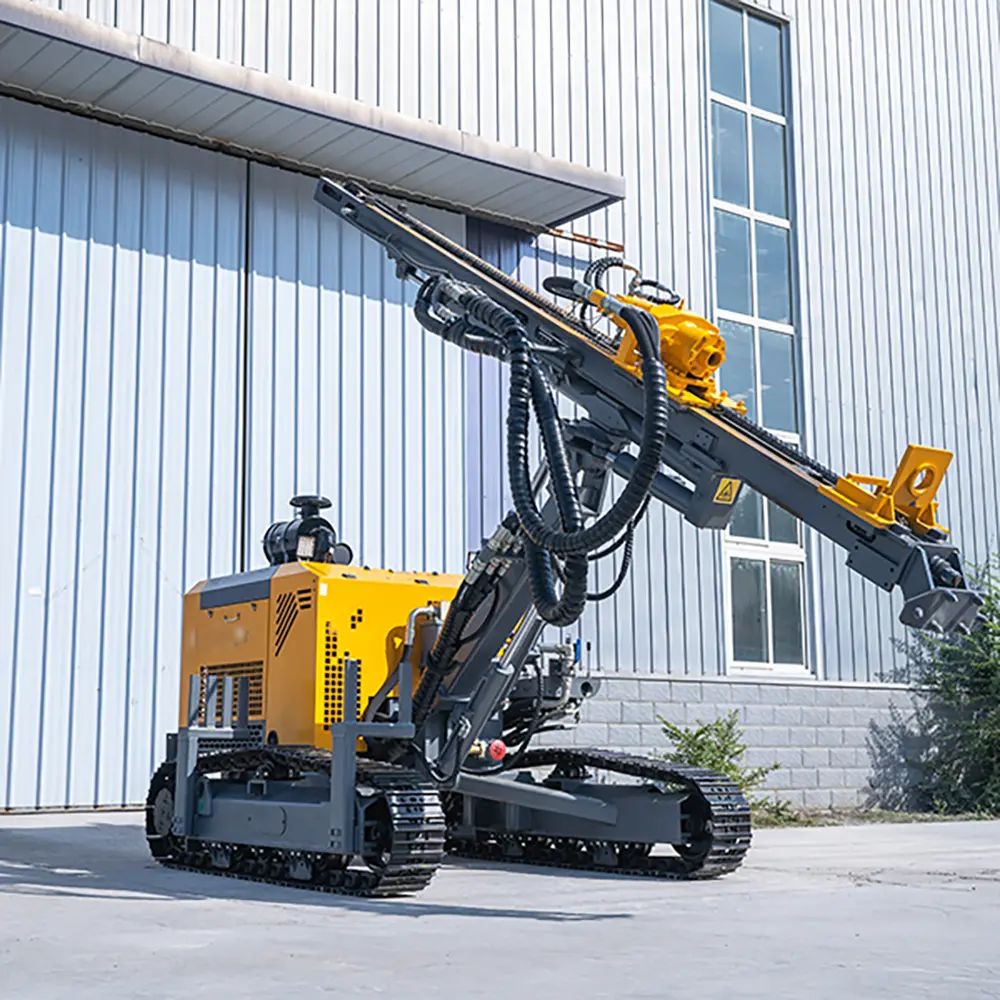

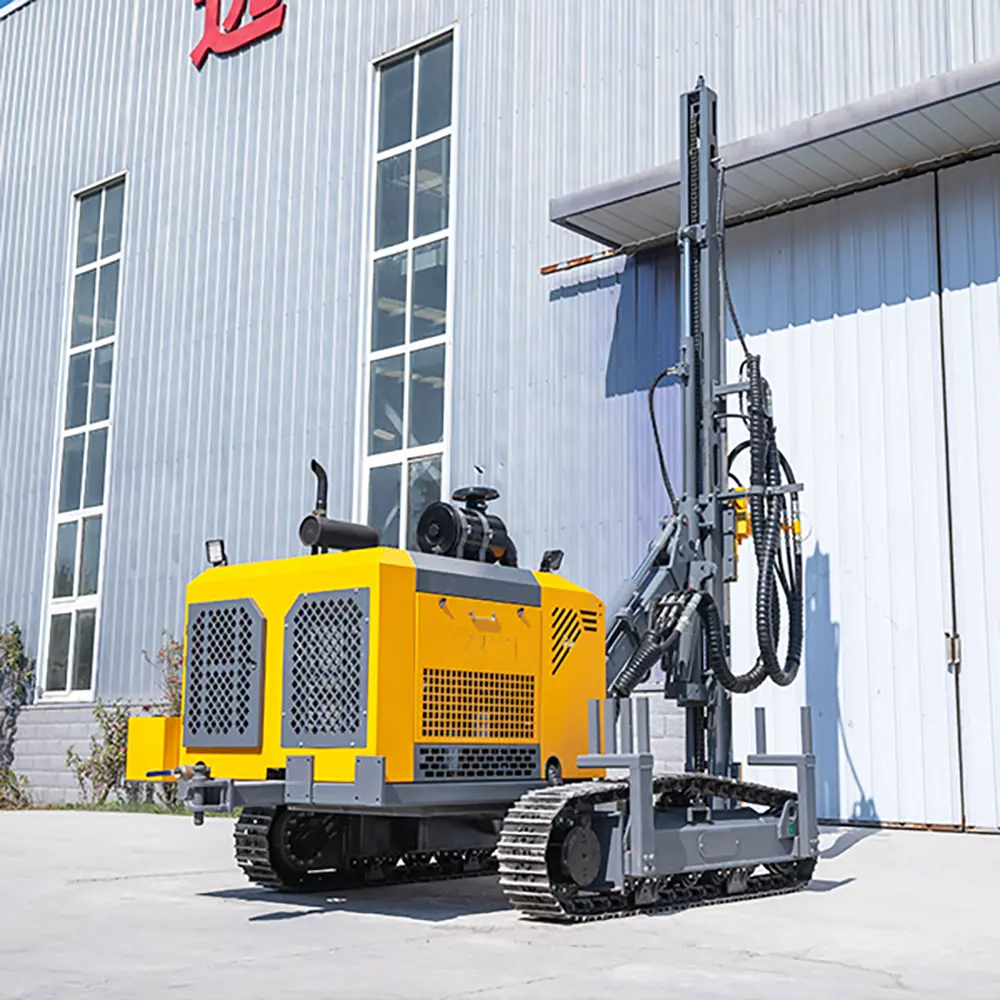

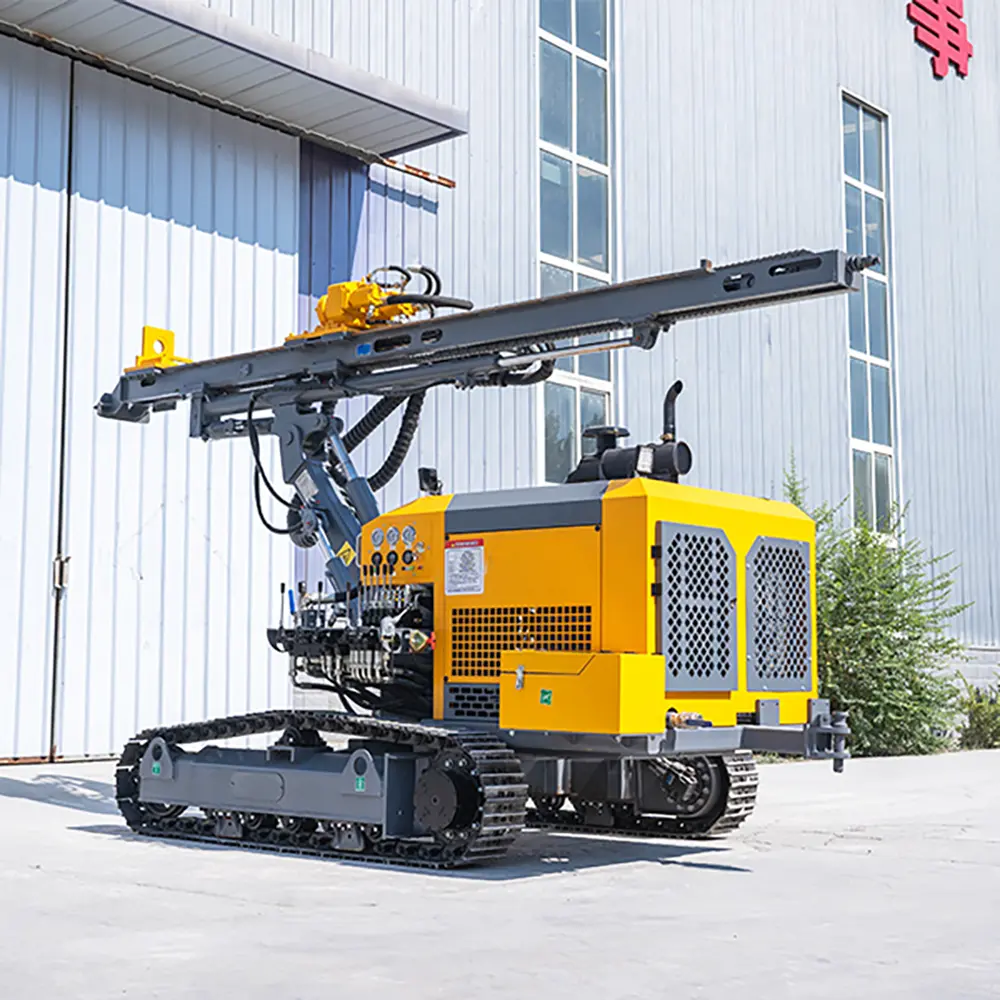

DXL916 Separated DTH Surface Drill Rig Technical Parameters

DXL916 Separated DTH Surface Drill Rig is a high-performance hydraulic drilling machine designed for open-pit mining, quarrying, road construction, and rock blasting. Featuring powerful drilling performance, excellent mobility, efficient dust collecti.

Rated Power: 78Kw
Drill Diameter: 90-100 mm
Weight: 4800 kg
model 916 916-1

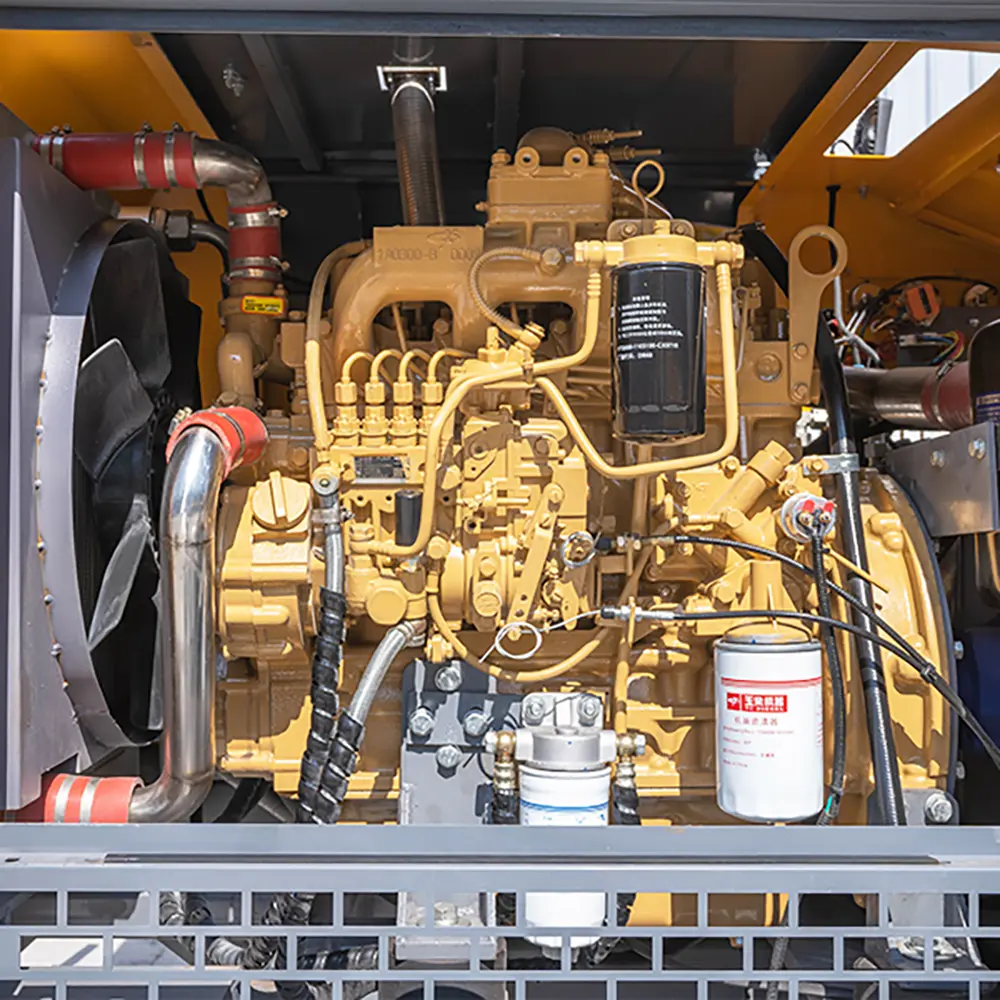

engine Yuchai YCD4T22T-105A Yuchai  YCD4T22T-105A
power(KW) 78 78
Drill pipe type(mm) φ60*3000 φ60*3000
Drilling diameter(mm) φ90-100 φ90-100
Maximum working torque(N.m) 2400 2400
Swing speed(rpm) 0-150 0-150
Propulsion(kN) 15 15
Lifting power(kN) 25 25

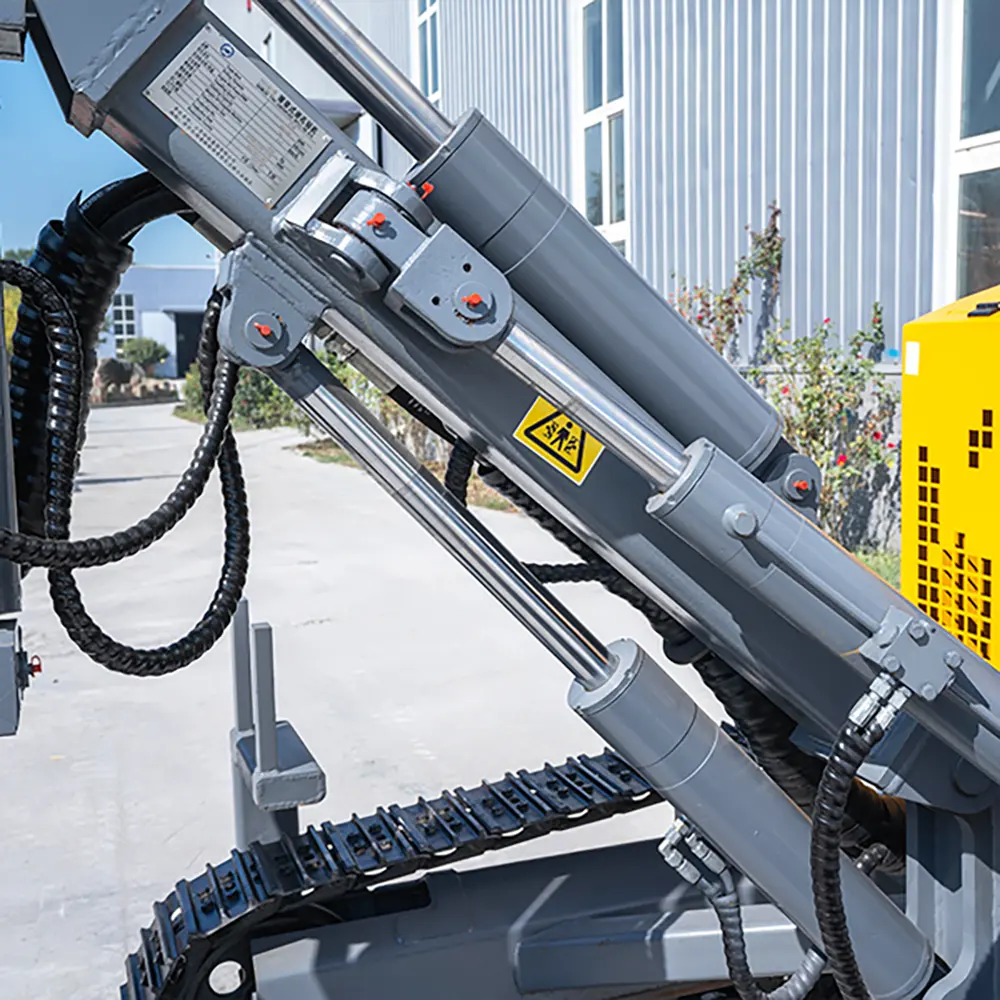

Propulsion method oil cylinder chain oil cylinder chain
Walking speed(km/h) 2 3
Gradeability 30° 30°
gross weight(kg) 4800 4800
Shipping dimensions(mm) 5700*2100*2600 5700*2100*2600
Dust collection method detachable Dry dust collection


DTH drilling rigs are a new generation of drilling rigs designed for small and medium-sized quarries and contractors.
The rig body is perfectly matched to the DTH bit, giving the rig unique productivity and keeping fuel consumption and operating costs to a minimum.


Main feature:
1. It is designed for drilling 90-127mm.
2. Diesel powered down-the-hole (DTH) rigs have excellent maneuverability, smaller footprint and the ability to serve multiple locations.
3. HW-916 is a trusted machine for mining and construction companies and contractors engaged in presplitting and conventional production blasthole drilling.


Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.

High-Efficiency Surface Drilling Equipment For Mining And Quarry Applications

The DXL916 Separated DTH Surface Drill Rig is a next-generation hydraulic drilling machine developed for professional surface drilling operations. Designed to maximize productivity while minimizing operating costs, this rig combines advanced Down-The-Hole drilling technology, rugged crawler mobility, intelligent hydraulic controls, and durable structural components into one reliable drilling platform.

Surface mining and infrastructure projects demand drilling equipment capable of producing accurate blast holes with consistent performance. The DXL916 is specifically engineered to meet these requirements, delivering high penetration rates, excellent hole quality, and dependable operation even in harsh environments.

Unlike integrated drilling rigs, the separated configuration allows the drilling rig and air compressor to operate independently. This design offers greater flexibility for transportation, easier maintenance, lower ownership costs, and the ability to select compressors based on project requirements. Separated DTH rigs are widely used by contractors handling multiple job sites because of their adaptability and cost efficiency.

Whether working in granite quarries, limestone mines, open-pit mining operations, road construction, railway projects, hydropower developments, or large-scale infrastructure construction, the DXL916 delivers reliable drilling performance throughout continuous heavy-duty operation.


Prev:DXL910 Separated DTH Surface Drill Rig
Next:DXL920 Separated DTH Surface Drill Rig
TAG: Rock Drilling Equipment, Rock Drilling Machine, Mining Drill Rig, Open Pit Mining Drill, Mining Drilling Equipment, Quarry Drilling Machine, Hydraulic Rock Drill, Construction Drilling Rig, Crawler Mounted Drill Rig, Mining Machinery, Separated DTH Drill Rig, DTH Surface Drill Rig, Down The Hole Drill Rig, Surface Drill Rig, Blast Hole Drill Rig, Crawler Drill Rig, Hydraulic DTH Drill, Quarry Drill Rig, Rock Blasting Drill, Surface Mining Equipment, Rock Excavation Drill, Hard Rock Drill Rig,
Related Category:
Separated DTH Surface Drill Rig,DTH Surface Drill Rig,Down The Hole Drill Rig China, suppliers, manufacturers, factory, customized, wholesale, quotation, made in China
Related Products

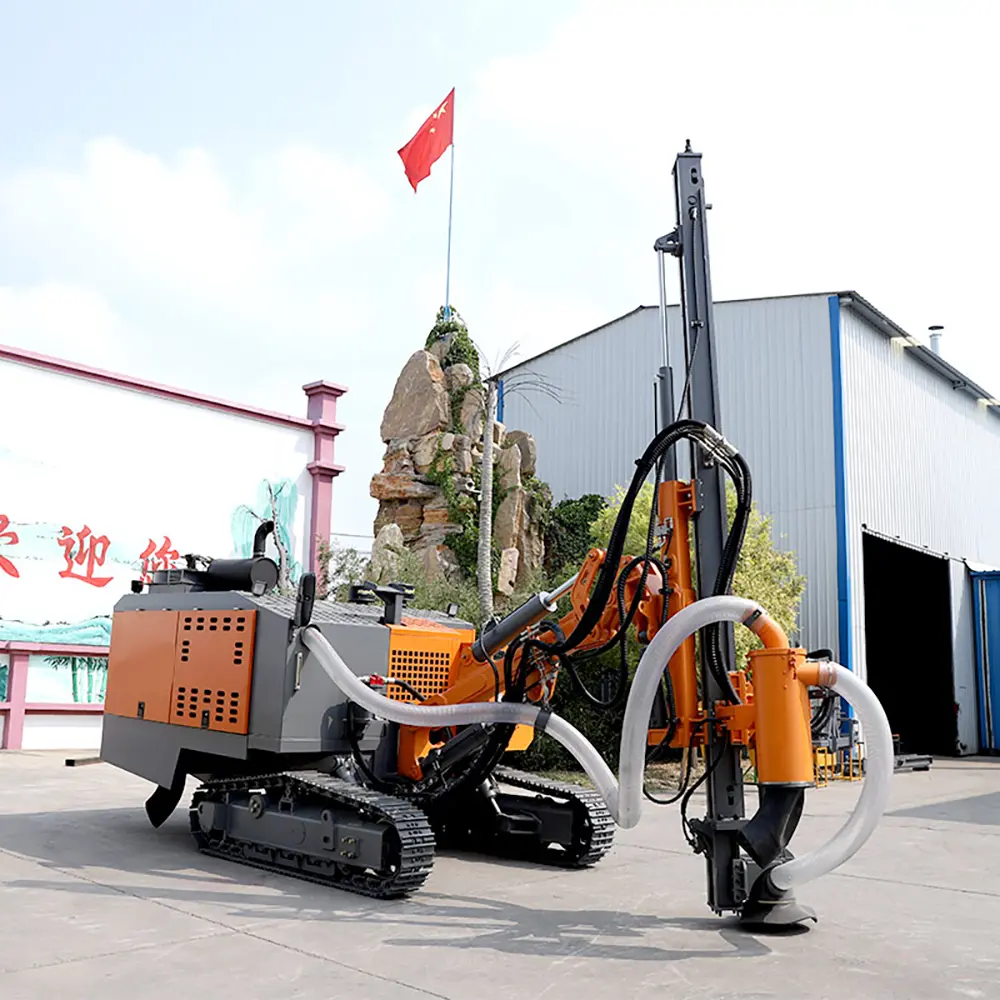

DXL938 Integrated DTH Surface Drill Rig
DXL938 Integrated DTH Surface Drill Rig

DXL938 Integrated DTH Surface Drill Rig is a powerful hydraulic drilling machine designed for mining, quarrying, and rock blasting applications. it delivers high efficiency, accurate drilling, and reliable operation in harsh environments....

UP45 Underground Crawler Mounted DTH Drill Rig
UP45 Underground Crawler Mounted DTH Drill Rig

UP45 Underground Crawler Mounted DTH Drill Rig is a compact and efficient hydraulic drilling machine designed for underground mining, tunneling, anchoring, and rock excavation applications. Featuring crawler mobility, dual hydraulic rotary motors, pow...

DXL920 Separated DTH Surface Drill Rig
DXL920 Separated DTH Surface Drill Rig

DXL920 Separated DTH Surface Drill Rig is a high-performance hydraulic drilling machine designed for open-pit mining, quarrying, road construction, and rock blasting projects. Equipped with advanced DTH drilling technology...

DXL452H DTH Surface Drill Rig
DXL452H DTH Surface Drill Rig

DXL452H DTH Surface Drill Rig is a powerful hydraulic crawler-mounted drilling machine designed for open-pit mining, quarrying, and rock blasting applications. Featuring advanced DTH drilling technology...

DXL910 Separated DTH Surface Drill Rig
DXL910 Separated DTH Surface Drill Rig

DXL910 Separated DTH Surface Drill Rig is a powerful down-the-hole drilling machine designed for mining, quarrying, road construction, and blasting operations. Featuring high drilling efficiency, reliable hydraulic systems, excellent mobility, and low...

DXL200 Excavator Mounted DTH Drilling Rig
DXL200 Excavator Mounted DTH Drilling Rig

DXL200 Excavator Mounted DTH Drilling Rig is an efficient and flexible rock drilling solution that transforms standard excavators into professional drilling machines. Featuring a hydraulic DTH drilling system, excavator-mounted design...

DXL925 Separated DTH Surface Drill Rig
DXL925 Separated DTH Surface Drill Rig

DXL920 Separated DTH Surface Drill Rig is a high-performance hydraulic drilling machine designed for open-pit mining, quarrying, road construction, and rock blasting projects. Equipped with advanced DTH drilling technology...

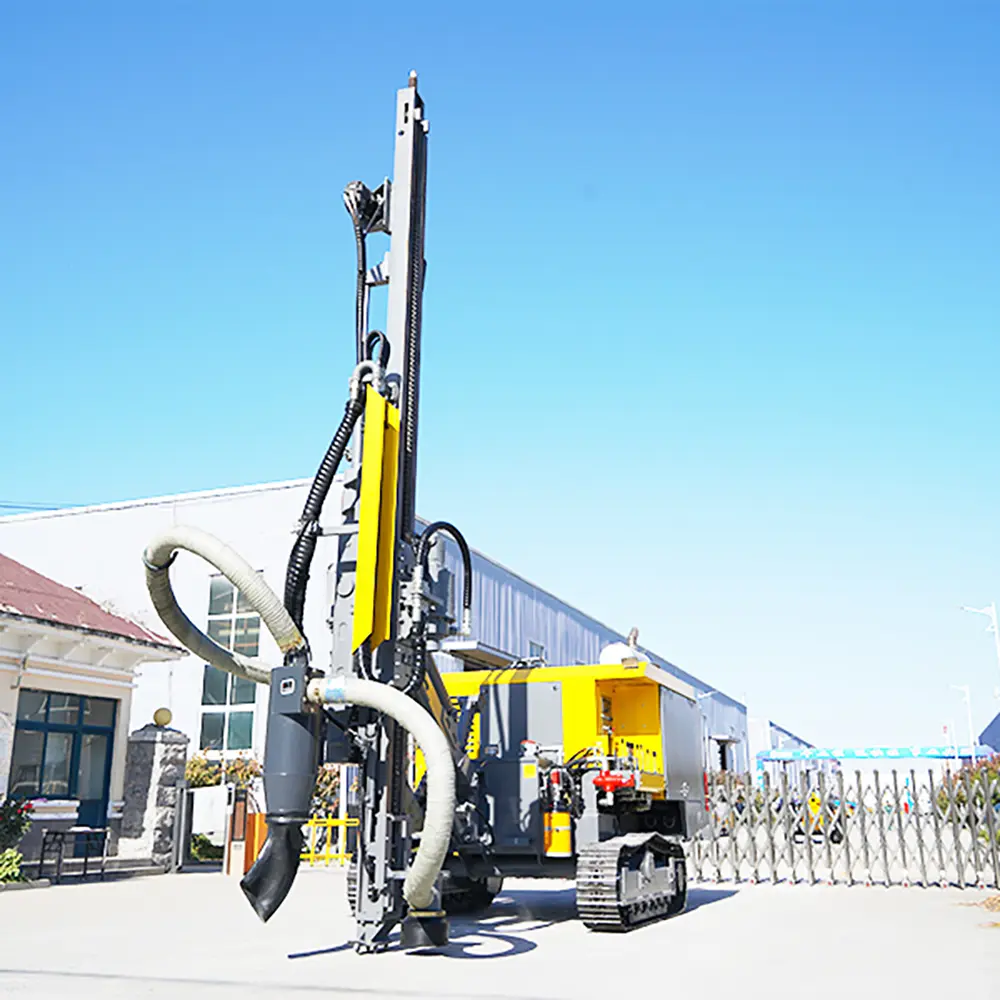

DXL936 Integrated DTH Surface Drill Rig
