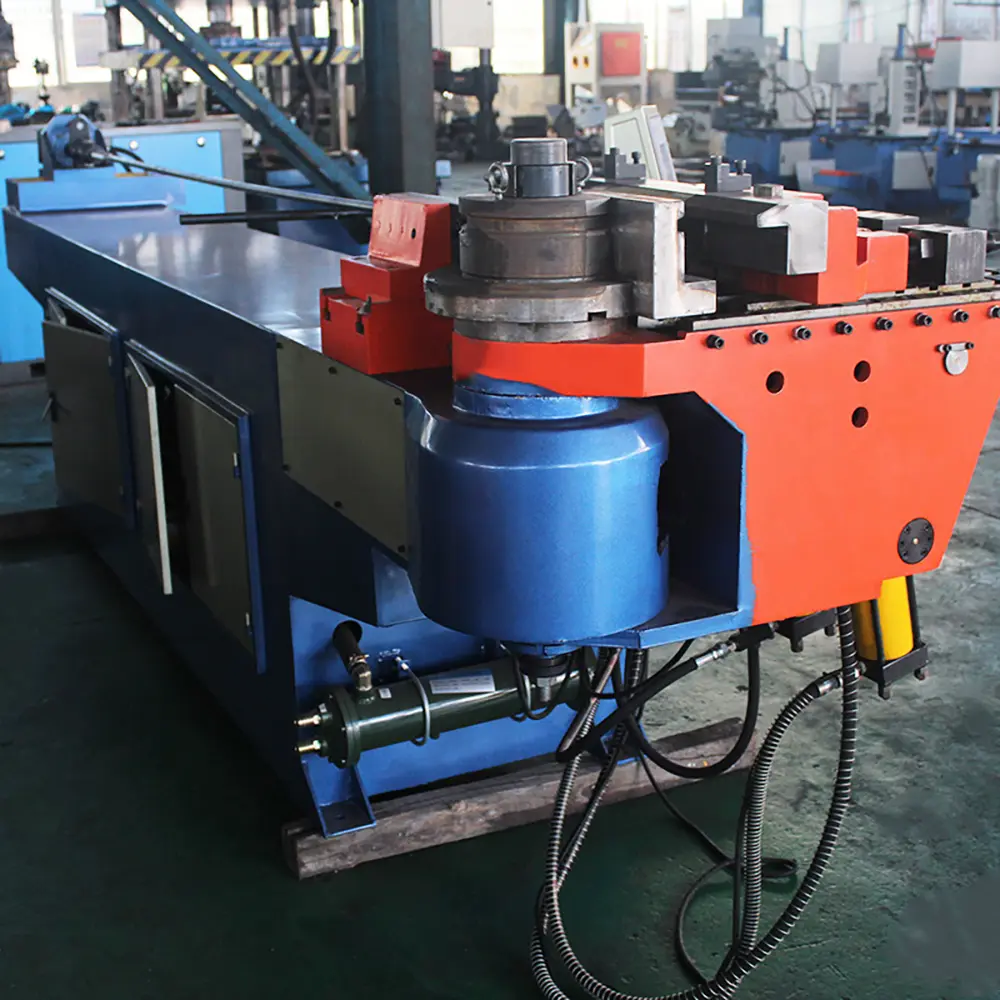

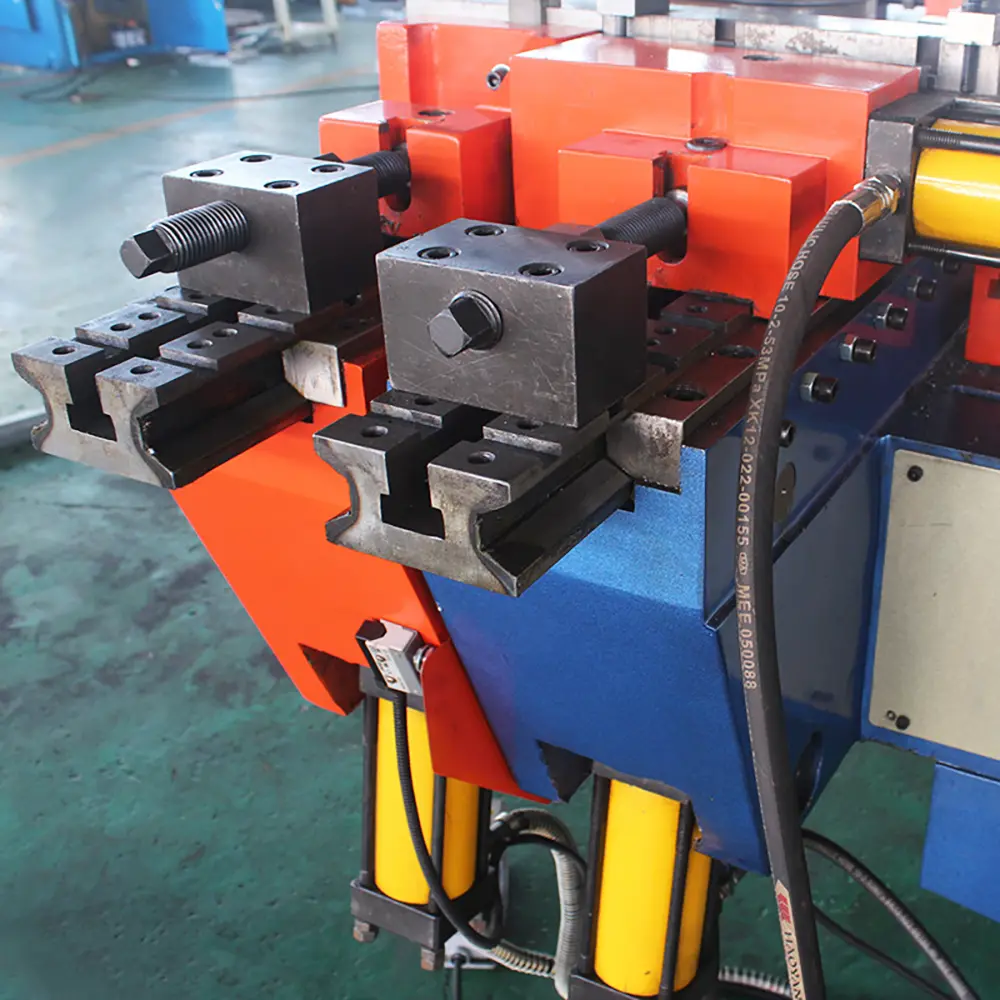

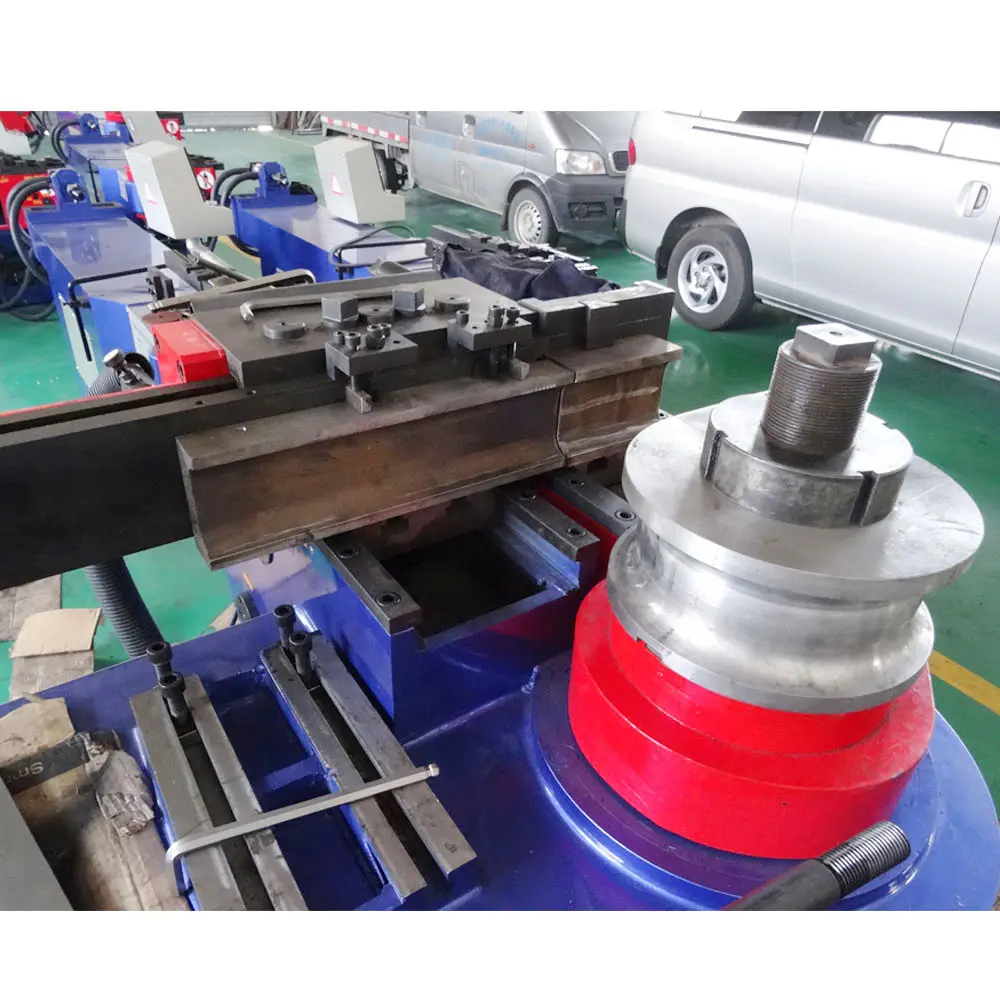

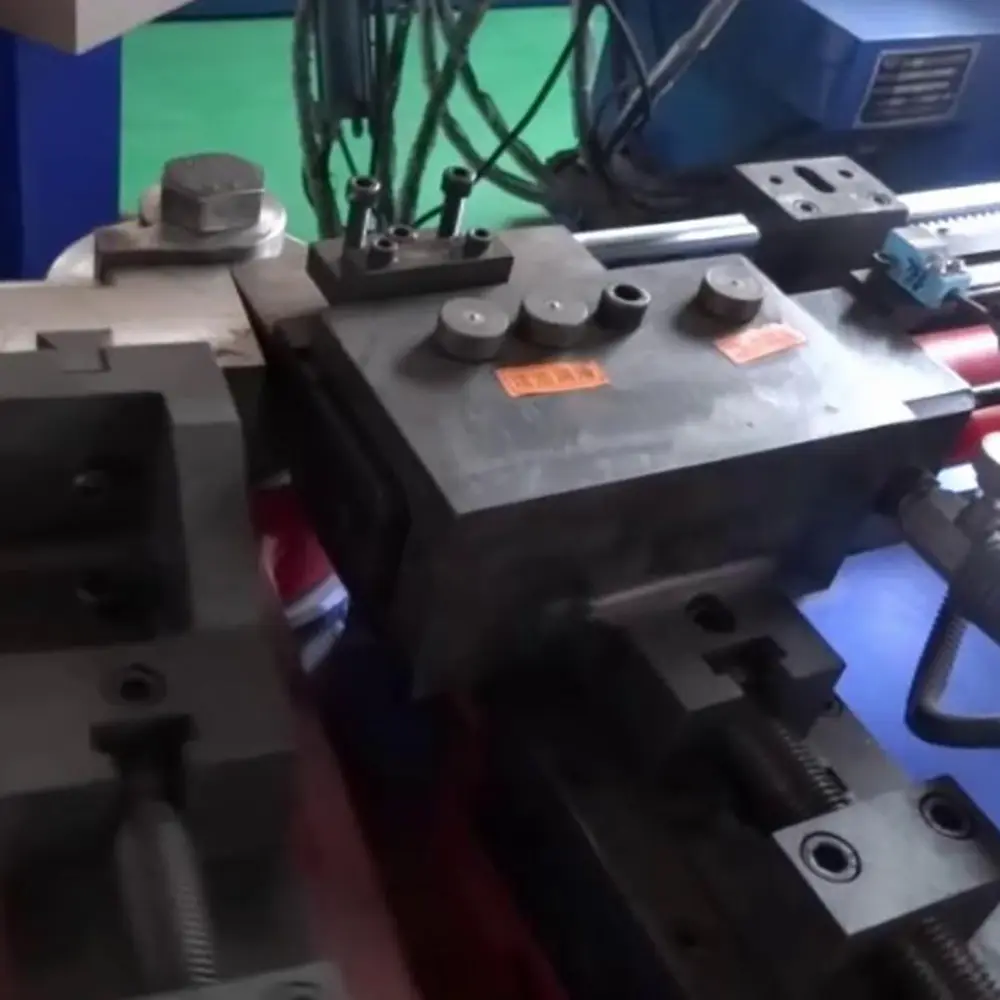

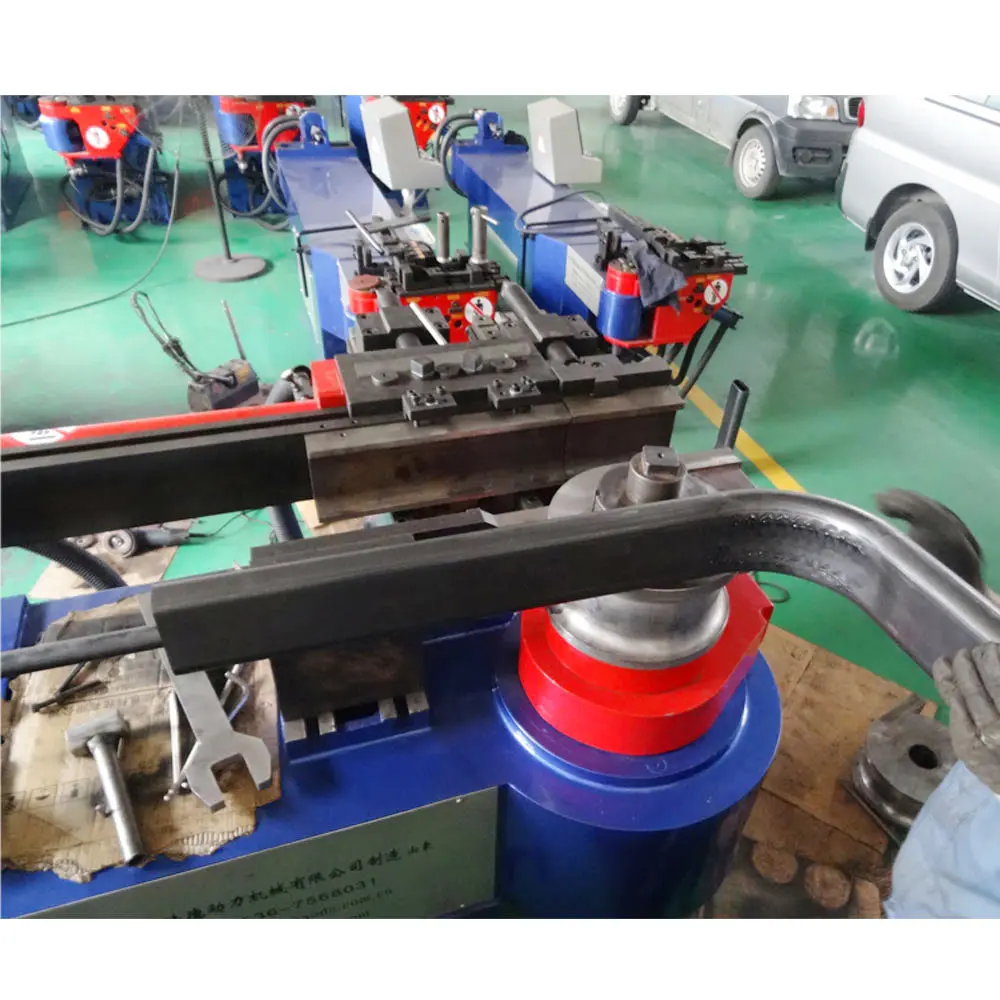

DW130CNC Hydraulic Pipe Bending Machine Technical Parameters

Model (DW) DW 130 CNC Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 13068 o round (SS) 10867 square 909085 angle steel 9065 rectangle 6012065 ●rod 080 square rod 7070 max length of through mandrel(m) 1.7 Max R for bending(mm) R25-R200.

Model (DW) DW 130 CNC
Max. Bending Capacity(mm)(diameter)(thickness) o round (MS) 130×68
o round (SS) 108×67
square 90×90×85
angle steel 90×65
rectangle 60×120×65
●rod 080
square rod 70×70
max length of through mandrel(m) 1.7
Max R for bending(mm) R25-R200
Max bending angle 220°
Bending precession ±0.1°
Bending speed 70°/sec
Total power (Kw) 4.0
lowest operating oil-level (L) 140
Overall size (LxWxH) (m³) 2.6×0.7×1
Weight(KG) 1000
Bending method hydraulic
Operating mode manual, semi auto (button, touch screen, footswitch)
Feeding, rotate , adjust angle manual
cooling method air or water cold
Maximum number of storedbending programs 200
Max number of elbow pipe eachprogram 20
Standard Oil pressure (KP) 16
Max oil temperatureallowed(℃) 60
Bending shape Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel,angle steel, I-steel and flat steel, etc
Adapted material steel pipe, stainless steel, copper pipe, aluminum pipe, and multiple-unit tube
