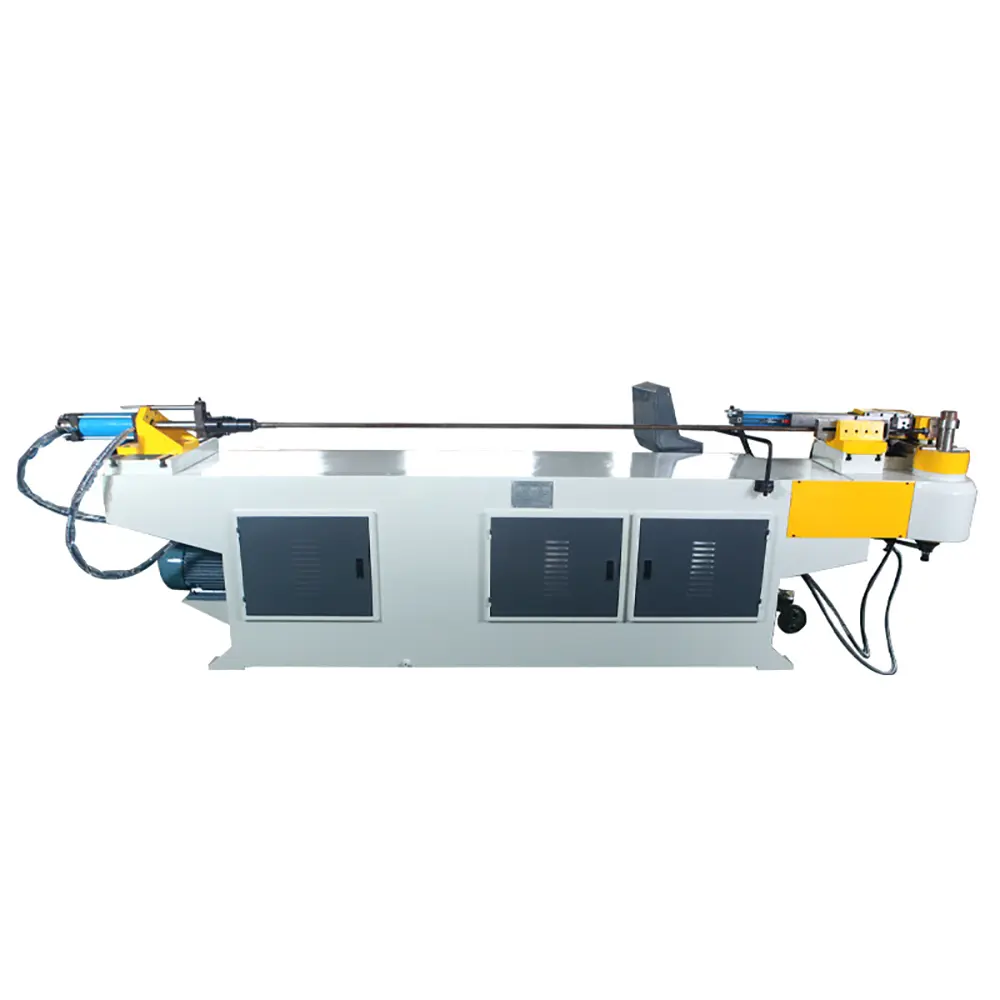

DW120NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

Model DW120NC Max. Bending Capacity ○ round MS:1338mm;SS: 1207mm □ Square 90905mm ┗ angle steel 90 mm ▭ rectangle 60120mm ● rod 80mm ■ Square rod 7070mm Bending method Hydraulic Operate mode Manual, semi auto, Feeding, rotate and adjust a.

Model    DW120NC



Max. Bending Capacity
○ round MS:φ133×8mm;SS: φ120×7mm
□ Square 90×90×5mm
┗ angle steel 90 mm
▭   rectangle 60×120mm
● rod Φ80mm
■ Square rod 70×70mm
Bending method Hydraulic
Operate mode Manual, semi auto,
Feeding, rotate and adjust angle automatic
driving axle rack
Fit to Shapes Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language Chinese, English, Spanish, Russian, or as requirement
Max Length of bending pipe Unlimited
Feeding speed    1.1 m/sec
Feeding precession    ±0.1
Max R for bending R50-R450mm
Max angle for bending 190°
Bending precession ±0.1°
Bending speed 30°/sec
Angle precision ±0.1°
Power for motor 17Kw
Oil Tank Capacity    260 KG
Max oil temperature 60°
cooling method Air or water cold
operating mode button and touch screen
Maximum number of stored bending programs 200 sets
Max number of elbow pipe each program    16 sets
Overall size (L×W×H) 6.5×1.1×1.4 m
Weight    5600kg
