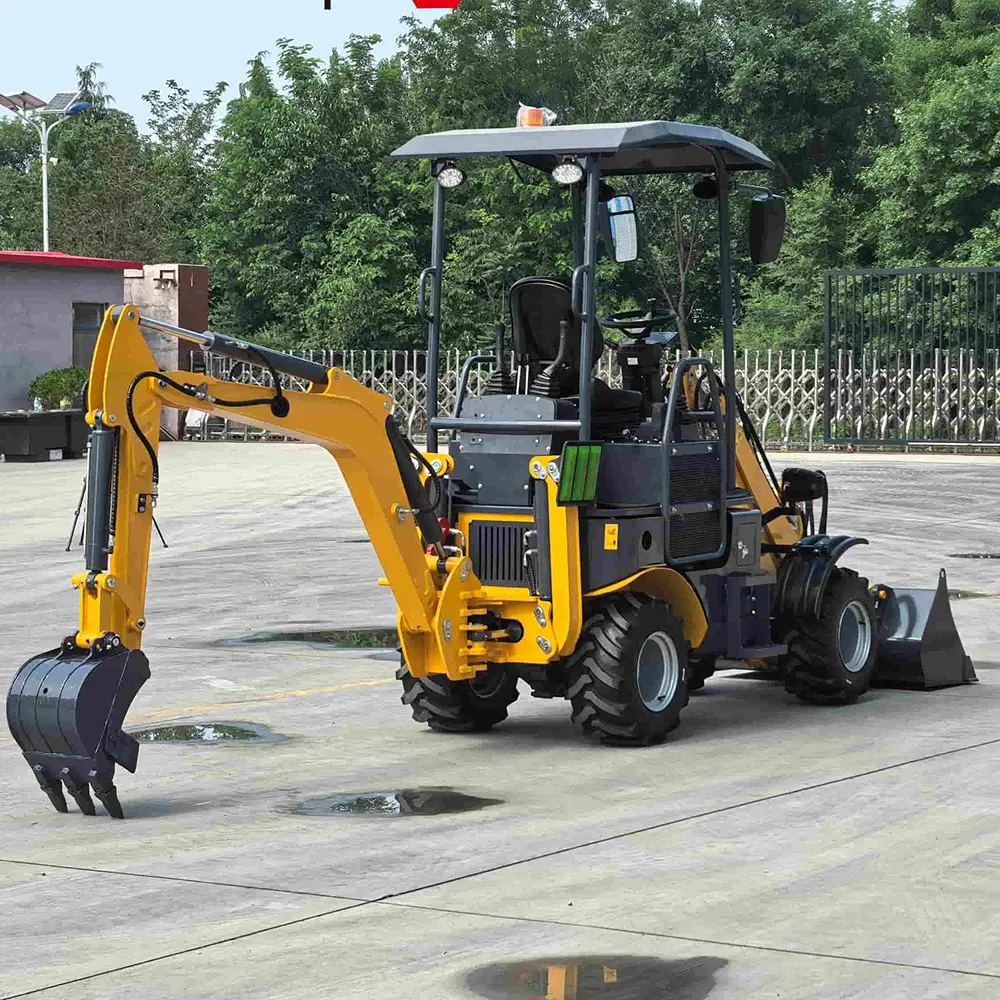

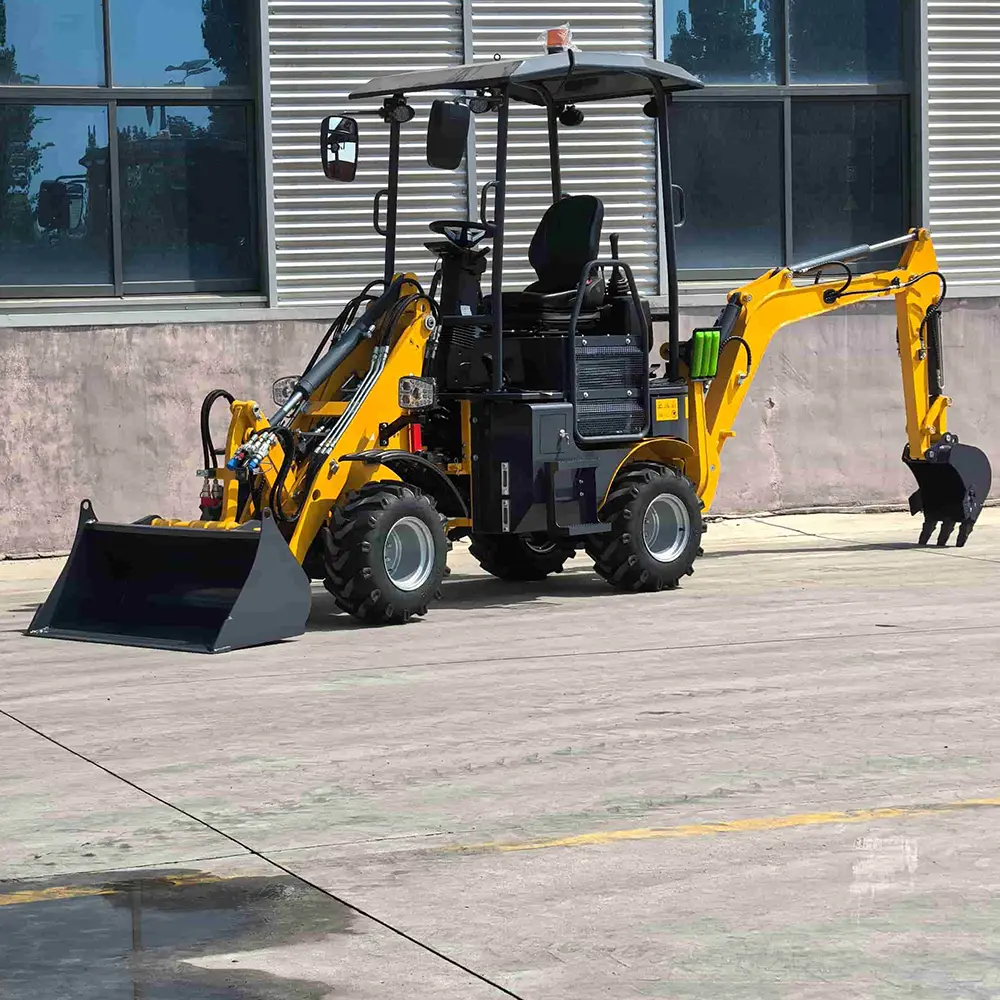

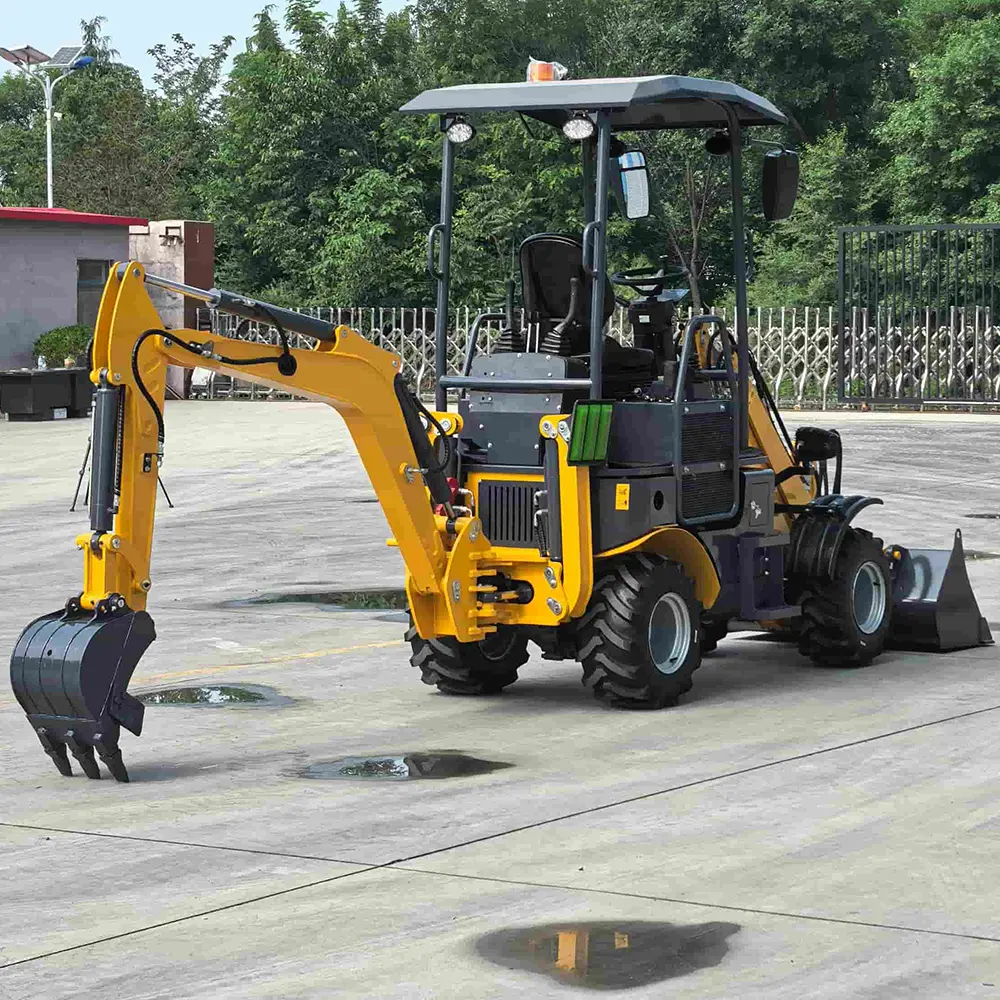

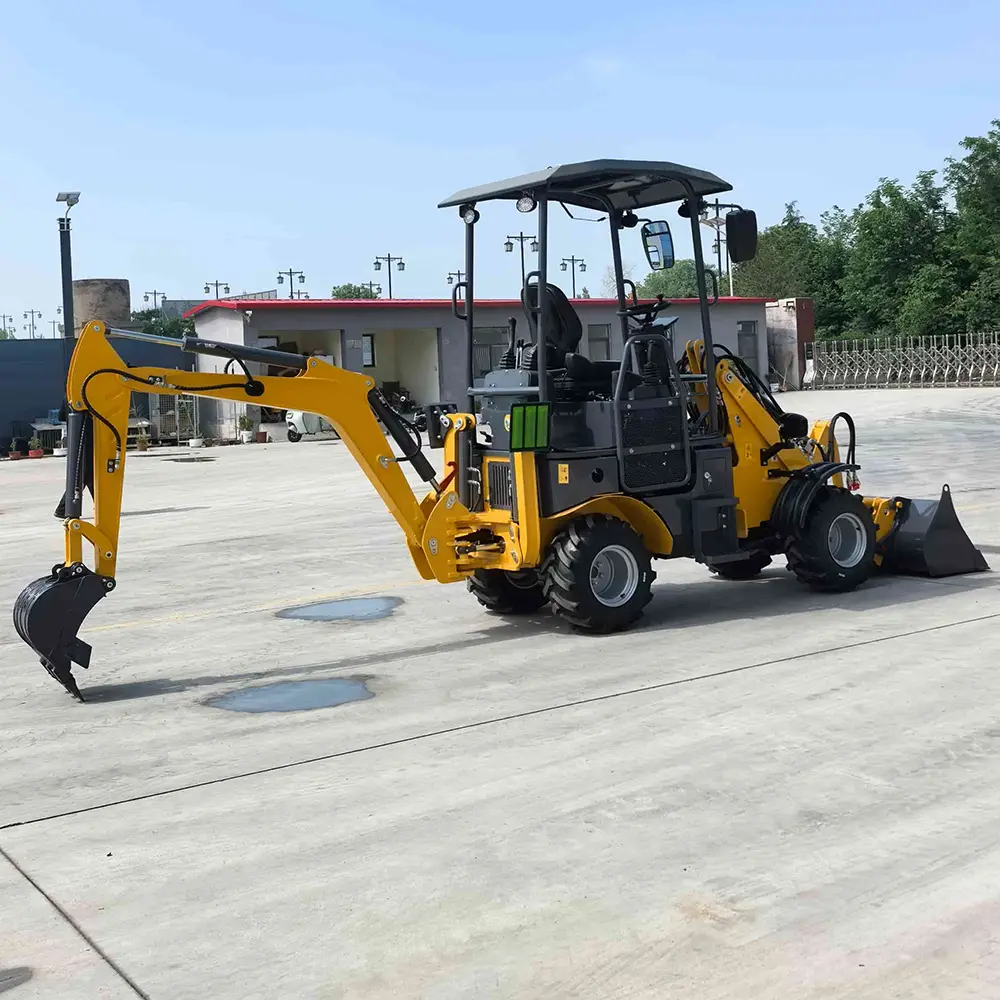

Compact BL750 Backhoe Loader

Compact BL750 Backhoe Loader | Powerful Mini Tractor Loader Backhoe For Construction And Farming

The HZM BL750 small backhoe loader is a compact, flexible and multi-functional machine. It is widely used for municipal maintenance, garden renovation, rural construction and other narrow-site light-duty projects, offering great cost performance for users.

1. Lightweight & High Working Capacity

2. Reliable Hydrostatic Driving System

3. Euro 5 Perkins Engine, Energy-saving & Eco-friendly

4. Electric Control Joystick, Easy Operation

5. Wide & Large Tires for Strong Site Adaptability

6. Quick Hitch & All-weather Working Design

Product Specifications

	LOADER
		Unit	Value
1	Max.Travel Speed	km/h	9.2
2	Wheelbase	mm	1800
3	Rear Overhang Angle	0	26.5
	Hydraulic System
		Unit	Value
1	Pump Type		Axial Piston Pump
2	Pressure	bar	210
3	Flow Rate	L/min	42
4	Hydraulic Oil Capacity	L	100
DVERALL DIMENSIONS
		STANDARD BUCKET
1	operating Weight(Kg)	2220
2	Bucket  Capacity(m³)	0.27
3	Max.Digging Depth (mm)	2500
ENGINE
1	Model	Perkins 403J-11
2	Displacemen	1.13L
3	Power	18.4KW
4	Speed	2800 rpm
Fuel System
		Unit	Value
1	Fuel Tank Capacity	L	100
Dimensions
A	Overall Length	mm	4950
B	Width (by Bucket)	mm	1550
F	Width (by Wheel Track)	mm	1500
C	Overall Height	mm	2667
D	Seat Height	mm	1360
F	Rear Overhang Angle	。	26.5
G	Front Overhang Angle	。	46.5
	Ground Clearance
Working Ranges
	Description	Unit	Value
R1	Boom Swing Angle		88+88
Q	Max.Digging Depth	mm	2500
P	Max.Digging Height	mm	3340
I	Loader Max.Discharge Height	mm	2520
R5	Min.Inside Turning Radius	mm	2000
N	Digging Depth Below Grade (with Loader Bucket Level	mm	160

HZM BL750 Small Backhoe Loader Introduction

The new HZM BL750 small backhoe loader features outstanding overall performance with great advantages. It adopts a lightweight design of only 3120kg, equipped with a 600kg rated front load and 0.3m³ bucket capacity, ensuring flexible movement and efficient working ability in narrow sites. Built with a hydrostatic driving system, the machine runs smoothly with sensitive and precise operation. It is standard fitted with a Euro 5 Perkins 18.4KW engine, delivering stable power, low fuel consumption and eco-friendly performance. The electric control joystick enables simple, labor-saving and accurate operation. Upgraded 26*12.00-12 wider and larger tires provide strong grip and excellent adaptability on various rough roads. Standard quick hitch, original bucket and backhoe realize multi-function operation, while matched LED lights support reliable all-weather construction.

Compact BL750 Backhoe Loader
Versatile Compact Tractor Loader Backhoe For Professional Applications

The Compact BL750 Backhoe Loader is a high-performance multi-purpose machine designed to provide powerful excavation and loading capabilities in a compact package. Combining the functions of a front-end loader and a rear hydraulic backhoe, the BL750 offers an efficient solution for construction, agriculture, landscaping, municipal projects, and property maintenance.

Compact backhoe loaders are becoming increasingly popular for projects requiring strong performance in limited spaces. Machines in this category combine digging and loading capability while maintaining excellent maneuverability, making them suitable for urban construction, farm operations, utility installation, and maintenance work.

The Compact BL750 Backhoe Loader provides operators with the flexibility of two machines in one. The front loader handles material movement while the rear excavator performs digging and trenching operations, helping users reduce equipment costs and improve job efficiency.

Two Machines In One Efficient Solution

The main advantage of the Compact BL750 Backhoe Loader is its ability to complete multiple tasks with a single machine.

Front Loader Applications

The front bucket is designed for:

Loading soil
Moving sand and gravel
Handling construction materials
Site cleanup
Snow removal
Landscaping preparation
Material stacking

The loader function provides excellent productivity for transportation and handling tasks.

Rear Backhoe Applications

The rear hydraulic excavator is suitable for:

Trenching
Foundation excavation
Drainage installation
Pipeline projects
Cable laying
Earth digging
Ground preparation

This combination allows operators to switch quickly between loading and excavation tasks.

Compact Design With Strong Performance

The BL750 is designed for projects where large machines cannot operate efficiently.

Compact Advantages
Easy access to narrow job sites
Excellent maneuverability
Lower transportation requirements
Flexible operation around buildings
Reduced ground impact
Suitable for residential and commercial projects

Its compact structure allows operators to work effectively in restricted areas while maintaining professional earthmoving performance.

Powerful Hydraulic System

The hydraulic system provides the power required for demanding operations.

Hydraulic Performance Benefits
Strong digging force
Smooth attachment control
Fast working cycles
Reliable lifting performance
Efficient energy transfer
Reduced operator fatigue

A reliable hydraulic system ensures stable performance during excavation, loading, and material handling.

4WD Capability For Multiple Terrains

The Compact BL750 Backhoe Loader is designed for excellent mobility.

Four Wheel Drive Benefits
Improved traction
Better stability
Strong climbing capability
Suitable for muddy conditions
Reliable outdoor performance
Increased job site flexibility

The machine can operate effectively on farms, construction sites, gravel roads, and uneven terrain.

Construction Applications

The Compact BL750 Backhoe Loader is ideal for various construction tasks.

Construction Uses
Building foundation digging
Road maintenance
Trenching projects
Site preparation
Material transportation
Construction cleanup

Its compact size makes it especially suitable for small and medium construction projects.

Agricultural Applications

The BL750 provides valuable support for agricultural operations.

Farm Applications
Land preparation
Irrigation trenching
Farm road construction
Drainage work
Material handling
Agricultural infrastructure projects

Farm owners can complete multiple maintenance tasks without investing in several machines.

Landscaping And Property Maintenance

The Compact BL750 is highly suitable for landscaping professionals.

Landscaping Uses
Garden excavation
Soil movement
Tree planting preparation
Rock handling
Park maintenance
Residential landscaping

Its compact dimensions allow operation in gardens and areas with limited access.

Utility And Municipal Applications

The BL750 is suitable for utility contractors and public works.

Utility Uses
Pipeline installation
Cable trenching
Drainage construction
Underground service preparation
Roadside maintenance
Small infrastructure projects

The machine provides efficient digging capability for various utility operations.

Durable Heavy Duty Construction

The Compact BL750 Backhoe Loader is manufactured for long-term reliability.

Structural Features
Reinforced frame
Heavy-duty loader arms
Strong excavator boom
Durable hydraulic components
Reliable drivetrain
Long service life

The strong construction allows continuous operation in demanding environments.

Attachment Compatibility

The BL750 can work with different attachments to increase versatility.

Compatible Attachments
Standard loader bucket
Hydraulic breaker
Auger attachment
Pallet fork
Grapple attachment
Snow blade
Quick hitch attachments

Additional attachments allow the machine to handle more applications throughout the year.

Operator Comfort And Easy Control

The Compact BL750 Backhoe Loader is designed for efficient operation.

Operator Benefits
Comfortable working position
Good visibility
Simple control layout
Easy attachment operation
Reduced vibration
Improved productivity

A comfortable operator can complete longer projects with less fatigue.

Cost Effective Compact Construction Equipment

The BL750 provides excellent value for professional users.

Economic Advantages
Lower equipment investment
Multi-purpose capability
Reduced operating costs
Less equipment required
Easy maintenance
Long working lifespan

One compact backhoe loader can replace multiple specialized machines.

Wide Range Of Applications

The Compact BL750 Backhoe Loader is suitable for:

Construction contractors
Farmers
Landscaping companies
Utility companies
Municipal projects
Property maintenance businesses
Equipment rental companies

Its versatility makes it a valuable investment for different industries.

Why Choose Us
Professional Machinery Manufacturer

We specialize in manufacturing reliable construction equipment, agricultural machinery, and compact earthmoving solutions.

Strict Quality Control

Every Compact BL750 Backhoe Loader is inspected to ensure performance and durability.

Factory Direct Supply

Competitive pricing with stable product quality.

Customized Solutions

Different configurations, attachments, and specifications are available according to customer requirements.

Advanced Manufacturing Technology

Modern production processes ensure machine reliability and precision.

Global Export Experience

Our machinery is supplied to customers worldwide.

Fast Production And Delivery

Efficient manufacturing supports reliable delivery schedules.

Complete Technical Support

Professional installation guidance and after-sales service are provided.

Durable Equipment Quality

Machines are designed for construction, farming, landscaping, and industrial applications.

Long-Term Customer Partnership

We focus on providing dependable equipment solutions and professional service.

FAQs
Q1: What is the Compact BL750 Backhoe Loader?

A: The Compact BL750 Backhoe Loader is a multi-purpose machine combining a front loader and rear hydraulic excavator for digging and loading operations.

Q2: What applications can the BL750 handle?

A: It can perform excavation, trenching, loading, landscaping, farming, road maintenance, and material handling tasks.

Q3: Is the BL750 suitable for small construction sites?

A: Yes. Its compact design allows operation in restricted areas where larger machines cannot work efficiently.

Q4: Can the BL750 be used for farming?

A: Yes. It is suitable for land preparation, drainage, farm roads, and agricultural construction projects.

Q5: What attachments can be used with the BL750?

A: It can support buckets, breakers, augers, forks, grapples, and other compatible attachments.

Q6: Does the BL750 provide good off-road performance?

A: Yes. The 4WD system provides excellent traction and stability for outdoor working conditions.

Q7: What are the advantages of a compact backhoe loader?

A: Compact size, flexible operation, lower costs, easy transportation, and multi-purpose functionality.

Q8: Is maintenance difficult?

A: No. The BL750 is designed for convenient inspection and maintenance.

Q9: Who uses compact backhoe loaders?

A: Contractors, farmers, landscapers, utility operators, and rental businesses.

Q10: Why choose the Compact BL750 Backhoe Loader?

A: It offers powerful hydraulic performance, compact operation, versatility, and excellent cost efficiency.
