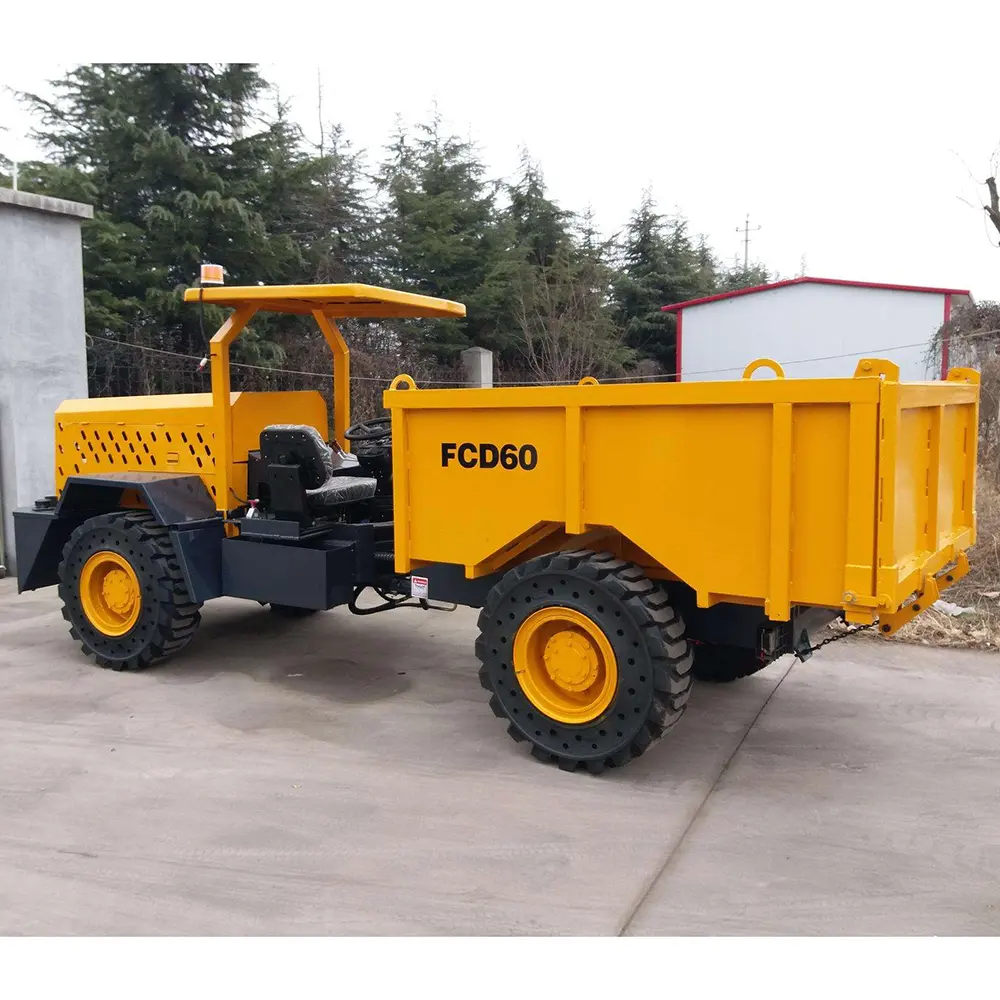

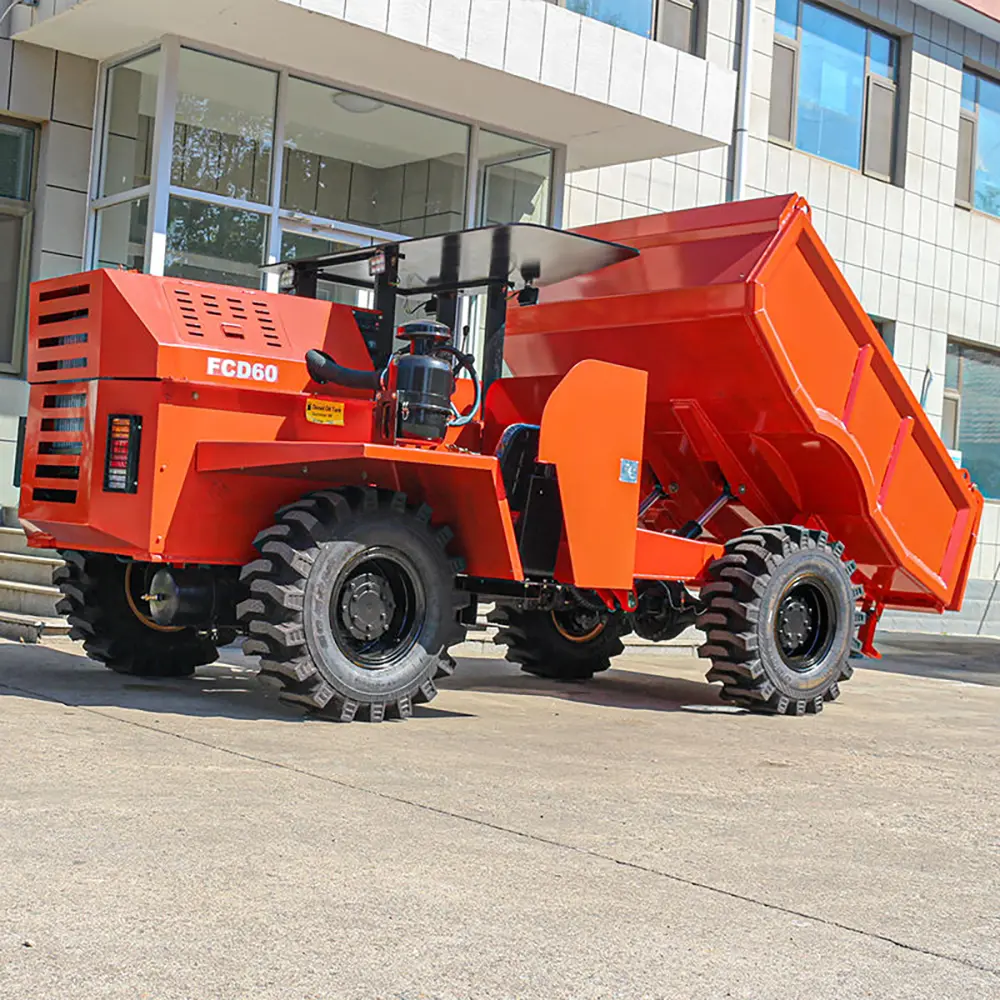

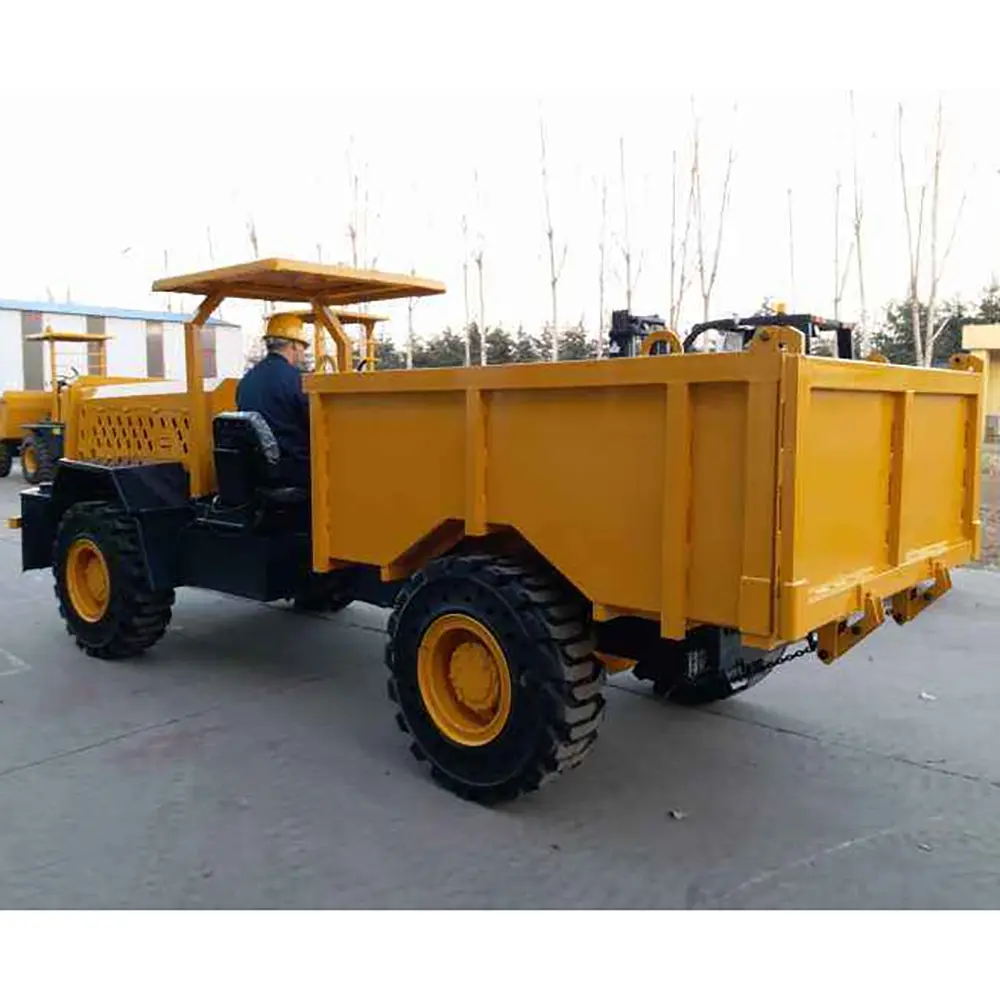

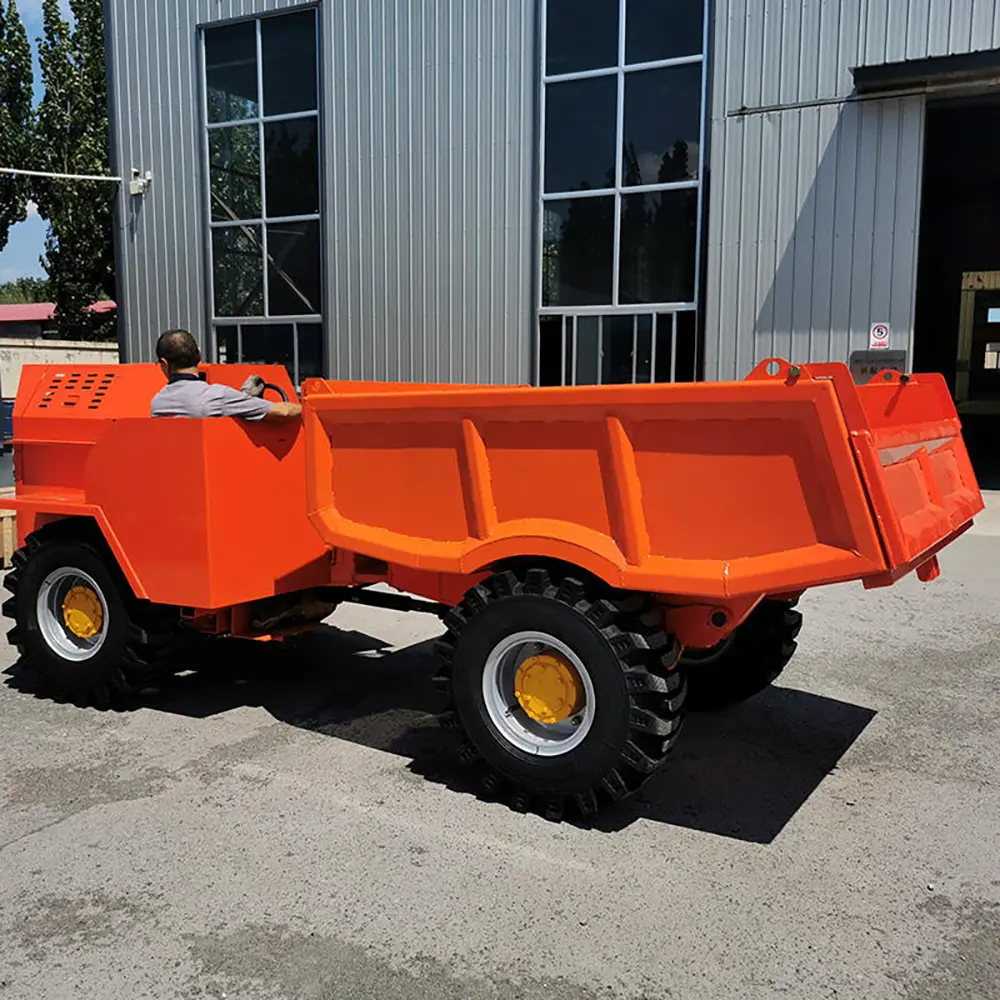

FCD60 Site Dumper

FCD60 Site Dumper
Compact Material Transport Equipment For Professional Applications

The FCD60 Site Dumper is a versatile compact transport machine engineered to improve efficiency in construction, agriculture, landscaping, and property maintenance operations. Designed for environments where large trucks and heavy equipment cannot easily access, this mini dumper delivers excellent mobility, reliable performance, and convenient material handling.

With its compact dimensions and powerful working capability, the FCD60 Site Dumper can operate effectively in narrow construction areas, uneven terrain, gardens, farms, and renovation projects. It provides an economical alternative for businesses and professionals who need efficient material transportation without investing in larger machinery.

The hydraulic dumping system allows quick unloading, reducing manual handling and improving productivity on every job site.

Overall Dimension
1 Length(with bucket on ground)	4950mm
2 Bucket width	1950mm
3 Height	1750mm
4 Wheel base	2300mm
5 Tread	1540mm
6 Min. Ground clearance	342mm
Main Technical Specification
1 Rated load	6000kg
2 Operating weight	4900kg
3 Rated bucket capacity	4.0cmb
4 Max. Breakout force	45KN
5. Max. Turning radius	4200mm
Traveling speed(Km/h) 2forward and 2 reverse
(1) 1st gear forward   9.3
(2) 2ND gear forward 20
(3)1st gear reverse 7.5
(4) 2ND gear reverse 18
Diesel engine
1 Model F4L912 BRAND
2 Type Direct injection. 4 Cylinders Air cooling
3 Rated output 45(kW)
4 Inter-bore of cylinder/stroke 100 (mm)
5 Total exhaust of cylinder 4(L)
6 Voltage of starting motor 24(V)
7 Rated speed 2300(r/min)
8 Starting type Electric
9 Min. Specific fuel consumption 251(g/Kw. H)
10 Net weight 390(kg)

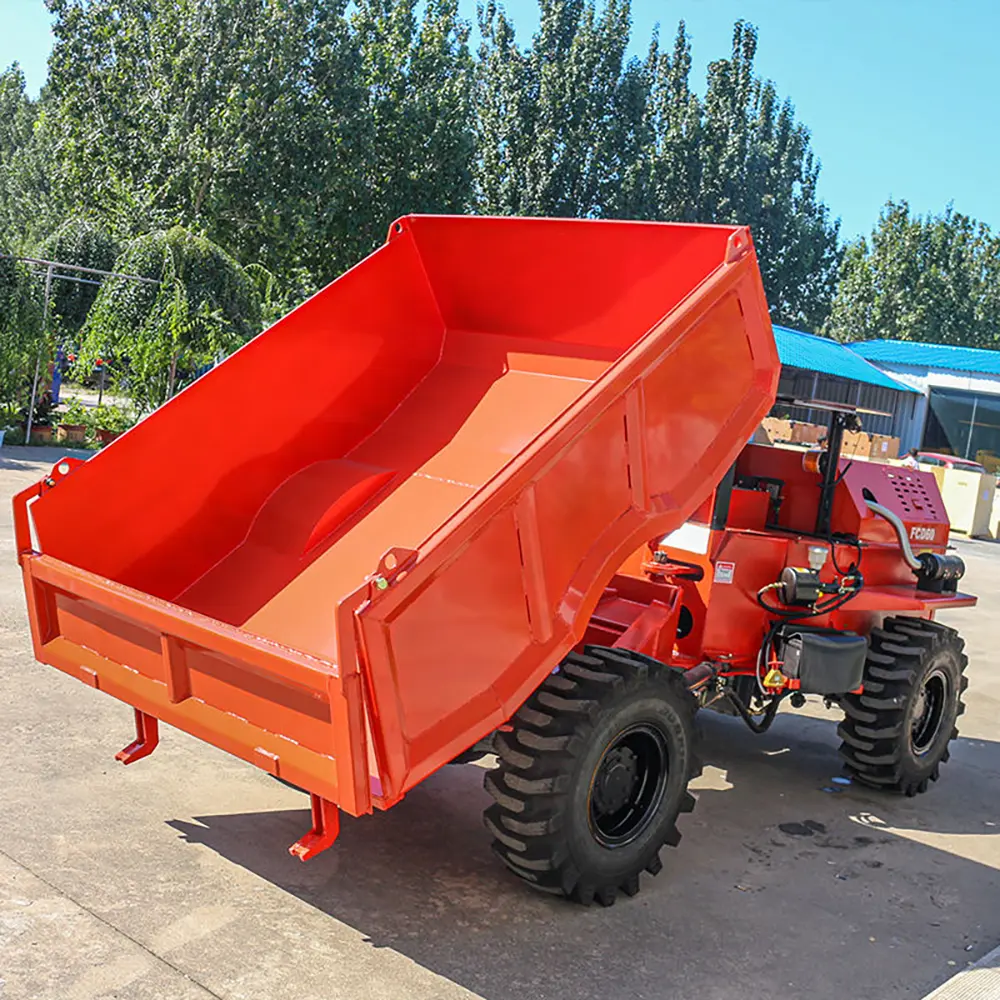

Efficient Hydraulic Dumping System

The FCD60 Site Dumper features a reliable hydraulic tipping mechanism designed for fast and convenient unloading.

Hydraulic Dumping Advantages
Quick material discharge
Reduced manual labor
Smooth lifting operation
Improved work efficiency
Reliable performance
Easy operation

The hydraulic system allows operators to transport and unload materials quickly, helping complete projects faster.

Compact Design For Narrow Work Areas

The compact structure of the FCD60 makes it suitable for restricted spaces.

Compact Dumper Benefits
Easy access through narrow passages
Excellent maneuverability
Reduced ground disturbance
Flexible operation
Suitable for small job sites
Convenient transportation

It is especially useful for residential construction, landscaping, and renovation projects where space is limited.

Construction Site Material Transport Solution

The FCD60 Site Dumper is widely used in construction applications.

Construction Applications
Soil transportation
Gravel movement
Concrete transportation
Sand handling
Construction waste removal
Foundation preparation

The machine improves efficiency by reducing the need for manual material movement.

Reliable Performance On Various Terrains

The FCD60 Site Dumper is designed for demanding outdoor conditions.

Terrain Applications
Muddy ground
Uneven surfaces
Gravel roads
Farm tracks
Construction sites
Outdoor work areas

Its durable design provides stable performance in challenging environments.

Multi-Purpose Material Handling Capability

The FCD60 can transport many types of materials.

Suitable Materials
Soil
Sand
Gravel
Stones
Concrete
Wood chips
Agricultural materials
Waste materials

This versatility makes it a valuable machine for multiple industries.

Agricultural And Farm Applications

Farmers can use the FCD60 Site Dumper for daily material transportation tasks.

Farm Uses
Moving feed
Transporting fertilizer
Carrying soil
Farm road maintenance
Livestock area cleaning
Moving agricultural supplies

The compact size allows easy operation around barns, fields, and farm buildings.

Landscaping And Gardening Applications

The FCD60 is an excellent choice for landscaping professionals.

Landscaping Benefits
Moving topsoil
Transporting mulch
Carrying rocks
Garden construction
Tree planting projects
Property maintenance

Its small size allows operation in areas inaccessible to larger machines.

Durable Heavy Duty Construction

The FCD60 Site Dumper is manufactured for long-term outdoor use.

Construction Features
Strong steel frame
Durable dump body
Reinforced chassis
Reliable components
Wear-resistant structure
Long service life

The machine is built to withstand repeated loading and transportation operations.

Easy Operation And Maintenance

The FCD60 is designed with operator convenience in mind.

Operation Advantages
Simple controls
Easy driving system
Good visibility
Comfortable operation
Reduced operator fatigue
Fast learning process

Its straightforward design allows efficient operation for both professionals and general users.

Improve Job Site Productivity

The FCD60 Site Dumper helps businesses complete transportation tasks faster.

Productivity Advantages
Faster material movement
Lower labor costs
Reduced manual handling
Improved workflow
Higher efficiency
Better project management

It is a practical investment for contractors and small businesses.

Versatile Compact Construction Machine

The FCD60 provides excellent value across different industries.

Suitable Industries
Construction companies
Landscaping contractors
Agriculture operations
Rental businesses
Property maintenance companies
Industrial facilities

Its versatility makes it suitable for many professional applications.

Low Operating Cost

The FCD60 Site Dumper provides economical operation.

Cost Benefits
Lower equipment investment
Reduced labor requirements
Simple maintenance
Efficient fuel consumption
Long operating lifespan
Multi-purpose use

It provides excellent value compared with larger transport equipment.

Safe And Stable Operation

Safety is an important feature of material transport equipment.

Safety Advantages
Stable chassis design
Reliable dumping control
Strong load support
Easy operator control
Durable structure
Controlled material discharge

The FCD60 is designed to provide dependable daily operation.

Why Choose Us
Professional Machinery Manufacturer

We specialize in manufacturing compact construction equipment and agricultural machinery.

Strict Quality Control

Every FCD60 Site Dumper is tested and inspected before shipment.

Factory Direct Pricing

We provide competitive manufacturer pricing with reliable quality.

Advanced Manufacturing Technology

Modern production equipment ensures accuracy and durability.

Customized Equipment Solutions

Different specifications and configurations can be supplied according to customer requirements.

Global Export Experience

Our machines are used by customers in different markets worldwide.

Fast Production And Delivery

Efficient manufacturing processes ensure timely delivery.

Complete Technical Support

Professional installation guidance and after-sales service are available.

Durable Product Quality

Designed for construction, agriculture, and industrial working environments.

Long-Term Customer Partnership

We focus on reliable products and long-term cooperation.

FAQs
Q1: What is the FCD60 Site Dumper?

A: The FCD60 Site Dumper is a compact material transport machine designed for construction, agriculture, landscaping, and industrial applications.

Q2: What materials can the FCD60 transport?

A: It can transport soil, sand, gravel, concrete, stones, construction waste, and agricultural materials.

Q3: Is the FCD60 suitable for construction sites?

A: Yes. It is designed for efficient transportation of materials on small and medium construction sites.

Q4: Does it have a hydraulic dumping system?

A: Yes. The hydraulic tipping system allows quick and easy unloading.

Q5: Can it operate on uneven terrain?

A: Yes. It is designed for outdoor environments including rough and uneven ground.

Q6: Is it suitable for farming?

A: Yes. It can be used for transporting feed, fertilizer, soil, and other farm materials.

Q7: What are the advantages of a mini site dumper?

A: Compact size, excellent mobility, lower operating costs, and access to narrow areas.

Q8: Is maintenance complicated?

A: No. The machine is designed for simple maintenance and easy servicing.

Q9: Can it be used for landscaping?

A: Yes. It is ideal for moving soil, mulch, stones, and other landscaping materials.

Q10: Why choose the FCD60 Site Dumper?

A: It offers reliable performance, compact operation, efficient transport capability, and excellent cost-effectiveness.
