CNC 15 Ton Double Line 6m Square Round Metal Stamping Press Pipe Tube Hole Punching Machine Technical Parameters

CNC 15 Ton Double Line 6M Square Round Metal Stamping Press Pipe Tube Hole Punching Machine is designed for high-precision automatic punching and stamping of long metal tubes. Ideal for steel furniture, construction, fencing.

The CNC 15 Ton Double Line 6M Square Round Metal Stamping Press Pipe Tube Hole Punching Machine is an advanced CNC-controlled metal processing machine designed for automatic punching, stamping, and hole forming on long square tubes, round pipes, rectangular tubes, and metal profiles. With a powerful 15-ton punching force, double-line processing structure, and 6-meter tube handling capability, this machine provides an efficient solution for large-scale metal fabrication applications.

Designed for industries requiring high productivity and precision, this CNC tube punching machine is widely used in steel furniture manufacturing, metal structures, fencing production, construction materials, automotive components, and industrial fabrication.

Traditional drilling and manual punching methods are slow, labor-intensive, and often produce inconsistent hole positioning. The CNC 15 Ton Double Line Metal Stamping Press Machine improves production efficiency by combining automatic feeding, accurate positioning, and high-speed punching technology to deliver stable and repeatable processing results.

Model 15TA 15TB 20TA 20TB
Feed length 3000 6000 3000 6000
Nominal force 150kn 250kn
Stroke 120mm 150mm
Max punch Thickness SS 2.4mm,MS:3mm SS 4mm,MS:5mm
Motor power 5.5kw 7kw
Punching capacity(metal thickness) ≤3mm ≤5mm
Fit to material Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape Round, square, rectangle ,oval, angle steel
Tube and hole size Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy 0.01mm
Feed accuracy 0.1mm
Color white , or customized
Feed way Slideway and servo motor

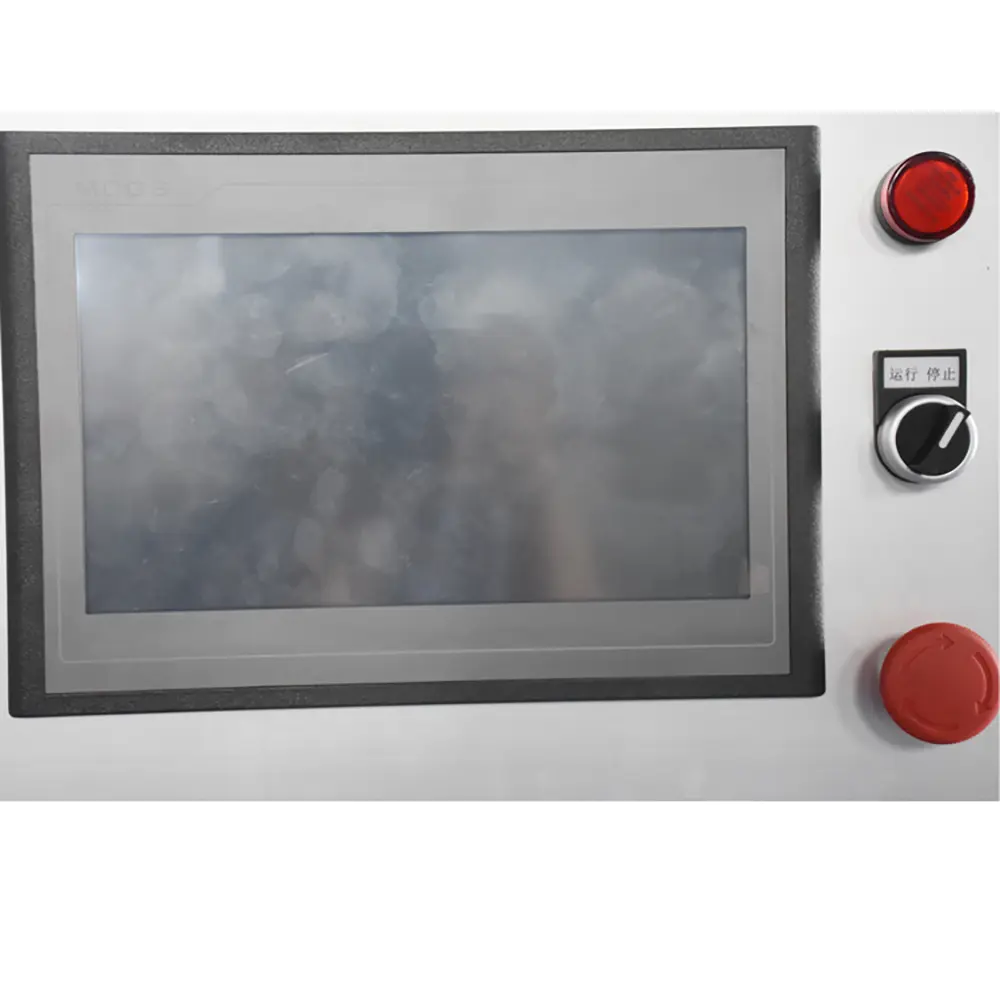

Control way PLC, 10 inch Touch Screen
Clamping way Pneumatic(air compressor is with machine)
programs stored 200 sets, each program store different processing message
Operation language Chinese and English, or customized
Voltage 220V,380V,415V,440v, customized as requirement
Cutting method(option ) Saw blade ,or hydraulic punch cutting


Measure
Machine head 1500x1000x1700mm

Feed frame
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed)

High Efficiency CNC Tube Punching System

The CNC 15 Ton Double Line 6M Metal Stamping Press Machine integrates CNC control technology with a high-performance stamping system to achieve fast and accurate tube processing.

The machine can automatically complete:

Tube positioning
Hole punching
Stamping forming
Repeated production cycles
Multi-point hole processing

The double-line structure allows efficient processing operations and reduces production downtime caused by frequent adjustments.

With a 15-ton punching capacity, the machine provides sufficient power for processing various steel and metal tubes while maintaining excellent accuracy and reliability.

Precision Hole Punching For Long Metal Tubes

Accurate hole positioning is critical for metal tube applications, especially in furniture frames, construction structures, and industrial components.

The CNC system ensures:

Precise hole spacing
Accurate positioning
Consistent punching depth
Smooth hole edges
Reduced material waste

The machine provides superior processing quality compared with traditional manual drilling methods, making it suitable for high-volume manufacturing.

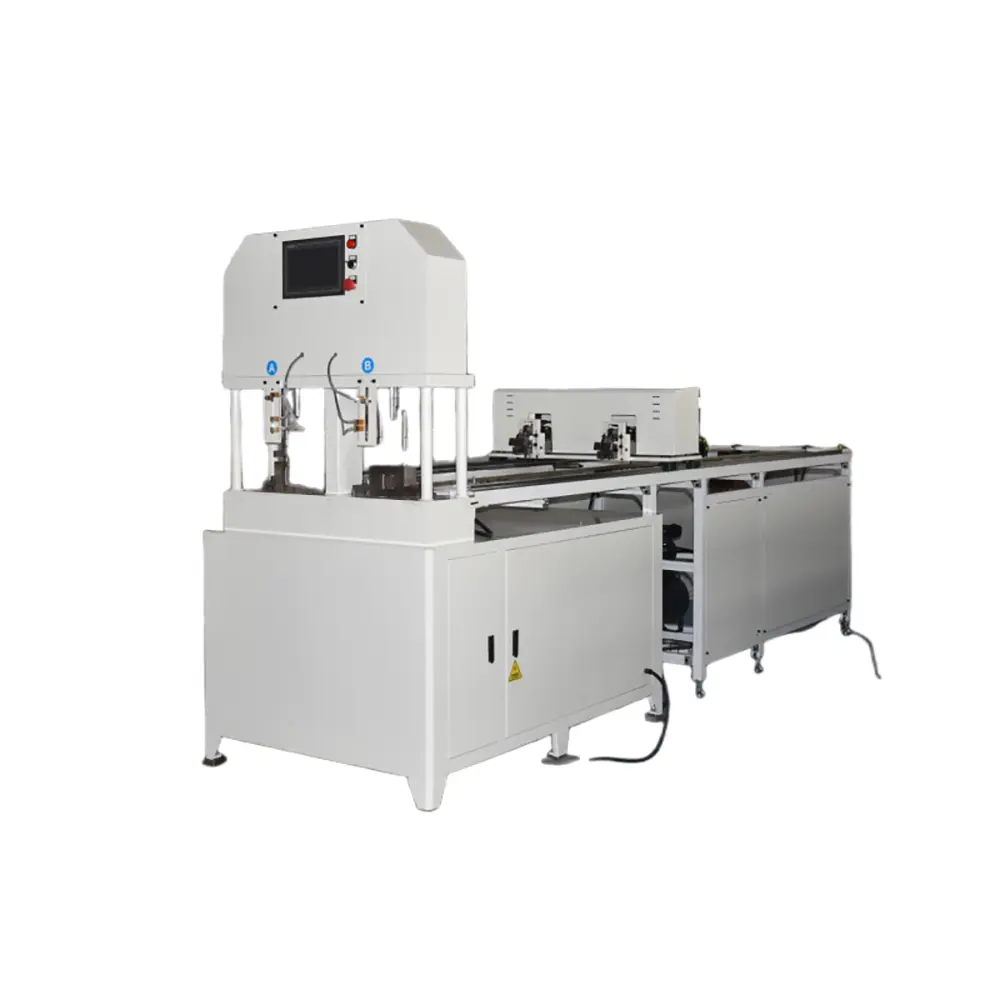

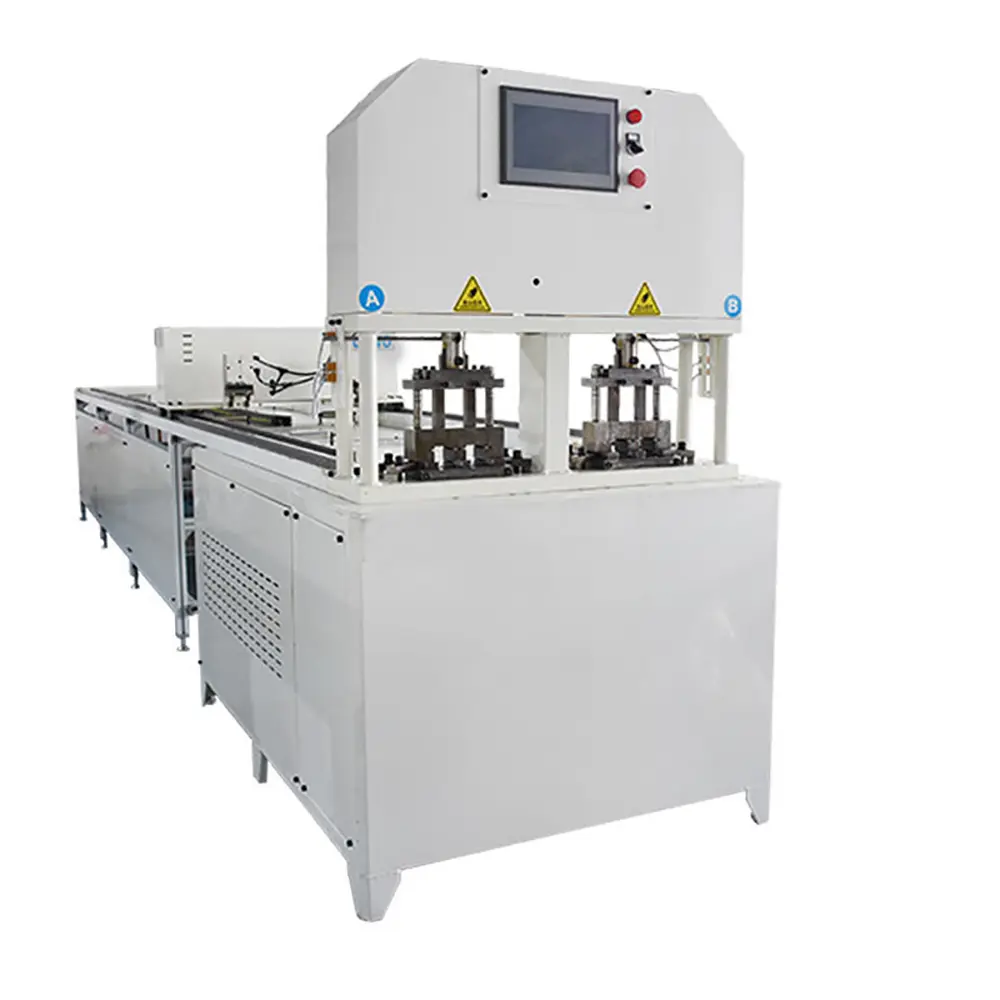

6 Meter Long Tube Processing Capability

One of the key advantages of this machine is its 6-meter processing length, which allows manufacturers to process long pipes and tubes efficiently without repeated repositioning.

The 6M working capability provides:

Higher production efficiency
Reduced labor operation
Faster processing speed
Improved product consistency
Better production flexibility

It is especially suitable for factories producing long metal frames, railings, furniture structures, and construction components.

Wide Application Industries

The CNC 15 Ton Double Line 6M Pipe Tube Hole Punching Machine is widely used in:

Steel Furniture Manufacturing

For punching holes in:

Chair frames
Table structures
Bed frames
Shelves
Metal cabinets
Fence And Railing Production

Suitable for:

Steel fences
Balcony railings
Gate structures
Decorative metal frames
Construction Industry

Used for:

Steel supports
Structural frames
Metal brackets
Building components
Machinery And Automotive Industry

For manufacturing:

Tubular components
Equipment frames
Mechanical supports
Vehicle parts
Suitable Materials

The CNC Metal Tube Hole Punching Machine can process various materials:

Carbon Steel Tubes
Stainless Steel Pipes
Galvanized Steel Tubes
Iron Pipes
Aluminum Profiles
Square Tubes
Round Tubes
Rectangular Tubes

Different punching dies can be customized according to tube dimensions, thickness, hole shapes, and production requirements.

Advanced CNC Control Technology

The intelligent CNC control system improves operation convenience and production accuracy.

Main advantages include:

Automatic positioning control
Programmable punching sequences
Fast parameter adjustment
High repeatability
Reduced operator workload

The system allows manufacturers to achieve consistent production quality even during large-volume manufacturing.

Strong 15 Ton Stamping Performance

The 15-ton stamping system provides stable and powerful punching performance for various metal tube applications.

Benefits include:

Reliable punching force
Stable pressure output
High processing efficiency
Long machine service life
Suitable for continuous operation

The rigid machine frame reduces vibration and improves punching precision.

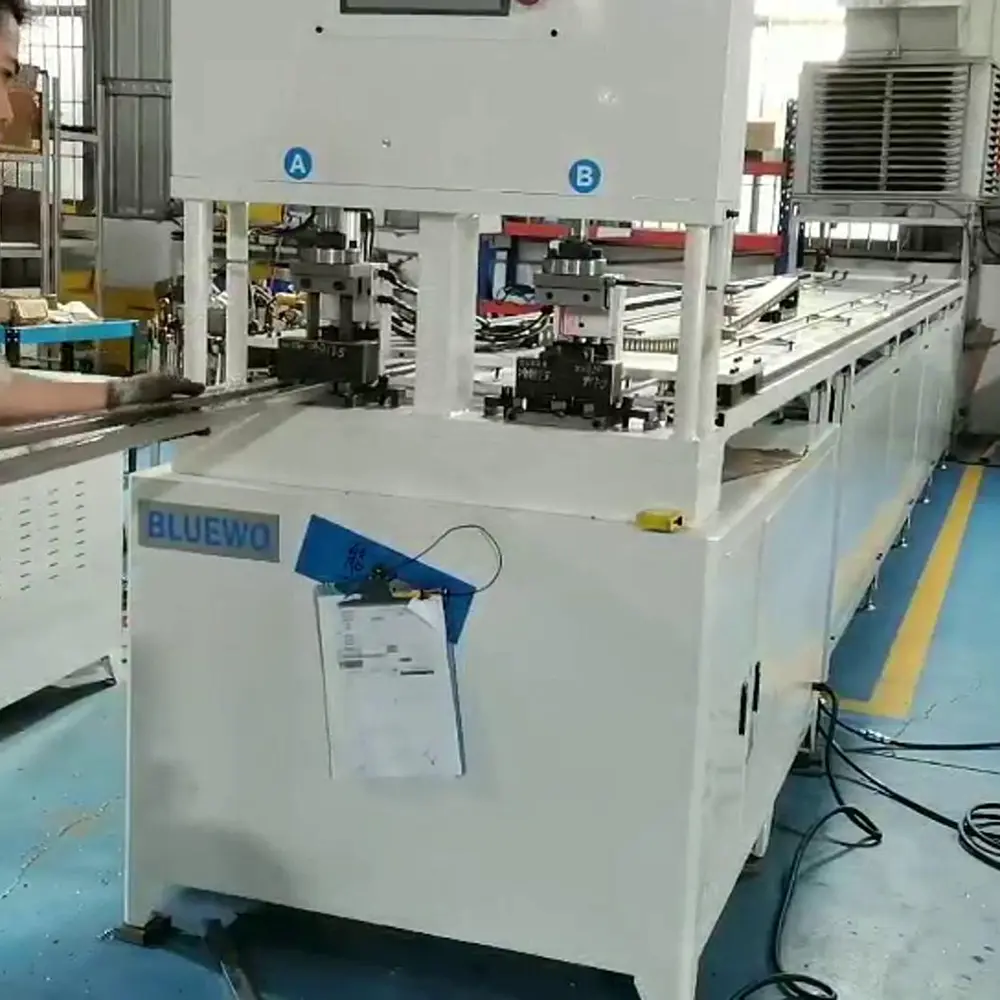

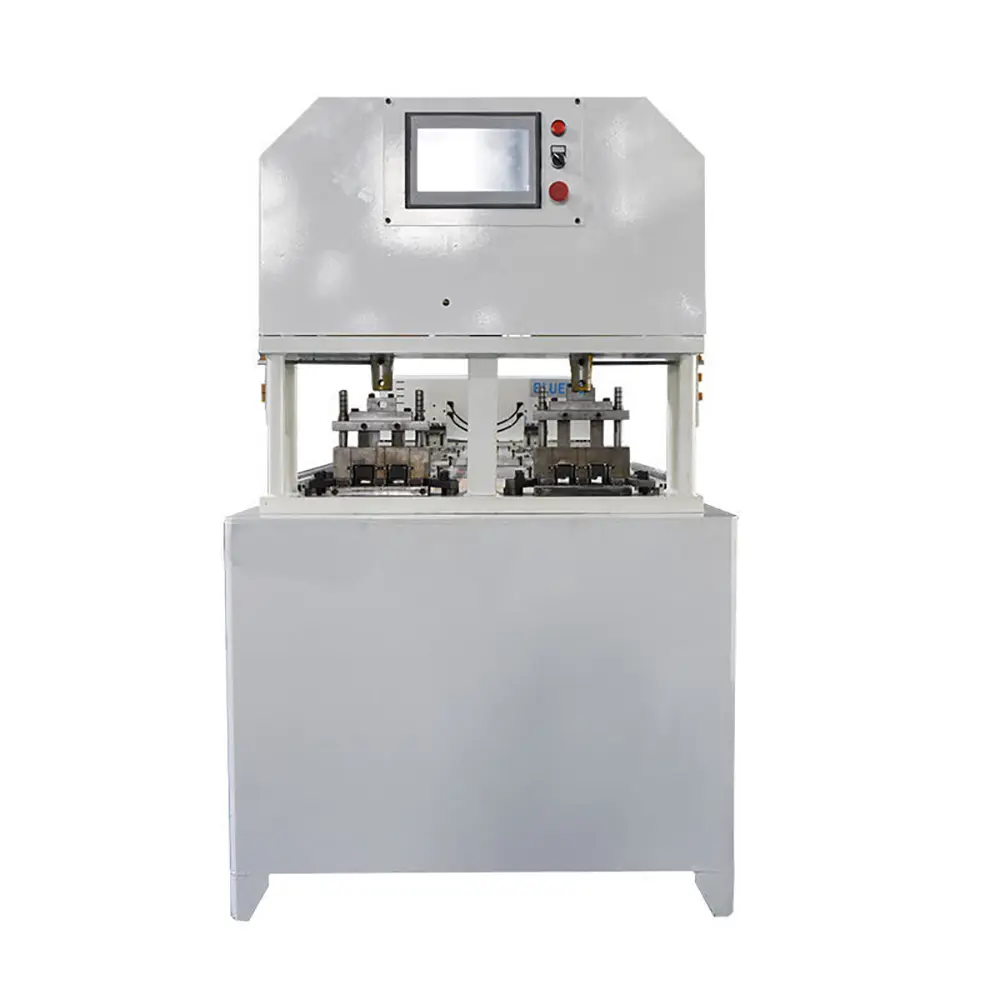

Double Line Processing Advantages

The double-line design improves production efficiency by optimizing the punching process.

Advantages include:

Faster tube processing
Reduced setup time
Improved production capacity
Better automation performance
Suitable for batch manufacturing

This design makes the machine an ideal choice for manufacturers requiring efficient and reliable tube processing.

Key Features Of CNC 15 Ton Double Line 6M Tube Punching Machine
1. CNC Automatic Control

Provides accurate and programmable punching operations.

2. 15 Ton Punching Force

Suitable for different metal tube processing applications.

3. Double Line Working Structure

Improves production efficiency and processing speed.

4. 6M Long Tube Processing

Designed for long pipes and metal profiles.

5. Square And Round Tube Compatibility

Supports multiple tube shapes and sizes.

6. Customized Punching Dies

Allows different hole patterns and shapes.

Why Choose Our CNC 15 Ton Double Line 6M Metal Stamping Press Machine?
Professional CNC Metal Machinery Manufacturer

We specialize in advanced tube punching, stamping, and metal forming equipment for global industrial customers.

High Precision Processing

The combination of CNC control, precision tooling, and stable mechanical structure ensures accurate and consistent production results.

Customized Production Solutions

We can customize machine specifications, punching systems, tube sizes, hole patterns, and automation configurations according to customer requirements.

Factory Direct Supply

Direct manufacturing provides competitive pricing, reliable quality, and professional technical support.

Complete Technical Service

We provide installation guidance, machine training, maintenance support, and spare parts supply for long-term operation.

FAQS
Q1: What is a CNC 15 Ton Double Line 6M Pipe Tube Hole Punching Machine used for?

It is used for automatic punching and stamping of square tubes, round pipes, rectangular tubes, and metal profiles.

Q2: What tube lengths can this machine process?

This model is designed for processing metal tubes up to approximately 6 meters in length.

Q3: What is the punching capacity of the machine?

The machine provides a 15-ton stamping force for industrial metal tube punching applications.

Q4: Can the machine punch different hole shapes?

Yes. Customized punching dies can produce different hole shapes and patterns according to customer requirements.

Q5: What materials can be processed?

It can process carbon steel, stainless steel, galvanized steel, aluminum tubes, and other metal profiles.

Q6: Is this machine suitable for mass production?

Yes. CNC automation and double-line processing make it suitable for large-volume production.

Q7: Can the machine be customized?

Yes. Machine size, punching tools, control systems, and processing functions can be customized.
