  • CNC 15 Ton Single Line 6m Cuttng Hydraulic Steel Square Tube Pipe Angle Hole Punching Machine
CNC 15 Ton Single Line 6m Cuttng Hydraulic Steel Square Tube Pipe Angle Hole Punching Machine Technical Parameters

CNC 15 Ton Single Line 6m Cutting Hydraulic Steel Square Tube Pipe Angle Hole Punching Machine is designed for automatic cutting and hole punching of long square tubes, steel pipes, and profiles with high precision and efficiency..

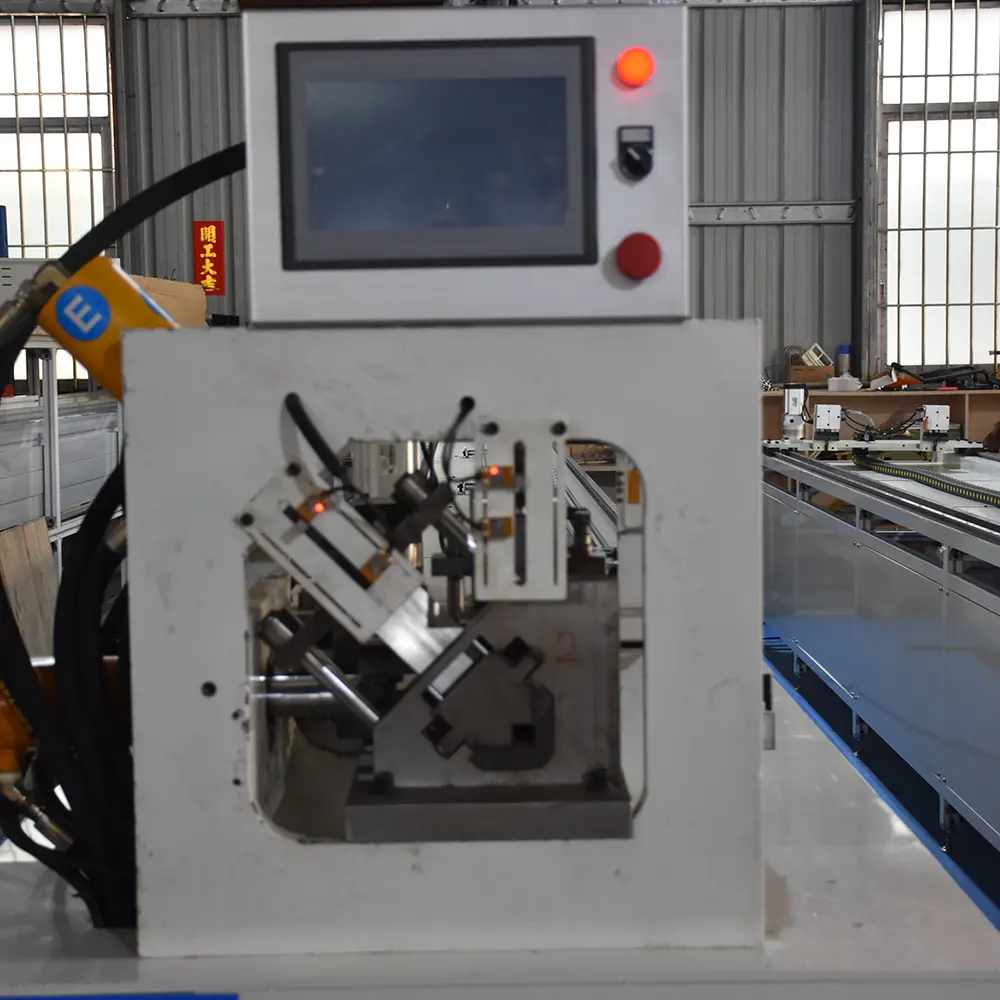

 The CNC 15 Ton Single Line 6m Cutting Hydraulic Steel Square Tube Pipe Angle Hole Punching Machine is an advanced automatic metal tube processing machine designed for cutting, positioning, and punching holes on long steel square tubes, pipes, and metal profiles. Equipped with CNC control technology and a powerful 15-ton hydraulic punching system, this machine provides high-efficiency and precise processing solutions for steel structure manufacturing, furniture production, solar mounting systems, construction components, and metal fabrication industries.

Traditional drilling and punching methods require manual positioning, repeated measurement, and multiple processing steps, resulting in low production efficiency and inconsistent hole accuracy. This CNC hydraulic tube punching machine integrates automatic feeding, accurate positioning, cutting, and punching functions into one system, significantly improving production capacity and reducing labor costs.

With a 6-meter processing length, single-line punching design, and flexible CNC operation, this machine is especially suitable for manufacturers requiring continuous processing of long square tubes, rectangular pipes, and angle steel profiles.

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.
4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need Products Description
Model 15TA 15TB 20TA 20TB
Feed length 3000 6000 3000 6000
Nominal force 150kn 250kn
Stroke 120mm 150mm
Max punch Thickness SS 2.4mm,MS:3mm SS 4mm,MS:5mm
Motor power 5.5kw 7kw
Punching capacity(metal thickness) ≤3mm ≤5mm
Fit to material Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape Round, square, rectangle ,oval, angle steel
Tube and hole size Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy 0.01mm
Feed accuracy 0.1mm
Color white , or customized
Feed way Slideway and servo motor
Control way PLC, 10 inch Touch Screen
Clamping way Pneumatic(air compressor is with machine)
programs stored 200 sets, each program store different processing message
Operation language Chinese and English, or customized
Voltage 220V,380V,415V,440v, customized as requirement
Cutting method(option ) Saw blade ,or hydraulic punch cutting


Measure
Machine head 1500x1000x1700mm

Feed frame
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed)
