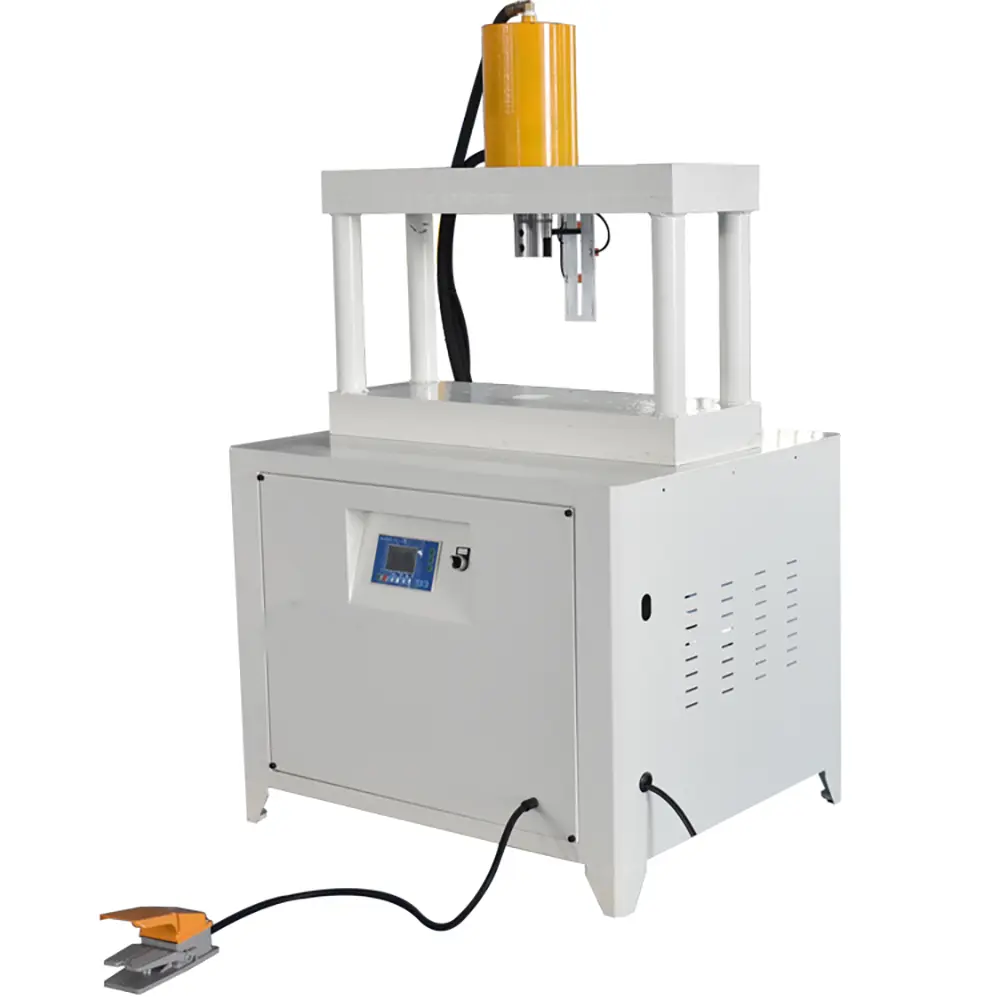

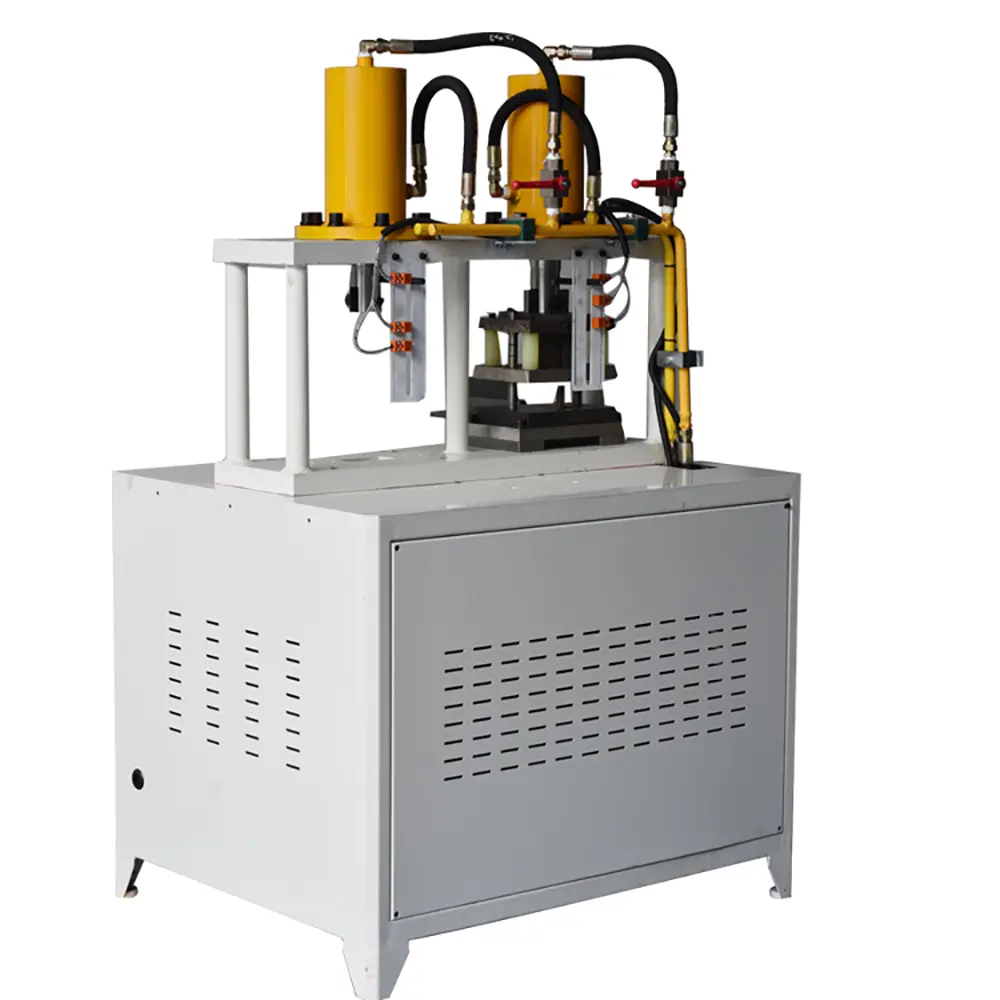

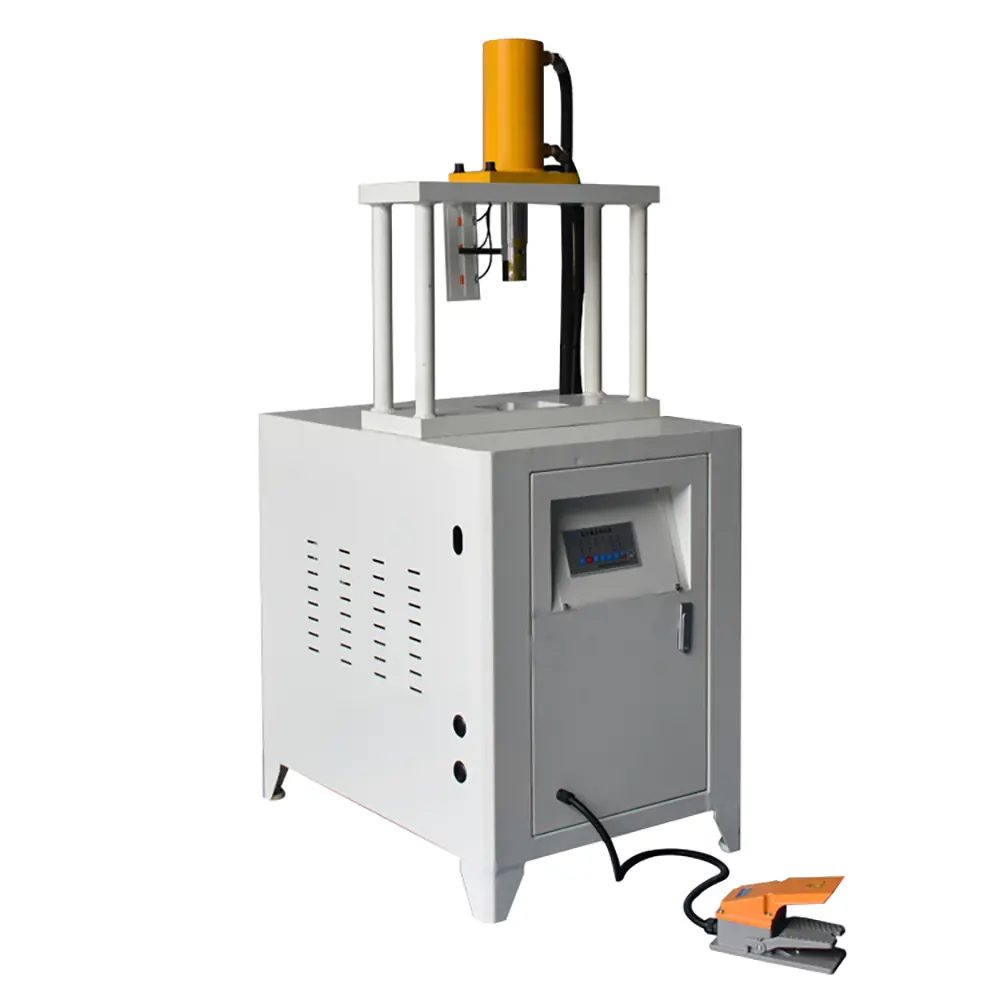

Multi-Functional Semi-Automatic Hydraulic Punching Machine Technical Parameters

Multi-Functional Semi-Automatic Hydraulic Punching Machine is designed for punching,notching,and forming metal tubes,pipes,and profiles. With hydraulic power and flexible operation,it provides efficient solutions for industrial metal fabrication..

The Multi-Functional Semi-Automatic Hydraulic Punching Machine is a versatile metal processing machine designed for efficient punching,notching,forming,and hole processing of steel tubes,pipes,profiles,and sheet metal. Combining hydraulic power with semi-automatic operation,this machine provides an ideal balance between production efficiency,processing accuracy,and easy operation.

Designed for modern metal fabrication industries,this hydraulic punching machine is widely used in furniture manufacturing,steel structures,automotive components,solar mounting systems,construction materials,and general industrial production. It can handle different metal processing requirements by changing punching dies and tooling,providing a flexible solution for various applications.

Compared with traditional manual punching methods,the semi-automatic hydraulic punching machine offers stronger punching force,more accurate positioning,better repeatability,and lower labor costs. It is especially suitable for small and medium-sized factories requiring flexible production and stable processing quality.

1 Hydraulic punching machine can change different molds according to different requirements.
For example, punching, arcing, flattening and punching, pressing the shape of the spikes, the
2 Different shapes of tubes can be added, such as square tubes, round tubes, rectangular tubes, oval tubes, angles, channels, etc.
3 Applicable to a variety of materials, such as carbon steel, stainless steel, copper, aluminum, fiberglass.
Products Description
Pressure   (ton) Max   Punching thickness Nominal   force(Kn) Power
(KW)
Stroke(mm)
SS(mm) MS(mm)
5 1 1.2 50 3 70
8 1.6 2 80 4 100
15 2.4 3 150 4 120
20 4 5 200 5.5 150
25 5 6 250 5.5 150
30 6 7 300 7.5 200

Professional Multi-Functional Hydraulic Processing Solution

The Multi-Functional Semi-Automatic Hydraulic Punching Machine integrates multiple metal processing functions into one machine.

Main functions include:

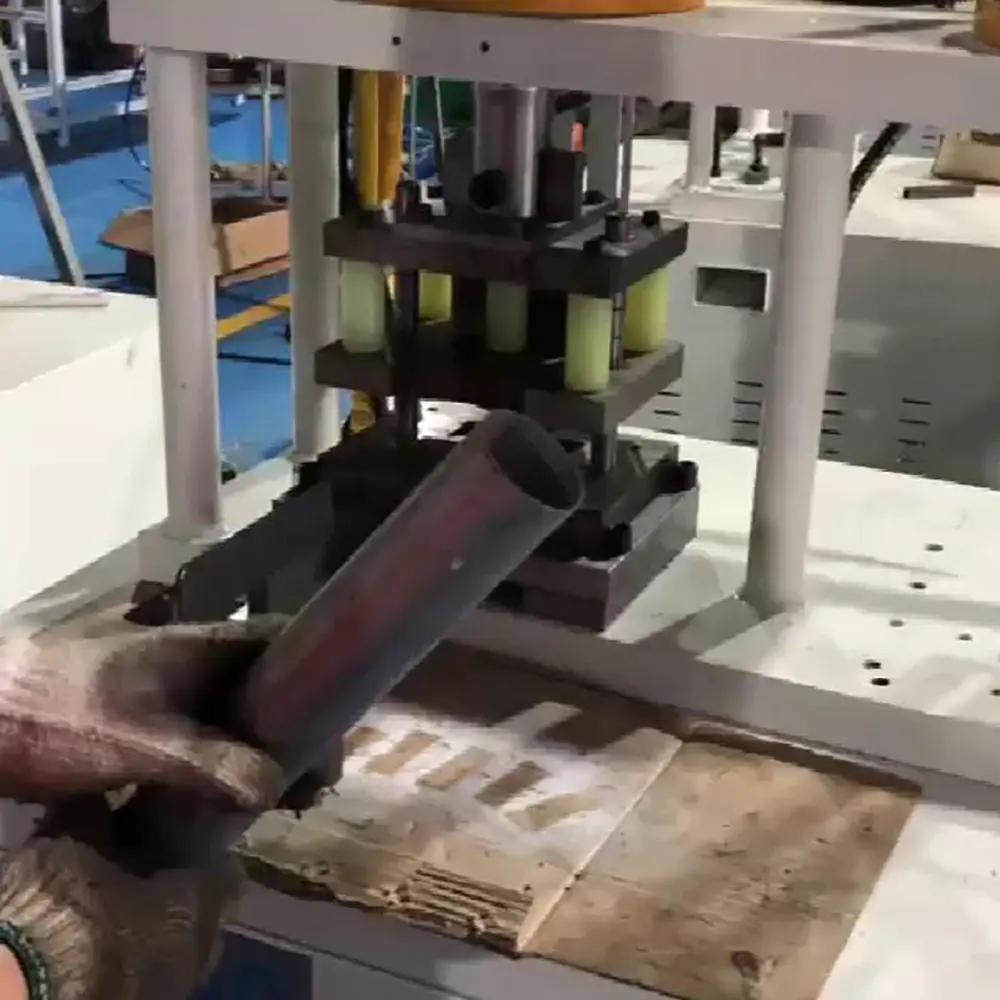

Tube hole punching
Metal profile punching
Pipe notching
Slot forming
Edge processing
Customized hole forming

The machine is suitable for processing:

Square steel tubes
Round pipes
Rectangular tubes
Stainless steel pipes
Carbon steel profiles
Aluminum tubes
Metal sheets

By using different dies and tooling,the machine can complete various processing tasks without requiring multiple machines.

Powerful Hydraulic Punching System

Equipped with a high-performance hydraulic system,the machine provides stable and powerful punching force for different metal materials.

Hydraulic system advantages:

Strong punching capacity
Smooth operation
Accurate hole forming
Reduced mechanical wear
Long service life

The hydraulic system ensures consistent processing performance even during continuous production.

It can create:

Round holes
Square holes
Oval holes
Mounting holes
Special-shaped holes
Semi-Automatic Operation For Easy Production

The semi-automatic design combines manual flexibility with hydraulic efficiency.

Operation advantages:

Simple machine control
Easy material positioning
Reduced operator fatigue
Faster production cycle
Improved processing consistency

Compared with fully manual equipment,the machine greatly improves production efficiency while maintaining convenient operation.

It is suitable for factories requiring flexible production of different metal products.
