CE Approved LW-4 LW-5 LW-6 LW-7 LW-8 LW-9 LW-10 LW-12 BH5600 Tractor Backhoe Technical Parameters

CE approved LW-4 to LW-12 and BH5600 tractor backhoe series. Heavy-duty 3-point hitch hydraulic backhoe for farming, trenching, landscaping, and construction applications..

Tractor backhoe description

Tractor backhoe is widely used on small farm ,gardenand construction digging works,use 3 point hitch,driven by tractor PTO,easy transport.
1. Matched any tractor.
2. Powered by PTO driven with hydraulic pump.
3.3-point hitched backhoe, steady structure
4.Oil tank, oil show, gas-permeable cap
5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets, 300-800mm width
8.Work independently, only need vehicle to tow to the working destinationTractor backhoe specification

Model LW-5 LW-6 LW-7

LW-8

LW-9

LW-10

LW—12

Matching Power 15-25hp 20-35hp 30-50hp 40-65hp 50-75hp 65-90hp 80-150hp
Max Digging Depth 150cm/5 feet 180cm/6 feet 210cm/7
feet
240cm/8
feet
270cm/9
feet
300cm/10
feet
360cm/12
feet
Max Digging Height 210cm 250cm 310cm 345cm 390cm 410cm 430cm
Max Unloading Height 145cm 160cm 177cm 195cm 240cm 255cm 277mm
Max Digging Radius 230cm 270cm 310cm 350cm 380cm 400cm 430cm
Bucket rotation angel 160° 160° 160° 160° 160° 160° 160°
Swing angle for boom 180° 180° 180° 180° 180° 180° 180°
Valve standard Pressure 16Mpa 16Mpa 16Mpa 16Mpa 16Mpa 16Ma 16 Mpa
Bucket Width 30cm 30cm 40cm 40cm 45cm 50cm 50cm
Weight 340kg 470kg 480kg 510kg 580kg 620kg 650kg

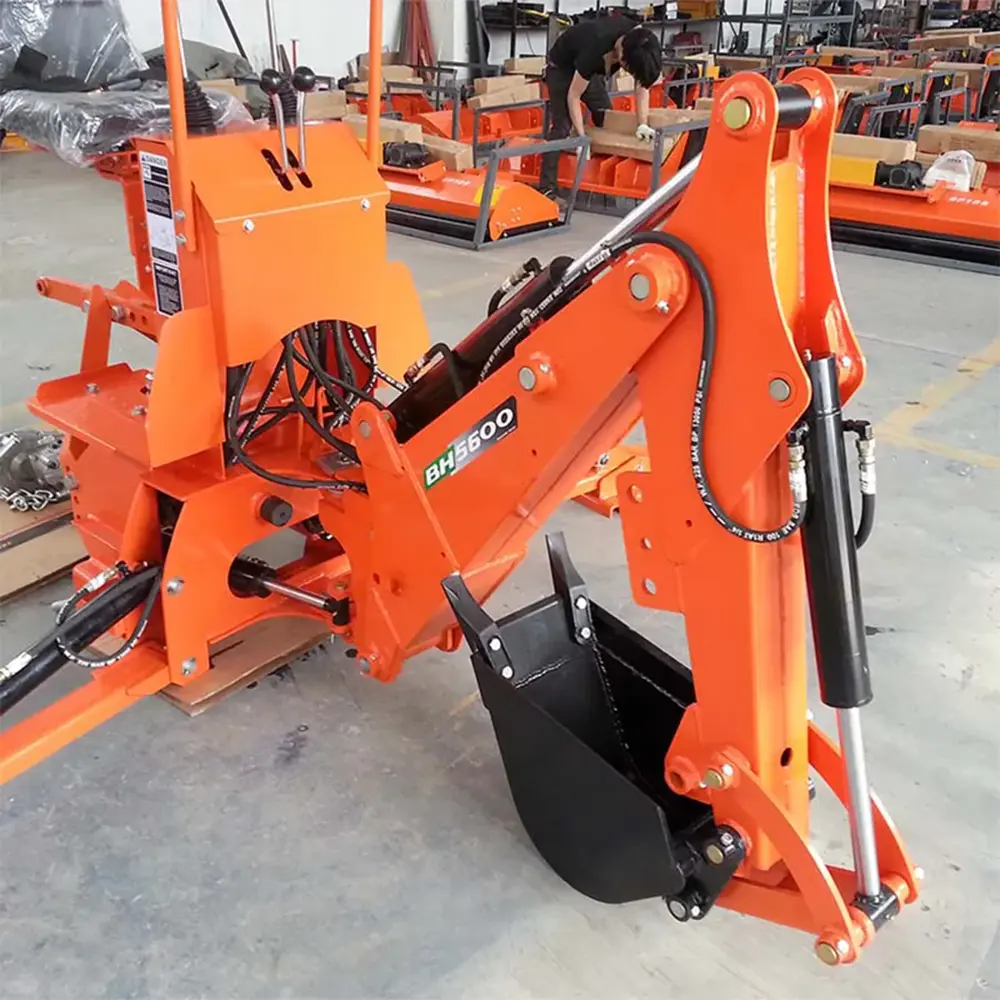

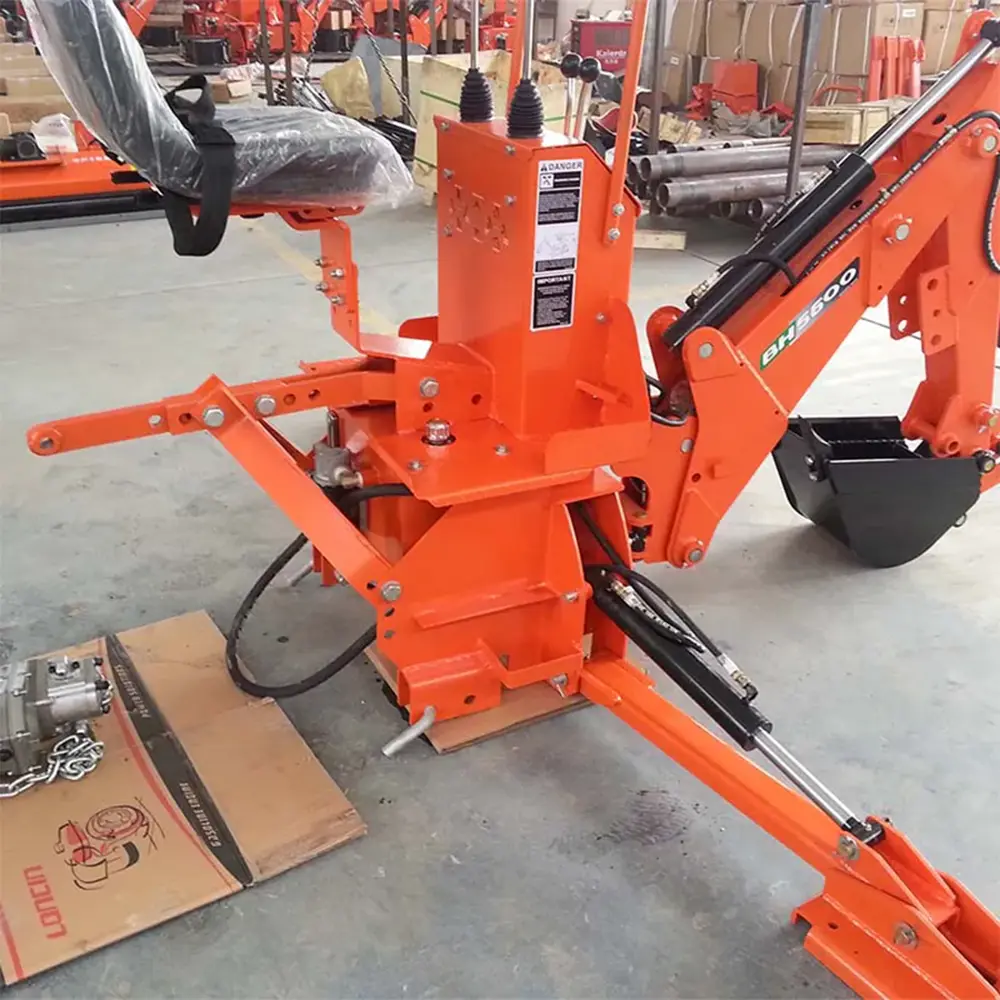

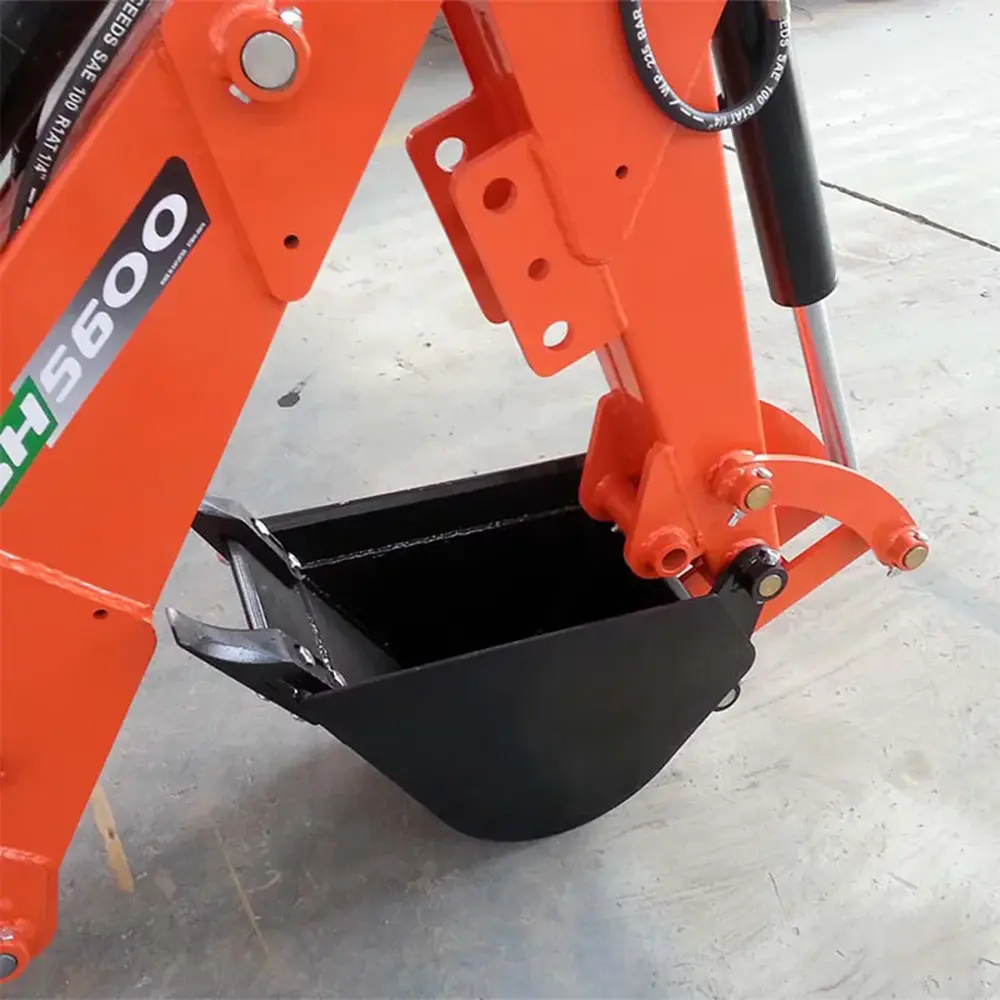

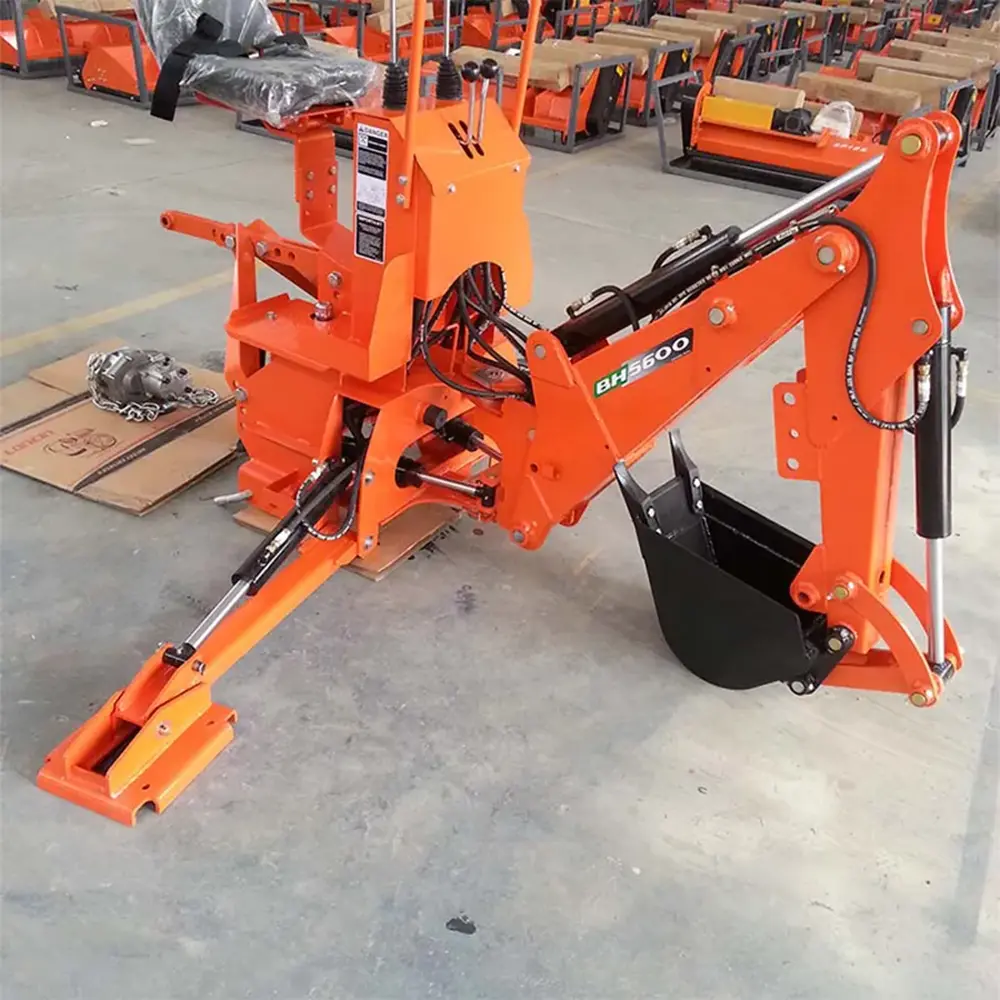

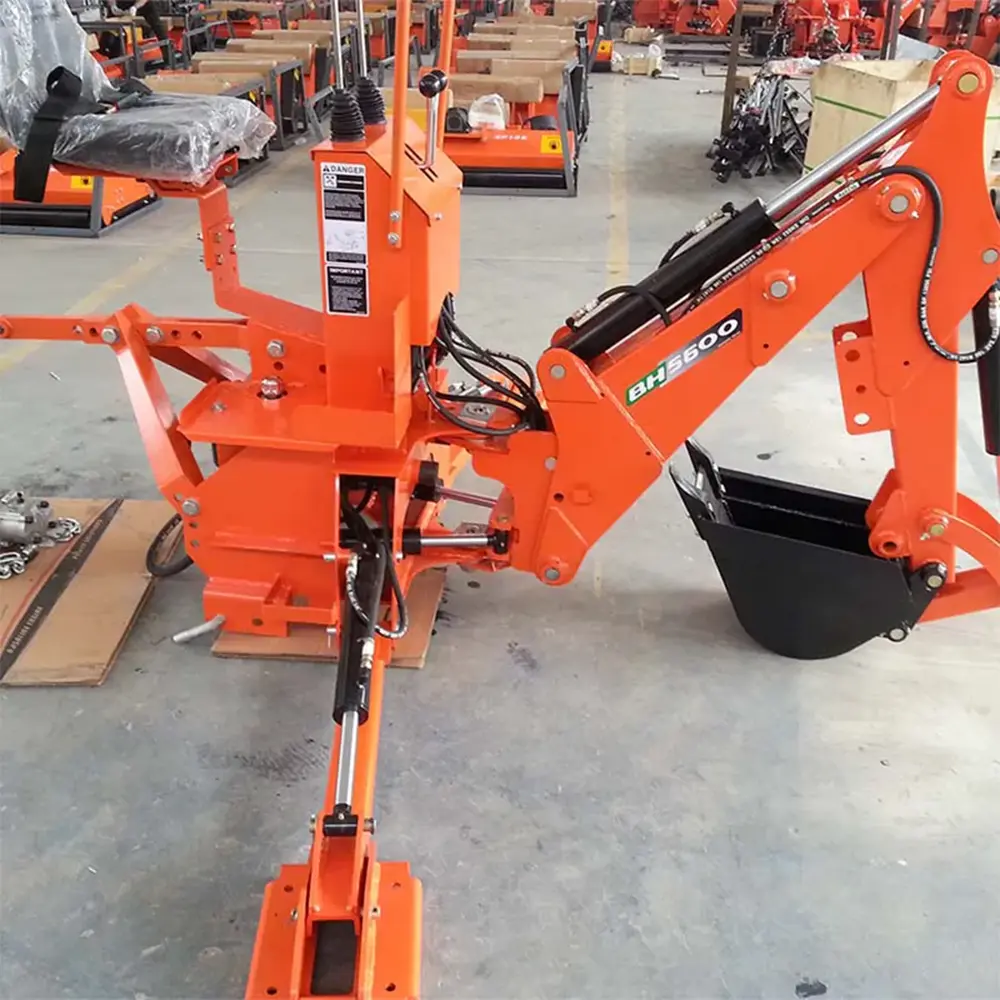

The CE Approved LW Series (LW-4 to LW-12) and BH5600 Tractor Backhoe is a powerful and versatile hydraulic digging attachment designed for tractors in agriculture, construction, landscaping, and utility projects. Built with reinforced steel structures and high-performance hydraulic systems, this backhoe series delivers strong digging force, stable operation, and long service life.

With multiple model options from LW-4 to LW-12 plus the heavy-duty BH5600, users can select the most suitable configuration based on tractor horsepower and working requirements. All models are designed with a standard 3-point hitch system for quick installation and compatibility with a wide range of tractors.
