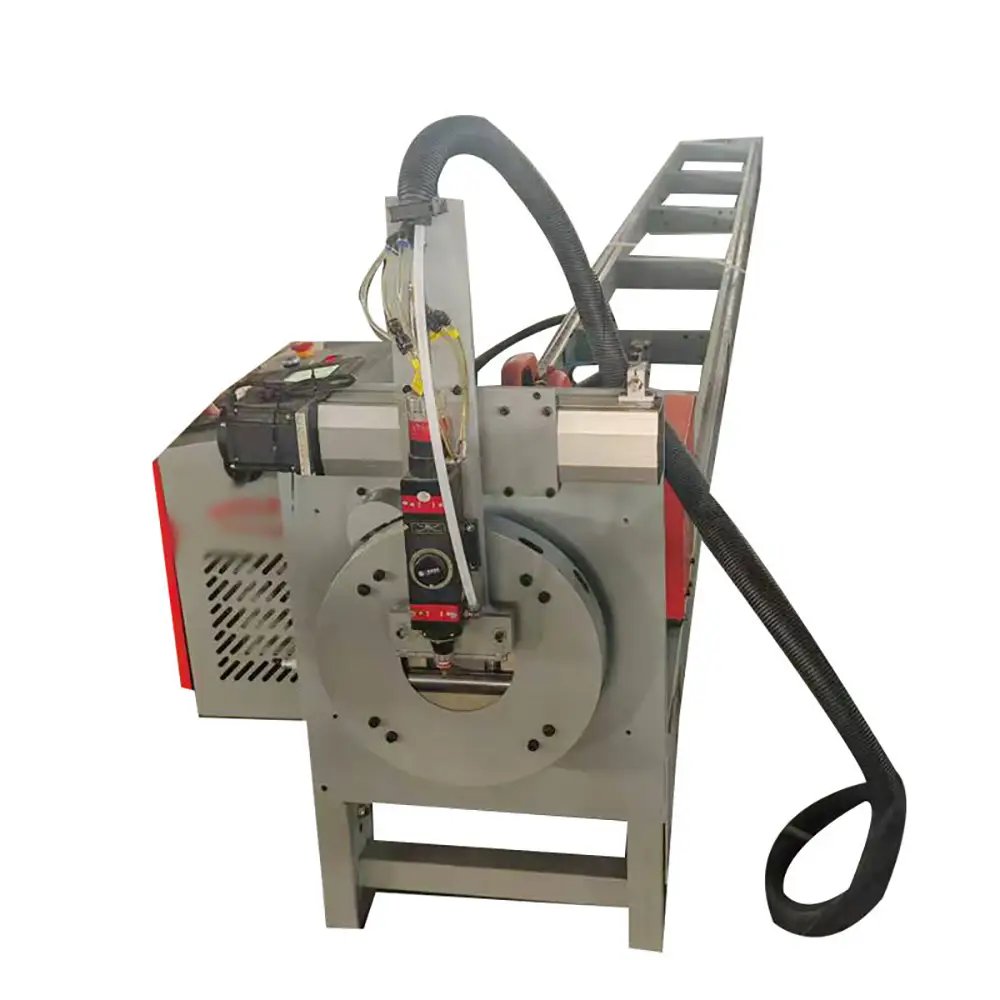

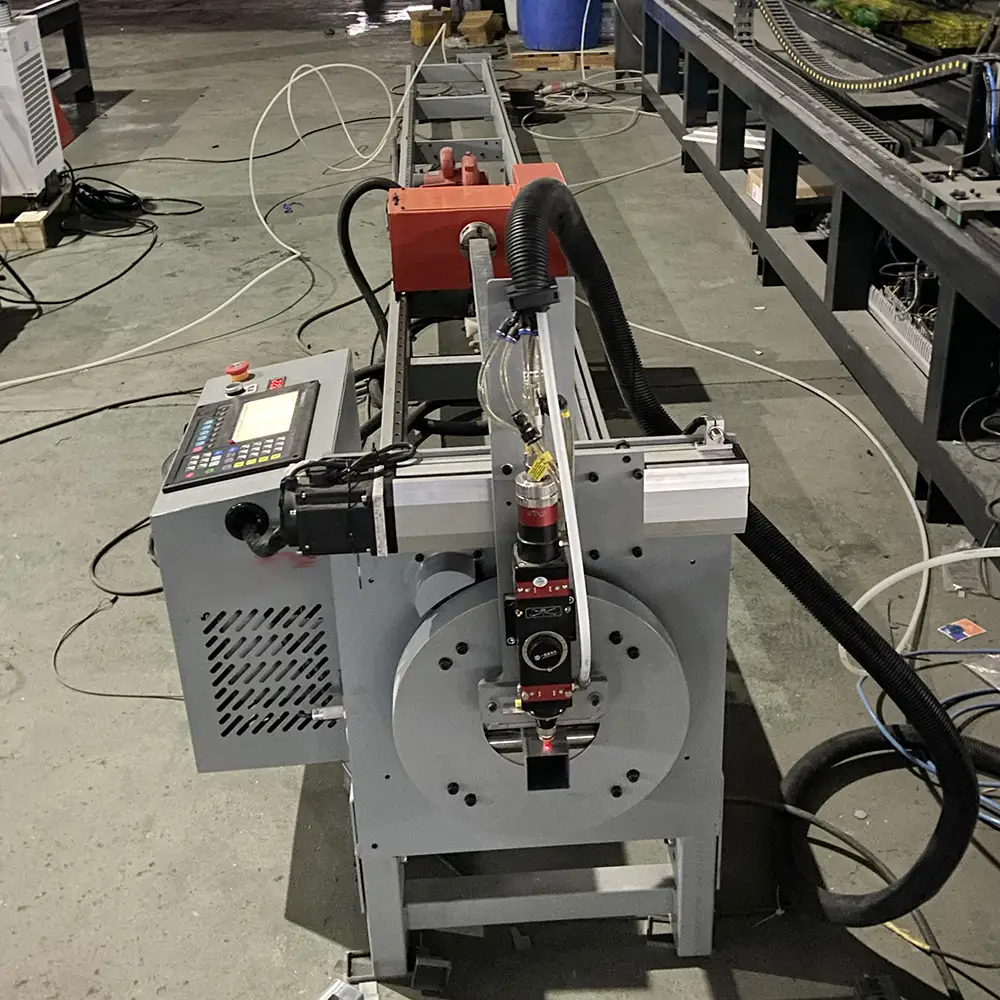

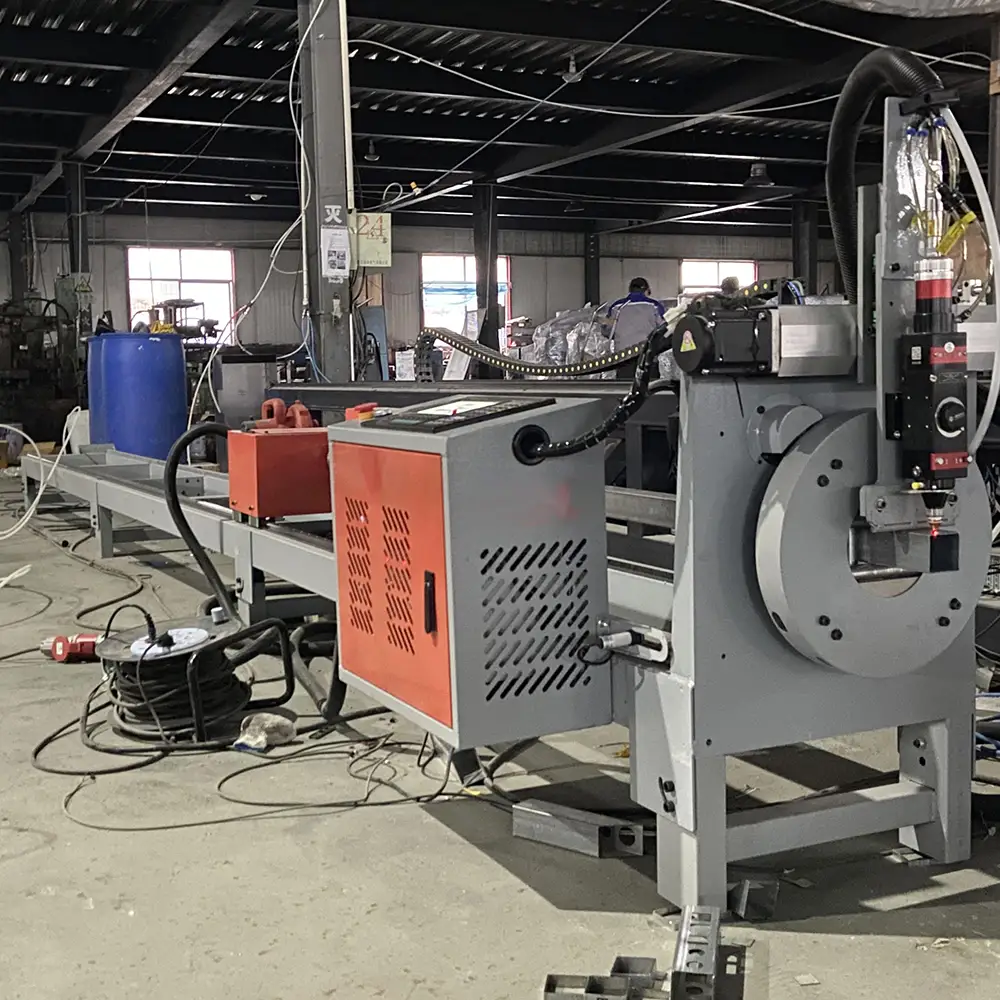

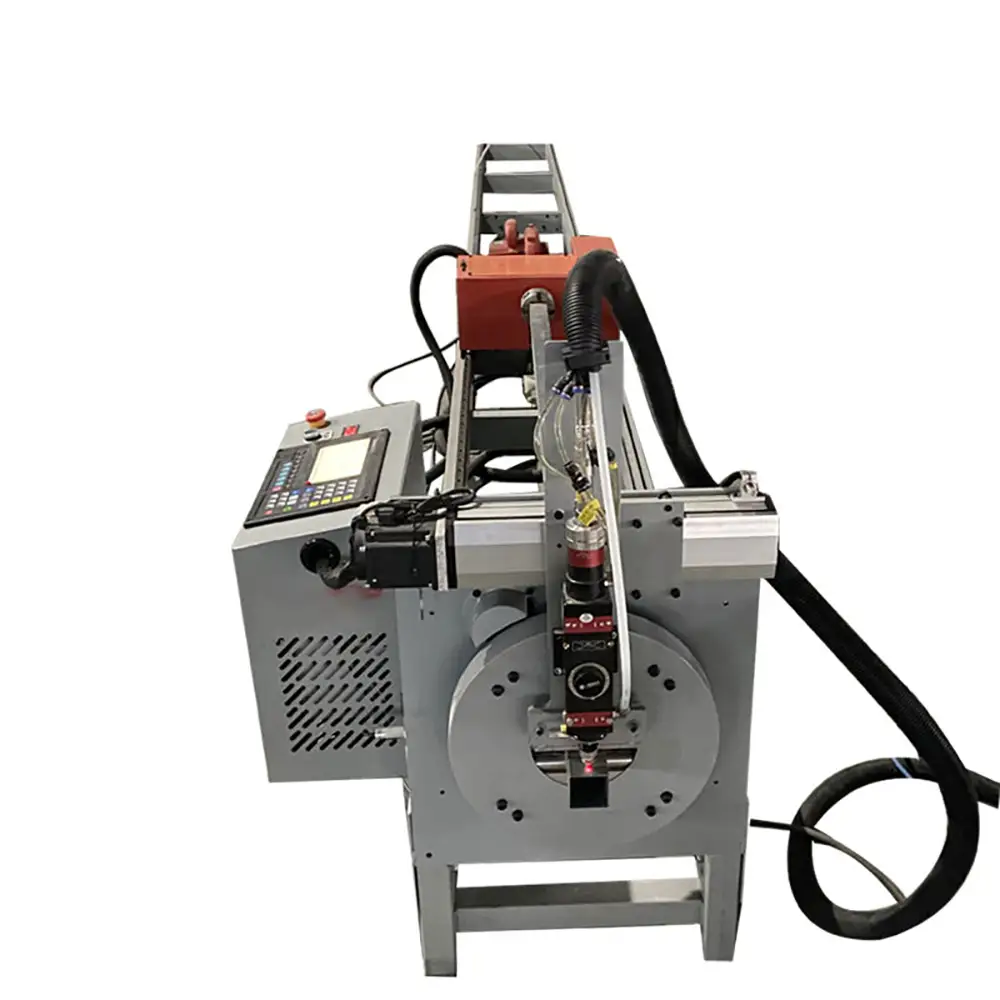

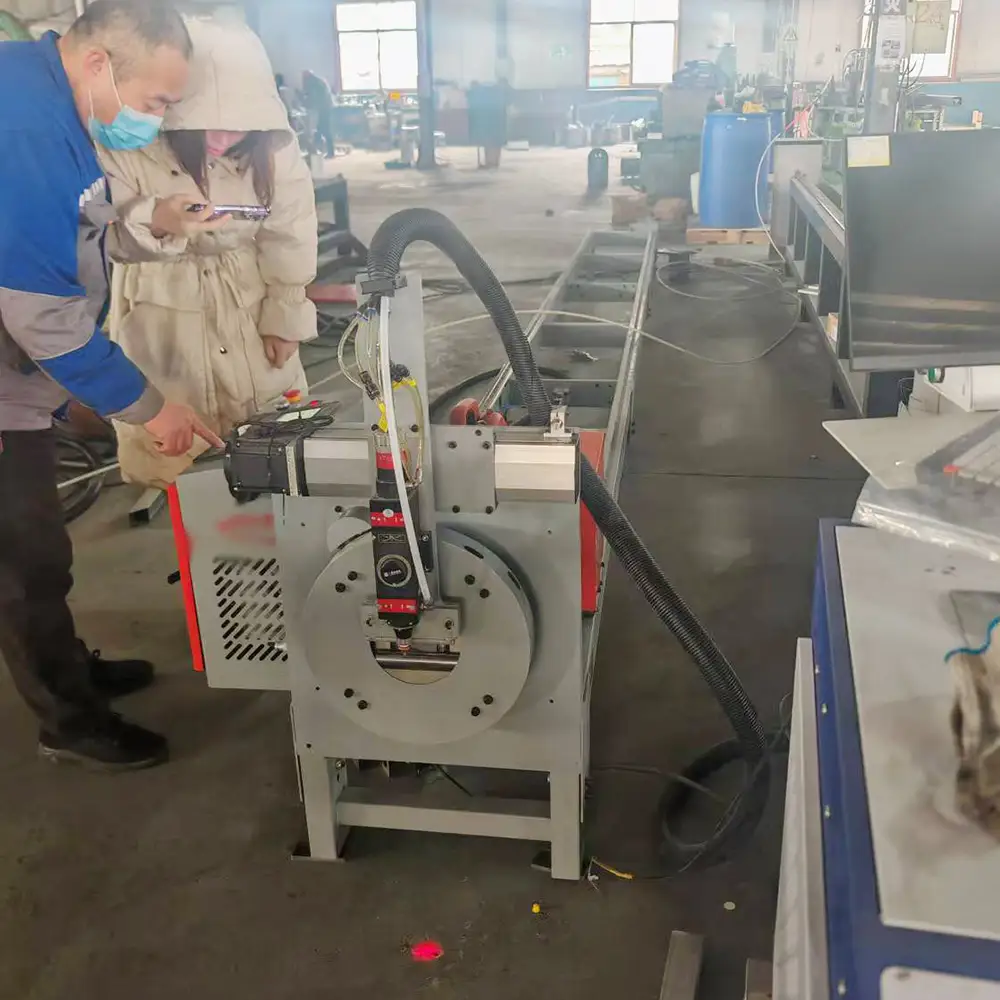

1500W Portable Laser Cutter Round Square Metal Tube Pipe Laser Pipe Cutting Machine

The 1500W Portable Laser Cutter Round Square Metal Tube Pipe Laser Pipe Cutting Machine is a compact and flexible fiber laser solution designed for precision cutting of compatible metal tubes and pipes. With a 1500W laser configuration, portable machine design, and CNC-controlled processing, it provides manufacturers, metalworking shops, and industrial fabricators with an efficient solution for round and square tube applications.

Tube laser cutting is widely used in metal furniture, steel structures, fencing, handrails, machinery frames, construction components, agricultural equipment, and general fabrication. By combining fiber laser technology with CNC control, this machine can perform programmed cutting operations while reducing manual measuring, marking, and mechanical cutting processes.

Specification
Model	120R-100S
The material fit to cut	Carbon steel, stainless steel, galvanized pipe, iron
Cut capacity	Round：19-120mm Square:19x19-100*100mm Rectangle: 100mm
Cutting length	6000mm
Thickness	≤3mm
Function	Cut off, cut hole, cut notching
Measure	6500*500*900mm(Subject to the actual object)
Weight	22KG (Subject to the actual object)
Power	220V(Control part)
Output voltage	24V
Air supply	Self-provided (need to ensure that the air pressure is stable at more than 13 kg during continuous operation)
Laser	1500W
Transmission mode	Precision rack drive
Control mode	Key button
Processing	Manual loading - automatic rotation – automatic feeding - automatic cutting - discharging
Main component Settings and parameters
Electric control unit	CHINT
Operating system	Self-developed control system software
Motor system	Servo motor
Chuck	Front manual chuck, rear manual chuck

1500W Fiber Laser Power

The 1500W fiber laser configuration provides a practical solution for processing compatible metal tubes and pipes. It is suitable for applications where manufacturers need accurate cutting and flexible production without necessarily requiring a higher-power industrial laser system.

Actual cutting capability depends on material type, tube dimensions, wall thickness, cutting geometry, assist gas, laser source, and machine configuration. Customers can select the appropriate configuration according to their specific production requirements.

Portable Design For Flexible Operation

The portable configuration is designed for users who need flexible equipment placement or a compact tube-processing solution. Compared with larger production lines, a portable laser cutter can be easier to integrate into workshops with limited floor space.

The compact design can also be useful for small and medium-sized metal fabricators, maintenance workshops, custom manufacturers, and businesses processing different tube products.

The exact mobility, dimensions, weight, and installation requirements depend on the machine configuration.

Round And Square Metal Tube Cutting

The machine is designed for processing round and square metal tubes and pipes. Depending on the selected chuck and machine configuration, compatible rectangular or other tube profiles may also be supported.

Round tubes are commonly used for handrails, furniture, fencing, fitness equipment, lighting structures, and architectural products. Square tubes are widely used for steel structures, machinery frames, racks, construction components, agricultural equipment, and industrial products.

Using one flexible CNC tube cutting platform can help manufacturers process different tube profiles for multiple product categories.

Precision Fiber Laser Processing

Fiber laser cutting uses a concentrated beam to process the workpiece without direct mechanical contact. The CNC cutting head follows programmed paths to produce controlled shapes and profiles.

For tube fabrication, laser processing can be used for holes, slots, contours, notches, tube-end cuts, and other programmed geometries, depending on the machine configuration.

Accurate tube cutting can simplify subsequent welding and assembly processes by providing consistent component dimensions across multiple workpieces.

CNC Control And Repeatable Production

The CNC control system allows operators to create and execute digital cutting programs. Once a program has been tested, it can be reused for repeated production.

This can reduce manual measuring and marking and help improve consistency between workpieces. It is particularly useful for manufacturers producing standardized tube components or recurring OEM orders.

For customized products, operators can change the digital cutting program to process different tube designs without replacing conventional mechanical tooling.

Stainless Steel And Carbon Steel Applications

The 1500W portable fiber laser tube cutter can be configured for compatible stainless steel, carbon steel, iron-based metals, and other suitable metal tubes.

Stainless steel tube cutting is common in furniture, railings, architectural products, industrial equipment, and decorative structures. Carbon steel and iron tubes are widely used in machinery frames, steel structures, fencing, construction, agriculture, and industrial fabrication.

Material thickness and laser parameters should be matched to the actual application to achieve the required cutting performance.

Efficient Metal Tube Fabrication

The combination of CNC control and fiber laser processing creates an efficient digital production workflow. After the tube is loaded and positioned, the CNC system controls the programmed cutting operation.

For batch production, this can reduce repetitive manual work. For customized orders, digital programming allows manufacturers to switch between different product designs more efficiently.

This makes the machine suitable for both small-batch custom fabrication and regular production of metal tube components.

Flexible Applications

The machine can be used for many tube-based products, including metal furniture, steel fencing, stair railing components, handrails, machinery frames, agricultural equipment, fitness equipment, lighting structures, racks, and construction components.

Because the machine is designed around programmable tube cutting, manufacturers can use it for different projects rather than limiting production to one specific product.

B2B Configuration And Customization

Every factory has different tube sizes, materials, production volumes, and cutting requirements. Therefore, machine configuration should be selected according to the customer's actual application.

Important considerations can include laser power, tube-processing range, chuck system, cutting head, CNC controller, loading method, and optional automation functions.

For OEM customers, distributors, and industrial buyers, sample testing can help confirm whether the selected configuration meets the required cutting application.

Key Features
1500W fiber laser configuration.
Portable and compact tube-cutting design.
Suitable for round and square metal tubes.
CNC-controlled fiber laser processing.
Suitable for stainless steel, carbon steel, iron, and compatible metals.
Supports programmed holes, slots, contours, and tube-end cuts.
Non-contact laser cutting process.
Suitable for customized and batch production.
Flexible solution for small and medium-sized metal fabrication.
Factory-direct B2B configuration and technical support.
Main Applications

The 1500W Portable Fiber Laser Tube Cutting Machine is suitable for:

Round Pipe Cutting
Square Tube Cutting
Stainless Steel Tube Processing
Carbon Steel Pipe Cutting
Metal Furniture
Steel Fencing
Stair Railings
Handrails
Machinery Frames
Agricultural Equipment
Fitness Equipment
General Metal Fabrication
FAQs
1. What Is A 1500W Portable Fiber Laser Tube Cutter?

It is a portable CNC fiber laser machine equipped with a 1500W laser system for cutting compatible metal tubes and pipes.

2. Can It Cut Round And Square Tubes?

Yes. The machine is designed for round and square metal tubes, with additional profiles potentially supported depending on the selected configuration.

3. What Materials Can It Cut?

Typical compatible materials include stainless steel, carbon steel, iron-based metals, and other suitable metal tubes.

4. Is 1500W Suitable For Metal Tube Cutting?

A 1500W configuration can be suitable for many metal tube applications. Actual cutting capability depends on material type, wall thickness, tube dimensions, and required cutting performance.

5. What Is The Advantage Of A Portable Design?

The portable configuration can provide flexible equipment placement and is suitable for workshops that prefer a compact tube-processing solution.

6. Can It Cut Holes And Slots?

Yes. Depending on the CNC system and machine configuration, programmed holes, slots, notches, contours, and tube-end cuts can be processed.

7. Is The Machine CNC Controlled?

Yes. CNC control manages the programmed cutting path and tube positioning for repeatable production.

8. Can It Process Stainless Steel Pipes?

Yes. The machine can be configured for compatible stainless steel pipes and tubes according to the required material thickness.

9. Is It Suitable For Customized Tube Products?

Yes. CNC programming makes it suitable for OEM components, customized furniture parts, railings, frames, and other tube products.

10. Can The Machine Configuration Be Customized?

Yes. Laser power, tube-processing range, chuck system, CNC controller, cutting head, loading method, and other options can be evaluated according to your production requirements.

Why Choose Us
Professional Fiber Laser Tube Solutions

We provide CNC fiber laser equipment for metal tube and pipe processing, supporting manufacturers, fabricators, distributors, and international B2B customers.

Practical 1500W Configuration

The 1500W configuration provides a flexible solution for compatible metal tube applications where precision and production efficiency are required.

Portable And Flexible Design

The compact configuration can be suitable for workshops with limited floor space or manufacturers requiring flexible equipment placement.

Multiple Tube Applications

Round and square tube processing allows manufacturers to produce components for furniture, fencing, machinery, construction, railings, and other industries.

Factory-Direct B2B Supply

We support OEM, distributor, project, and industrial customers with direct factory communication, technical consultation, machine configuration, and production coordination.

International Export Service

We provide machine testing, technical documentation, export packaging, shipping coordination, installation guidance, and after-sales technical assistance for overseas customers.
