High Performance 360mm Double Chuck Fiber Laser Tube Cutting Machine, 12m Large Scale CNC Metal Pipe Cutter

6000W High Efficiency: Equipped with world-class laser sources (Raycus/IPG), delivering superior cutting speed and stable performance for thick metal pipes. Also 3000W optional
360mm Large Processing Capacity: Specially designed for heavy-duty pipes with diameters up to 360mm, meeting the needs of large-scale structural manufacturing.
Advanced Chuck System: Self-Centering Pneumatic Double Chuck: High-strength dual pneumatic chucks ensure stable clamping and precise centering, significantly reducing vibration during high-speed rotation.
Zero Tailings Design (Optional): Optimized chuck stroke reduces material waste, maximizing the utilization of expensive metal pipes.
Versatility & Accuracy: Multi-Shape Tube Processing: Effortlessly cut Round, Square, Rectangular, Oval tubes, and even D-shaped or H-beam profiles with high precision
Professional CNC Control System: Integrated with Cypcut/Fscut professional laser cutting software, supporting complex graphics and nested cutting to improve efficiency.
Durability & Reliability: Heavy-Duty Machine Bed: High-rigidity reinforced welded bed with aging treatment ensures no deformation after long-term use, maintaining micron-level accuracy.

The High Performance 360mm Double Chuck Fiber Laser Tube Cutting Machine is a large-scale CNC laser processing solution designed for efficient cutting of long metal tubes, pipes, and profiles. Featuring a 360mm double chuck configuration and up to 12m processing length, the machine is developed for industrial manufacturers that require stable positioning, flexible tube processing, and efficient production of large tubular components.

The machine combines fiber laser cutting technology, CNC motion control, double chuck workpiece positioning, and a long-length tube processing structure. It is suitable for professional metal fabrication applications involving carbon steel, stainless steel, aluminum, and other compatible metal materials.

With its large-scale configuration, this tube laser cutting machine is particularly suitable for factories working with long pipes and structural profiles that require accurate cutting before welding, assembly, or further fabrication.

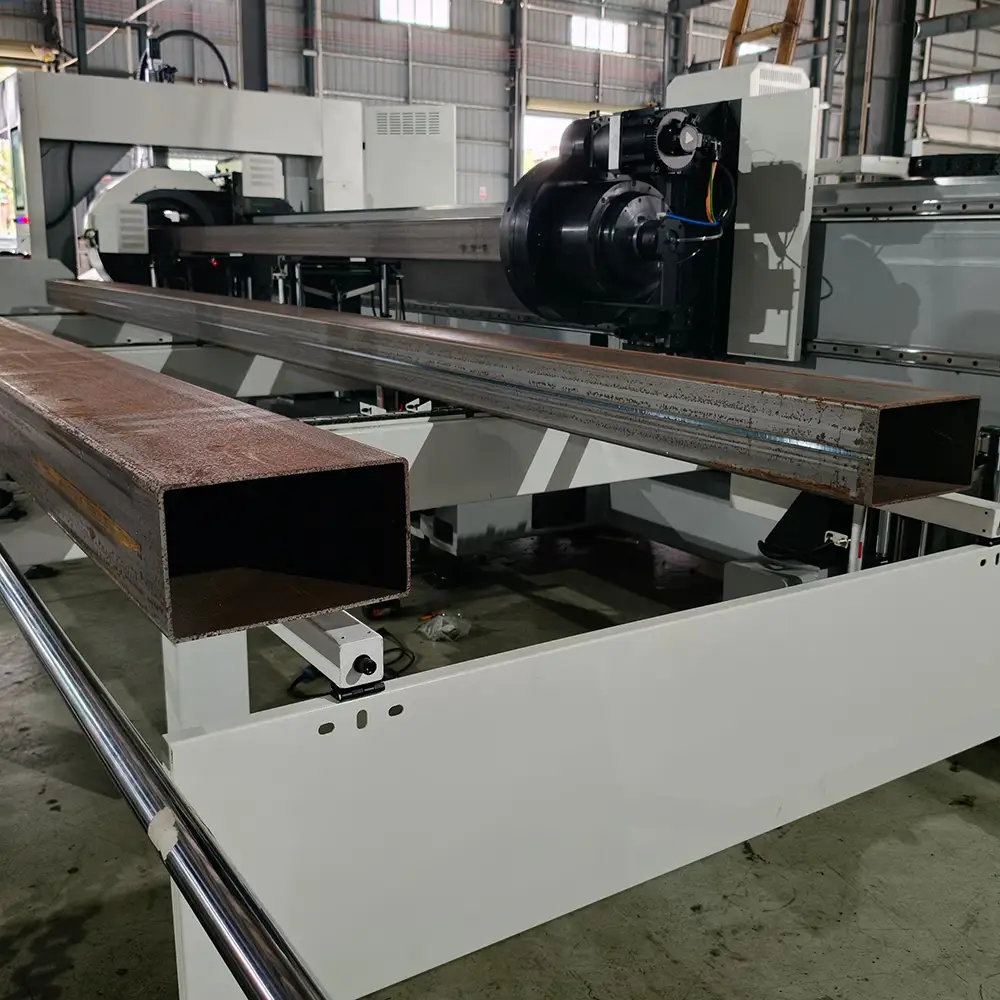

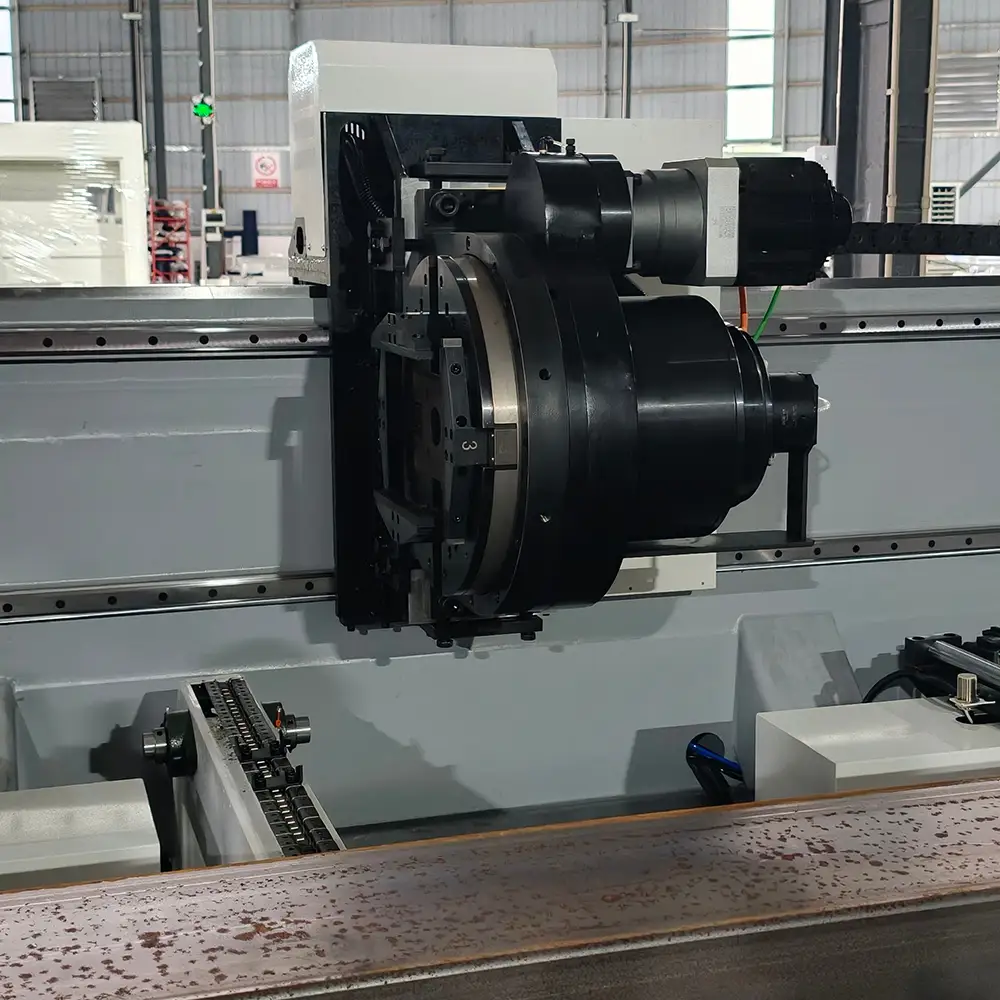

360mm Double Chuck System

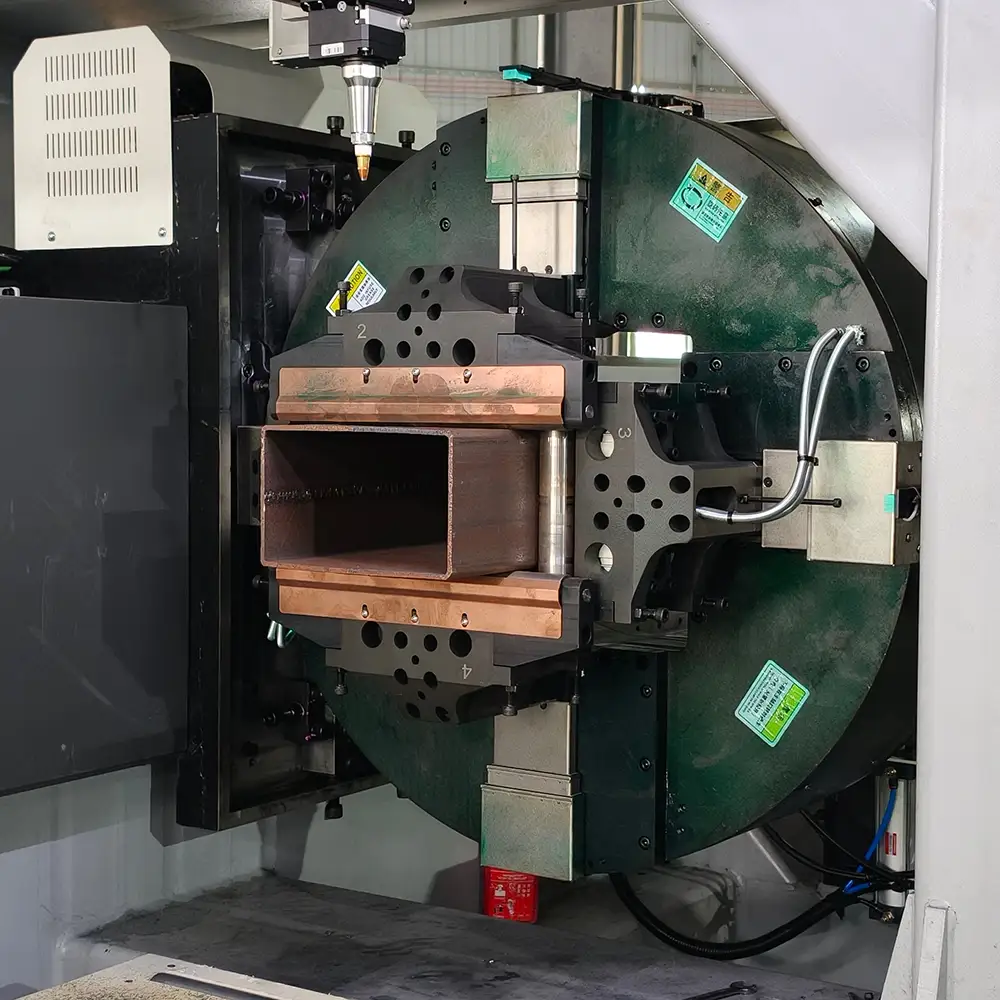

The 360mm Double Chuck Tube Laser Cutting Machine uses two chucks to hold and position the tubular workpiece during processing. A double chuck configuration can provide stable support and controlled rotation, which is important when processing long pipes and tubes.

The chuck system works together with the CNC control system to rotate and position the workpiece according to the programmed cutting path. This allows the laser cutting head to perform different cutting operations around the tube surface.

The actual compatible tube diameter depends on the specific chuck design and machine configuration. Customers can provide tube diameter, wall thickness, length, and material information to determine the appropriate specification.

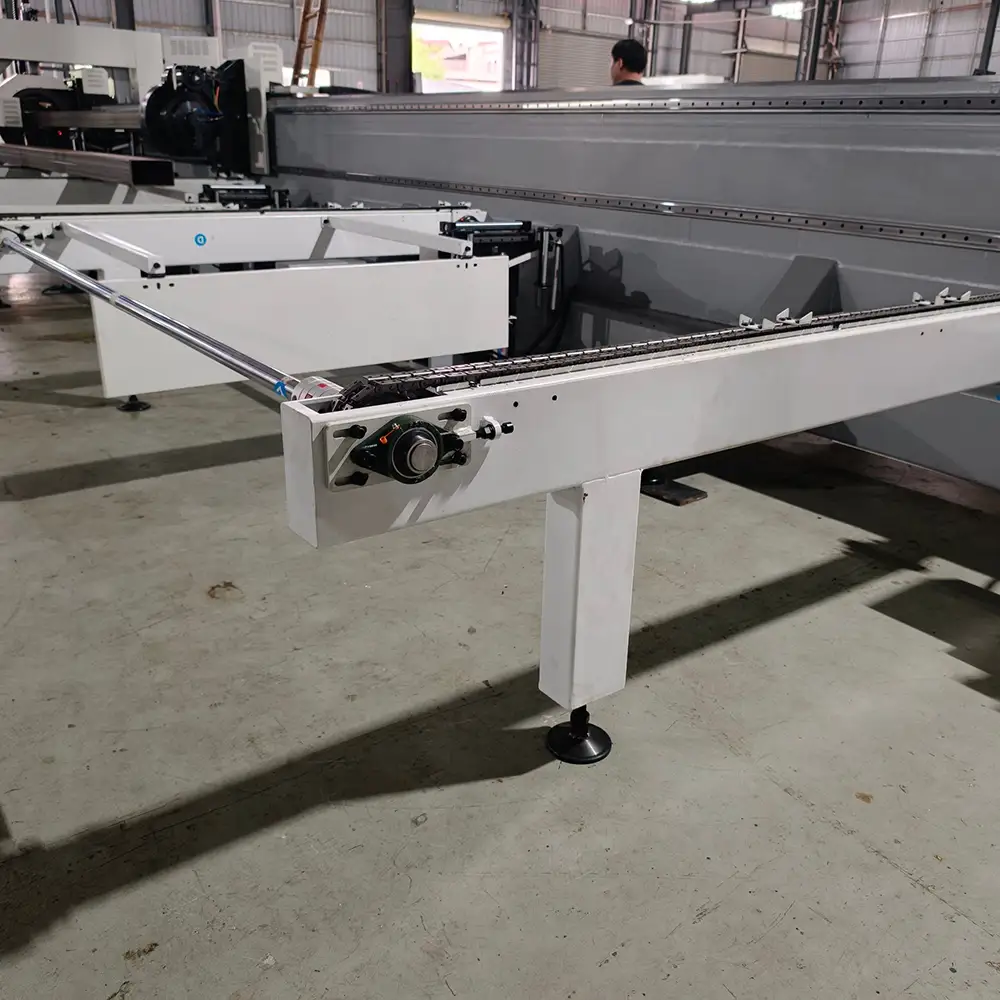

12m Large-Scale Tube Processing

One of the key advantages of this machine is its 12m Long Tube Cutting capability. Long metal pipes are widely used in steel structures, construction equipment, industrial machinery, transportation equipment, agricultural machinery, and engineering projects.

Processing long tubes with conventional equipment may require repeated measuring, repositioning, and secondary machining. A dedicated long-length CNC tube laser cutter provides an integrated processing platform for these applications.

The 12m configuration is designed for manufacturers that need to handle long raw materials efficiently. The actual maximum processing length depends on the machine model, support structure, loading system, and production configuration.

Fiber Laser Cutting Technology

The machine uses a fiber laser source to provide concentrated laser energy for metal cutting. The laser cutting head follows programmed CNC paths to process the tube according to the required design.

Fiber laser cutting is a non-contact process and can be used for compatible metal materials when the appropriate laser power, cutting head, auxiliary gas, nozzle, and process parameters are selected.

The final cutting performance depends on the material type, wall thickness, tube diameter, laser power, cutting speed, focus position, gas conditions, and machine configuration.

CNC Metal Pipe Cutting

The CNC control system provides digital control over tube positioning and laser cutting movement. Operators can prepare cutting programs based on engineering drawings and customized production requirements.

The machine can perform a variety of tube processing operations, including:

Tube Length Cutting
Hole Cutting
Slot Cutting
Opening Cutting
Notch Cutting
End Profile Cutting
Customized Contour Cutting

These capabilities make the equipment suitable for manufacturers that need more than basic pipe cutting. Customized digital programs can be created for different products, helping reduce the need for dedicated mechanical tooling.

Round, Square And Rectangular Tube Processing

Depending on the selected chuck and tube processing configuration, the machine can be used for compatible round, square, rectangular, and other metal profiles.

Round tube cutting is commonly used for pipes, frames, handrails, furniture, automotive components, and industrial structures.

Square and rectangular tube cutting is widely used for steel structures, machinery frames, agricultural equipment, construction components, and metal furniture.

The actual profile types and dimensional range should be confirmed according to the machine configuration and customer's workpiece specifications.

Large-Scale Industrial Applications

The Large Scale CNC Metal Pipe Cutter is suitable for many industrial applications, including:

Steel Structure Manufacturing
Large Pipe Fabrication
Construction Equipment
Agricultural Machinery
Industrial Machinery
Transportation Equipment
Metal Frame Manufacturing
Structural Tube Processing
Fitness Equipment
Handrail Manufacturing
Customized Metal Products
General Tube Fabrication

It can be used for prototype production, customized orders, batch manufacturing, and continuous industrial production.

Production Efficiency

For long-tube manufacturing, production efficiency depends on material handling, workpiece positioning, cutting programming, laser parameters, loading, and unloading as well as actual cutting speed.

The double chuck system provides coordinated tube positioning, while the long-length configuration reduces the need for repeated repositioning of long workpieces.

For factories processing multiple tube designs, CNC programming also allows operators to switch between different cutting patterns without changing mechanical tooling for every product.

Flexible Machine Configuration

The machine can be configured according to the customer's material, tube dimensions, production volume, and required cutting operations.

Configuration options may include different fiber laser power levels, 360mm chuck systems, CNC controllers, laser cutting heads, automatic focusing systems, material loading solutions, support systems, auxiliary gas equipment, and other automation components.

Customers can provide sample drawings, tube dimensions, material specifications, and production requirements for technical evaluation before selecting the final machine configuration.

Key Features
360mm Double Chuck Configuration
Up To 12m Long Tube Processing
High-Performance Fiber Laser Technology
CNC Metal Pipe Cutting
Large-Scale Industrial Design
Round And Square Tube Processing
Hole, Slot And Notch Cutting
Stable Tube Positioning
Digital CNC Programming
Factory-Direct B2B Equipment Supply
FAQs
1. What is the maximum processing length?

This configuration is designed for tube processing up to approximately 12m, subject to the specific machine model and configuration.

2. What does the 360mm chuck specification mean?

It refers to the specified chuck configuration. The actual maximum compatible tube diameter depends on the complete machine design.

3. What is the advantage of the double chuck system?

Two chucks provide coordinated workpiece holding and positioning, which can be useful when processing long tubular materials.

4. Can it process round tubes?

Yes. The machine can be configured for compatible round metal tubes and pipes.

5. Can it cut square tubes?

Yes. Compatible square and rectangular profiles can be processed with the appropriate chuck and CNC configuration.

6. What materials can it cut?

Depending on the selected configuration, the machine can process carbon steel, mild steel, stainless steel, aluminum, and other compatible metals.

7. Can it cut holes and slots?

Yes. CNC laser programming can produce holes, slots, openings, notches, and customized contours.

8. Is the machine suitable for industrial production?

Yes. It is designed for professional tube and pipe fabrication, including customized parts and batch production.

9. Can the machine configuration be customized?

Yes. Laser power, chuck system, processing length, loading equipment, cutting head, CNC controller, and other components can be configured according to customer requirements.

10. Do you provide technical support?

Yes. Technical consultation, sample testing, configuration recommendations, installation guidance, operator support, spare parts, and after-sales service can be provided according to the sales agreement.

Why Choose Us
Large-Scale Tube Laser Solution

We provide industrial fiber laser tube cutting equipment designed for manufacturers processing long and large tubular workpieces.

360mm Double Chuck Technology

The double chuck configuration provides coordinated tube holding and positioning for stable processing of compatible metal pipes and profiles.

Long 12m Processing Capability

The long-length configuration is suitable for manufacturers working with extended pipes and tubes used in steel structures, construction, machinery, and other industrial applications.

Flexible Configuration

Laser power, processing length, chuck system, CNC controller, cutting head, material support, and loading equipment can be selected according to actual production requirements.

Factory-Direct Factory Supply

We support international manufacturers, distributors, engineering companies, metal fabricators, and industrial buyers with factory-direct equipment and customized solutions.

Technical And After-Sales Support

We provide technical documentation, machine operation guidance, installation support, spare parts assistance, and after-sales technical service for international customers.
