Heavy Duty 360mm Fiber Laser Tube Cutting Machine 6000WAuto Loading

1. Servo Follow-Up Support System
The servo follow-up support moves synchronously with the tube during processing, effectively preventing tube sagging and deformation. It ensures stable cutting accuracy, especially for long and heavy tubes.
2. Servo Follow-Up Receiving System
he servo follow-up unloading device automatically follows the finished parts during cutting, preventing scratches, collisions, and deformation. It improves finished product quality while reducing manual labor.
3. Heavy-Duty Large Diameter Processing
Designed for processing large-diameter and heavy tubes, supporting round tubes up to 360mm diameter with stable clamping and high cutting precision.
4.Automatic Loading and Unloading
Equipped with a 12-meter automatic loading system and a 6-meter automatic unloading system, significantly improving production efficiency and reducing labor costs.

The Heavy Duty 360mm Fiber Laser Tube Cutting Machine is an industrial CNC laser cutting solution designed for efficient processing of metal tubes, pipes, and profiles. Equipped with a 6000W fiber laser configuration, 360mm chuck system, and automatic loading capability, this machine is designed for manufacturers that require high-power tube cutting and streamlined material handling.

The machine is suitable for professional metal processing applications involving carbon steel, stainless steel, aluminum, and other compatible materials. With CNC control, fiber laser technology, automatic loading, and a heavy-duty mechanical structure, it provides a flexible solution for factories producing structural components, machinery parts, metal frames, pipes, and customized tubular products.

6000W High-Power Fiber Laser

The machine uses a 6000W Fiber Laser configuration to provide a high-power cutting solution for industrial tube and pipe processing. Fiber laser technology focuses concentrated laser energy onto the workpiece, allowing the cutting head to follow programmed paths with CNC control.

The actual cutting capability depends on the material type, wall thickness, tube dimensions, auxiliary gas, cutting head, laser source, and selected machine configuration. The 6000W configuration is suitable for manufacturers requiring a high-power option for demanding metal tube applications.

The laser cutting process is non-contact, which eliminates direct mechanical contact between the cutting tool and the metal surface. This provides flexibility for cutting different tube profiles when the appropriate parameters and machine configuration are used.

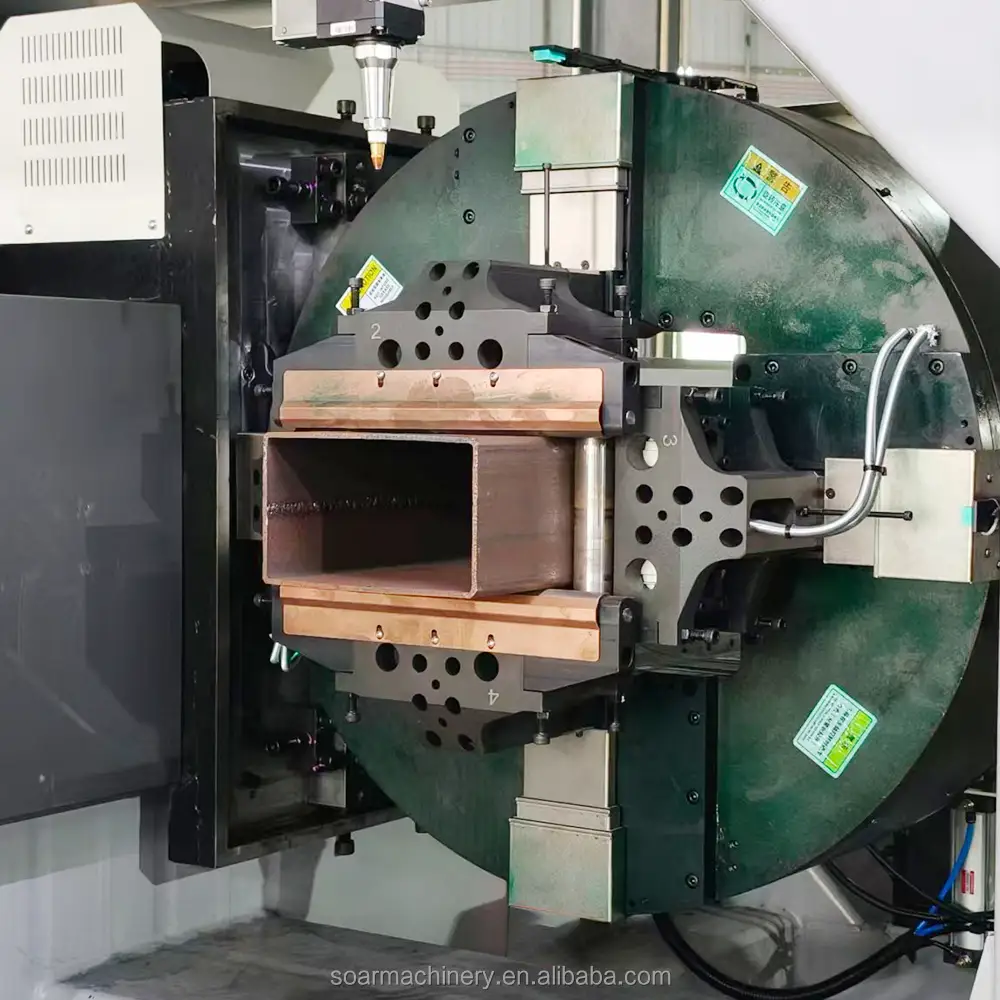

360mm Chuck Tube Cutting System

The 360mm Chuck Fiber Laser Tube Cutting Machine is designed around a chuck configuration suitable for tube and pipe processing within the corresponding dimensional range.

The chuck system holds the workpiece during laser cutting and works together with the CNC control system to position and rotate the tube according to the programmed cutting path. Stable workpiece clamping is important when processing holes, slots, notches, and customized contours.

The actual maximum tube diameter and compatible workpiece dimensions depend on the complete machine design. Customers can provide their tube diameter, length, wall thickness, and material information to determine the appropriate configuration.

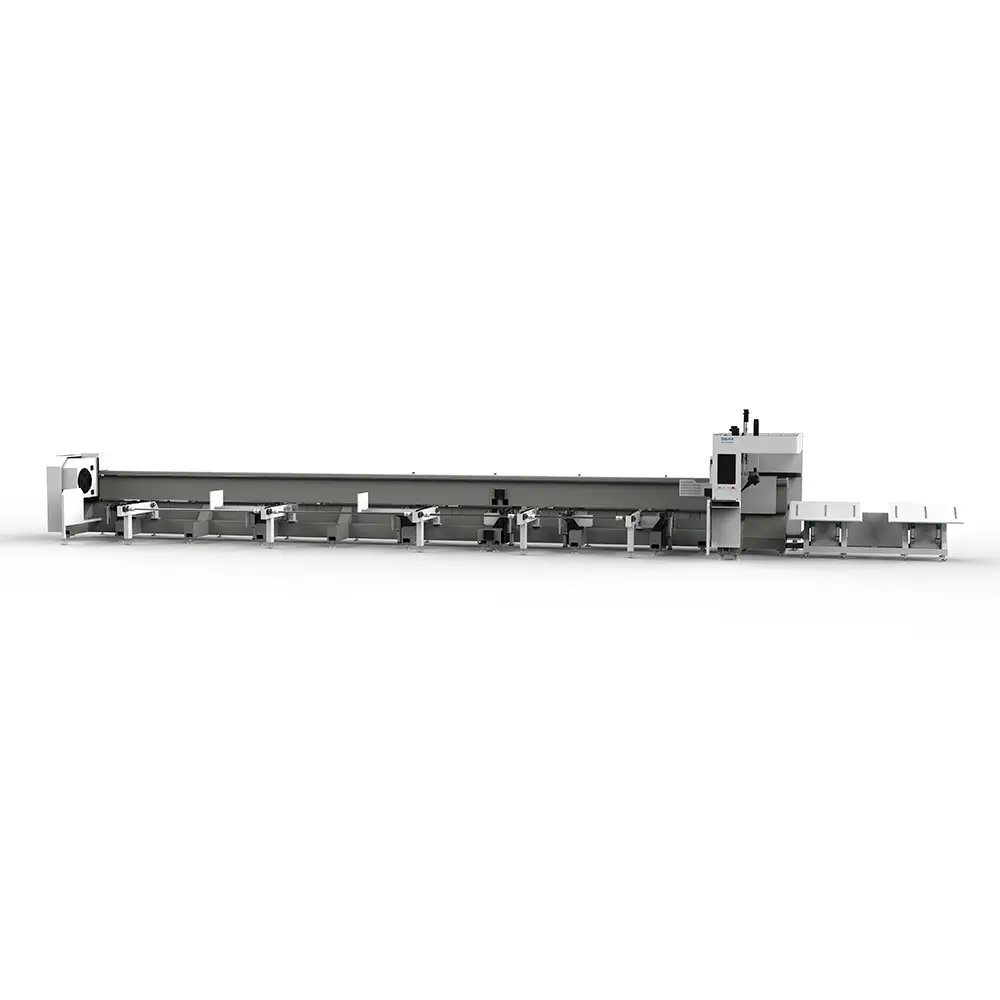

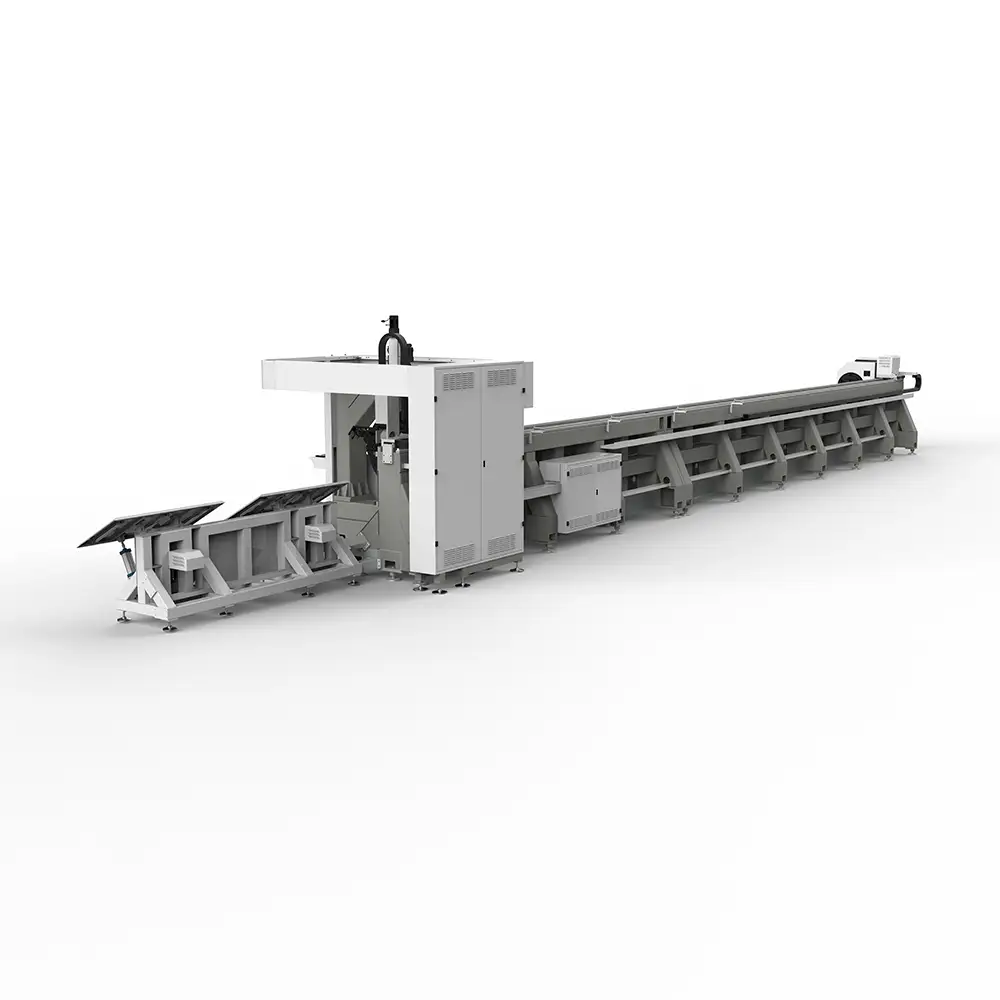

Auto Loading Tube Processing

The Auto Loading Tube Laser Cutting Machine is designed to reduce repetitive manual material handling. The automatic loading system can feed compatible tubes or pipes into the cutting area according to the machine's configured workflow.

Automation is particularly useful for factories processing multiple tubes or pipes in batches. By reducing manual loading and positioning operations, the system can help improve workflow organization and production consistency.

The exact loading method depends on the tube dimensions, material weight, machine layout, and selected automation system. Customers should provide raw material specifications when requesting an automatic loading configuration.

Heavy-Duty Industrial Construction

Heavy-duty tube processing requires a stable machine structure capable of supporting the weight and movement of tubular workpieces. The machine is designed for industrial production environments where durability and repeatable operation are important considerations.

The mechanical structure, tube support system, chuck system, laser cutting head, and CNC motion system work together to provide a coordinated tube cutting process.

For customers processing large or heavy tubes, the machine can be configured with suitable support and material handling equipment according to the required workpiece dimensions.

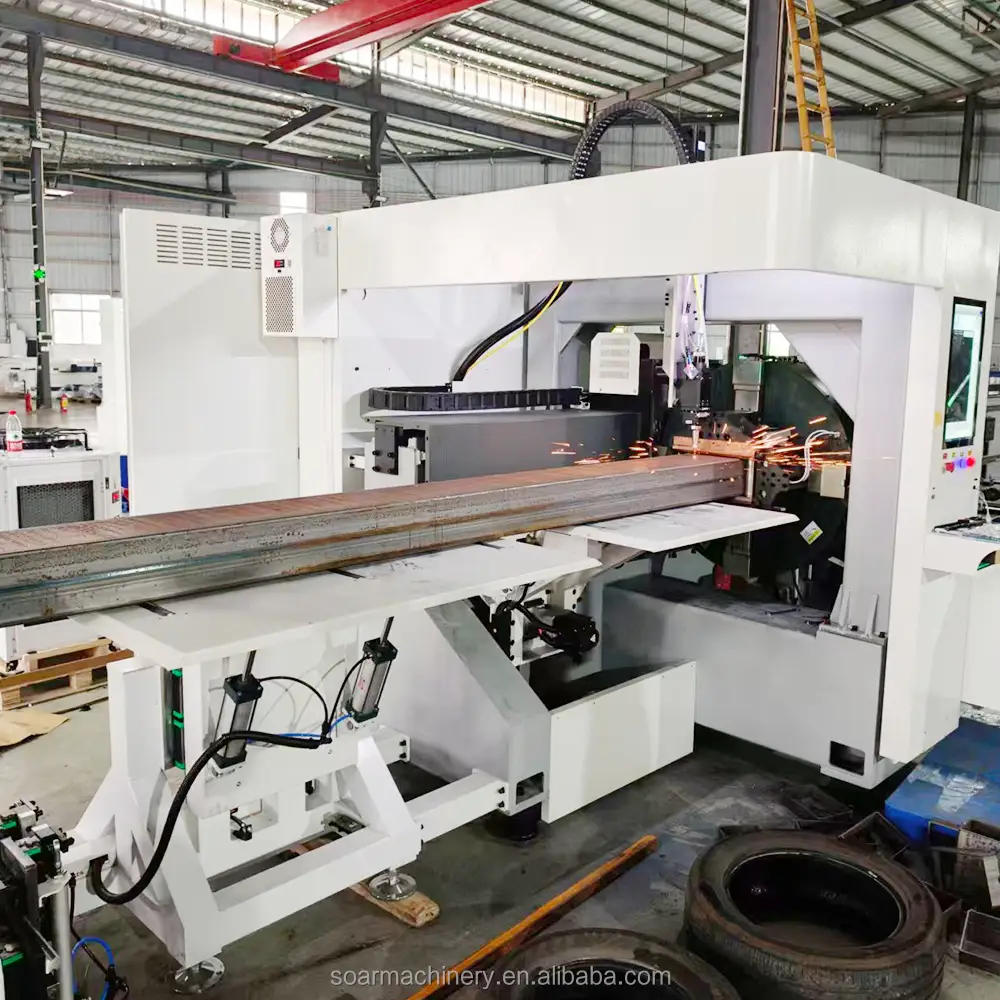

CNC Fiber Laser Tube Cutting

The CNC control system allows operators to create and execute digital cutting programs for different tube components. This makes the machine suitable for both standard production and customized tube fabrication.

Typical operations can include:

Tube Length Cutting
Hole Cutting
Slot Cutting
Notch Cutting
Opening Cutting
End Profile Cutting
Customized Contour Cutting

CNC programming makes it easier to change between different product designs. Manufacturers can prepare new cutting programs for customized orders without requiring dedicated mechanical tooling for every component.

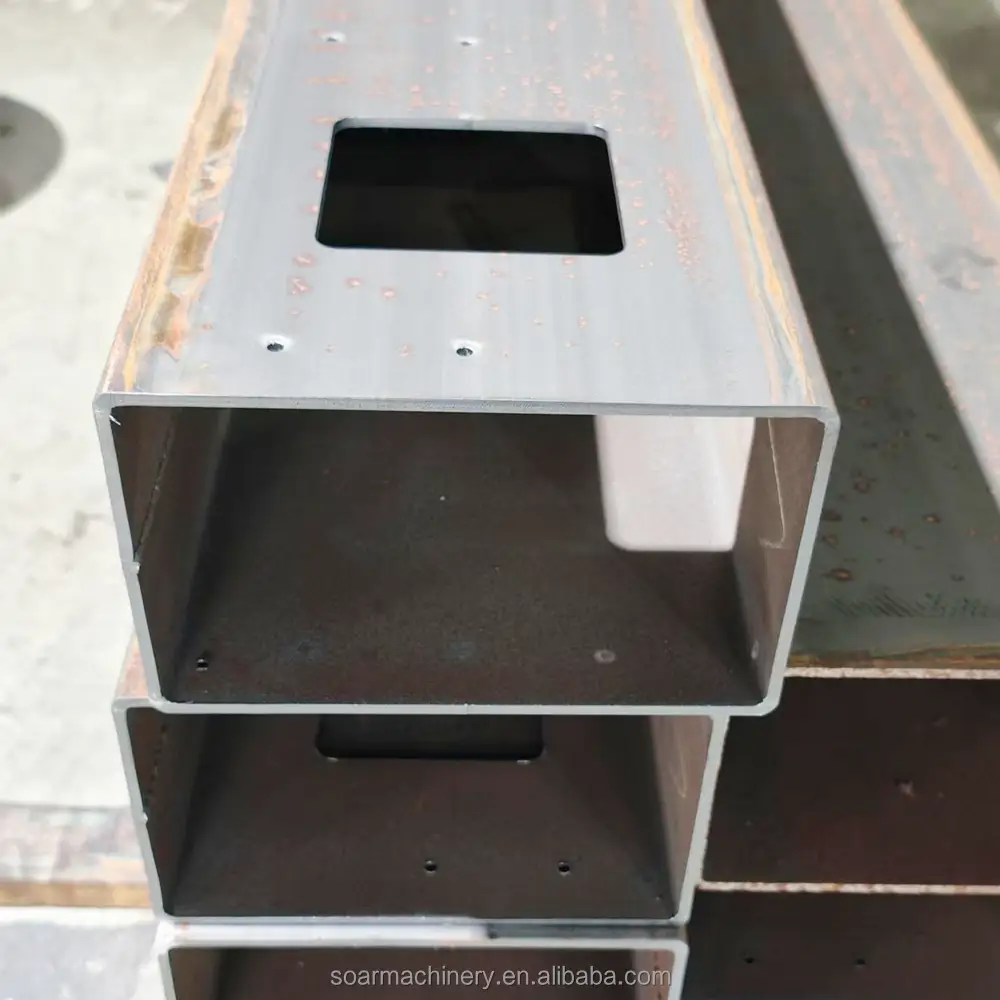

Suitable For Different Tube Profiles

Depending on the selected machine configuration, the system can process compatible round, square, rectangular, and other metal profiles.

Round tube laser cutting is widely used for handrails, furniture, frames, automotive components, and industrial pipes.

Square and rectangular tube cutting is commonly used for steel structures, machinery frames, agricultural equipment, construction products, and metal furniture.

The actual compatible tube shapes and dimensions should be confirmed according to the selected chuck, cutting system, laser power, and machine model.

Industrial Applications

The Heavy Duty Fiber Laser Tube Cutting Machine is suitable for a wide range of metal processing industries, including:

Steel Structure Manufacturing
Metal Furniture Production
Agricultural Machinery
Construction Equipment
Automotive Parts
Fitness Equipment
Industrial Machinery
Metal Frame Manufacturing
Handrail Production
HVAC Components
Customized Tube Fabrication
General Metal Processing

The machine can be used for prototypes, customized orders, batch production, and continuous industrial manufacturing.

Production Efficiency

For tube processing factories, overall productivity depends on more than laser cutting speed. Material loading, workpiece positioning, CNC programming, chuck clamping, support, unloading, and operator workflow also affect production efficiency.

The combination of 6000W fiber laser technology, 360mm chuck configuration, CNC control, and automatic loading provides an integrated solution designed to streamline these processes.

Actual productivity depends on tube dimensions, material thickness, cutting pattern, laser power, loading cycle, auxiliary gas, and production conditions.

Flexible Configuration

The final machine configuration can be selected according to the customer's production requirements. Options may include laser power, chuck system, automatic loading equipment, CNC controller, cutting head, support system, auxiliary gas equipment, and other automation components.

Customers can provide tube drawings, material specifications, dimensions, wall thickness, and production volume so that a suitable configuration can be recommended.

Key Features
6000W High-Power Fiber Laser
360mm Chuck Tube Cutting System
Automatic Tube Loading
Heavy-Duty Industrial Structure
CNC Fiber Laser Tube Cutting
Round And Square Tube Processing
Suitable For Multiple Metal Materials
Hole, Slot And Notch Cutting
Digital CNC Programming
Factory-Direct B2B Equipment Supply
FAQs
1. What is the laser power of this machine?

This configuration uses a 6000W fiber laser system.

2. What does the 360mm specification refer to?

It refers to the specified chuck or tube processing configuration. The actual maximum workpiece diameter depends on the complete machine model and configuration.

3. Does the machine have automatic loading?

Yes. An automatic loading system can be configured to reduce manual tube feeding and handling.

4. What materials can it cut?

Depending on configuration, the machine can process carbon steel, mild steel, stainless steel, aluminum, and other compatible metal tubes.

5. Can it cut round tubes?

Yes. The machine can be configured for round tube laser cutting.

6. Can it cut square and rectangular tubes?

Yes. Compatible square and rectangular profiles can be processed with the appropriate tube cutting configuration.

7. Can it cut holes and slots?

Yes. CNC programming allows the machine to perform hole, slot, opening, notch, and other customized cutting operations.

8. How should I select the correct configuration?

Selection should be based on tube diameter, length, wall thickness, material type, production volume, and required cutting operations.

9. Can the machine be customized?

Yes. Laser power, chuck configuration, automatic loading system, cutting head, CNC controller, and support equipment can be customized according to production requirements.

10. Do you provide technical support?

Yes. Technical consultation, sample testing, configuration recommendations, installation guidance, operation support, spare parts, and after-sales service can be provided according to the sales agreement.

Why Choose Us
High-Power Fiber Laser Solution

The 6000W fiber laser configuration provides a high-power option for manufacturers processing demanding metal tube and pipe applications.

Heavy-Duty Tube Processing

The machine is designed for industrial tube cutting applications and can be configured with appropriate support systems for heavier tubular workpieces.

360mm Chuck Configuration

The 360mm chuck system provides a practical tube holding and positioning solution for compatible metal pipe and profile processing.

Automatic Loading Solution

The automatic loading system can reduce repetitive manual material handling and support more organized batch production.

Customized B2B Equipment

Laser power, chuck system, loading equipment, CNC control, cutting head, and other components can be selected according to the customer's actual production requirements.

Factory-Direct Technical Support

We support international manufacturers, distributors, engineering companies, and metal fabricators with technical consultation, equipment supply, installation guidance, spare parts, and after-sales service.
