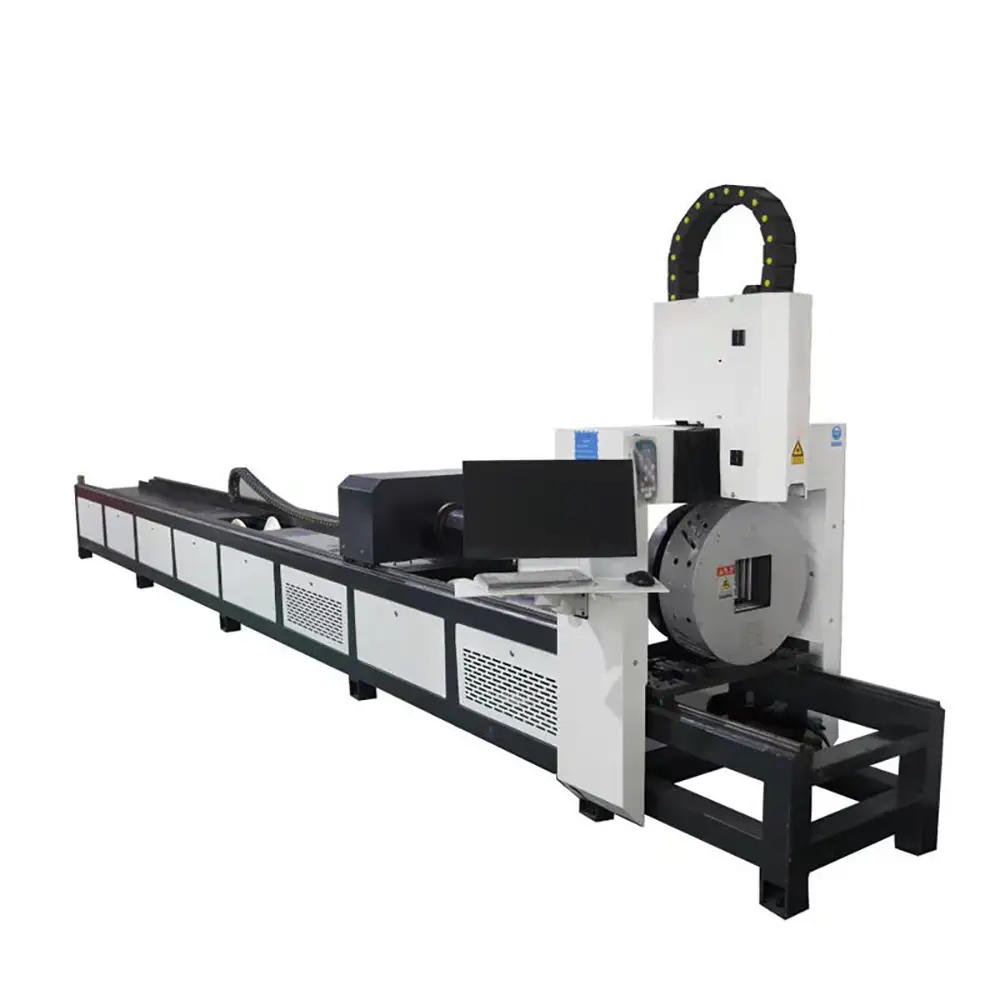

Pneumatic Chuck Laser Cutter Round Square Metal Pipe Tube Laser Tube Cutting Machine

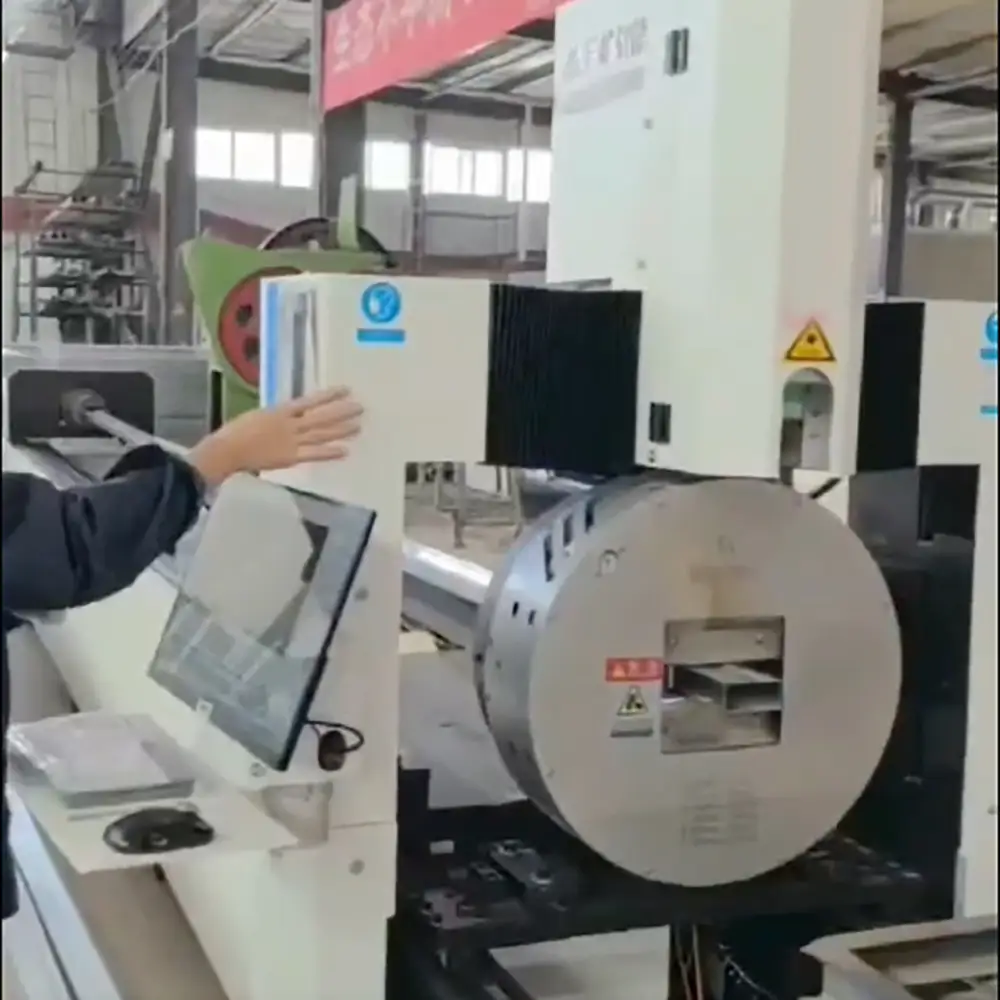

Pneumatic Chuck For Stable Workpiece Clamping

The pneumatic chuck is designed to hold the metal tube securely during laser cutting. Compressed air provides the clamping force, allowing operators to load and secure compatible workpieces without relying entirely on manual mechanical tightening.

Stable clamping is important when producing accurate tube components. A properly configured chuck helps maintain workpiece positioning during cutting and can support repeatable production across multiple workpieces.

The chuck specifications should be selected according to tube diameter, profile dimensions, workpiece weight, and production requirements.

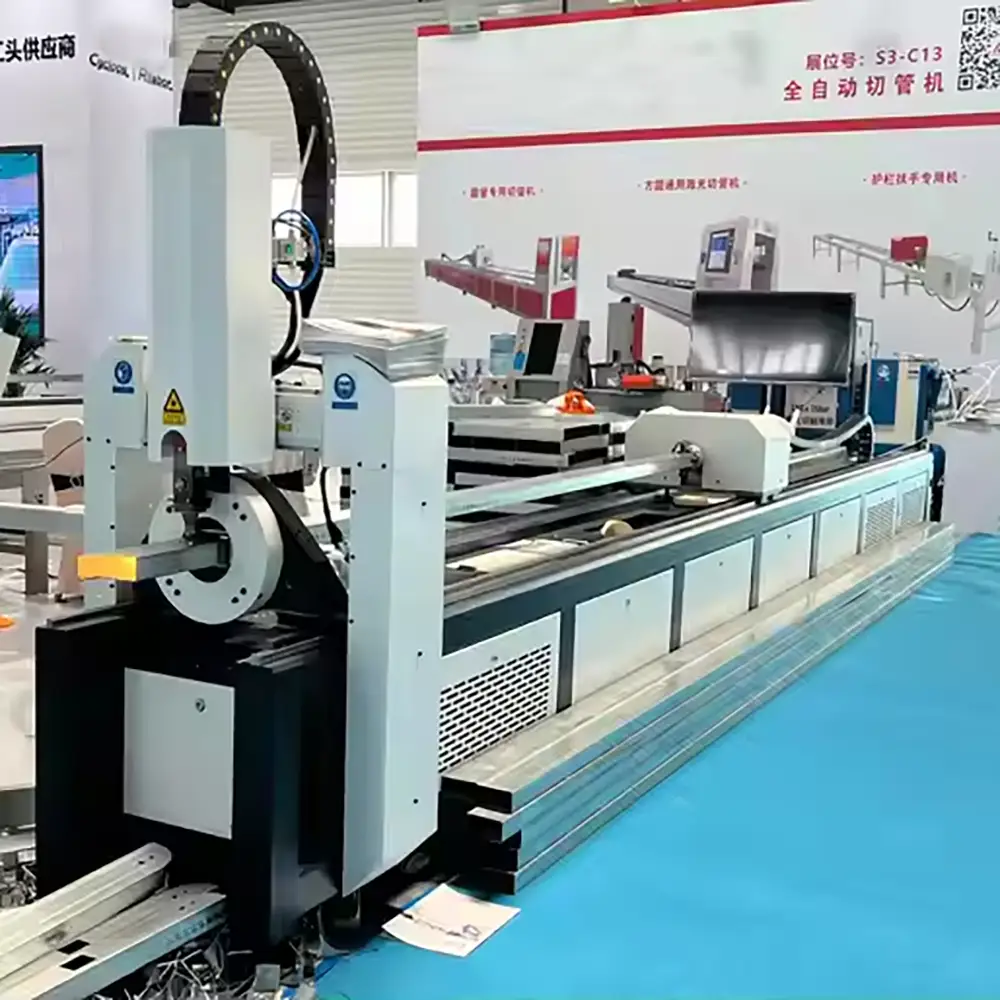

Round And Square Tube Processing

This laser tube cutting machine is designed for round and square metal pipes and tubes. Depending on the selected configuration, rectangular tubes and other compatible profiles may also be processed.

Round tubes are widely used for handrails, fencing, furniture frames, fitness equipment, lighting products, and structural components. Square tubes are commonly used in machinery frames, steel structures, construction components, racks, agricultural equipment, and industrial products.

A flexible tube laser cutter allows manufacturers to handle different tube profiles using one CNC processing platform.

Fiber Laser Technology

Fiber laser technology provides a concentrated beam for non-contact cutting of compatible metal materials. The laser cutting head follows programmed paths to produce accurate contours and shapes.

The appropriate laser power and processing parameters depend on the material type, tube dimensions, wall thickness, cutting geometry, and required production performance. Common compatible materials can include carbon steel, stainless steel, iron-based metals, and other suitable metal profiles.

Compared with conventional mechanical cutting methods, laser processing can reduce direct tool contact with the workpiece and provide flexible digital control over cutting patterns.

CNC Control For Repeatable Production

The CNC control system manages tube positioning, laser movement, and programmed cutting operations. Operators can create cutting programs based on product drawings and production requirements.

Once a program has been tested, it can be reused for multiple workpieces. This helps manufacturers produce standardized components while reducing manual measuring, marking, and cutting operations.

CNC programming is also useful for customized production because different tube designs can be processed by changing the digital program rather than replacing mechanical tooling.

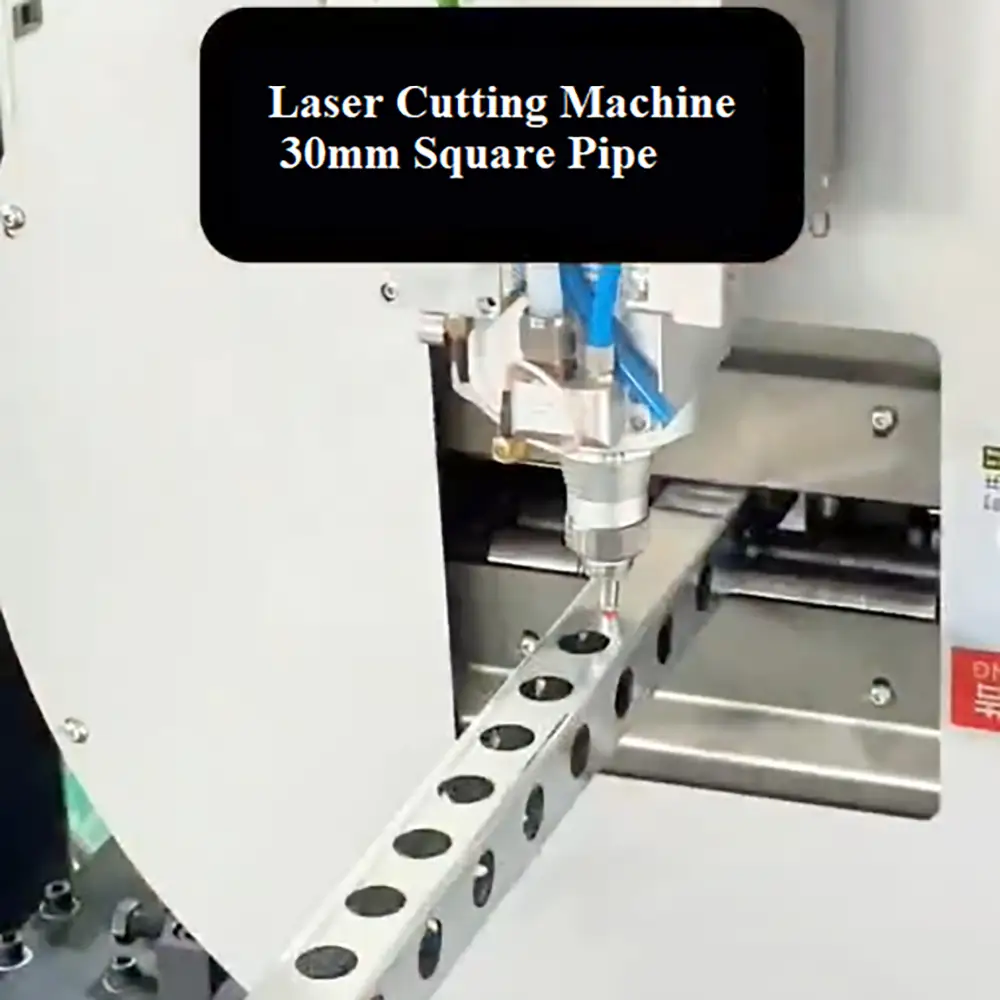

Cutting Holes, Slots, And Profiles

The machine can be configured to perform more than simple tube separation. Depending on the selected CNC system and cutting head, it can produce programmed holes, slots, notches, contours, and tube-end cuts.

These functions are particularly useful for products that require subsequent welding or assembly. Accurate openings and connection features can help reduce secondary drilling, milling, or manual fabrication operations.

For metal furniture, railings, machinery frames, and steel structures, integrated tube cutting can simplify component preparation.

Efficient Metal Tube Production

Pneumatic clamping combined with CNC laser cutting creates a streamlined production workflow. Operators can load the tube, secure it with the chuck, select the appropriate cutting program, and allow the machine to perform the programmed processing.

For batch production, this workflow can improve repeatability and reduce manual intervention. For customized orders, CNC programming provides flexibility to change cutting patterns according to individual product designs.

This makes the machine suitable for both standard production and OEM metal tube fabrication.

Stainless Steel, Carbon Steel, And Iron Tubes

The machine can be configured for compatible stainless steel, carbon steel, iron-based, and other metal tubes. Stainless steel tube cutting is common in architectural products, furniture, railings, industrial equipment, and decorative structures.

Carbon steel and iron tube cutting are widely used in construction, steel structures, machinery frames, fencing, agricultural equipment, and industrial fabrication.

Material thickness and laser power should be matched to the actual workpiece requirements to achieve the desired cutting performance.

B2B Industrial Applications

The pneumatic chuck fiber laser tube cutter can serve a broad range of manufacturing applications. Typical customers include metal furniture factories, steel structure manufacturers, fencing companies, machinery manufacturers, construction component suppliers, agricultural equipment producers, and general metal fabricators.

For export-oriented manufacturers, the machine can also be configured according to different market requirements, including laser power, tube-processing range, chuck specifications, CNC controller, loading method, and other options.

Key Features
Pneumatic chuck for stable metal tube clamping.
Fiber laser technology for precision tube cutting.
Designed for round and square metal pipes.
Supports compatible rectangular and profile tubes.
CNC control for programmable production.
Suitable for stainless steel, carbon steel, iron, and compatible metals.
Supports holes, slots, notches, contours, and tube-end cuts.
Reduced manual clamping and measuring operations.
Suitable for customized and batch tube production.
Factory-direct B2B technical configuration and support.
Main Applications

The machine is suitable for:

Round Pipe Laser Cutting
Square Tube Laser Cutting
Stainless Steel Tube Processing
Carbon Steel Pipe Cutting
Metal Furniture Frames
Steel Structure Components
Stair Railings And Handrails
Metal Fencing
Machinery Frames
Agricultural Equipment
Fitness Equipment
General Metal Fabrication
FAQs
1. What Is A Pneumatic Chuck Laser Tube Cutting Machine?

It is a CNC fiber laser tube cutting machine equipped with a pneumatic chuck for clamping and positioning compatible metal pipes and tubes during laser processing.

2. What Are The Benefits Of A Pneumatic Chuck?

A pneumatic chuck provides convenient clamping and stable workpiece positioning while reducing repeated manual tightening operations.

3. Can It Cut Round And Square Pipes?

Yes. The machine is designed for round and square metal pipes and can be configured for rectangular and other compatible profiles.

4. What Materials Can Be Cut?

Typical materials include stainless steel, carbon steel, iron-based metals, and other compatible metal tubes and pipes.

5. Can It Cut Holes And Slots?

Yes. Depending on the machine configuration and CNC software, the system can produce programmed holes, slots, notches, contours, and tube-end cuts.

6. Is The Machine CNC Controlled?

Yes. CNC control manages programmed cutting paths, positioning, and production operations for repeatable tube processing.

7. How Do I Choose The Chuck Configuration?

The chuck should be selected according to tube diameter, profile shape, workpiece weight, material, and production requirements.

8. Can It Process Stainless Steel Tubes?

Yes. The machine can be configured for compatible stainless steel tubes and pipes. Laser power and cutting parameters should match the required material thickness.

9. Is It Suitable For Customized Tube Products?

Yes. CNC programming makes it suitable for OEM products and customized tube components with different cutting patterns.

10. Can You Customize The Machine?

Yes. Laser power, chuck specifications, tube-processing range, loading method, CNC system, and other configurations can be evaluated according to your application.

Why Choose Us
Professional Fiber Laser Equipment

We provide CNC fiber laser solutions for metal tube and pipe processing, supporting manufacturers, fabricators, distributors, and international B2B customers.

Pneumatic Chuck Technology

The pneumatic chuck provides a practical clamping solution for stable tube positioning and efficient production.

Flexible Tube Processing

The machine is designed for round and square tubes and can be configured for additional compatible profiles according to production requirements.

Customized Technical Solutions

We can evaluate laser power, chuck configuration, tube dimensions, material, thickness, loading method, and CNC control according to your application.

Factory-Direct B2B Supply

We support OEM, distributor, project, and industrial buyers with direct factory communication, technical consultation, production coordination, and export service.

International Export Support

We provide machine testing, technical documentation, export packaging, shipping coordination, installation guidance, and after-sales technical assistance.
