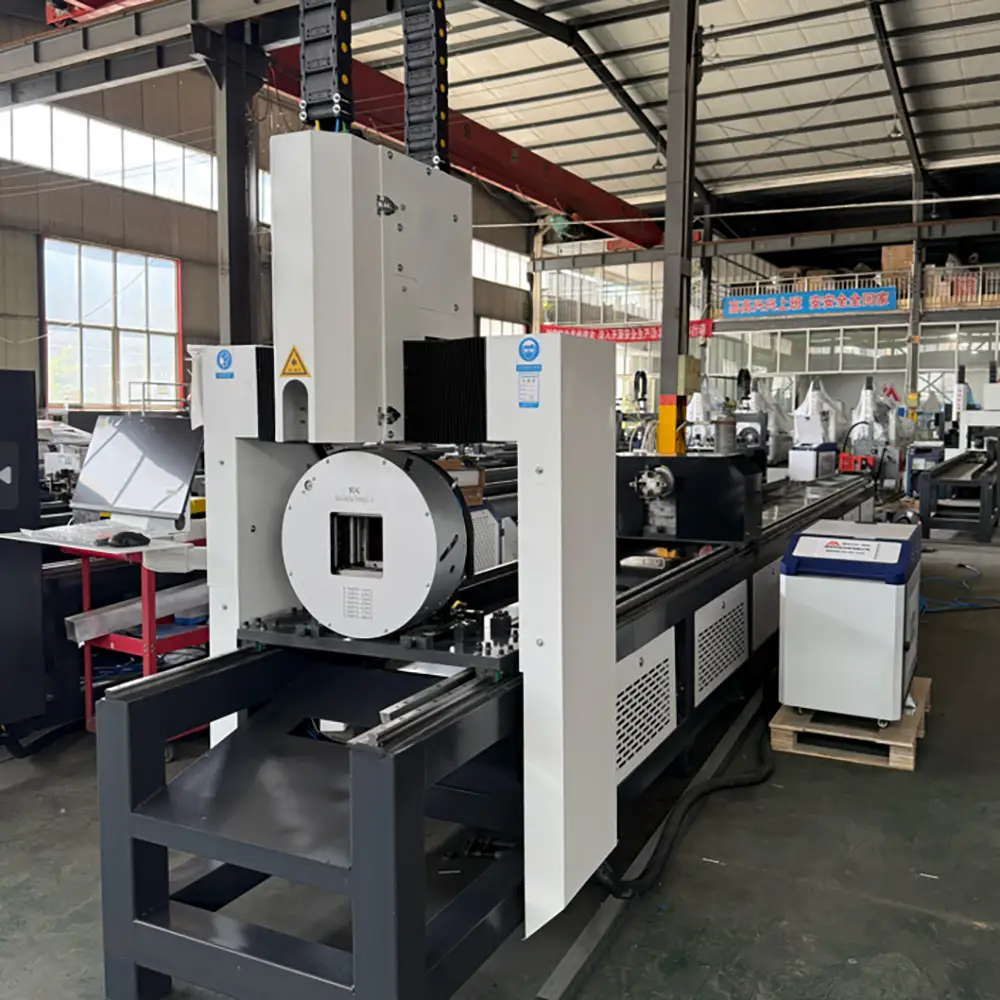

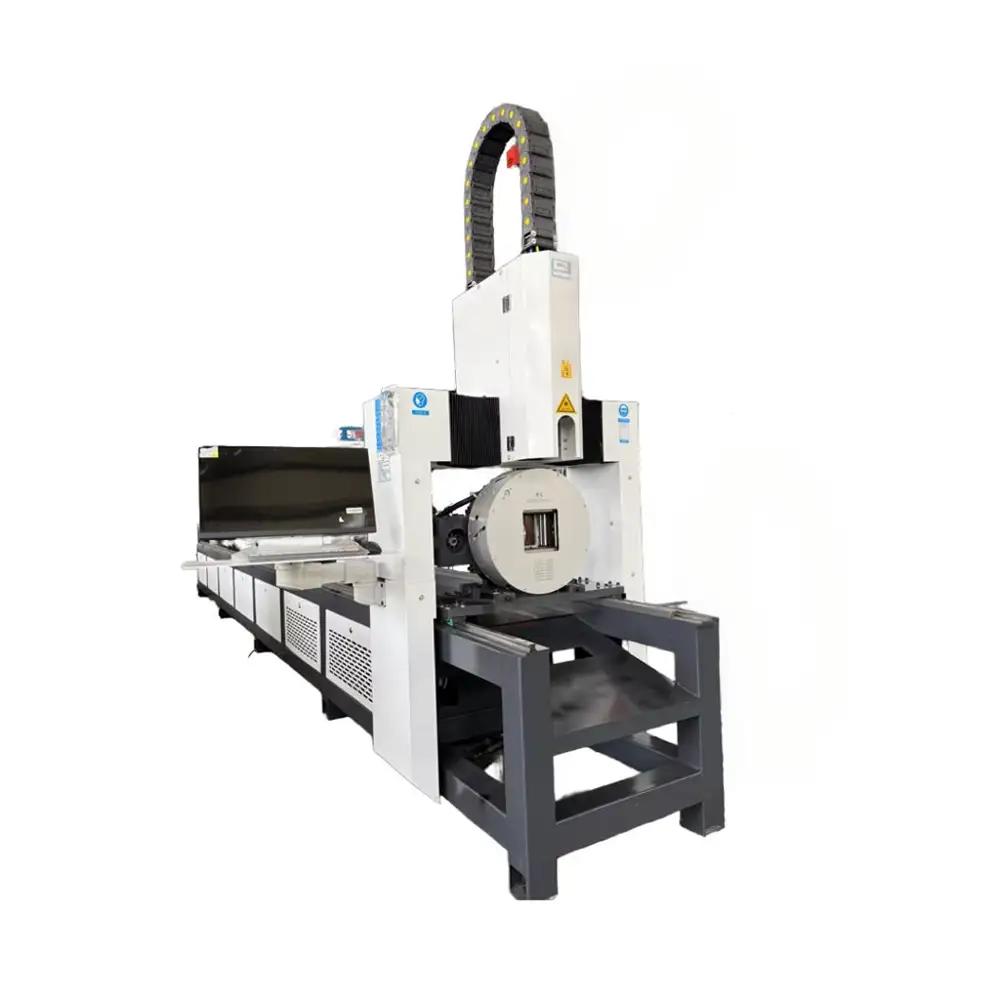

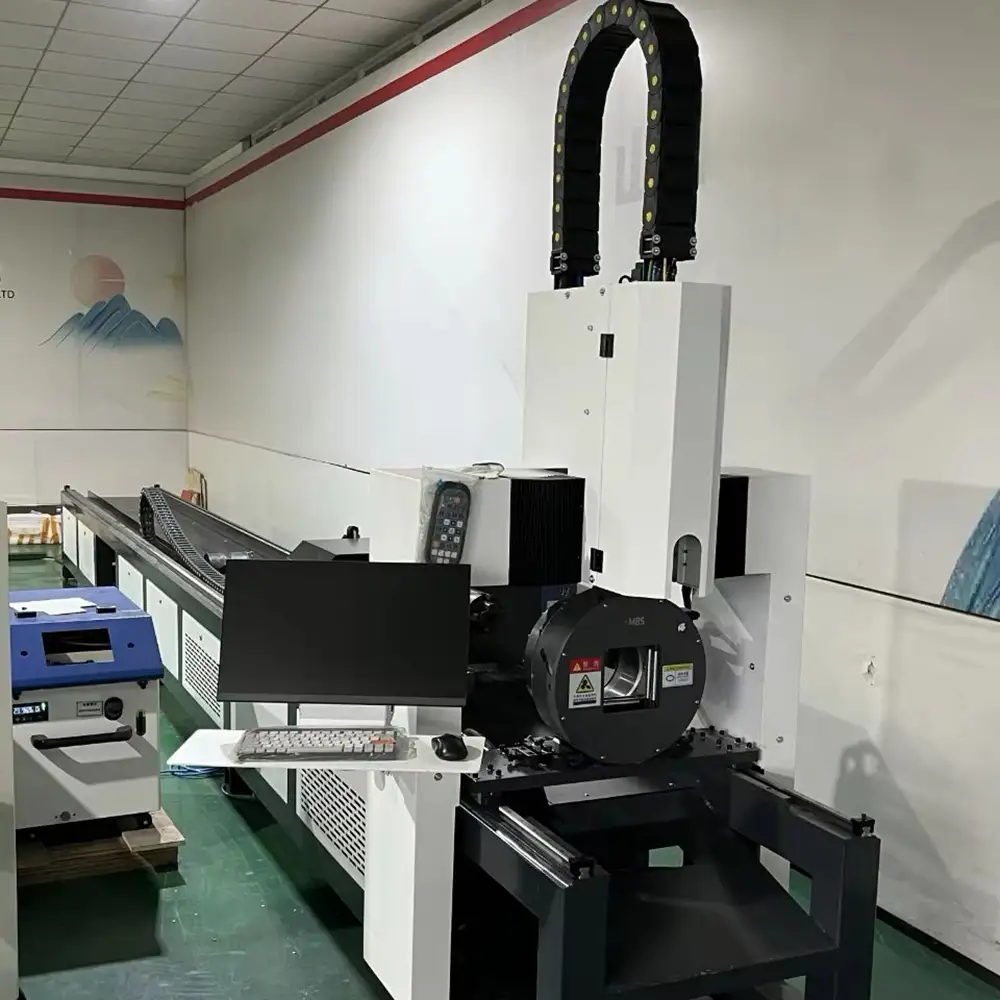

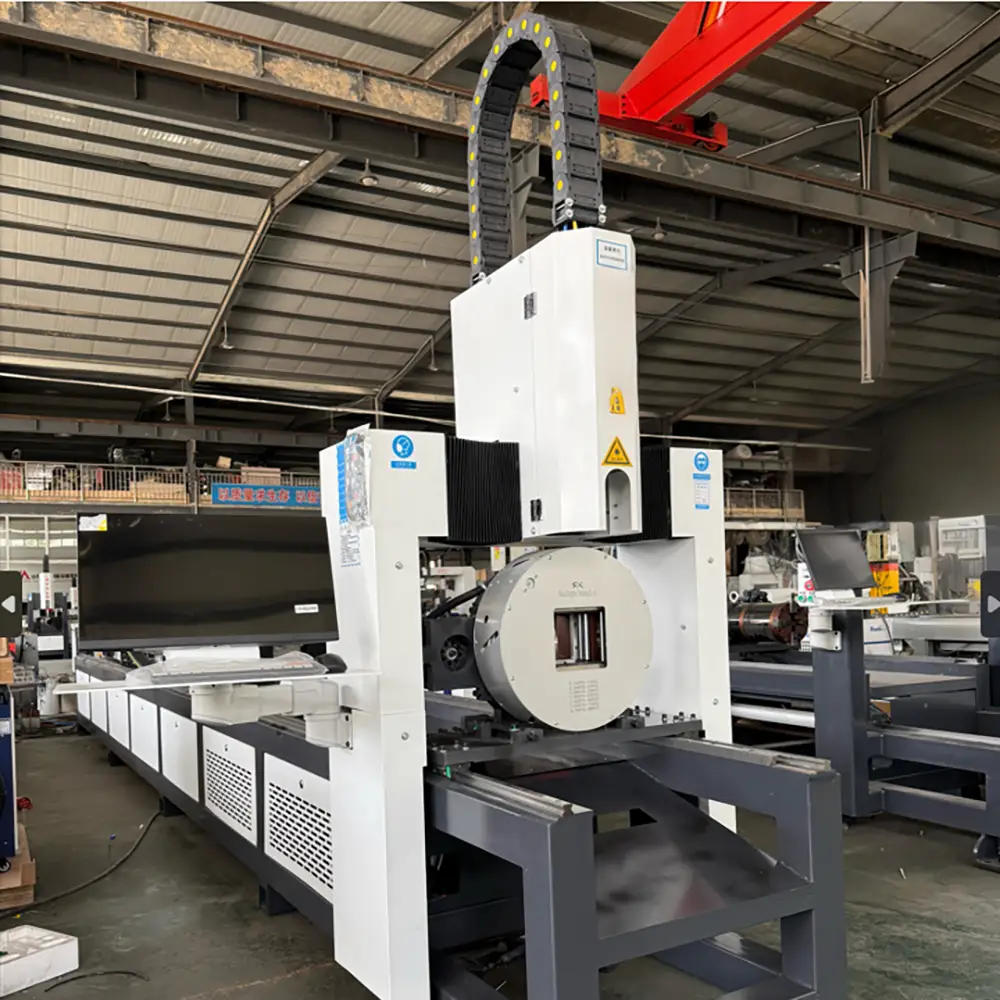

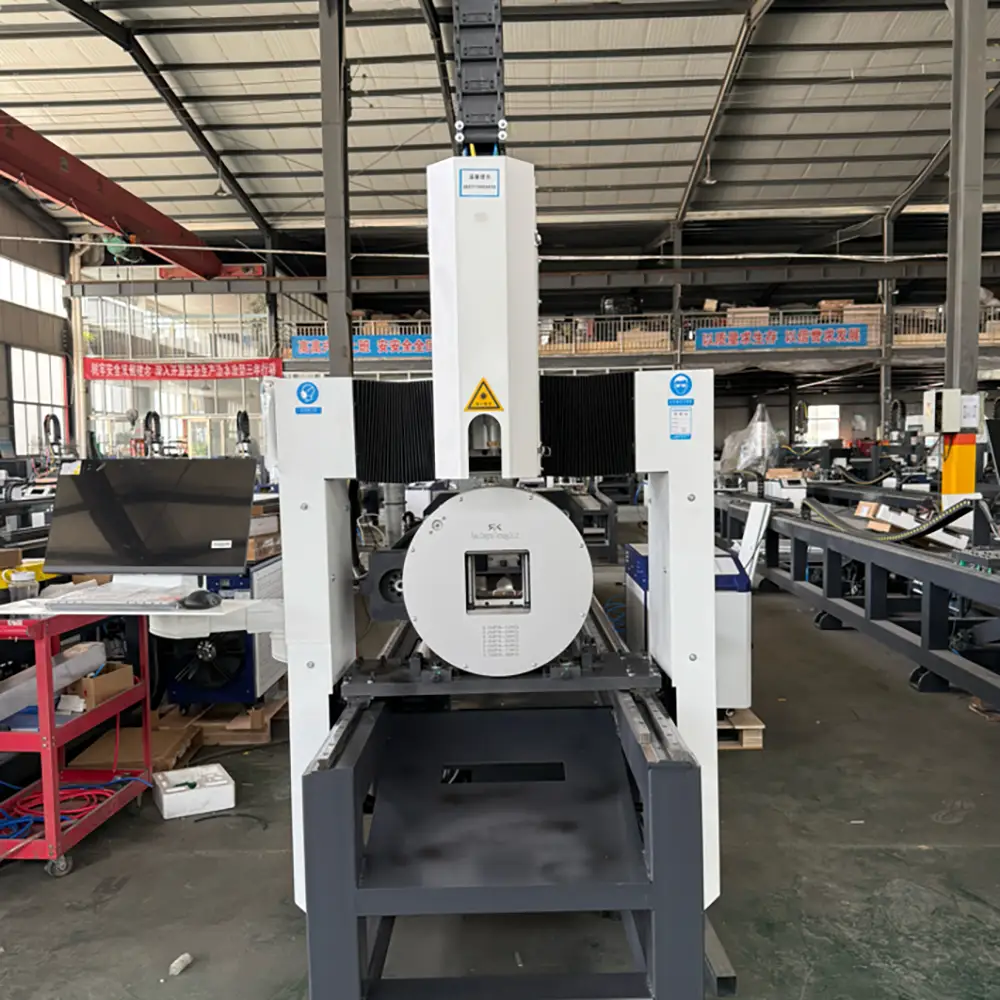

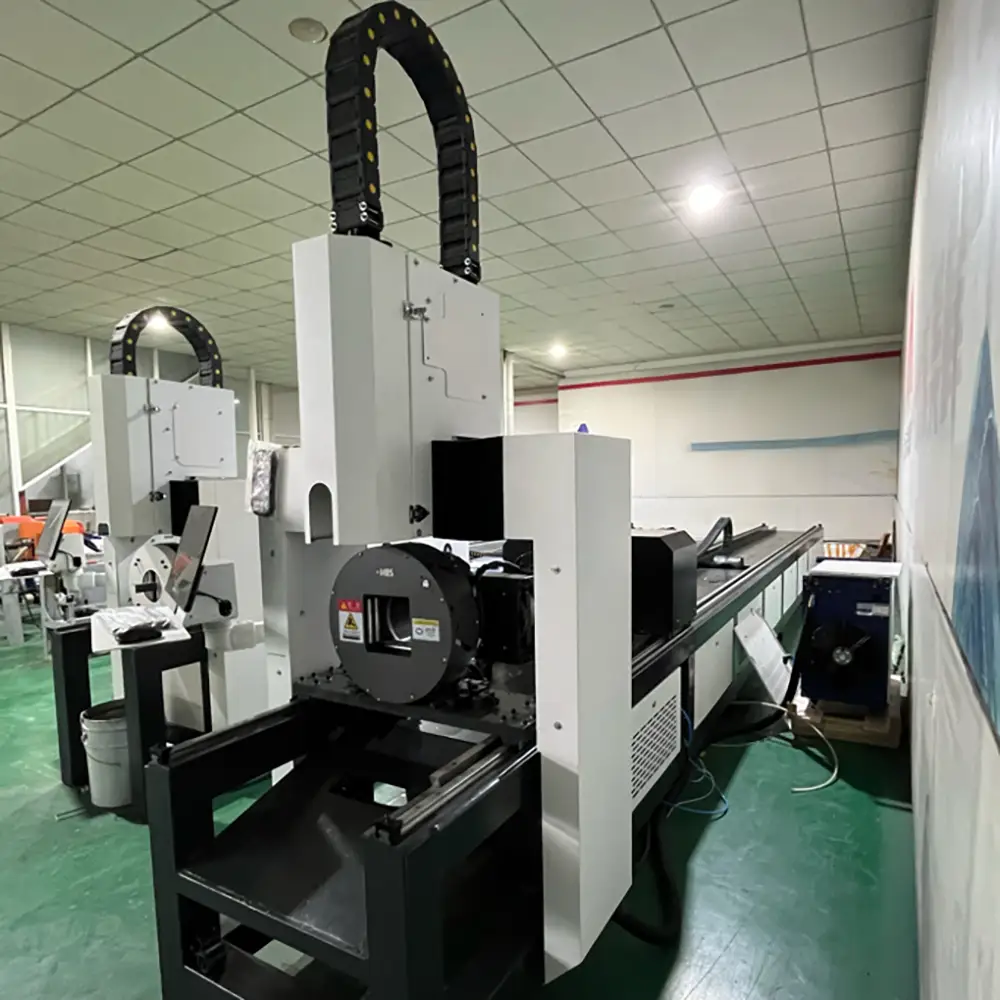

Pneumatic Chuck Laser Cutter Square/Round Tube Pneumatic Chuck Fiber Laser Cutting Machine

The Pneumatic Chuck Laser Cutter Square/Round Tube Pneumatic Chuck Fiber Laser Cutting Machine is an industrial CNC laser solution designed for accurate and efficient cutting of metal tubes, pipes, and profiles. Featuring a pneumatic chuck system and fiber laser cutting technology, the machine provides automated workpiece clamping and stable positioning for a wide range of tube-processing applications.

Designed for manufacturers, metal fabricators, machinery companies, and industrial production facilities, this pneumatic chuck fiber laser cutting machine can be configured for round tubes, square tubes, rectangular tubes, and other compatible metal profiles. The combination of CNC control, fiber laser technology, and pneumatic clamping helps create a practical production solution for customers looking to improve tube-cutting efficiency and reduce manual handling.

Chuck	120/ 160/ 220/ 300, or customized
Laser power	1500W/ 2000W/ 3000W/ 6000W
Cutting capacity	Round 10-300mm Square 10-300mm
Cutting length	6000mm, or customized
Repeated positioning accuracy	±0.1mm
Material	Carbon steel, stainless steel, galvanized steel, etc.
Volume	8300*1250*2450mm (subject to the actual object)
Weight	2500KG (subject to the physical)

Pneumatic Chuck System For Stable Clamping

The pneumatic chuck is an important part of the tube-cutting system. It uses compressed air to clamp the workpiece, helping provide consistent holding force during laser processing. Compared with fully manual clamping operations, pneumatic chuck technology can simplify loading and positioning while supporting repeatable production.

The chuck configuration can be selected according to the tube dimensions, workpiece weight, and application requirements. Proper clamping is particularly important when processing long or thin-wall tubes because stable workpiece positioning can contribute to consistent cutting quality.

Designed For Square And Round Tubes

This fiber laser tube cutting machine is suitable for applications involving round and square metal tubes. Depending on the selected machine configuration, it may also support rectangular tubes and other compatible profiles.

Round tube processing is widely used in furniture frames, handrails, fencing, fitness equipment, machinery components, and structural products. Square and rectangular tubes are commonly used for steel structures, equipment frames, construction components, racks, agricultural machinery, and industrial products.

With CNC-controlled cutting, manufacturers can create programmed holes, slots, end cuts, contours, and other shapes required by the production design.

Fiber Laser Cutting Technology

Fiber laser technology provides a concentrated laser beam for precision metal cutting. The non-contact cutting process minimizes mechanical contact between the cutting head and workpiece and is suitable for automated industrial production.

The appropriate laser power and cutting parameters depend on the material, tube dimensions, wall thickness, profile shape, and required processing performance. The machine can be configured for compatible metals such as carbon steel, stainless steel, and other suitable metal materials.

CNC Control For Repeatable Production

The CNC control system allows operators to prepare cutting programs and manage positioning and processing parameters through the machine interface. Once the correct program is loaded, the system can repeat the same cutting pattern for multiple workpieces.

This is particularly useful for B2B manufacturers producing batches of standardized tube components. CNC automation can reduce manual measuring, marking, and cutting operations while helping maintain consistent production results.

Efficient Tube Processing For Industrial Applications

The pneumatic chuck fiber laser cutting machine can be used in many metal fabrication industries. Typical applications include steel furniture, metal fencing, construction structures, machinery frames, agricultural equipment, fitness equipment, lighting products, automotive components, and general industrial fabrication.

For manufacturers handling customized orders, CNC tube laser cutting also provides flexibility. Different cutting programs can be prepared for different tube sizes and product designs, allowing one machine to support multiple production requirements.

Production Advantages

The pneumatic chuck configuration provides convenient workpiece clamping, while the fiber laser system is designed for automated precision cutting. Together with CNC control, the machine can help manufacturers establish a more efficient tube-processing workflow.

For export-oriented factories and metal fabrication businesses, the machine can also be supplied with different configurations according to production requirements. Options may include laser power, chuck specifications, tube processing range, loading method, control system, and other machine functions.

Key Features
Pneumatic chuck system for convenient and stable tube clamping.
Fiber laser cutting technology for precision metal processing.
Suitable for round, square, and compatible rectangular tubes.
CNC control for automated and repeatable production.
Designed for steel, stainless steel, and other compatible metals.
Supports programmed holes, slots, contours, and tube-end cutting.
Reduced manual clamping and positioning requirements.
Flexible configuration for different tube sizes and applications.
Suitable for customized and batch metal tube production.
Factory-direct B2B supply with technical configuration support.
Main Applications

The Pneumatic Chuck Fiber Laser Cutting Machine can be used for:

Metal Furniture Tube Cutting
Steel Structure Components
Metal Fence Manufacturing
Construction Tube Processing
Machinery Frame Production
Agricultural Equipment
Fitness Equipment
Handrails And Railings
Industrial Racks
Lighting Structures
Automotive Components
General Metal Fabrication
FAQs
1. What Is A Pneumatic Chuck Fiber Laser Cutting Machine?

It is a CNC fiber laser tube cutting machine equipped with a pneumatic chuck system for automatically clamping compatible metal tubes and pipes during laser cutting.

2. What Tubes Can The Machine Cut?

The machine can be configured for round and square tubes and may also support rectangular and other compatible profiles depending on the selected chuck and machine specifications.

3. What Materials Can Be Processed?

Typical compatible materials include carbon steel, stainless steel, and other suitable metal materials. The exact material range depends on the laser configuration and processing requirements.

4. What Is The Advantage Of A Pneumatic Chuck?

A pneumatic chuck can simplify workpiece clamping and help provide stable positioning during cutting. It is particularly useful for automated and repeatable tube-processing operations.

5. Is The Machine CNC Controlled?

Yes. CNC control allows programmed cutting patterns, automatic positioning, and repeatable processing for production batches.

6. Can It Cut Holes And Slots In Tubes?

Yes. When supported by the machine configuration and software, the laser system can produce programmed holes, slots, contours, notches, and other tube-cutting patterns.

7. How Do I Choose The Correct Laser Power?

Laser power should be selected according to the material, tube dimensions, wall thickness, production volume, and desired cutting performance. We can recommend a configuration based on your workpiece requirements.

8. Can The Pneumatic Chuck Be Customized?

Chuck size and configuration can be selected according to the tube diameter, profile dimensions, workpiece weight, and production requirements.

9. What Industries Use Tube Laser Cutting Machines?

Common industries include metal furniture, fencing, construction, steel structures, machinery manufacturing, agricultural equipment, fitness equipment, and general metal fabrication.

10. Do You Support International B2B Orders?

Yes. Factory-direct B2B service can include machine configuration, production testing, technical documentation, export packaging, shipping coordination, and technical support.

Why Choose Us
Professional Laser Cutting Equipment

We provide industrial fiber laser cutting solutions designed for metal tube and pipe processing, supporting manufacturers, fabricators, distributors, and international B2B customers.

Pneumatic Chuck Configuration

The pneumatic chuck system provides a practical automated clamping solution for customers who require stable positioning and efficient tube-loading operations.

Flexible Tube Processing

The machine can be configured for different round, square, and compatible rectangular tube applications, making it suitable for multiple industrial production requirements.

Customized Machine Solutions

Laser power, chuck specifications, tube dimensions, loading configuration, control system, and other options can be evaluated according to your production needs.

Factory-Direct Supply

Direct factory supply supports OEM, distributor, project, and industrial purchasing requirements with technical communication and production coordination.

Export Service

We support overseas customers with machine testing, technical documents, export packaging, shipment coordination, and after-sales technical assistance.
