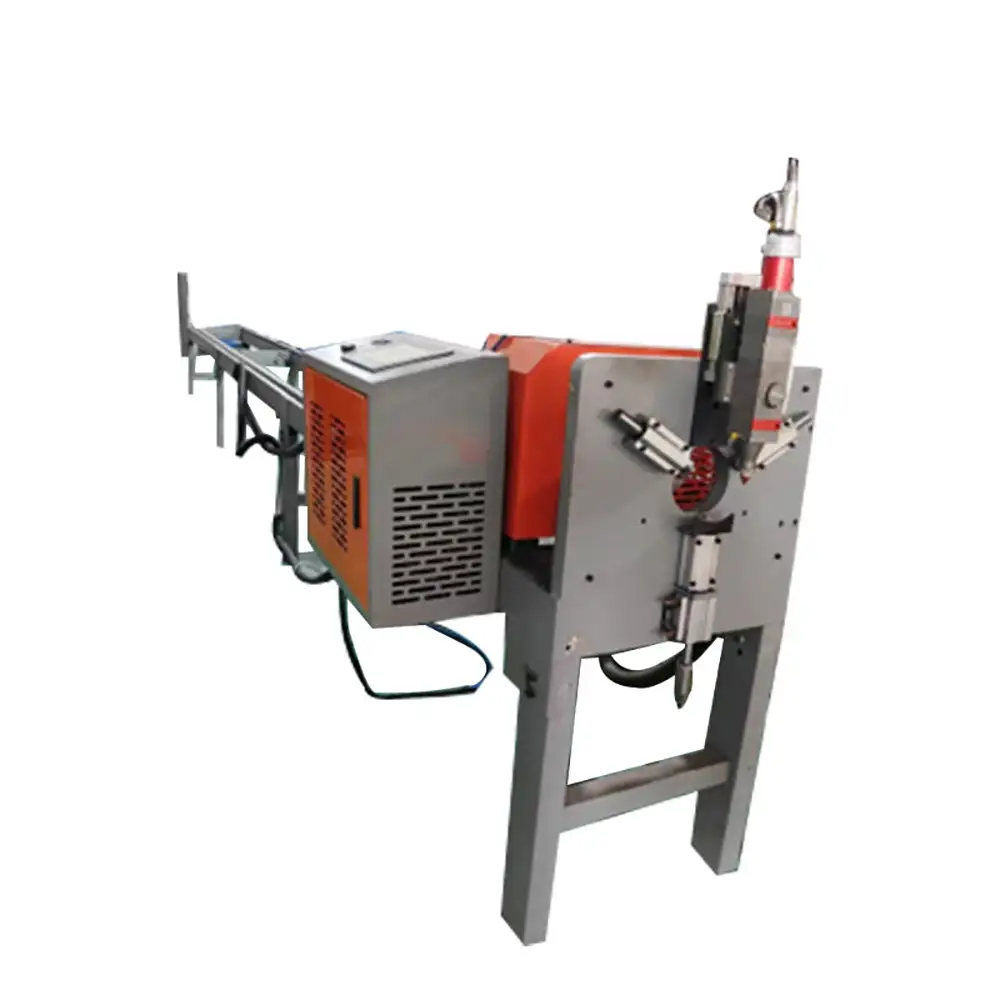

Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine

The Laser Cutter Round Square Rectangle Metal Steel Tube Laser Pipe Cutting Machine is a CNC fiber laser solution designed for precision processing of different metal tube and pipe profiles. It is suitable for round tubes, square tubes, rectangular tubes, and other compatible steel and metal profiles used in industrial manufacturing and fabrication.

Combining fiber laser technology with CNC control, the machine provides an efficient alternative to conventional mechanical tube cutting methods. It can process programmed cutting patterns with repeatable positioning and is suitable for manufacturers producing structural components, machinery parts, furniture frames, fencing, railings, and other metal tube products.

Specification
Model	SL-108R	SL-108S
The material fit to cut	Carbon steel, stainless steel, galvanized pipe
Cut capacity	Round：19-108mm	Round：19-108mm Square:19x19-60x60mm Rectangle: 80*40mm
Cutting stroke	6000mm
Function	Cut off, cut hole, cut notching
Measure	6750*550*750mm(Subject to the actual object)
Weight	300KG (Subject to the actual object)
Power	220V(Control part)
Output voltage	24V
Transmission mode	rack gear
Control mode	PLC control touch screen
Laser generator	Kipling/Hot Spur (Generator warranty two years, human damage is not covered by the warranty.) Warm tips: temperatures below 0 degrees need to add antifreeze, due to failure to add antifreeze or antifreeze problems caused by unqualified damage is not covered by the warranty.
Laser head	Gangchun (can be customized)
Water Cooler	Turbo/Huako
Air supply	Air (≥1.5MPa,need to prepare their own air compressor and dryer)
Chuck specification	Within φ108mm
Processing	Manual loading - manual fixing - automatic rotation - automatic cutting - discharging
Main component Settings and parameters
Electric control unit	CHINT
Rack length	6000mm
Operating system	Self-developed control system software
Four jaw chuck	Manual
Auxiliary support system	Pneumatic auxiliary support

Multi-Profile Tube Cutting

One of the key advantages of this machine is its ability to process multiple tube profiles. Round, square, and rectangular tubes are widely used across different manufacturing industries, and a flexible tube laser cutter allows manufacturers to handle different products on the same machine.

Round steel tubes are commonly used for handrails, furniture, fencing, fitness equipment, lighting structures, and structural applications. Square and rectangular tubes are frequently used for machinery frames, steel structures, racks, construction components, agricultural equipment, and industrial equipment.

The actual compatible tube dimensions depend on the chuck, clamping system, laser head, and machine configuration.

Fiber Laser Cutting Technology

Fiber laser technology uses a concentrated laser beam for non-contact metal processing. The cutting head follows programmed CNC paths to produce accurate profiles and geometries.

The process can reduce the need for mechanical cutting tools and provides flexible digital control over different tube designs. Depending on the machine configuration, the system can perform straight cuts, holes, slots, notches, contours, and tube-end cutting.

Cutting performance depends on laser power, material type, tube dimensions, wall thickness, assist gas, cutting speed, and other operating parameters.

CNC Control For Consistent Production

The CNC control system coordinates tube positioning and laser cutting according to the programmed design. Operators can prepare digital cutting files and use them for individual components or repeated production.

For manufacturers producing large batches of identical tube parts, CNC processing can reduce repetitive manual measuring, marking, and cutting. It can also help maintain consistent dimensions between workpieces.

For customized production, operators can switch between different digital programs to manufacture different tube designs without extensive mechanical tooling changes.

Round Steel Tube Processing

Round tubes are among the most common profiles used in metal fabrication. They are widely applied in handrails, guardrails, fencing, furniture, exercise equipment, construction structures, and transportation components.

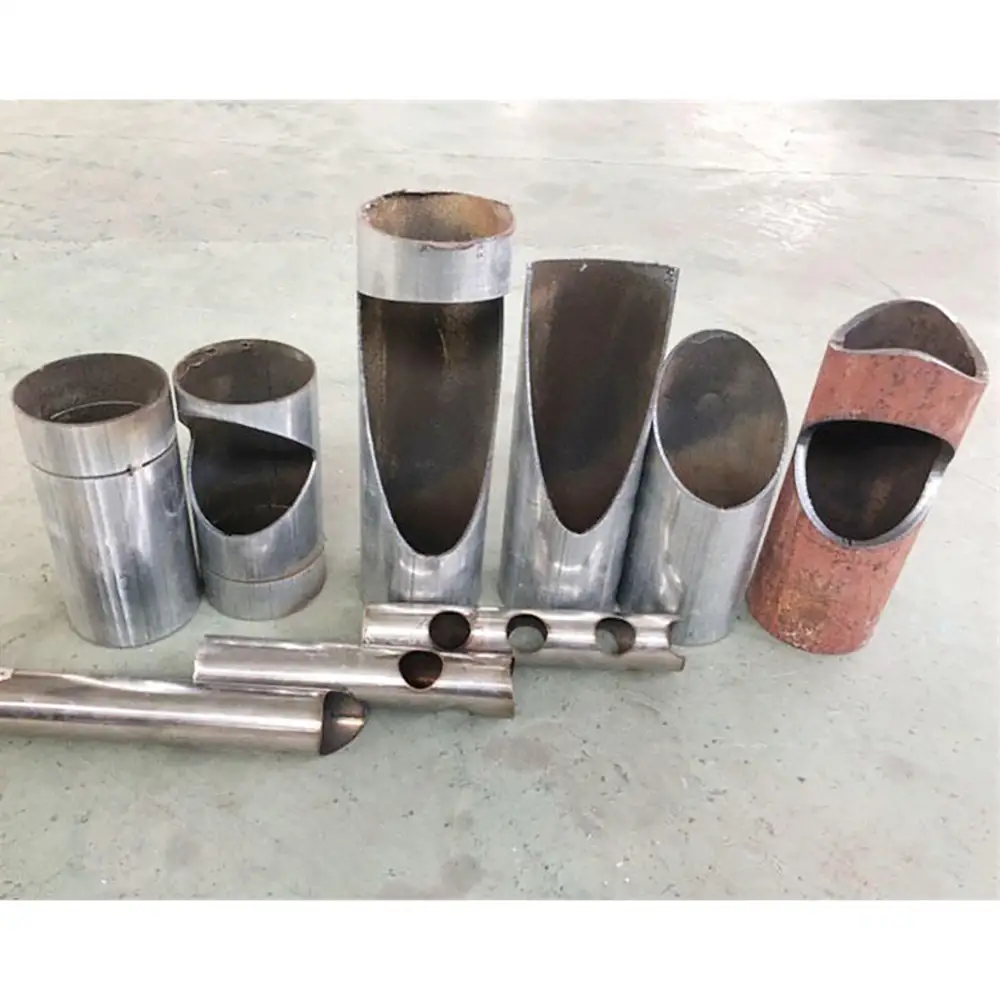

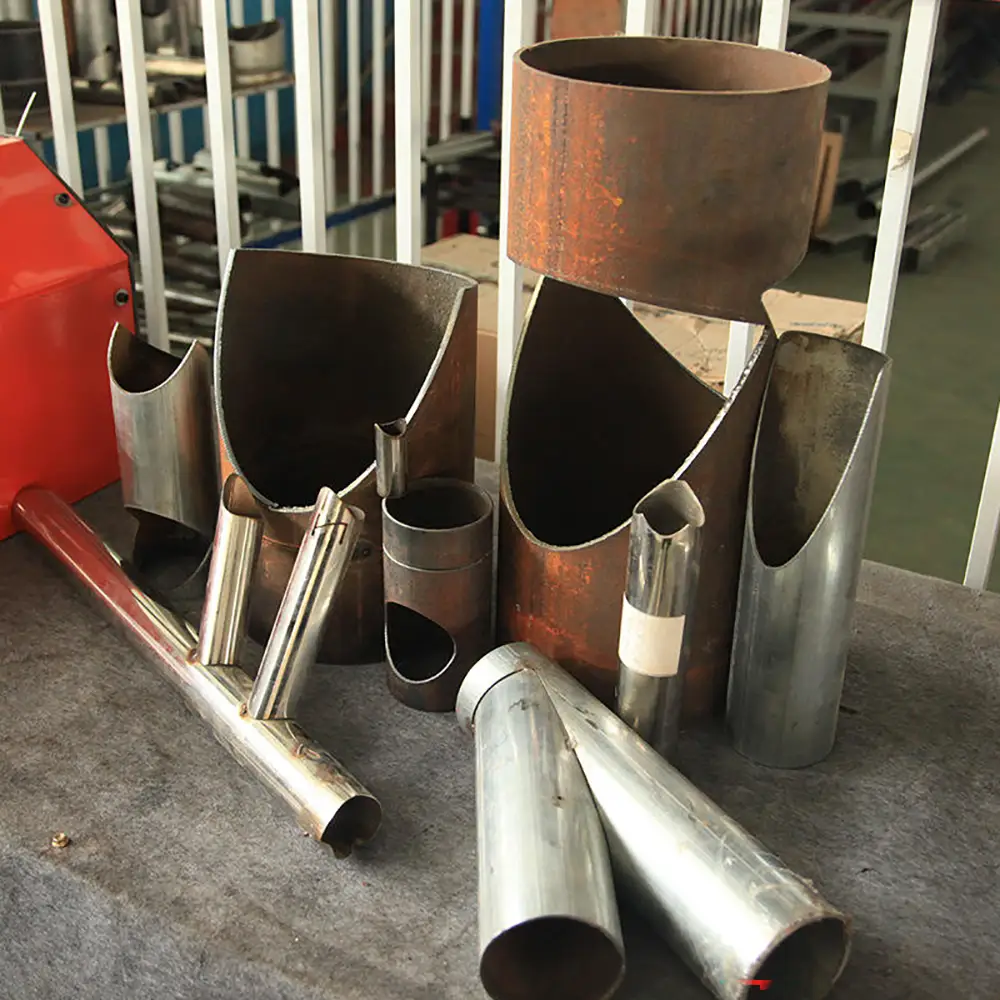

The laser tube cutter can process programmed shapes on compatible round steel and metal tubes. This allows manufacturers to prepare connection holes, openings, notches, and other features required before welding and assembly.

Square And Rectangular Tube Processing

Square and rectangular tubes are widely used where a flat-sided structural profile is required. Applications include machinery frames, steel structures, racks, shelving, agricultural equipment, construction products, and industrial equipment.

A CNC fiber laser tube cutting machine can process programmed patterns on compatible square and rectangular profiles. This can reduce secondary drilling and manual cutting operations when the required geometries are incorporated into the CNC program.

Metal And Steel Tube Applications

The machine can be configured for compatible carbon steel, stainless steel, iron-based metals, and other suitable metal tubes and pipes.

Steel tube laser cutting is commonly used in structural fabrication, machinery manufacturing, furniture production, fencing, construction, agriculture, and industrial equipment manufacturing.

For stainless steel applications, the machine can be configured according to the required material grade and thickness. For carbon steel and other steel profiles, laser power and processing parameters should likewise be selected according to the actual workpiece requirements.

Efficient Production Workflow

CNC tube laser cutting can streamline the workflow from digital design to finished tube component. Once the cutting program has been prepared, the machine can execute the required cutting paths with limited manual intervention.

This is useful for both standardized batch production and customized OEM orders. Manufacturers can store different cutting programs and switch between product designs according to production requirements.

The result is a flexible production platform that can serve multiple product categories rather than being limited to a single tube application.

Suitable For Metal Fabrication

The machine is suitable for a wide range of industrial applications. Typical products include steel furniture frames, metal fencing, stair railings, handrails, machinery components, agricultural equipment, construction structures, fitness equipment, racks, and customized metal frames.

Manufacturers can use the same equipment for different tube profiles and product designs, depending on the selected chuck and processing range.

B2B Machine Configuration

Different production environments require different tube dimensions, laser power, automation levels, and workpiece handling systems. Machine configuration can therefore be evaluated according to the customer's material, tube size, wall thickness, production volume, and cutting requirements.

Possible configuration considerations include laser source and power, chuck type, tube-processing range, cutting head, CNC controller, loading system, and optional automation functions.

For OEM customers, distributors, and industrial buyers, providing tube samples, drawings, and production requirements can help determine a suitable configuration.

Key Features
Designed for round, square, and rectangular metal tubes.
Suitable for steel and compatible metal pipe processing.
CNC fiber laser cutting technology.
Supports programmable tube cutting patterns.
Suitable for holes, slots, notches, contours, and tube-end cuts.
Non-contact laser processing.
Suitable for carbon steel, stainless steel, and compatible metals.
Supports batch and customized tube production.
Reduces manual measuring and secondary cutting operations.
Factory-direct B2B technical configuration and support.
Main Applications

The Metal Tube Laser Cutting Machine is suitable for:

Round Steel Tube Cutting
Square Steel Tube Cutting
Rectangular Tube Cutting
Stainless Steel Tube Processing
Metal Furniture Frames
Steel Structures
Metal Fencing
Stair Railings
Handrails
Machinery Frames
Agricultural Equipment
General Metal Fabrication
FAQs
1. What Types Of Tubes Can This Machine Cut?

The machine is designed for compatible round, square, and rectangular metal tubes and pipes. Other profiles may be supported depending on the machine configuration.

2. Can It Cut Steel Tubes?

Yes. The machine can be configured for compatible carbon steel, stainless steel, and other steel-based tubes.

3. Can It Cut Round And Square Tubes On One Machine?

Yes. A properly configured CNC tube laser cutter can process both round and square profiles, while rectangular tubes can also be supported according to the chuck and machine specifications.

4. Can It Cut Rectangular Tubes?

Yes. Rectangular tube processing can be supported with a suitable chuck and CNC configuration.

5. Can It Cut Holes And Slots In Tubes?

Yes. Depending on the cutting head and CNC software, programmed holes, slots, notches, contours, and other geometries can be produced.

6. What Materials Can Be Processed?

Typical applications include carbon steel, stainless steel, iron-based metals, and other compatible metal tubes and pipes.

7. What Determines Cutting Performance?

Laser power, material type, tube dimensions, wall thickness, cutting geometry, assist gas, and machine configuration all affect cutting performance.

8. Is CNC Programming Required?

The machine uses CNC control to execute programmed cutting paths. Digital programs can be prepared for different tube designs and reused for repeated production.

9. Is It Suitable For Customized Products?

Yes. CNC programming makes the machine suitable for customized tube components, OEM production, architectural products, furniture, frames, and other applications.

10. Can The Machine Be Customized?

Yes. Laser power, tube-processing range, chuck system, CNC controller, cutting head, loading system, and other options can be evaluated according to your production requirements.

Why Choose Us
Professional Tube Laser Solutions

We provide CNC fiber laser equipment for metal tube and pipe processing, supporting manufacturers, metal fabricators, distributors, and international B2B customers.

Multi-Profile Tube Processing

The machine is designed around flexible processing of round, square, and rectangular tubes, helping manufacturers serve multiple product categories.

Precision CNC Production

Fiber laser technology and CNC control provide a digitally controlled method for repeatable tube processing and customized cutting patterns.

Flexible Machine Configuration

Laser power, chuck type, tube dimensions, cutting head, CNC system, loading method, and other options can be evaluated according to your material and production requirements.

Factory-Direct B2B Supply

We support OEM, distributor, project, and industrial customers with direct factory communication, technical consultation, production coordination, and machine configuration.

International Export Support

We provide machine testing, technical documentation, export packaging, shipping coordination, installation guidance, and after-sales technical assistance for overseas customers.

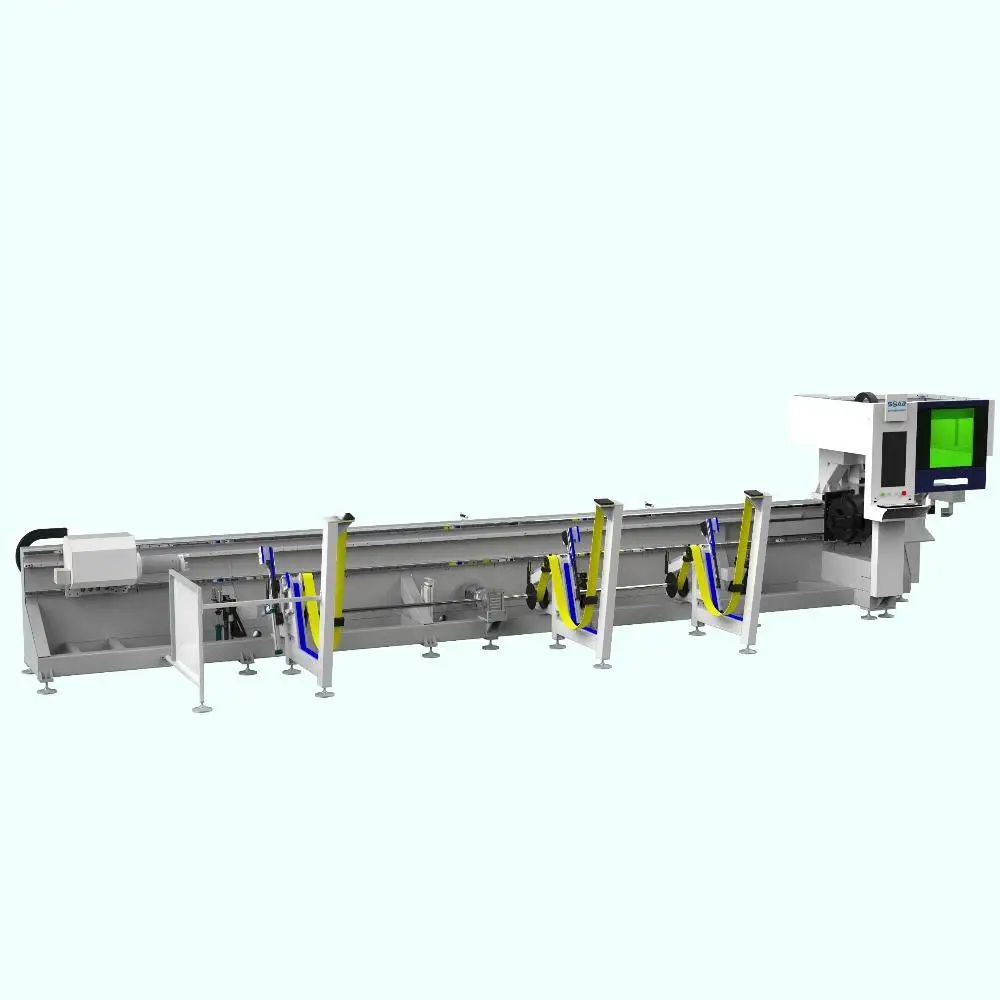

Prev：Automatic 5-Axis CNC Water-Cooled Round Square Metal Tube Fiber Laser Cutting Machine
