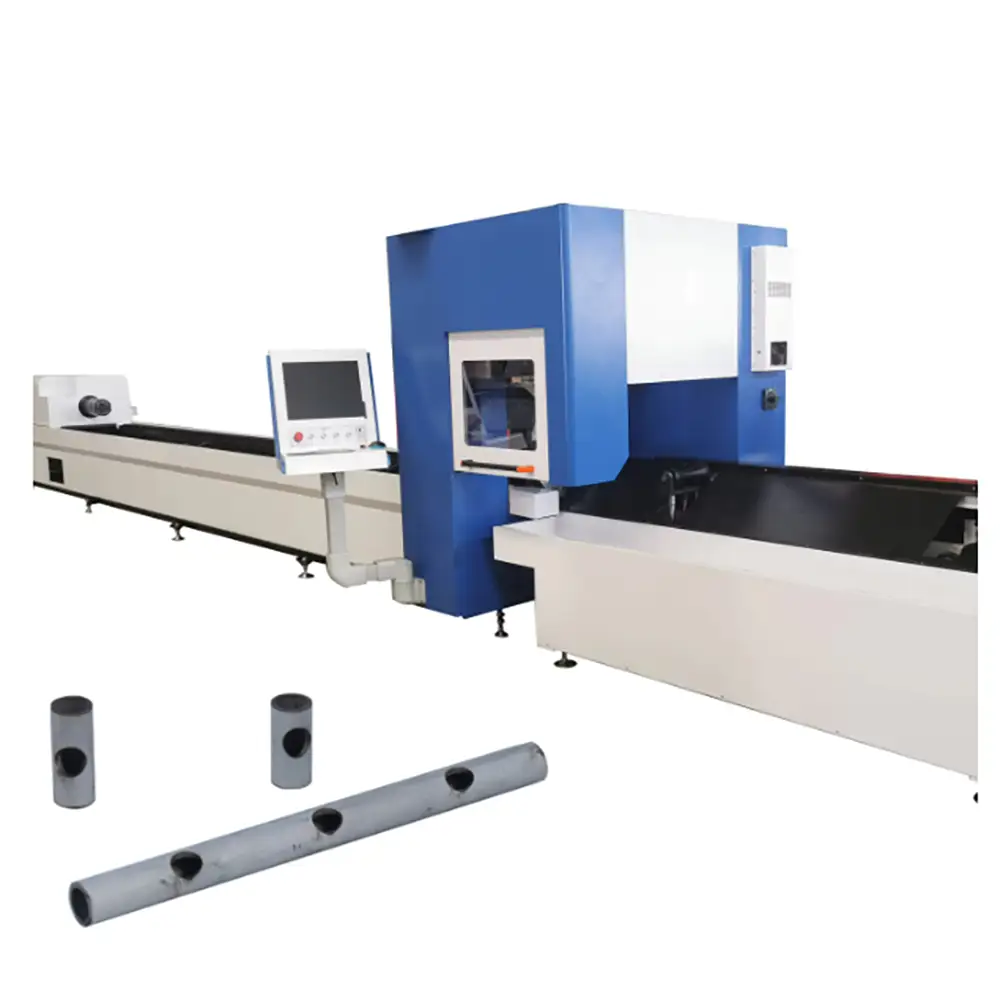

Automatic 5-Axis CNC Water-Cooled Round Square Metal Tube Fiber Laser Cutting Machine

The Automatic 5-Axis CNC Water-Cooled Round Square Metal Tube Fiber Laser Cutting Machine is an advanced CNC laser processing solution designed for precision cutting of round and square metal tubes and pipes. Combining automatic operation, 5-axis CNC control, fiber laser technology, and water-cooling, the machine is developed for manufacturers that require flexible tube processing, repeatable cutting quality, and efficient industrial production.

Compared with conventional tube cutting equipment, a CNC fiber laser tube cutter can process programmed geometries without relying on multiple mechanical cutting tools. The system can be used for straight cuts, holes, slots, notches, contours, and other customized tube features according to the machine configuration and software capabilities.

5-Axis CNC Tube Cutting

The 5-axis CNC configuration provides additional flexibility for processing complex tube geometries and cutting directions. Coordinated axis movement allows the laser cutting head and workpiece positioning system to follow programmed cutting paths.

This is particularly useful when tube components require angled cuts, intersecting profiles, openings, or more complicated geometries for welding and assembly.

The actual 5-axis movement structure and available cutting functions depend on the specific machine configuration, CNC controller, cutting head, and software system.

Automatic Tube Processing

Automatic operation helps reduce repetitive manual intervention during tube production. After loading and positioning the compatible workpiece, the CNC system can execute the programmed cutting process.

For manufacturers producing batches of identical or similar tube components, automation can help improve production consistency and reduce manual measuring, marking, and cutting operations.

Automatic processing is suitable for applications where manufacturers need repeatable production for metal furniture, steel structures, fencing, railings, machinery frames, agricultural equipment, and other fabricated products.

Round And Square Tube Cutting

The machine is designed to process round and square metal tubes and pipes. Depending on the selected chuck, tube-processing range, and machine configuration, other compatible profiles may also be available.

Round tubes are widely used in handrails, guardrails, furniture, fitness equipment, lighting structures, fencing, and architectural products. Square tubes are commonly used for machinery frames, steel structures, racks, construction products, agricultural equipment, and industrial assemblies.

Using one CNC laser platform for multiple tube profiles provides manufacturers with greater production flexibility.

Water-Cooled Fiber Laser System

A water-cooling system helps manage heat generated during laser operation and supports stable operation of the laser source and related components.

For industrial production environments, appropriate thermal management is important for maintaining equipment operating conditions during extended processing. The cooling system works together with the laser source and machine control system according to the selected configuration.

The actual cooling capacity, coolant requirements, and laser source specifications should be confirmed according to the final machine configuration.

Fiber Laser Cutting Technology

Fiber laser technology provides a concentrated energy beam for non-contact metal cutting. The CNC system controls the laser head and workpiece movement according to the programmed cutting path.

This processing method can produce precise tube features while reducing the need for mechanical cutting tools. It is suitable for compatible carbon steel, stainless steel, iron, and other metal tube materials.

Cutting performance depends on laser power, material composition, tube diameter or dimensions, wall thickness, assist gas, cutting speed, cutting geometry, and other process parameters.

High-Precision Tube Fabrication

CNC laser processing is well suited to manufacturers that require repeatable dimensions for tube components. Digital cutting programs allow production data to be stored, adjusted, and reused for future orders.

For components that require welding or assembly, accurately prepared tube ends, holes, slots, and notches can help streamline downstream manufacturing operations.

The machine can therefore serve as both a cutting solution and an important upstream process in a larger metal fabrication workflow.

Automatic Production For B2B Manufacturing

For industrial customers, production efficiency is often as important as cutting quality. Automatic CNC processing can reduce repetitive manual operations and help manufacturers standardize production procedures.

The machine can be integrated into production workflows where tube components are repeatedly cut according to digital designs. Depending on the configuration, additional loading and unloading solutions may also be considered for higher levels of automation.

This makes the equipment suitable for OEM factories, metal fabrication companies, steel structure manufacturers, furniture producers, and other industrial users.

Stainless Steel And Carbon Steel Processing

The fiber laser tube cutter can be configured for compatible stainless steel, carbon steel, iron, and other suitable metal tubes and pipes.

Stainless steel tubes are commonly used in architectural railings, kitchen equipment, furniture, decorative structures, industrial equipment, and transportation-related products.

Carbon steel tubes are widely used for machinery frames, fencing, construction structures, agricultural equipment, steel furniture, racks, and general fabrication.

Material thickness and laser power should be selected according to the actual production requirements.

Flexible Industrial Applications

The 5-axis CNC structure makes the machine suitable for more than basic straight tube cutting. Depending on configuration, manufacturers can create complex tube components that require multiple cutting directions and programmed geometries.

Typical applications include metal furniture frames, steel fencing, stair railings, handrails, machinery components, agricultural equipment, fitness equipment, construction structures, lighting frames, racks, and customized metal products.

B2B Machine Configuration

Different factories have different production requirements. Tube diameter, tube length, material, wall thickness, laser power, production volume, automation level, and required cutting geometries should all be considered before selecting a machine configuration.

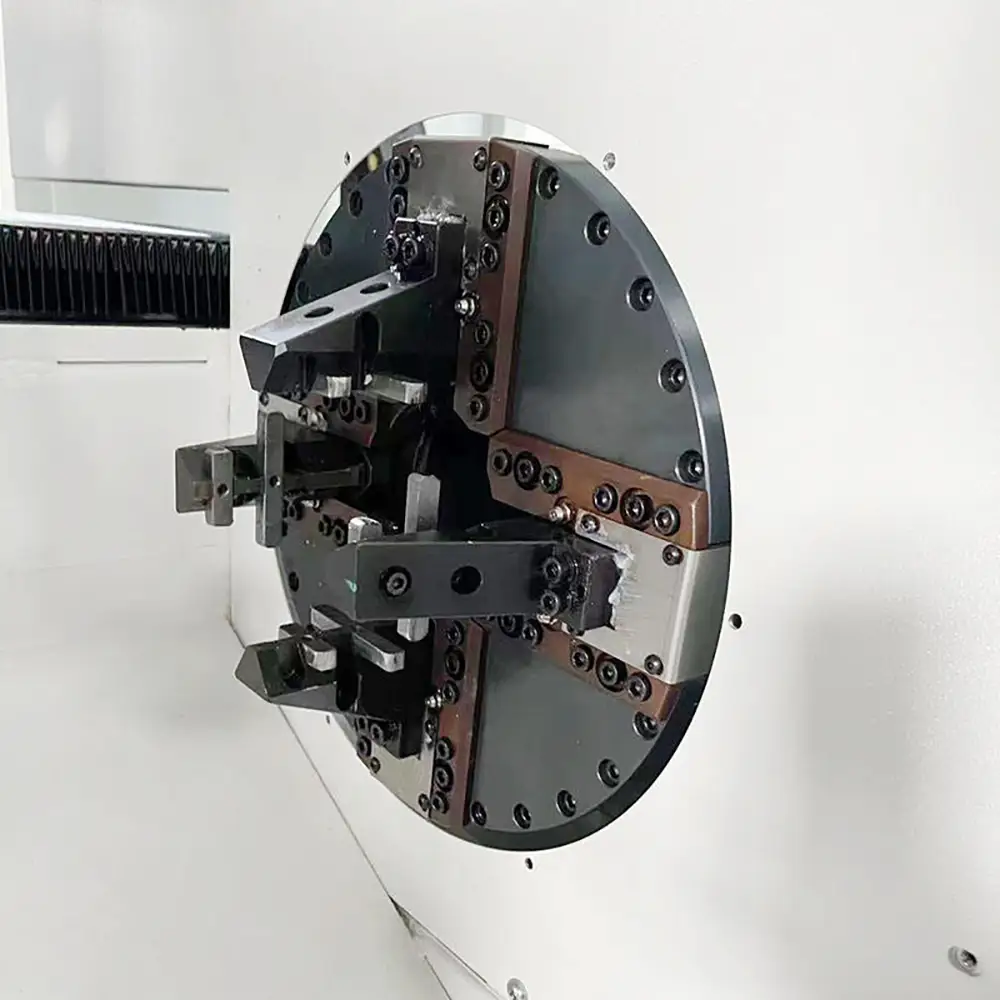

Important configuration options can include laser source and power, 5-axis CNC system, chuck type, tube-processing range, cutting head, cooling system, CNC controller, automatic loading system, and software.

For OEM customers and distributors, providing tube samples, CAD drawings, material information, and production requirements can help determine a suitable configuration.

Key Features
Automatic CNC tube cutting operation.
Advanced 5-axis CNC processing capability.
Water-cooled fiber laser system.
Designed for round and square metal tubes.
Suitable for compatible steel and metal pipes.

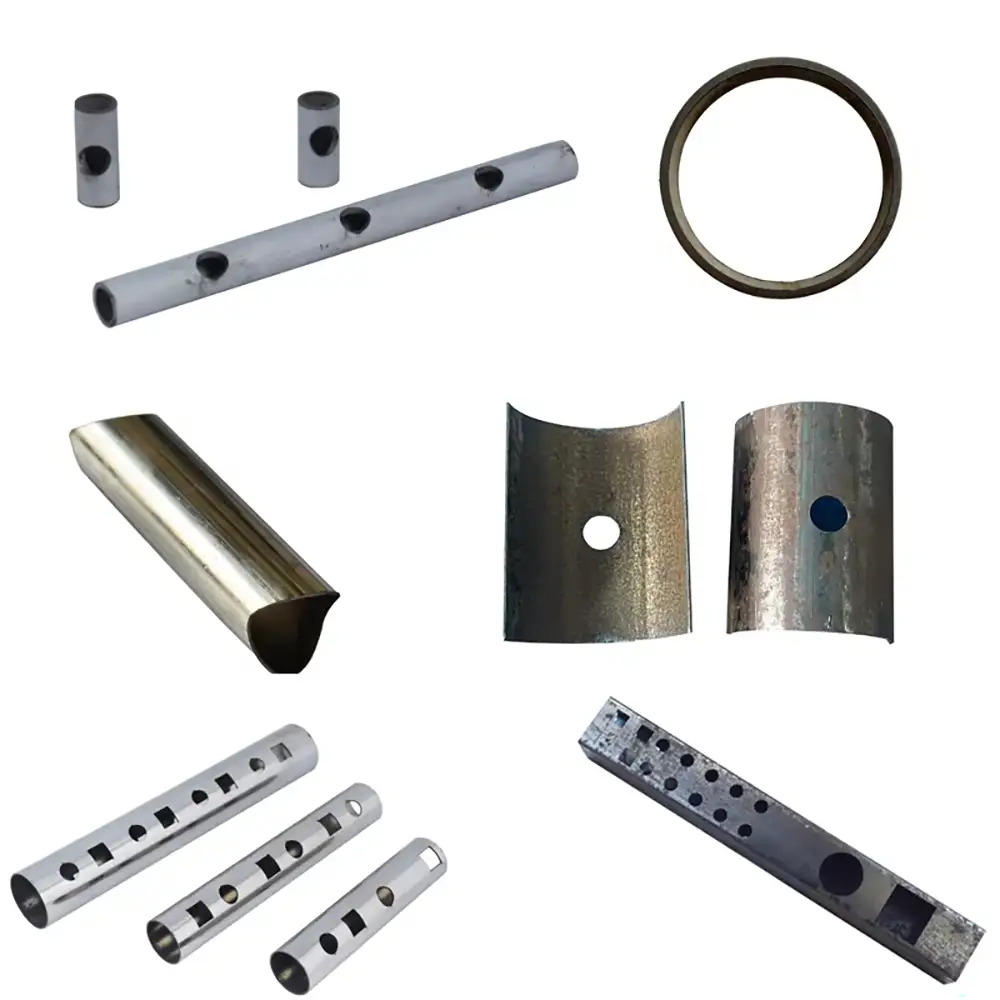

Supports programmed holes, slots, contours, and notches.
Suitable for complex tube cutting applications.
CNC-controlled repeatable production.
Suitable for batch and customized manufacturing.
Factory-direct B2B technical configuration and support.
Main Applications

The Automatic 5-Axis CNC Fiber Laser Tube Cutting Machine is suitable for:

Round Steel Tube Cutting
Square Steel Tube Cutting
Metal Pipe Processing
Stainless Steel Tube Fabrication
Carbon Steel Tube Cutting
Metal Furniture Frames
Steel Fencing
Stair Railings
Handrails
Machinery Frames
Agricultural Equipment
Steel Structures
Fitness Equipment
Customized Metal Fabrication
FAQs
1. What Is A 5-Axis Fiber Laser Tube Cutting Machine?

It is a CNC fiber laser tube cutter equipped with coordinated 5-axis movement for processing metal tubes and pipes with more flexible cutting directions and geometries.

2. Can It Cut Round And Square Tubes?

Yes. The machine is designed for compatible round and square metal tubes. Other profiles may be supported depending on the chuck and machine configuration.

3. What Does Water-Cooled Mean?

Water cooling is used to manage heat generated by the laser system and support stable operating conditions. The specific cooling system depends on the selected laser source and machine configuration.

4. Can It Cut Stainless Steel Tubes?

Yes. The machine can be configured for compatible stainless steel tubes and pipes according to material thickness and required cutting performance.

5. Can It Process Carbon Steel Pipes?

Yes. Carbon steel tube and pipe processing is one of the common applications for CNC fiber laser tube cutting machines.

6. What Is The Advantage Of 5-Axis Cutting?

5-axis movement can provide greater flexibility for angled cuts, complex contours, intersecting tube features, and other programmed geometries compared with simpler cutting-axis configurations.

7. Is The Machine Fully Automatic?

The machine is designed for automatic CNC processing. The exact level of automation, including loading and unloading, depends on the selected configuration.

8. Can It Cut Holes And Slots?

Yes. Depending on the CNC software and cutting head, programmed holes, slots, notches, contours, and other tube features can be processed.

9. Is It Suitable For Mass Production?

Yes. CNC programming and automatic processing make the machine suitable for batch production, OEM manufacturing, and repeated tube component production.

10. Can The Machine Be Customized?

Yes. Laser power, tube-processing range, chuck system, 5-axis configuration, cooling system, CNC controller, cutting head, automation options, and other specifications can be evaluated according to production requirements.
