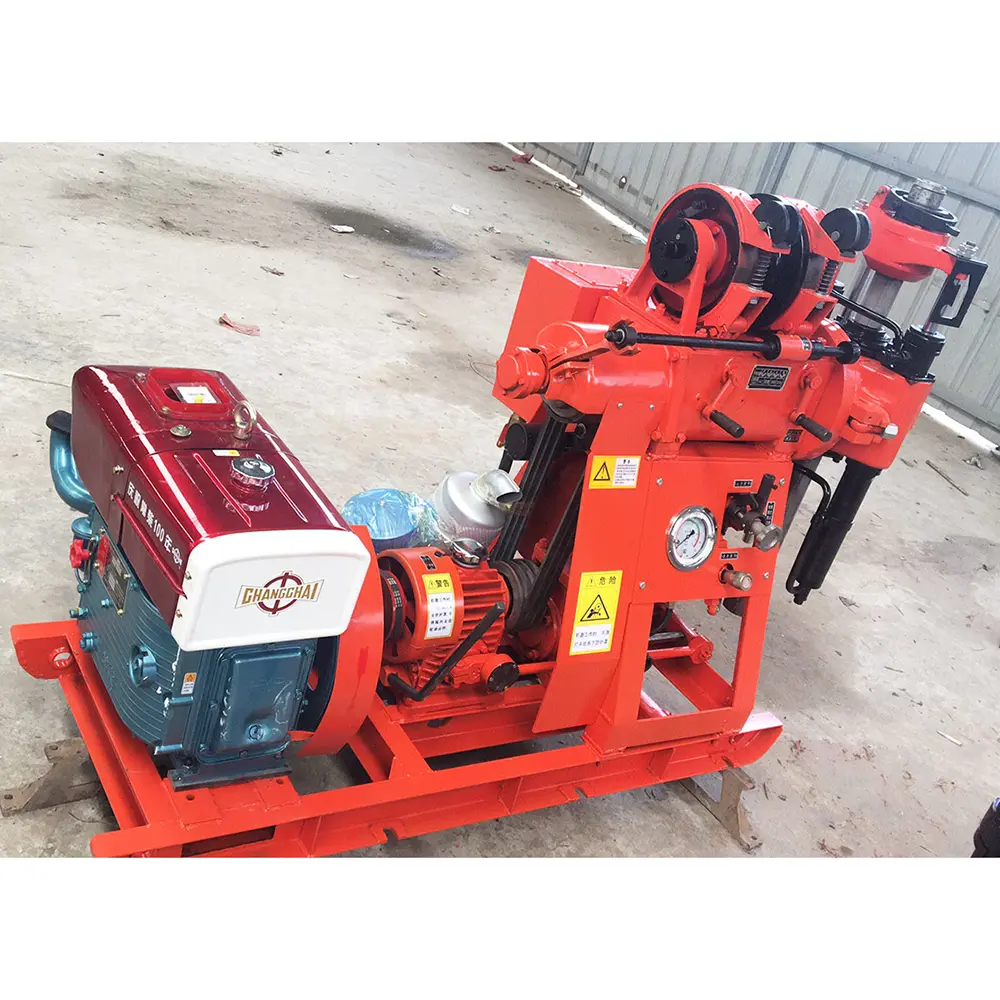

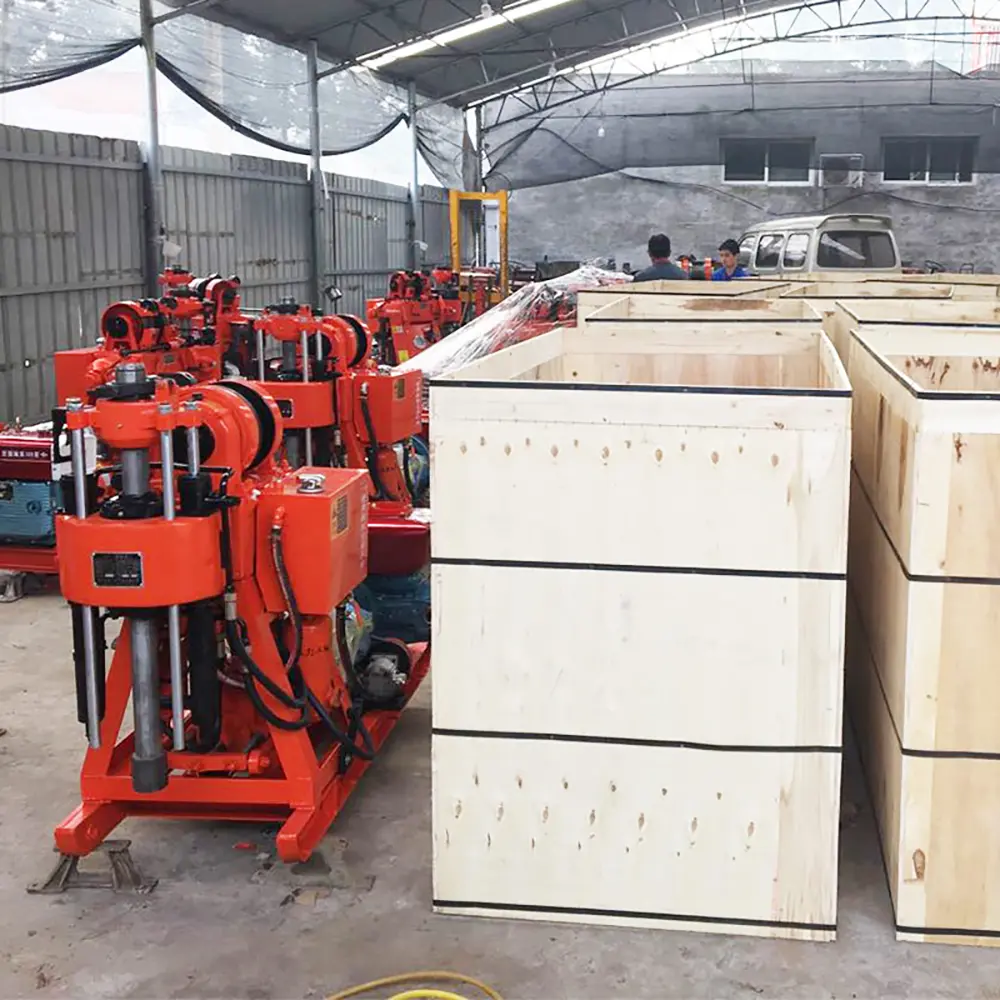

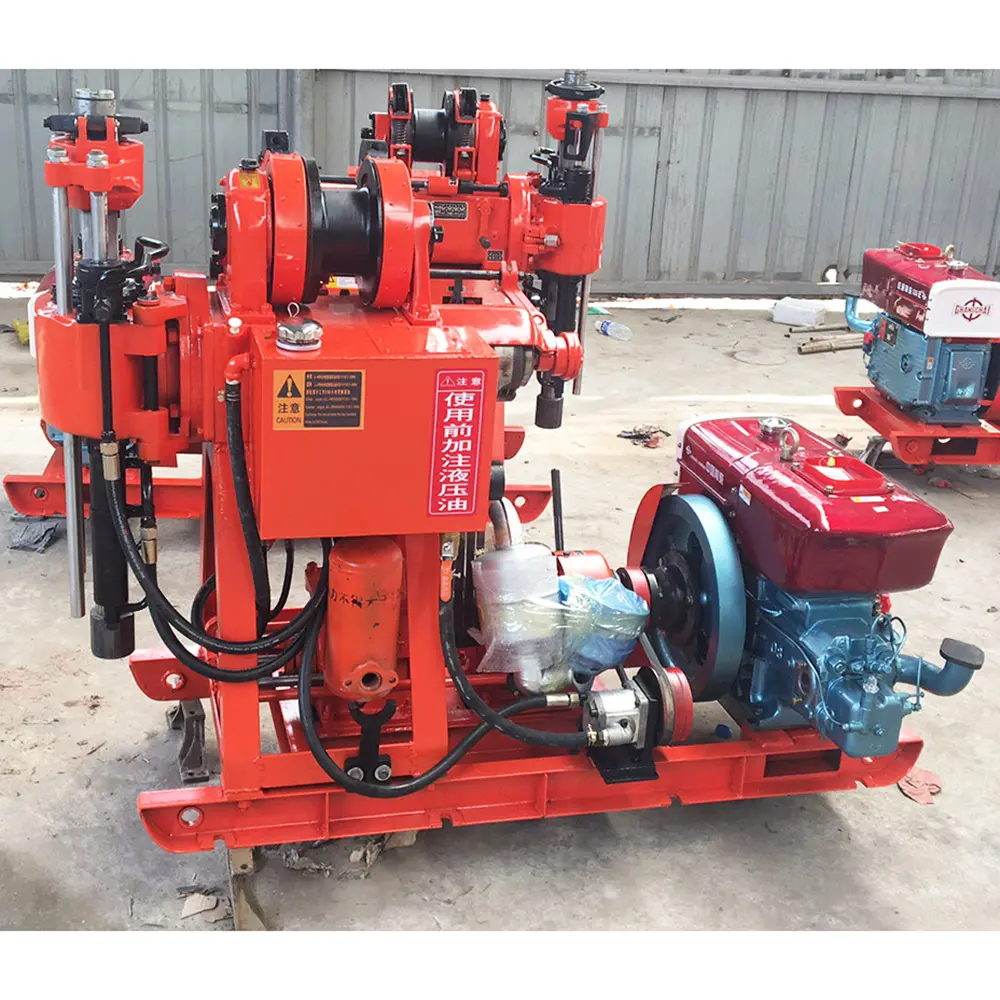

XY-1A Core Drilling Rig

Drill Diameter: 75-150mm
Drill Depth: 180m
Engine Power: 13.2KwFeature:
1. Equipped with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The ball clamping mechanism is used instead of the chuck, which can realize non-stop, convenient operation, safety and reliability.
3. The hoist is equipped with a frame to form a double-sided support star structure, which can withstand strong impacts.

Model		XY-1A
Drilling depth	180m	Open hole dia	φ75-150mm
End hole dia	75-46mm	Main rod	53/59*4200mm
Drill rod dia	φ50mm φ42	Drill angle	90°～75°
Supporting power	13.2Kw/2200/r/min	Weight/size	920kg/2400*950*1400
Drill mast
Rated load	2t	Effective height	6m
Tower leg specifications	73mm
Winch parameters
Single rope lifting force	9.6kN	Single rope lifting speed	0.3. 0.8. 1.29. 1.96. 2.23m/s
Roll diameter	φ140mm	Rope diameter	27m

Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.

XY-1A Core Drilling Rig

The XY-1A Core Drilling Rig is a compact and efficient geological exploration drilling machine widely used for mineral exploration, engineering geological investigation, construction surveys, and small-diameter core drilling projects. Designed with a high-speed rotary drilling system, the XY-1A provides excellent drilling performance while maintaining easy transportation, simple operation, and reliable durability.

As a professional core drilling rig, the XY-1A is suitable for obtaining geological core samples from different formations. It can use alloy bits, diamond bits, and other specialized drilling tools according to geological conditions, allowing efficient drilling in sandy clay, rock formations, and other medium-hard geological structures.

The XY-1A Core Drilling Rig features a compact design, lightweight structure, and strong adaptability, making it ideal for field exploration projects where mobility and flexibility are important. It is commonly used in geological surveys, mineral resource exploration, road and building foundation investigations, hydrological surveys, and engineering drilling applications.

With a drilling depth of up to 180m, an open hole diameter range of approximately 75-150mm, and a powerful 13.2kW diesel engine system, the XY-1A provides an economical solution for professional drilling contractors and exploration teams.

Advanced Core Drilling Technology

The XY-1A Core Drilling Rig adopts advanced rotary core drilling technology to achieve accurate geological sampling.

During operation, the drilling bit cuts through underground formations while the core barrel collects cylindrical rock samples. These samples provide important geological information for:

Mineral evaluation
Geological mapping
Engineering analysis
Underground structure investigation
Resource development planning

The core drilling method offers several advantages:

High-quality rock sample recovery
Accurate geological information
Reduced formation disturbance
Suitable for different rock conditions
Improved exploration efficiency

By selecting suitable drill bits, the XY-1A can adapt to different geological environments and provide reliable drilling results.

Compact Structure and High Mobility

One of the biggest advantages of the XY-1A Core Drilling Rig is its compact and lightweight design.

Compared with large exploration drilling machines, the XY-1A offers:

Easy transportation
Simple installation
Flexible operation in remote areas
Reduced manpower requirements
Lower transportation costs

Its compact structure makes it especially suitable for mountainous regions, construction sites, and areas with limited access.

The machine can be quickly moved between drilling locations, improving project efficiency and reducing preparation time.

Efficient Hydraulic Feeding System

The XY-1A Core Drilling Rig is equipped with a hydraulic automatic feeding mechanism that improves drilling efficiency and reduces operator workload.

The hydraulic feeding system provides:

Stable drilling pressure
Smooth bit feeding
Reduced manual operation
Improved drilling accuracy
Higher working efficiency

This design helps operators maintain consistent drilling performance during long-term exploration operations.

Reliable Clamping and Hoisting System

The XY-1A uses a ball clamping mechanism instead of a traditional chuck system, allowing continuous operation and improving safety and convenience.

The hoisting system features a strong support structure designed to withstand impact loads during drilling operations.

Advantages include:

Reliable drill rod handling
Improved operational safety
Stable lifting performance
Reduced downtime

These features make the XY-1A suitable for professional geological exploration applications.

Wide Application Areas

The XY-1A Core Drilling Rig is widely used in many industries.

Geological Exploration

The machine is commonly used for:

Mineral exploration
Geological survey drilling
Rock sampling
Resource investigation
Engineering Investigation

The XY-1A supports:

Building foundation surveys
Road engineering investigation
Construction site geological analysis
Hydrological Drilling

The rig can be used for:

Groundwater investigation
Small water well drilling
Underground condition analysis
Mining Exploration

The machine helps mining companies collect geological samples for resource evaluation.

Excellent Geological Adaptability

The XY-1A Core Drilling Rig can work efficiently in various geological conditions.

It is suitable for:

Sandy clay
Soil formations
Weathered rock
Medium-hard rock
Geological layers requiring core samples

Different drilling tools can be selected according to formation characteristics.

Diamond bits are suitable for harder formations, while alloy bits can be used for softer geological conditions.

This flexibility allows the XY-1A to provide stable drilling performance across different projects.

Durable Design and Long Service Life

The XY-1A Core Drilling Rig is manufactured with a strong mechanical structure to ensure reliable operation in demanding outdoor environments.

Key durability advantages include:

Strong drilling frame
Reliable transmission system
High-quality components
Stable operation performance
Easy maintenance

The machine is designed to provide long-term service while reducing maintenance requirements.

Easy Operation and Maintenance

The XY-1A Core Drilling Rig features a practical design that makes operation and maintenance simple.

Operators can easily control:

Drilling speed
Feeding pressure
Hoisting operation
Rotary functions

Maintenance benefits include:

Convenient component inspection
Simple servicing procedures
Reduced maintenance costs
Shorter downtime

The user-friendly design allows both experienced operators and new users to operate the machine efficiently.

Main Features of XY-1A Core Drilling Rig
High-speed geological exploration drilling
Maximum drilling depth up to 180m
75-150mm drilling diameter range
Hydraulic automatic feeding system
Diamond and alloy bit compatibility
Compact and portable design
Suitable for mineral exploration
Reliable core sample recovery
Easy operation and maintenance
Strong geological adaptability

Why Choose Our XY-1A Core Drilling Rig?
1. Professional Geological Exploration Solution

The XY-1A is specially designed for core sampling and geological investigation projects.

2. High Drilling Efficiency

The hydraulic feeding system improves drilling speed and reduces operator effort.

3. Excellent Mobility

Compact structure allows easy transportation and operation in remote locations.

4. Reliable Sample Collection

Core drilling technology provides accurate underground geological information.

5. Cost-Effective Performance

The machine offers professional drilling capability with economical operating costs.

6. Technical Support and Customization

We provide drilling solutions, accessories, and technical support according to customer requirements.

FAQS
1. What is the XY-1A Core Drilling Rig used for?

The XY-1A is mainly used for geological exploration, mineral sampling, engineering surveys, road investigation, and construction exploration drilling.

2. How deep can the XY-1A drill?

The XY-1A can reach a maximum drilling depth of approximately 180 meters depending on geological conditions and drilling tools.

3. What diameter can the XY-1A drill?

The machine supports open hole diameters of approximately 75-150mm.

4. What drilling bits can be used with the XY-1A?

The XY-1A can use alloy bits, diamond bits, and other drilling tools according to different formations.

5. Is the XY-1A suitable for mineral exploration?

Yes. It is widely used for geological sampling and mineral exploration projects.

6. Can the XY-1A drill rock formations?

Yes. With suitable drilling tools, it can drill various rock formations and collect core samples.

7. Is the XY-1A easy to transport?

Yes. Its compact structure and lightweight design make transportation and field installation convenient.

8. Can the XY-1A be customized?

Yes. Different configurations, drilling tools, and accessories can be customized according to project requirements.
