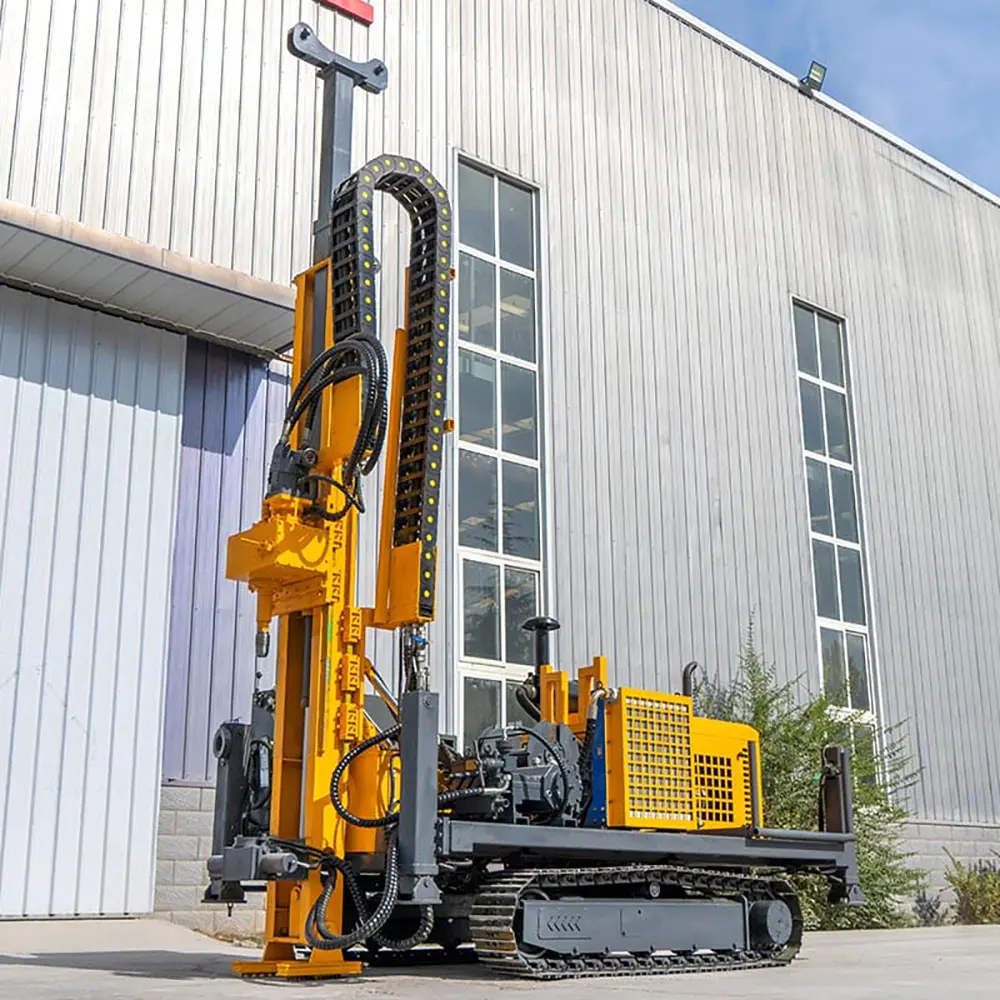

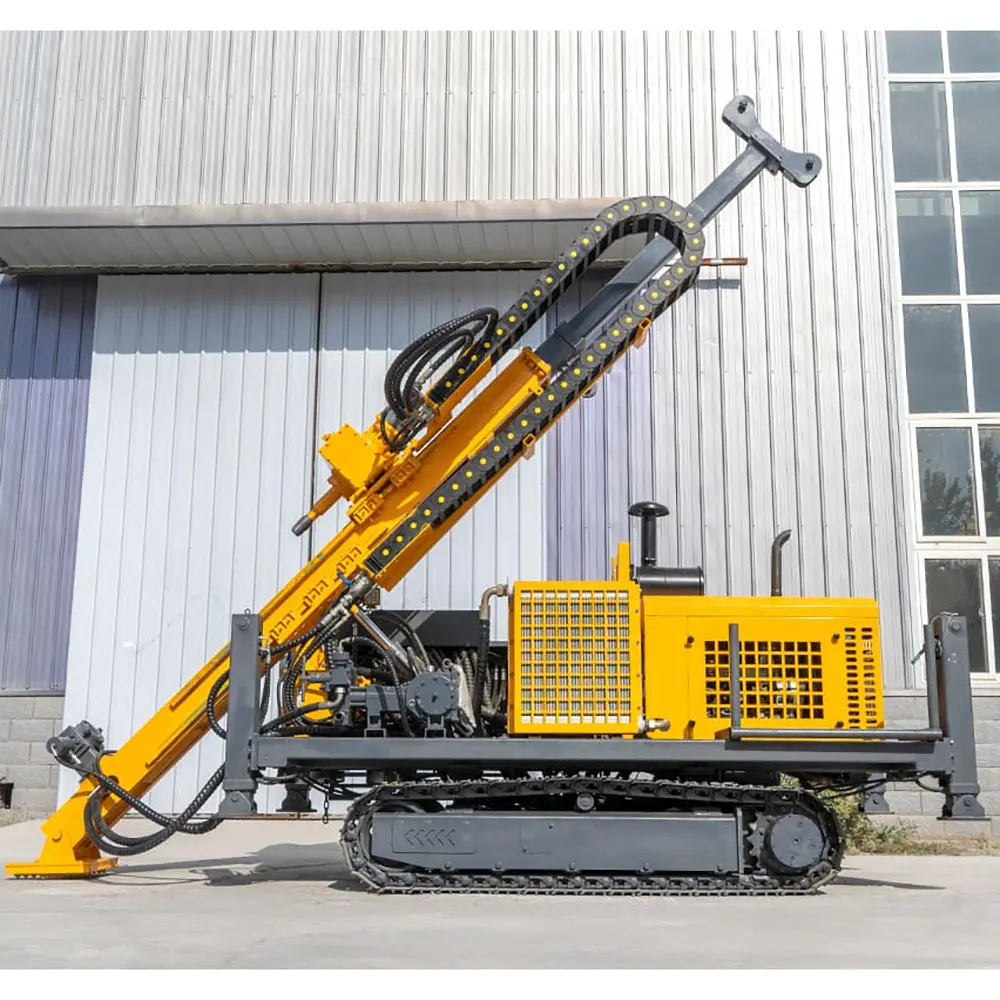

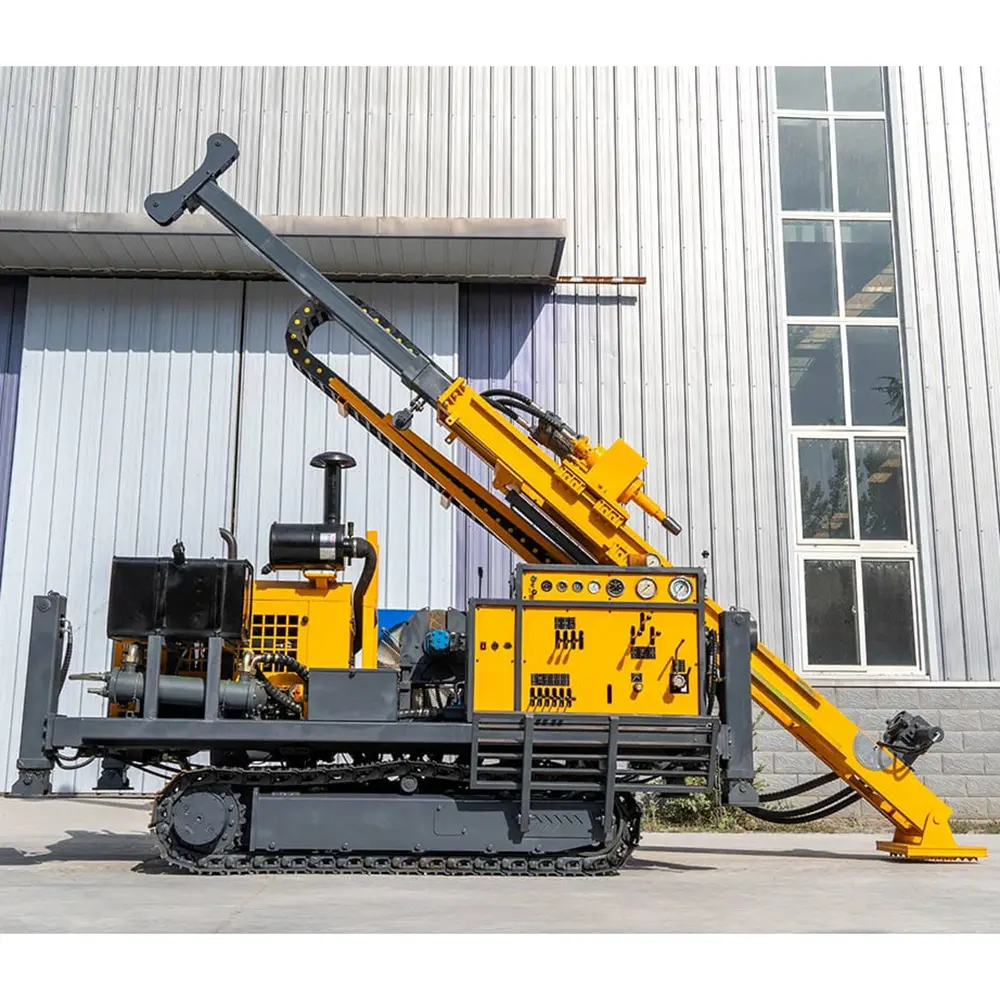

600XL/GL Fully Hydraulic Rope Coring Drilling Rig

Drilling depth: 200-600-650 (m)
Rated speed: 2400 (rpm)
Maximum torque: 450-1000 (N·M)

model	YDX-600XL
Drilling ability
caliber	HTW-NTW-BTW
depth	200-600-650(M)
Hydraulic system
preset pressure	21(MPA)
Rated flow	192(L/min)
Cooling type	Air cooling + Water cooling
Engine
Brand	Yuchai
Type	Turbocharged
Rated rotary speed	2400(RPM)
Rated power	92（KW）
Power head
Maximum torque	450-1000(N.M)
Maximum rotary speed	1300(RPM)
Feeding stroke	1900(MM)
Drilling tower
Type	Ground contact integrated tower
Drilling angle	45-90(°)
Lifting force	16(T)
Feeding force	8(T)
Winch
Lifting force	600(KG)
Rotary speed	100-300(RPM)
Wire rope diameter	6(MM)
Rope capacity	600(M)
walk
type	Manual + remote control
Walking speed	3.5(KM/H)
Single machine climbing angle	45(°)
hydraulic mud pump
mud pump	Contains Bw-90 mud pump
flow	30-90(L/min)
pressure	4-7(MPA)
Shipping dimensions	4000*2000*1800(MM)
Total Weight	4.5/5.5(T)

600XL/GL Fully Hydraulic Rope Coring Drilling Rig

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is an advanced geological exploration drilling machine designed for deep-hole core drilling, mineral resource exploration, geological surveys, and engineering investigation applications. With a fully hydraulic drive system, advanced wireline rope coring technology, and powerful drilling performance, the 600XL/GL provides an efficient and reliable solution for professional drilling contractors and exploration companies.

The rig combines modern hydraulic technology with high-efficiency core drilling methods to achieve stable operation, accurate sample recovery, and improved drilling productivity. Compared with conventional mechanical drilling rigs, the 600XL/GL Fully Hydraulic Rope Coring Drilling Rig provides better control accuracy, smoother operation, and higher efficiency during deep drilling projects.

The wireline rope coring system allows operators to recover core samples without removing the complete drill string, significantly reducing auxiliary working time. This makes the rig particularly suitable for deep mineral exploration where continuous drilling and high-quality core samples are required.

The 600XL/GL is widely used in:

Mineral exploration projects
Geological survey operations
Diamond core drilling
Mining resource evaluation
Hydrological investigation
Engineering geological drilling

With strong hydraulic power, durable construction, and excellent adaptability, the 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is an ideal choice for modern exploration applications.

Advanced Fully Hydraulic Drilling System

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig adopts a complete hydraulic control system to provide precise and efficient drilling operation.

The hydraulic system controls:

Rotary drilling speed
Feeding pressure
Hoisting operation
Drill rod handling
Hydraulic clamping system

Compared with traditional mechanical drilling equipment, the fully hydraulic system offers:

Smooth power transmission
Accurate parameter adjustment
Higher drilling efficiency
Reduced mechanical wear
Improved operator convenience

Operators can easily adjust drilling parameters according to different geological formations, helping maintain stable performance throughout the drilling process.

Efficient Wireline Rope Coring Technology

A major advantage of the 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is its advanced wireline core drilling system.

Traditional core drilling requires removing the drill string to recover samples, which becomes inefficient as drilling depth increases.

The wireline rope coring method allows:

Fast core sample recovery
Reduced drilling interruptions
Higher productivity
Improved deep-hole drilling efficiency
Better sample protection

This technology is widely used in mineral exploration because it provides continuous and reliable geological information.

The efficient core recovery process helps geologists analyze:

Rock structure
Mineral distribution
Ore characteristics
Underground formations
Powerful Drilling Performance

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is designed to provide strong performance for demanding exploration projects.

Its powerful hydraulic system delivers:

High rotary torque
Stable drilling pressure
Strong lifting capability
Efficient penetration performance
Reliable long-term operation

The rig can be equipped with different wireline core barrels and drilling tools according to project requirements.

It is suitable for:

Deep geological drilling
Mineral exploration holes
Underground resource investigation
Engineering survey drilling

The optimized design ensures stable operation in complex drilling environments.

High Quality Core Sample Recovery

Accurate geological analysis depends on reliable core samples.

The 600XL/GL improves core recovery through:

Stable hydraulic pressure control
Advanced wireline coring system
Reduced core damage
Precise drilling adjustment
Professional sampling technology

High-quality core samples provide valuable information for:

Mineral resource evaluation
Geological mapping
Engineering analysis
Scientific research

This makes the 600XL/GL an important tool for exploration companies and geological organizations.

Wide Application Areas
Mineral Exploration

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is widely used for:

Gold exploration
Copper exploration
Iron ore investigation
Mineral resource development
Mining geological surveys

Its efficient drilling capability helps companies identify underground resources more effectively.

Geological Investigation

The rig supports:

Geological mapping
Rock formation analysis
Underground structure research
Scientific exploration projects
Engineering Survey

The 600XL/GL can be applied to:

Foundation investigation
Tunnel exploration
Infrastructure construction surveys
Geotechnical drilling
Hydrological Exploration

The machine can also be used for groundwater investigation and geological research drilling.

Excellent Adaptability to Complex Formations

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is designed for different geological environments.

It can effectively operate in:

Hard rock formations
Weathered rock
Fractured formations
Complex mineralized zones
Deep geological structures

The hydraulic control system allows operators to adjust drilling parameters according to changing conditions, improving drilling stability and reducing equipment stress.

Durable Structure and Reliable Operation

The 600XL/GL is built with high-strength components to ensure long service life.

Main durability advantages include:

Heavy-duty drilling frame
Reliable hydraulic components
Strong transmission system
Stable mechanical structure
Reduced maintenance requirements

The robust design allows continuous operation in challenging environments such as mines, mountains, and remote exploration areas.

Easy Operation and Maintenance

The 600XL/GL Fully Hydraulic Rope Coring Drilling Rig is designed for convenient operation and maintenance.

The hydraulic control system simplifies drilling management and improves working efficiency.

Maintenance benefits include:

Easy access to components
Simple inspection procedures
Reduced service time
Lower operating costs

The user-friendly design helps reduce downtime and improves overall project productivity.

Main Features of 600XL/GL Fully Hydraulic Rope Coring Drilling Rig
Fully hydraulic control system
Wireline rope coring technology
High drilling efficiency
Excellent core recovery performance
Strong hydraulic power output
Stable drilling operation
Suitable for diamond core drilling
Professional geological exploration solution
Durable heavy-duty structure
Easy operation and maintenance
Why Choose Our 600XL/GL Fully Hydraulic Rope Coring Drilling Rig?
1. Advanced Hydraulic Technology

The fully hydraulic system provides precise control, smooth operation, and reliable drilling performance.

2. Efficient Deep Exploration Capability

Wireline rope coring technology improves productivity and reduces drilling downtime.

3. Superior Core Recovery

The rig provides high-quality samples for accurate geological evaluation.

4. Strong Geological Adaptability

It performs reliably in various rock formations and complex drilling environments.

5. Durable and Cost Effective

High-quality components ensure long service life and reduce maintenance costs.

6. Professional Technical Support

We provide complete drilling solutions, spare parts supply, technical guidance, and customized services.

FAQS
1. What is the 600XL/GL Fully Hydraulic Rope Coring Drilling Rig used for?

The 600XL/GL is mainly used for mineral exploration, geological surveys, diamond core drilling, engineering investigation, and resource evaluation projects.

2. What is rope coring drilling technology?

Rope coring drilling uses a wireline system to recover core samples through the drill string without removing all drill rods.

3. What are the advantages of a fully hydraulic drilling rig?

A fully hydraulic drilling rig provides better control accuracy, smoother operation, stronger performance, and reduced mechanical wear.

4. Can the 600XL/GL drill hard rock?

Yes. With suitable diamond bits and drilling tools, it can drill hard rock, fractured formations, and complex geological conditions.

5. Why is core recovery important?

High-quality core samples help geologists accurately analyze underground structures and mineral resources.

6. Is the 600XL/GL suitable for mining companies?

Yes. It is specifically designed for professional mining exploration and geological drilling applications.

7. What drilling methods can the 600XL/GL use?

The rig mainly uses wireline rope coring technology and can be configured with different core barrels and drilling accessories.

8. Can the 600XL/GL be customized?

Yes. Different configurations, drilling tools, accessories, and power options can be customized according to project requirements.
