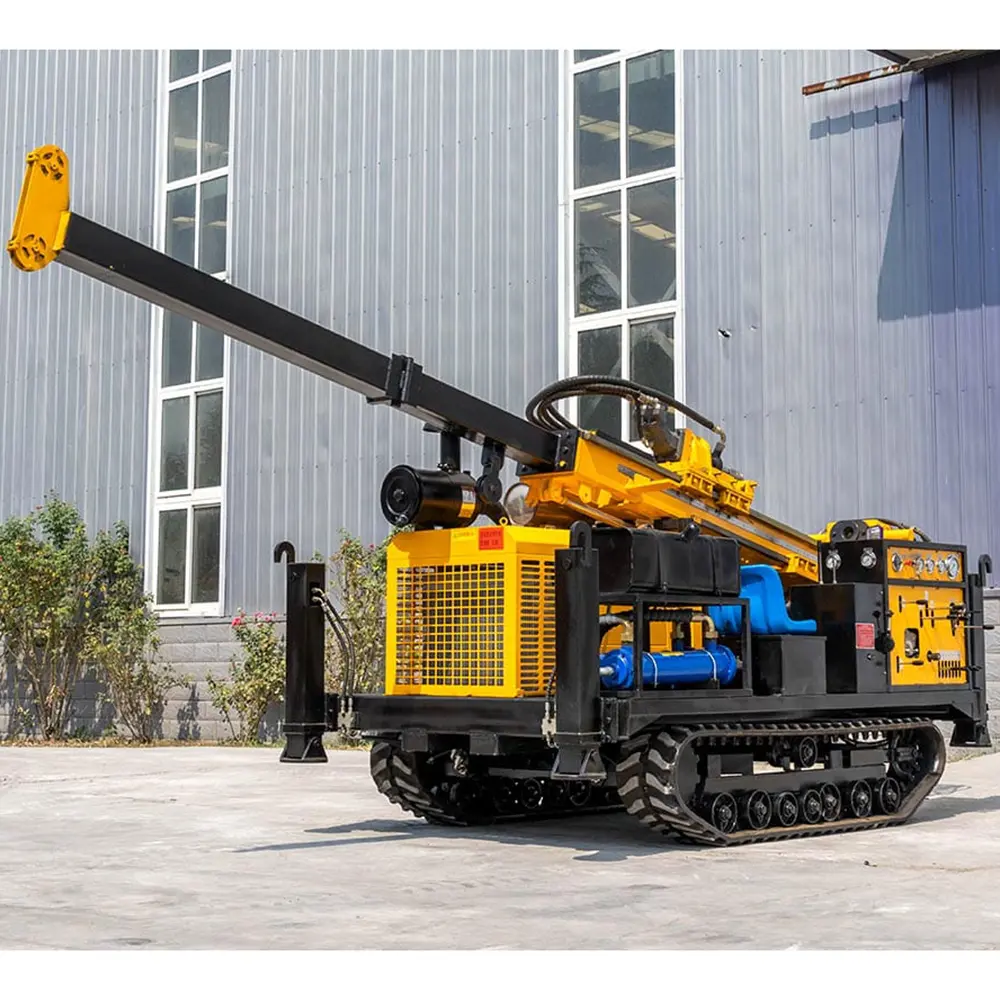

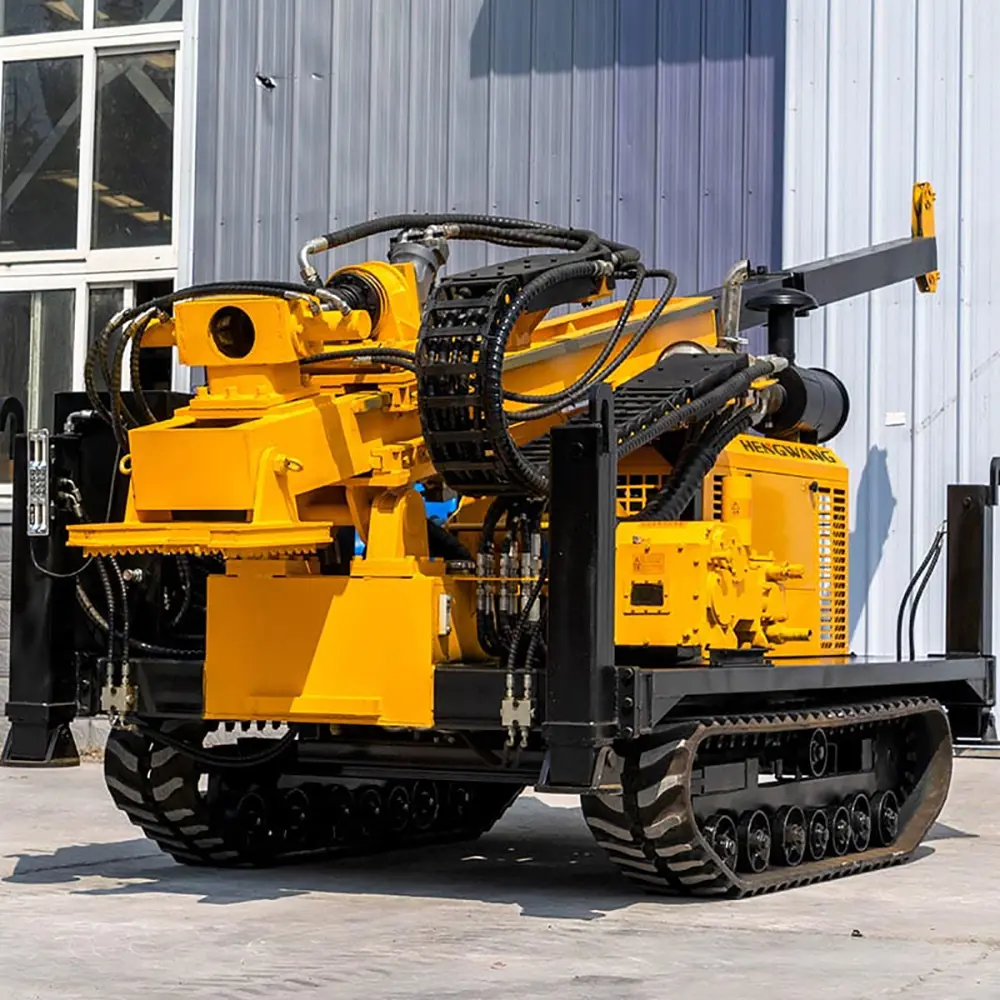

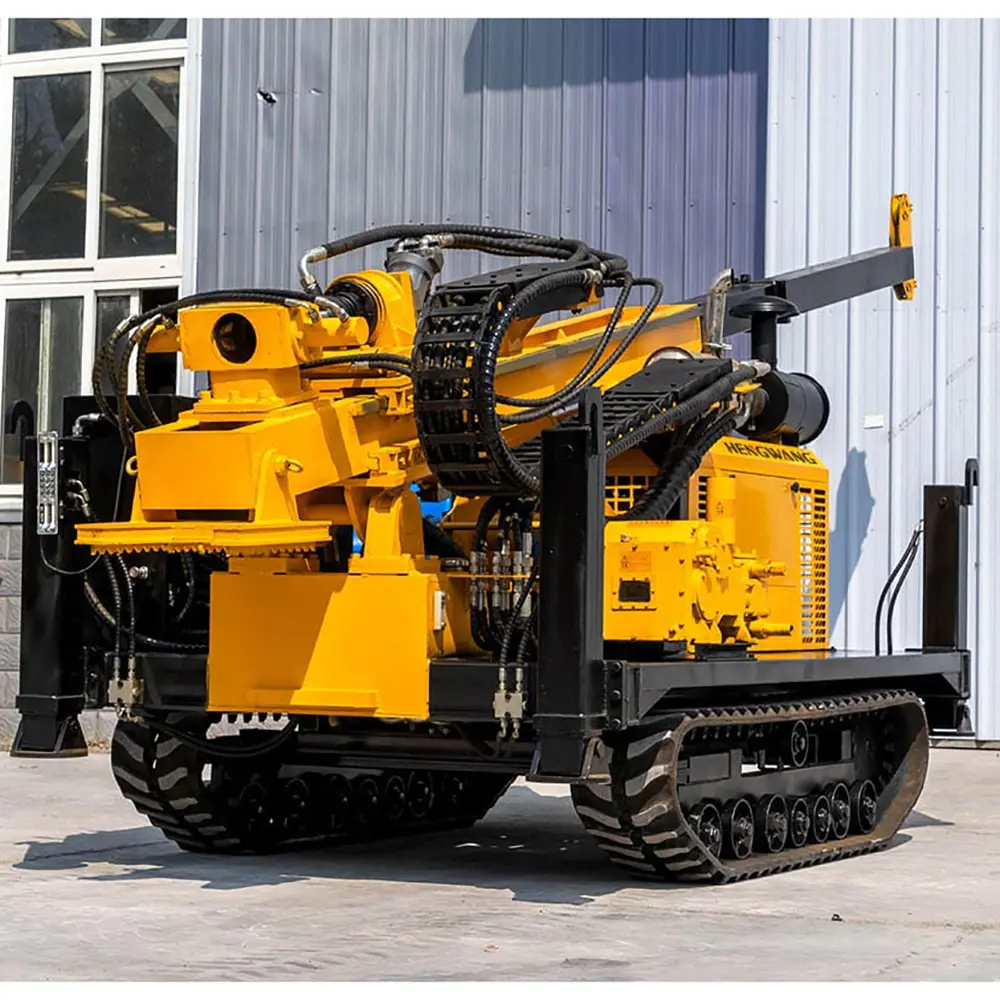

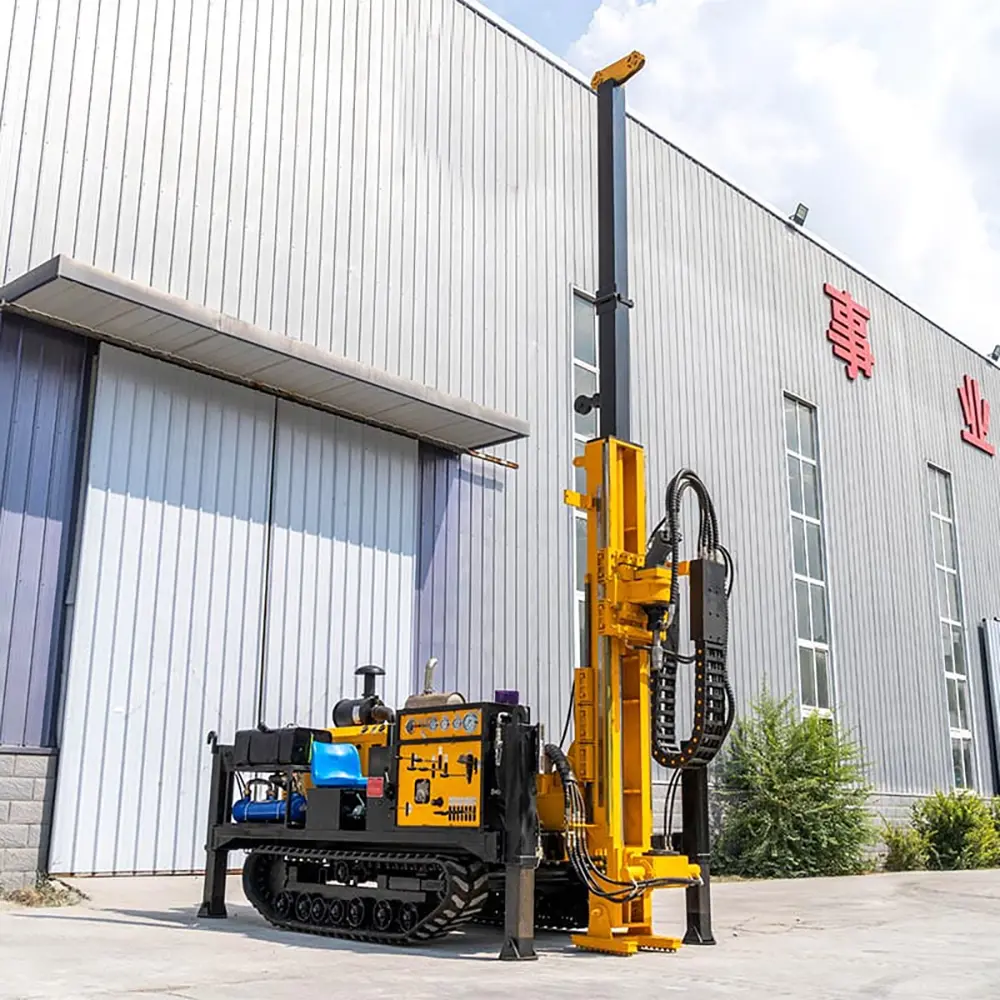

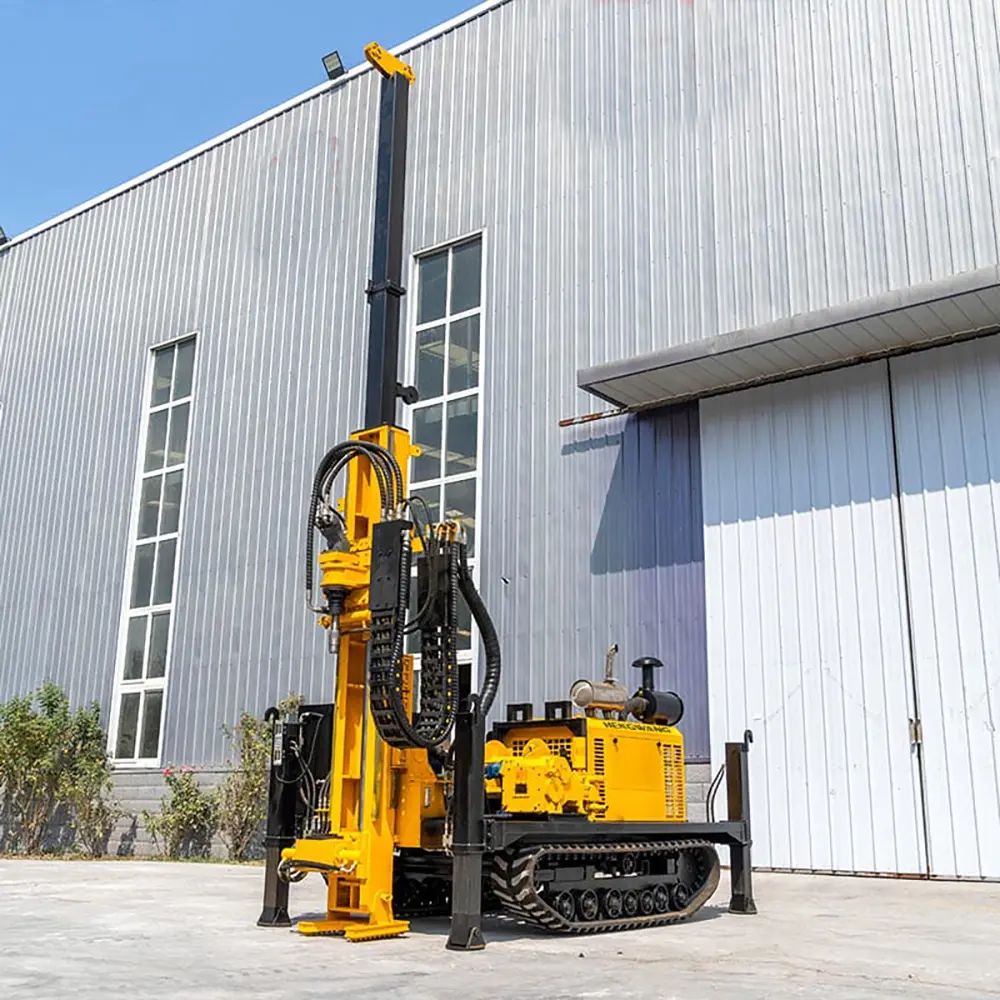

400XL Fully Hydraulic Rope Coring Drilling Rig

Drilling depth:180-400-500(m)
Rated speed:2400(rpm)
Maximum torque:300-500(N·M)
1. It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.
2. Easy to install, no need to lift the drill pipe during the rope coring process.

3. Thin-walled drilling tools with high coring efficiency.






Parameter:

model	YDX-400XL
Drilling ability
caliber	NTW-BTW
depth	180-400-500(M)
Hydraulic system
preset pressure	21(MPA)
Rated flow	168(L/min)
Cooling type	Air cooling + Water cooling
Engine
Brand	Yuchai
Type	Turbocharged
Rated rotary speed	2400(RPM)
Rated power	78（KW）/70KW
Power head
Maximum torque	300-500(N.M)
Maximum rotary speed	1300(RPM)
Feeding stroke	1900(MM)
Drilling tower
Type	Ground contact integrated tower
Drilling angle	45-90(°)
Lifting force	12(T)
Feeding force	6(T)
Winch
Lifting force	500(KG)
Rotary speed	100-240(RPM)
Wire rope diameter	6(MM)
Rope capacity	500(M)
walk
type	Manual + remote control
Walking speed	2.5(KM/H)
Single machine climbing angle	45(°)
hydraulic mud pump
mud pump	Contains Bw-90 mud pump
flow	30-90(L/min)
pressure	4-7(MPA)
Shipping dimensions	4000*1900*1800(MM)
Total Weight	4.3(T)

400XL Fully Hydraulic Rope Coring Drilling Rig

The 400XL Fully Hydraulic Rope Coring Drilling Rig is a professional geological exploration drilling machine designed for mineral exploration, core sampling, engineering investigation, and geological survey applications. Featuring a fully hydraulic drive system and advanced wireline rope coring technology, the 400XL delivers excellent drilling efficiency, accurate core recovery, and stable performance in different geological environments.

Designed for modern exploration requirements, the 400XL combines hydraulic power, precise drilling control, and efficient core retrieval technology. Compared with traditional mechanical drilling equipment, this fully hydraulic rope coring drilling rig provides smoother operation, higher drilling efficiency, and improved adaptability for complex field conditions.

The wireline rope coring system enables operators to recover core samples without removing the entire drill string. This reduces non-drilling time, improves productivity, and makes the rig especially suitable for continuous exploration drilling.

The 400XL Fully Hydraulic Rope Coring Drilling Rig is widely used in:

Mineral resource exploration
Geological investigation
Diamond core drilling
Mining exploration projects
Engineering geological surveys
Hydrological exploration

With reliable hydraulic performance, strong adaptability, and convenient operation, the 400XL is an ideal solution for professional drilling contractors and exploration companies.

Fully Hydraulic Control System

The 400XL adopts a modern fully hydraulic control system to provide smooth and accurate drilling operation.

The hydraulic system controls:

Rotary speed
Feeding pressure
Hoisting movement
Drill rod handling
Hydraulic clamping

Compared with conventional drilling rigs, the fully hydraulic design offers:

Better drilling control
Stable torque output
Smooth power transmission
Reduced mechanical wear
Improved working efficiency

Operators can easily adjust drilling parameters according to geological conditions, ensuring stable drilling performance and improved drilling quality.

The hydraulic system also reduces operator workload and allows more precise control during complex drilling operations.

Efficient Wireline Rope Coring Technology

The key advantage of the 400XL Fully Hydraulic Rope Coring Drilling Rig is its advanced wireline coring capability.

Traditional core drilling requires lifting the complete drill string to recover samples, which can significantly reduce efficiency during deep drilling.

The wireline rope coring system allows:

Faster core sample recovery
Less drilling interruption
Higher productivity
Reduced labor requirements
Improved deep drilling efficiency

This technology is especially suitable for mineral exploration projects where continuous drilling and accurate geological information are required.

The collected core samples help geologists evaluate:

Rock formations
Mineral resources
Geological structures
Underground conditions
Reliable Drilling Performance

The 400XL Fully Hydraulic Rope Coring Drilling Rig is designed to provide stable performance for professional exploration projects.

Its optimized hydraulic system provides:

Strong rotary torque
Stable drilling pressure
Efficient penetration capability
Reliable lifting performance
Continuous working ability

The rig can be equipped with suitable wireline core barrels and diamond drilling tools according to different project requirements.

It is suitable for:

Surface exploration drilling
Mineral sampling
Geological investigation holes
Engineering survey drilling

The compact and efficient design makes the 400XL suitable for projects requiring flexibility and productivity.

High Quality Core Sample Recovery

Accurate geological analysis depends on reliable core samples.

The 400XL improves sample recovery through:

Stable drilling pressure control
Advanced wireline technology
Reduced core damage
Optimized drilling parameters
Professional core collection system

High-quality samples provide valuable information for:

Mineral evaluation
Geological research
Construction analysis
Resource development planning

The rig helps exploration teams obtain accurate underground information efficiently.

Wide Application Areas
Mineral Exploration

The 400XL Fully Hydraulic Rope Coring Drilling Rig is widely used for:

Gold exploration
Copper exploration
Iron ore investigation
Mineral resource assessment
Mining geological surveys

Its efficient drilling performance helps improve exploration productivity.

Geological Survey

The rig supports:

Geological mapping
Rock analysis
Underground structure research
Scientific drilling projects
Engineering Investigation

Applications include:

Foundation investigation
Road construction surveys
Tunnel geological investigation
Infrastructure projects
Hydrological Exploration

The machine can also be used for groundwater investigation and environmental geological drilling.

Excellent Adaptability to Different Formations

The 400XL Fully Hydraulic Rope Coring Drilling Rig can operate effectively in various geological conditions.

It is suitable for:

Hard rock formations
Medium-hard rock
Fractured formations
Weathered rock layers
Complex geological zones

The hydraulic control system allows operators to adjust drilling speed and pressure according to formation changes, improving drilling stability and equipment protection.

Compact Design and Easy Transportation

Compared with larger exploration drilling systems, the 400XL provides excellent mobility.

Advantages include:

Compact structure
Easy transportation
Flexible site installation
Reduced preparation time
Suitable for remote locations

The rig is ideal for exploration projects where access conditions are limited.

Durable Structure and Long Service Life

The 400XL is manufactured with reliable components to ensure long-term operation.

Key advantages include:

Strong drilling frame
Durable hydraulic components
Reliable transmission system
Stable mechanical design
Easy maintenance

The robust structure allows the machine to operate effectively in mines, mountains, and outdoor exploration environments.

Easy Operation and Maintenance

The 400XL Fully Hydraulic Rope Coring Drilling Rig features a user-friendly design.

Benefits include:

Simple control operation
Convenient maintenance
Reduced downtime
Lower operating costs
Improved working efficiency

The practical design helps operators complete drilling projects more efficiently.

Main Features of 400XL Fully Hydraulic Rope Coring Drilling Rig
Fully hydraulic drilling control system
Wireline rope coring technology
High core recovery efficiency
Suitable for diamond drilling
Stable drilling performance
Compact and flexible structure
Strong geological adaptability
Efficient mineral exploration solution
Durable construction
Easy operation and maintenance
Why Choose Our 400XL Fully Hydraulic Rope Coring Drilling Rig?
1. Advanced Hydraulic Technology

The fully hydraulic system provides accurate control, smooth operation, and reliable drilling performance.

2. Efficient Wireline Coring System

The rope coring technology reduces downtime and improves drilling productivity.

3. Excellent Core Recovery

The rig provides high-quality geological samples for accurate analysis.

4. Flexible Exploration Solution

The compact design allows operation in different working environments.

5. Reliable and Durable Construction

High-quality components ensure long service life and stable performance.

6. Professional Technical Support

We provide customized drilling solutions, accessories, spare parts, and technical assistance.

FAQS
1. What is the 400XL Fully Hydraulic Rope Coring Drilling Rig used for?

The 400XL is mainly used for mineral exploration, geological surveys, diamond core drilling, engineering investigation, and geological sampling.

2. What is wireline rope coring drilling?

Wireline rope coring drilling is a method that retrieves core samples through the drill string without removing all drill rods.

3. What are the advantages of a fully hydraulic drilling rig?

It provides smoother operation, better control accuracy, higher efficiency, and reduced mechanical maintenance.

4. Can the 400XL drill rock formations?

Yes. With proper diamond bits and drilling tools, it can drill different rock formations including hard and fractured rocks.

5. Why is core sampling important?

Core samples provide accurate underground geological information for exploration and engineering decisions.

6. Is the 400XL suitable for mining exploration?

Yes. It is designed for professional mineral exploration and geological drilling applications.

7. Can the rig work in remote areas?

Yes. Its compact design allows flexible transportation and operation in challenging locations.

8. Can the 400XL be customized?

Yes. Different drilling configurations, accessories, and solutions can be customized according to customer requirements.
