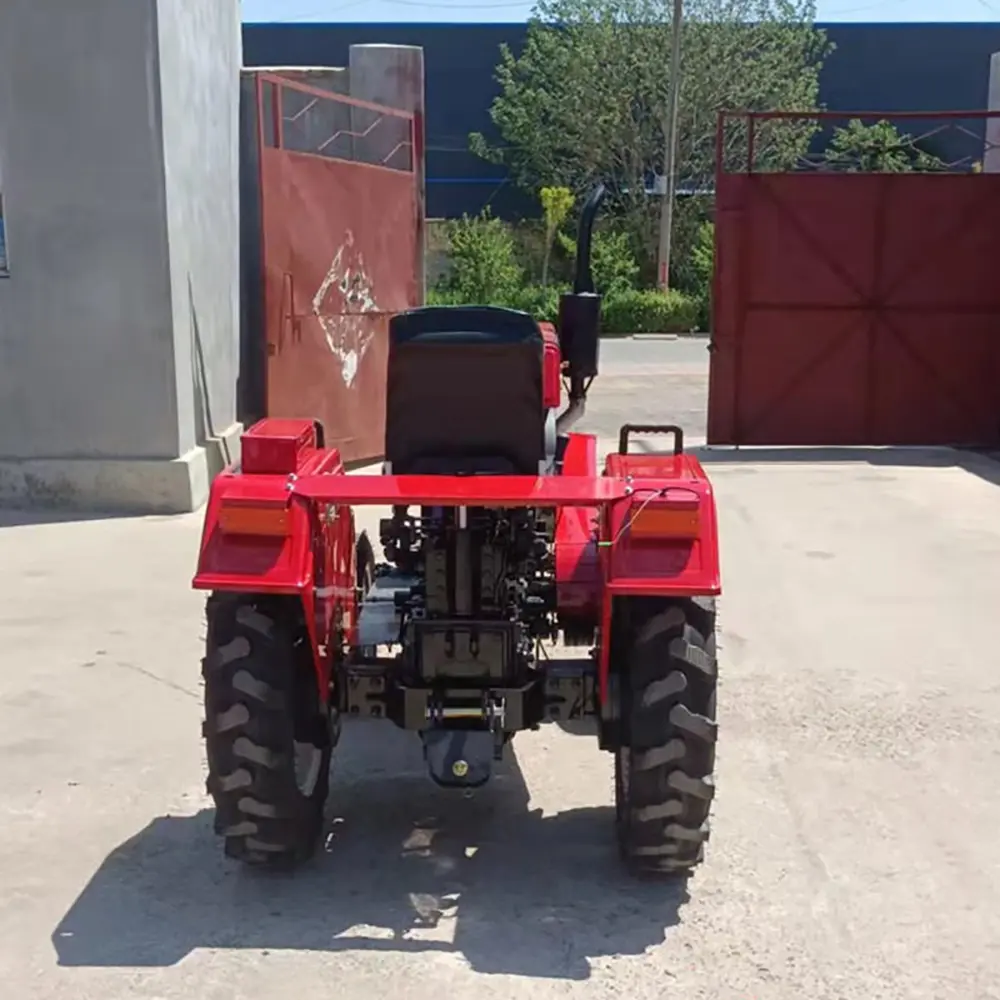

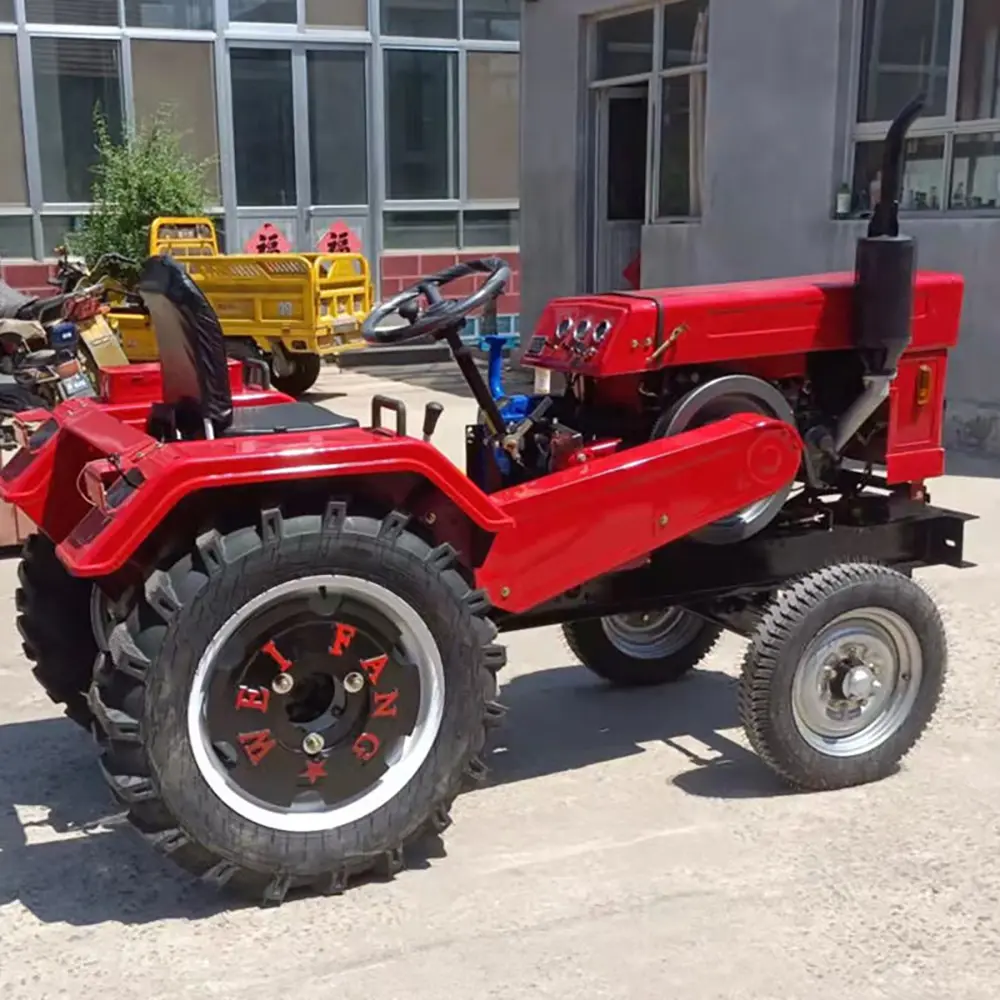

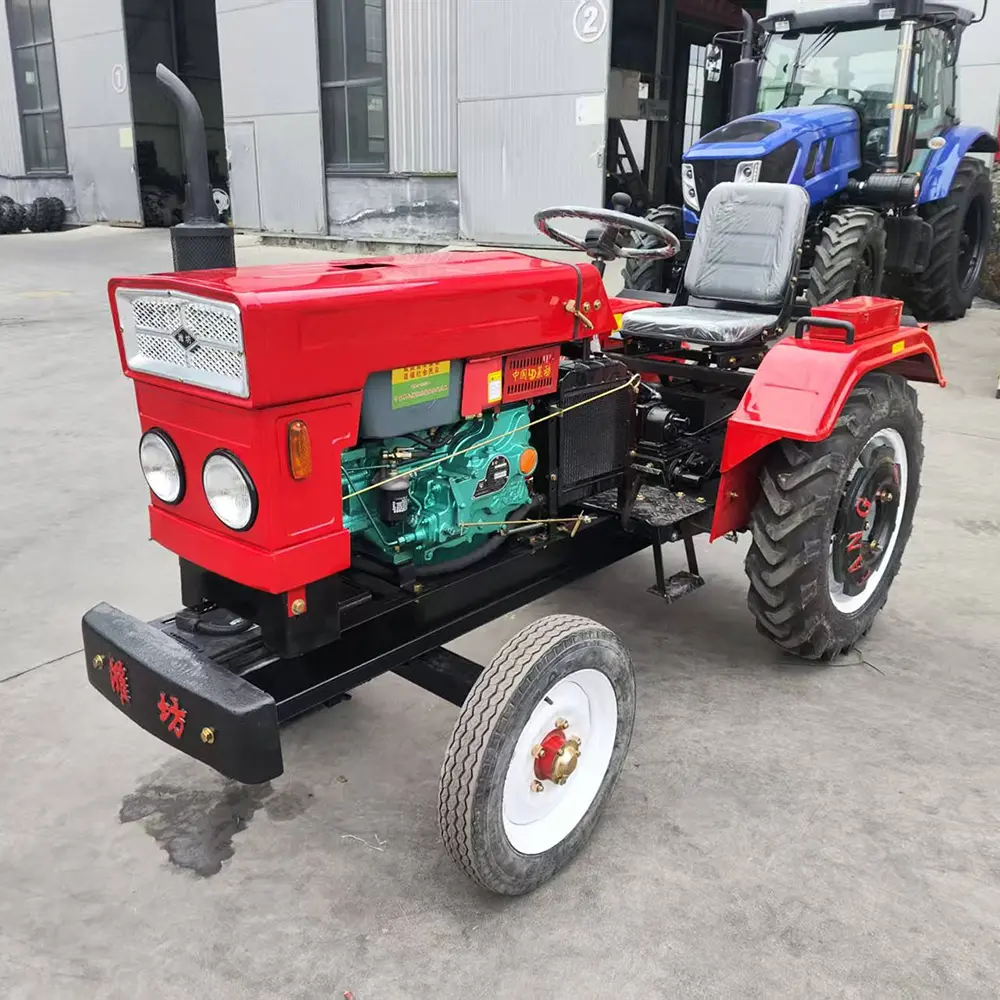

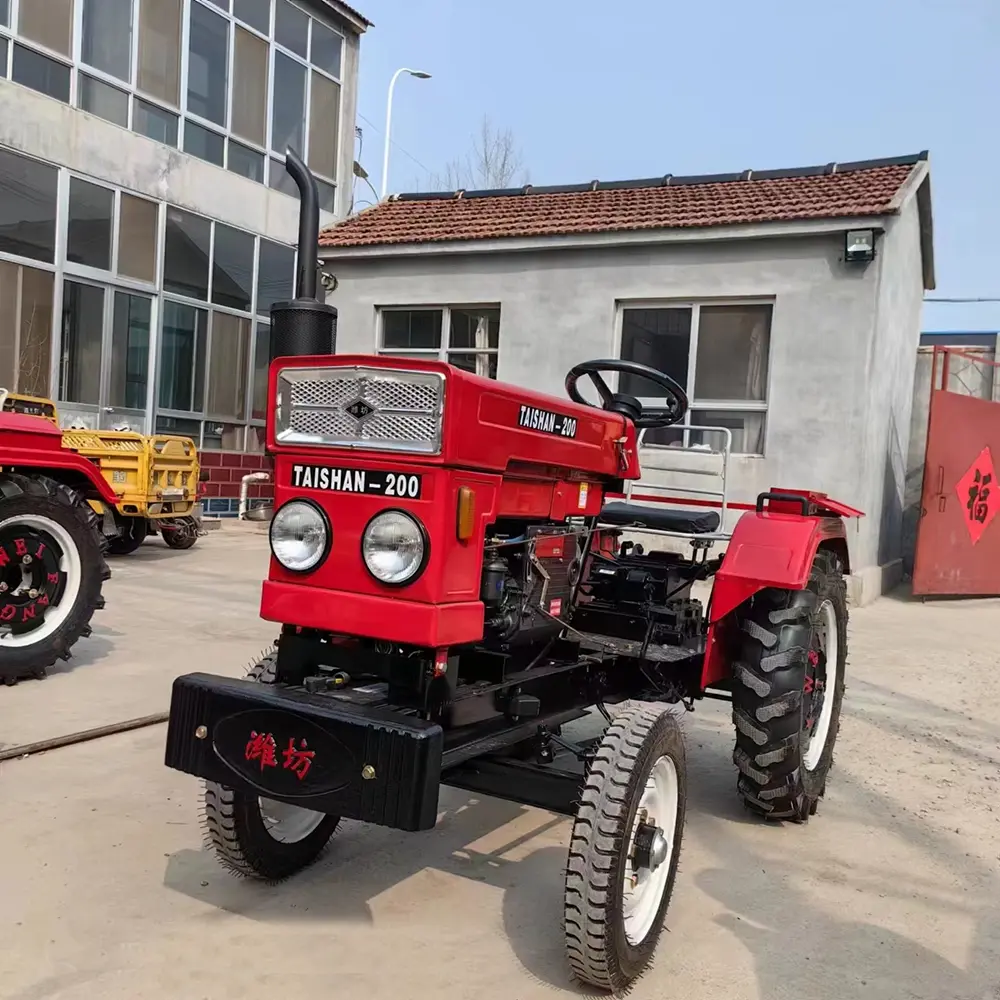

TS Mini Tractor Taishan

TECHNICAL PARAMETERS
Model	200/204	220/224	240/244	260/264	280/284	320/324	350/354

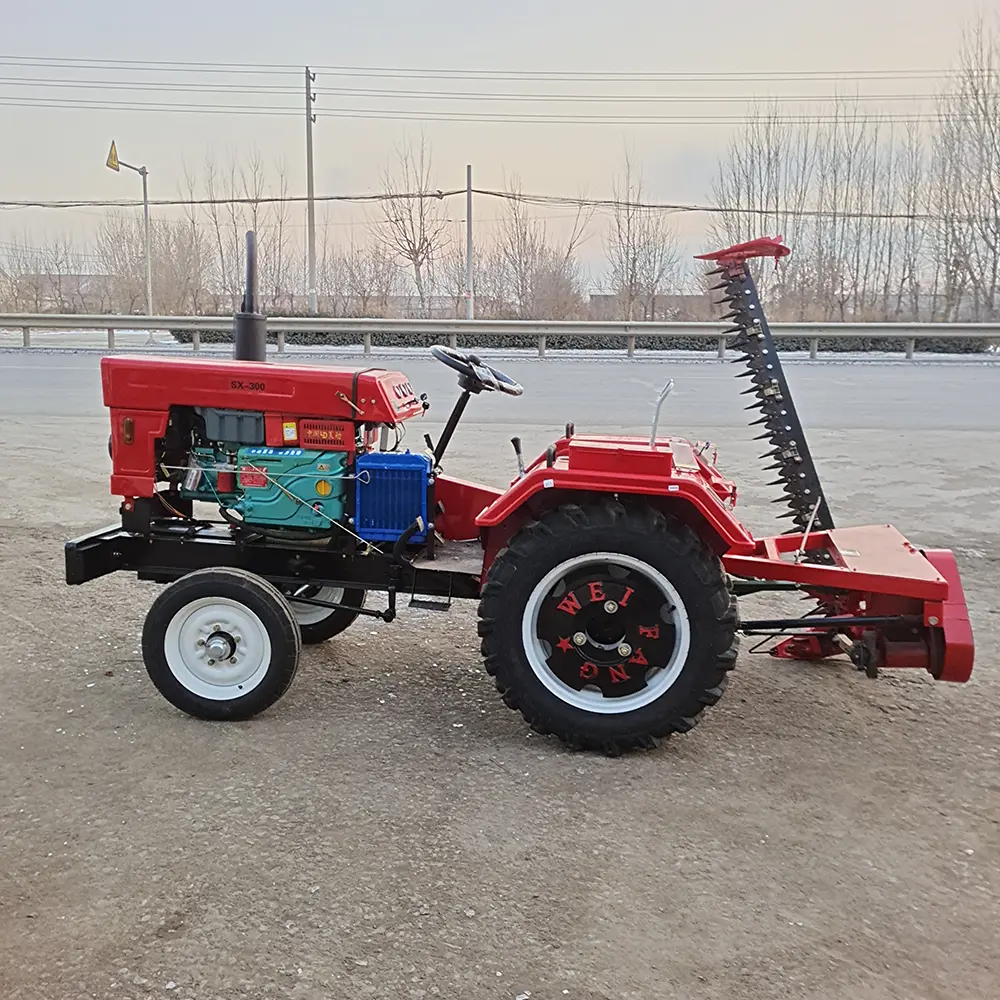

Type	4X2 BELT TRANSIMISSION、4X4 BELT TRANSIMISSION
Clutch Type	DRY,DUAL PCS
Engine brand model	LD22A	LD26A	LD30A	LD32A	LD33A	LD38A	LD41A
Displacement(L)/number of cylinders	1.04/1	1.19/1	1.38/1	1.45/1	1.59/1	1.73/1	1.82/1
Rated engine speed (r/min)	2200	2200	2200	2200	2200	2200	2200
Engine power at rated speed KW (hp)	13.2(18)	16.2(24)	17.6(24)	19.38(26)	20.58(28)	22.06(30)	23.53(32)
Fuel tank volume (L)	13	13	13	13	15.4	15.4	15.4
Number of gears	3×2+1、 （4+1）×2、 （3+1）×3、 4*（3+1）Mechanism shift
Driving speed	2.3-27.1km/h 2.3-34.1km/h 3.2-35.5km/h
Number of splines/PTo shaft speed	6keys 540 or 720r/min
Front wheels	7.50-16、6.50-16、6.00-14、5.00-15、6.00-16
Rear wheels	11.2-24、7.50-20、8.3-24、9.5-20、9.5-24
Number of multiway valves	0/1
Working hydraulic pump flow rate (L/min)	14/17
Dimensions (length, width and height) (mm)	Length：3100、330 width：1240、1380、1480、1580 height：1860、1900、1980、2170
Wheelbase (mm)	1630/1500/1450
Front track (mm)	1000、1100、1200、1300
Rear track (mm)	1000、1100、1200、1300
Structural mass (kg)	1010、1020、1180、1220
Minimum ground clearance(mm)	230/320

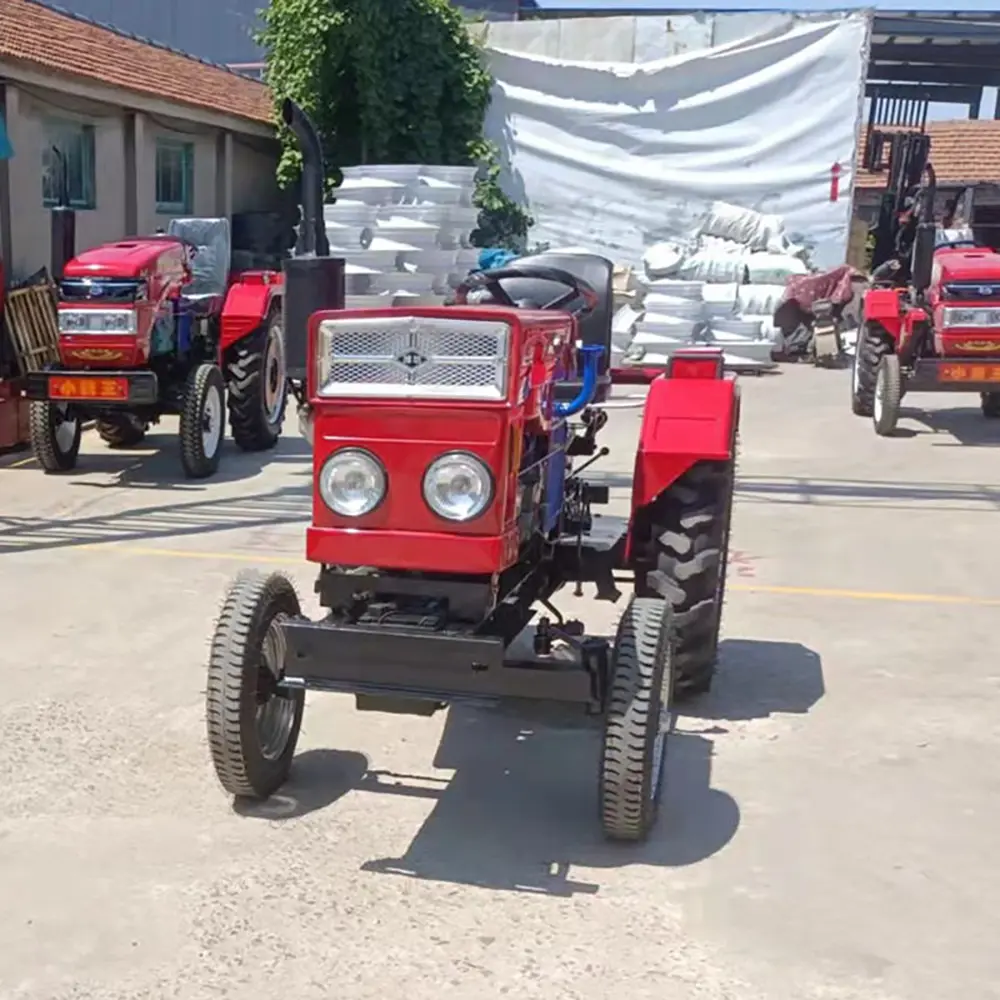

TS Mini Tractor Taishan

The TS Mini Tractor Taishan is a compact and versatile agricultural tractor designed for small-scale farming, horticulture, orchard management, greenhouse operations, and general agricultural applications. Developed for farmers who need reliable performance in limited working spaces, this mini tractor combines compact dimensions, efficient diesel power, strong traction, and multifunctional operation capability.

The Taishan Mini Tractor is an excellent choice for applications where traditional large tractors are too large or inefficient. Its compact structure allows easy operation in narrow fields, vegetable planting areas, orchards, and gardens while maintaining strong working performance.

Suitable applications include:

Small farms
Vegetable fields
Fruit orchards
Greenhouses
Gardens
Nurseries
Rural agricultural projects

The TS Mini Tractor Taishan can perform various agricultural tasks, including:

Plowing
Rotary tilling
Cultivation
Fertilizer spreading
Spraying
Mowing
Transportation
Land maintenance

With economical operation and flexible performance, this mini tractor provides an efficient farming solution for modern agricultural users.

Compact Mini Tractor Design For Flexible Farming

The compact design of the TS Mini Tractor provides excellent maneuverability and working efficiency.

Compared with conventional tractors, it offers:

Smaller overall size
Easy operation in narrow spaces
Small turning radius
Convenient transportation
Lower operating costs

The tractor is especially suitable for working between:

Vegetable crop rows
Orchard trees
Greenhouse planting areas
Garden spaces

Its compact structure helps farmers improve productivity while minimizing crop damage.

Reliable Diesel Engine Performance

The Taishan TS Mini Tractor uses a reliable diesel engine system designed for agricultural applications.

Main advantages include:

Strong torque output
High fuel efficiency
Stable operation
Long service life
Easy maintenance

The diesel engine provides dependable power for:

Soil preparation
Farm transportation
Agricultural attachments
Daily field operations

The efficient power system helps reduce fuel expenses and improve farming efficiency.

Multi-Purpose Agricultural Applications

The TS Mini Tractor Taishan is designed as a multifunctional farming machine.

With different implements, it can complete various agricultural operations.

Soil Preparation

Suitable for:

Plowing
Rotary tilling
Land preparation
Seedbed creation
Vegetable Farming

Applications include:

Vegetable field cultivation
Crop management
Fertilizer transportation
Soil maintenance
Orchard Operations

Suitable for:

Orchard cultivation
Grass cutting
Material transportation
Tree row maintenance
Greenhouse Farming

The compact body allows efficient operation inside greenhouse environments.

Applications include:

Soil preparation
Internal transportation
Crop maintenance
Compatible With Various Agricultural Implements

The Taishan Mini Tractor can be equipped with multiple attachments to improve working efficiency.

Compatible implements include:

Rotary Tiller

Used for:

Soil loosening
Seedbed preparation
Vegetable cultivation
Plow

Used for:

Deep soil turning
Field preparation
Cultivator

Used for:

Weed control
Soil improvement
Trailer

Used for:

Farm transportation
Harvest transportation
Material movement
Mower

Used for:

Grass cutting
Orchard maintenance
Sprayer

Used for:

Crop protection
Fertilizer application

One mini tractor can handle multiple farming tasks throughout the year.

Strong Traction And Stable Operation

Although compact in size, the TS Mini Tractor Taishan provides reliable traction for agricultural work.

Advantages include:

Stable driving performance
Strong pulling ability
Good terrain adaptability
Efficient field operation

It can operate effectively in:

Farmland
Orchards
Vegetable plantations
Gardens
Rural roads
Economical Mini Tractor Solution

The Taishan TS Mini Tractor is designed to provide an affordable farming solution.

Economic benefits include:

Low fuel consumption
Affordable maintenance
Reduced labor requirements
Long service life

It is suitable for:

Family farms
Small agricultural businesses
Horticulture growers
Orchard owners
Garden operators
Durable Construction For Long-Term Farming

The tractor is built with durable components to ensure reliable performance.

Main advantages include:

Strong frame structure
Durable transmission system
Reliable engine components
Stable mechanical design

The robust construction helps the tractor maintain performance during continuous agricultural operations.

Easy Operation And Maintenance

The TS Mini Tractor features a user-friendly design.

Benefits include:

Simple controls
Comfortable operation
Easy attachment connection
Convenient maintenance access

Regular maintenance includes:

Engine oil checking
Filter cleaning
Lubrication
Transmission inspection
Tire maintenance

Proper servicing helps extend tractor lifespan and maintain efficiency.

Main Features Of TS Mini Tractor Taishan
Compact mini tractor structure
Reliable diesel engine power
Strong agricultural performance
Low fuel consumption
Easy operation and maintenance
Suitable for farms, orchards, and gardens
Multi-purpose implement compatibility
Flexible operation in narrow spaces
Durable farming equipment design
Economical agricultural solution
Why Choose Our TS Mini Tractor Taishan?
1. Compact And Flexible Design

Ideal for small farms, orchards, gardens, and greenhouse operations.

2. Reliable Diesel Power

Provides strong torque, efficient fuel consumption, and stable performance.

3. Multi-Functional Farming Capability

Compatible with different implements for year-round agricultural tasks.

4. Economical Operation

Low fuel consumption and easy maintenance reduce ownership costs.

5. Durable Agricultural Structure

Built for reliable long-term farming applications.

6. Professional Manufacturer Support

We provide customized tractor configurations, technical support, spare parts supply, and after-sales service.

FAQS
1. What is TS Mini Tractor Taishan?

TS Mini Tractor Taishan is a compact agricultural tractor designed for small farms, orchards, gardens, and greenhouse operations.

2. What are the main applications of this mini tractor?

It is used for plowing, tilling, cultivation, transportation, mowing, spraying, and general farm maintenance.

3. Is Taishan Mini Tractor suitable for greenhouse farming?

Yes. Its compact size makes it ideal for greenhouse and narrow-space operations.

4. Can this tractor work in orchards?

Yes. It is suitable for orchard cultivation, grass cutting, transportation, and maintenance.

5. What implements can be connected?

It supports rotary tillers, plows, cultivators, trailers, mowers, sprayers, and other agricultural attachments.

6. Is the mini tractor fuel efficient?

Yes. The diesel engine provides excellent fuel economy and strong working torque.

7. Is maintenance easy?

Yes. The simple structure makes daily inspection and maintenance convenient.

8. Who is this mini tractor suitable for?

It is suitable for small farmers, vegetable growers, orchard owners, greenhouse operators, and agricultural businesses.

Product Conclusion

The TS Mini Tractor Taishan is a compact, reliable, and economical agricultural machine designed for modern small-scale farming.

With its efficient diesel engine, flexible structure, strong traction, and multi-purpose capability, it provides an excellent solution for vegetable farming, orchard management, greenhouse operations, and general agricultural work.

Whether used for cultivation, transportation, mowing, or daily farm maintenance, the Taishan TS Mini Tractor delivers dependable performance, easy operation, and excellent long-term value.

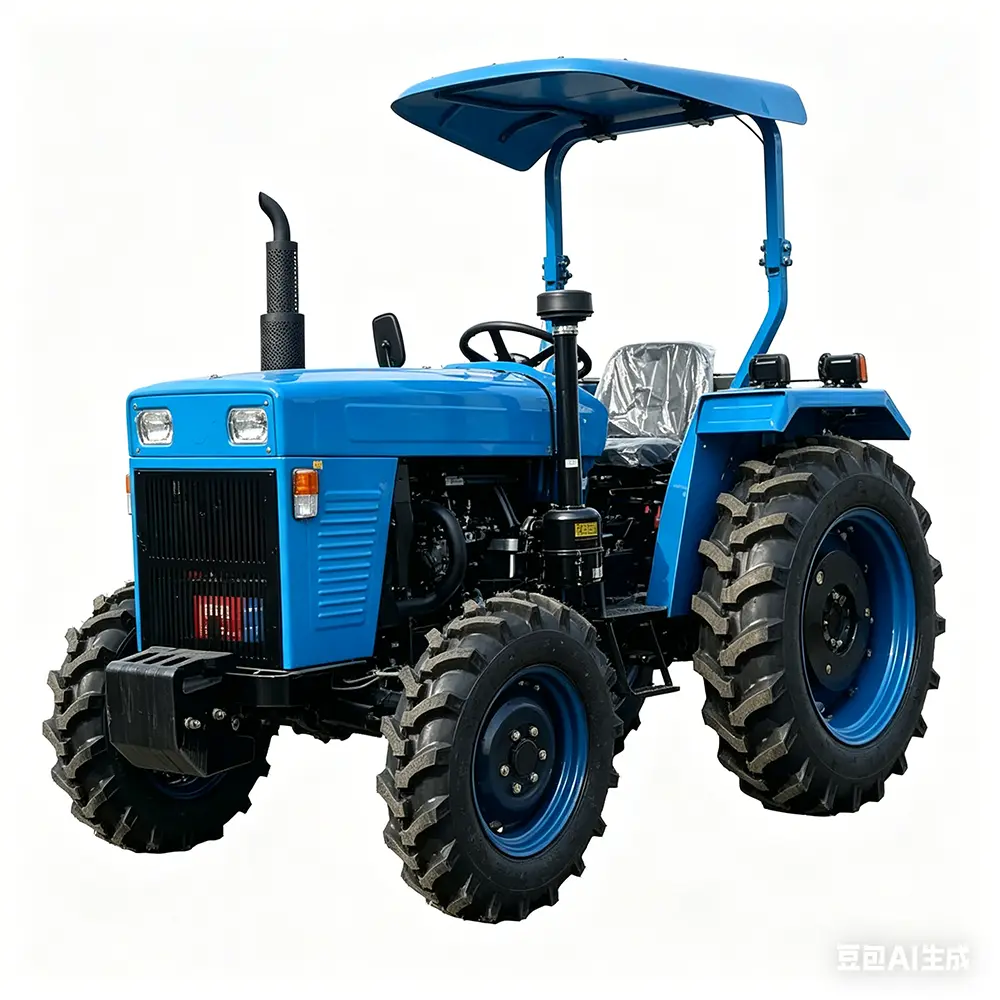

Prev：Taishan TS 504 Tractor - 50 HP Utility Tractor
