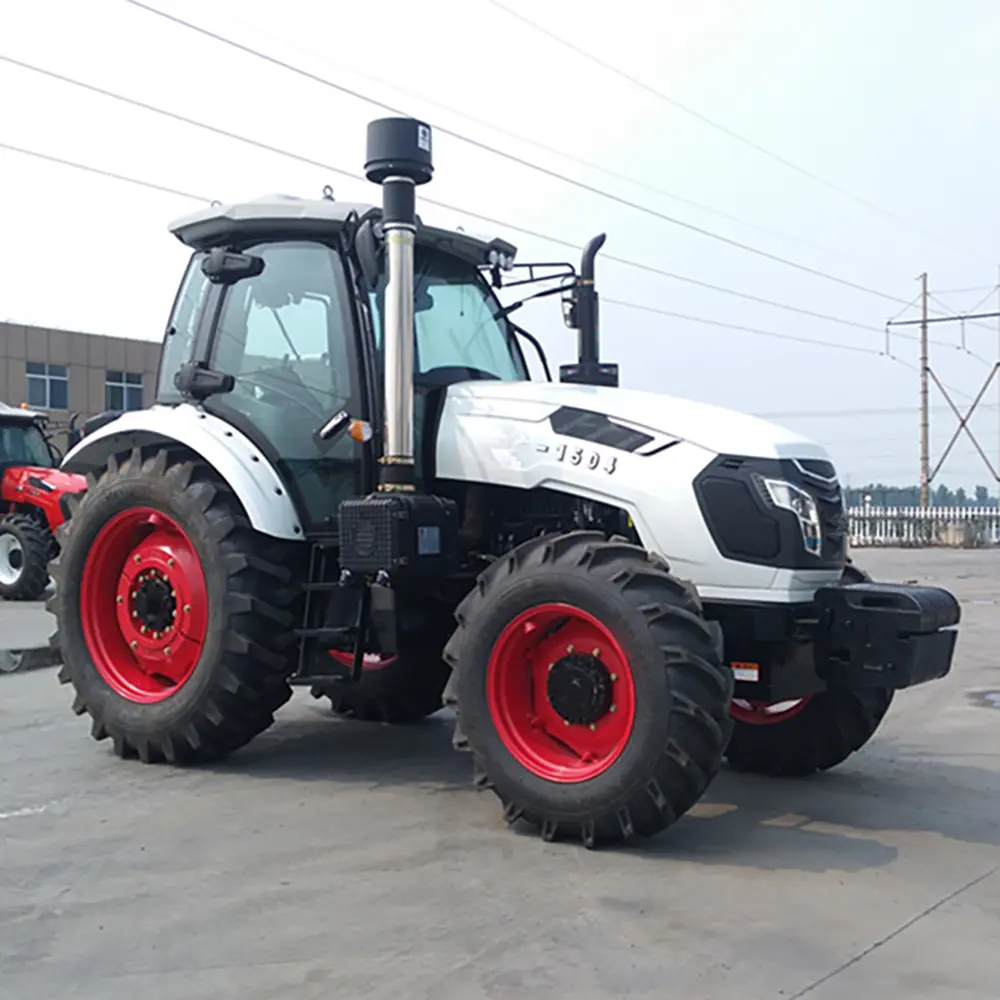

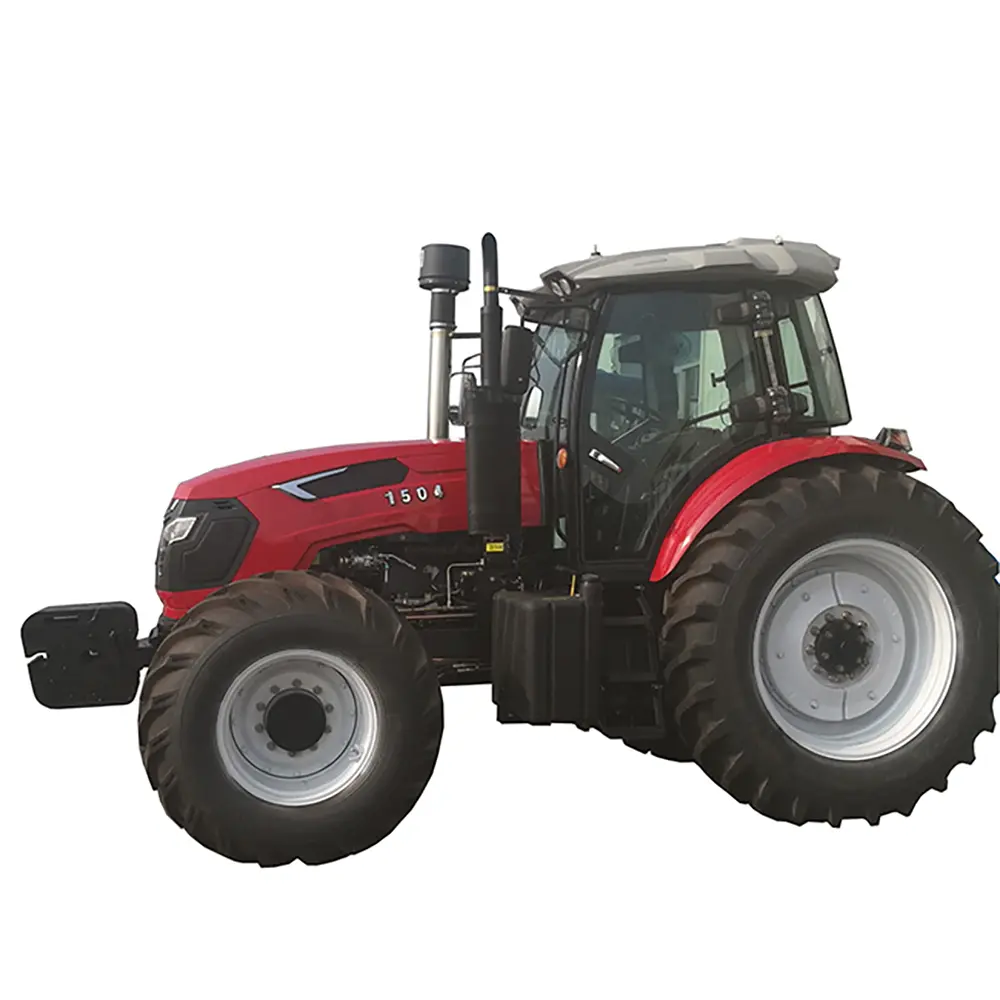

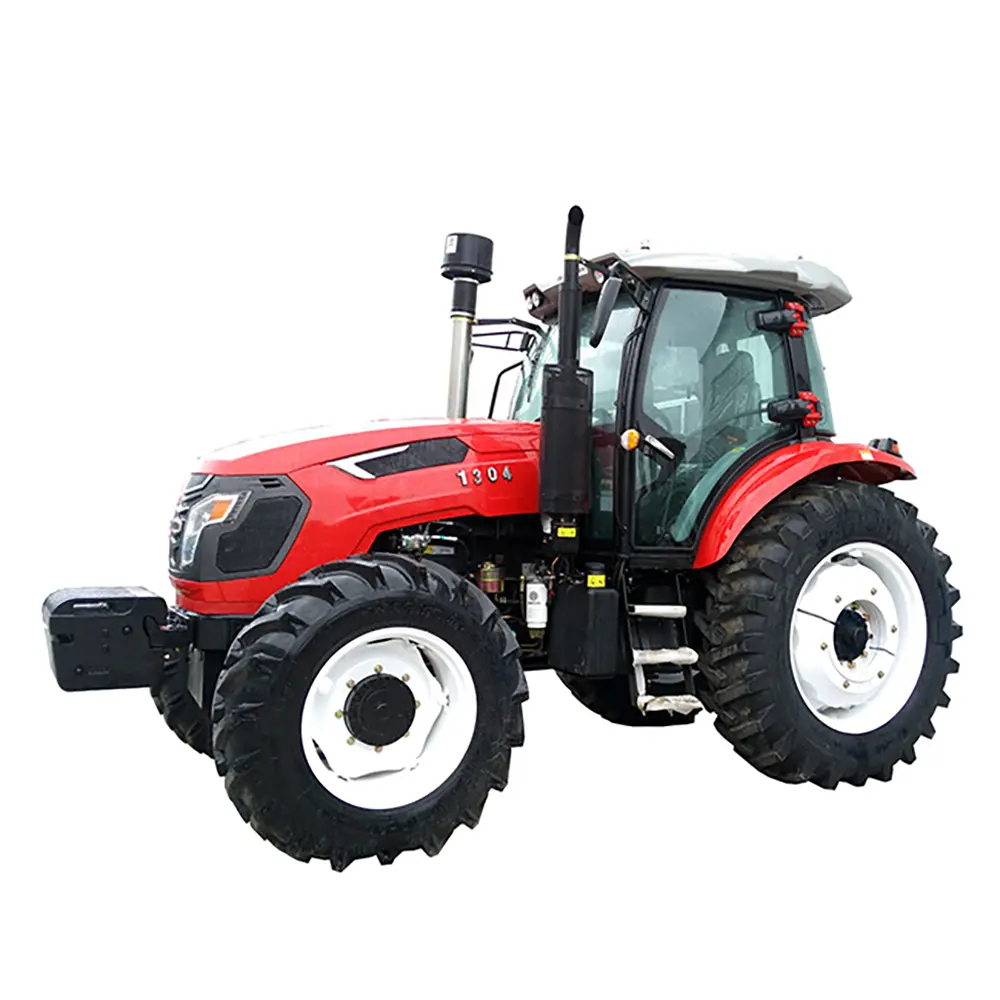

TF Chassis 130HP 140HP 150HP Agriculture Tractor Technical Parameters
TF chassis agriculture tractor 130HP, 140HP, 150HP for heavy-duty farming, plowing, hauling, and field operations. Durable design, strong performance, OEM supply available..
TF chassis 130hp 140hp 150hp tractor can be used for heavy duty farm work.By using famous diesel engine,reliable gear box,and heavy duty chassis,our tractors has sold to Europe,Australia,South American and Africa ,Asia eg many countries.
tractor also can be equiped with loader,backhoe,wood chipepr,trencher,mower,plough,harrow,trailer,baler eg many implements,can do multy farm work.
The TF Chassis 130HP, 140HP, and 150HP Agriculture Tractor is a high-performance heavy-duty farming machine designed for large-scale agricultural operations. Built with a reinforced TF chassis structure, this TF tractor delivers outstanding strength, stability, and durability, making it suitable for demanding fieldwork and multi-implement operations.
With powerful engine options ranging from 130HP to 150HP, this tractor is engineered to handle heavy plowing, deep tillage, hauling, and large-area cultivation with high efficiency and low operating cost.
TF chassis 130hp 140hp 150hp tractor specification
|
Model |
1304 |
1504 |
1604/1654 |
|
Drive type |
4*4 |
4*4 |
4*4 |
|
Engine |
|
|
|
|
Engine brand |
YTO Or Weichai |
YTO or Weichai |
YTO or Weichai |
|
Type |
6 cylinder, Water-cooling, In-line, 4 stroke |
6 cylinder, Water-cooling, In-line, 4 stroke |
6 cylinder, Water-cooling, In-line, 4 stroke |
|
Rated speed (r/min) |
2350 |
2350 |
2350 |
|
Engine power (hp) |
130hp/95.6kw |
140hp/102.9kw |
150hp/110.3kw |
|
Transmission |
|
|
|
Clutch |
Dry, dual type |
Dry, dual type |
Dry, dual type |
|
PTO Speed(rpm) |
760/1000 or 540/760 or 760/850 |
760/1000 or 540/760 or 760/850 |
760/1000 or 540/760 or 760/850 |
|
Gear shift |
16F+8R |
16F+8R |
16F+8R |
|
Hydraulic system |
|
|
|
Hydraulic output valve |
3-Way optional |
3-Way optional |
3-Way optional |
|
Three point linkage |
|
|
|
Category of 3-point link |
Category II |
Category I1 |
Category II |
|
Technical parameter |
|
|
|
Dimension(L*W*H) mm |
5060*2345*2995 |
5060*2345*2995 |
5060*2345*2995 |
|
Min. Net weight |
5600kg |
5900kg |
6100kg |
|
Wheel base(mm) |
2582 |
2582 |
2582 |
|
Track base(mm) front wheel |
1612-2202 |
1612-2202 |
1612-2202 |
|
Track base(mm) rear wheel |
1640-2420 |
1650-2420 |
1650-2420 |
|
The smallest clearance(mm) |
395 |
395 |
395 |
|
Front tyre |
14.9-26 |
14.9-26 |
124.9-26 |
|
Rear tyre |
18.4-38 |
18.4-38 |
18.4-38 |
|
Steering type |
Hydraulic power steering |
Hydraulic power steering |
Hydraulic power steering |
