Skid Steer Mini Loader Technical Parameters

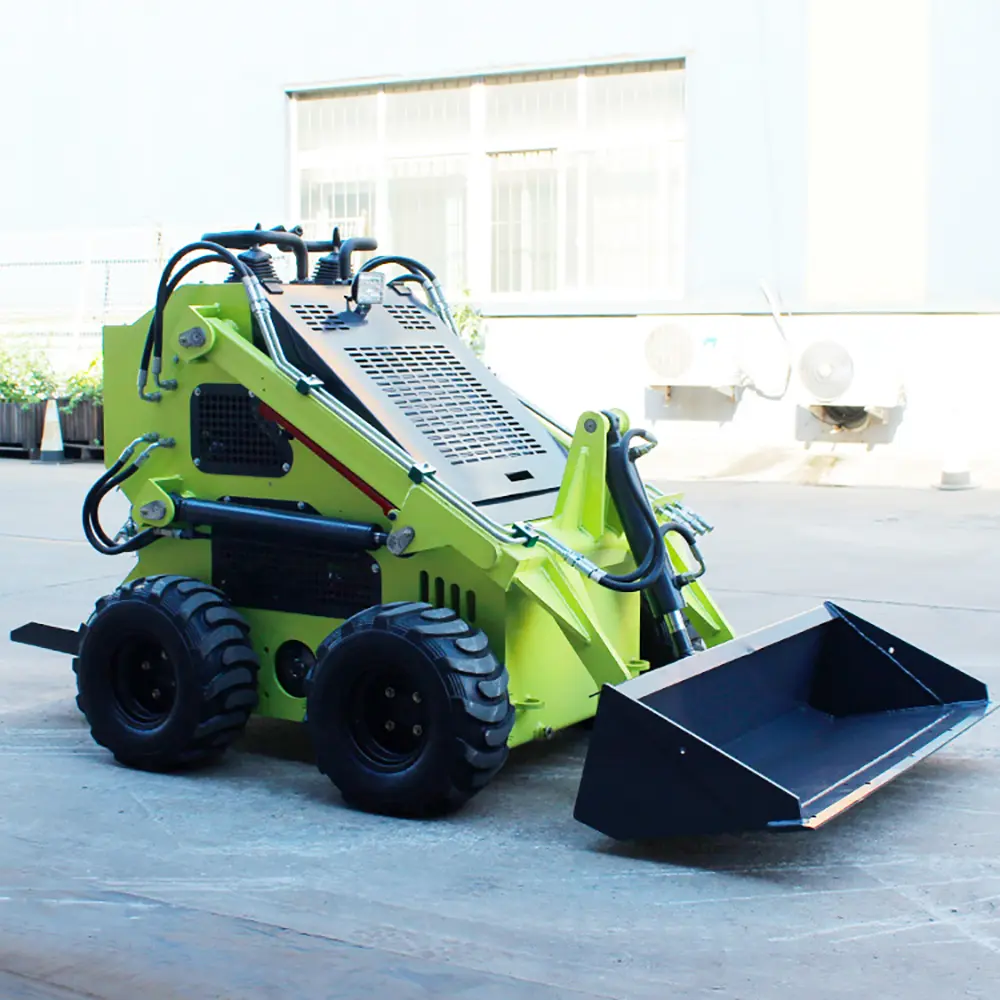

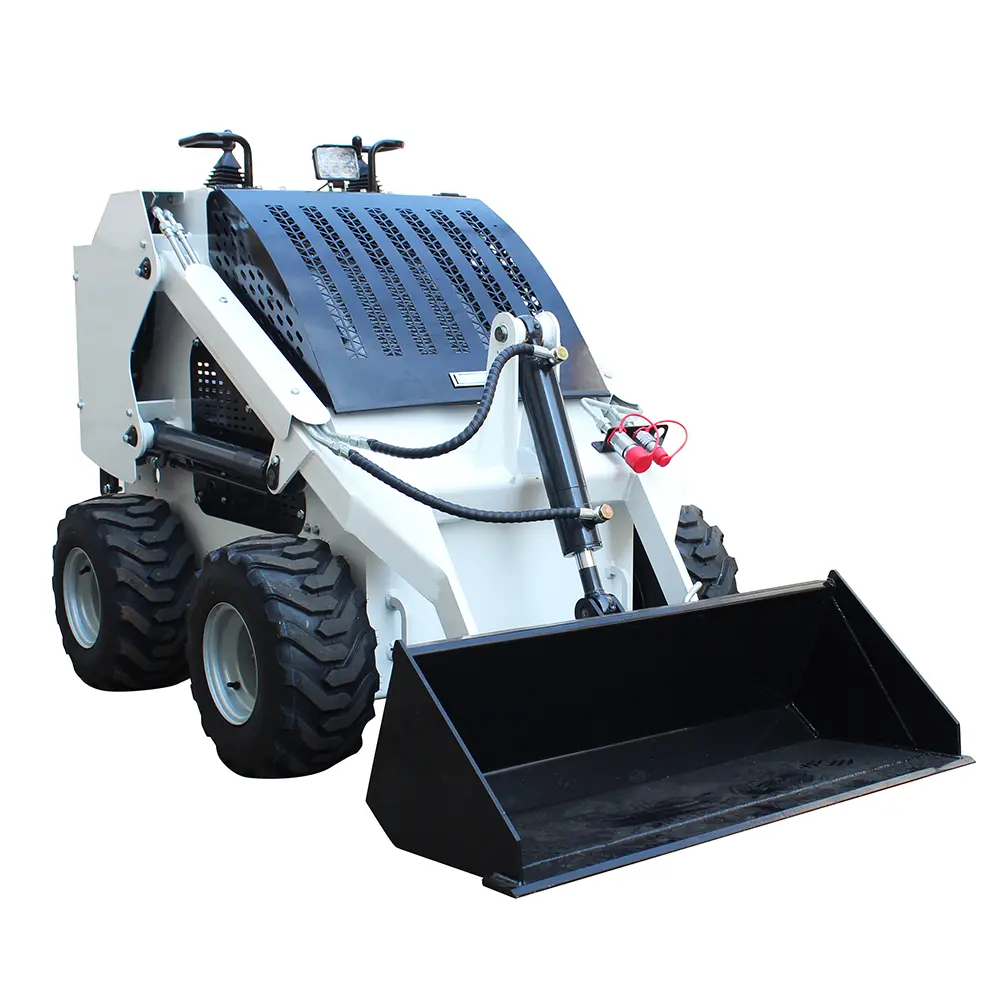

Compact skid steer mini loader with powerful hydraulic system and multiple attachment options. Ideal for construction, agriculture, landscaping, material handling, earthmoving, and property maintenance applications..

Skid Steer Loaders, also known as skid - steer loaders, multi - purpose engineering vehicles or multi - purpose engineering machines, are wheeled special - chassis equipment that achieve vehicle steering by using the linear velocity difference of the two - side wheels. Here is a detailed introduction:

Basic Principles and Structural Features

  • Steering Principle: They use the speed difference between the left and right wheels to achieve steering. By controlling the rotation speed of the wheels on both sides, they can turn in place or in a small radius, which is very suitable for working in narrow spaces.
  • Chassis and Drive System: Usually adopt a wheel - type walking mechanism with all - wheel drive, which can provide good traction and mobility. The short - wheelbase design makes the machine more flexible in narrow spaces. Some models also offer options of track - type walking mechanisms for better performance on rough or soft ground.

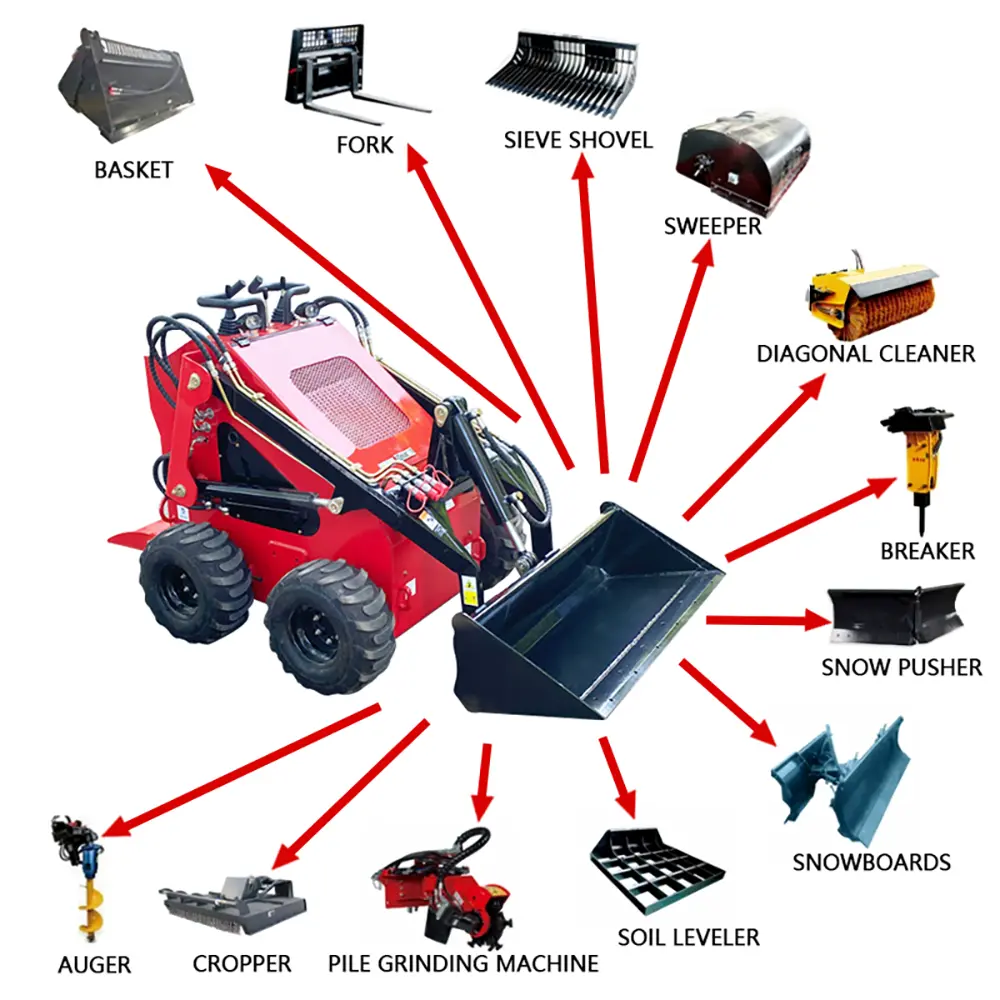

  • Attachment System: One of the significant features is the ability to quickly replace or attach various working attachments at the job site, such as buckets, forks, drills, breakers, sweepers, etc. This allows the skid - steer loader to perform different tasks, meeting various construction, agricultural, and other work requirements.

Performance Characteristics

  • Power: The power of skid - steer loaders generally ranges from 20 to 50 kilowatts, with some large - sized models reaching 70 - 80 kilowatts or more. This provides sufficient power for various operations, such as lifting, digging, and pushing.
  • Lifting Capacity: Different models have different lifting capacities, generally ranging from 500 - 2000 kilograms or more. The lifting height can also reach 3 - 4 meters or higher, which is convenient for loading and unloading operations.
  • Travel Speed: The traveling speed is usually 10 - 15 kilometers per hour, and some models can reach higher speeds. This enables the machine to move quickly between different work areas on the construction site, improving work efficiency.

Advantages

  • High Maneuverability: It has a small turning radius and can turn in place, making it highly maneuverable in narrow spaces such as urban infrastructure construction, factory workshops, warehouses, docks, and ship decks. It can also work in complex terrains such as mountainous areas and rural areas.
  • Strong Versatility: With a variety of attachments, it can complete multiple tasks including loading, unloading, digging, drilling, breaking, sweeping, and snow removal. This reduces equipment investment costs and improves equipment utilization.
  • Good Passability: The all - wheel - drive design and short wheelbase make it have good passability on uneven ground. It can also be equipped with off - road tires or tracks according to different working conditions to adapt to different terrains.

Applications

  • Construction Industry: It is widely used in building construction, road construction, and other projects, responsible for tasks such as material handling, earthwork excavation, and site leveling. It can also assist large - scale construction machinery in operations and perform some detailed work in narrow spaces.
  • Agricultural Field: In agriculture, it is used for tasks such as moving feed, clearing fields, digging trenches, and loading hay. It can also be equipped with agricultural - specific attachments such as seeders and fertilizers to complete related agricultural operations.
  • Landscaping: It is used for tasks such as landscaping, tree planting, and lawn mowing. By changing attachments, it can perform operations such as digging tree pits, transporting flowers and plants, and trimming lawns.
  • Snow Removal and Cleaning: In winter, it can be equipped with snow - removal attachments such as snowplows and snow blowers to clear snow on roads, squares, and other areas. It can also be used for daily ground cleaning work, such as cleaning up construction waste and garbage.
Product Specification
Product Model HY280 HY380 HY380C A2
Maximum Working
Height(H3)
2065 mm 2143 mm 2143 mm 2355mm
Maximum lifting height
of big arm(H2)
1803mm 1884 mm 1884 mm 2122mm
Maximum Discharg
Height(H1)
1386 mm 1488 mm 1488 mm 1622mm
Maximum Discharge Distance(E) 471 mm 348 mm 348 mm 528mm
Maximum Discharge Angle(a3) 32° 30° 30° 43°
Bucket Angle(a2) 33° 25° 25° 37°
Angle Between Rear
Wheel and Ground(a1)
18° 11° 16° 30°
Overall Height(H) 1309 mm 1233 mm 1265 mm 1514
Ground Clearance(F) 123 mm 118 mm 118 mm 160mm
Wheel Base(L1) 690mm 636mm 636mm 1000mm
Width Without Shovel Bucket(L3) 1778 mm 1752 mm 1980 mm 1961mm
Overall Width(W) 800 mm 1160 mm 1160 mm 980mm
Bucket Width(B) 820 mm 1150 mm 980 mm 1150mm
Overall Length(L) 2210 mm 2206 mm 2430 mm 2438mm
Forward Turning Radius(R) 1237mm 1307 mm 1307 mm 1507mm
Engine Technical Parameter
Rated Power(KW) Gasoline Engine 17.1KW(23HP) Gasoline Engine 17.1KW(23HP) Diesel Engine 16KW Diesel Engine 18.2KW
Rated Speed(rpm) 3600 3600 3000 2200
Noise(Db) ≤95 ≤95 ≤95 ≤95
Pressure(Mpa) 17 17 17 17
Working Time(S)
Lifting Capacity 4.27 4.27 4.27 4.27
Tipper-Hopper 1.34 1.34 1.34 1.34
Decline 3.31 3.31 3.31 3.31
Burden Rating 165 Kg 200 Kg 240 Kg 320Kg
Bucket volume 0.12m³ 0.15m³ 0.15m³ 0.15m³
Maximum Lift 375 Kg 375 Kg 375 Kg 900Kg
Drive Speed 0-5.5 Km/h 0-5.5 Km/h 0-5.5 Km/h 0-6Km/h
Operating Quality 855 Kg 890 Kg 1010 Kg 1600Kg
