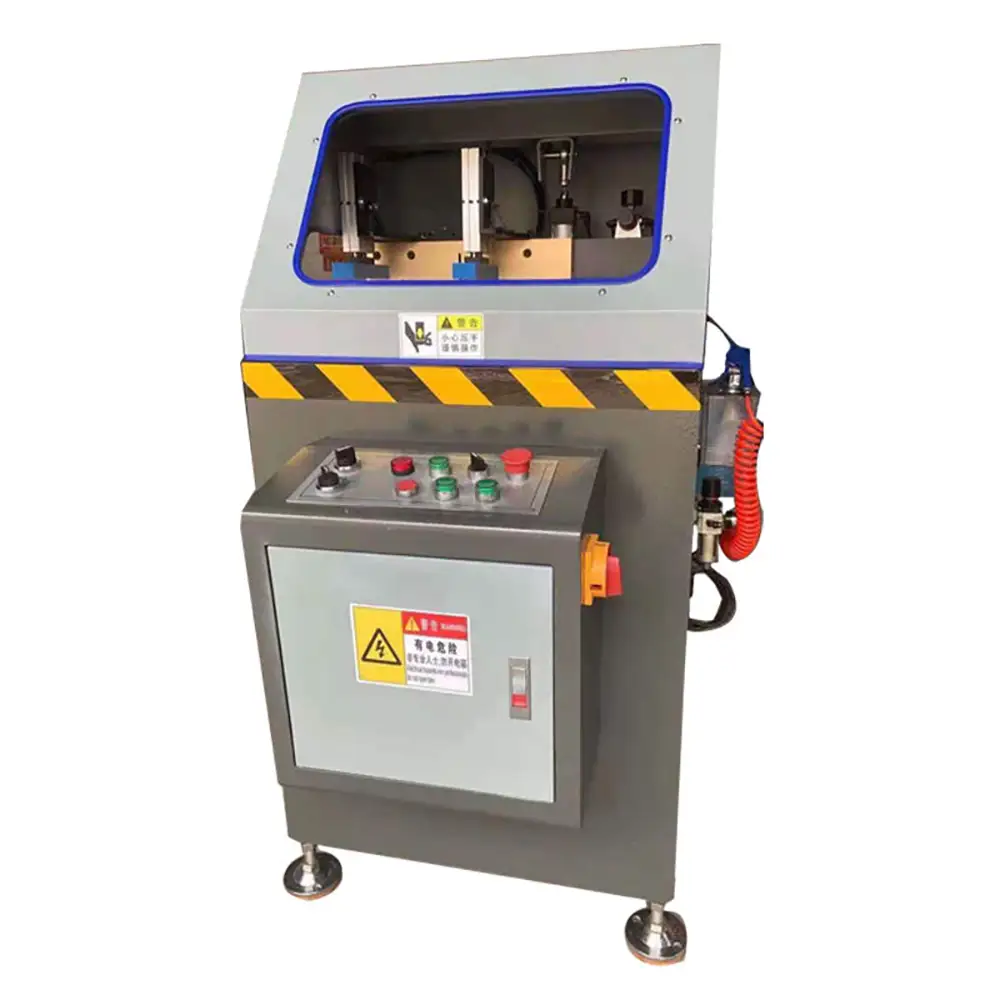

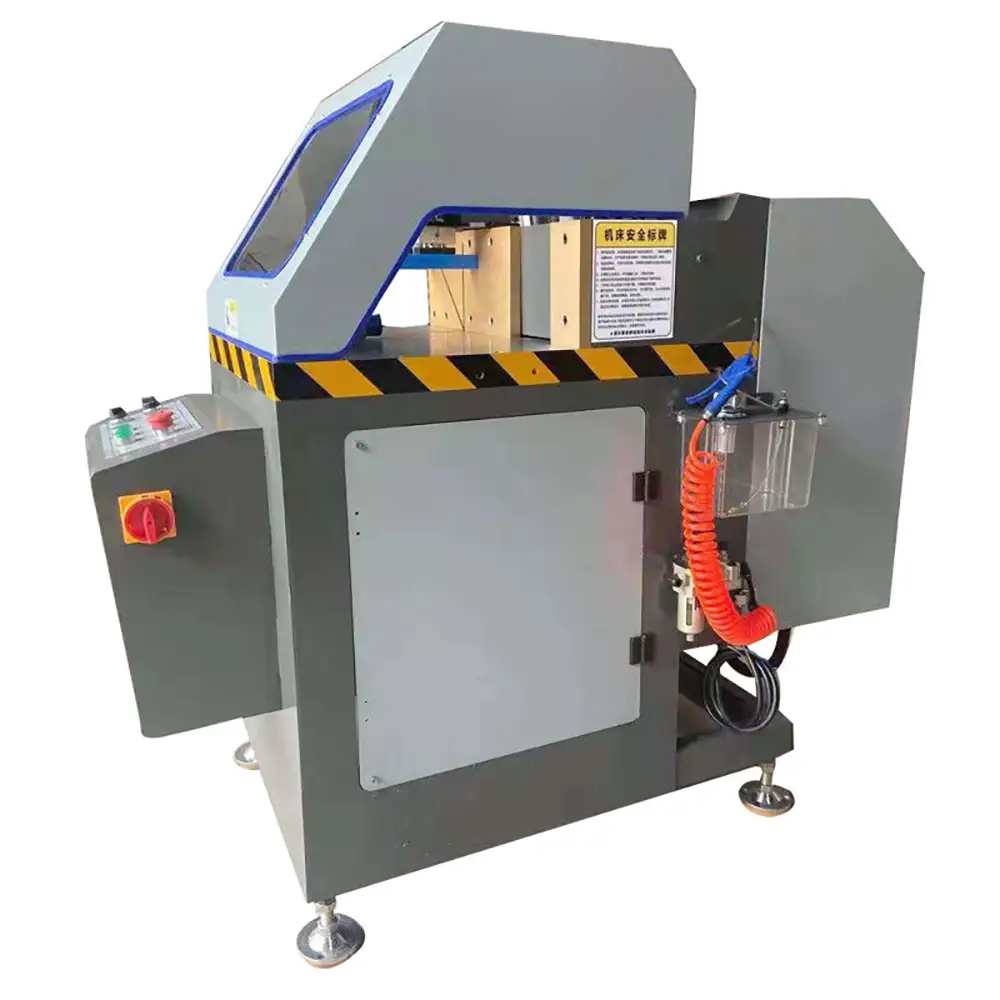

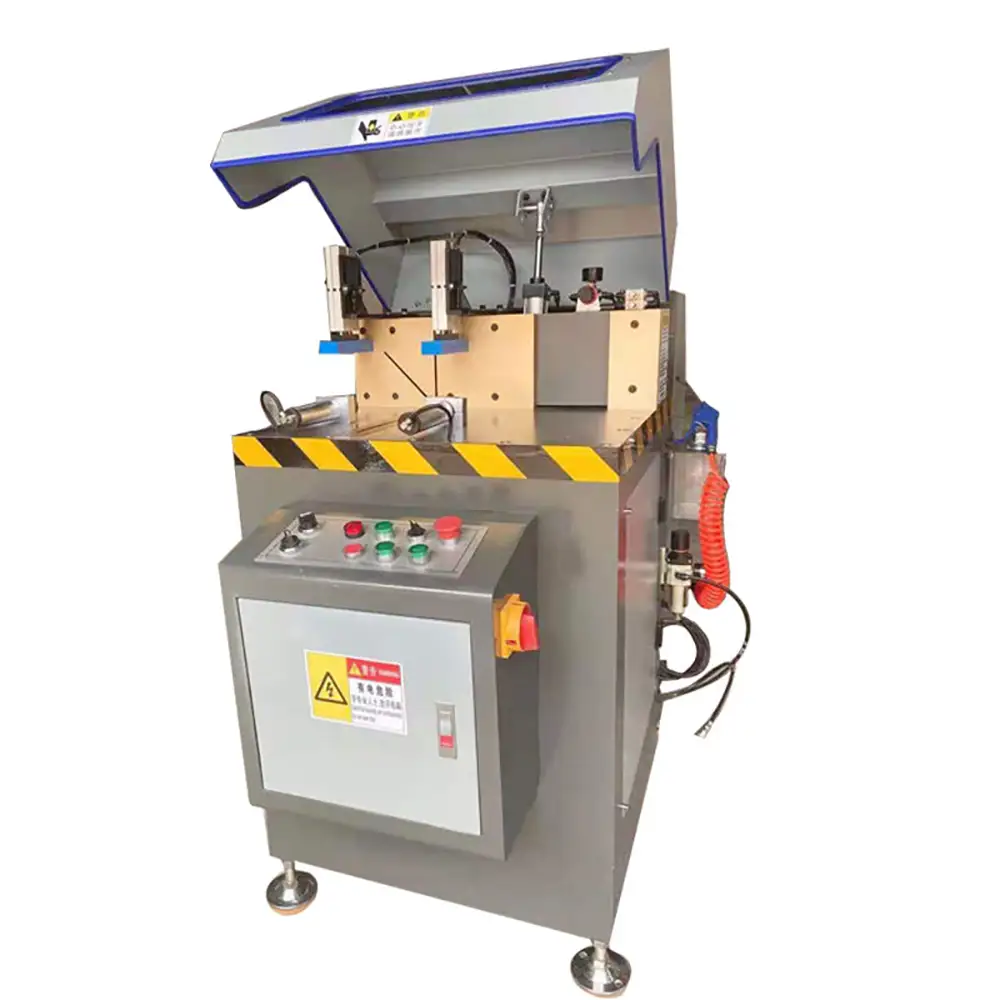

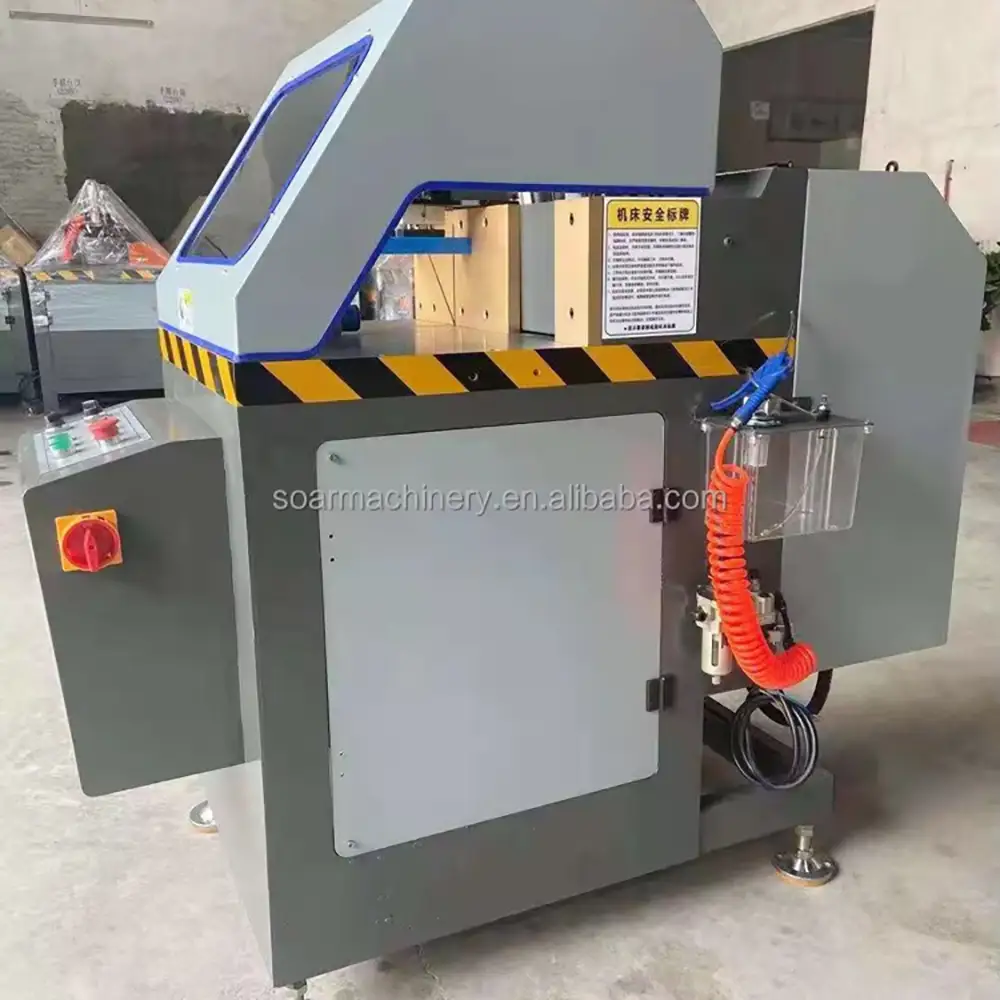

Semi Automatic 45 and 90 Degree Aluminum Profile Cutting Machine

1 Pneumatic clamp
2 Safety cover
3 45 and 90 degree cutting automatic replacement
4 Add feeding rack, higher efficiency

The Semi Automatic 45 And 90 Degree Aluminum Profile Cutting Machine is designed for manufacturers and fabricators that require accurate, repeatable cutting of aluminum profiles at common 45° and 90° angles. Combining semi-automatic operation with a dedicated aluminum cutting structure, the machine provides an efficient solution for aluminum extrusion processing, window and door manufacturing, architectural profiles, and general aluminum fabrication.

Aluminum profiles are widely used in construction, architectural systems, furniture, industrial equipment, solar structures, and customized frames. Before assembly or further machining, these profiles often need to be cut to specific lengths and angles. Accurate 45° and 90° cutting is particularly important when producing frames, corners, window sections, door components, and other structures where multiple profiles must fit together precisely.

Compared with a fully manual aluminum saw, a semi-automatic cutting machine can reduce repetitive operator work while maintaining practical control over material loading, positioning, and cutting. The operator can place the aluminum profile into the working area, establish the required cutting position, secure the material, and operate the cutting cycle according to the machine configuration.



Model	500(semi automatic)
Sawing and cutting angle	90°&45°
Change cutting angle way	manual
Max sawing and cutting width	300mm
Max cutting height	180mm
Size of saw	φ500/405/355x φ30mm x 4.5x120T
Rotating speed of the main shaft	2840 RPM
Sawing and cutting speed	Can be adjusted
Area of the working table	650×460 mm
Height from the floor for the working table mm	850 mm
Power of the motor	2.2KW
Voltage	220/380/415/450,60/50HZ,3hp
Necessary air pressure	0.6-0.8MPA
Length of feed block	2.8M(can be customized as requirement)
Weight	300 kg
Over size	650×1325×1420 mm

45° And 90° Aluminum Profile Cutting

The machine is specifically designed around two common cutting angles: 45° and 90°. A 45° miter cut is widely used for creating corner joints in aluminum frames, windows, doors, furniture, and architectural structures. A 90° straight cut is commonly required for profile preparation, cross members, frame components, and general fabrication.

Having both cutting options in one machine provides greater flexibility for workshops that process different aluminum profile components. Operators can select the required cutting method according to the production application instead of relying on separate machines for basic angle cutting operations.

Accurate Aluminum Profile Processing

Stable material positioning is essential when cutting aluminum profiles. A professional aluminum profile cutting machine should provide secure workpiece holding and controlled blade movement to help maintain consistent cutting results.

The machine is suitable for aluminum alloy profiles and extrusions commonly used in fabrication. Depending on the configuration, it can be adapted to different profile dimensions and production requirements. Customers should confirm the actual profile size, cutting range, and tooling configuration before ordering.

Semi Automatic Operation

The semi-automatic design provides a practical balance between automation and operator control. It reduces unnecessary manual effort while allowing the operator to manage material loading and production according to the actual workpiece.

This operating concept is particularly suitable for small and medium-sized aluminum fabrication workshops, window and door manufacturers, distributors, and factories that need reliable cutting performance without the complexity of a fully automated production line.

For repeated production, semi-automatic operation can help improve workflow consistency. Operators can establish a standard working procedure for loading, positioning, clamping, cutting, and unloading, helping create a more organized production process.

Window And Door Manufacturing

One of the main applications of this aluminum cutting machine is window and door fabrication. Aluminum window and door profiles often require accurate straight and miter cuts before assembly.

A 45° cut is commonly used when producing frame corners, while 90° cutting is useful for profile preparation and various structural components. The machine can therefore serve as an important first-stage processing unit in an aluminum window and door production workflow.

It can also be combined with other equipment such as aluminum profile drilling machines, end milling machines, corner crimping machines, punching machines, and CNC machining centers to create a more complete fabrication solution.

Aluminum Extrusion Cutting

Long aluminum extrusions generally need to be cut into shorter sections before they can be assembled or further processed. This machine provides a dedicated solution for preparing aluminum extrusion profiles according to production requirements.

For factories processing standard lengths repeatedly, a semi-automatic aluminum extrusion cutting machine can help reduce cutting inconsistencies associated with purely manual operations. Proper positioning and clamping also help improve repeatability during batch production.

Industrial Applications

In addition to windows and doors, aluminum profiles are widely used for machine frames, equipment enclosures, conveyor structures, workstations, display systems, solar mounting structures, furniture frames, and architectural products.

The machine can therefore be used by a wide range of aluminum fabricators. Its 45° and 90° cutting capability makes it suitable for both basic straight cutting and miter-cutting applications.

Practical B2B Production Solution

For B2B customers, equipment selection depends on production volume, profile dimensions, cutting requirements, available workshop space, and desired automation level. A semi-automatic aluminum profile cutting machine is often suitable for companies that need more efficiency than manual equipment while retaining flexible operator control.

Machine configuration, cutting tooling, material handling, and other options can be discussed according to the customer's specific production application.

Key Features
45° And 90° Aluminum Profile Cutting
Semi Automatic Operating System
Designed For Aluminum Alloy Profiles
Suitable For Aluminum Extrusions
Stable Profile Positioning And Clamping
Consistent Cutting For Repeated Production
Suitable For Window And Door Fabrication
Supports Aluminum Frame Manufacturing
Practical Solution For Small And Medium Workshops
Flexible For Different Aluminum Profile Applications
Reduced Manual Cutting Workload
Suitable For Industrial Aluminum Fabrication
Main Applications

The Semi Automatic 45 And 90 Degree Aluminum Profile Cutting Machine can be used for:

Aluminum Window Manufacturing
Aluminum Door Manufacturing
Aluminum Frame Fabrication
Aluminum Profile Processing
Aluminum Extrusion Cutting
Curtain Wall Profile Processing
Architectural Aluminum Fabrication
Aluminum Furniture Production
Industrial Aluminum Frame Manufacturing
Solar Aluminum Profile Processing
Machine Frame Fabrication
Customized Aluminum Component Production
FAQs
1. What angles can this aluminum cutting machine cut?

The machine is designed for common 45° and 90° aluminum profile cutting applications.

2. Is this machine fully automatic?

No. It is a semi-automatic aluminum profile cutting machine. The operator participates in material loading and other production steps while the machine performs the cutting operation according to its configuration.

3. What materials can be processed?

It is primarily designed for aluminum alloy profiles, aluminum extrusions, and related aluminum materials suitable for the machine's cutting system.

4. Can it cut aluminum profiles for windows and doors?

Yes. Window and door aluminum profile fabrication is one of the primary applications of this type of cutting machine.

5. Why is 45° cutting important for aluminum profiles?

45° miter cutting is commonly used to create corner joints for aluminum frames, windows, doors, furniture, and architectural structures.

6. Can it also perform straight 90° cuts?

Yes. The machine is designed to provide both 45° and 90° cutting functions for flexible aluminum profile processing.

7. Is it suitable for aluminum extrusion cutting?

Yes. It can be used for cutting aluminum extrusion profiles into required lengths before assembly or secondary processing.

8. Can the machine be customized?

Machine configuration can be discussed according to profile dimensions, cutting requirements, production volume, tooling, and other application conditions.

9. What industries can use this machine?

Typical users include aluminum window and door manufacturers, architectural fabricators, aluminum extrusion processors, furniture manufacturers, industrial frame producers, and general metal fabrication companies.

10. What information is needed for a quotation?

Buyers should provide the aluminum profile shape and dimensions, required cutting angles, cutting lengths, expected production volume, and any special automation or processing requirements.

Why Choose Us
Professional Aluminum Profile Equipment

We provide aluminum processing equipment designed for practical manufacturing applications, with a focus on profile cutting, fabrication efficiency, repeatability, and ease of operation.

Application-Based Machine Configuration

Different aluminum profiles require different cutting arrangements and tooling. We can discuss the machine configuration according to the customer's actual profile dimensions and production requirements.

Suitable For Window And Door Factories

The machine is designed around common aluminum fabrication requirements and can be used as part of a complete window and door processing workflow.

Factory-Direct Supply

We support importers, distributors, aluminum fabricators, window and door manufacturers, and industrial customers with factory-oriented equipment solutions and international B2B service.

Technical Support

We can provide technical information, machine operating guidance, configuration recommendations, and application assistance to help customers select equipment suitable for their production process.

Export Service

For international customers, we support equipment communication, configuration confirmation, production coordination, packaging, shipping arrangements, and after-sales technical service.
