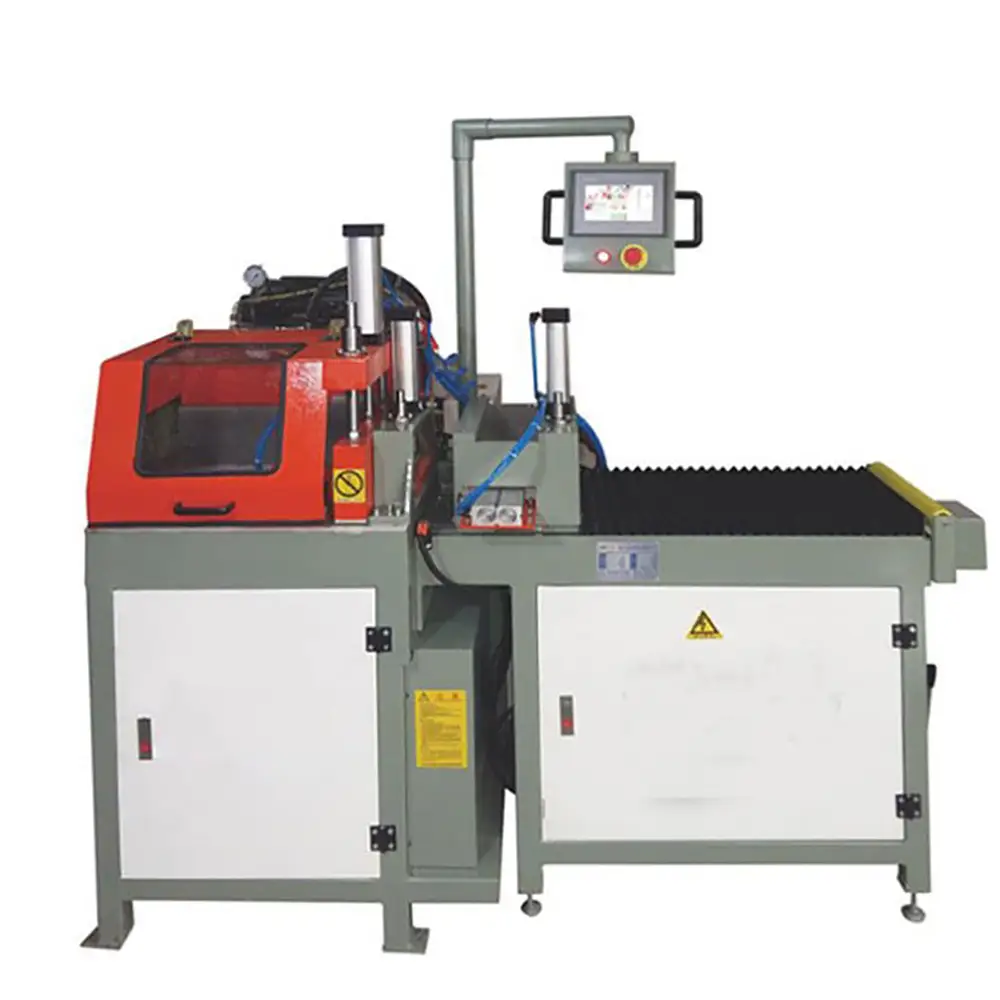

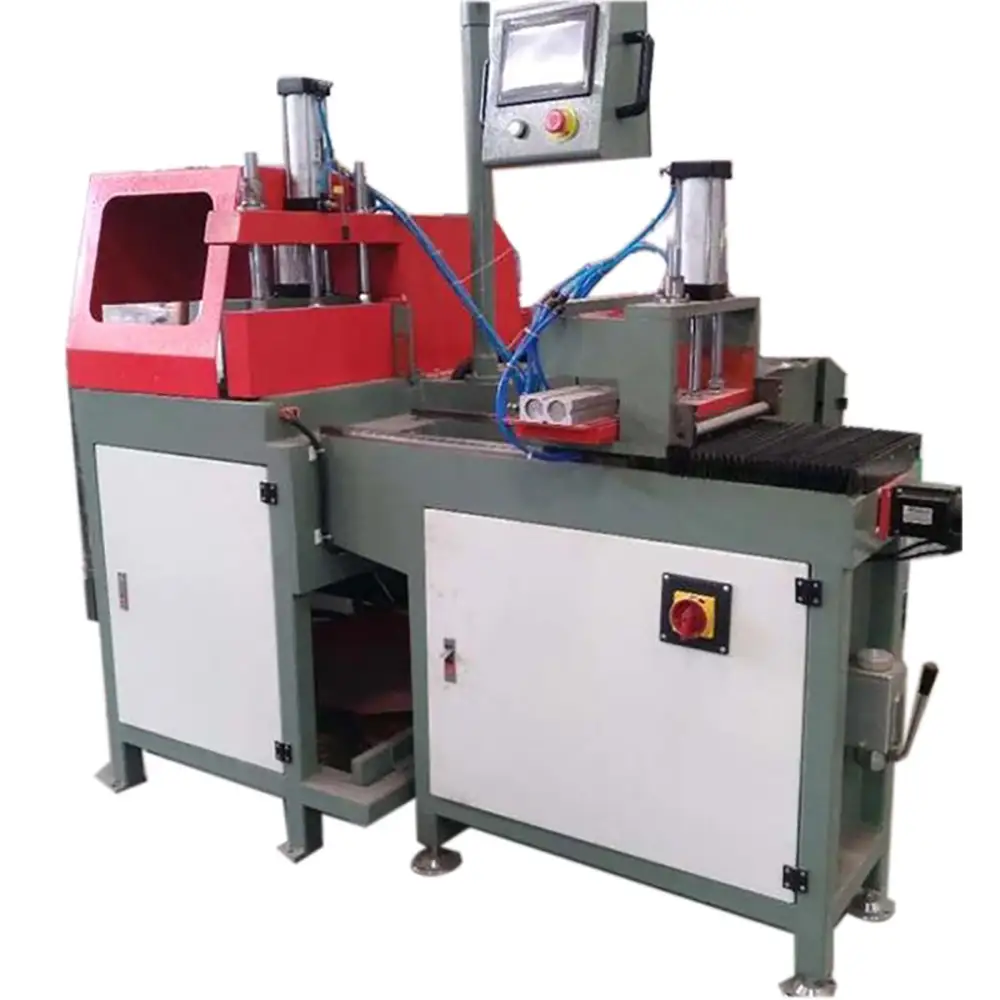

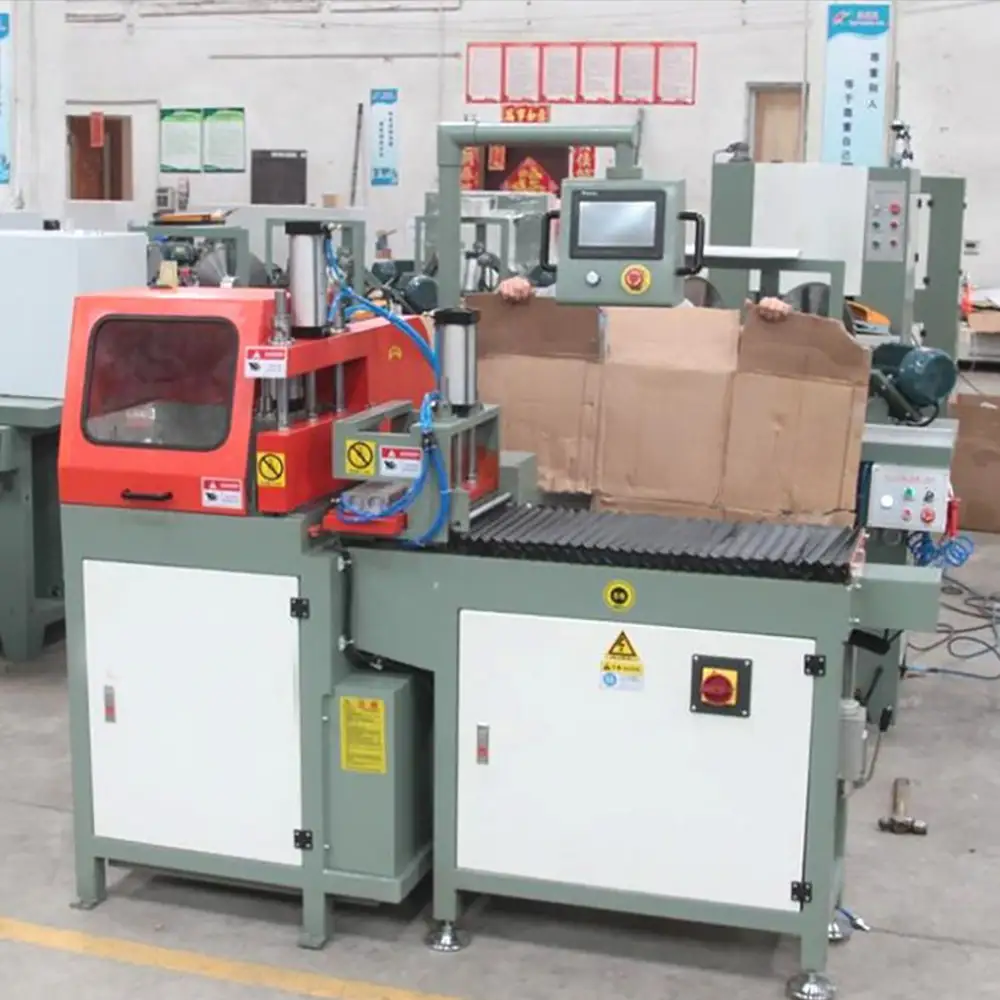

Full Automatic CNC Aluminum Profile Cutting Machine

1 Servo screw automatic feeding
2 Cutting multiple profiles together
3 Touch screen PLC control, store multiple programs
4 Efficient and safe

 The Full Automatic CNC Aluminum Profile Cutting Machine is an advanced solution for manufacturers that require efficient, accurate, and repeatable processing of aluminum profiles and extrusions. Designed around CNC-controlled cutting and automatic material handling, this machine helps reduce manual intervention while improving production consistency for aluminum fabrication applications.

Aluminum profiles are widely used in windows, doors, curtain walls, furniture, industrial frames, solar structures, machine components, and architectural systems. Before assembly or secondary processing, these profiles normally need to be cut to specific lengths and dimensions. A dedicated CNC aluminum profile cutting machine provides a professional solution for manufacturers that need stable cutting quality and higher production efficiency.

Compared with conventional manual aluminum saws, a fully automatic CNC cutting system can coordinate material feeding, positioning, clamping, cutting, and production sequencing according to the machine configuration. This makes it particularly suitable for batch production and factories processing multiple aluminum profiles on a daily basis.

Max processing rang W*L	200x100mm
Feeding way	Servo motor
Press and clamping way	Pneumatic
Saw Motor power	4kw
Oil pump motor	1.5kw
Servo motor power	0.75kw
Control mode	PLC touch screen
Drive feeding mode	Ball screw rod
Deed/return speed of saw blade	0-3m/2-3m
Max feed length(Segmentable feeding is available)	600mm
Saw blade size	D405xD25.4x3.2x120T
Machine length accuracy	+-0.1mm
Working air pressure	0.6-0.8mpa
Feeding speed	150mm
Cooling model of saw blade	Cycle Water
Spindle speed	3800r/pm
Voltage	220/380/415, 50hz,3 phase, customized
Machine size	180x1200x1700mm
Weight	650kg

CNC-Controlled Aluminum Profile Cutting

The CNC control system provides a more organized approach to aluminum profile cutting. Cutting parameters and production instructions can be configured according to the actual application, allowing the machine to perform repeated operations with consistent settings.

For manufacturers processing multiple batches of similar aluminum profiles, CNC control can help reduce operator-dependent variations. Once the appropriate parameters have been established, the machine can repeat the configured cutting process for subsequent workpieces.

This is especially useful in production environments where dimensional consistency is important. The actual control functions and available programming options depend on the machine configuration.

Full Automatic Material Feeding

Automatic feeding is a major advantage of this aluminum profile cutting machine. Instead of manually positioning each profile before every cutting cycle, the feeding system can transfer aluminum material into the processing area according to the configured production sequence.

Reducing repetitive material handling can improve workflow efficiency and allow operators to focus on monitoring the equipment, loading materials, checking finished parts, and managing production.

For high-volume aluminum fabrication, automatic feeding can also help establish a more continuous production process and reduce unnecessary downtime between individual cutting operations.

Precise Aluminum Extrusion Processing

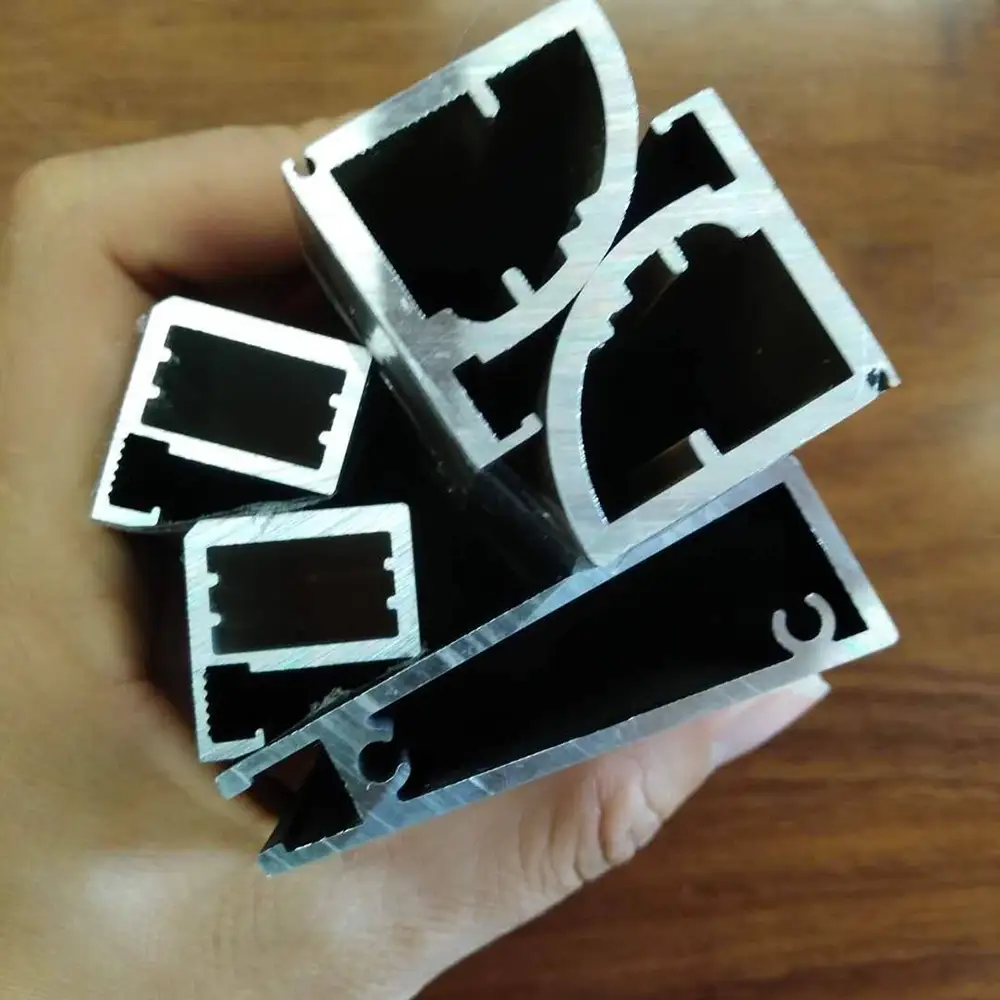

Aluminum extrusion profiles are often supplied in long lengths and need to be processed into shorter components. The CNC aluminum cutting machine provides a dedicated solution for preparing these profiles for assembly or further machining.

Stable positioning and clamping are important for maintaining consistent cutting results. The machine is designed to coordinate these operations as part of an automated cutting workflow.

The actual processing range depends on the machine model and configuration. Buyers can provide profile drawings, dimensions, material information, and production requirements when requesting a suitable machine configuration.

Applications In Window And Door Manufacturing

Aluminum window and door production is one of the most common applications for CNC aluminum profile cutting equipment. Window frames, door frames, mullions, rails, and other aluminum components often require accurate length cutting before drilling, milling, corner processing, and assembly.

A full automatic CNC cutting machine can serve as an important first-stage processing unit in a complete aluminum window and door production line.

It can also be combined with CNC drilling machines, end milling machines, corner crimping equipment, punching machines, and other profile processing equipment to create a more integrated manufacturing workflow.

Architectural And Industrial Aluminum Fabrication

Beyond doors and windows, aluminum profiles are widely used in curtain walls, building facades, furniture, equipment frames, workstations, conveyor systems, solar mounting structures, and customized industrial products.

The CNC aluminum profile cutting machine can therefore serve different types of fabrication companies. Its automatic production concept makes it suitable for businesses that need to process repeated profile orders while maintaining consistent production procedures.

Improved Production Efficiency

Automation can help reduce repetitive manual work and improve the overall organization of the production process. Automatic feeding, CNC positioning, and controlled cutting operations can work together to create a more streamlined workflow.

For B2B manufacturers, this can be valuable when production volumes increase or when customers require repeated batches with consistent specifications. The machine can help reduce dependence on manual cutting processes while supporting more standardized manufacturing.

Flexible Configuration For Different Profiles

Aluminum profiles vary considerably in shape, size, wall thickness, and application. A professional CNC cutting machine should therefore be selected according to the customer's actual material requirements.

Depending on the configuration, the machine can be adapted for different aluminum extrusion applications. Customers can provide profile drawings and cutting requirements so the equipment configuration can be evaluated before production.

Key Features
Full Automatic CNC Aluminum Profile Cutting
Automatic Material Feeding System
CNC-Controlled Cutting Process
Suitable For Aluminum Alloy Profiles
Designed For Aluminum Extrusions
Stable Profile Positioning And Clamping
Consistent Repeated Cutting
Reduced Manual Material Handling
Suitable For Batch Production
Ideal For Window And Door Fabrication
Supports Industrial Aluminum Processing
Flexible B2B Machine Configuration
Main Applications

The Full Automatic CNC Aluminum Profile Cutting Machine can be used for:

Aluminum Window Manufacturing
Aluminum Door Manufacturing
Aluminum Frame Production
Aluminum Extrusion Processing
Curtain Wall Profile Fabrication
Architectural Aluminum Processing
Industrial Aluminum Frame Manufacturing
Aluminum Furniture Production
Solar Mounting Profile Processing
Machine Frame Fabrication
Equipment Structure Manufacturing
Customized Aluminum Component Production
FAQs
1. What is a full automatic CNC aluminum profile cutting machine?

It is an automated cutting system designed to process aluminum profiles and extrusions using CNC-controlled cutting operations and automatic material handling.

2. What materials can this machine cut?

The machine is primarily designed for aluminum alloy profiles, aluminum extrusions, and related aluminum materials suitable for the configured cutting system.

3. Is the feeding process automatic?

Yes. The machine is designed with an automatic feeding system that transfers profiles into the cutting area according to the configured production process.

4. Is this machine suitable for aluminum windows and doors?

Yes. Aluminum window and door profile cutting is one of the major applications for this type of CNC cutting machine.

5. Can it process aluminum extrusion profiles?

Yes. It is designed for aluminum extrusion cutting and can be configured according to the profile dimensions and production requirements.

6. What are the advantages of CNC control?

CNC control allows cutting parameters and production procedures to be configured systematically, helping improve repeatability and reduce operator-dependent variations.

7. Is it suitable for high-volume production?

The fully automatic feeding and CNC-controlled workflow make this type of machine suitable for batch and continuous production applications, depending on the machine configuration.

8. Can the machine be customized?

Yes. Configuration can be discussed according to aluminum profile dimensions, cutting requirements, production volume, feeding requirements, and other application conditions.

9. Can it be integrated into an aluminum processing line?

Yes. It can be combined with drilling, milling, punching, corner processing, and other aluminum profile fabrication equipment to create a more complete production workflow.

10. What information should I provide for a quotation?

Please provide the aluminum profile drawings or dimensions, material type, required cutting lengths, production volume, cutting requirements, and desired automation level. This information helps determine a suitable configuration.

Why Choose Us
Professional Aluminum Processing Equipment

We focus on practical aluminum profile processing equipment for manufacturers, fabricators, distributors, and industrial customers. Our solutions are designed around production efficiency, repeatability, and reliable material handling.

CNC And Automatic Production Solutions

The CNC-controlled cutting system and automatic feeding structure provide a more streamlined solution for customers that need to reduce manual operations and standardize repeated cutting processes.

Customized Configuration

Different aluminum profiles require different processing solutions. We can discuss machine configuration based on profile dimensions, production requirements, cutting applications, and customer workflow.

Factory-Direct B2B Supply

We support international distributors, importers, window and door manufacturers, aluminum fabricators, and industrial companies with factory-oriented machinery and B2B purchasing support.

Technical Application Support

We can provide machine information, configuration recommendations, operation guidance, and technical communication to help customers select equipment suitable for their actual production requirements.

International Export Service

We support international customers through equipment configuration confirmation, production coordination, packaging, shipping arrangements, installation guidance, and after-sales technical service.
