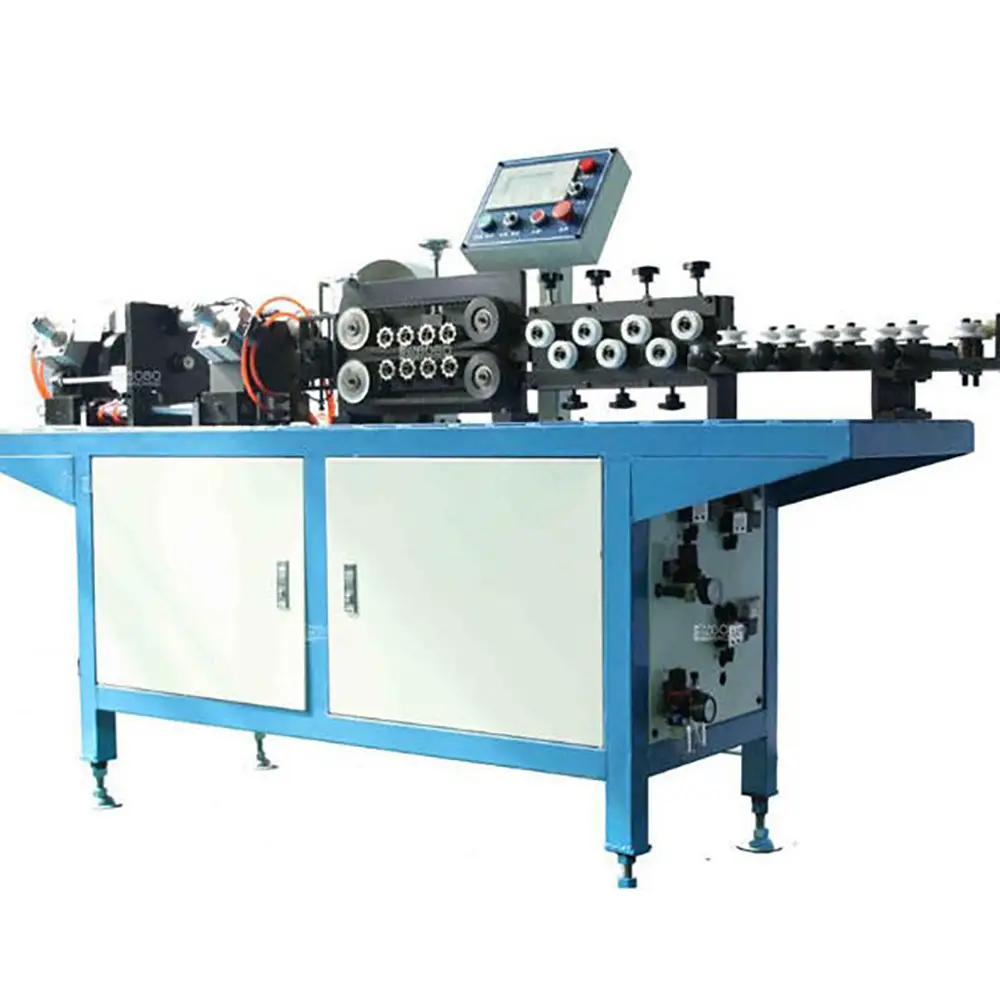

Automatic Punematic Round Copper Aluminum Stainless Steel Pipe Straightening and Cutting Machine

model	18B
Applicable pipe	Copper tube,
Pipe diameter	Φ4-Φ19mm
Pipe wall thickness	0.3-1.0mm
Cutting length	55 mm minimum, unlimited
Feeding length	60mm-any lenght
working pressure	0.6-0.8MPa
Cutting blade specification	φ32.2*Φ15*10.2
Way of working	Automatic feeding, fixed length encoder
way to control	LCD display frequency, PLC control, frequency conversion operation
moulds	Clamping die, guide sleeve, feeding belt, straightening wheel
Motor Power	2KW, 3 phase
size	2150*650*1350mmmm

The Automatic Pneumatic Round Copper Aluminum Stainless Steel Pipe Straightening and Cutting Machine is designed for manufacturers that need efficient straightening and precise length cutting of round metal pipes and tubes. Combining automatic feeding, pneumatic control, straightening, and cutting functions, this machine provides a practical production solution for copper, aluminum, stainless steel, and other compatible round metal tubing.

During transportation, storage, forming, or previous manufacturing operations, metal tubes may develop bending, deformation, or dimensional inconsistencies. Before further processing or assembly, these tubes may need to be straightened and cut to a consistent length. This automatic machine combines these operations into a streamlined production process.

Automatic Pipe Straightening And Cutting

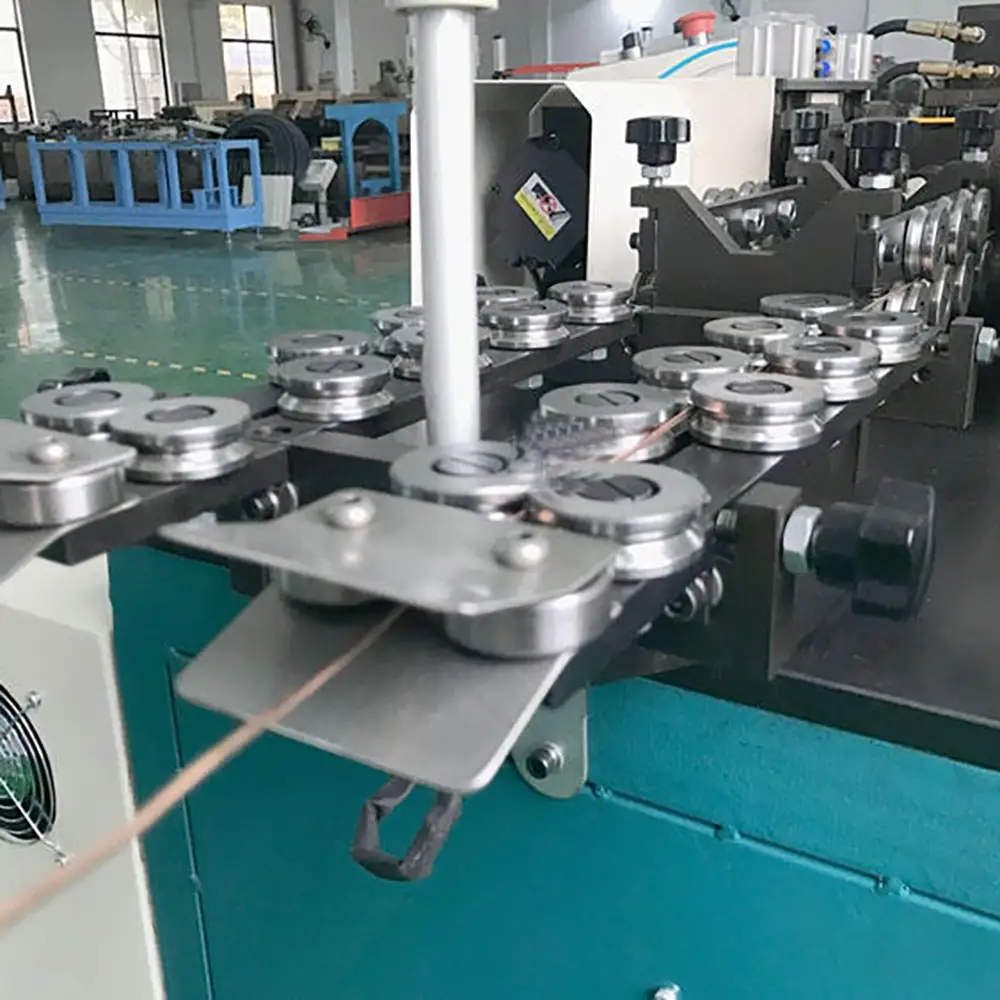

The machine is designed to straighten compatible round pipes and tubes before cutting them to the required length. By combining straightening and cutting in one production workflow, manufacturers can reduce manual handling between separate machines.

Automatic operation can improve production consistency when processing repeated batches of tubing. Once the appropriate parameters and tooling have been established, the machine can continuously process compatible workpieces according to the production requirements.

The actual tube diameter, material range, cutting length, straightening capacity, and production speed depend on the selected machine configuration.

Pneumatic Operating System

The pneumatic system provides controlled mechanical movement for selected machine operations. Pneumatic components can be used for feeding, clamping, positioning, or other machine functions depending on the configuration.

A pneumatic operating concept is particularly useful for repetitive production because it can provide fast and controlled actuation while simplifying certain mechanical operations.

The exact pneumatic circuit and components should be selected according to the customer's tube dimensions, material characteristics, production volume, and automation requirements.

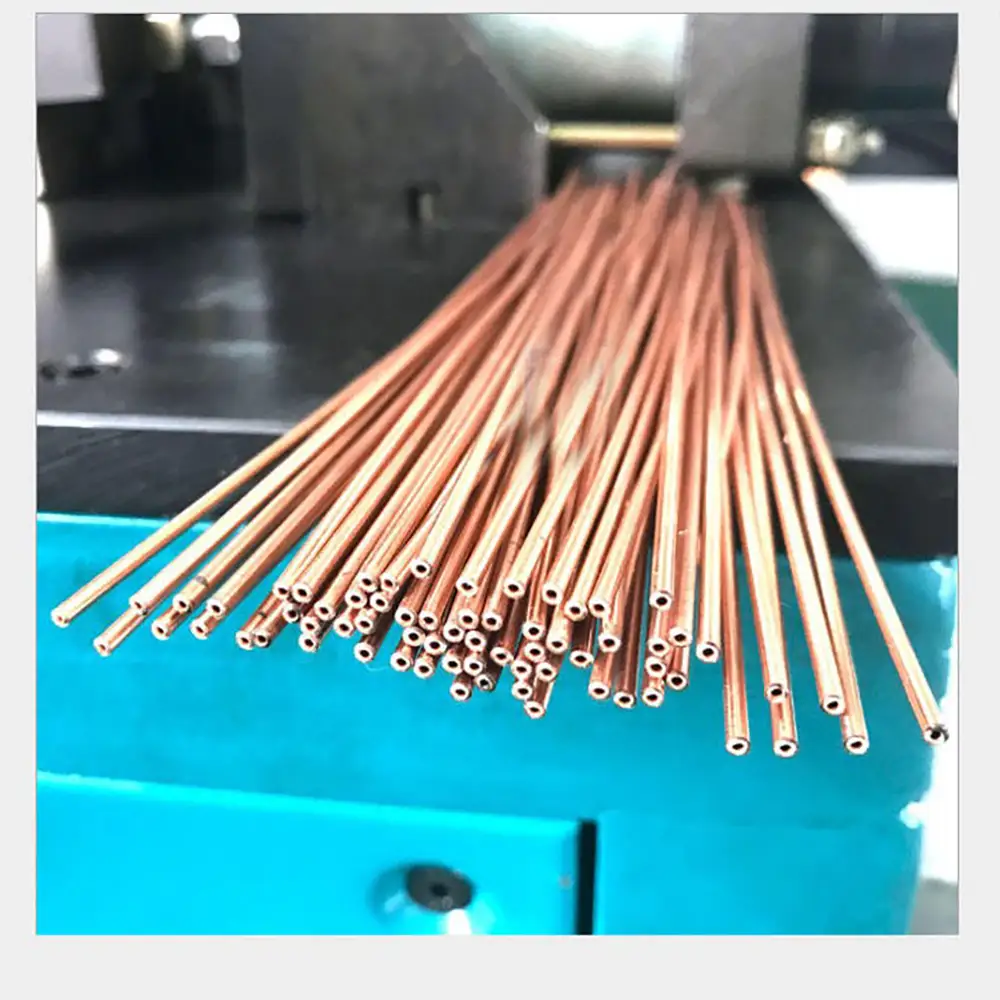

Copper Pipe Straightening And Cutting

Copper tubing is widely used in refrigeration, air conditioning, plumbing, electrical, heat exchange, and other applications. During manufacturing and handling, copper tubes may require straightening before they are cut into predetermined lengths.

The machine can be configured for compatible round copper tubes, providing an automated workflow for straightening and length cutting. This can help manufacturers prepare tubing for subsequent bending, flaring, forming, assembly, or packaging operations.

Aluminum Tube Processing

Aluminum tubes are lightweight and widely used in automotive components, heat exchangers, furniture, construction products, and industrial applications.

The straightening and cutting machine can process compatible aluminum tubing according to the selected tooling and production parameters. Automatic processing helps manufacturers reduce repetitive manual measuring and cutting operations.

Proper feeding, clamping, straightening, and cutting parameters should be selected according to the aluminum tube specification.

Stainless Steel Pipe Straightening And Cutting

Stainless steel tubing requires controlled processing because surface quality and dimensional accuracy can be important for applications such as furniture, medical equipment, architectural products, food-processing equipment, and industrial systems.

The machine can be configured for compatible stainless steel round tubes and pipes. A suitable straightening and cutting setup helps manufacturers prepare consistent workpieces for welding, bending, polishing, assembly, or other downstream processes.

Precise Length Cutting

Consistent tube length is important for automated production and assembly. The cutting system allows the required tube length to be established according to the production program or machine configuration.

Instead of manually measuring and cutting each tube, the automatic system can streamline repeated length-cutting operations. This can help reduce operator workload and improve production consistency.

Actual cutting tolerance depends on material properties, tube dimensions, cutting method, machine configuration, and operating conditions.

Continuous Production Workflow

For high-volume tube processing, combining feeding, straightening, and cutting can help create a more efficient production line. The operator can load compatible raw material and configure the required processing parameters before production.

The machine can then perform the programmed sequence with reduced manual intervention. This makes it suitable for manufacturers that process large quantities of similar copper, aluminum, stainless steel, or other compatible metal tubes.

Applications

The Automatic Pneumatic Pipe Straightening And Cutting Machine can be used for:

Copper Tube Processing
Aluminum Tube Processing
Stainless Steel Pipe Processing
Metal Tube Manufacturing
Refrigeration Tube Production
Air Conditioning Tube Processing
Heat Exchanger Tube Production
Automotive Tube Components
Furniture Tube Processing
Plumbing Tube Production
Electrical Tube Components
Industrial Metal Tube Fabrication
Precision Tube Cutting
Tube Straightening Production Lines
Key Features
Automatic Pipe Straightening And Cutting
Pneumatic Operating System
Round Tube Processing
Automatic Feeding Capability
Adjustable Cutting Length
Consistent Tube Straightening
Reduced Manual Handling
Suitable For Copper Tubes
Suitable For Aluminum Tubes
Suitable For Stainless Steel Tubes
Efficient Batch Production
Customizable Machine Configuration
Production Advantages

For tube manufacturers, combining straightening and cutting into one machine can simplify the production workflow. Instead of transferring tubing between separate straightening and cutting stations, compatible operations can be completed within an integrated process.

This can reduce manual handling and help improve production organization. Automatic operation is particularly useful when the same tube specification needs to be processed repeatedly.

For B2B manufacturers, the machine can also be configured according to different tube materials, diameters, lengths, and production requirements. This makes it suitable for both dedicated production and flexible tube-processing applications.

FAQs
1. What Is An Automatic Pipe Straightening And Cutting Machine?

It is an automated machine designed to straighten round metal pipes or tubes and then cut them to specified lengths.

2. What Materials Can The Machine Process?

Depending on configuration, it can process compatible copper, aluminum, stainless steel, and other metal tubes.

3. Can It Process Round Copper Tubes?

Yes. Round copper tube straightening and cutting is one of its intended applications.

4. Can It Cut Aluminum Tubes?

Yes. Compatible aluminum tubes can be processed when the appropriate feeding, straightening, clamping, and cutting configuration is selected.

5. Can It Process Stainless Steel Pipes?

Yes. The machine can be configured for compatible stainless steel round pipes and tubes according to material and dimensional requirements.

6. What Does The Pneumatic System Do?

The pneumatic system can control selected feeding, clamping, positioning, or other machine movements depending on the equipment configuration.

7. Can The Cutting Length Be Adjusted?

Yes. The required cutting length can be configured according to the machine's control system and production requirements.

8. Is The Machine Suitable For Mass Production?

Yes. Its automatic straightening and cutting workflow is suitable for repetitive and batch tube-processing applications.

9. Can The Machine Be Customized?

Yes. Tube diameter, material, cutting length, feeding method, straightening configuration, pneumatic system, and other specifications can be evaluated according to customer requirements.

10. What Information Should Be Provided For A Quotation?

Customers should provide tube material, outside diameter, wall thickness, raw tube length, required finished length, straightness requirements, production volume, and preferred automation level.

Why Choose Us
Professional Tube Processing Equipment

We provide production-oriented machinery for metal tube straightening, cutting, forming, and related processing applications.

Multi-Material Processing

The machine can be configured for compatible copper, aluminum, stainless steel, and other round metal tubes according to customer requirements.

Automatic Production Solution

Automatic feeding, straightening, and cutting functions can help reduce repetitive manual operations and improve production workflow.

Customized Configuration

We can evaluate tube dimensions, materials, cutting lengths, production capacity, and automation requirements to develop a suitable configuration.

Factory-Oriented B2B Supply

We support manufacturers, distributors, tube processors, engineering companies, and industrial buyers with production equipment solutions.

International Export Service

We provide technical communication, equipment documentation, packaging, shipping coordination, and export-oriented support for overseas customers.
