Portable Stone Hammer Crusher, Mobile Stone Hammer Crusher Mill with Wheels

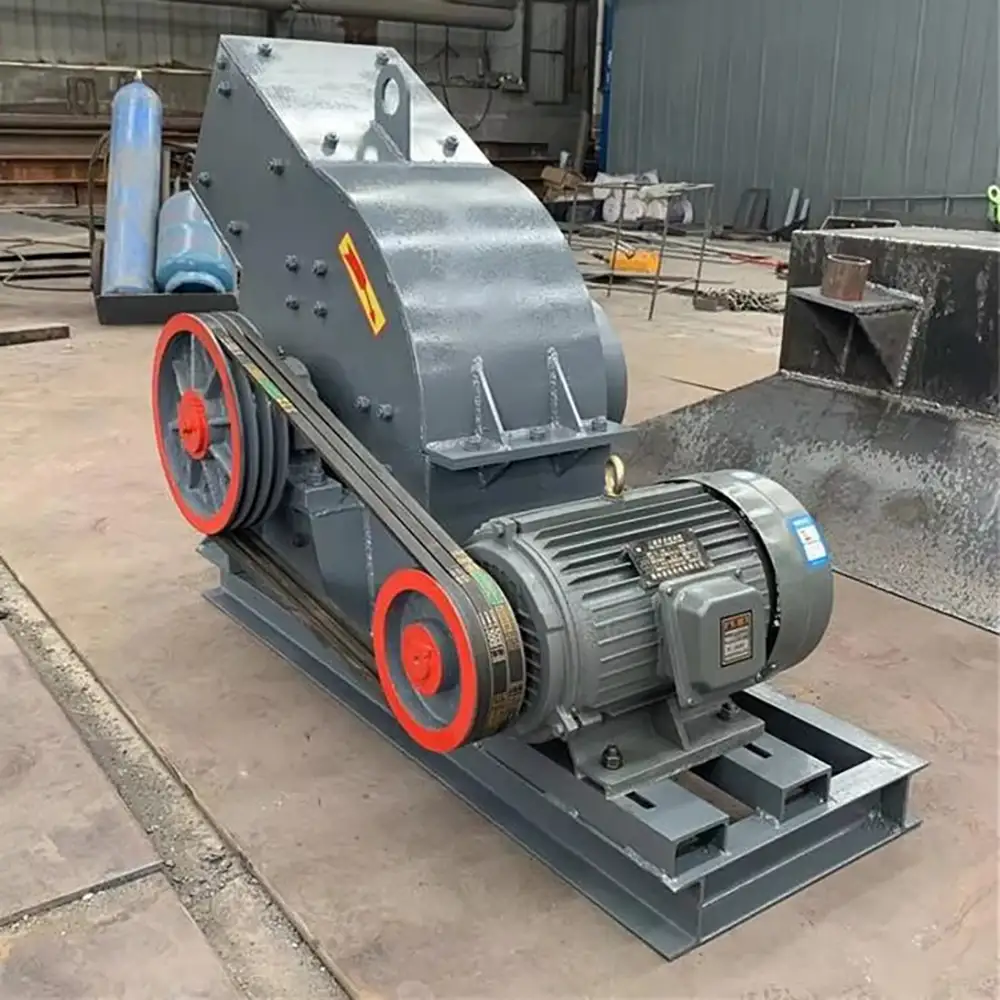

The motor drives the rotor rotated of the hammer crusher at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being crushed again until they reached the required size.

Model	Hammer head quantity	Input Size (mm)	Output Size (mm)	Capacity (t/h	Power (kw)
PC400X300	16	< 100	< 15	5-10	4P-11
PC350X500	20	< 100	< 15	8-15	4P-18.5
PC600X400	20	< 120	< 15	10-25	4P-22
PC800X600	24	< 150	< 15	20-50	4P-55
PC800X1000	28	< 200	< 15	20-75	4P-75

The Portable Stone Hammer Crusher is a compact and mobile crushing machine designed for on-site processing of stone, rock, ore, limestone, coal, construction waste, and other suitable bulk materials. Mounted on a wheeled chassis, this mobile stone hammer crusher can be moved between working locations more easily than a conventional stationary crushing machine.

Also known as a mobile hammer crusher, portable hammer mill crusher, wheeled hammer crusher, or mobile stone crusher mill, this equipment combines the impact crushing principle of a hammer mill with a mobile frame. Depending on the configuration, the complete machine can integrate a feeding hopper, hammer crushing chamber, discharge conveyor, power system, and wheels or towing structure. Similar mobile hammer crusher configurations are commonly designed as integrated units for flexible deployment at mining, quarrying, and construction sites.

What Is a Portable Stone Hammer Crusher?

A portable stone hammer crusher is a hammer-type crushing machine mounted on a mobile chassis. Instead of transporting raw stone from every working location to a fixed crushing plant, the crusher can be transferred closer to the material source.

The core crushing system uses a high-speed rotor equipped with hammer heads. When material enters the crushing chamber, the rotating hammers strike the material and reduce its size through impact and repeated crushing. A grate or screen arrangement controls the discharge size, depending on machine design and application.

The wheeled structure provides additional flexibility for temporary projects, small quarries, remote mining areas, road construction, and other operations where equipment may need to be relocated frequently. Portable stone crushers with tire or wheeled structures are specifically marketed for applications where frequent movement is required.

Mobile Stone Hammer Crusher Mill Design

The mobile stone hammer crusher mill can be configured as a compact standalone machine or as an integrated mobile crushing unit.

Typical components may include:

Feeding hopper
Vibrating or gravity feeding system
Hammer crusher chamber
High-strength rotor
Hammer heads
Impact plates
Screen or grate assembly

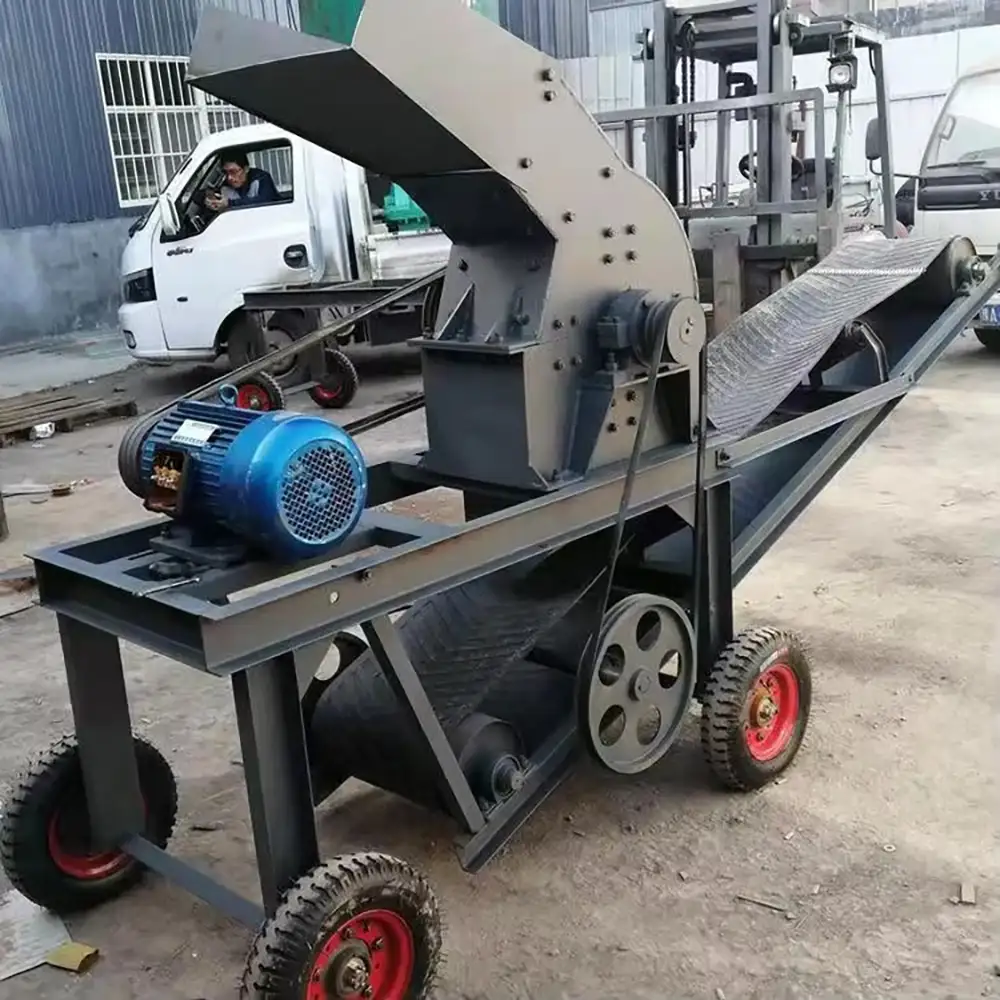

Discharge conveyor

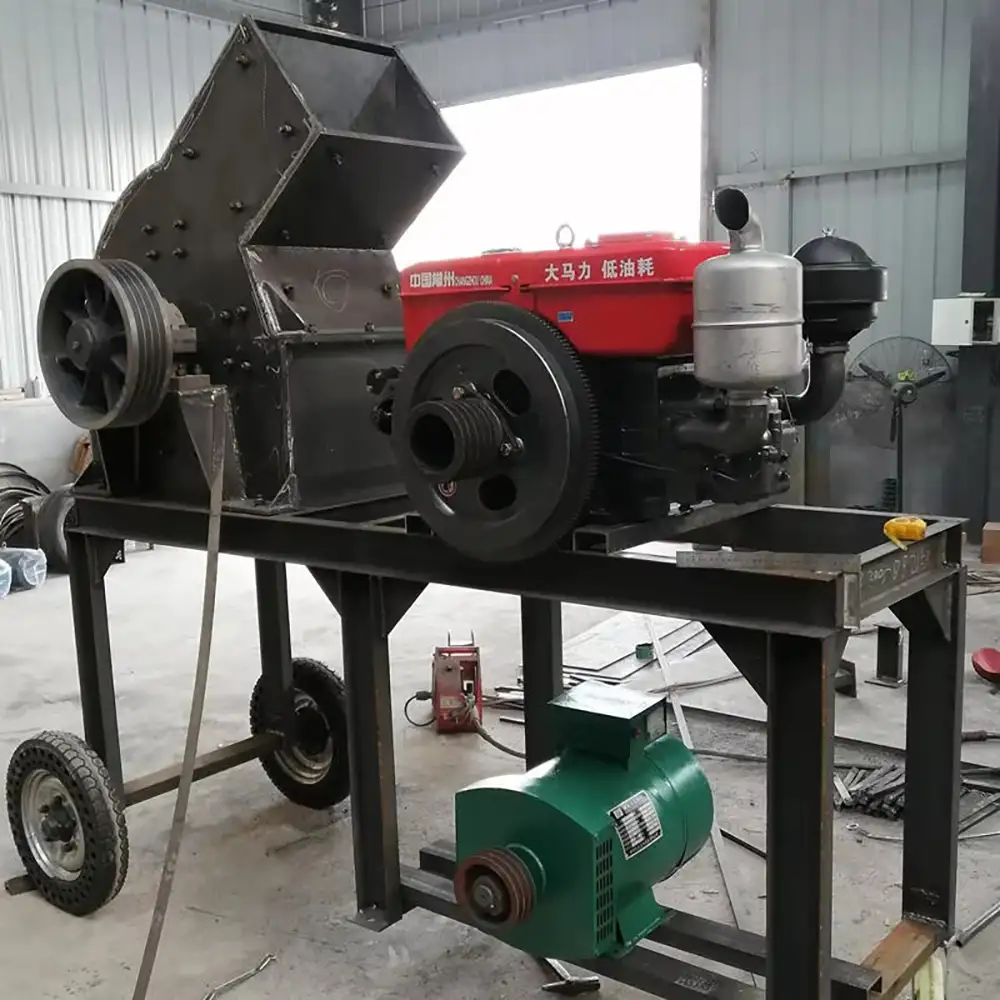

Electric motor or diesel power system
Wheeled mobile chassis
Towing and support components

The exact configuration depends on the required capacity, feed material, final particle size, power source, and transportation requirements.

For smaller machines, the entire crusher can be mounted on a compact two-wheel or four-wheel frame. Larger mobile systems may use a reinforced trailer-style chassis with integrated feeding and conveying equipment.

Hammer Mill Crushing Principle

The working principle is based on high-speed impact crushing.

First, raw material is loaded into the feeding hopper. The material enters the crushing chamber and comes into contact with the rapidly rotating hammer rotor. The hammer heads impact the material, breaking larger pieces into smaller fragments.

Material that reaches the required size passes through the screen or grate and is discharged from the machine. Oversized particles remain in the crushing chamber for additional impact until they can pass through the discharge opening.

This simple crushing principle makes hammer crushers suitable for certain soft, medium-hard, brittle, and relatively friable materials. Material hardness, abrasiveness, moisture, feed size, and desired output size should always be considered before selecting a hammer crusher.

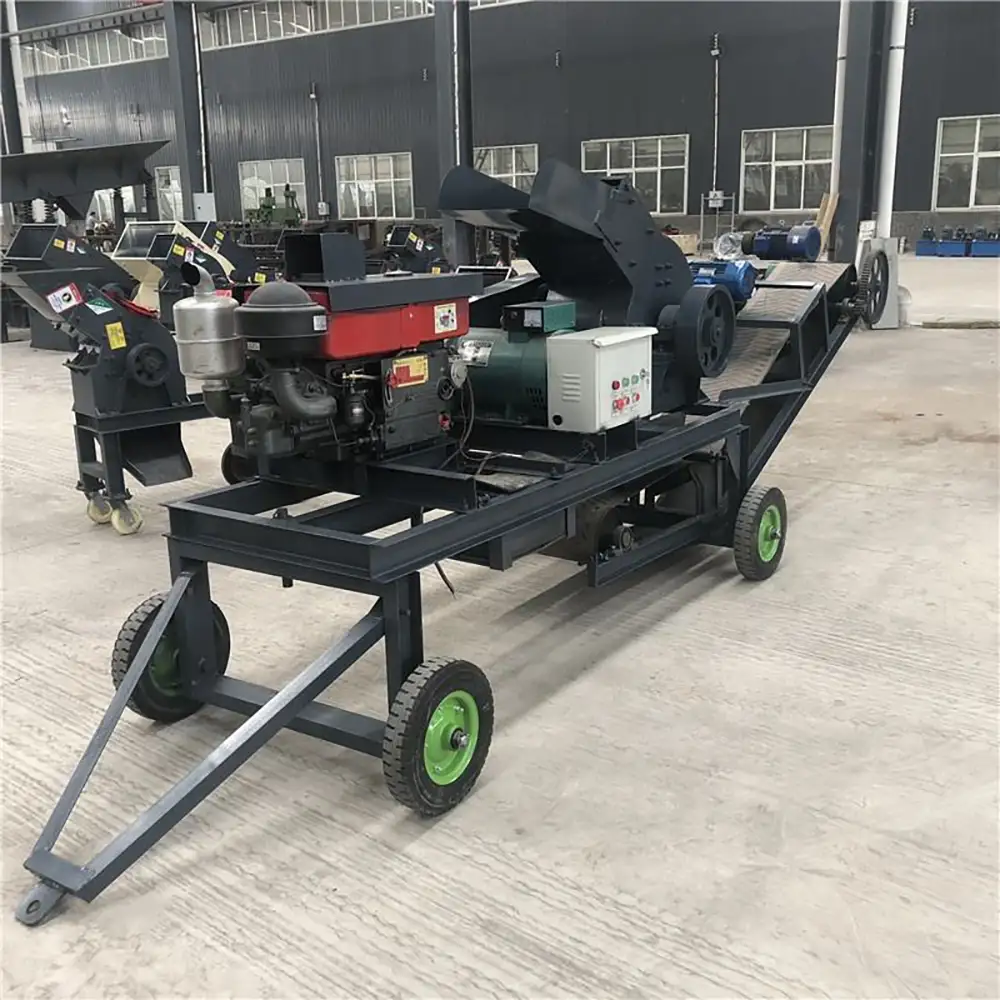

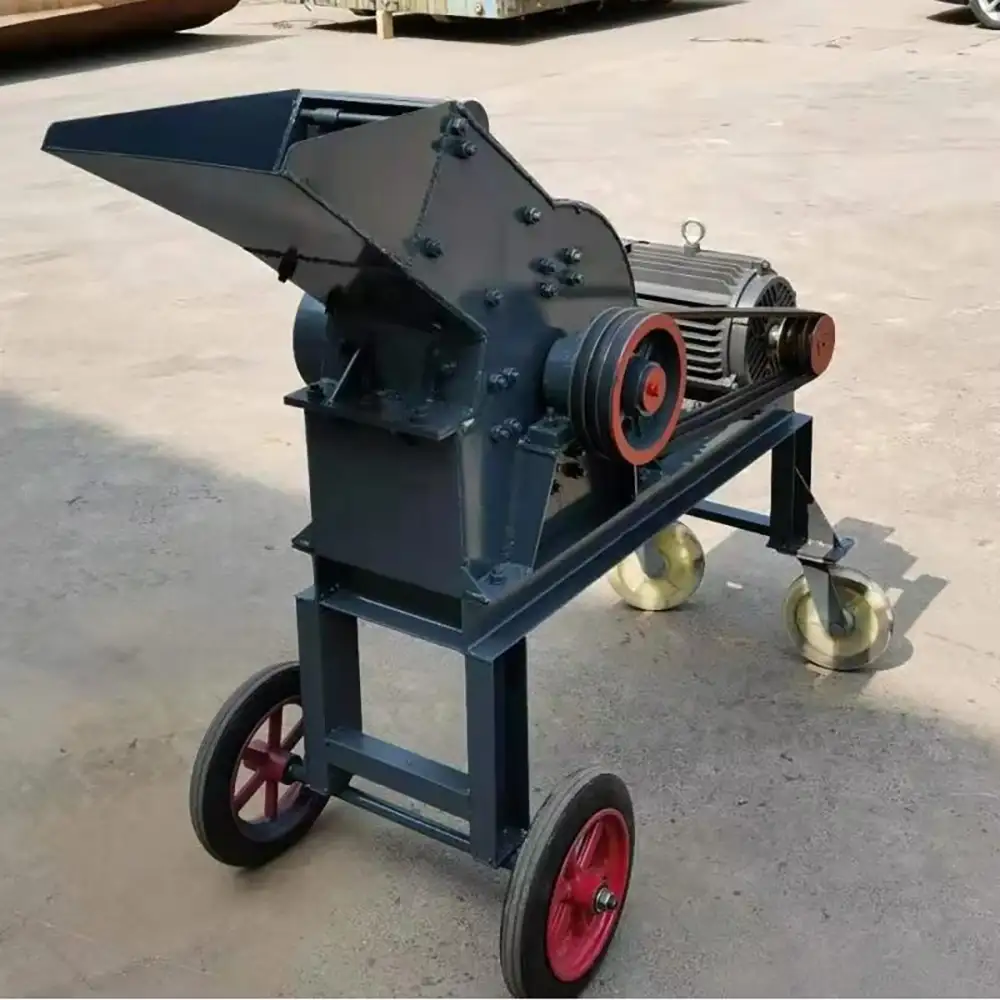

Portable Stone Crusher With Wheels

One of the main advantages of this machine is its wheeled mobile structure.

A wheeled chassis allows the crusher to be transferred between different work areas without constructing a permanent foundation. This is particularly useful for temporary projects, scattered stone resources, small-scale quarrying, road construction, and remote work sites.

Portable crushing equipment is commonly selected when operators need to relocate equipment between projects or process material directly at the source. Wheel-mounted portable crushers are also used as part of larger mobile crushing and screening systems.

The actual transportation method depends on the machine size and chassis design. Smaller models may use a towing structure, while larger units may require appropriate transport equipment.

Applications of Mobile Stone Hammer Crusher
Mining

The crusher can be used for suitable mineral materials such as selected gold ore, copper ore, coal, limestone, and other materials after confirming their hardness and abrasiveness.

For small mining operations, a portable crusher can be positioned closer to the material source, reducing unnecessary material handling.

Quarrying

Portable hammer crushers can process suitable quarry materials and produce aggregate for local construction applications.

Road Construction

For temporary road projects, the machine can process suitable rock or stone near the construction area, reducing the need to transport raw material over long distances.

Construction Waste Recycling

Depending on the crusher configuration and material characteristics, mobile hammer crushing equipment can process selected brick, concrete, and other construction debris. Material composition should be evaluated before using a hammer crusher for recycling applications.

Small Aggregate Production

The machine can be used for small-scale aggregate production where a compact and movable crushing solution is preferred.

Advantages of a Portable Hammer Crusher
Flexible Site Mobility

The wheeled chassis makes it easier to move the crusher between working areas. This is particularly useful when the raw material source changes frequently.

Compact Equipment Layout

A compact mobile design can combine several components into a relatively small footprint. Some mobile hammer crusher configurations integrate feeding, crushing, and discharge conveying into one unit.

On-Site Crushing

Processing material near the source can simplify material logistics and reduce the need for transporting unprocessed stone to a distant stationary plant.

Adjustable Output

Depending on the model, screen openings or grate configurations can be changed to influence the final product size. Actual output size depends on the machine design and material properties.

Simple Mechanical Structure

Hammer crushers generally have a straightforward mechanical crushing structure, making routine inspection and replacement of wear components relatively convenient.

Flexible Power Options

Depending on the configuration, portable hammer crushers can be equipped with electric motors or diesel-powered systems. Diesel or dual-power configurations can be useful for remote locations where grid electricity is unavailable.

Materials Suitable for Hammer Crushing

Potential materials include:

Limestone
Dolomite
Coal
Gypsum
Shale
Selected ores
Soft and medium-hard stone
Brick
Selected construction waste
Other suitable brittle bulk materials

The machine is not automatically suitable for every type of rock. Highly abrasive or extremely hard materials can cause accelerated wear and may require a different crushing technology. Material testing and engineering evaluation are recommended before final equipment selection.

How to Choose the Right Mobile Hammer Crusher

When purchasing a portable stone hammer crusher, consider the following parameters:

Raw material type
Material hardness and abrasiveness
Maximum feed size
Required capacity
Desired discharge size
Moisture content
Power supply
Working-site conditions
Required mobility
Whether feeding and conveying systems are required

Capacity is not determined by crusher size alone. Different materials and feed conditions can produce significantly different results. Published hammer crusher specifications also note that capacity varies according to material and feed size.

Maintenance of Mobile Hammer Crusher

Regular maintenance is important for reliable operation. Operators should inspect hammer heads, rotor components, screens, impact surfaces, bearings, belts, wheels, chassis components, and drive systems according to the operating schedule.

Wear parts should be checked more frequently when processing abrasive materials. Keeping the feeding system properly adjusted can also help prevent overload and uneven material distribution.

Before maintenance, the machine should be completely stopped and isolated from its power source. Replacement parts should match the manufacturer's recommended specifications.

Custom Portable Stone Hammer Crusher

As a professional crushing equipment manufacturer and supplier, we can provide customized mobile hammer crusher solutions according to material characteristics and project requirements.

Customization can include crusher size, rotor configuration, motor or diesel power, hopper dimensions, wheel chassis, discharge conveyor, screening system, towing structure, and other equipment components.

For international mining, quarry, aggregate, and construction projects, we can also provide technical documentation, spare parts, operating guidance, and equipment configuration support.

Why Choose Us?
Professional Manufacturing: We provide industrial crushing equipment for mining, quarrying, aggregate, and construction applications.
Mobile Design Options: Wheeled and portable configurations can be selected according to project requirements.
Application-Based Selection: Crusher recommendations are based on material type, feed size, output requirements, and production conditions.
Custom OEM Service: Crusher dimensions, power systems, chassis, feeding systems, and conveyors can be customized.
Complete Crushing Solutions: The mobile hammer crusher can be configured with feeding, crushing, screening, and conveying equipment.
Wear Parts Support: Replacement hammers, screens, and other wearing components can be supplied according to the equipment configuration.
International Service: We support overseas buyers with technical documents, spare parts, installation guidance, and after-sales assistance.
Frequently Asked Questions
1. What is a Portable Stone Hammer Crusher?

It is a hammer crusher mounted on a mobile or wheeled chassis for flexible stone, ore, aggregate, and other suitable material crushing.

2. What is the difference between a mobile hammer crusher and a stationary hammer crusher?

The primary difference is the mobility configuration. A mobile hammer crusher is mounted on a wheeled or tracked chassis and can be relocated, while a stationary hammer crusher is normally installed at a fixed location.

3. Can the machine crush stone?

Yes. It can crush suitable stone and rock materials, especially materials that are appropriate for impact hammer crushing.

4. Can it crush limestone?

Yes. Limestone is commonly processed with hammer crushers, provided the selected model is appropriate for the required feed size, capacity, and product size.

5. Can it be used for gold ore?

It can be used for suitable gold-bearing ore as a crushing stage, but ore hardness and abrasiveness should be evaluated before selecting the hammer crusher.

6. Can the mobile hammer crusher use diesel power?

Depending on the configuration, diesel or diesel-electric power options can be available for remote operations.

7. Can the final particle size be adjusted?

Depending on the machine design, discharge screens or grate openings can be selected or changed to achieve different product size requirements.

8. Is the crusher suitable for construction waste?

Selected construction waste such as brick and suitable concrete materials can be processed by some mobile hammer crusher configurations. The material should be evaluated for steel, reinforcing bars, excessive hardness, and other contaminants before crushing.

9. How often should hammer heads be replaced?

Replacement intervals depend on material hardness, abrasiveness, feed size, operating hours, and crusher settings. Regular inspection should determine when wear parts need replacement.

10. Can you customize a wheeled mobile hammer crusher?

Yes. Custom solutions can be developed according to required capacity, feed size, output size, power source, chassis design, hopper configuration, conveyor requirements, and project conditions.
