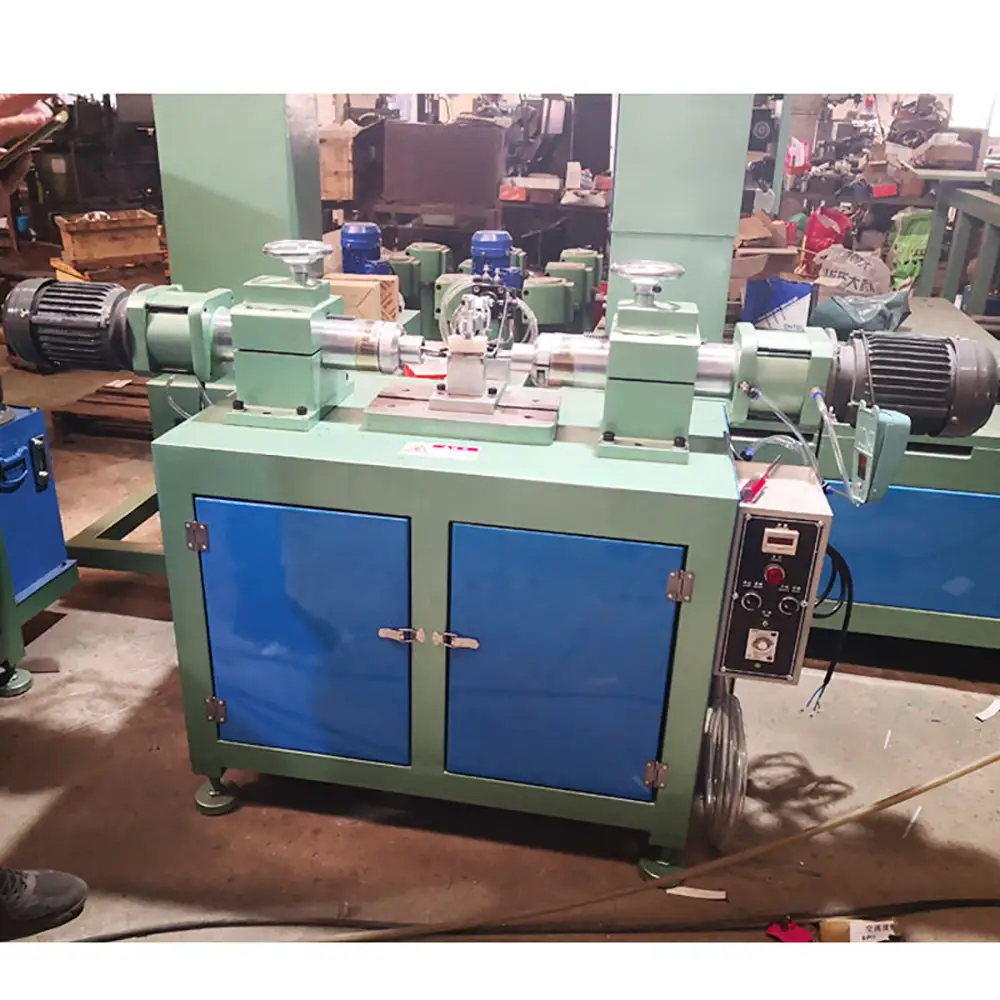

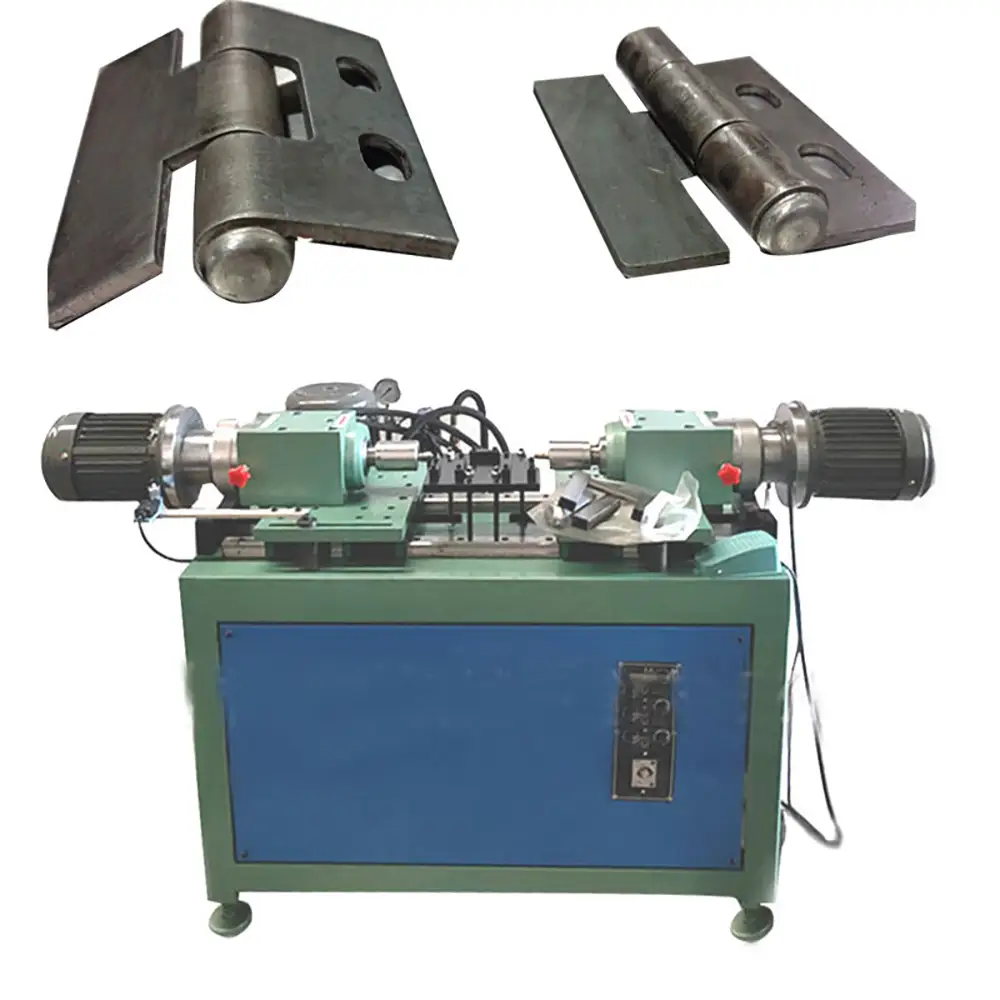

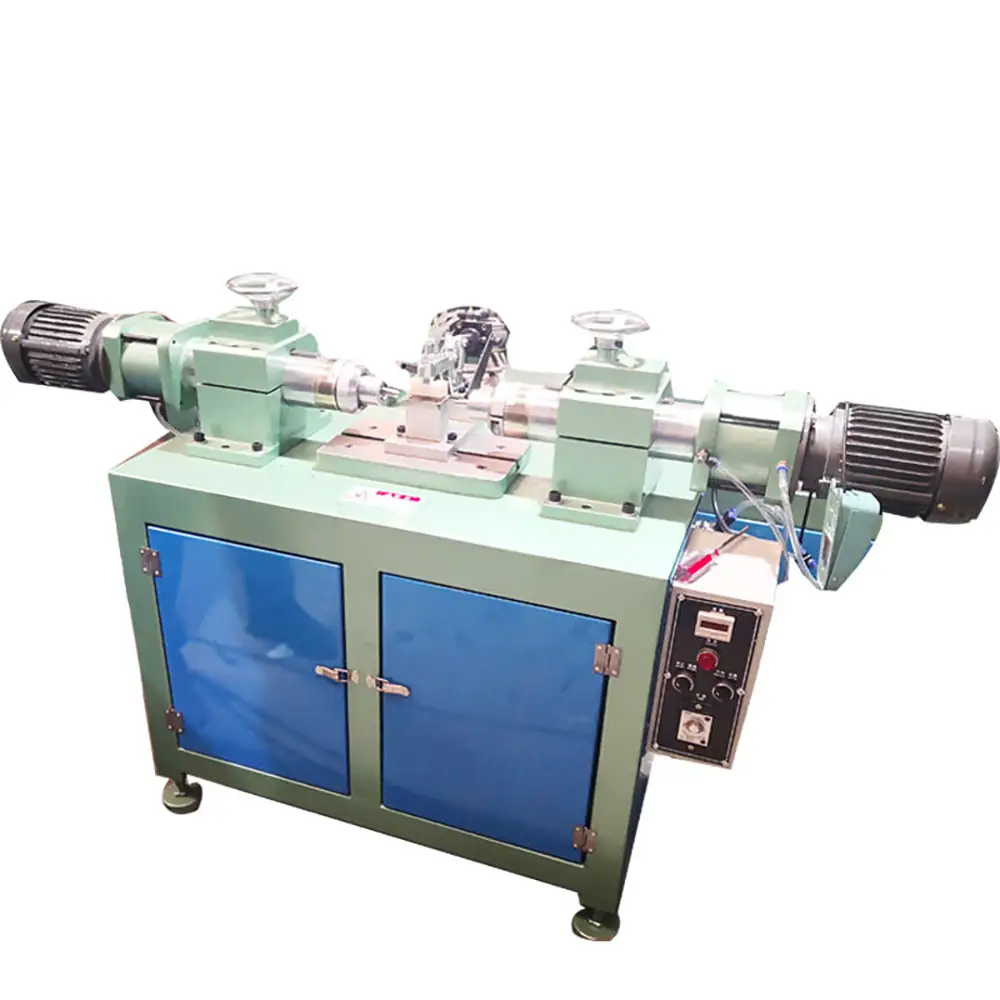

Multi Functional Double Horizontal Hinges Riveting Machine

 The Multi Functional Double Horizontal Hinges Riveting Machine is an industrial riveting and assembly machine designed for efficient fastening of double horizontal hinges and related hardware components. It is suitable for manufacturers producing furniture hardware, cabinet hinges, doors, windows, metal products, hardware accessories, and other products requiring accurate and repeatable hinge riveting.

Compared with manual hinge installation, an automatic or semi-automatic riveting system can improve production consistency, reduce repetitive labor, and provide a more stable working process. The machine can be configured according to different hinge structures, rivet specifications, workpiece dimensions, and production requirements.

Multi Functional Hinge Riveting

The machine is designed to perform riveting operations for compatible hinge components with controlled positioning and fastening force. Its multi-functional structure allows manufacturers to handle suitable hinge configurations using dedicated fixtures, dies, and riveting tooling.

For production environments where several hinge products are manufactured, flexible tooling can help reduce setup time and provide greater application versatility.

Double Horizontal Hinge Design

The Double Horizontal Hinges Riveting Machine is particularly suitable for applications involving two horizontal hinge components or hinge structures that require coordinated positioning during riveting.

Horizontal hinge positioning is important for maintaining correct alignment between the hinge and the workpiece. Proper alignment helps ensure smooth hinge movement and consistent finished-product quality.

Automatic Hinge Riveting

Automatic riveting can reduce the repetitive manual work associated with placing rivets and positioning hinge components. Once the workpiece and hinge components are correctly positioned, the machine performs the riveting cycle according to the configured operating parameters.

This makes the equipment suitable for factories requiring repeatable hinge fastening operations and higher production efficiency.

Accurate Hinge Positioning

Hinge positioning directly affects the final assembly quality. Incorrect positioning can result in uneven hinge movement, poor appearance, or assembly difficulties.

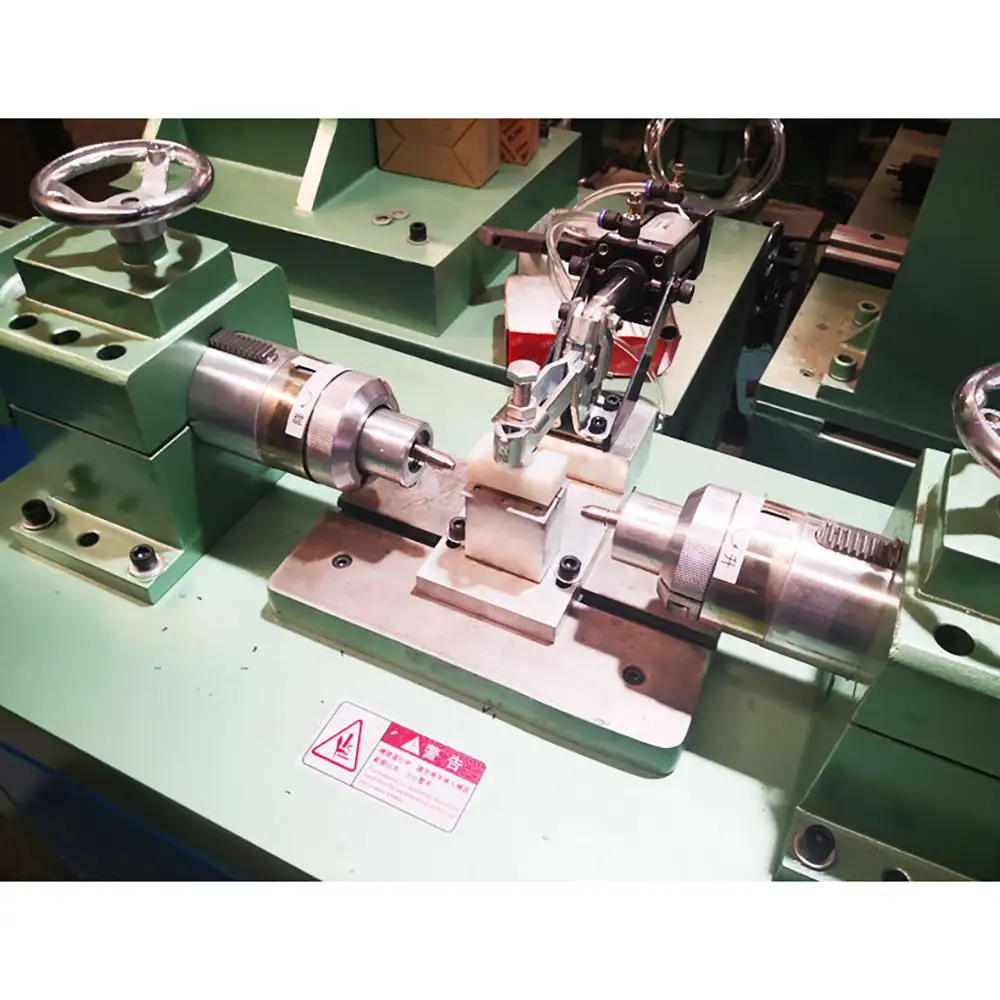

The machine can use dedicated positioning fixtures, guides, molds, and dies to maintain the required relationship between the hinge, rivet, and workpiece during the riveting process.

Stable Riveting Performance

Controlled riveting force helps form a secure connection between compatible hinge components and rivets. Appropriate pressure and tooling selection are important for achieving consistent results without unnecessarily deforming the hinge or workpiece.

The final riveting parameters should be determined according to hinge material, rivet material, dimensions, and workpiece construction.

Suitable for Furniture Hardware

Furniture manufacturing is one of the major applications for hinge riveting equipment. Hinges are widely used in cabinets, wardrobes, cupboards, storage furniture, office furniture, kitchen furniture, and other products.

The machine can help furniture hardware manufacturers establish a repeatable hinge riveting process for large-volume production.

Cabinet Hinge Applications

Cabinet doors require accurate hinge installation to achieve proper opening and closing performance. A stable riveting process can help maintain consistent hinge positioning throughout a production batch.

The machine can be equipped with appropriate tooling according to the specific cabinet hinge design and workpiece structure.

Door and Window Hardware

Suitable hinge components are also widely used in doors, windows, metal frames, and architectural hardware. Depending on the product design and material, customized fixtures and riveting tooling can be used to accommodate different components.

For specialized door and window hardware, customers can provide hinge samples and workpiece drawings for configuration evaluation.

High Production Efficiency

Manual riveting requires operators to repeatedly position components and operate fastening tools. In high-volume production, this can increase labor requirements and create variations in cycle time.

Automated hinge riveting helps streamline repetitive fastening operations and allows operators to focus on workpiece loading, component replenishment, machine monitoring, and quality inspection.

Customized Tooling

Different hinges have different dimensions, hole positions, shapes, and riveting requirements. Therefore, specialized tooling is often required for accurate production.

The machine can be configured with customized dies, fixtures, guides, positioning blocks, riveting heads, and feeding components according to the customer's hinge design.

Multiple Hinge Configurations

The multi-functional design allows the machine to be adapted to suitable hinge products with different configurations. Depending on the actual machine specification, different tooling sets can be used for different production requirements.

Customers should provide hinge samples, technical drawings, rivet specifications, workpiece dimensions, and production requirements when requesting a customized solution.

Reduced Manual Labor

Automating repetitive hinge riveting operations can reduce dependence on manual fastening and improve workflow efficiency. Operators can manage multiple production steps while the machine performs the programmed riveting cycle.

This can be particularly useful for factories producing furniture hardware and other standardized components in large quantities.

Consistent Assembly Quality

Consistent positioning and riveting force can help reduce variation between individual products. Stable assembly is important for hinges because the final component must maintain proper movement and secure attachment.

Regular inspection of dies, fixtures, riveting heads, and other wear components can help maintain consistent production quality.

Easy Factory Operation

The machine is designed for practical industrial operation. After the correct tooling has been installed and operating parameters have been set, the operator can load the workpiece and hinge components and start the riveting cycle.

Routine maintenance, cleaning, lubrication, and inspection should be performed according to the machine's operating requirements.

Wide Range of Applications

The Multi Functional Double Horizontal Hinges Riveting Machine can be used for suitable applications in furniture hardware, cabinet manufacturing, doors, windows, metal products, hardware accessories, storage equipment, and other industries.

Its customized tooling capability makes it suitable for manufacturers with specific hinge designs and production requirements.

B2B OEM and Customized Solutions

For international hardware manufacturers, furniture factories, hinge suppliers, cabinet manufacturers, and OEM production companies, customized hinge riveting equipment can provide a practical solution for repetitive assembly operations.

Customers can provide product samples, hinge drawings, rivet specifications, material information, and required production capacity for technical evaluation.

Key Features
Multi Functional Hinge Riveting
Double Horizontal Hinge Configuration
Automatic Riveting Operation
Accurate Hinge Positioning
Stable Riveting Force
Customized Dies And Fixtures
Customized Riveting Heads
Reduced Manual Labor
Improved Production Efficiency
Consistent Hinge Assembly
Suitable For Furniture Hardware
OEM And Custom Machine Solutions
Main Applications
Cabinet Hinges
Furniture Hardware
Wardrobe Hardware
Kitchen Cabinet Components
Door Hinges
Window Hardware
Metal Hardware Products
Storage Furniture
Office Furniture
Architectural Hardware
Industrial Hinge Components
OEM Hardware Production
FAQs
1. What is a Double Horizontal Hinges Riveting Machine?

It is an industrial machine designed to position and rivet compatible double horizontal hinge components onto suitable workpieces.

2. What products can use this machine?

Typical applications include furniture hardware, cabinet hinges, doors, windows, storage equipment, metal products, and other components requiring hinge riveting.

3. Is the machine fully automatic?

The exact automation level depends on the machine configuration. Automatic feeding, positioning, and riveting functions can be configured according to production requirements.

4. Can the machine handle different hinge sizes?

Different hinge sizes may require different fixtures, dies, riveting heads, or tooling. The machine can be customized for suitable hinge specifications.

5. Can the machine be customized?

Yes. Tooling, fixtures, positioning systems, riveting components, and other parts can be customized according to hinge samples and technical drawings.

6. What information should I provide for customization?

Provide hinge samples or drawings, rivet dimensions, workpiece material and thickness, hinge positioning requirements, and expected production capacity.

7. Can it be used for cabinet hinges?

Yes. The machine is suitable for compatible cabinet hinge riveting applications with appropriate tooling and fixtures.

8. Can it rivet metal hinges?

Suitable metal hinge applications can be supported when the riveting force, dies, and tooling are selected according to the hinge and rivet specifications.

9. How does automatic riveting improve production?

It reduces repetitive manual positioning and riveting operations and can provide a more consistent production cycle for high-volume manufacturing.

10. How do I select the right configuration?

Provide your hinge sample, workpiece sample, technical drawings, material information, rivet specifications, and required production volume. These details help determine the appropriate machine and tooling configuration.

Why Choose Us
Professional Riveting Machine Manufacturer

We provide industrial riveting and fastening equipment for furniture hardware, hinges, metal components, and other B2B manufacturing applications.

Customized Hinge Tooling

Different hinge designs require different positioning and riveting solutions. We can provide customized dies, fixtures, guides, and riveting components according to customer requirements.

Factory Direct B2B Service

We provide direct technical communication, machine configuration support, export packaging, shipping coordination, and after-sales assistance.

Application-Based Solutions

Customers can provide hinge samples, drawings, workpiece samples, and production requirements for machine and tooling evaluation.

Stable Production Performance

Controlled positioning and riveting help establish a repeatable manufacturing process and improve consistency across production batches.

International Export Support

We support overseas customers with technical documentation, operating guidance, spare parts support, packaging, shipping coordination, and after-sales service.
