WTDM Drum Mower, Tractor 3 Point Finish Mowers Cutter Hydraulic Drive Hay Drum Mower Technical Parameters

Drum Mower for Sale, Tractor 3 Point Finish Mowers Cutter Supplier,Hay Drum Mower,Each drum has three knives,The hay cut by the knives is carried between the drums and put in a loosely laid swath.

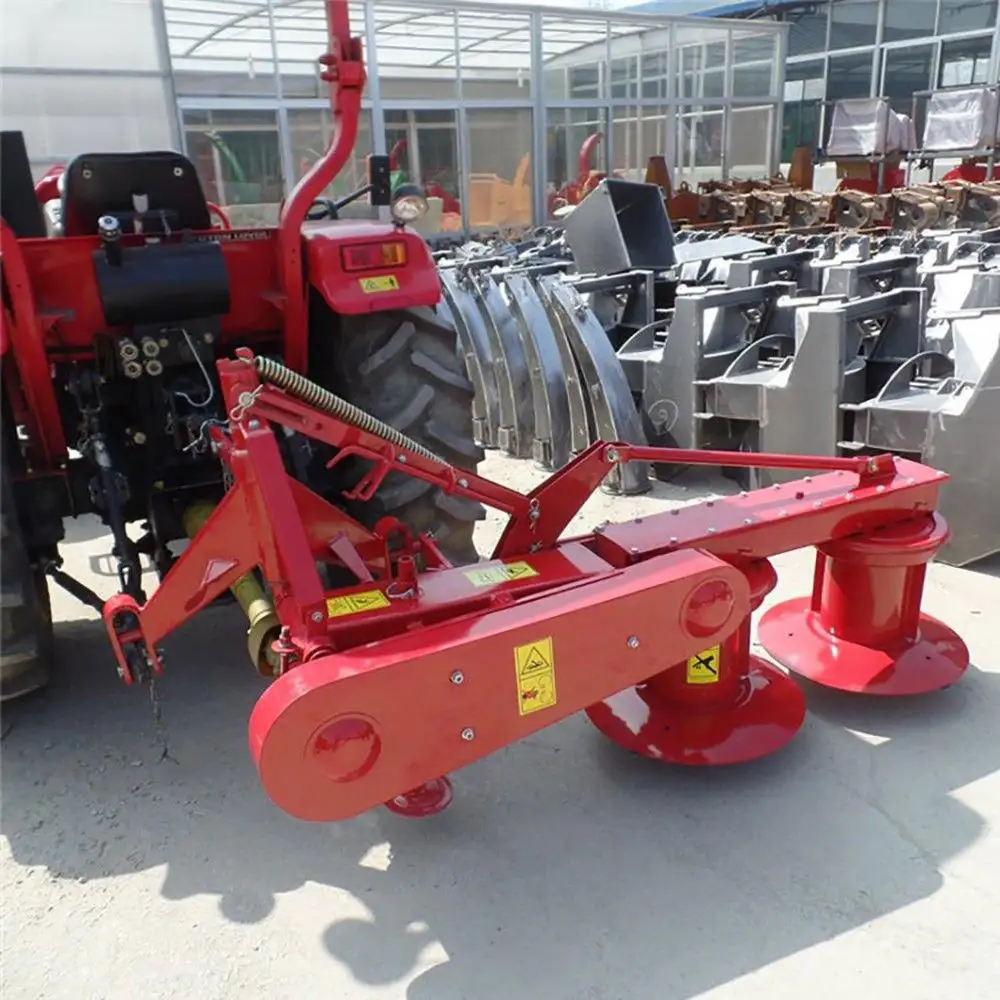

The DM165 mower is a two—drum mower. Each drum has three knives, which can be changed quickly with a simple tool. The hay cut by the knives is carried between the drums and put in a loosely laid swath. Three V—belts transmit power to the input gear shaft, then to the main drive shaft, which in turn drives the drums through the bevel gears.

A breakaway device is incorporated on this machine, which automatically operates when the mower hits an obstruction. This protects the drums from damage.


  • Move at High Speeds.
  • No Hydraulics Necessary (unless using Hydraulic Conversion Kit).
  • Few Moving Parts & Easy Maintenance.
  • Great Alternative to Disc & Sickle bar Mowers for Small Hay Producers.
  • Easily Cuts Through Tall & Thick Grass.
  • Designed for Reliable Mowing in All Conditions.
Model WTDM135 WTDM165
Cutting Width 135cm 165cm
Cutting Height  3cm 3cm
Transport Width 95cm 140cm
Transport Length 265cm 285cm
Height 110cm 110cm
Weight 340kg 390kg
Drums 2pcs 2pcs
Blades 6pcs 6pcs
P.T.O Speed 540rpm 540rpm
P.T.O Drive Shaft with with
Mounted Cat Cat1 Cat1 & 2 & 3
Tractor   power ≥20hp ≥28hp
