Go back to Catalog: Concrete Mixer Truck
Motor Concrete Mixer, Portable Petrol / Diesel Power Mobile Cement Making Mixer Technical Parameters

Motor Concrete Mixer for Sale, Supply Portable Petrol Power Mobile Cement Making Mixer A concrete mixer is an essential construction machine designed to blend cement, water, and aggregates.

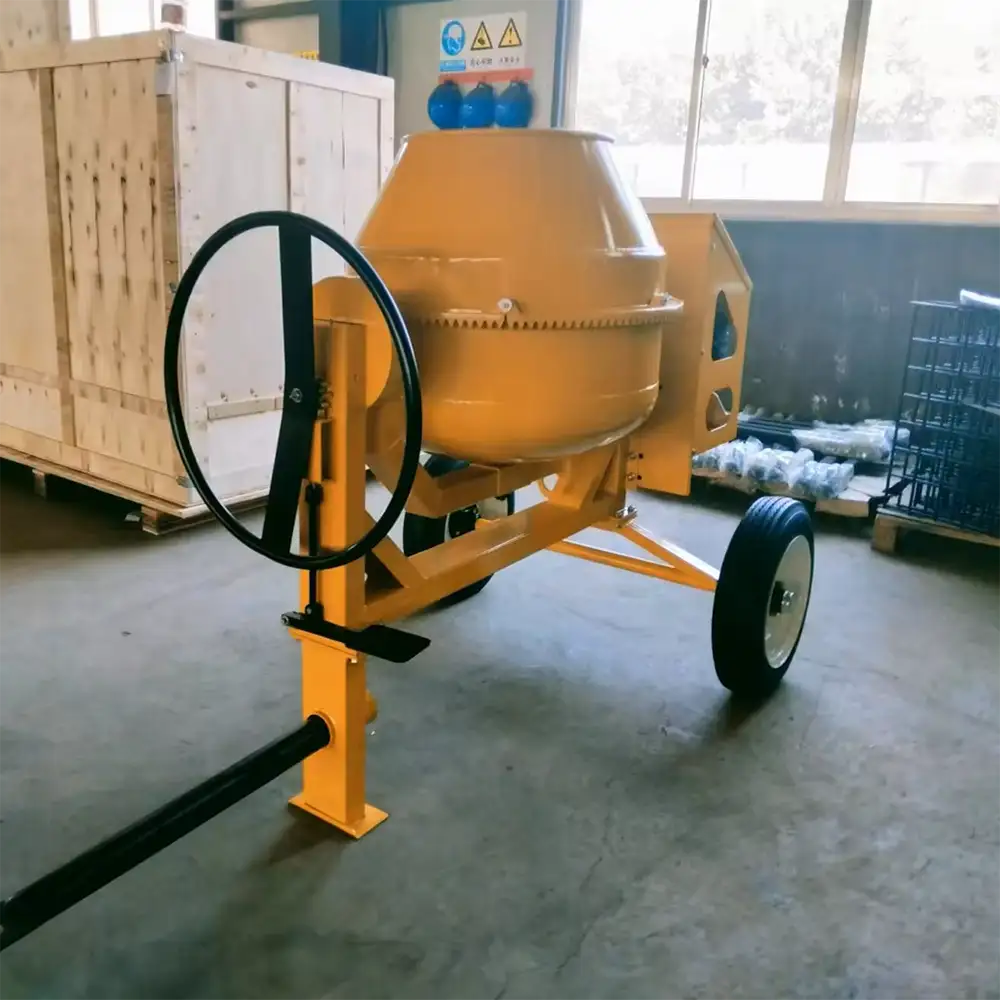

Motor Concrete Mixer, Portable Petrol Power Mobile Cement Making Mixer

A concrete mixer is an essential construction machine designed to blend cement, water, and aggregates (such as gravel or sand) to produce concrete for building construction. Various models of concrete mixers are available, including truck-mounted, portable, and stationary units. The advent of concrete mixers has significantly enhanced the construction industry by streamlining the concrete mixing process, improving efficiency, and ensuring consistent quality.

MODEL
Specification
Engine


260L
Feed Capacity: 260L


Diesel engine:6HP

Gas engine:5.5HP

Electricengine:1.5kw
Drum Mouth:450mm
Drum Diameter:700mm
Drum Height:687mm
RPM of Drum:18
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:6-10m³/h
Ring Gear: Cast Iron
Handle type: Swivel handle
Wheel: pneumatic wheel


300L
Feed Capacity: 300L

Diesel engine:6HP

Gas engine:5.5HP

Electric engine:1.5kw
Drum Mouth:450mm
Drum Diameter:700mm
Drum Height:777mm
RPM of Drum:20
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:8-12m³/h


350L
Feed Capacity: 350L


Diesel engine:6HP

Gas engine:6.5HP

Electric engine:2.2kw
Drum Mouth:516mm
Drum Diameter:800mm
Drum Height:766mm
RPM of Drum:20
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:10-14m³/h


400L
Feed Capacity: 400L


Diesel engine:6HP

Gas engine:6.5HP

Electric engine:2.2kw
Drum Mouth:516mm
Drum Diameter:800mm
Drum Height:851mm
RPM of Drum:20
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:12-16m³/h


450L
Feed Capacity: 450L


Diesel engine:6HP

Gas engine:6.5HP

Electric engine:2.2kw
Drum Mouth:516mm
Drum Diameter:800mm
Drum Height:936mm
RPM of Drum:20
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:14-18m³/h


500L
Drum Mourh:566mm


Diesel engine:9HP

Gas engine:9HP

Electric engine:3kw
Drum Diameter:900mm
Drum Height:920mm
RPM of Drum:17
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:16-20m³/h


600L
Drum Mouth:566mm


Diesel engine:9HP

Gas engine:9HP

Electric engine:3kw
Drum Diameter:900mm
Drum Height:1040mm
RPM of Drum:17
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:20-24m³/h


700L
Drum Mouth:600mm


Diesel engine:9HP

Gas engine:9HP

Electric engine:3kw
Drum Diameter:1000mm
Drum Height:1075mm
RPM of Drum:17
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:24-28m³/h


800L
Drum Mouth:600mm


Diesel engine:9HP

Gas engine:9HP

Electric engine:3kw
Drum Diameter:1000mm
Drum Height:1205mm
RPM of Drum:17
Upper drum thickness: 3.0mm
Lower drum thickness: 4.0mm
Productivity:28-32m³/h
