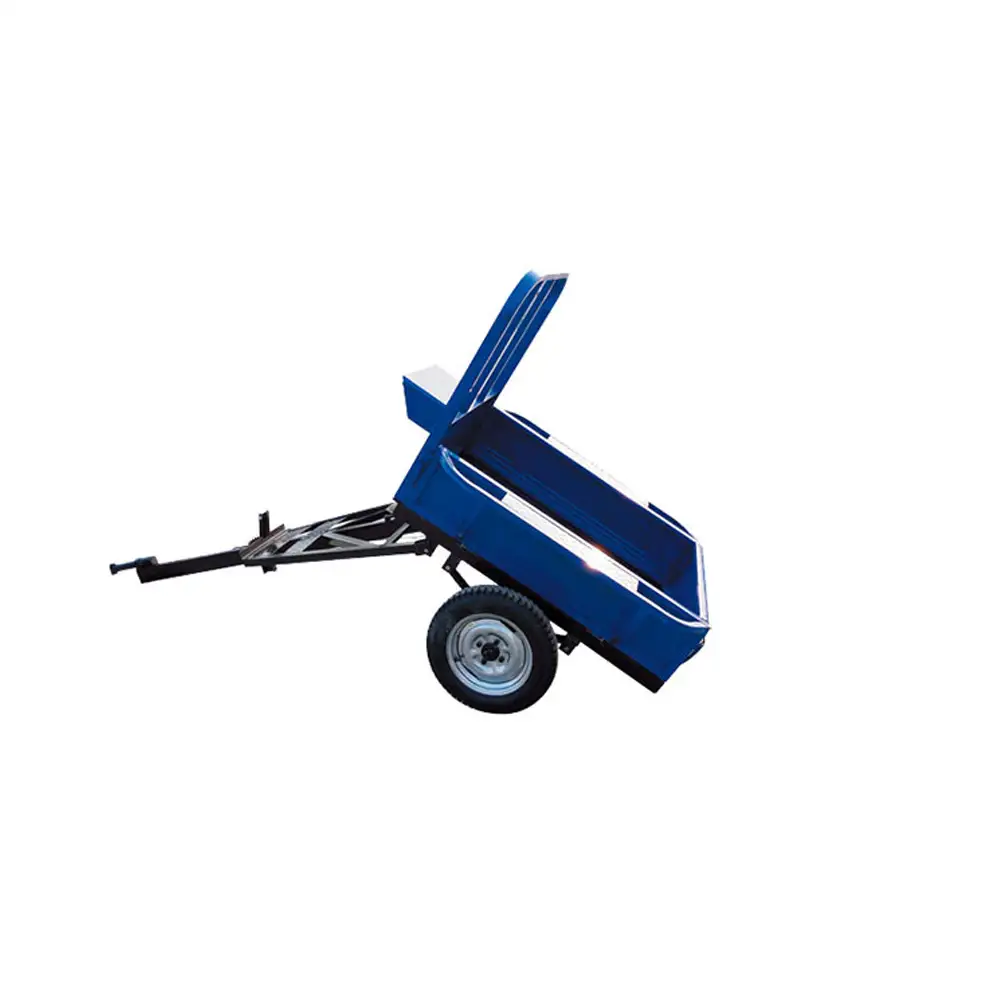

Mini Tillage Machine Trailer Technical Parameters

Mini Tillage Machine Trailer Factory Price , Cargo Bucket, Mini Tractor Trailer Truck, Small Farm Utility Trailer Supplier.

1) loading capacity: 500kg
2) for 4hp-8hp mini tiller(walking tractor)
3) with brake
4) easily assembled.
Overall dimension(mm) 3010*1600*1000
Carriage dimension(mm) 1400*1000*300
Seat dimension(mm) 400*240*50
Matched tire 4.00-10 or 4.50-12
Net weight(kg) 134kg
Load capacity(kg) 500kg
Max. load capacity(kg) 750kg
Brake type Mechanical type
Angle of Inclination > 45°
Height of loading surface 490mm
Quantity/40HQ 140 units
