Mini Crawler Dozer Skid Steer Loader Technical Parameters

Mini crawler dozer skid steer loader with powerful hydraulic system and track drive. Ideal for earthmoving, grading, landscaping, farming, construction, snow removal, and material handling applications..

The Mini Crawler Dozer Skid Steer Loader is a compact, powerful, and highly versatile machine designed for construction, agriculture, landscaping, property maintenance, and earthmoving operations. Combining the functionality of a compact track loader and mini dozer, this machine delivers exceptional traction, stability, and productivity in challenging working conditions.

Equipped with a durable crawler track system, high-performance hydraulic components, and a universal quick-attach mounting plate, the mini crawler dozer skid steer loader can handle a wide range of tasks, including grading, loading, digging, trenching, snow removal, material transport, and site preparation.

Its compact size allows efficient operation in confined spaces where larger construction equipment cannot access.

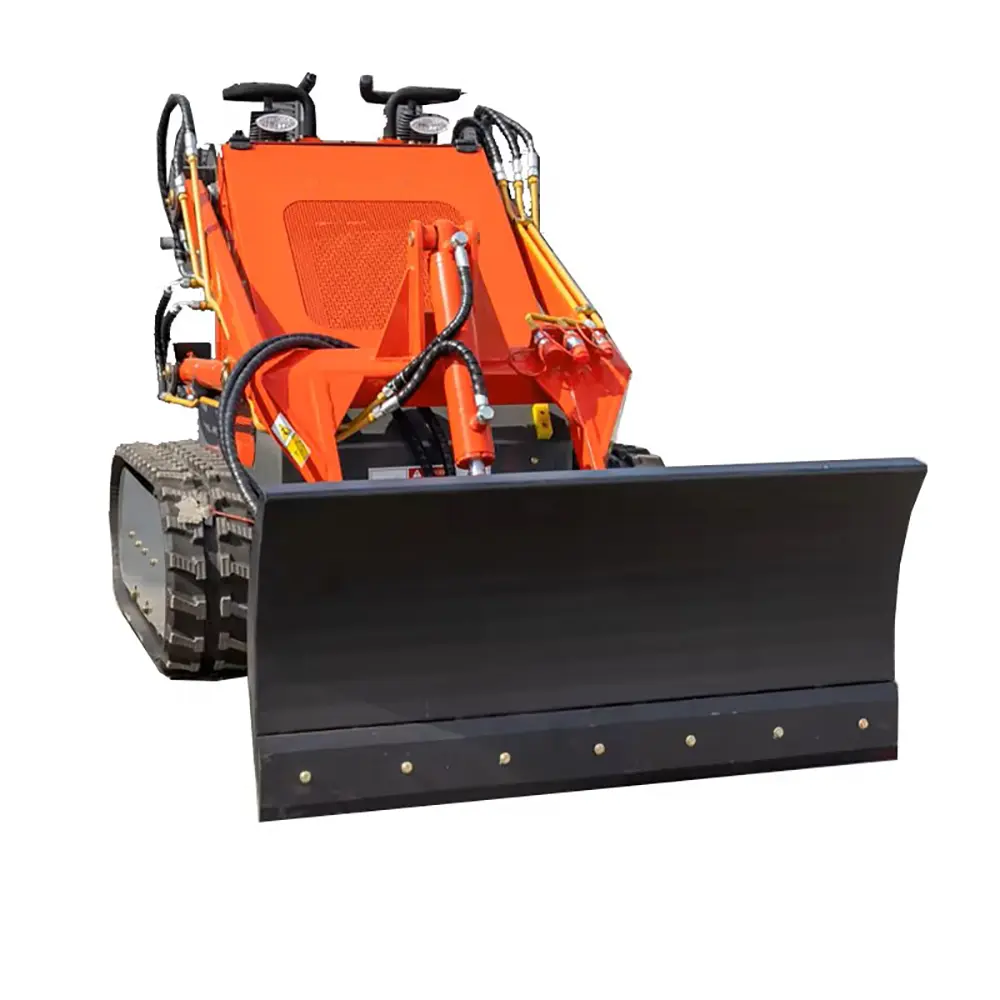

Mini Crawler Dozer Skid Steer Loader
PRODUCT PARAMENTERS

CSL50
CSL65
CSL100
CSL120
Operating load (kg)
700
1000
1200
1500
Max Speed(km/h)
10
12
12\18
12\18
Rated flux (L/min)
60
80
88
88
High Flow Flux (L/min)
*
120
140
140
Tire(track)model
300X525
320X84
320X84
450X86
Rated power (Kw)
36
55
74
103
Fuel tank capacity (L)
50
90
90
90
self weight bucket (kg)
2800
3800
4500
4800
Bucket capacity (m³)
0.3
0.5
0.55
0.6
Overall operating height (mm)
3686
3350
3480
4070
Dumping height(mm)
1933
2100
2230
2450
Dumping reach(mm)
650
790
715
700
Rollback o bucket on ground(°)
30
Rollback of bucket at full height(°)
103
104
Wheelbase(mm)

1240
1500
1500
Ground clearance(mm)
145
140
200
200
Rear axle to bumper (mm)
910
594
890
938
Tread width (mm)

1102
1462
1654
Width (mm)
912
1402
1782
1994
Bucket width (mm)
950
1500
1830
2030

Heavy-Duty Crawler Track System

The rubber track undercarriage provides superior traction and flotation on difficult terrain.

Benefits
Excellent stability
Low ground pressure
Strong climbing capability
Improved traction on soft ground
Reduced surface damage

Suitable for mud, sand, gravel, snow, and uneven terrain.

Powerful Hydraulic Performance

The advanced hydraulic system ensures efficient operation and strong attachment performance.

Features include:

Fast hydraulic response
High breakout force
Smooth machine control
Auxiliary hydraulic output
Increased work efficiency
Compact Dozer & Loader Design

The machine combines loading and grading functions into one versatile platform.

Capabilities include:

Material loading
Site grading
Land leveling
Earthmoving
Backfilling
Surface preparation

The compact design improves maneuverability in restricted working areas.

Universal Quick Attachment System

The skid steer quick coupler supports a wide variety of attachments.

Available attachments include:

Loader bucket
Dozer blade
Pallet forks
Grapple bucket
Trencher
Auger
Hydraulic breaker
Snow blade
Sweeper broom
Brush cutter
Landscape rake

One machine can perform multiple jobs throughout the year.

Applications
Construction Projects

Suitable for:

Site preparation
Earthmoving
Backfilling
Material handling
Demolition support
Landscaping & Property Maintenance

Ideal for:

Land grading
Garden construction
Soil movement
Tree planting
Lawn preparation
Agricultural Operations

Widely used for:

Farm maintenance
Feed transportation
Manure handling
Land clearing
Material loading
Municipal Projects

Used for:

Snow removal
Street maintenance
Public works
Park maintenance
Industrial Material Handling

Efficient for:

Warehouse loading
Facility maintenance
Pallet movement
Construction material transport
