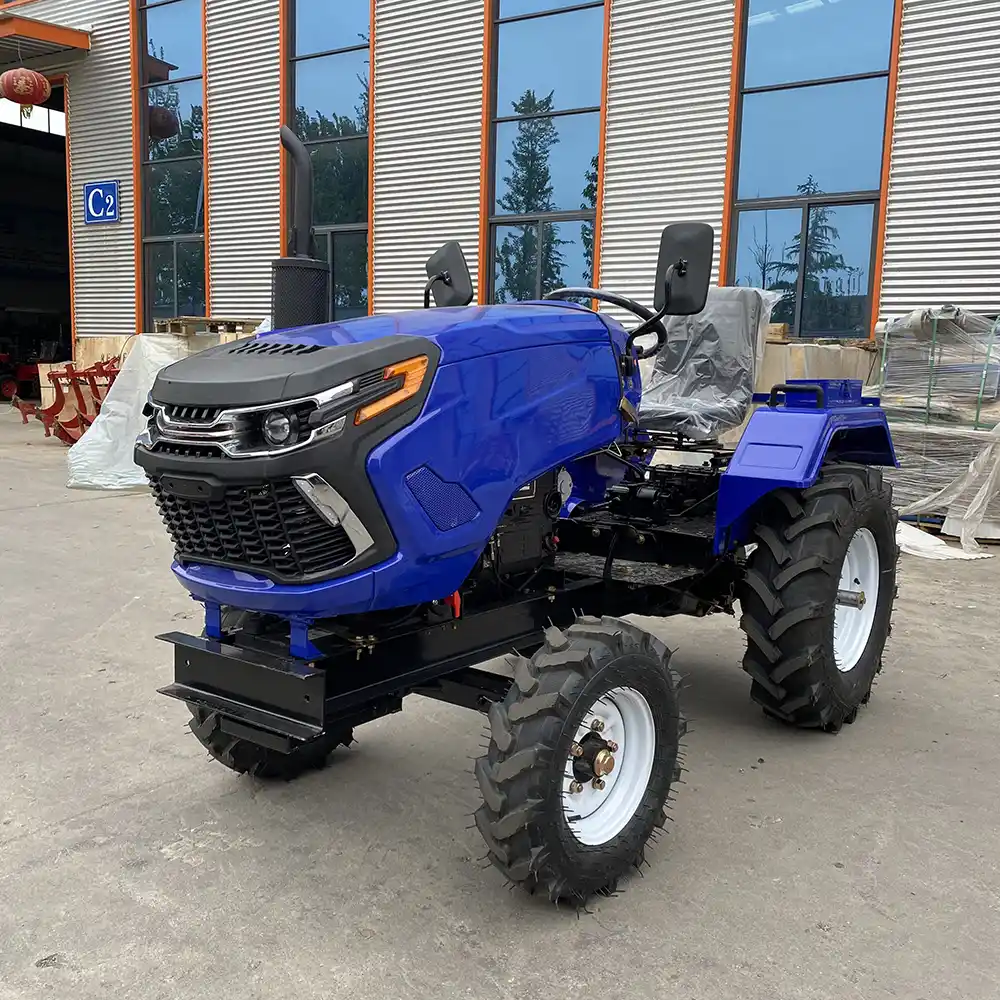

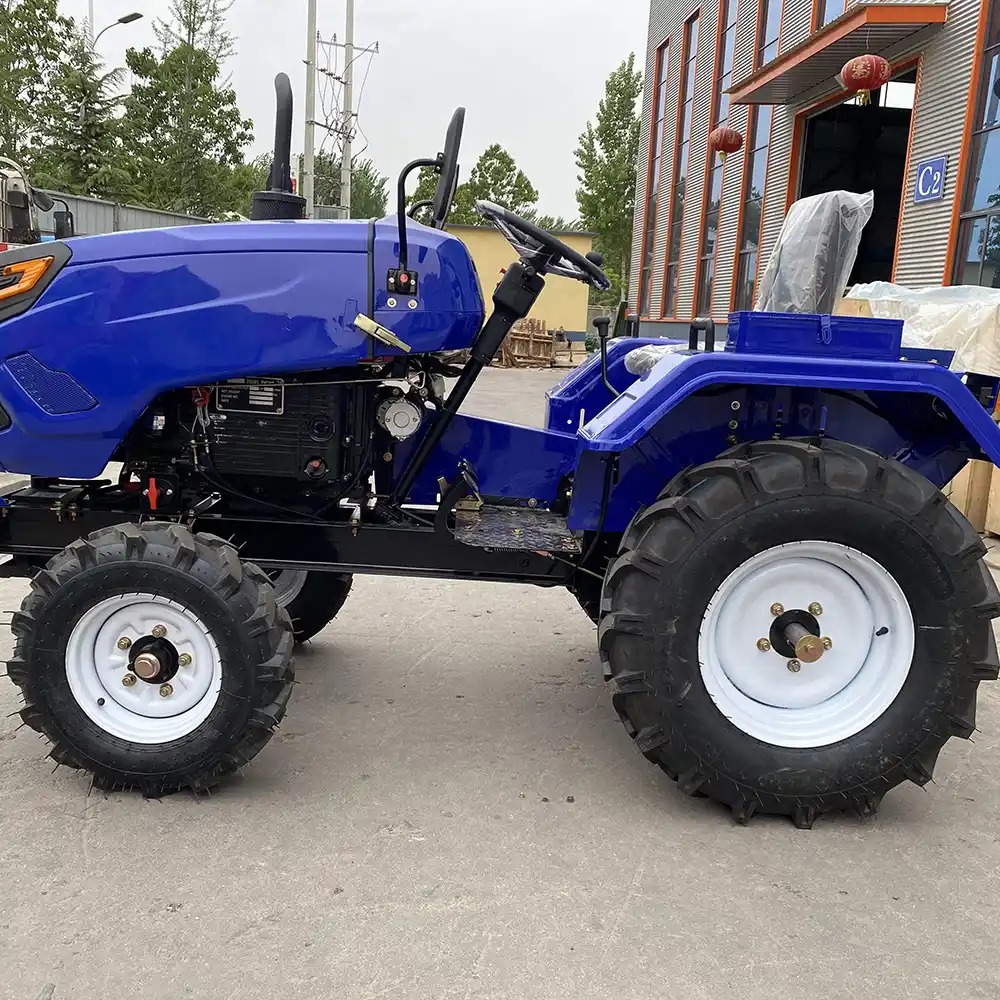

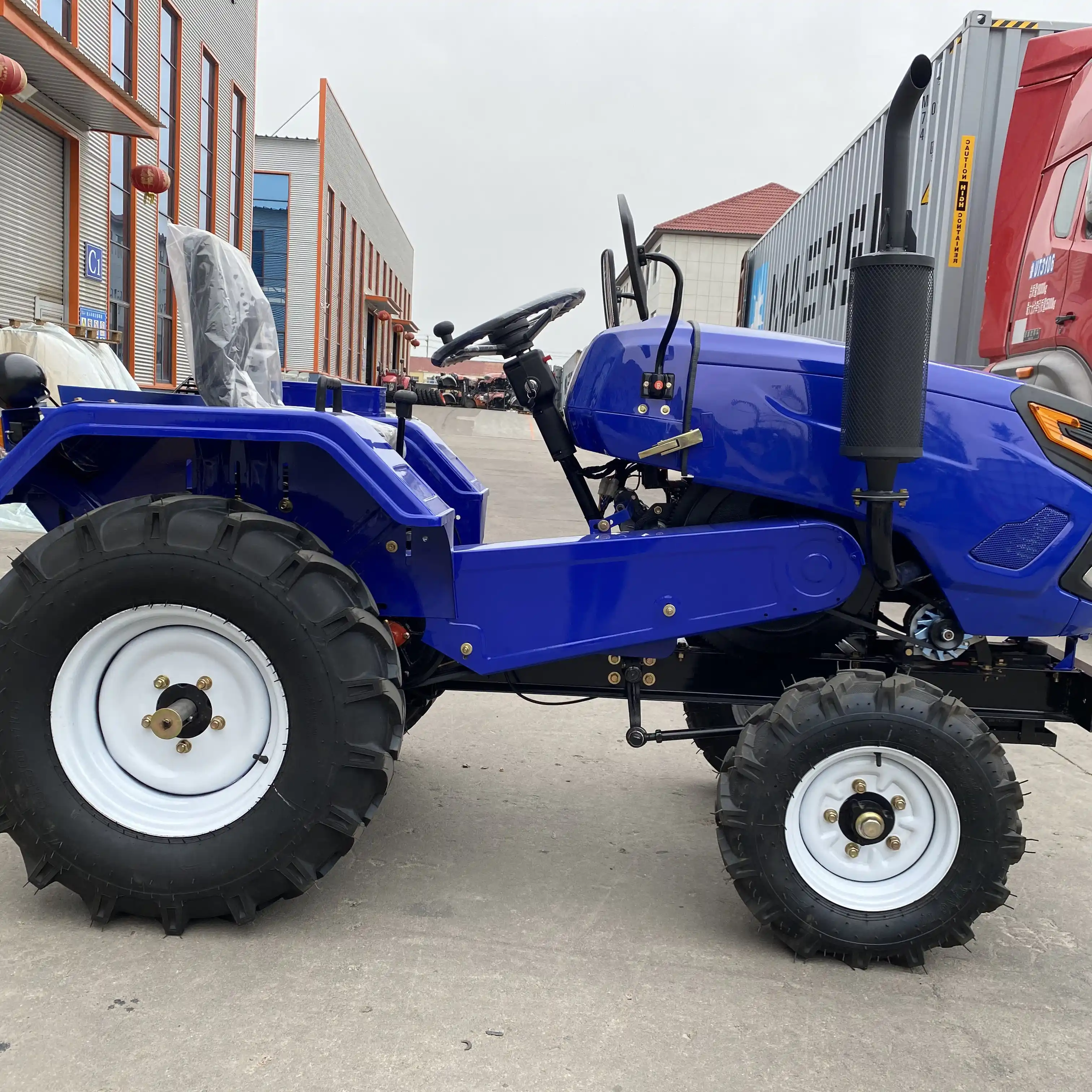

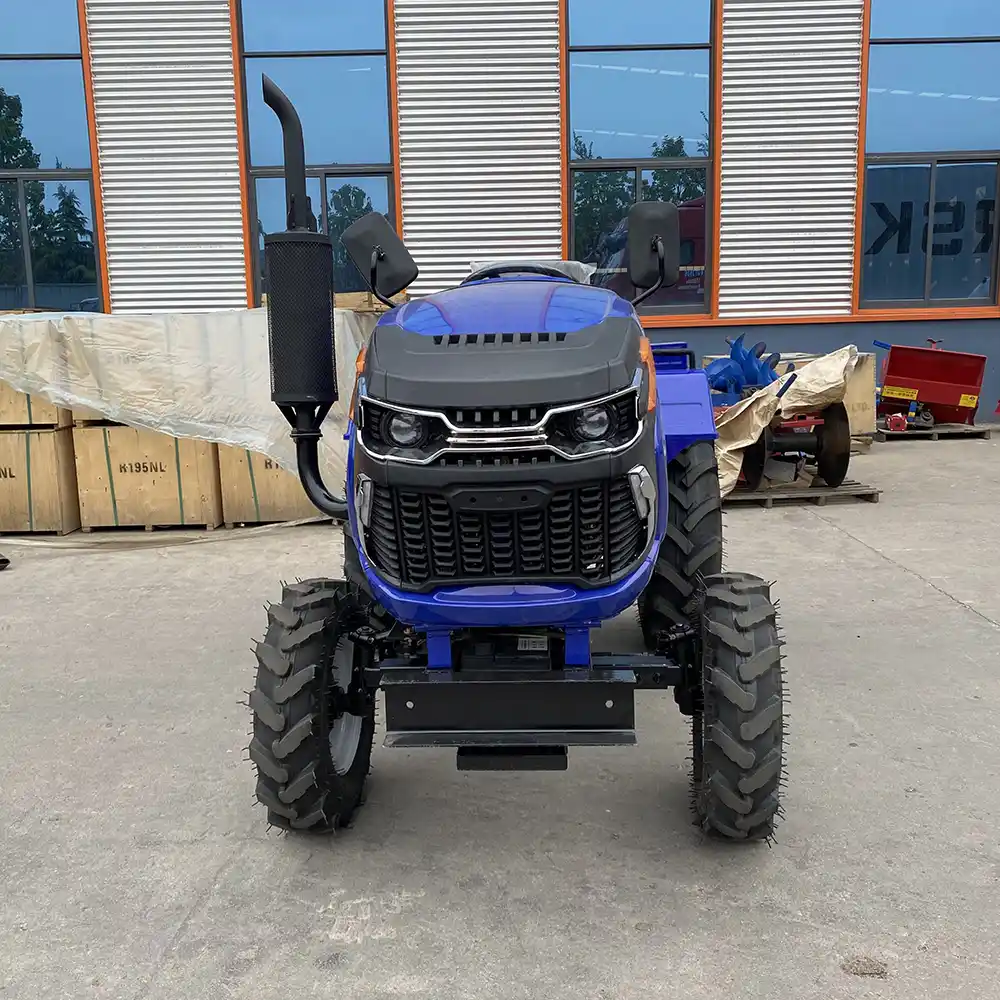

Mini Agricultural Tractor, 4 Wheels Technical Parameters

Mini Agricultural Tractor, 4 Wheels, Chinese manufacturer free shipping 4wd mini farm garden tractor with front loader epa engine Tractors are the most widely used agricultural machinery. It only needs to replace the connected different acc.

Mini Agricultural Tractor, 4 Wheels, Chinese manufacturer free shipping 4wd mini farm garden tractor with front loader epa engine

Tractors are the most widely used agricultural machinery.
It only needs to replace the connected different accessories (front loader, rear digger, agricultural trailer, disc plow, harrow, seeder, rotary tiller, etc.) to complete various agricultural work: plowing, plowing, sowing, harvesting wait
We have small tractors (25-60hp), medium tractors (70-100hp), large tractors (110-220hp), Euro V tractors (25, 50, 75hp) to meet the needs of different regions and different customers

Parameters Drive Type / 4WD
Overall Dimensions L×W×H mm 3180×1285/1450×2290
Wheel Track Front mm 970/1210
Rear mm 1000/1160
Wheel Bass mm 1540
Ground Clearance mm 300
Rated Traction Force N 6620
Construction Mass kg 1080
Min.Turning Radius mm 3270
Theoretical Speed Forward(low-grade) km/h 0~8.2
Reverse(low-grade) km/h 0~8.2
Forward(high grade) km/h 0~20
Reverse(high grade) km/h 0~20
Engine Specifications Model
/
Perkins 403F-11
Type
/
3-Cylinder Vertical, water cooled,4 stroke cycle
indirect injection,
Rated Power kw/hp 18.4/25
Rated Speed rpm 2600
Bore×Stroke mm 77×81
Total Displacement L 1.131
Drive System Clutch
/
Monolithic dry combined with friction
Gear Box
/
HST+Two gears
Main Drive
/
A pair of spiral bevel gears
Differential
/
Two closed planetary wheel
Differential Lock
/
Tooth type
Final Transmission
/
Ingle - stage straight - tooth cylindrical gear external type
Traveling Mechanism Tyre Front
/
26×7.5-12 grass tire
Rear
/
11.2-20 grass tire
Steering Gear
/
Full Hydraulic Steering
Brake
/
Double pedal disc brakes
Working Device Hydraulic System Lifting Capacity at
610mm Behind Lift
/
3900
3-Point Suspension
/
Category :I
P.T.O Shaft
(Rear)
Rotating Speed rpm 540/1000
Spline Size
/
6-Φ35 Rectangular Spline
P.T.O Shaft
(Mid)
Rotating Speed rpm 2000
Spline Size
/
11 teeth involute spline
