Ladder Making Machine Dual Head Tube Squeezing Machine for Aluminum Fiberglass Extension Ladders

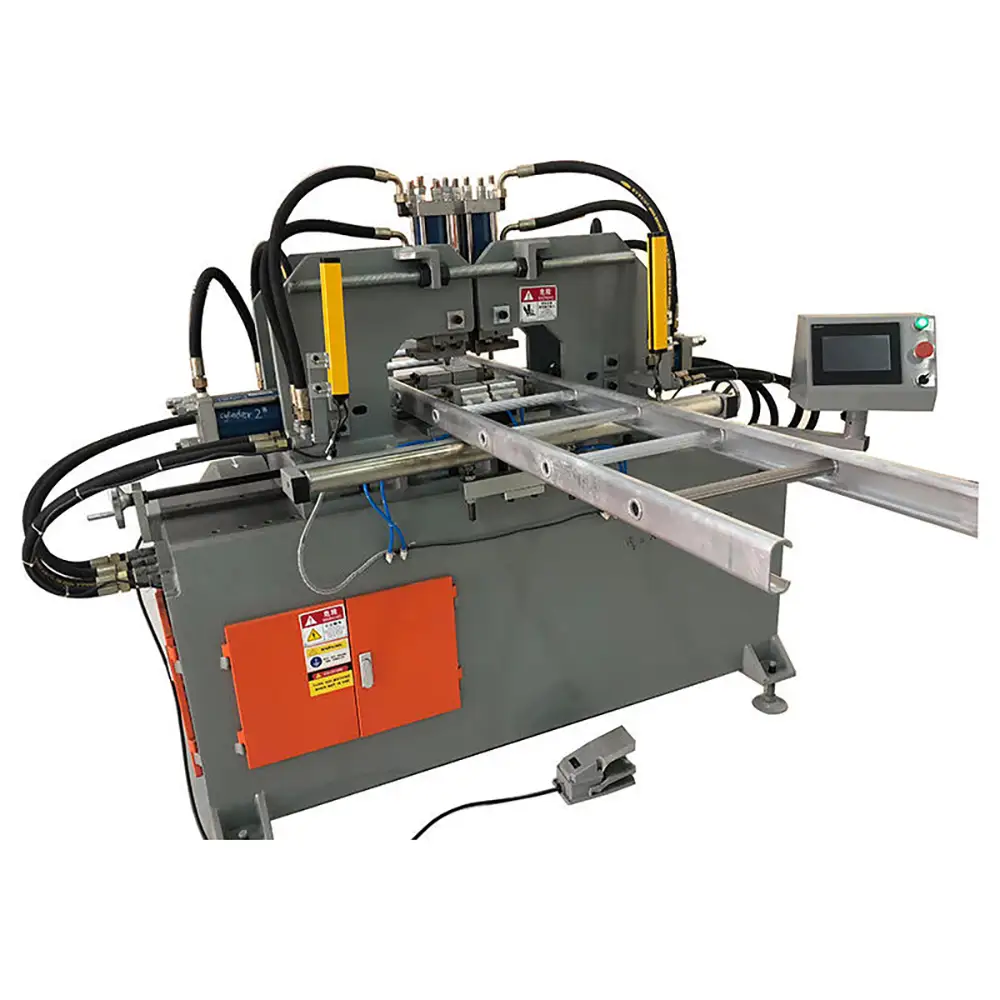

Ladder Making Machine for Aluminum and Fiberglass Extension Ladders

The Ladder Making Machine Dual Head Tube Squeezing Machine for Aluminum Fiberglass Extension Ladders is designed for manufacturers producing aluminum ladders, fiberglass extension ladders, telescopic-style ladder components, and other tubular ladder structures. Combining a dual-head tube squeezing process with an industrial production design, the machine provides an efficient solution for forming and processing ladder tubes during manufacturing and assembly.

Ladder production requires accurate processing of rails, rungs, tubes, and connection points. Traditional manual operations can require significant labor and may create variations between finished products. A dedicated ladder making machine can help standardize repetitive tube-processing operations and improve production workflow.

The dual-head configuration is designed to process the required tube ends or connection areas in a coordinated manner. Depending on the ladder design, tube dimensions, material, tooling, and production requirements, the machine can be configured for different ladder manufacturing applications.

It is suitable for ladder factories, aluminum extrusion manufacturers, fiberglass ladder manufacturers, industrial equipment producers, hardware companies, and OEM ladder production lines.

Product Features
1. Dual head tube outer and inner squeezing machine   2. Suitable for different shapes 3. Suitable for different types ladders, fiberglass, aluminium, extension, straight, sliding ladders, etc. Products Description

Mold Model	Outer tube squeezing machine
Control system	PLC+ touch screen
Feeding method	Manual feeding material
System pressure	14Mpa
Capacity	40KN
Air pressure	0.6-0.8Mpa
Power	7.5Kw
Ladder width	300-600mm
Ladder spacing	＞280mm
Minimum squeeze stroke	150mm
Equipment weight	1200
Overall Dimension	235*120*170cm
Power input	220V/ 380V/ 415V, or customized

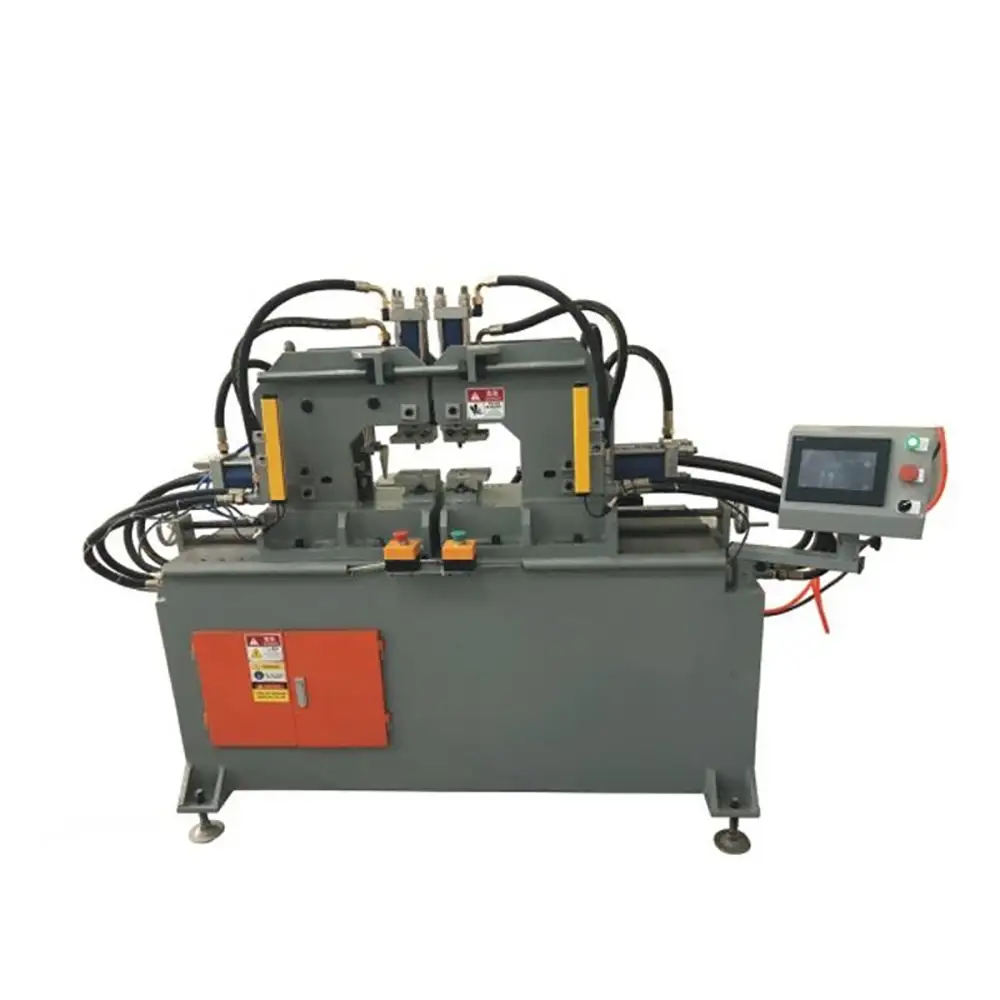

Dual Head Tube Squeezing Machine

The core function of this equipment is the dual head tube squeezing process. Tube squeezing is used to deform or form selected areas of tubular components so they can meet specific assembly or connection requirements.

For ladder manufacturing, controlled tube forming can be important when ladder tubes need to be connected to other structural components. A dual-head system can improve process organization by working on two sides or two corresponding positions according to the machine configuration.

The exact forming method depends on the ladder structure and required finished dimensions. Manufacturers should provide tube samples, drawings, material specifications, and finished product requirements when selecting the appropriate tooling.

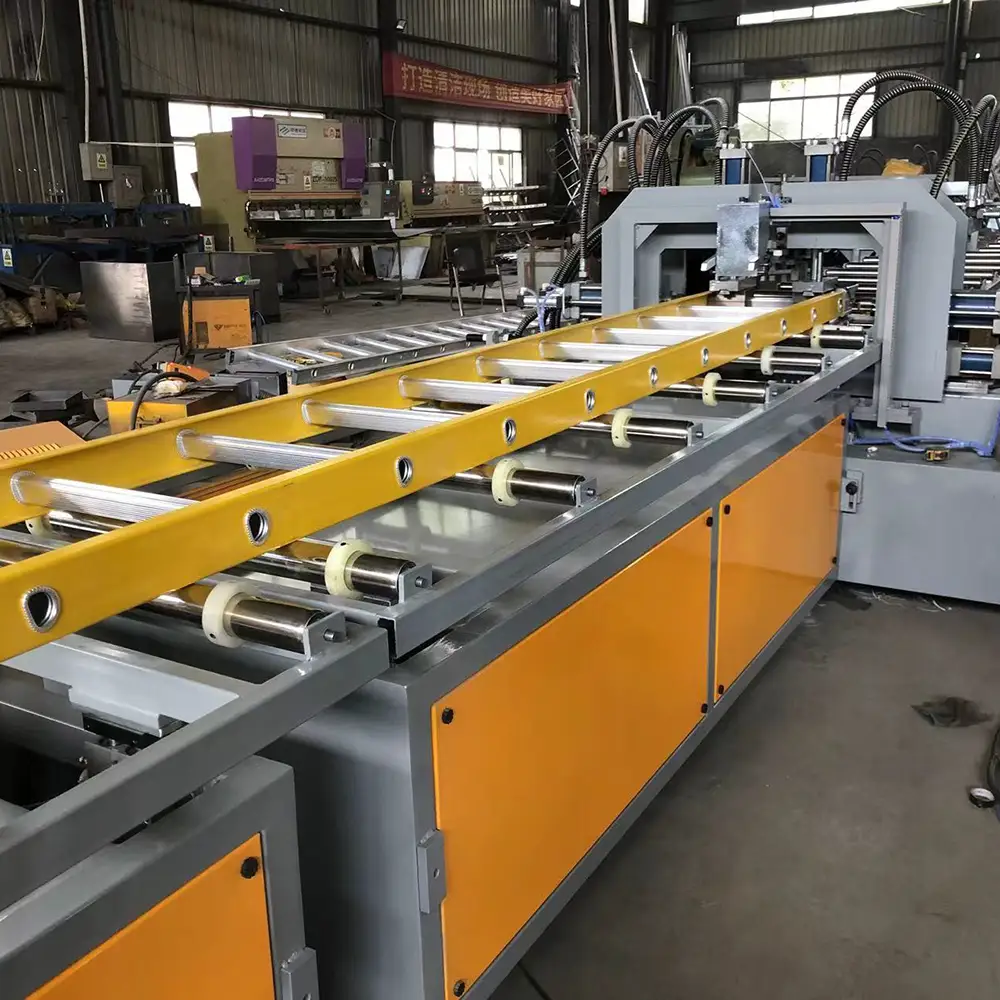

Aluminum Ladder Making Machine

Aluminum ladders are widely used in construction, maintenance, warehouses, household applications, commercial facilities, and industrial environments. Aluminum tube and extrusion components require controlled processing to create stable connections while maintaining the required product dimensions.

The ladder making machine can support suitable aluminum tube processing and ladder assembly operations. It can be incorporated into a production workflow where aluminum rails and rungs are prepared, positioned, formed, and assembled.

For aluminum ladder manufacturers, dedicated production equipment can help reduce repetitive manual processing and create a more standardized manufacturing process.

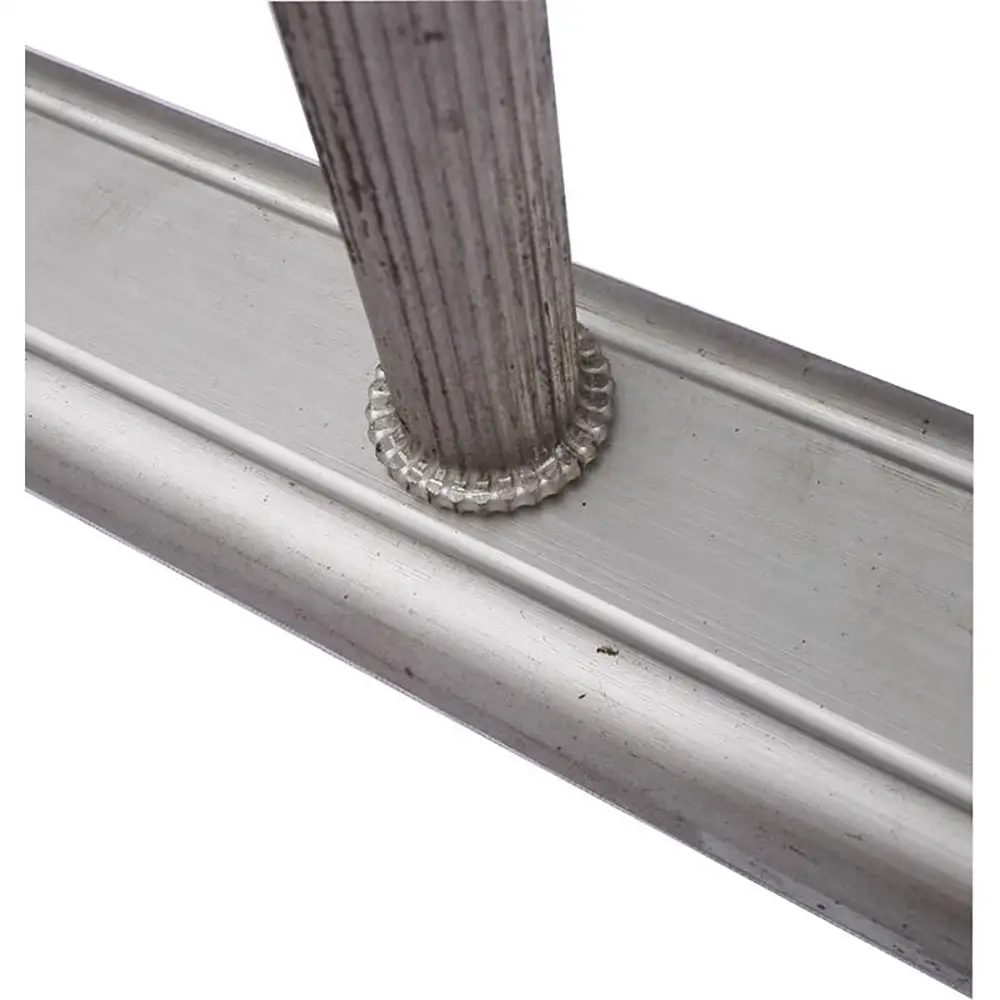

Fiberglass Ladder Manufacturing

Fiberglass ladders have different material characteristics from aluminum ladders and are commonly used where electrical insulation and non-conductive properties are required.

The production process for fiberglass ladders may involve specific profiles, tubes, rails, rungs, drilling, forming, and assembly requirements. Machine compatibility should therefore be evaluated according to the actual fiberglass profile and connection method.

The dual-head tube squeezing machine can be considered for suitable fiberglass ladder manufacturing applications when the forming process matches the material and product design.

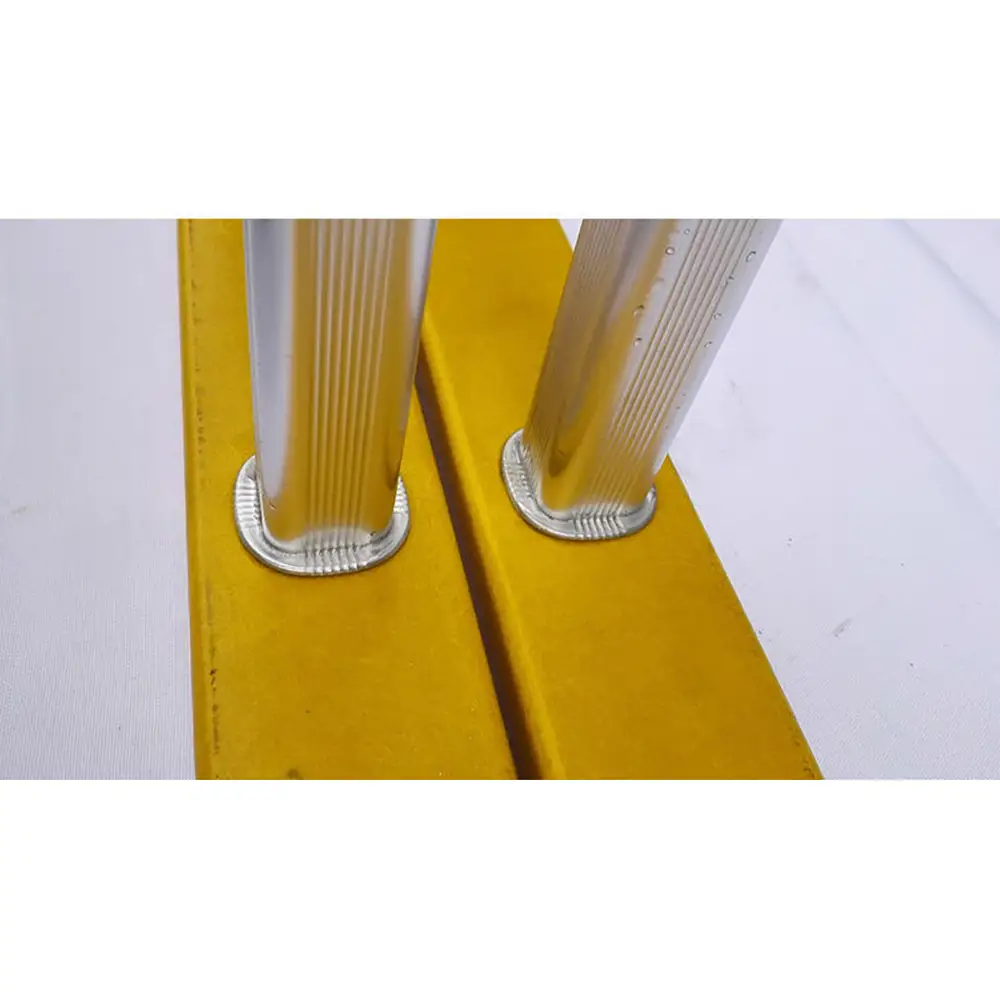

Extension Ladder Production

Extension ladders consist of multiple ladder sections designed to extend vertically. Their production requires consistent dimensions, reliable component connections, and accurate positioning.

A ladder manufacturing machine can help standardize repetitive processing operations for extension ladder components. Consistent tube forming and assembly can contribute to more uniform finished products.

For manufacturers producing different extension ladder models, flexible tooling and adjustable positioning can be important factors when selecting production machinery.

Ladder Tube Processing

Tubular components are central to many ladder designs. Depending on the product structure, tubes or profiles may require cutting, drilling, punching, squeezing, forming, riveting, or assembly.

The dual-head squeezing machine focuses on the tube forming portion of this process. It can be used as part of a larger ladder production line or as a dedicated workstation for a specific manufacturing step.

Integrating the machine into a standardized workflow can help manufacturers improve production organization and reduce unnecessary manual handling.

Dual Head Processing Efficiency

The dual-head structure provides a coordinated approach to tube processing. Instead of performing corresponding operations separately, the machine can be designed to process compatible positions using two working heads.

This can help improve production efficiency for suitable ladder components and reduce repeated positioning work.

Actual cycle time and output depend on the tube material, dimensions, ladder structure, tooling, operator workflow, and selected machine configuration.

Ladder Assembly Applications

After tube and profile preparation, ladder components must be assembled accurately. Rails, rungs, hinges, brackets, support components, and other hardware may need to be positioned according to the ladder design.

A dedicated tube squeezing process can help prepare compatible components for subsequent assembly. Manufacturers can combine the machine with other equipment such as cutting machines, drilling machines, punching machines, riveting machines, and assembly fixtures to create a more complete ladder production process.

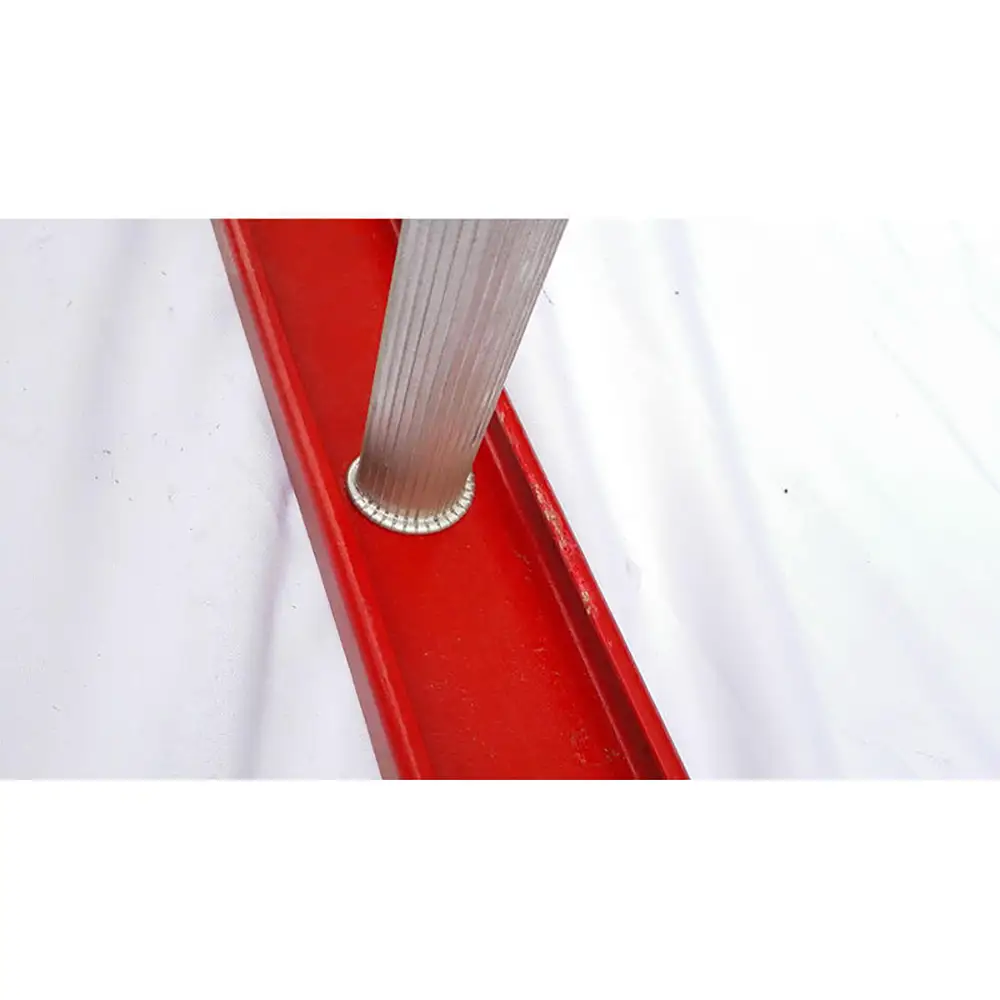

Aluminum Tube Forming

Aluminum tubing and profiles can be formed for specific connection or assembly requirements. Proper tooling is important because different aluminum alloys, tube dimensions, wall thicknesses, and profile geometries may require different processing conditions.

Manufacturers should verify the tube specifications before selecting dies and forming components.

The machine can be configured according to the production requirements, allowing manufacturers to develop a more application-specific ladder manufacturing solution.

Fiberglass Tube Processing

Fiberglass profiles require careful consideration of their dimensions, structure, and material properties. Tooling and forming methods should be selected based on the actual profile.

Before mass production, application testing is recommended to confirm that the squeezing process produces the required shape without negatively affecting the product.

For OEM fiberglass ladder manufacturers, sample testing can be particularly useful when developing a new ladder model.

Production Quality and Consistency

Ladder manufacturing requires consistency because components from different production batches must fit together correctly. Variations in tube forming, hole position, component dimensions, or assembly alignment can affect the final product.

A dedicated production machine can help establish a repeatable manufacturing process. Combined with suitable fixtures, tooling, inspection procedures, and operator training, the equipment can contribute to more consistent ladder component processing.

Manufacturers should establish their own quality-control standards based on their product design and applicable market requirements.

Flexible Tooling and Customization

Different ladders may use different tube sizes, profiles, materials, and connection structures. A universal configuration may not be suitable for every ladder model.

For this reason, customized dies, fixtures, positioning systems, and working heads may be considered according to the customer's requirements.

For an OEM project, manufacturers should provide:

Ladder drawings
Tube or profile samples
Material specifications
Tube dimensions
Wall thickness information
Finished component samples
Required forming dimensions
Production capacity requirements

These details allow the machine configuration to be evaluated against the actual application.

Improve Ladder Production Efficiency

Automation can help ladder manufacturers reduce repetitive manual operations and create a more organized production process.

Potential benefits include:

More consistent tube processing
Reduced repetitive manual labor
Improved positioning accuracy
More efficient dual-head operation
Better production repeatability
Easier process standardization
Support for larger production volumes

The actual production performance depends on the ladder design, tube specifications, machine configuration, tooling, and production process.

Why Choose Our Ladder Making Machine?
1. Dual Head Tube Squeezing Design

The dual-head configuration provides a coordinated tube forming solution for compatible ladder components.

2. Designed for Ladder Manufacturing

The machine is specifically positioned for ladder tube and profile processing applications rather than general-purpose forming alone.

3. Aluminum Ladder Applications

It can support suitable aluminum ladder production processes, including extension ladder components and tubular structures.

4. Fiberglass Ladder Applications

Compatible fiberglass profiles can also be evaluated for suitable tube squeezing and forming operations.

5. Production Efficiency

A dedicated machine can reduce repetitive manual operations and help manufacturers establish a more standardized workflow.

6. Flexible Tooling

Tooling and fixtures can be selected or customized according to tube dimensions, profile geometry, and ladder design.

7. OEM Manufacturing Support

Customized machine solutions can be discussed for manufacturers producing specialized ladder models or multiple product specifications.

8. Integration Into Production Lines

The equipment can be used as an independent workstation or incorporated into a larger ladder manufacturing and assembly process.
