The HWL600R is a piling equipment initially designed for early-stage piling in photovoltaic power stations. However, through research and development efforts and subsequent upgrades, it has been enhanced to be suitable for various piling projects in farms, pastures, orchards, and other applications.
With its versatile capabilities, the HWL600R can effectively meet the piling needs in a wide range of environments and construction scenarios. Whether it's for solar power installations or other agricultural and land development projects, the HWL600R offers reliable and efficient piling solutions. Its adaptability and upgraded features make it a valuable choice for different applications beyond its original design intent.

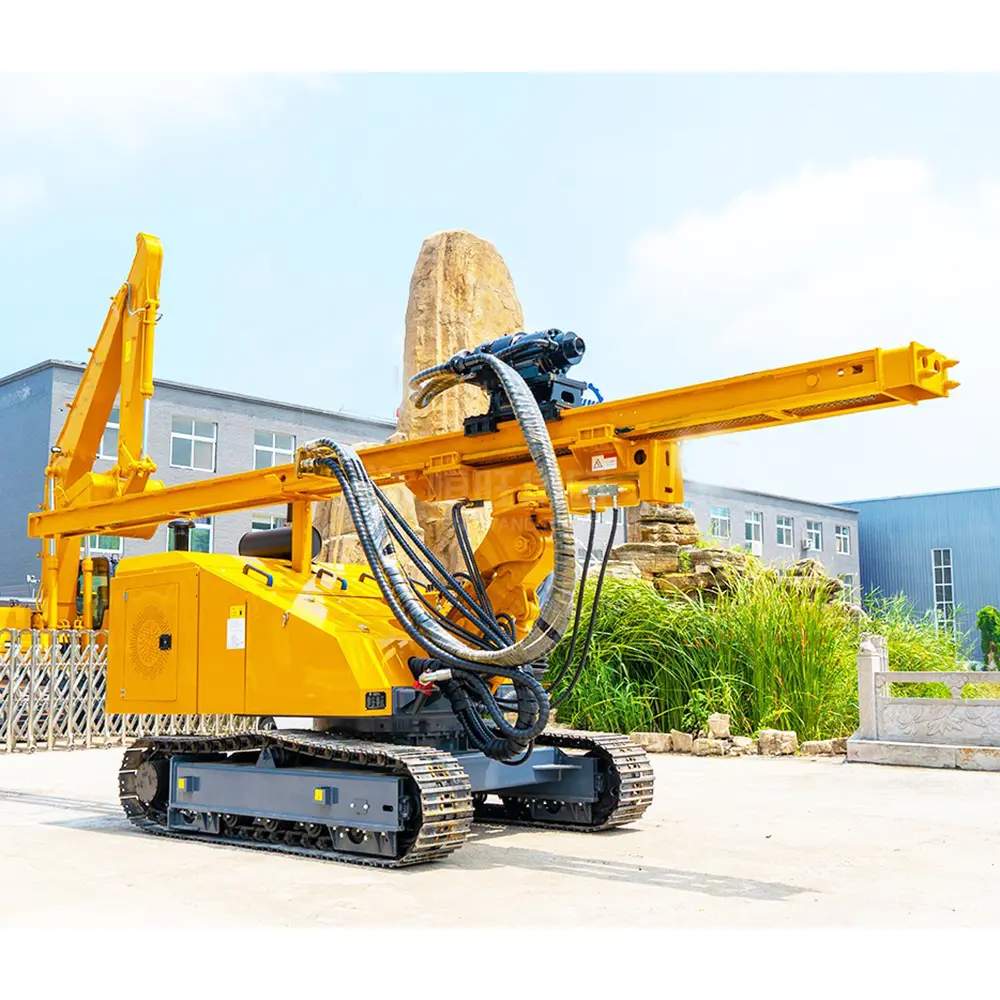

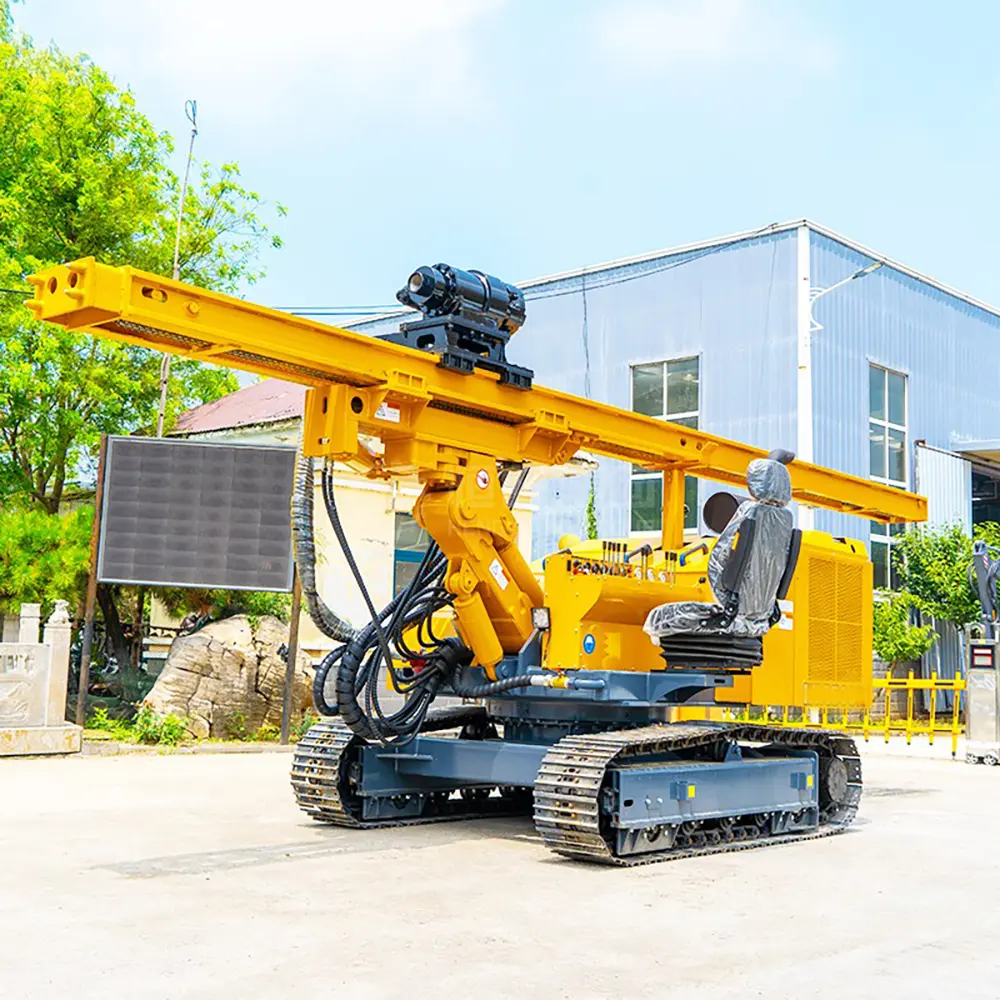

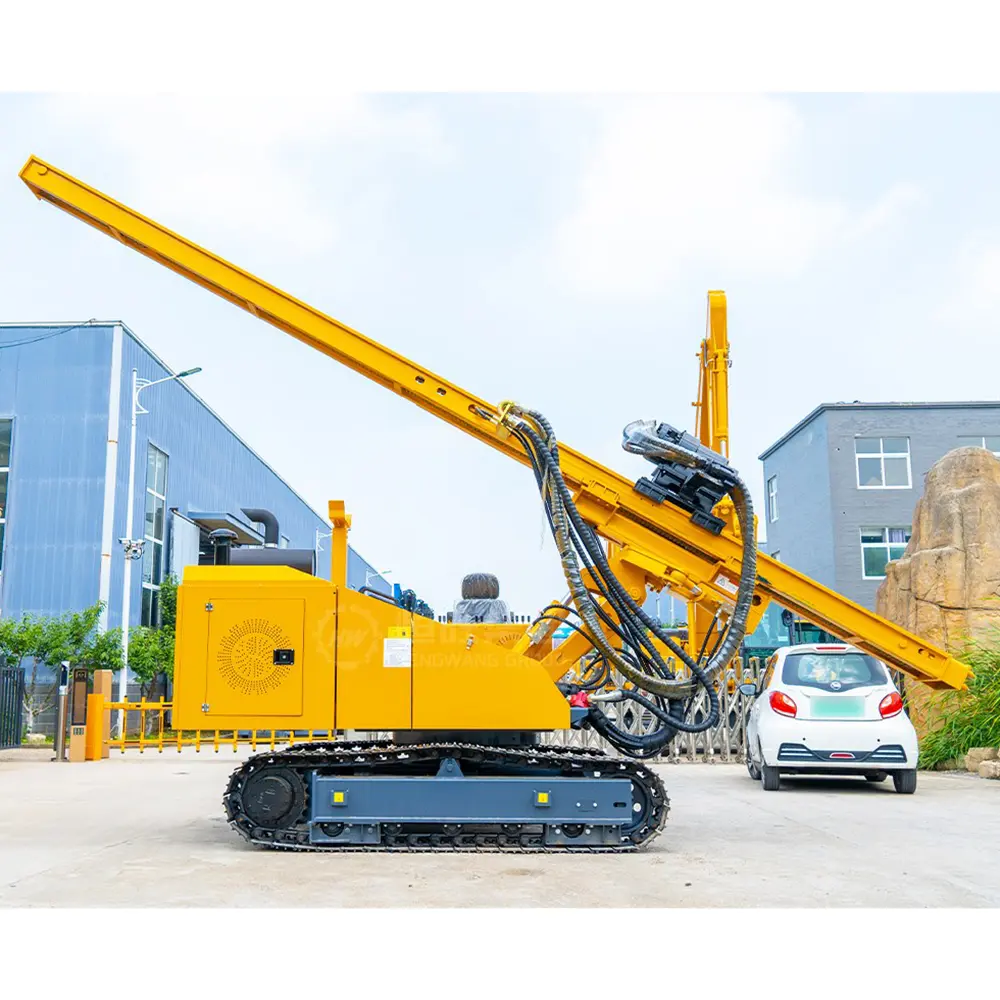

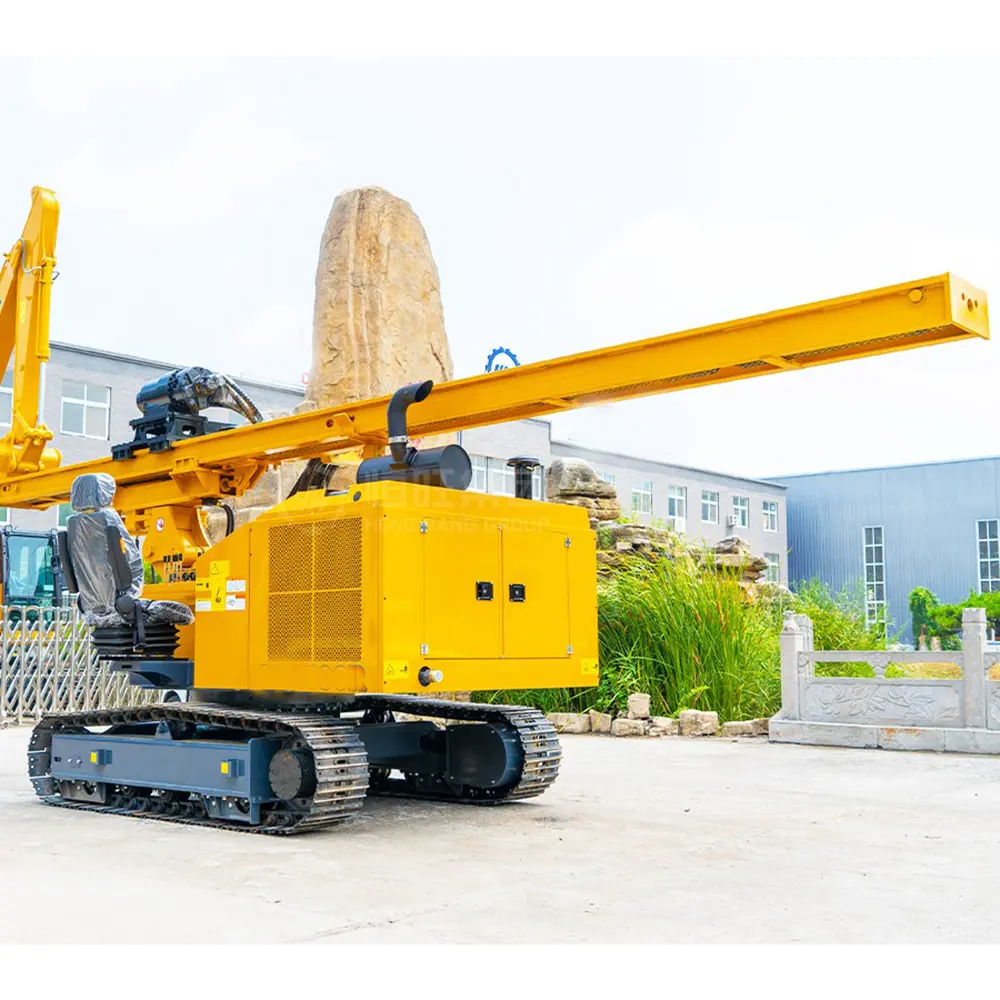

L600R Solar Pile Driver

The L600R Solar Pile Driver is a professional hydraulic construction machine specially designed for photovoltaic (PV) solar foundation installation. It provides an efficient and reliable solution for driving, drilling, and installing solar support piles in different geological conditions.

With the rapid development of renewable energy, large-scale solar power projects require high-efficiency installation equipment to reduce construction time and improve foundation accuracy. The L600R Solar Pile Driver combines powerful hydraulic technology, crawler mobility, and multifunctional operation capability to meet the demands of modern solar farm construction.

Main features:
1. Fuel-efficient and reliable power engine: The HWL600R piling equipment is equipped with a power engine that is designed to be fuel-efficient while delivering stable and high-performance operation. It ensures optimal power output while minimizing fuel consumption.
2. High-efficiency hydraulic system: The piling machine incorporates high-quality hydraulic components and undergoes a strict assembly process. This ensures the efficiency and reliability of the hydraulic system, enabling smooth and effective piling operations.

3. Stable and robust construction: The HWL600R is constructed using international high-standard raw materials, which guarantees the stability and durability of the overall structure. It is built to withstand demanding piling tasks in various environments, ensuring long-lasting performance.

4. Industrial aesthetic design: The equipment features an industrial aesthetic design, combining functionality with a visually appealing appearance. The design not only enhances its aesthetic appeal but also reflects the ruggedness and reliability of the machine.

Product number	HWL600R
Hydraulic hammer model	75/85/100 optional	mm
Hydraulic hammer flow	50-110	L/min
Impact frequency	350-800	bmp
Drill rod diameter	75/85/100	mm
pile height	6	m
Pile height sliding guide frame tilt angle	（Left）5（Right）5	°
Rack rotation angle	360	°
Hydraulic system pressure	22	mpa
Gear pump displacement	40+40+25	ml/r
Driving speed	3	km/h
Vehicle weight	7800	kg
Engine power	85	kw
Engine rated speed	2600	r/min
Track shoe width	350	mm
dimensions	L*W*H 2375*1980*7760mm（working status） L*W*H 7760*1980*2375mm（Shipping status（The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)

Optional
Hydraulic drilling power head	model	HWQK350
	Torque	8000-12000（Optional）	N•m
	single maximum depth	6	m
	Maximum DTH diameter	130-400	mm
	Maximum spiral drilling diameter	500	mm

The L600R is suitable for:

Ground-mounted solar power plants
Large photovoltaic farms
Solar tracking system foundations
Steel pile installation projects
Renewable energy infrastructure
Agricultural solar systems
Industrial solar projects

Compared with traditional manual pile installation methods, the L600R Solar Pile Driver provides:

Faster foundation installation
Higher positioning accuracy
Reduced labor costs
Better working efficiency
Strong terrain adaptability
Reliable long-term operation

The machine is designed for professional solar contractors who need efficient and durable equipment for large-scale photovoltaic construction.

Efficient Photovoltaic Foundation Installation

The primary function of the L600R Solar Pile Driver is to install stable foundations for solar mounting systems.

Solar structures require accurate and strong foundations to support:

Solar panels
Mounting brackets
Tracking systems
Electrical equipment

Traditional construction methods often involve:

Manual excavation
Multiple pieces of equipment
Slow installation speed
High labor requirements

The L600R improves productivity by using hydraulic driving and drilling technology.

Main benefits include:

Rapid pile installation
Consistent pile depth
Accurate vertical positioning
Reduced construction time
Improved project efficiency

This makes the L600R an ideal choice for large-scale solar energy projects.

Powerful Hydraulic Pile Driving System

The L600R Solar Pile Driver is equipped with a powerful hydraulic system that provides stable and efficient working performance.

The hydraulic system delivers:

Strong impact force
High drilling torque
Smooth power transmission
Precise operation control
Continuous working capability

The hydraulic system supports multiple operations:

Solar pile driving
Foundation drilling
Ground hole preparation
Pile installation

High-quality hydraulic components ensure reliable operation in demanding outdoor construction environments.

Multifunctional Solar Piling Capability

The L600R Solar Pile Driver is designed as multifunctional photovoltaic construction equipment.

It can perform:

Solar Pile Driving

Suitable for installing:

Steel solar piles
U-shaped piles
C-channel piles
H-beam foundations
Photovoltaic support columns
Drilling Operation

Used for:

Hard soil conditions
Rocky ground preparation
Pre-drilling before pile installation
Foundation Preparation

Suitable for:

Solar tracker foundations
Ground mounting structures
Renewable energy construction projects

The multifunctional design reduces equipment investment and improves job-site flexibility.

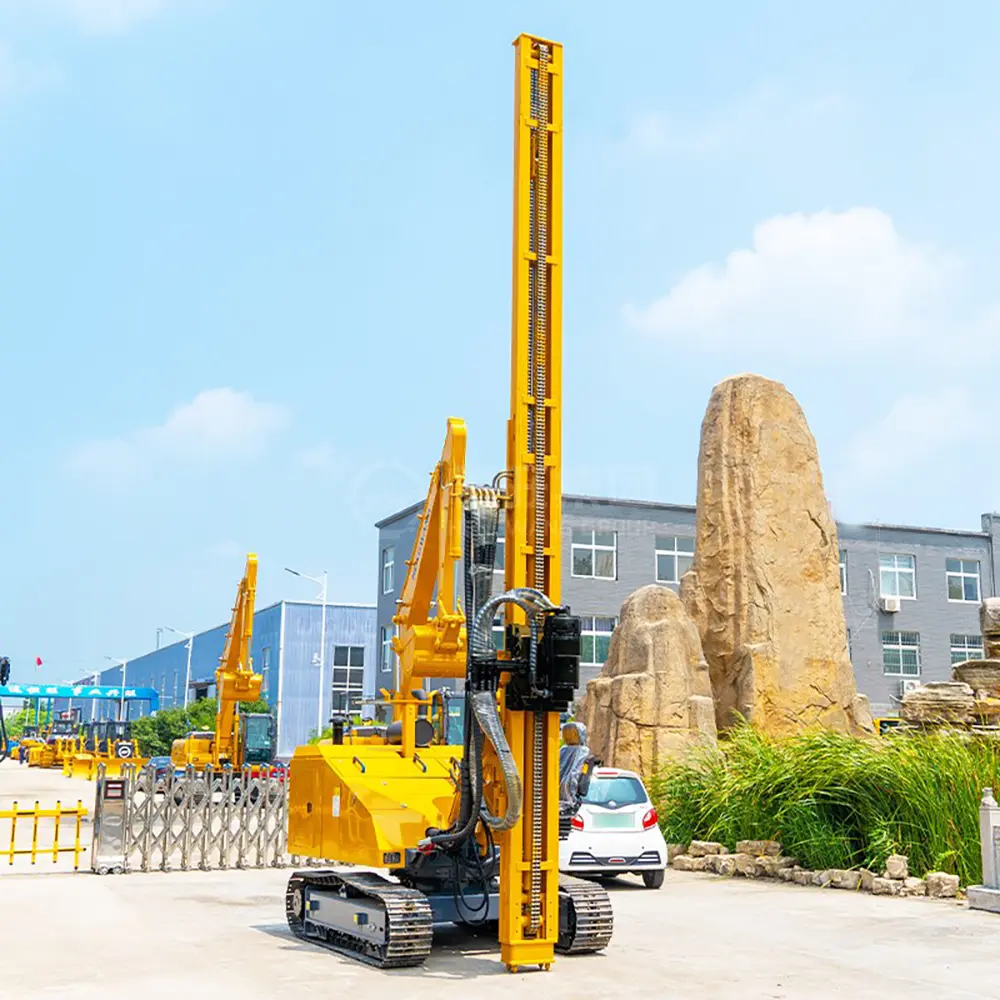

Crawler Type Design For Excellent Mobility

The L600R Solar Pile Driver adopts a crawler-type structure, providing excellent stability and mobility.

Advantages include:

Strong ground adaptability
Stable operation on uneven terrain
Easy movement between work areas
Reduced ground pressure
Reliable construction performance

The crawler system allows the machine to work effectively in:

Solar farms
Desert areas
Mountains
Agricultural land
Remote construction sites

This makes the L600R suitable for challenging outdoor environments.

Wide Application Areas
Utility-Scale Solar Farms

The L600R is widely used for:

Large photovoltaic power plants
Ground-mounted solar projects
Renewable energy bases

Advantages:

High installation efficiency
Continuous operation capability
Reduced project completion time
Solar Tracking System Installation

Suitable for:

Single-axis trackers
Fixed solar mounting systems
Large solar structures

Accurate pile installation improves solar structure stability.

Agricultural Photovoltaic Projects

Applications include:

Farm solar systems
Green energy agricultural projects
Rural photovoltaic installations
Industrial Solar Projects

Used for:

Factory solar systems
Commercial solar facilities
Large-scale energy projects
Strong Adaptability To Different Ground Conditions

The L600R Solar Pile Driver is designed to handle various geological conditions.

Suitable working environments include:

Soft soil
Clay
Sand
Gravel
Hard ground
Mixed geological formations

Different drilling tools and pile-driving accessories can be selected according to project requirements.

This adaptability helps contractors complete solar foundation installation in different regions.

Durable Heavy-Duty Construction

The L600R is built for continuous outdoor operation.

Main structural advantages include:

High-strength steel frame
Reinforced crawler chassis
Heavy-duty hydraulic components
Durable drilling tools
Reliable power system

Benefits:

Long service life
Stable performance
Lower maintenance requirements
Better investment return

The strong structure ensures reliable operation during large photovoltaic projects.

Reliable Power And Hydraulic Performance

The L600R Solar Pile Driver uses an efficient power and hydraulic system to maintain stable working performance.

Key advantages:

Strong power output
High working efficiency
Smooth hydraulic control
Good fuel efficiency
Long operating capability

The optimized system helps improve productivity while reducing operating costs.

Easy Operation And Maintenance

The L600R Solar Pile Driver is designed for convenient operation.

Features include:

Hydraulic control system
Simple operation interface
Easy accessory replacement
Convenient maintenance access
Reduced operator training requirements

The practical design helps contractors minimize downtime and improve construction efficiency.

Main Features Of L600R Solar Pile Driver
Professional photovoltaic pile installation equipment
Hydraulic solar pile driving system
Crawler-mounted construction design
Strong drilling and piling capability
Excellent terrain adaptability
Suitable for large solar farms
High installation efficiency
Durable heavy-duty structure
Easy operation and maintenance
Reliable renewable energy construction solution
Why Choose Our L600R Solar Pile Driver?
1. Professional Solar Construction Equipment

Designed specifically for photovoltaic foundation installation.

2. High Working Efficiency

Speeds up solar pile installation and reduces project time.

3. Powerful Hydraulic System

Provides stable driving force for different ground conditions.

4. Excellent Mobility

Crawler structure allows operation in difficult environments.

5. Wide Application Range

Suitable for solar farms, trackers, and renewable energy projects.

6. Complete Technical Support

We provide customized equipment solutions, spare parts, and after-sales service.

FAQS
1. What is the L600R Solar Pile Driver used for?

The L600R is mainly used for installing solar foundation piles and photovoltaic mounting structures.

2. What types of piles can the L600R install?

It can install steel piles, solar support posts, tracker foundations, and various PV mounting piles.

3. Is the L600R suitable for large solar farms?

Yes. It is designed for professional photovoltaic projects and large-scale solar construction.

4. Can the L600R work on uneven terrain?

Yes. The crawler structure provides excellent stability and terrain adaptability.

5. Can the L600R drill hard ground?

Yes. With suitable drilling tools, it can perform pre-drilling in hard soil conditions.

6. What are the advantages compared with manual installation?

It provides faster installation, better accuracy, lower labor requirements, and higher productivity.

7. Is the L600R easy to operate?

Yes. The hydraulic control system allows simple operation and precise control.

8. Can the L600R be customized?

Yes. Hydraulic configurations, drilling tools, pile accessories, and machine specifications can be customized according to project needs.

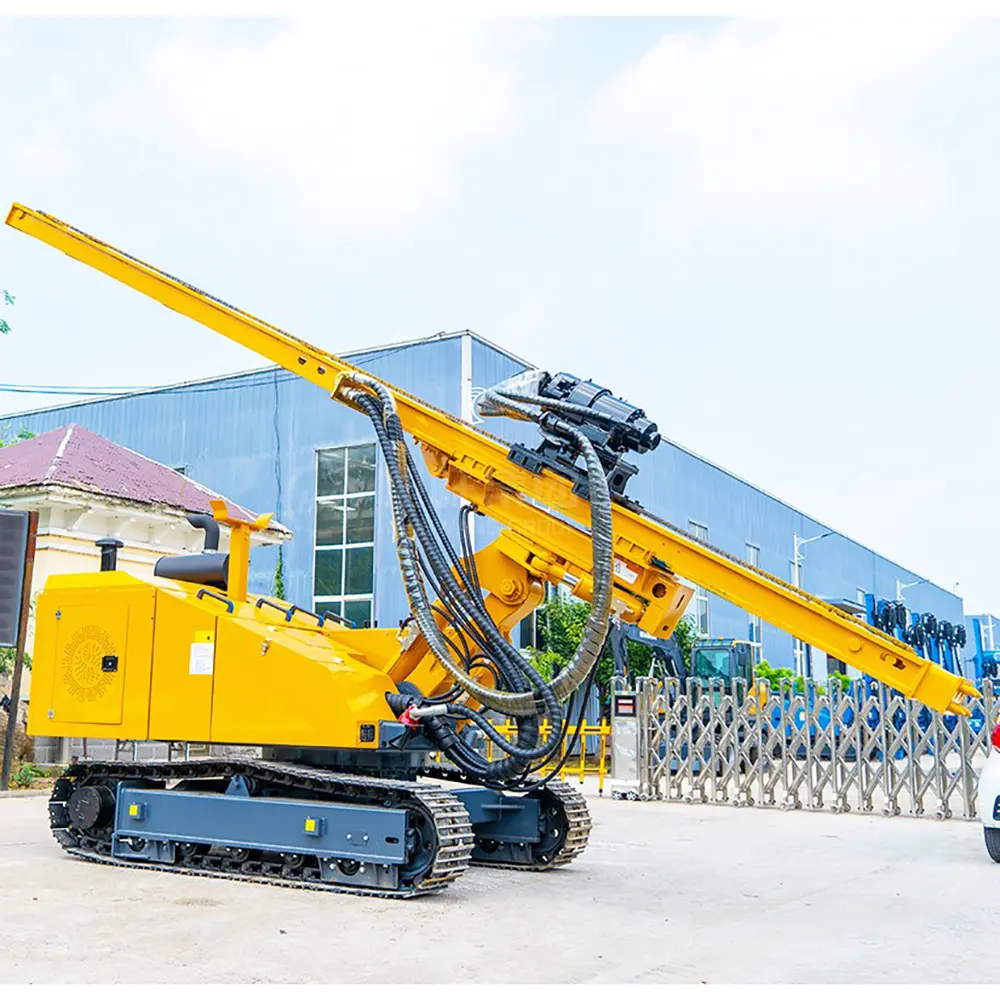

Prev：L500R Solar Pile Driver

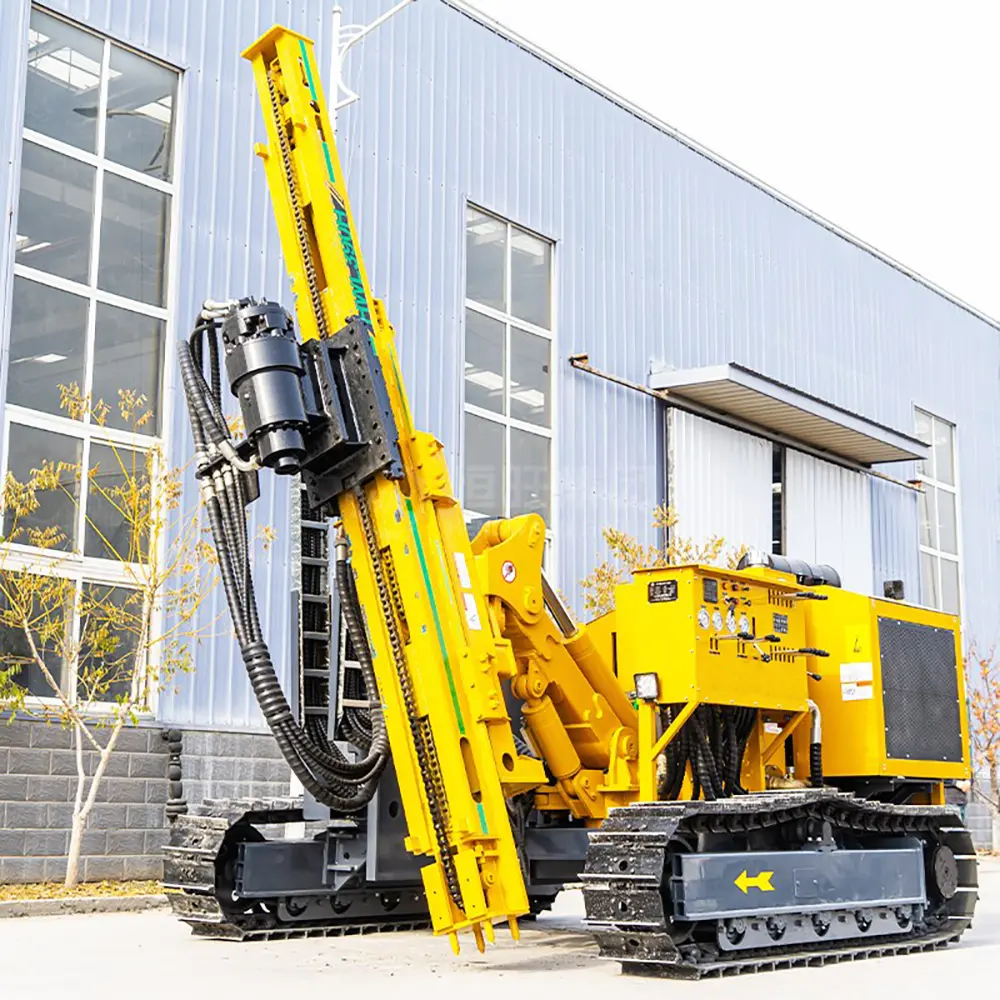

Next：L390H Solar Pile Driver
