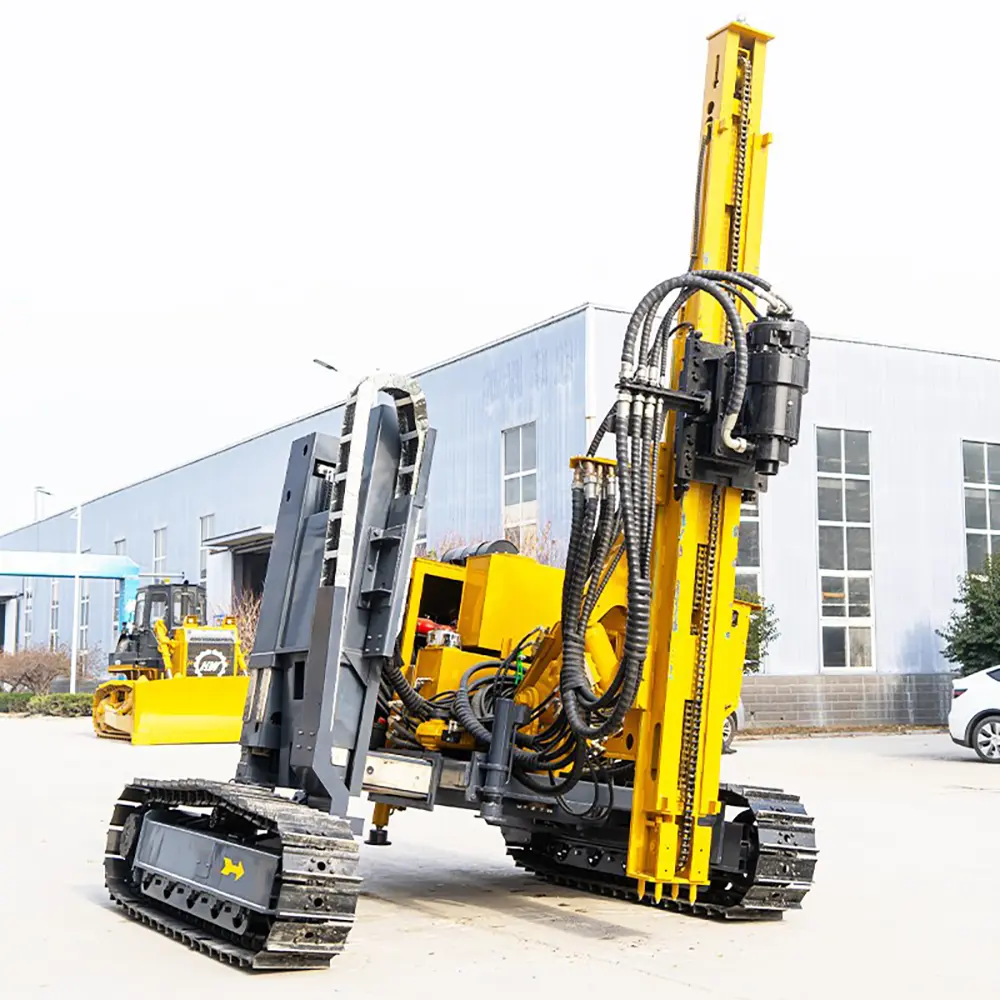

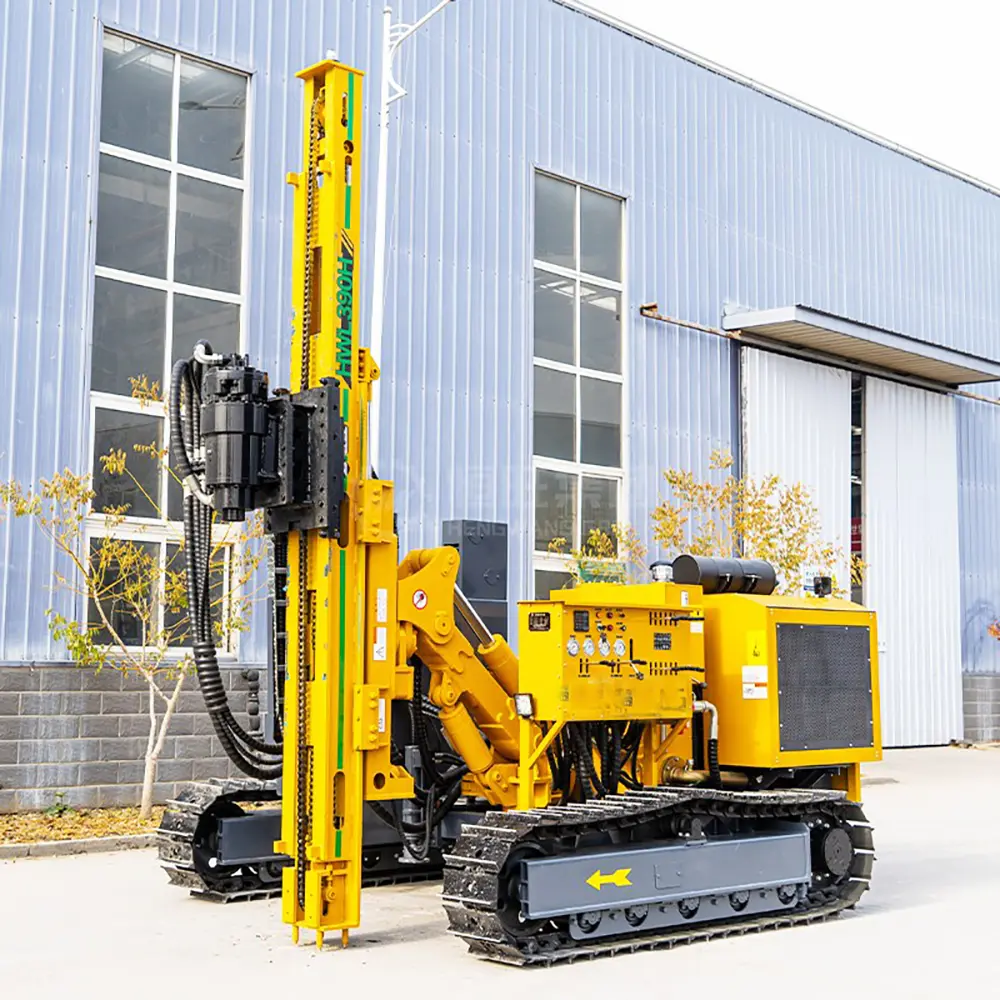

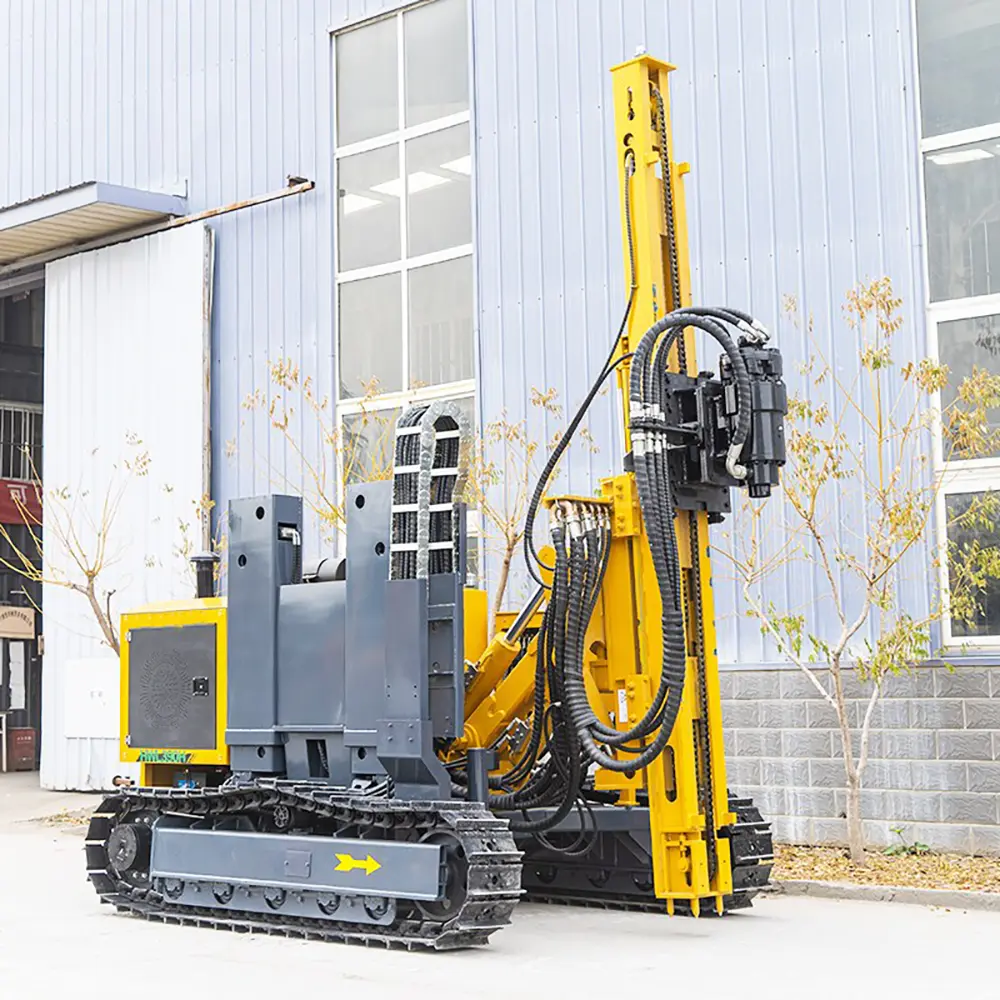

L390H Solar Pile Driver Technical Parameters

Solar Pile Driver is a professional hydraulic construction machine designed for photovoltaic solar foundation installation. It is widely used for driving, drilling, and installing solar piles in ground-mounted solar power projects..

The Solar Pile Driver is a specialized construction machine developed for the fast and efficient installation of solar panel foundation piles. It is widely used in photovoltaic (PV) solar farm construction, ground-mounted solar systems, and renewable energy infrastructure projects.

As the global demand for renewable energy continues to grow, solar power projects require efficient installation equipment that can improve construction speed while maintaining foundation accuracy. The Solar Pile Driver provides a professional solution by combining pile driving, drilling, and foundation preparation functions into one machine.
Main features:
1. Efficient and fuel-saving power engine: The HWL390H Photovoltaic piling machine is equipped with a power engine that is carefully designed for optimal fuel efficiency. It ensures stable and high-performance operation while minimizing fuel consumption.
2. High-performance hydraulic system: The piling machine utilizes high-quality hydraulic components and undergoes a strict assembly process. This ensures the efficiency and reliability of the hydraulic system, enabling smooth and efficient operation.

3. Stable and durable construction: The machine is constructed using international high-standard raw materials, which ensures the stability and durability of the overall structure. It can withstand the rigors of various construction environments and provide long-lasting performance.

4. Industrial aesthetic design: The HWL390H piling machine features a design that combines functionality with an industrial aesthetic. It not only performs its tasks effectively but also presents an appealing appearance.
Product number HWL390H
Drilling diameter (DTH hammer) 90-400 mm
Drilling depth 30 m
Air consumption 10-26 m³/min
Working pressure 0.7-1.6(medium-pressure)/1.6-2.46(high pressure) Mpa
Drill rod diameter 76/89 mm
rock hardness 6-20 F
Drilling diameter (auger) Maximun400 mm
Drilling depth 20 m
Auger diameter 130-400 mm
One thrust stroke 2600 mm
Slide pitch angle 120 °
Slide swing angle Left and right total 40 °
Drill arm swing angle Left and right total 50 °
Rotating speed 0-100 r/min
Tilt working angle 45 °
Working dimensions(L*W*H) 3500*2200*4500 mm
Shipping dimensions 4500*2500*2800 mm
weight 7410 kg
Driving speed 0-2.5 km/h
rated power 85 kw
maximum width 2800 mm
One side track deployment height 1200 mm





The HWL390H Photovoltaic piling machine is a high-performance piling equipment developed by Hengwang Group specifically for various sites. It is designed not only for piling the foundations of photovoltaic power stations but also for applications in farms, pastures, forest farms, orchards, and other construction scenarios.
This versatile piling machine is suitable for a range of construction projects and offers efficient and reliable performance. Whether it's for solar power installations or other agricultural and forestry applications, the HWL390H Photovoltaic piling machine is designed to meet the specific requirements of different sites and provide effective piling solutions.
