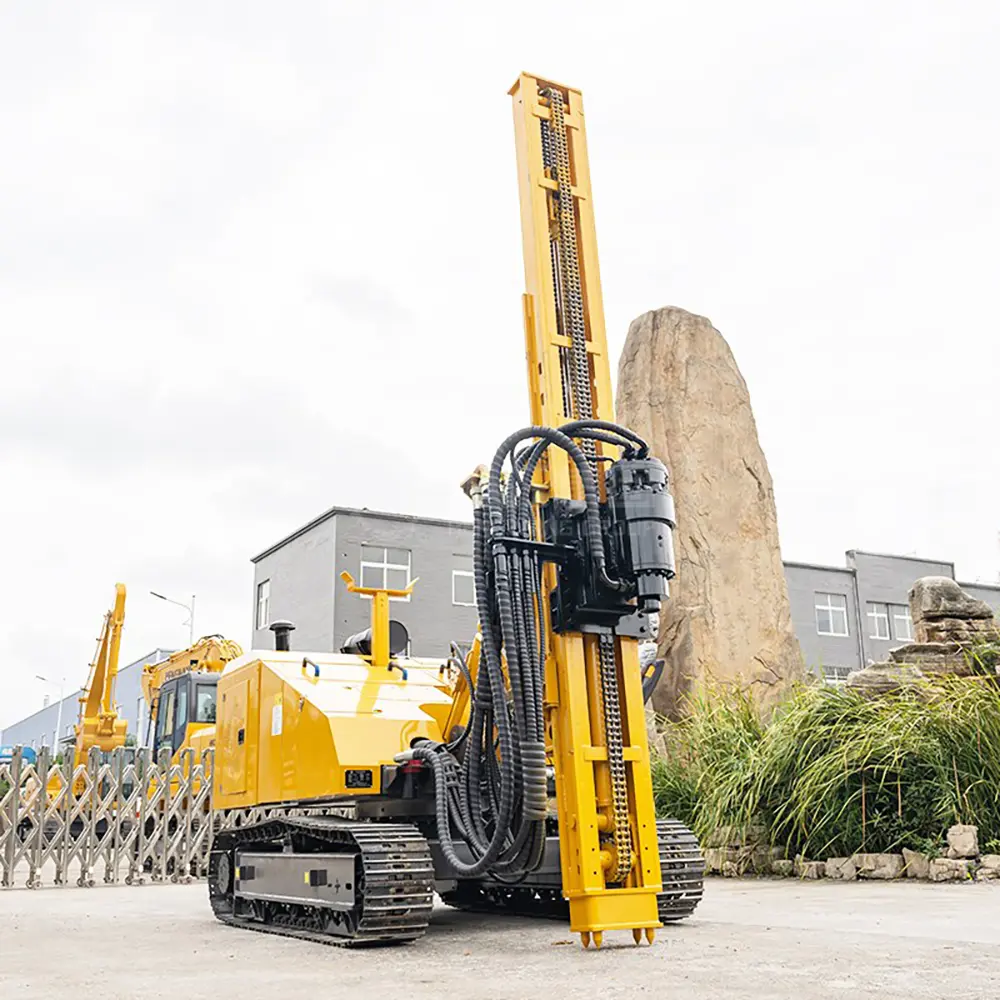

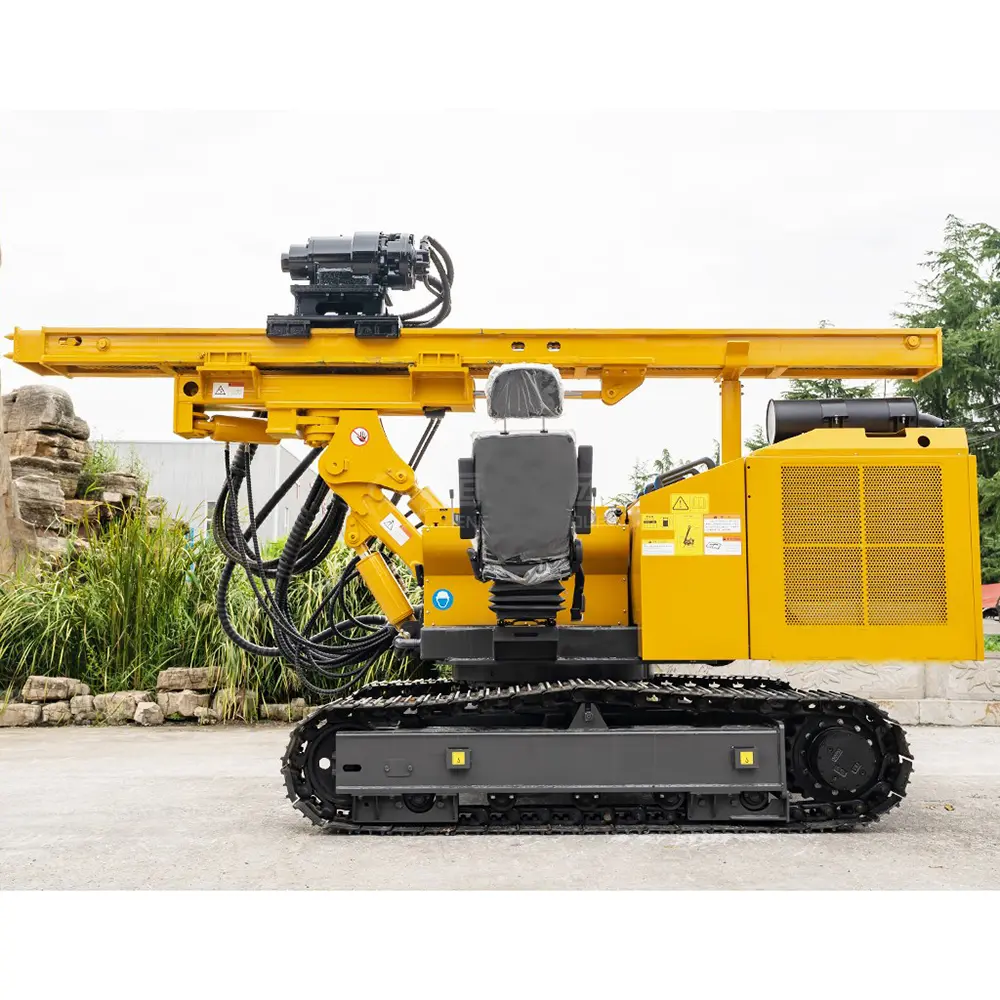

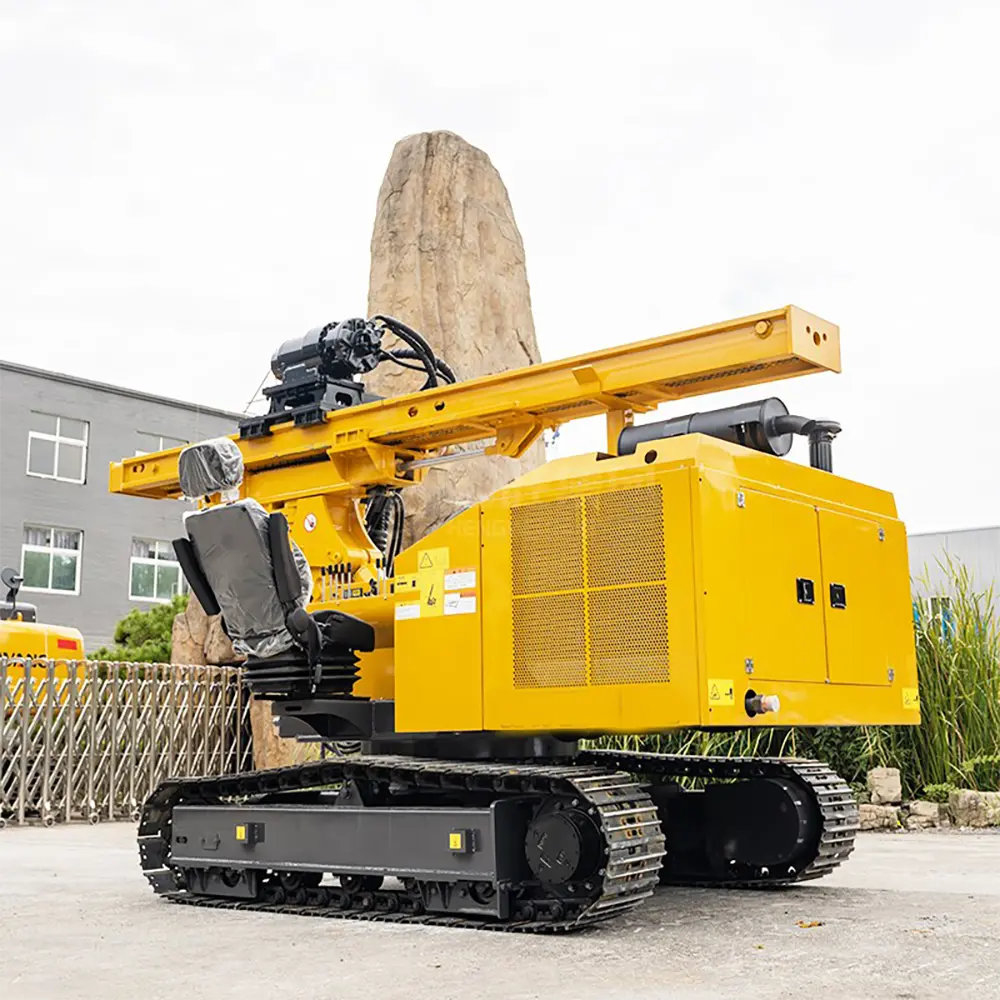

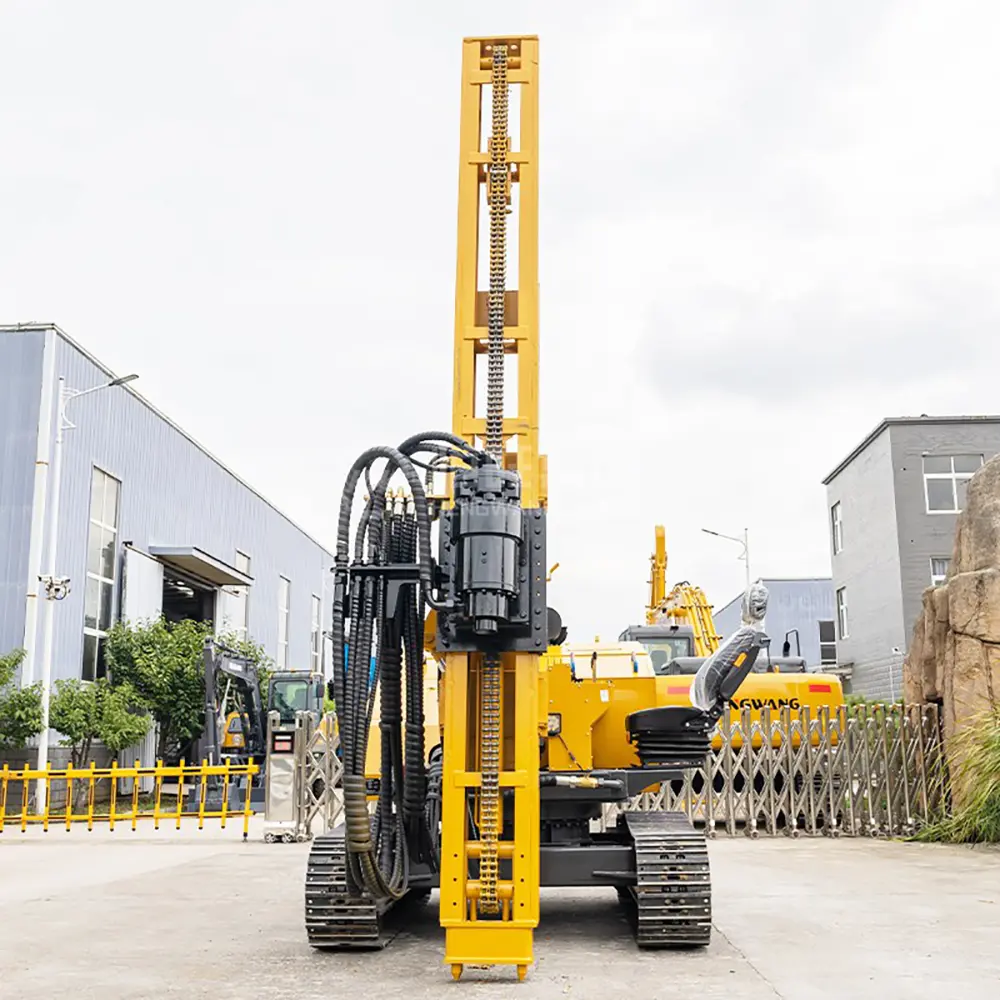

L300R Solar Pile Driver

The L300R Solar Pile Driver is a compact, efficient, and reliable hydraulic piling machine designed for modern photovoltaic construction.

With strong hydraulic performance, crawler mobility, multifunctional operation, and excellent adaptability, the L300R helps contractors install solar foundations faster while reducing labor and construction costs.

For solar installation companies seeking practical and dependable equipment, the L300R Solar Pile Driver provides an effective solution for photovoltaic foundation construction.

Product number	HWL300R
Hydraulic hammer model	75/85/100 optional	mm
Hydraulic hammer flow	50-110	L/min
Impact frequency	350-800	bmp
Drill rod diameter	75/85/100	mm
pile height	3	m
Pile height sliding guide frame tilt angle	（Left）5（Right）5	°
Rack rotation angle	360	°
Hydraulic system pressure	22	mpa
Gear pump displacement	40+40+25	ml/r
Driving speed	3	km/h
Vehicle weight	7500	kg
Engine power	85	kw
Engine rated speed	2600	r/min
Track shoe width	350	mm
dimensions	L*W*H 2375*1980*4760mm（working status） L*W*H 4760*1980*2375mm（Shipping status（The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)

Optional
Hydraulic drilling power head	model	HWQK350
	Torque	8000-12000（Optional）	N•m
	single maximum depth	3	m
	Maximum DTH diameter	130-400	mm
	Maximum spiral drilling diameter	500	mm

Main feature:
1. The high-torque engine, in collaboration with the air compressor, enables higher work efficiency.

2. Advanced casing technology is employed to prevent hole collapse during drilling operations.

3. The drilling rig is available in various models, allowing for selection based on specific construction needs to avoid unnecessary equipment capacity.

4. The drilling rig is certified with ISO, CE, and other international quality standards, ensuring its reliability and performance.



HWL300R photovoltaic piling machine is a high-performance piling equipment launched by Hengwang Group for various piling applications.
Originally designed for early-stage piling in photovoltaic power stations, HWL300R has undergone continuous R&D and upgrading to make it suitable for piling projects in farms, pastures, orchards, and other sites.

L300R Solar Pile Driver

The L300R Solar Pile Driver is a professional hydraulic piling machine designed for efficient installation of photovoltaic (PV) solar foundations. It provides a practical and reliable solution for contractors who need fast, accurate, and economical solar pile installation equipment.

With the rapid expansion of renewable energy projects, efficient solar foundation construction has become increasingly important. The L300R Solar Pile Driver integrates hydraulic pile driving technology, crawler mobility, and multifunctional working capability to improve construction efficiency and reduce installation costs.

The L300R is widely used for:

Ground-mounted solar power plants
Photovoltaic panel support pile installation
Solar mounting structure foundations
Solar tracker foundation projects
Agricultural solar systems
Commercial photovoltaic installations
Renewable energy infrastructure construction

Compared with traditional manual pile installation methods, the L300R Solar Pile Driver offers:

Faster pile installation speed
Improved foundation accuracy
Reduced labor requirements
Lower construction costs
Better adaptability to different terrains
Stable and reliable operation

The compact design and efficient performance make the L300R an excellent choice for small and medium-scale solar construction projects.

Efficient Solar Foundation Installation

The primary purpose of the L300R Solar Pile Driver is to install strong and stable foundations for solar mounting systems.

Solar structures require accurate foundations to support:

Solar panels
Mounting brackets
Tracking systems
Electrical equipment

Traditional installation methods may require:

Manual excavation
Additional machinery
Large labor teams
Long construction periods

The L300R improves efficiency through hydraulic pile driving and drilling technology.

Key advantages include:

Rapid pile installation
Accurate pile depth control
Consistent foundation quality
Reduced manpower requirements
Improved project productivity

This makes the L300R suitable for various photovoltaic construction applications.

Reliable Hydraulic Pile Driving System

The L300R Solar Pile Driver is equipped with a reliable hydraulic system designed for stable and efficient operation.

The hydraulic system provides:

Strong driving force
Stable drilling torque
Smooth power transmission
Precise control
Continuous working performance

Hydraulic technology supports:

Solar pile driving
Foundation drilling
Ground preparation
Pile positioning

High-quality hydraulic components ensure dependable performance in outdoor construction environments.

Multifunctional Solar Piling Equipment

The L300R Solar Pile Driver combines multiple functions into one machine.

Solar Pile Driving

Suitable for installing:

Steel solar piles
C-channel piles
U-shaped piles
Solar support posts
Ground mounting foundations
Ground Drilling

Useful for:

Hard soil preparation
Rocky ground conditions
Pre-drilling operations
Solar Mounting Foundation Installation

Suitable for:

Fixed photovoltaic systems
Solar tracking structures
Ground anchoring applications

The multifunctional design reduces equipment investment and improves construction flexibility.

Crawler Structure For Excellent Mobility

The L300R Solar Pile Driver uses a crawler-mounted structure to provide excellent stability and movement capability.

Advantages include:

Strong traction
Low ground pressure
Stable operation on uneven terrain
Easy movement across solar fields
Better construction flexibility

The crawler system allows operation in:

Solar farms
Agricultural land
Open fields
Mountain areas
Remote project locations

This makes the L300R adaptable to different solar installation environments.

Wide Application Areas
Ground-Mounted Solar Farms

The L300R is suitable for:

Small and medium photovoltaic plants
Solar power stations
Renewable energy projects

Benefits:

Efficient pile installation
Reduced construction time
Improved project management
Solar Tracker Installation

The L300R supports installation of:

Solar tracking system foundations
Fixed mounting structures
Photovoltaic support systems

Accurate pile installation improves solar structure stability.

Agricultural Solar Projects

Applications include:

Farm photovoltaic systems
Rural solar installations
Agricultural energy projects
Commercial Solar Construction

Used for:

Industrial solar systems
Business photovoltaic projects
Distributed solar installations
Adaptability To Different Ground Conditions

The L300R Solar Pile Driver can operate in various soil conditions with suitable tools.

Applicable environments include:

Soft soil
Clay
Sand
Gravel
Mixed ground conditions

Different drilling tools and pile accessories can be selected according to project requirements.

This adaptability allows contractors to complete solar foundation installation efficiently in different regions.

Durable Construction Design

The L300R is designed for reliable outdoor operation.

Main structural components include:

High-strength steel frame
Reinforced crawler chassis
Durable hydraulic components
Reliable pile tools
Strong working structure

Benefits:

Long service life
Stable performance
Reduced maintenance costs
Better investment return

The durable design allows continuous operation on solar construction sites.

Efficient Power Performance

The L300R Solar Pile Driver provides optimized power output for efficient foundation installation.

Performance advantages:

Stable hydraulic operation
Strong pile driving capability
Smooth control response
Efficient energy utilization
Reliable working performance

The efficient system helps contractors complete solar projects faster.

Easy Operation And Maintenance

The L300R Solar Pile Driver is designed for convenient operation.

Features include:

Hydraulic control system
Simple operating interface
Easy attachment replacement
Convenient maintenance points
Reduced operator training requirements

The user-friendly design improves working efficiency and minimizes downtime.

Main Features Of L300R Solar Pile Driver
Professional photovoltaic pile installation machine
Hydraulic solar piling system
Compact crawler-mounted design
Strong drilling and driving capability
Accurate foundation positioning
Excellent terrain adaptability
Suitable for solar farms and PV projects
Durable construction structure
Efficient operation performance
Easy maintenance design
Why Choose Our L300R Solar Pile Driver?
1. Designed For Solar Projects

Specially developed for photovoltaic foundation installation.

2. Efficient Construction Performance

Improves installation speed and reduces project duration.

3. Reliable Hydraulic System

Provides stable pile driving and drilling power.

4. Flexible Mobility

Crawler design allows operation in different terrains.

5. Wide Application Range

Suitable for solar farms, trackers, and ground-mounted systems.

6. Professional Technical Support

We provide customized solutions, spare parts, and after-sales service.

FAQS
1. What is the L300R Solar Pile Driver used for?

The L300R is used for installing solar foundation piles and photovoltaic mounting structures.

2. What types of piles can the L300R install?

It can install steel piles, solar posts, mounting system foundations, and various PV support piles.

3. Is the L300R suitable for small solar projects?

Yes. Its compact structure makes it suitable for small and medium photovoltaic projects.

4. Can the L300R work on uneven terrain?

Yes. The crawler system provides good stability and mobility.

5. Can the L300R perform drilling operations?

Yes. It can perform pre-drilling for hard soil and special ground conditions.

6. What are the advantages compared with manual installation?

It provides faster installation, better accuracy, reduced labor costs, and higher efficiency.

7. Is the L300R easy to operate?

Yes. The hydraulic control system makes operation simple and precise.

8. Can the L300R be customized?

Yes. Pile tools, drilling accessories, hydraulic configurations, and machine specifications can be customized.
