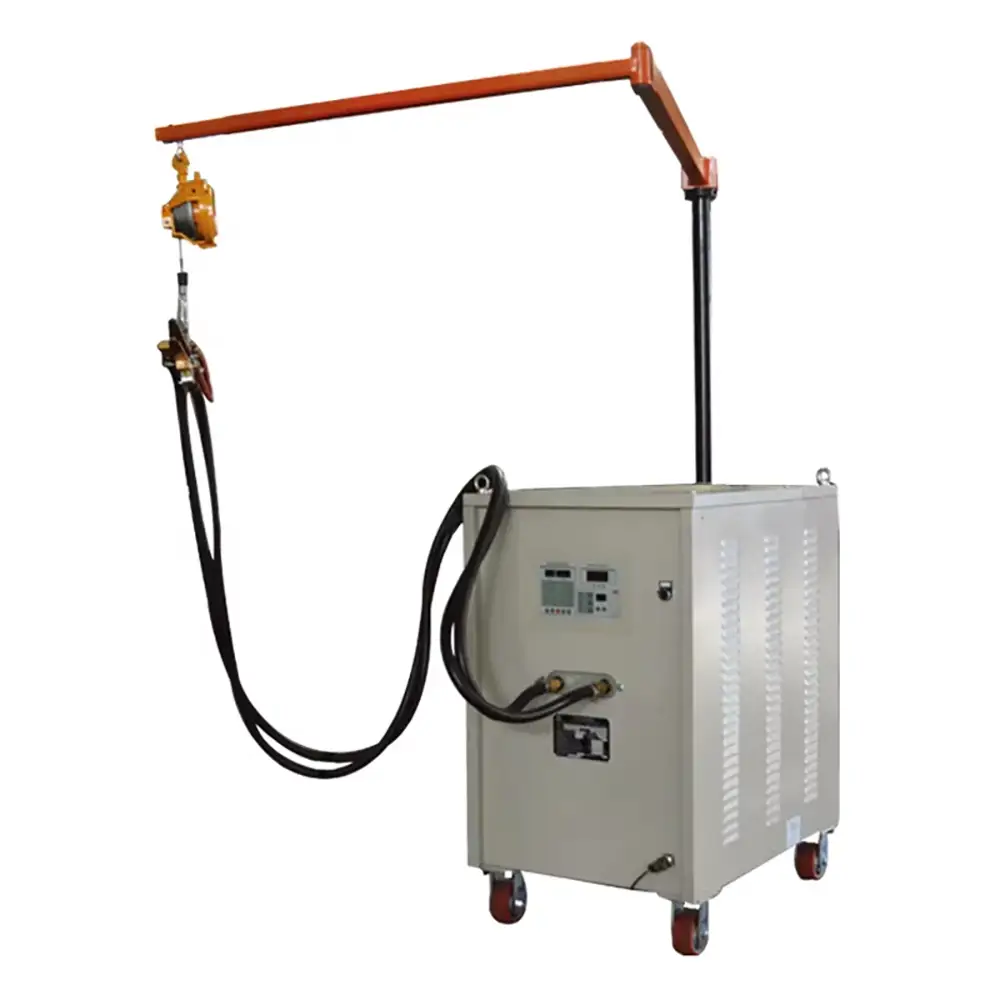

High Frequency Induction Heating Resistance Welder Welding Brazing Soldering Machine

The High Frequency Induction Heating Resistance Welder Welding Brazing Soldering Machine is a versatile industrial heating and metal joining solution designed for applications that require fast, localized and controlled heating. By using high frequency electromagnetic induction, the machine can heat suitable conductive metal components efficiently without requiring direct flame contact. It can be used for induction brazing, soldering, preheating, localized heating and selected resistance welding applications according to the machine configuration.

High frequency induction heating works by generating an alternating electromagnetic field around a conductive workpiece. This electromagnetic field induces electrical currents within the metal, producing heat directly inside the material. Because the heat is generated within the workpiece rather than transferred primarily from an external flame, induction heating can provide a concentrated heating zone and rapid response.

The machine is suitable for a wide range of metalworking applications. Common uses include copper tube brazing, brass component joining, stainless steel brazing, carbide tool brazing, metal soldering, bearing heating, fastener heating, pipe fitting assembly and localized preheating. The exact application depends on the material, component geometry, required temperature, heating time and machine power.

For brazing applications, the workpieces are normally positioned together with an appropriate brazing alloy or filler material. The induction coil is positioned around or near the joint area. When high frequency power is applied, the joint area heats rapidly. Once the appropriate brazing temperature is reached, the filler metal melts and flows into the joint by capillary action. After cooling, the resulting brazed joint can provide a strong connection when the joint design, surface preparation and process parameters are properly controlled.

Induction soldering follows a similar principle but generally uses lower-temperature filler materials than brazing. This makes the technology useful for electrical connections, copper components, electronic-related metal assemblies, small tubing and other applications where localized soldering is required. Actual soldering temperature depends on the selected solder alloy and application.

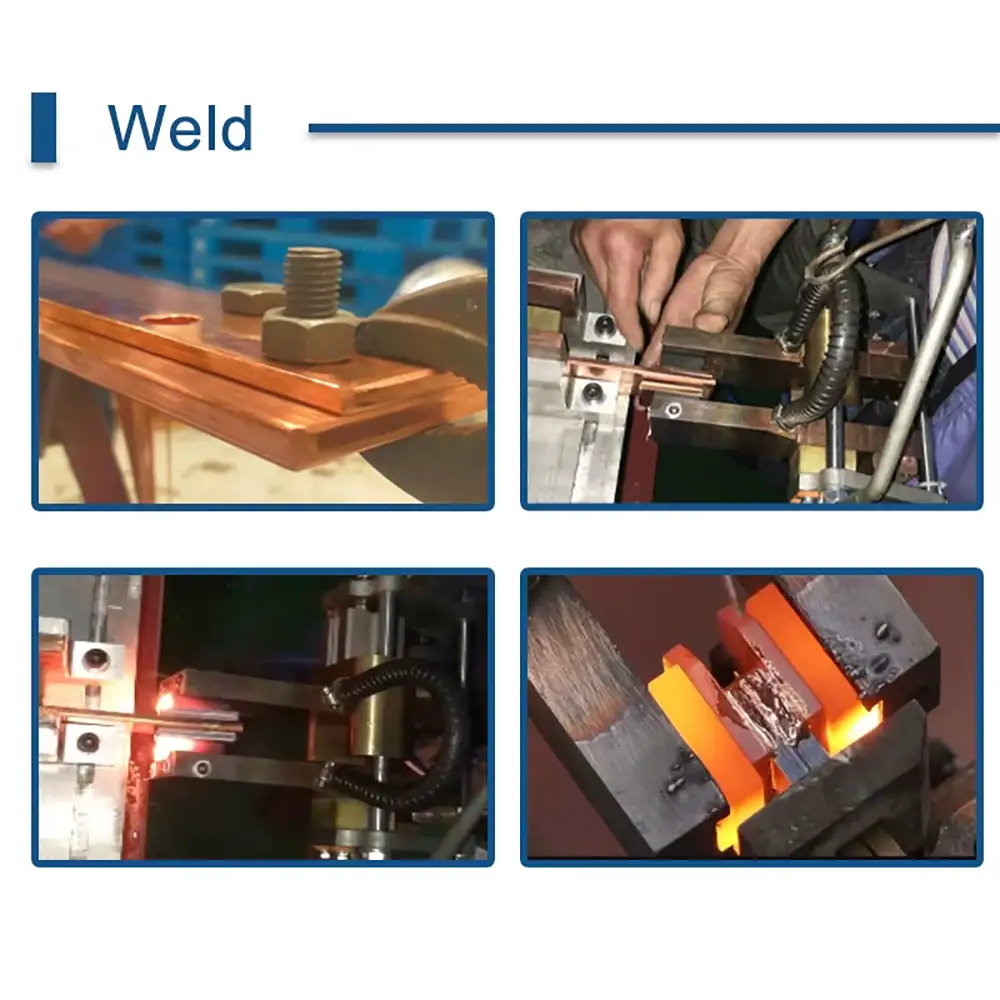

The equipment can also be used for resistance welding applications when configured with appropriate electrodes, power control and welding accessories. Resistance welding generates heat through electrical resistance at the contact area between components. The welding process normally requires controlled electrical current, pressure and time. The suitability of induction heating and resistance welding should therefore be evaluated separately according to the specific joint and production requirements.

One major advantage of high frequency induction heating is localized heating. Instead of heating the entire component, the machine can concentrate energy around a selected area. This can reduce unnecessary thermal exposure to surrounding components and make the process suitable for assemblies where only a joint, section or surface needs to be heated.

High frequency operation can also support rapid heating cycles. Actual heating speed depends on material type, workpiece size, coil design, power output, coupling distance, target temperature and other process conditions. Smaller components can often be heated quickly, while larger or more thermally conductive workpieces may require higher power or longer heating cycles.

Induction coil design is an important part of the process. Coils can be manufactured in different shapes to match tubes, rings, joints, rods, shafts, fittings and other components. A properly designed coil helps improve electromagnetic coupling and concentrates heating energy in the required area. Custom induction coils can therefore be important when manufacturers need stable and repeatable production.

The machine can process many conductive metals, including copper, brass, steel, stainless steel, carbon steel, aluminum and other suitable alloys. However, different materials respond differently to electromagnetic heating. Electrical conductivity, magnetic properties, geometry and thermal conductivity all influence heating performance. Machine selection should therefore be based on actual material and workpiece requirements rather than material name alone.

Typical industrial applications include HVAC copper tube brazing, refrigeration component assembly, automotive parts, electrical connectors, plumbing fittings, heat exchanger components, carbide tool brazing, hardware manufacturing and general metal fabrication. The machine can also be used for preheating before welding or other manufacturing operations where controlled localized heat is required.

For production environments, induction heating can help create a more standardized heating process. Operators can establish appropriate power, heating time and coil positioning according to the workpiece and process. With suitable controls and monitoring, the machine can support repeated heating cycles for batch production. Actual repeatability depends on the equipment configuration, workpiece consistency, coil condition and process setup.

Compared with open-flame heating, induction heating can offer a cleaner working environment for applications where direct flame is undesirable. The heating process does not rely on an open combustion flame at the workpiece. Nevertheless, induction equipment operates at high electrical power and high temperatures, so proper electrical protection, cooling, shielding, operator training and workplace safety procedures remain essential.

Water cooling may be used for certain induction coils and high-power components. Depending on the machine configuration, the system may include a cooling unit or require connection to an appropriate cooling system. Maintaining suitable cooling conditions is important for stable operation and equipment service life during continuous production.

For OEM applications, the machine can be configured according to heating power, operating frequency, workpiece dimensions, target temperature, heating cycle, coil requirements and production volume. Customers can provide samples, drawings and process information so that the supplier can evaluate the appropriate equipment configuration.

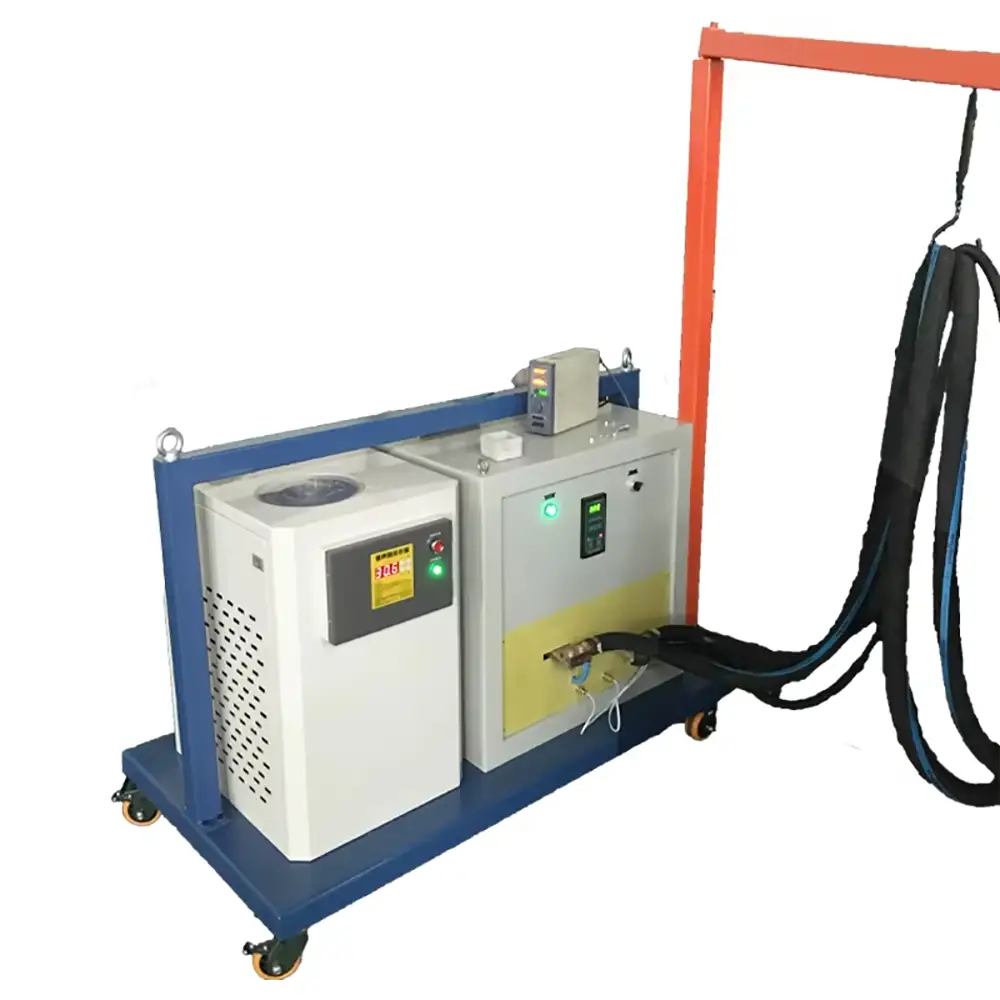

A complete induction heating workstation may include the high frequency power supply, induction heating unit, transformer, induction coil, cooling system, control panel, workpiece fixture and optional temperature monitoring equipment. The exact combination depends on the application and level of automation required.

The machine can be used for both manual and production-oriented processes. Manual operation may be appropriate for repair work, prototypes and small batches, while fixtures, foot switches, automated feeding or other accessories can be considered for higher-volume production depending on the machine design.

For buyers selecting a high frequency induction heating machine, important factors include workpiece material, dimensions, joint geometry, target temperature, heating time, production cycle, required power, operating frequency and coil configuration. Brazing and soldering applications should also consider the type of filler metal and required joint clearance.

The High Frequency Induction Heating Resistance Welder Welding Brazing Soldering Machine provides a flexible platform for modern metal heating and joining applications. With localized electromagnetic heating, configurable induction coils and compatibility with brazing, soldering, preheating and selected welding processes, it can serve manufacturers looking for efficient and controllable thermal processing equipment.

Why Choose Us:

High Frequency Induction Heating
High frequency electromagnetic heating provides fast and localized heating for suitable conductive metal components.

Multiple Joining Applications
The equipment can support induction brazing, soldering, preheating and selected resistance welding applications depending on configuration.

Localized Heat Control
Heating can be concentrated around the required joint or processing area to reduce unnecessary heating of surrounding components.

Custom Induction Coils
Coil designs can be evaluated according to tubing, fittings, rings, shafts, joints and other workpiece geometries.

Flexible Material Applications
Suitable configurations can be evaluated for copper, brass, steel, stainless steel, aluminum and other conductive metals.

OEM And Custom Solutions
Power, frequency, coil configuration, cooling and control requirements can be developed according to the application.

Industrial Production Support
The equipment can be used for prototypes, maintenance, small batches and repeated industrial production processes.

Complete Induction Heating Solutions
Power supply, heating unit, coil, cooling system, fixtures and other auxiliary equipment can be considered as part of a complete solution.

FAQs:

What Is A High Frequency Induction Heating Machine?
It is an electrical heating system that uses a high frequency electromagnetic field to generate heat directly within suitable conductive metal workpieces.

Can It Be Used For Brazing?
Yes. Induction brazing is one of the common applications, particularly for metal joints such as copper tube and fitting assemblies.

Can It Be Used For Soldering?
Yes. It can be configured for suitable induction soldering applications depending on the solder alloy, workpiece and required temperature.

What Metals Can Be Induction Heated?
Common materials include copper, brass, steel, stainless steel, carbon steel, aluminum and other suitable conductive metals.

What Is The Difference Between Brazing And Soldering?
The primary difference is the temperature range of the filler material. Brazing generally uses higher-temperature filler metals, while soldering uses lower-temperature filler materials.

Can The Machine Perform Resistance Welding?
Certain configurations can support resistance welding applications, but resistance welding and induction heating use different heating principles and require appropriate electrodes and controls.

How Fast Is Induction Heating?
Heating speed depends on power, frequency, material, workpiece size, coil design, coupling and target temperature. Actual cycle time should be established through application testing.

Does The Machine Require An Induction Coil?
Yes. The coil transfers electromagnetic energy to the workpiece and is normally designed according to the required heating area and component geometry.

Can The Induction Coil Be Customized?
Yes. Custom coils can be designed for tubes, rings, fittings, shafts, joints and other specific workpiece shapes.

Does The Machine Need Water Cooling?
Some high-power induction systems and coils require water cooling. The exact cooling requirement depends on machine power, operating cycle and equipment configuration.

How Do I Select The Correct Machine Power?
Consider the material, workpiece dimensions, target temperature, heating time, production cycle, joint geometry and required heating area.

Can The Machine Be Customized For Automatic Production?
Depending on the application, fixtures, temperature monitoring, feeding systems, foot switches and other automation functions can be considered for production integration.
