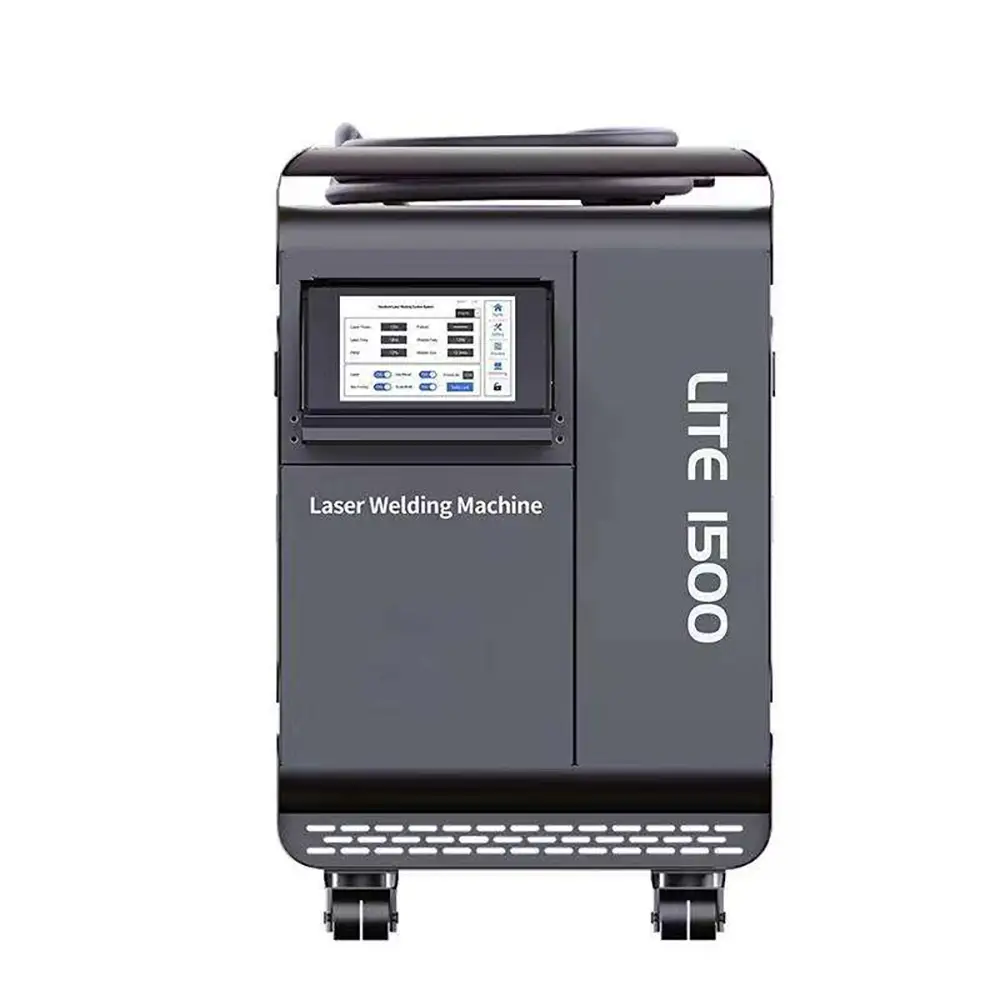

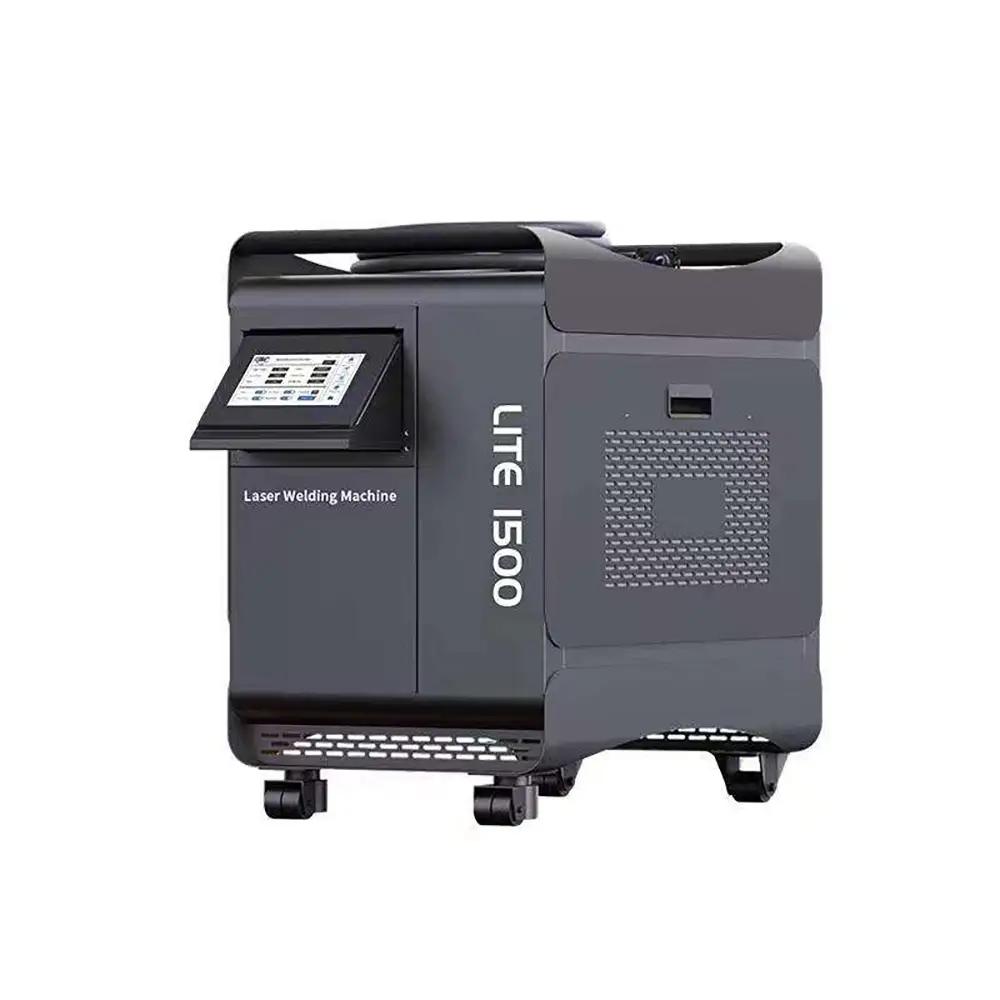

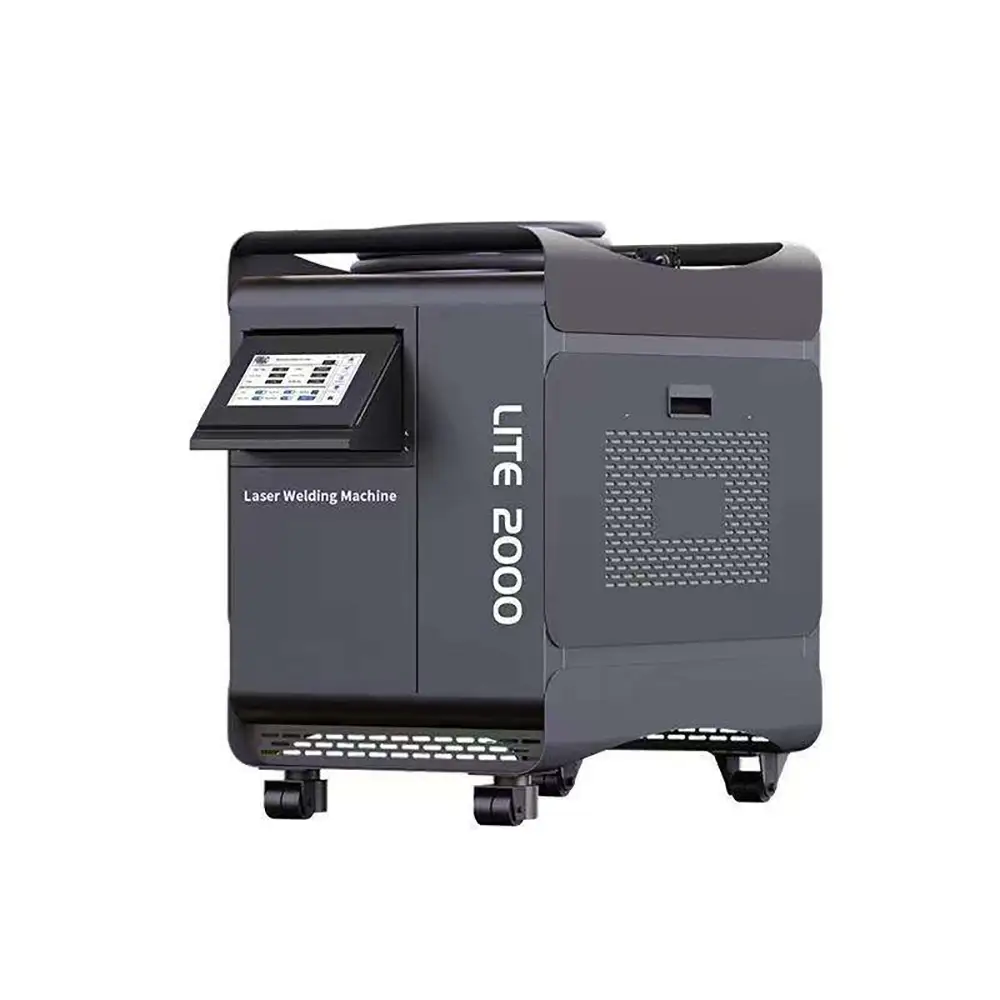

3-In-1 Handheld Water-Cooled Fiber Laser Machine - Metal Weld Cut Clean | High Efficiency

3-In-1 Laser Welding, Cutting and Cleaning

The primary advantage of this multifunctional machine is its ability to support three different laser processing operations.

Laser Welding: The handheld laser welding function delivers concentrated energy to the joint area, making it suitable for many fabrication, repair, assembly, and sheet metal applications. Depending on material thickness, joint design, laser power, and process parameters, the machine can be configured for different welding requirements.

Laser Cutting: The cutting function can be used for suitable metal sheets, plates, and components. Actual cutting capability depends on laser power, material type, thickness, assist gas, focus position, nozzle configuration, and other process conditions.

Laser Cleaning: Laser cleaning removes suitable contaminants and unwanted surface layers through controlled laser energy. It can be used for rust, oxidation, paint, oil, residue, and other surface contaminants when the material and process are appropriate.

This combination makes the machine particularly useful for workshops that handle multiple types of metal processing rather than performing only one specialized operation.

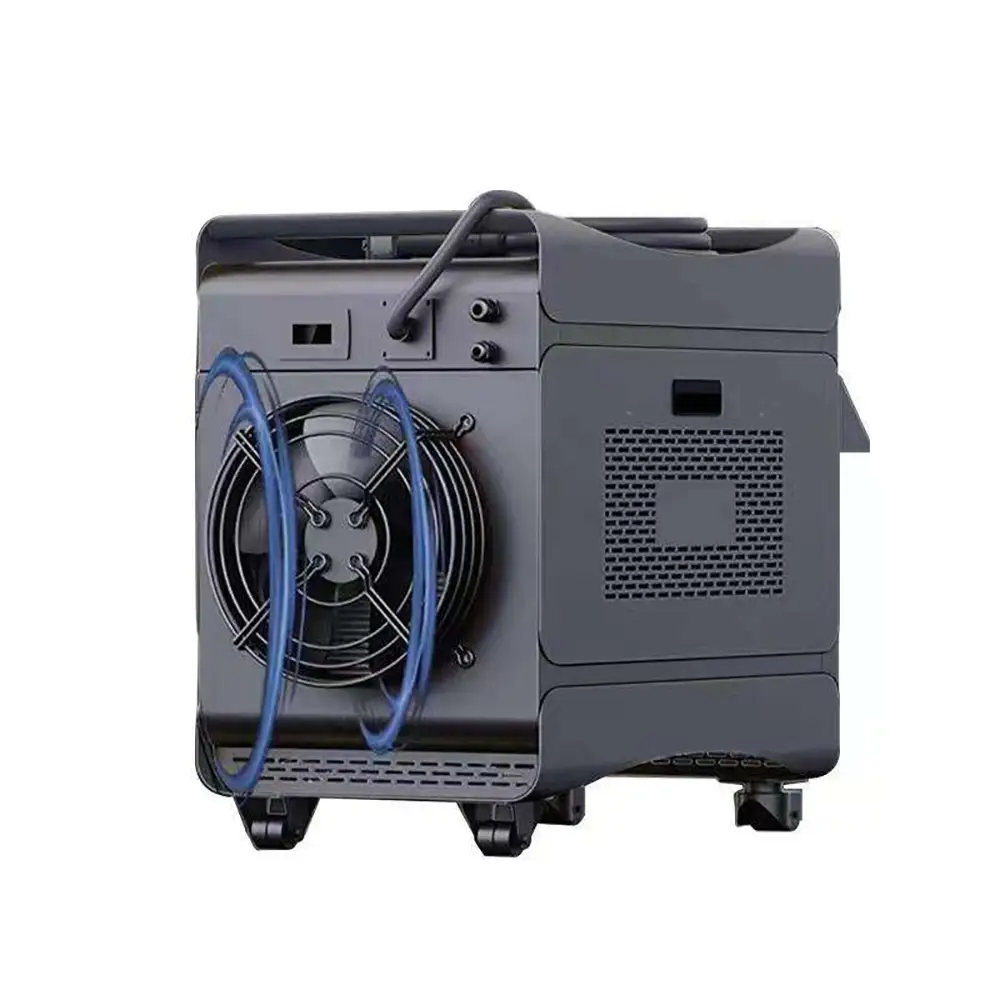

Water-Cooled Fiber Laser Design

The water-cooled configuration helps manage heat generated during extended laser operation. A cooling system circulates coolant through the relevant laser components to help maintain stable operating conditions.

Thermal management is especially important for industrial equipment because laser performance and component life can be affected by operating temperature. The actual cooling capacity, coolant requirements, operating temperature range, and maintenance schedule depend on the specific machine configuration.

For buyers operating production equipment for extended periods, a properly matched cooling system can contribute to stable operation and consistent processing conditions.

Handheld Operation for Flexible Metal Fabrication

Unlike large fixed laser processing systems, a handheld fiber laser machine provides greater flexibility for processing different workpieces. The operator can position the laser head directly over the required welding, cutting, or cleaning area.

This is useful when working with large, irregular, assembled, or difficult-to-position components. The equipment can also be suitable for repair work, fabrication workshops, machinery maintenance, metal structures, cabinets, frames, doors, panels, and custom metal components.

The handheld design can reduce the need to move large workpieces between multiple machines, helping improve workflow flexibility.

Suitable Metals and Applications

A 3-in-1 fiber laser machine can be configured for processing various suitable metals, including:

Stainless Steel

Carbon Steel

Mild Steel

Galvanized Steel

Aluminum

Copper

Brass

Other Compatible Metal Alloys

Material suitability and processing parameters should always be confirmed according to the specific laser configuration.

Typical applications include sheet metal fabrication, stainless steel products, machinery manufacturing, automotive components, agricultural equipment, electrical cabinets, kitchen equipment, metal furniture, architectural metalwork, equipment repair, metal structures, and general industrial maintenance.

Efficient Welding for Sheet Metal Fabrication

Laser welding offers concentrated heat input compared with many conventional welding processes. For suitable applications, this can help create narrow weld zones and reduce unnecessary heat exposure.

The handheld welding function can be used for suitable butt joints, lap joints, corner joints, and other common fabrication configurations. Weld quality depends on material, thickness, joint preparation, laser power, welding speed, shielding gas, wire selection when applicable, and operator technique.

For production applications, sample testing and parameter optimization are recommended before establishing a standard welding process.

Metal Surface Cleaning Before Fabrication

Surface preparation is an important part of metal fabrication. Rust, oxidation, oil, paint, and other contaminants can affect subsequent welding or finishing processes.

The cleaning function of the 3-in-1 fiber laser machine provides a contactless method for suitable surface cleaning applications. Compared with mechanical cleaning, laser cleaning can reduce the need for abrasive materials and may provide better access to certain localized areas.

The appropriate cleaning parameters depend on the contamination layer, substrate material, surface condition, and required finish.

One Machine for Multiple Production Tasks

For businesses with varied fabrication requirements, combining welding, cutting, and cleaning into one machine can simplify equipment planning.

A single platform can be used for different stages of a fabrication workflow. For example, an operator may clean oxidation or contaminants from a metal surface, perform laser welding, and use the cutting function for suitable components or modifications.

This multifunctional approach can be particularly useful for small and medium-sized manufacturers, custom fabrication shops, maintenance departments, and companies that need flexible processing rather than dedicated equipment for one operation.

High-Efficiency Fiber Laser Technology

Fiber laser technology is widely used for industrial metal processing because the laser beam can be delivered efficiently through an optical fiber to the processing head. The system can provide concentrated energy for welding, cutting, and cleaning applications.

Actual processing speed and productivity depend on laser power, material, thickness, process type, workpiece geometry, operator technique, and machine configuration. Therefore, production rates should be established through application testing rather than assumed from the machine category alone.

Safety and Operation

Laser processing equipment requires appropriate safety controls and operator training. Users should follow the manufacturer's operating instructions and applicable workplace laser-safety requirements.

Depending on configuration, safety-oriented features may include protective housings or shields, emergency stop systems, interlocks, protective eyewear, electrical protection, and other safeguards. The specific safety configuration should be confirmed before purchase.

Operators should also use appropriate ventilation, fume extraction, protective equipment, and fire-prevention measures according to the material and process being performed.

Custom Configuration and OEM Solutions

Different manufacturers have different processing requirements. We can support OEM and Custom & OEM solutions according to project requirements.

Possible configuration options may include laser power, laser source, handheld laser head, water chiller, control system, welding accessories, cutting nozzles, cleaning accessories, wire feeding equipment, gas system, and other application-specific components.

Before selecting a machine, buyers should provide the target materials, typical thickness range, welding requirements, cutting requirements, cleaning applications, working hours, and expected production volume. These details help determine a suitable configuration.

Why Choose Us

3-In-1 Multifunctional Design – Combines laser welding, cutting, and cleaning functions in one flexible platform.

Water-Cooled Configuration – Designed with an appropriate cooling system for stable operation under suitable working conditions.

Handheld Processing – Provides flexibility for large, irregular, assembled, and difficult-to-position workpieces.

Fiber Laser Technology – Uses modern fiber laser technology for a wide range of compatible metal-processing applications.

Wide Material Compatibility – Suitable configurations can process stainless steel, carbon steel, mild steel, aluminum, copper, brass, and other compatible metals.

B2B Industrial Applications – Suitable for manufacturers, fabrication shops, repair companies, machinery plants, and industrial maintenance departments.

Custom & OEM Support – Machine configurations can be matched to different laser power, cooling, processing, and accessory requirements.

Export-Oriented Service – We support overseas buyers with product consultation, configuration recommendations, technical communication, and customized machinery solutions.

FAQs

1. What is a 3-in-1 handheld fiber laser machine?

It is a multifunctional laser system designed to support laser welding, laser cutting, and laser cleaning with one machine platform.

2. What metals can this machine process?

Depending on the configuration, it can be suitable for stainless steel, carbon steel, mild steel, aluminum, copper, brass, and other compatible metals.

3. What is the purpose of water cooling?

Water cooling helps control heat generated during laser operation and supports stable equipment operation. The required cooling specification depends on the laser configuration.

4. Can the machine weld stainless steel?

Yes. Suitable stainless steel welding applications can be performed when the laser power, welding head, shielding gas, joint design, and process parameters are properly matched.

5. Can it cut metal?

Yes. The cutting function is designed for suitable metal sheets, plates, and components. Actual cutting thickness and speed depend on material, laser power, assist gas, and other processing conditions.

6. Can it remove rust?

The laser cleaning function can be used for suitable rust and oxidation removal applications. Cleaning results depend on the type and thickness of contamination and the substrate material.

7. Is the machine fully automatic?

The handheld configuration is generally operator-controlled. CNC or automated configurations may be available for specific applications, but automation level depends on the selected system.

8. What is the difference between laser cleaning and traditional cleaning?

Laser cleaning is a contactless process that uses controlled laser energy to remove suitable contaminants and surface layers. It can reduce dependence on abrasive cleaning methods in appropriate applications.

9. Does laser welding require shielding gas?

Many laser welding applications use shielding gas to protect the weld area. The appropriate gas and flow rate depend on the material and welding process.

10. Can the machine be customized?

Yes. OEM and customized configurations can be discussed based on material, thickness, production requirements, laser power, cooling system, and required accessories.

11. Is operator training required?

Yes. Operators should receive appropriate training covering machine operation, laser safety, material processing, maintenance, and emergency procedures.

12. How should I choose the correct laser power?

Laser power should be selected according to the primary application, material type, thickness, welding requirements, cutting requirements, cleaning requirements, and expected workload. Providing sample materials and application details is recommended before purchase.
