Heavy Duty TB Chassis 55–80HP Tractor with Front Loader Technical Parameters
TB chassis 55–80HP tractor with front loader. Powerful utility tractor for farming, construction, material handling, and heavy-duty agricultural applications with OEM customization..
TB chassis 55hp 60hp 70hp 80hp 4wd tractor can be used for medium and heavy duty farm work.By using famous diesel engine,reliable gear box,and heavy duty chassis,our tractors has sold to Europe,Australia,South American and Africa ,Asia eg many countries.
TB tractor also can be equiped with loader,backhoe,wood chipepr,trencher,mower,plough,harrow,trailer,baler eg many implements,can do multy farm work.TB compact tractor specification
|
Model |
554/604 |
704 |
804 |
|
Drive type |
4*4 |
|
|
|
Engine |
|
|
|
|
Engine brand |
Quanchai or Yangdong |
Quanchai or Yangdong |
Quanchai or Yangdong |
|
Type |
4 cylinder, Water-cooling, In-line, 4 stroke |
4 cylinder, Water-cooling, In-line, 4 stroke |
4 cylinder, Water-cooling, In-line, 4 stroke |
|
Rated speed (r/min) |
2400 |
2400 |
2400 |
|
Engine power (hp) |
55hp/60hp/40.4kw/44.1kw |
70hp/51.5kw |
80hp/58.8kw |
|
Transmission |
|
|
|
Clutch |
Dry, dual type |
Dry, dual type |
Dry, dual type |
|
PTO Speed(rpm) |
540/760 or 540/1000 |
540/760 or 540/1000 |
540/760 or 540/1000 |
|
Gear shift |
12F+12R |
12F+12R |
12F+12R |
|
Hydraulic system |
|
|
|
Hydraulic output valve |
2-Way optional |
2-Way optional |
2-Way optional |
|
Three point linkage |
|
|
|
Category of 3-point link |
Category II |
Category II |
Category II |
|
Technical parameter |
|
|
|
Dimension(L*W*H) mm |
3800*1750*2200 |
3900*1790*2200 |
3900*1790*2200 |
|
Min. Net weight |
2350kg |
2750kg |
2850kg |
|
Wheel base(mm) |
2070 |
2070 |
1950 |
|
Track base(mm) front wheel |
1400 |
1400-1450 |
1400-1450 |
|
Track base(mm) rear wheel |
1400 |
1400-1450 |
1400-1450 |
|
The smallest clearance(mm) |
410 |
410 |
410 |
|
Front tyre |
8.3-20 |
8.3-24 or 9.5-20 |
8.3-24 or 9.5-20 |
|
Rear tyre |
12.4-28 |
14.9-30 or 14.9-28 |
14.9-30 or 14.9-28 |
|
Steering type |
Hydraulic power steering |
Hydraulic power steering |
Hydraulic power steering |
TB compact tractor details

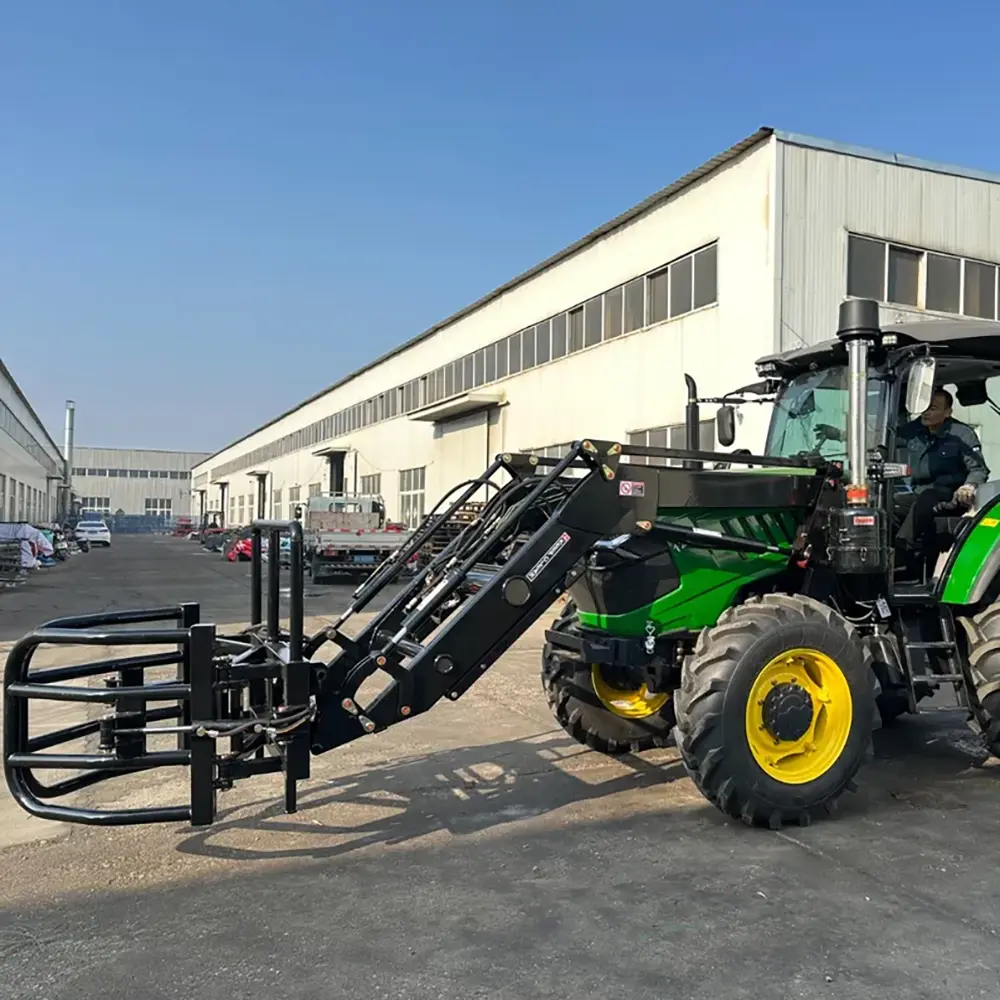

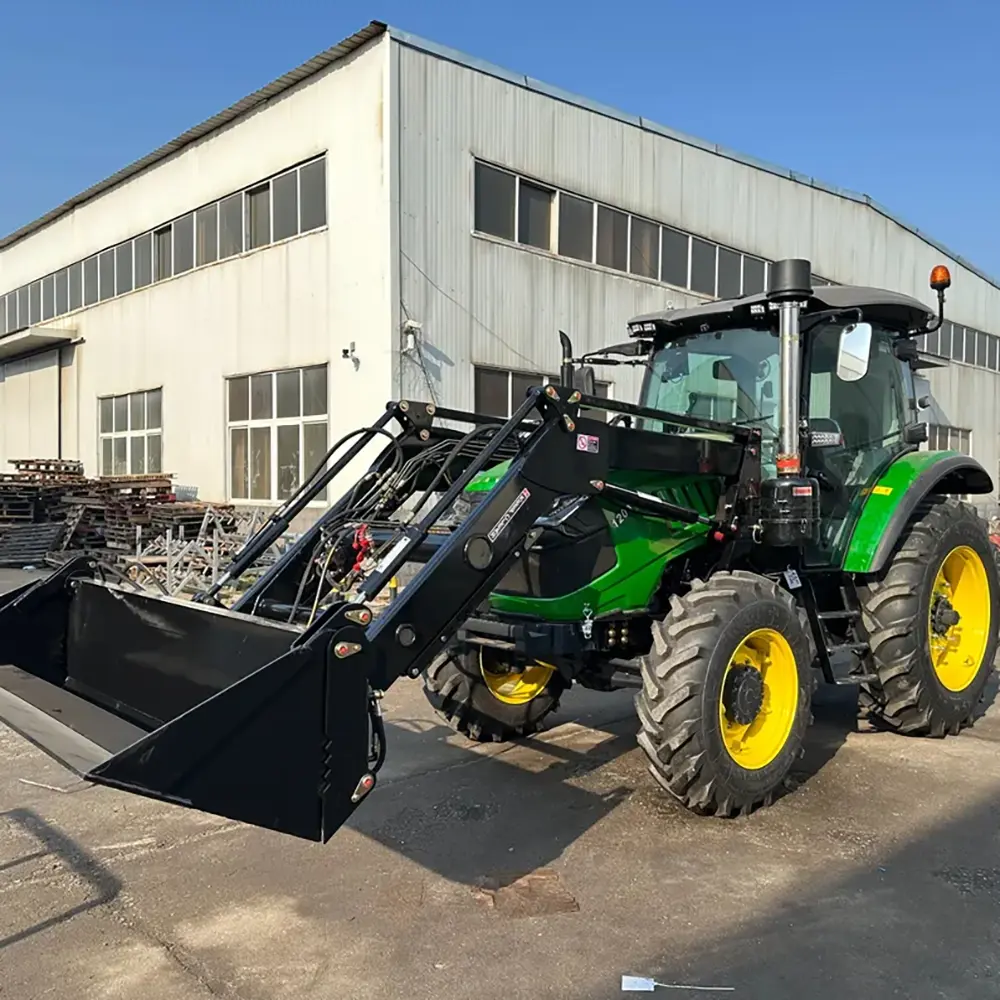

TB compact tractor with front loader
The Heavy Duty TB Chassis 55–80HP Tractor with Front Loader is a powerful and versatile agricultural machine designed for demanding farming, construction, and material handling applications. Built on a reinforced TB chassis structure, this tractor delivers exceptional durability, stability, and lifting performance, making it suitable for both field work and industrial operations.
Equipped with a strong front loader system, this tractor is capable of lifting, transporting, and loading a wide range of materials such as soil, gravel, feed, manure, and construction materials. Its 55–80 horsepower engine range ensures reliable power output for various attachments and heavy-duty tasks.
