Flotation Machine Sea Transportation System Wastewater Treatment Equipment

Flotation Machine Sea Transportation System Wastewater Treatment Equipment

The Flotation Machine Sea Transportation System Wastewater Treatment Equipment is an industrial wastewater treatment solution designed for solid-liquid separation, oil and grease removal, suspended solids separation, and other flotation-based water treatment applications. It can be configured as a dissolved air flotation system, commonly known as DAF, and supplied as an integrated treatment unit for domestic or international wastewater treatment projects.

Dissolved air flotation uses pressurized water and air to generate fine bubbles. When the pressure is released, the dissolved air forms microbubbles that attach to suitable suspended particles, oil droplets, grease, and flocs. The bubble-particle aggregates rise to the surface, where a skimmer or scraper removes the floated material. This makes DAF particularly useful for wastewater containing low-density or difficult-to-settle contaminants.

For international projects, the equipment can also be designed with transportation requirements in mind. Compact, modular, skid-mounted, or container-compatible configurations can help simplify export handling and installation. Modular DAF systems are already used in applications where transportation, limited installation space, and rapid deployment are important considerations.

What Is a Flotation Machine?

A flotation machine for wastewater treatment is a separation unit that uses air bubbles to bring suspended or floatable contaminants to the water surface.

In a typical dissolved air flotation process, wastewater first passes through screening and, when required, coagulation and flocculation. Chemicals may be added to destabilize fine particles and form larger flocs. A portion of clarified water is then pressurized and saturated with air. When this water is released into the flotation tank, fine air bubbles are produced.

The bubbles attach to the flocs and suspended contaminants, reducing their apparent density and causing them to rise. The floating layer is collected by a mechanical skimmer, while clarified water leaves the flotation chamber for further treatment or discharge.

This process is especially useful for suspended solids, fats, oils, grease, and other contaminants that do not settle efficiently by gravity.

Main Components of DAF Wastewater Treatment Equipment

A complete flotation system can contain several integrated components depending on the project.

Flotation Tank

The flotation tank provides the hydraulic environment where dissolved air is released and contaminant-laden bubbles rise to the surface.

Dissolved Air Generation System

This section can include a recycle pump, air injection or air dissolution equipment, pressure piping, valves, and bubble-release components.

Microbubble Release System

The release device controls the pressure reduction and distribution of dissolved air into the flotation zone.

Surface Skimmer

The skimmer continuously or intermittently removes the floating sludge layer from the water surface.

Sludge Collection System

Collected flotation sludge can be directed to a sludge hopper, sludge tank, dewatering system, or other downstream treatment equipment.

Control System

An electrical control cabinet can coordinate pumps, skimmers, valves, dosing equipment, and other auxiliary equipment. PLC and HMI options can be incorporated for automated operation.

The exact equipment arrangement depends on wastewater characteristics, flow rate, required treatment performance, and plant configuration.

How the Flotation Machine Works

The operating process generally consists of the following steps:

Wastewater Inlet – Wastewater enters the pretreatment or flotation system.
Chemical Conditioning – Coagulant and polymer can be added when required.
Flocculation – Fine contaminants are agglomerated into larger flocs.
Air Dissolution – A recycle stream is pressurized and saturated with air.
Microbubble Release – Pressure reduction releases fine air bubbles.
Flotation – Bubbles attach to suspended contaminants and lift them to the surface.
Surface Skimming – A skimmer removes the floating sludge layer.
Clarified Water Outlet – Treated water moves to the next treatment stage.

This process sequence is widely used in DAF systems for industrial wastewater and can be customized to suit individual wastewater characteristics.

Wastewater Treatment Applications

The flotation machine can be used in a wide range of industrial applications.

Food And Beverage Wastewater

Food-processing wastewater may contain fats, oils, grease, food particles, suspended solids, and other organic contaminants. DAF can provide an effective pretreatment or primary separation stage.

Slaughterhouse Wastewater

Slaughterhouse effluent can contain blood, fat, proteins, suspended solids, and other floatable organic material. Flotation can help separate these contaminants before biological treatment.

Oil And Gas Wastewater

DAF can be incorporated into oil-water treatment systems for removing oil droplets, suspended solids, and associated contaminants.

Pulp And Paper Wastewater

The process can be used for separating fibers and suspended solids from selected pulp and paper wastewater streams.

Textile And Printing Wastewater

After appropriate chemical conditioning, DAF can assist in separating suspended particles, dye-associated flocs, and other contaminants.

Chemical Manufacturing

Chemical wastewater can contain precipitated solids, oils, emulsified contaminants, and other materials suitable for physicochemical separation.

Mining And Mineral Processing

DAF can be used for selected mining wastewater and process-water applications where suspended solids or flotation-compatible contaminants need to be separated.

These industries are among the application areas associated with modern DAF technology.

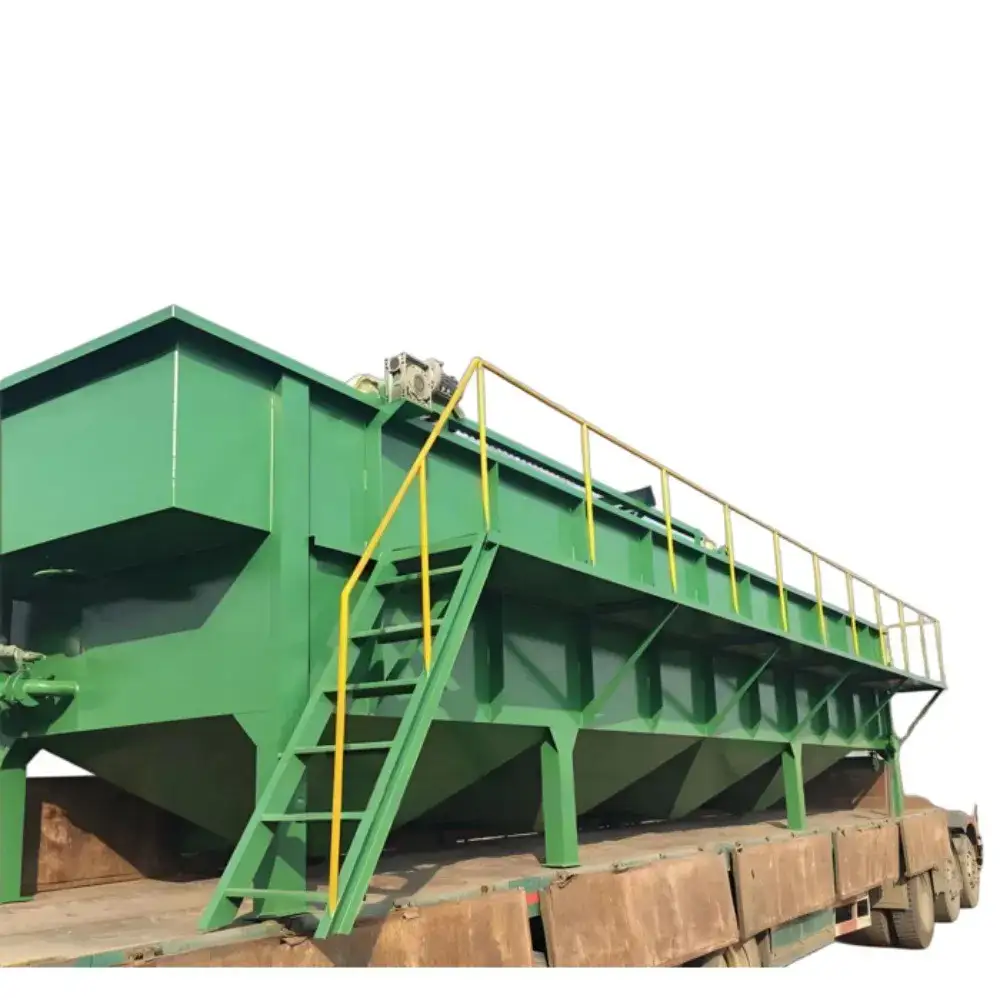

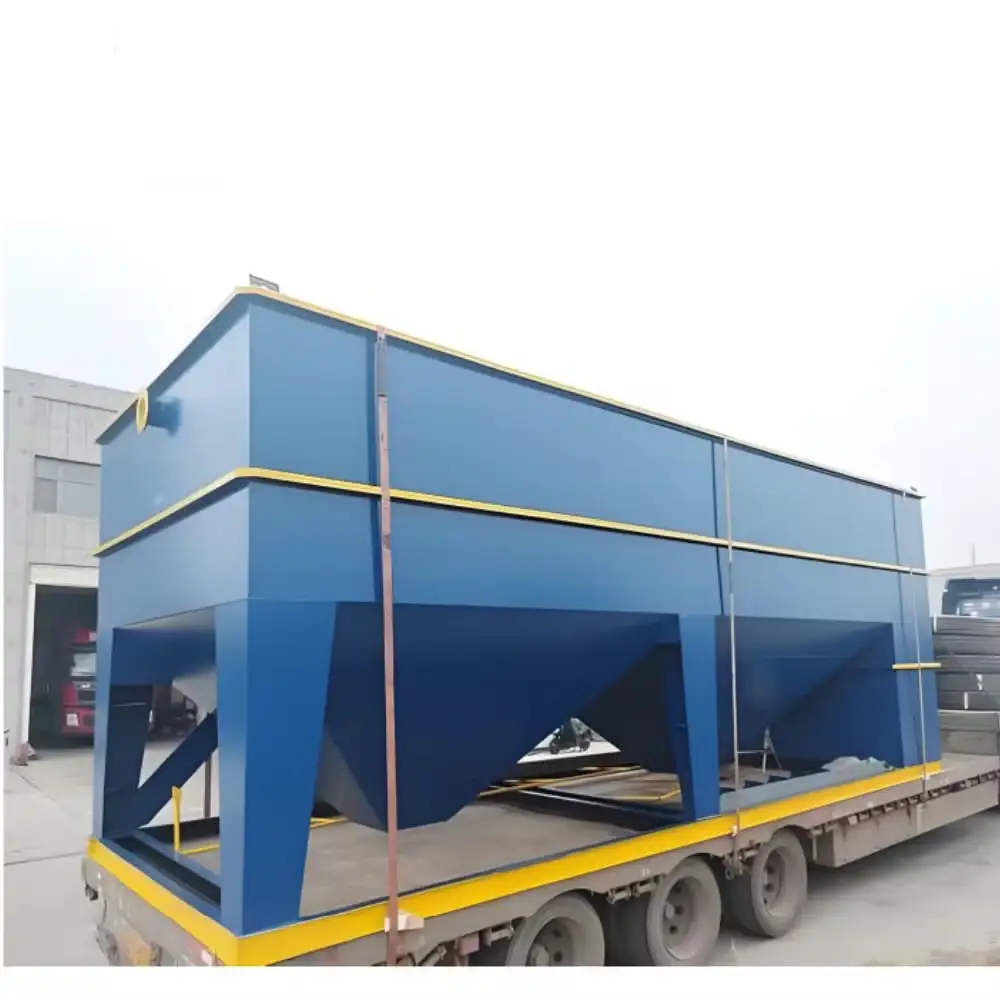

Sea Transportation System

For overseas wastewater treatment projects, transportation can be an important part of equipment design.

A Sea Transportation System can be configured around the dimensions, weight, packaging requirements, and destination of the flotation equipment. Depending on the size and project requirements, the equipment may be supplied as a complete unit, modular assembly, skid-mounted system, or separated components for container loading.

Export-oriented preparation may include:

Protective wrapping
Reinforced equipment supports
Corrosion protection
Separate packing for electrical components
Spare-parts packaging
Container loading plans
Installation drawings
Operation manuals
Electrical documentation
Piping and process diagrams

Compact and modular DAF designs can simplify transportation and installation, particularly when the treatment plant must be shipped to a remote location.

Compact Industrial Design

Modern DAF systems can be designed with a compact footprint to maximize treatment capacity within limited plant space. High-rate and modular configurations can reduce the space required compared with some conventional clarification arrangements.

The final dimensions should always be determined from actual hydraulic flow, solids loading, wastewater properties, chemical conditioning, flotation requirements, and available installation space.

A compact flotation system can also simplify integration with upstream equalization tanks, coagulation and flocculation equipment, and downstream biological or filtration processes.

Materials And Customization

Different wastewater environments require different construction materials.

Carbon steel with protective coating may be suitable for selected industrial applications, while stainless steel such as SS304 or SS316 can be specified when greater corrosion resistance is required. Material selection should be based on wastewater chemistry, chloride levels, temperature, cleaning procedures, and expected operating conditions.

Optional configurations can include:

SS304 Flotation Tank
SS316 Flotation Tank
Carbon Steel Flotation Tank
Automatic Surface Skimmer
Dissolved Air Pump
Air Compressor
Chemical Dosing System
Coagulation Tank
Flocculation Tank
PLC Control Cabinet
HMI Touchscreen
Variable-Frequency Drive
Automatic Valves
Sludge Discharge System
Remote Monitoring System
How To Choose The Right Flotation Machine

Selecting the correct flotation equipment requires more than simply specifying wastewater flow.

Customers should provide:

Wastewater source
Average and peak flow rate
Suspended solids concentration
Oil and grease concentration
BOD and COD information
pH range
Temperature
Wastewater density and characteristics
Required treated-water quality
Available installation space
Electrical power requirements
Sea transportation and container requirements

For difficult or variable wastewater, laboratory testing or pilot testing may be useful before final equipment selection. Actual flotation performance depends on wastewater characteristics and, where applicable, chemical conditioning.

Why Choose Us?
Complete Flotation Solutions: We provide integrated flotation tanks, dissolved air systems, skimmers, pumps, controls, and auxiliary equipment.
Industrial Wastewater Expertise: Equipment can be configured for food, oil, chemical, textile, paper, mining, and other industrial applications.
Custom Engineering: Capacity, dimensions, materials, controls, and process configuration can be customized.
Export-Ready Design: Equipment can be prepared for international sea transportation and container shipment.
Modular Configuration: Skid-mounted and modular designs are available for projects requiring simplified installation.
Automatic Operation: PLC and HMI control systems can be integrated for automated equipment operation.
OEM Manufacturing: Custom OEM equipment can be supplied for distributors, engineering contractors, and wastewater treatment companies.
Technical Documentation: Process drawings, equipment specifications, operation manuals, electrical documentation, and spare-parts lists can be supplied according to project requirements.
Frequently Asked Questions
1. What is a Flotation Machine in wastewater treatment?

A flotation machine is a wastewater separation device that uses air bubbles to lift suspended, oily, or flocculated contaminants to the water surface for removal.

2. Is a Flotation Machine the same as DAF equipment?

In wastewater treatment, the term flotation machine can refer to several flotation technologies. The equipment described here is primarily based on dissolved air flotation, or DAF.

3. What can DAF equipment remove?

Depending on the wastewater and process design, DAF can separate suspended solids, fats, oils, grease, floatable contaminants, and chemically formed flocs.

4. Does DAF require chemical dosing?

Not every application requires the same chemical program. Coagulants and polymers are commonly used when wastewater contaminants need to be conditioned into larger flocs for more effective flotation.

5. Can the flotation machine be used for industrial wastewater?

Yes. DAF technology is widely applied to industrial wastewater streams, including food and beverage, oil and gas, pulp and paper, chemical, textile, mining, and other industries.

6. Can the system be transported by sea?

Yes. The equipment can be designed and packaged for international sea transportation. The exact packing method depends on equipment dimensions, weight, destination, and container requirements.

7. Can the DAF system be customized?

Yes. Tank dimensions, treatment capacity, construction materials, skimmer configuration, pumps, chemical dosing, control system, and other components can be customized.

8. Can PLC control be added?

Yes. A PLC control cabinet with HMI, automatic sequences, alarms, pump control, skimmer control, and optional remote monitoring can be configured according to the project.

9. What material is used for the flotation tank?

Depending on the application, the tank may be manufactured from carbon steel with protective coating, stainless steel, or other corrosion-resistant materials.

10. What information is needed for a quotation?

Please provide wastewater type, flow rate, SS, oil and grease, BOD, COD, pH, temperature, required outlet quality, available space, power supply, and transportation requirements. This information allows the engineering team to recommend an appropriate flotation system.
