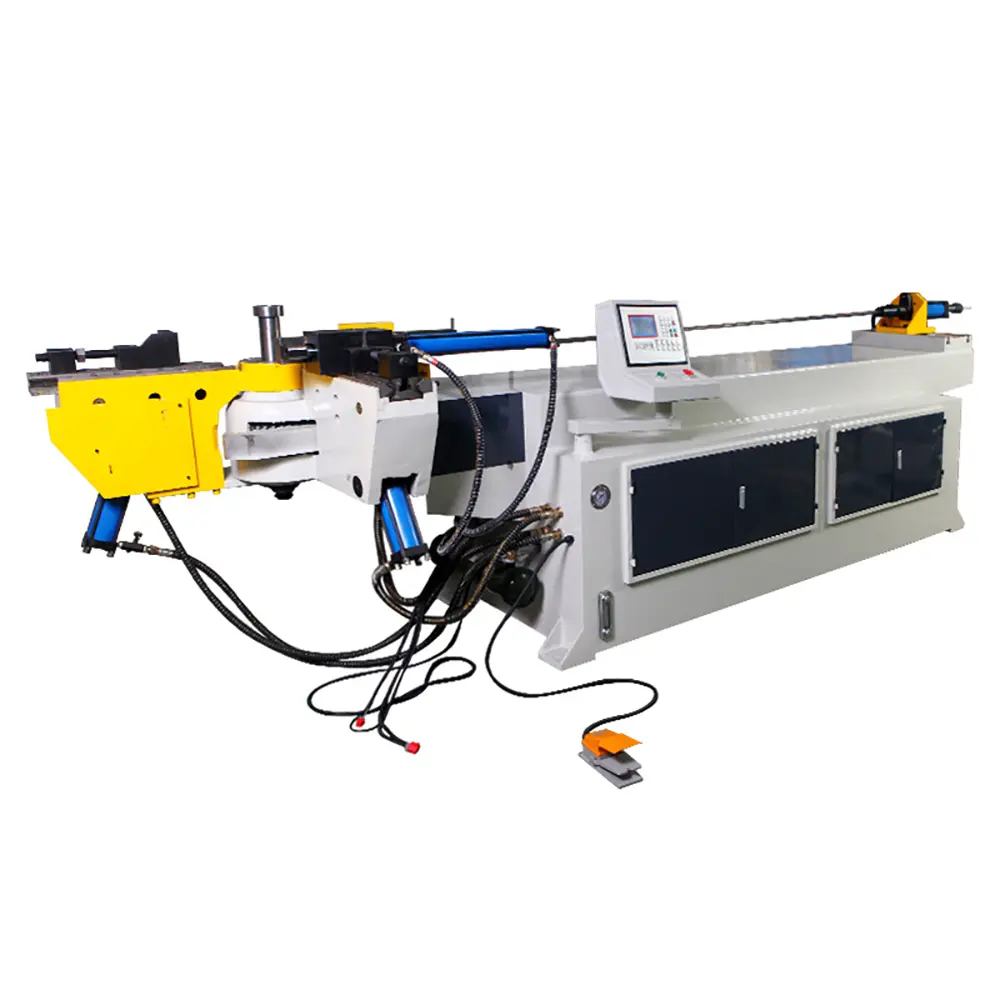

DW63NC Semi-Automatic Hydraulic Pipe Bending Machine Technical Parameters

model DW63NC Max. Bending Capacity ○ round MS: 634mm;SS: 504mm Square 50502.5mm ┗ angle steel 50 mm ▭ rectangle 4050mm ● rod 20mm Square rod 2020mm Bending method Hydraulic Operate mode Manual, semi auto, Feeding, rotate and adjust angle manu.

model
DW63NC



Max. Bending Capacity
○ round
MS: 63×4mm;SS: 50×4mm
Square
50×50×2.5mm
┗ angle steel
50 mm
▭ rectangle
40×50mm
● rod
φ20mm
Square rod
20×20mm
Bending method
Hydraulic
Operate mode
Manual, semi auto,
Feeding, rotate and adjust angle
manual
Fit to Shapes
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc
Adapted material
steel pipe, stainless steel, copper pipe, aluminum pipe,and multiple-unit tube
System language
Chinese, English, Spanish, Russian, or as requirement
range of bending radius
R25-R200mm
Max bending angle
190°
Bending precession
±0.1°
Bending speed
45°/sec
voltage
380/415 or as requirement
Total power
6.5 KW
Oil Tank Capacity
100 KG
Hydraulic oil
antiwear hydraulic oil
Standard Oil pressure
16 MPA
Max oil temperature
60°
cooling method
Air-cooled or Water-cooled
operating mode
button , touch screen, footswitch
Maximum number of stored bending programs
20 set
Max number of elbow pipe each program
20 set
Oversize
3.2×0.8×1.1M
weight
1900 kg
