Disc Ridger, Tractor Disc Ridger, 3-Point Disc Ridger Technical Parameters

Disc Ridger for Sale, Tractor Disc Ridger Supplier, 3-Point Disc Ridger Manufacturer, 3Z disc ridger is suitable for ridging after the tillage in the farm field.it consists of heavy duty tubular box frame, 3 point hitch system and discs..

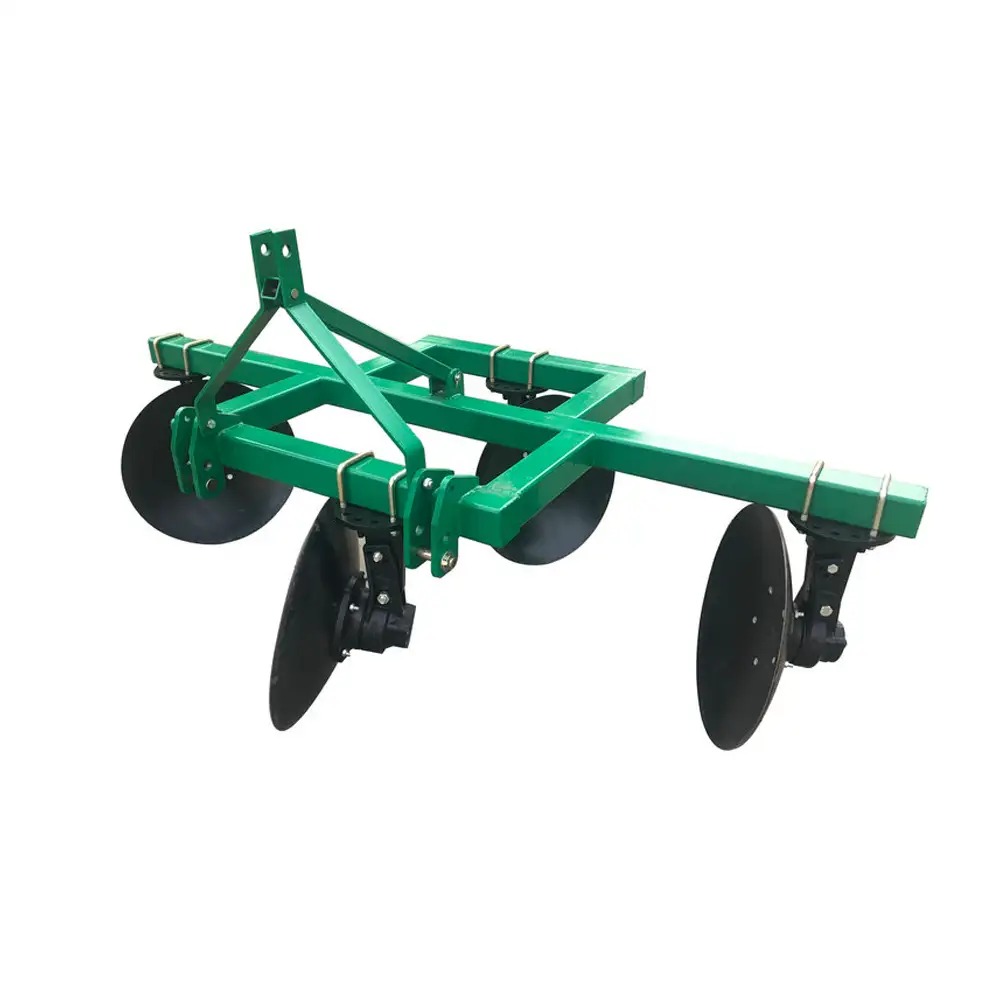

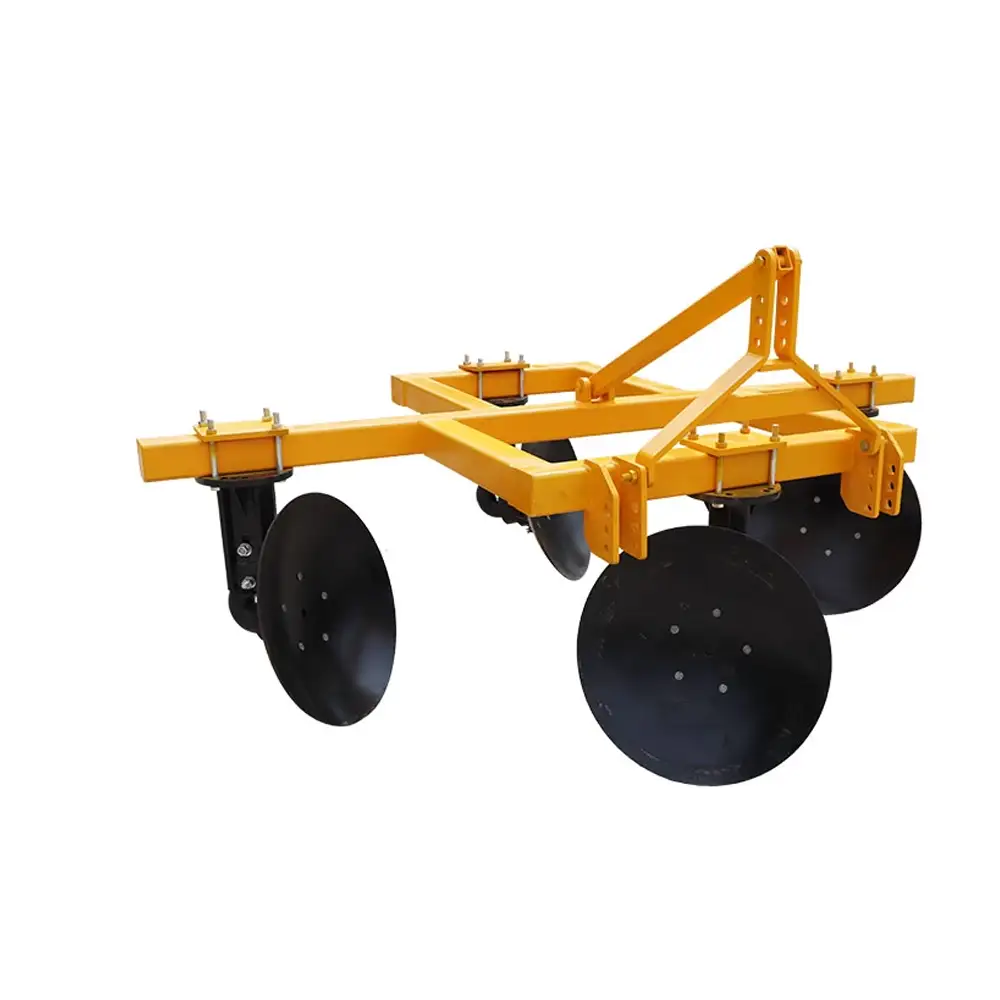

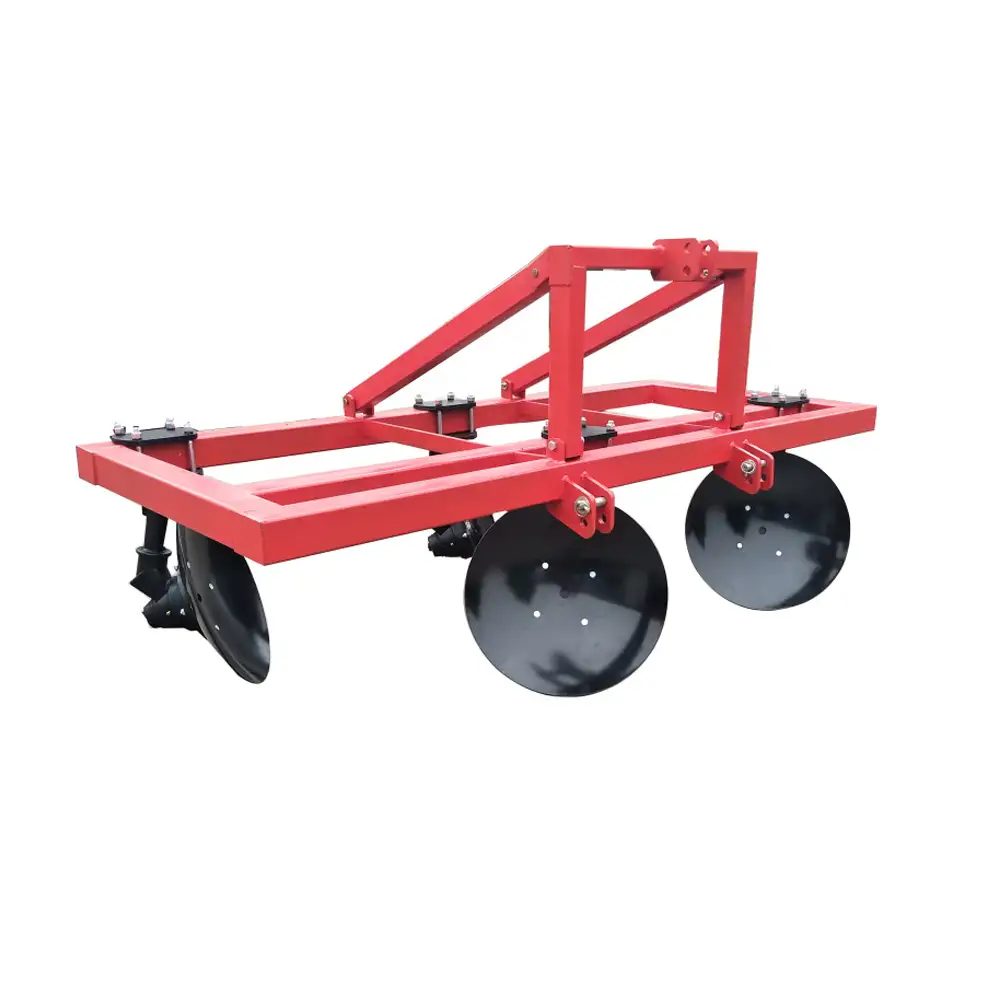

3Z series of disc ridger is suitable for ridging after the tillage in the farm field.it consists of heavy duty tubular box frame, 3 point hitch system and discs. The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness. The machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.

Model 3Z-80 3Z-120 3Z-140 3Z-180 3Z-260
Width of cut (mm) 800 1200 1400 1800 2600
Ridging width (mm) 200~450 300-500
Ridging height (mm) 150-260 150~300
Ridging of rows 1(2) 1(2) 1 1(2) 1(2)
Weight (kg) 120 140 220 200 246
Tractor power (kg) 20~30 30-40 50-60 60-70 70-90
Mounted cat Cat l Cat ll

It can produce ridge with maximum width of 1000 mm.
Available in 2 bottoms & 4 bottoms to make one ridge & two ridges respectively.
It has heavy duty box type frame.
Size and depth of the ridge can be adjusted.


Model DR-1 DR-2
No. of Disc 2 4
Type of Disc Notched   or Plain Disc (Optional)
Disc Diameter 26x6mm
Maximum Width Between Ridges 1000mm
Ridge Height 330mm
Bearing Hub 2 4
Weight 230kg 440kg
Tractor Power 50-65HP 70-90HP
