WT1LF Hydraulic Reversible Plough, Tractor Mouldboard Furrow Plow Technical Parameters

Hydraulic Reversible Plough for Sale, Wholesale Tractor Mouldboard Furrow Plow used for the loam, sand soil, cultivated and dry land, it can finish the furrowing work in double way. Model 1LF-345 1LF-445 1LF-545.

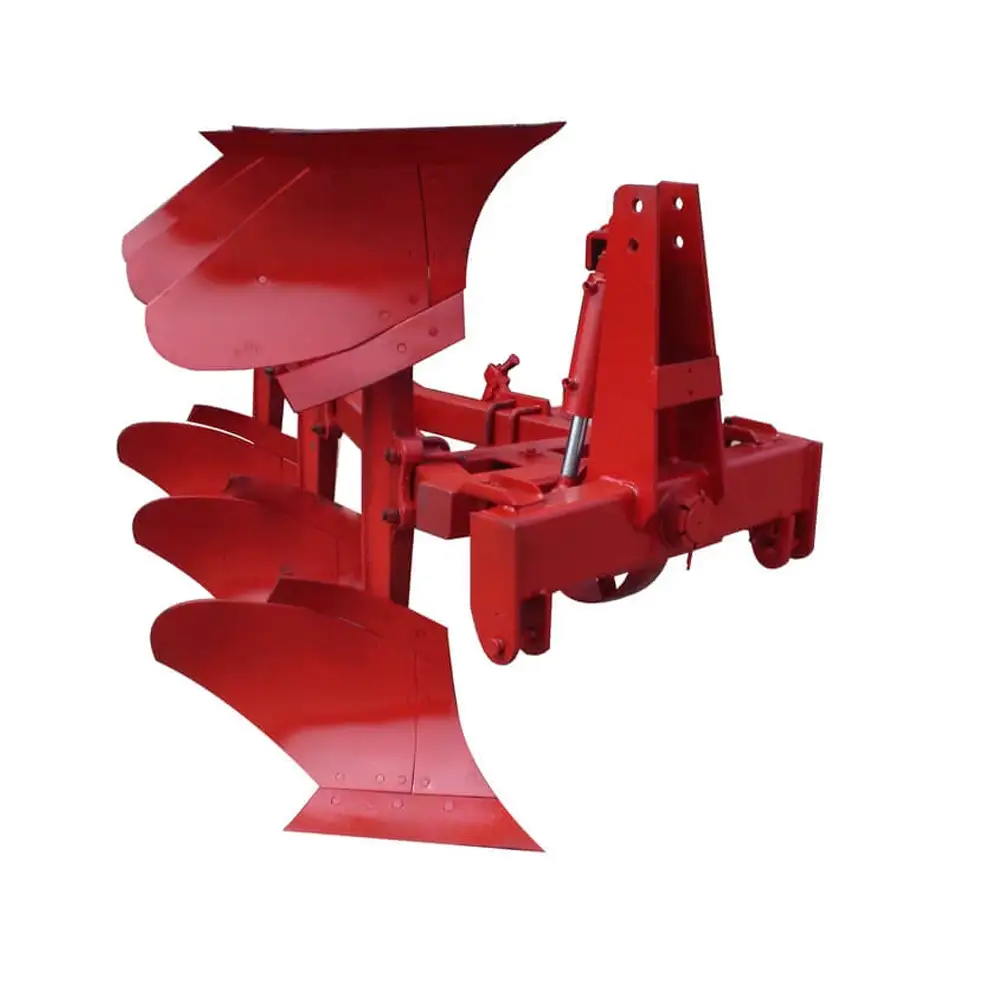

1LF hydraulic reversible plow is mounted with four-wheel tractor; it is used for the loam, sand soil, cultivated and dry land, it can finish the furrowing work in double way.

Model 1LF-345 1LF-445 1LF-545
Width of cut (mm) 1350 1800 2250
Depth of cut (mm) 300-350
Farrow 6 8 10
Weight (kg) 620 800 1000
Tractor power (hp) 70-90 90-120 120-140
Mounted Cat Cat ll

It is designed to work in all types of soil for functions such as soil breaking, soil raising and soil inversion. The plough has high carbon steel bottoms with points for toughest ploughing jobs. It can handle the toughest ploughing job with excellent penetration performance. The under-frame clearance is adequate to cope with trashy conditions.

Model 1LF-340A 1LF-440A 1LF-540A
Number of furrow (pcs) 6 8 10
Frame 90x130x8 (square tube)
Profile Cut Single Piece (mm) 400
Width of cut (mm) 1200 1600 2000
Deep of cut (mm) 350-450
Tractor power (hp) 90-100 100-150 120-180
Weight (kg) 1000 1300 1800
