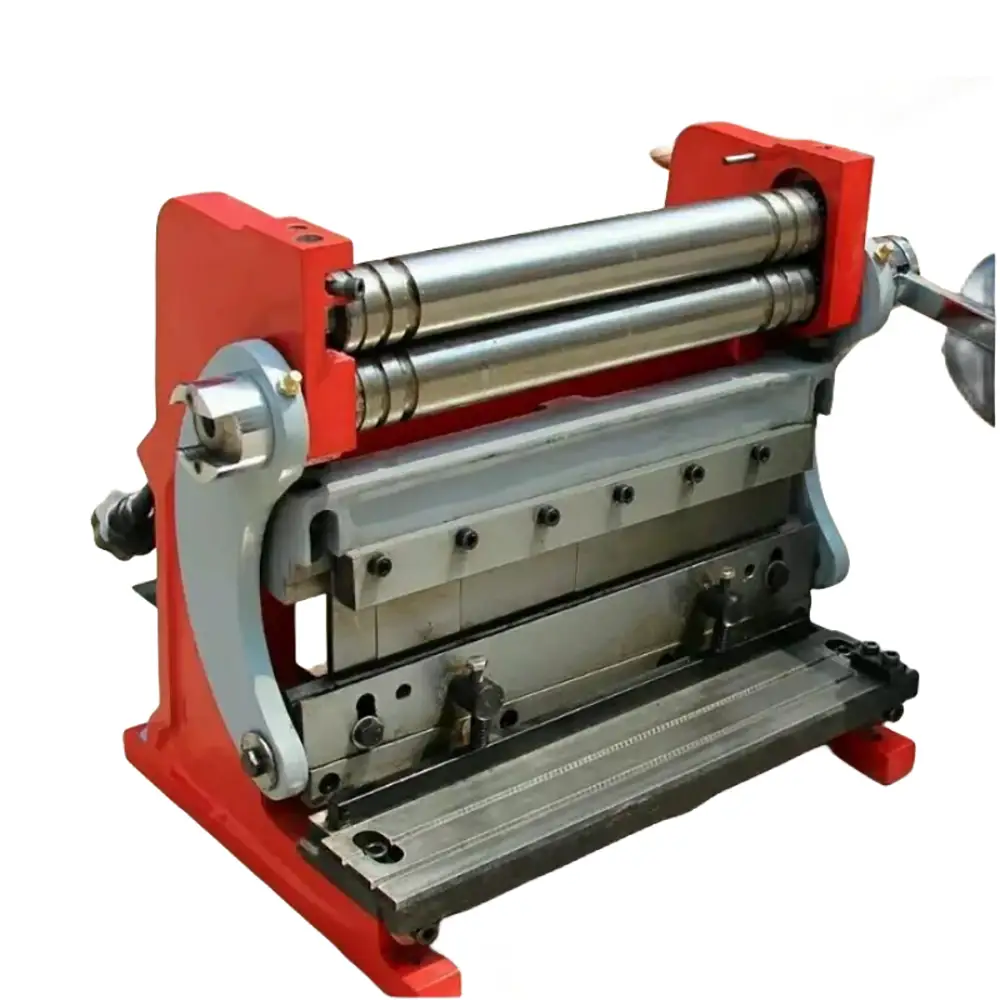

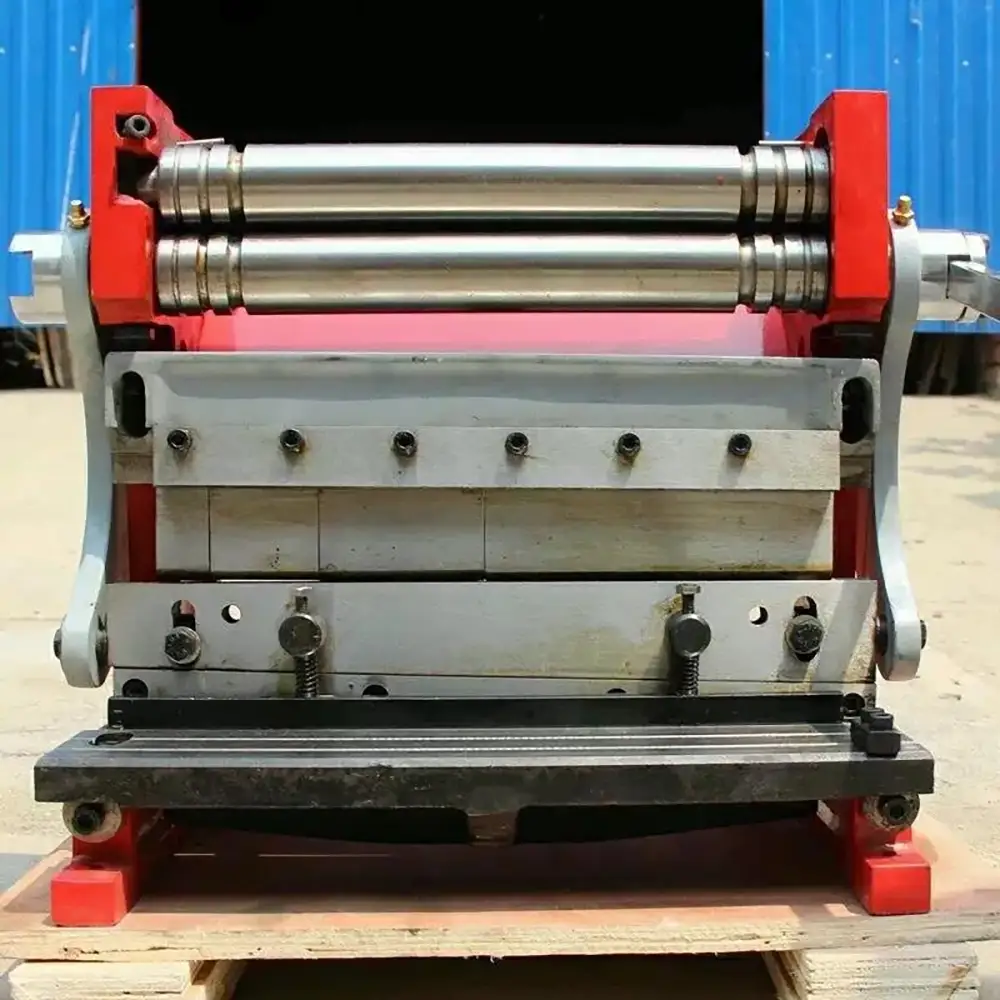

3 In 1 Multifunction Cutting Bending Rolling Metal Sheet Rolling Machine

The 3 In 1 Multifunction Cutting Bending Rolling Metal Sheet Rolling Machine is a versatile metalworking machine designed to combine three essential sheet metal fabrication functions—cutting, bending, and rolling—in one practical machine. It is developed for workshops, metal fabrication companies, maintenance departments, contractors, and manufacturers that need flexible sheet metal processing capabilities without purchasing separate machines for every operation.

Sheet metal fabrication often requires several processes before a finished component can be assembled. A flat metal sheet may first need to be cut to size, then bent into an angle or profile, and finally rolled into a curved section. Traditionally, these operations may require different machines and additional material handling. A 3-in-1 multifunction machine brings these basic operations together, helping simplify workshop workflow and providing a convenient solution for varied fabrication requirements.

The actual processing capacity depends on the machine model, material type, sheet thickness, sheet width, tooling, and operating configuration. Customers should confirm their required working range before selecting the appropriate machine.

Three Core Functions

1. Metal Sheet Cutting

The cutting function is designed to cut or trim suitable metal sheets according to the required dimensions. Preparing the correct blank size is an important first step in many fabrication projects.

The cutting capability depends on the machine's rated capacity, material strength, sheet thickness, working width, and cutting mechanism. It can be used for preparing panels, covers, brackets, ducts, containers, and other metal components.

Accurate initial cutting can also help reduce unnecessary material waste and simplify subsequent forming operations.

2. Sheet Metal Bending

The bending function forms flat sheets into angles, edges, channels, brackets, covers, and other straight-line profiles. It is suitable for general metal fabrication where controlled bending is required.

Different metals have different forming characteristics. Mild steel, stainless steel, aluminum, and galvanized steel can respond differently to bending pressure and springback. Operators should select suitable processing parameters according to the material and thickness.

The actual bending capacity depends on machine construction, sheet width, material strength, thickness, tooling, and required bending angle.

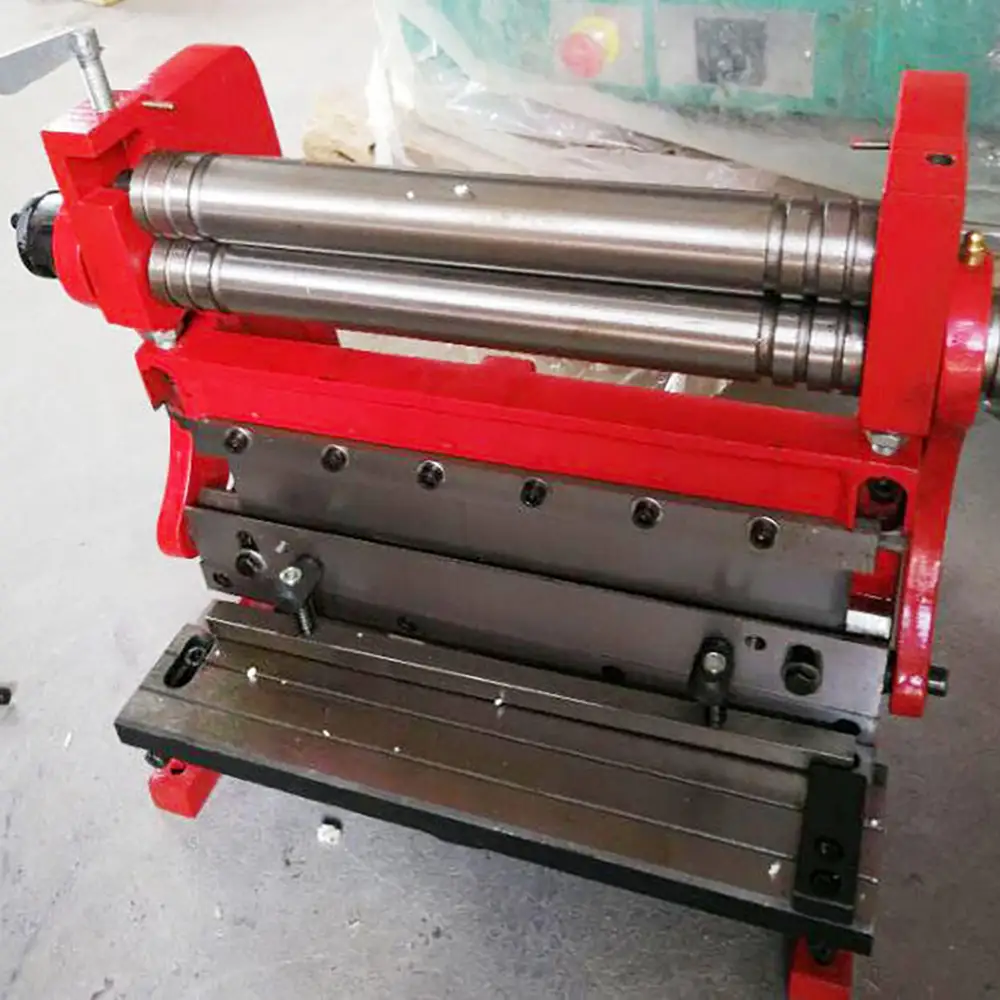

3. Metal Sheet Rolling

The rolling function transforms flat sheet metal into curved sections, arcs, cylindrical components, and other rounded shapes. This makes the machine useful for applications involving ducts, tanks, containers, guards, covers, and curved metal components.

The achievable rolling result depends on sheet thickness, material properties, sheet width, roller configuration, desired diameter, and forming method. Multiple forming passes may be required for certain workpieces.

Integrated 3 In 1 Metal Fabrication

The biggest advantage of the machine is its multifunctional configuration. Instead of moving workpieces between separate cutting, bending, and rolling machines, operators can perform different basic operations using one integrated equipment platform.

A typical fabrication workflow may be:

Measure → Cut → Bend → Roll → Inspect → Assemble

Not every workpiece needs all three functions. The operator can select the appropriate operation according to the design of the finished component.

This flexibility is especially useful for workshops handling custom orders, prototypes, maintenance work, repair projects, and small-batch production.

Suitable Metal Materials

The machine can be used for suitable sheet metals within its rated working capacity. Typical applications may include:

Mild Steel

Carbon Steel

Stainless Steel

Galvanized Steel

Aluminum

Other Compatible Sheet Metals

Material properties should be considered when selecting the machine. Stainless steel generally requires different forming parameters than mild steel, while aluminum has different strength and deformation characteristics.

For high-strength steel, special alloys, or unusual materials, customers should provide material specifications so the machine configuration can be evaluated.

Wide Application Range

The 3-in-1 multifunction machine can support a variety of metal fabrication applications, including:

Sheet Metal Workshops

HVAC Duct Fabrication

Metal Roofing

Electrical Cabinets

Equipment Enclosures

Machinery Covers

Metal Containers

Tanks And Cylindrical Components

Automotive Components

Agricultural Equipment

Custom Metal Products

Maintenance And Repair

Its flexible design makes it suitable for businesses that process different types of sheet metal products instead of focusing on one standardized component.

Space-Saving Workshop Equipment

Combining three functions into one machine can help reduce the need for multiple individual machines. This can be particularly useful for small and medium-sized workshops where floor space and equipment budgets are important considerations.

A multifunction machine can also simplify the production area by allowing several basic sheet metal operations to be performed within one designated workspace.

Reduced workpiece movement can make the fabrication workflow more organized and convenient for operators.

Production Efficiency

The 3-in-1 configuration can improve workflow efficiency by reducing unnecessary material transfer between separate machines.

For example, a fabricator can cut a sheet to the required dimensions, create the necessary bend, and then roll a section when the final design requires both straight and curved forming.

This type of equipment is particularly useful for custom fabrication where workpieces and production requirements change frequently.

Actual production efficiency depends on material dimensions, workpiece complexity, operator experience, tooling, machine configuration, and the number of processing steps required.

Tooling and Machine Configuration

Proper tooling and configuration are important for achieving consistent fabrication results. Different materials, thicknesses, bending angles, and rolling diameters may require different settings or tooling arrangements.

Before purchasing, buyers should consider:

Maximum Sheet Width

Maximum Sheet Thickness

Material Type

Cutting Capacity

Bending Capacity

Required Bending Angle

Minimum Rolling Diameter

Workpiece Dimensions

Production Volume

Tooling Requirements

Manual Or Powered Operation

For customized projects, customers can provide technical drawings, material specifications, sample workpieces, or production requirements for evaluation.

Quality and Repeatability

Good sheet metal fabrication requires accurate material positioning, stable machine operation, appropriate tooling, and consistent operating procedures.

For repetitive production, standard processing parameters can be established for commonly used materials and workpiece dimensions. This can help improve consistency between batches.

Actual dimensional accuracy depends on the machine structure, material characteristics, tooling, operator technique, and processing method. For projects with strict tolerances, sample testing using the actual material is recommended.

Maintenance and Safe Operation

Regular inspection and maintenance can help keep the machine operating reliably. Operators should check rollers, cutting components, bending surfaces, bearings, fasteners, adjustment mechanisms, and other moving parts according to the manufacturer's maintenance recommendations.

Processing debris should be removed from the working area, and cutting or forming components should be inspected for wear or damage.

The machine should always be operated within its rated working capacity. Operators should use appropriate protective equipment and follow machine-specific safety procedures. Emergency stops, guards, protective devices, and other safety features vary according to the machine configuration and applicable regulations.

OEM, ODM and Custom Solutions

Different metal fabrication companies may require different sheet widths, thicknesses, bending angles, cutting capacities, and rolling diameters. Therefore, machine selection should be based on the actual production requirements rather than only the machine name.

For OEM and custom projects, specifications such as working dimensions, tooling, capacity, machine configuration, and operating method can be discussed according to technical feasibility.

Providing detailed workpiece drawings and material information before quotation helps suppliers recommend an appropriate configuration.

The 3 In 1 Multifunction Cutting Bending Rolling Metal Sheet Rolling Machine provides a flexible solution for workshops and manufacturers that need multiple sheet metal processing capabilities in one machine. By integrating cutting, bending, and rolling, it can simplify fabrication workflows, reduce equipment duplication, and support a broad range of custom metalworking applications.

FAQs

1. What is a 3-in-1 sheet metal machine?

A 3-in-1 sheet metal machine combines three basic fabrication operations: cutting, bending, and rolling.

2. What are the main functions?

The three primary functions are metal sheet cutting, sheet metal bending, and metal sheet rolling.

3. What materials can the machine process?

Depending on the configuration, suitable mild steel, carbon steel, stainless steel, galvanized steel, aluminum, and other compatible sheet metals can be processed within the rated capacity.

4. Can it process stainless steel?

Yes, when the machine capacity is suitable for the required stainless steel thickness and width. Stainless steel may require different forming parameters from mild steel.

5. Can it roll sheet metal into cylinders?

Yes. The rolling function is designed to form compatible sheet metal into curved sections, arcs, and cylindrical shapes.

6. Can cutting, bending, and rolling be performed on the same workpiece?

Yes, provided the workpiece dimensions and machine configuration are suitable for all required operations.

7. Is the machine suitable for small workshops?

Yes. Its multifunctional design can help workshops perform several basic fabrication operations while reducing the need for separate machines.

8. What determines the maximum sheet thickness?

Maximum thickness depends on the machine model, material strength, sheet width, cutting and forming mechanism, tooling, and rated working capacity.

9. Can the machine be customized?

Yes. Machine dimensions, tooling, working capacity, and other configurations can be discussed according to specific project requirements.

10. Is the machine manual or automatic?

The operating method depends on the specific model. Manual or powered configurations may be available according to the machine design.

11. What information should I provide for a quotation?

Provide material type, sheet width, sheet thickness, cutting requirements, bending requirements, rolling diameter, production volume, and drawings or samples if available.

12. Is OEM service available?

Yes. OEM and custom machine solutions can be developed according to the customer's workpieces, production process, tooling, and technical requirements.

Why Choose Us

3 In 1 Multifunction Design – Combines cutting, bending, and rolling functions in one practical sheet metal machine.

Flexible Metal Fabrication – Suitable for custom orders, repair work, prototypes, maintenance, and small-to-medium production.

Space-Saving Equipment – Reduces the need for separate machines and can simplify workshop organization.

Broad Material Applications – Suitable for compatible steel, stainless steel, aluminum, galvanized steel, and other sheet metals.

Efficient Workflow – Helps reduce unnecessary workpiece movement between different fabrication machines.

Custom Configuration – Machine capacity, dimensions, tooling, and other specifications can be configured according to project requirements.

B2B Manufacturing Solution – Suitable for metal fabrication companies, industrial manufacturers, workshops, contractors, and maintenance departments.

OEM & ODM Support – Supports customized equipment solutions based on drawings, samples, materials, and production requirements.
