Steel Pipe Hydrostatic Test Machine | Hydraulic Leakage Detection Equipment

1	Pipe out diameter	33.4-88.9mm
2	Pipe length range	4000-6000mm
3	Max. Pressure	4 Mpa
4	Number of pressure test pipes	4/6/8/others
5	Control system	PLC（S7-1200)+computer
6	Total power	47.5KW
7	Pipe end form	press grooving or threading

Steel Pipe Leakage Detection Hydraulic Machine for Petroleum and Natural Gas Pipes

The Steel Pipe Leakage Detection Hydraulic Machine is specialized pressure test equipment designed for hydrostatic testing, pressure testing, and leakage detection of steel pipes used in petroleum, natural gas, oil and gas transportation, industrial pipelines, and related applications. By applying controlled hydraulic pressure to the inside of a pipe, the system helps manufacturers identify leakage, pressure loss, structural weaknesses, and potential defects before pipes are delivered for field installation or industrial service.

Pressure testing is an important quality-control process in steel pipe manufacturing. Pipes used for transporting oil, natural gas, water, and other fluids may operate under significant internal pressure. A reliable hydraulic pressure test provides manufacturers with a controlled method for evaluating pipe integrity and verifying that finished products meet applicable production and customer requirements.

The machine can be configured according to pipe diameter, pipe length, required test pressure, testing cycle, production capacity, sealing method, and automation requirements. Depending on the machine model, the system may include hydraulic pumps, pressure control components, test heads, sealing devices, pressure measurement instruments, water circulation systems, control panels, and safety protection systems.

Hydraulic Pressure Testing for Steel Pipes

Hydrostatic testing uses water or another suitable testing medium rather than compressible gas to pressurize the pipe. During the test cycle, the pipe is filled with the testing medium, sealed at both ends, and subjected to a specified pressure for a defined period.

The hydraulic system provides controlled pressure to the test chamber or pipe interior. Pressure behavior can then be monitored during the testing cycle.

For steel pipe manufacturers, this process can help identify leaks or pressure-related problems that may not be visible during a simple visual inspection.

The actual test pressure, holding time, allowable pressure drop, and acceptance criteria should be established according to the applicable pipe standard, product specification, customer requirement, and testing procedure.

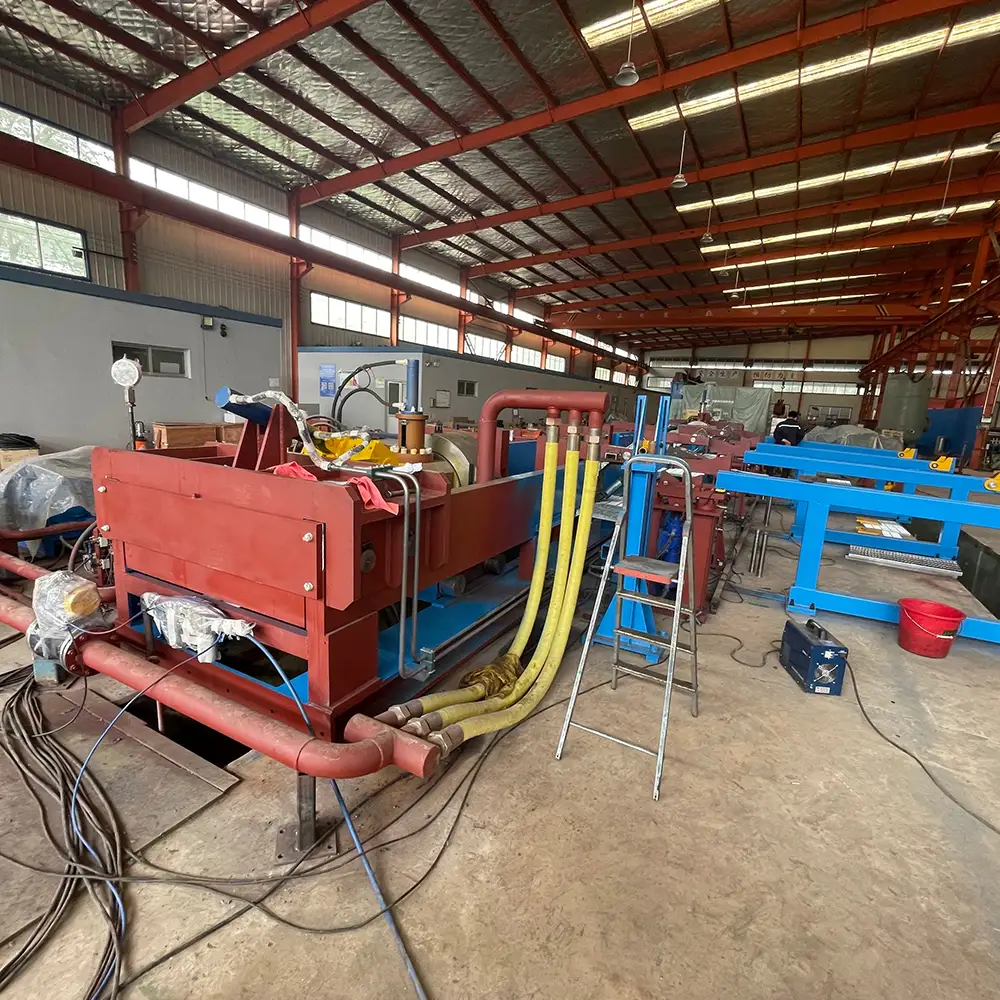

Steel Pipe Leakage Detection

Leakage detection is one of the primary applications of hydraulic pressure testing equipment.

A properly sealed pipe is pressurized with the test medium. If the pipe or sealing system cannot maintain the required pressure, operators can investigate the source of leakage or other abnormal conditions.

Potential issues may include:

Pipe wall defects
Weld-related defects
End-area problems
Cracks or discontinuities
Improper connections
Sealing problems
Manufacturing defects

The machine provides a controlled environment for identifying pressure-related problems before products leave the factory.

Actual defect detection capability depends on the pipe design, test pressure, test procedure, instrumentation, sealing arrangement, and applicable inspection standard.

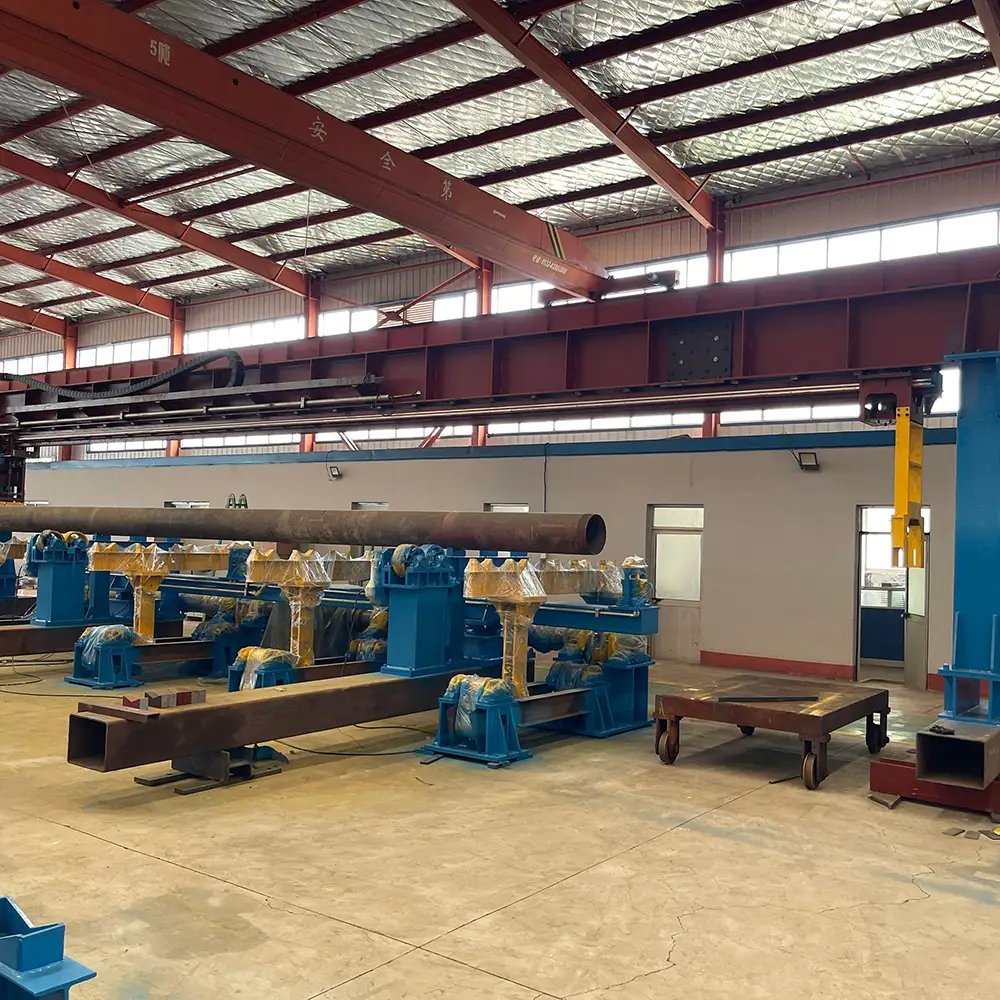

Petroleum and Oil & Gas Pipe Testing

Steel pipes used in petroleum and natural gas applications require reliable quality control because pipeline failures can have significant operational and economic consequences.

Hydrostatic pressure testing can be incorporated into the manufacturing inspection process for suitable oil and gas pipe products.

The equipment may be used for testing different types of steel pipes and tubes according to the manufacturer's production requirements and applicable standards.

Potential applications include:

Petroleum transportation pipes
Natural gas transmission pipes
Oil and gas pipeline sections
Steel casing pipes
Industrial steel tubes
Fluid transportation pipes
Structural steel pipes
Large-diameter steel pipes
Welded steel pipes
Seamless steel pipes

The exact pipe types and dimensions supported depend on the machine configuration.

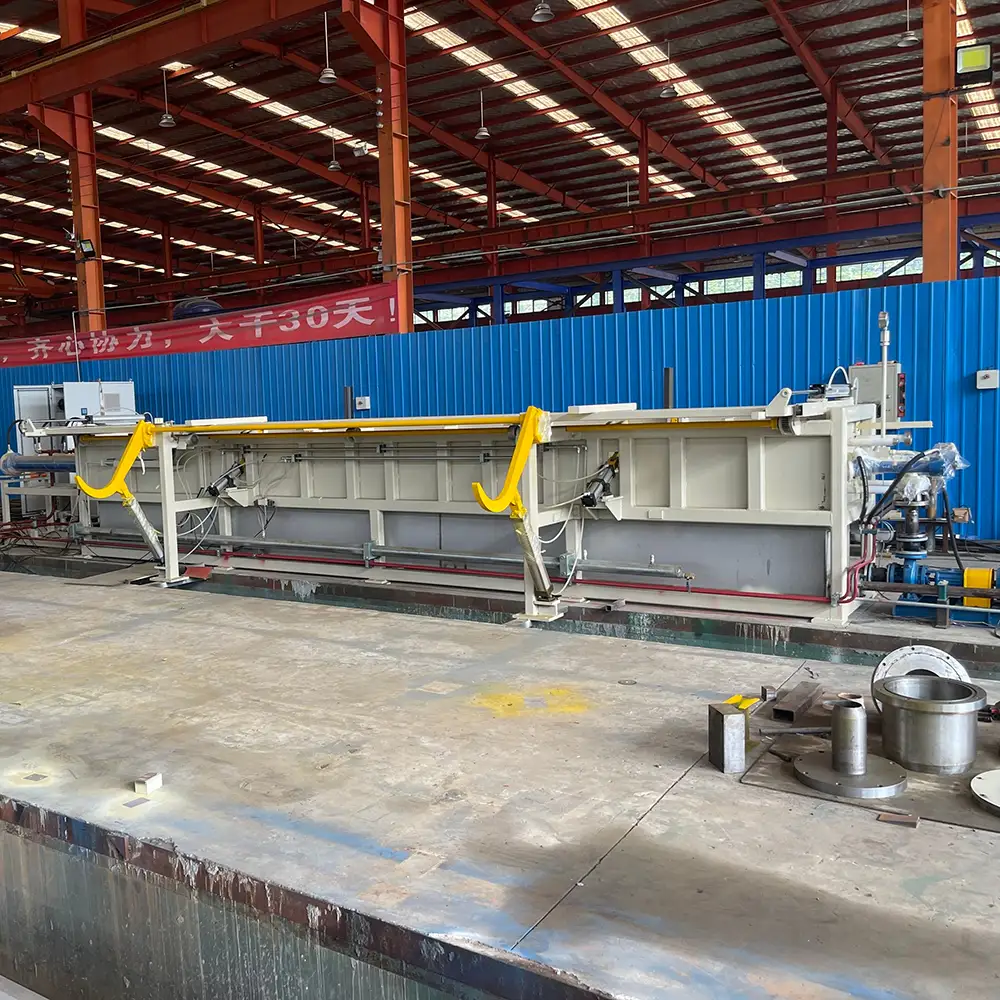

High-Pressure Hydraulic System

The hydraulic pressure system is the core of the testing equipment. It provides controlled pressure to the pipe during the hydrostatic test cycle.

The hydraulic system can be configured around the required testing pressure and production conditions. Pump capacity, pressure control, valves, piping, seals, instrumentation, and other hydraulic components should be selected according to the intended test range.

A properly designed hydraulic system allows operators to establish the required pressure in a controlled manner and maintain the test condition for the specified period.

For industrial production lines, the hydraulic system can also be designed to support repeatable testing cycles and efficient operation between pipe batches.

End Sealing System

Reliable sealing is critical to accurate pipe pressure testing.

The pipe must be securely sealed at the appropriate locations before pressure is applied. Depending on pipe size and application, different sealing and test-head configurations can be used.

The sealing system should be selected according to pipe diameter, wall thickness, pipe end condition, test pressure, and production requirements.

For manufacturers testing multiple pipe sizes, interchangeable or adjustable sealing arrangements may provide additional production flexibility.

Pressure Measurement and Monitoring

Accurate pressure measurement is essential for hydrostatic testing.

The machine can incorporate appropriate pressure sensors, gauges, monitoring instruments, and control components according to the customer's required testing parameters.

During the test cycle, pressure information can be monitored to determine whether the pipe maintains the required pressure condition.

Depending on the machine configuration, testing data may also be integrated into the control system for process monitoring and production quality records.

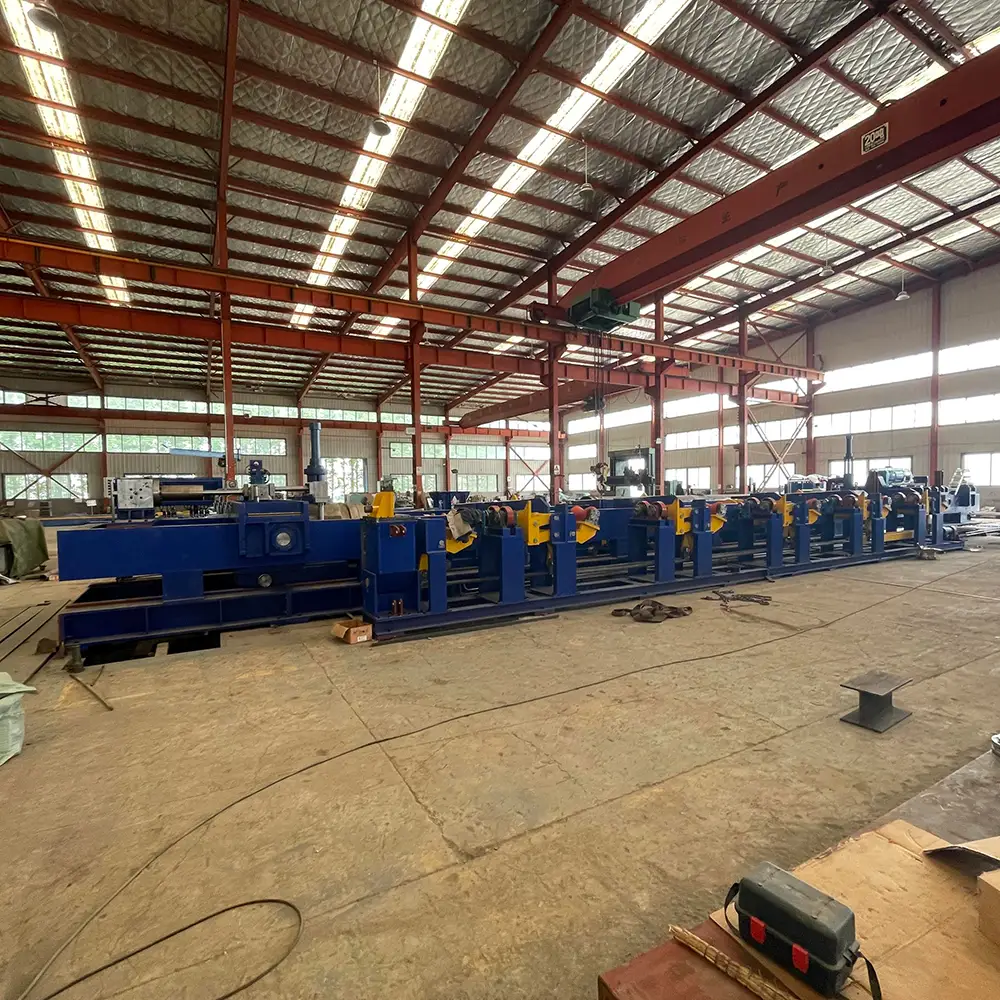

Automated Pipe Testing

For high-volume steel pipe production, automation can improve testing efficiency and reduce manual handling.

Depending on the selected configuration, automated or semi-automated functions may include pipe loading, test-head positioning, sealing, filling, pressurization, pressure holding, depressurization, and unloading.

Automation requirements should be determined according to pipe dimensions, production volume, factory layout, testing cycle, and available material-handling equipment.

A customized automated system can help manufacturers integrate pressure testing into an existing steel pipe production line.

Quality Control and Production Efficiency

Hydraulic pipe testing is not only a leakage inspection process but also an important part of manufacturing quality control.

A standardized pressure testing procedure can help manufacturers establish consistent inspection practices for production batches. This is especially useful for companies supplying steel pipes to oil and gas, energy, infrastructure, construction, and industrial customers.

The machine can be configured to match specific production requirements, helping reduce unnecessary manual operations and improve testing consistency.

Actual testing capacity depends on pipe size, pressure requirements, filling time, holding time, sealing system, handling method, and machine configuration.

Custom Pressure Test Equipment

Different steel pipe manufacturers may have significantly different testing requirements. Pipe diameter and length can vary considerably, while required test pressure and production capacity may also differ.

For this reason, hydraulic pressure test machines can be customized according to the customer's actual application.

Important design factors may include:

Pipe diameter range
Maximum pipe length
Maximum test pressure
Pipe material
Wall thickness
Test medium
Pressure holding time
Production capacity
Sealing method
Automation level
Factory layout
Data recording requirements

Customers can provide pipe drawings, product specifications, applicable standards, test pressure, pipe dimensions, and production targets for machine configuration evaluation.

Main Applications

The Steel Pipe Leakage Detection Hydraulic Machine is suitable for pressure testing applications involving:

Petroleum Steel Pipes
Natural Gas Pipes
Oil and Gas Pipelines
Seamless Steel Pipes
Welded Steel Pipes
Large Diameter Steel Pipes
Industrial Steel Tubes
Fluid Transportation Pipes
Pipeline Components
Steel Casing Pipes
Energy Industry Pipes
Industrial Pressure Pipe Products
Why Choose Us
1. Dedicated Steel Pipe Testing Solution

The machine is designed specifically for hydraulic pressure testing and leakage detection of steel pipe products.

2. Custom Test Pressure

The hydraulic system can be configured according to the required pressure range and testing specifications.

3. Flexible Pipe Sizes

Test heads, sealing systems, and machine structures can be designed around different pipe diameter and length requirements.

4. Reliable Leakage Detection

Controlled hydraulic pressure provides a practical method for identifying pressure loss and leakage during testing.

5. Automation Options

Semi-automatic and automatic functions can be considered for manufacturers requiring higher production efficiency.

6. B2B Industrial Manufacturing

The equipment is suitable for steel pipe mills, oil and gas pipe manufacturers, industrial tube producers, and pipeline component suppliers.

7. Customized Engineering

Machine configuration can be developed according to pipe dimensions, test pressure, production volume, testing standards, and factory requirements.

Frequently Asked Questions
1. What is a steel pipe hydrostatic test machine?

It is equipment used to fill steel pipes with a testing medium and apply controlled hydraulic pressure to evaluate pressure integrity and detect leakage.

2. What is the purpose of hydrostatic testing?

Hydrostatic testing helps manufacturers identify leaks and pressure-related defects and verify that suitable pipes meet specified testing requirements.

3. Can this machine test petroleum pipes?

Yes. It can be configured for suitable petroleum and oil transportation steel pipes according to pipe dimensions and testing requirements.

4. Can it test natural gas pipes?

Yes. Suitable natural gas and oil-and-gas pipeline products can be tested when the machine is configured for their diameter, length, pressure, and applicable test procedure.

5. Does the machine use water for testing?

Hydrostatic testing normally uses water or another suitable liquid testing medium. The actual medium should be selected according to the testing procedure and applicable requirements.

6. Can different pipe diameters be tested?

Yes, depending on the machine design. Interchangeable or adjustable sealing and test-head systems can be considered for multiple pipe sizes.

7. Can the test pressure be customized?

Yes. The hydraulic system and pressure control components can be selected according to the required test pressure and machine configuration.

8. Can the machine be automated?

Yes. Automation levels can range from manually assisted testing to semi-automatic or more automated production systems.

9. What information is needed for a quotation?

Useful information includes pipe diameter, pipe length, wall thickness, material, test pressure, test holding time, production quantity, applicable standard, and required automation level.

10. Can you customize the machine for our pipe production line?

Yes. A customized solution can be evaluated based on pipe specifications, testing requirements, production capacity, factory layout, and material-handling conditions.
