Intelligent Control Steel Pipe Hydraulic Test Machine, Automatic Pressure Boosting & Maintaining

Intelligent Control Steel Pipe Hydraulic Test Machine

The Intelligent Control Steel Pipe Hydraulic Test Machine is an advanced pressure testing system designed for hydrostatic testing, leakage detection, pressure verification, and quality control of steel pipes and tubes. Featuring intelligent control with automatic pressure boosting and pressure maintaining functions, the machine provides a controlled and repeatable testing process for manufacturers requiring reliable inspection of industrial pipe products.

Hydraulic pressure testing is an important quality-control procedure for steel pipes used in petroleum, natural gas, water transportation, construction, energy, machinery, and other industrial applications. Before pipes are shipped to customers or installed in demanding operating environments, manufacturers need an effective method to verify their pressure resistance and identify potential leakage or manufacturing defects.

This hydraulic test machine provides a dedicated solution by filling the pipe with a suitable liquid testing medium, increasing the internal pressure to the required test level, maintaining the specified pressure for a defined period, and monitoring the testing condition throughout the cycle.

The actual test pressure, holding time, allowable pressure variation, and acceptance criteria should be determined according to the applicable pipe standard, customer specification, and production requirements.

Intelligent Pressure Control

One of the key advantages of this equipment is its intelligent pressure control system.

Instead of relying entirely on manual pressure adjustment, the machine can automatically control the pressure-building process according to programmed testing parameters. The system can monitor pressure during the test cycle and adjust the hydraulic system as required to maintain the target pressure.

Automatic pressure control is particularly valuable for production environments where consistent testing procedures are required across large numbers of steel pipes.

Depending on the machine configuration, the control system can integrate pressure sensors, hydraulic pumps, valves, control components, operator interfaces, and other monitoring devices into a coordinated testing process.

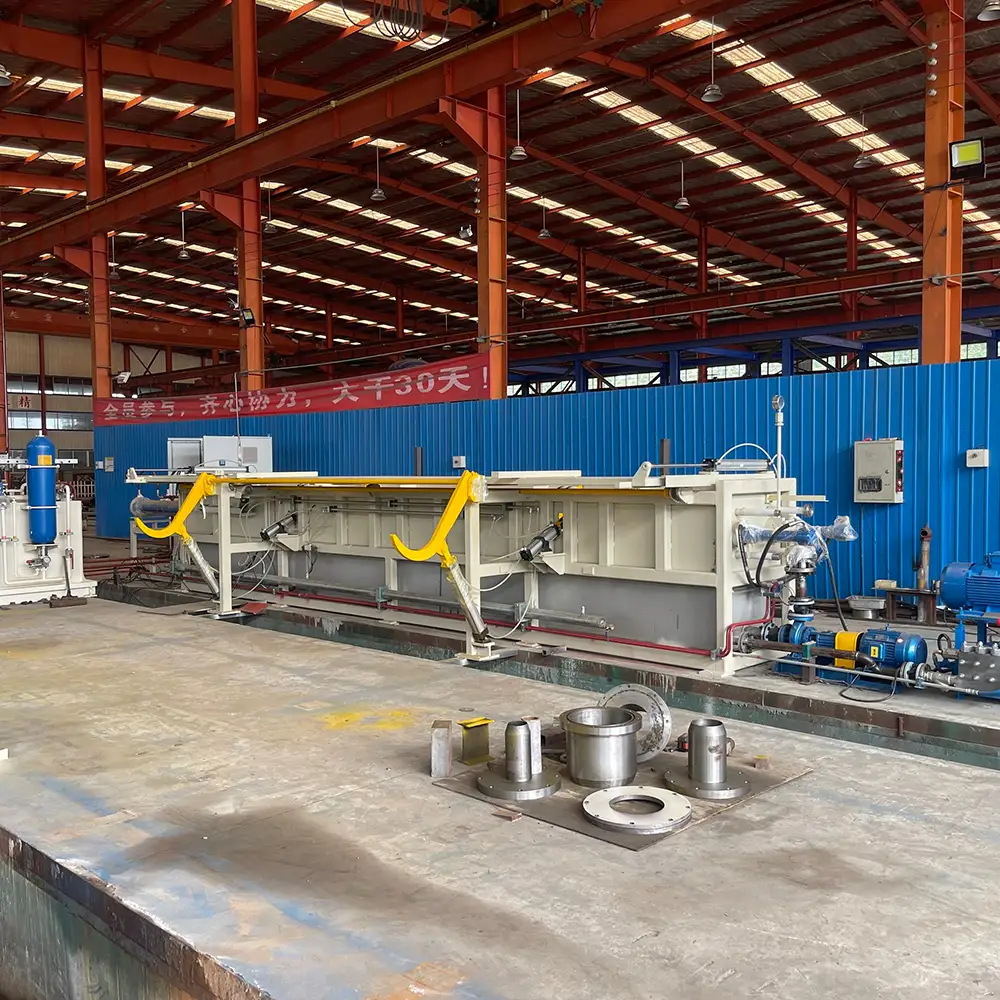

Automatic Pressure Boosting

The automatic pressure boosting function allows the hydraulic system to progressively increase pressure until the required test pressure is reached.

Controlled pressure boosting helps operators establish the required test condition in a more standardized manner. The actual pressure increase rate can depend on the machine design, pipe specification, testing standard, and customer requirements.

Once the target pressure has been reached, the control system can transition to the pressure-maintaining stage.

This combination of automatic boosting and maintaining is particularly suitable for production lines where repeatability and operating efficiency are important.

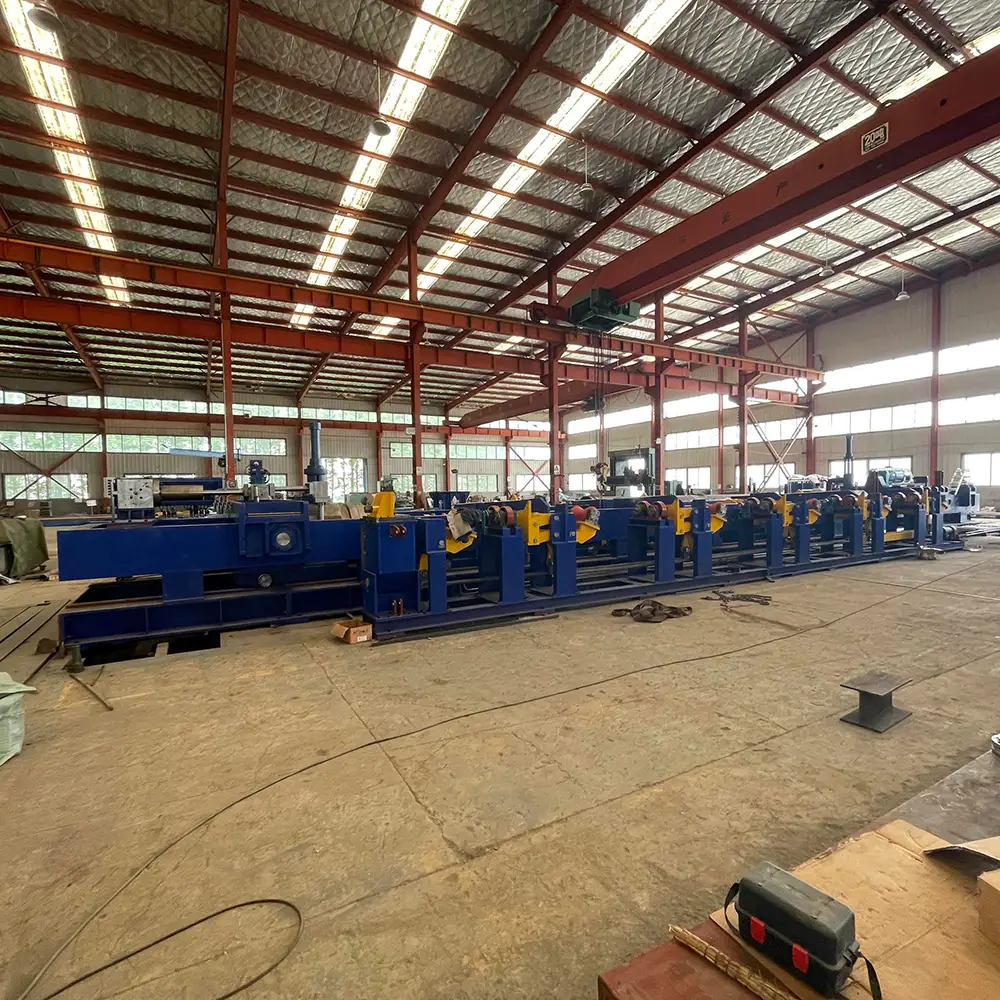

Automatic Pressure Maintaining

Maintaining a stable test pressure is a critical part of hydrostatic pipe testing.

After the specified pressure is reached, the machine can maintain the pressure for the required test period. Pressure sensors continuously monitor the system, while the hydraulic control system can compensate for pressure changes when appropriate.

The pressure-maintaining function helps establish a consistent testing procedure and reduces the need for constant manual intervention.

For manufacturers testing multiple batches of steel pipes, automated pressure maintenance can contribute to improved process consistency and production efficiency.

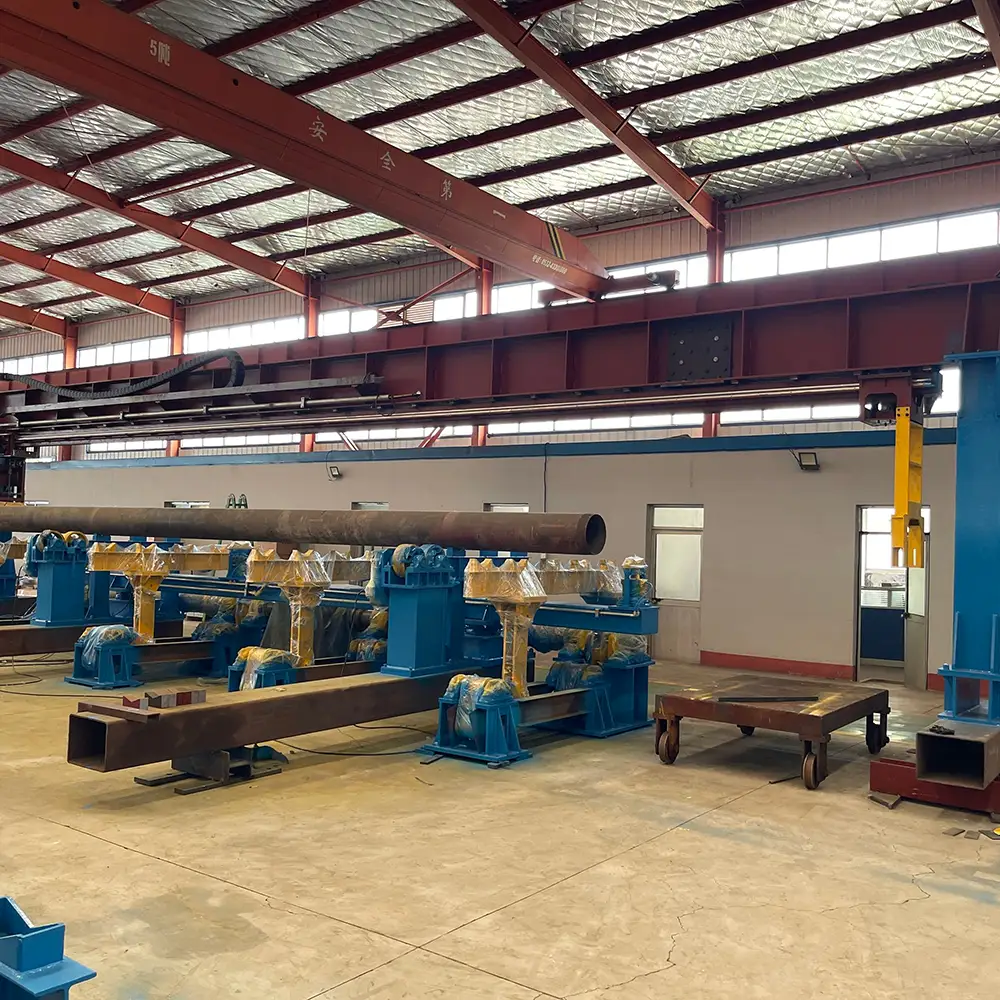

Steel Pipe Hydrostatic Testing

Hydrostatic testing uses a liquid medium, commonly water, to pressurize the internal volume of the pipe.

A typical test sequence may include:

Positioning the steel pipe in the testing area.
Sealing both ends using the appropriate test heads.
Filling the pipe with the testing medium.
Removing trapped air as required by the testing procedure.
Increasing pressure through the hydraulic system.
Reaching the specified test pressure.
Maintaining the required pressure for the specified period.
Monitoring pressure and checking for leakage.
Releasing pressure after the test.
Removing the tested pipe and preparing for the next cycle.

The actual testing procedure should always follow the applicable technical standard and factory safety procedures.

Steel Pipe Leakage Detection

Leakage detection is one of the main purposes of hydraulic pressure testing.

During the test, the pipe is subjected to controlled internal pressure. Operators or the control system can monitor the testing condition for signs of leakage or abnormal pressure behavior.

Potential problems may originate from pipe walls, weld areas, pipe ends, manufacturing defects, or sealing areas.

The test machine itself does not replace all forms of nondestructive testing. Instead, hydraulic pressure testing provides an important pressure-integrity inspection step that can complement other quality-control methods.

Applications in Oil and Gas

Steel pipes used for petroleum and natural gas transportation require dependable quality control because they may operate under demanding pressure conditions.

The hydraulic test machine can be configured for suitable oil and gas pipe products, including various seamless or welded steel pipes, depending on pipe dimensions and testing requirements.

Potential applications include:

Petroleum transportation pipes
Natural gas pipeline pipes
Oil and gas steel tubes
Industrial fluid pipelines
Steel casing pipes
Large-diameter steel pipes
Welded steel pipes
Seamless steel pipes
Energy industry pipe products
Industrial pressure pipe components

The appropriate testing parameters should be established according to the pipe grade, dimensions, applicable standards, and customer's technical requirements.

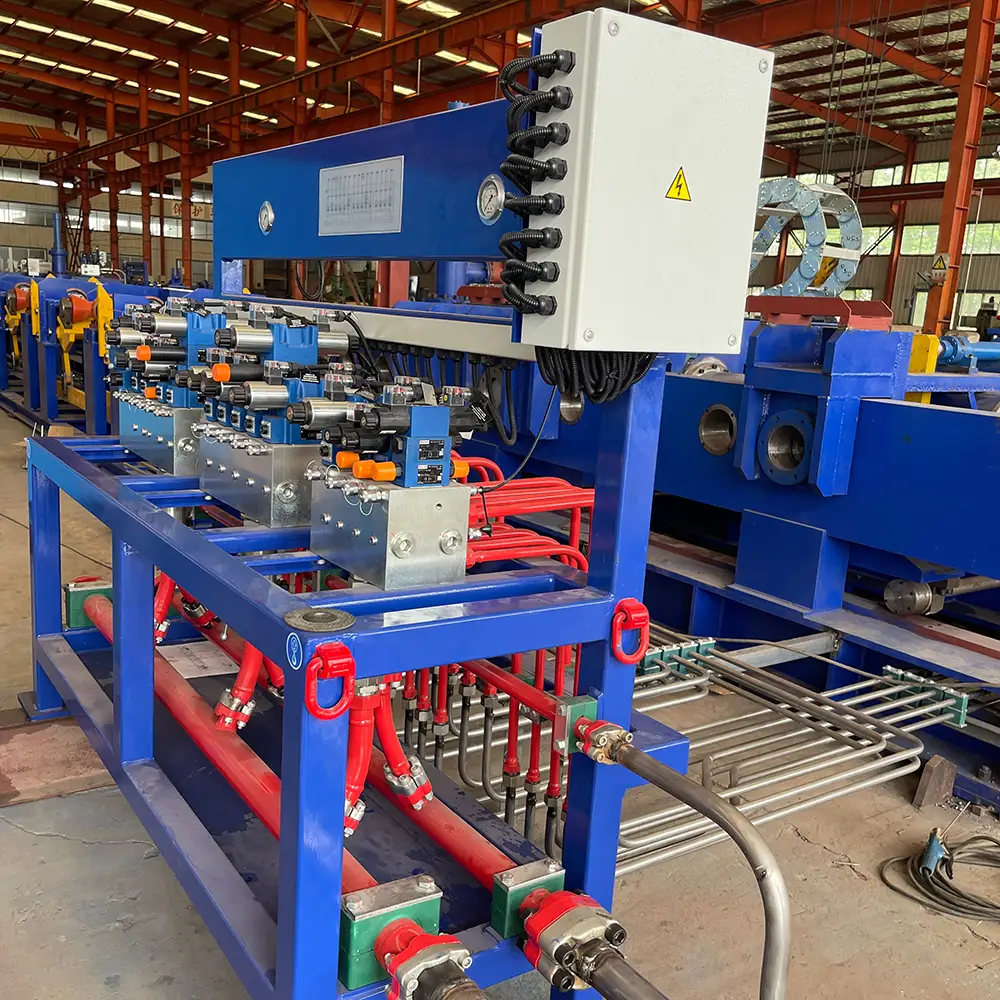

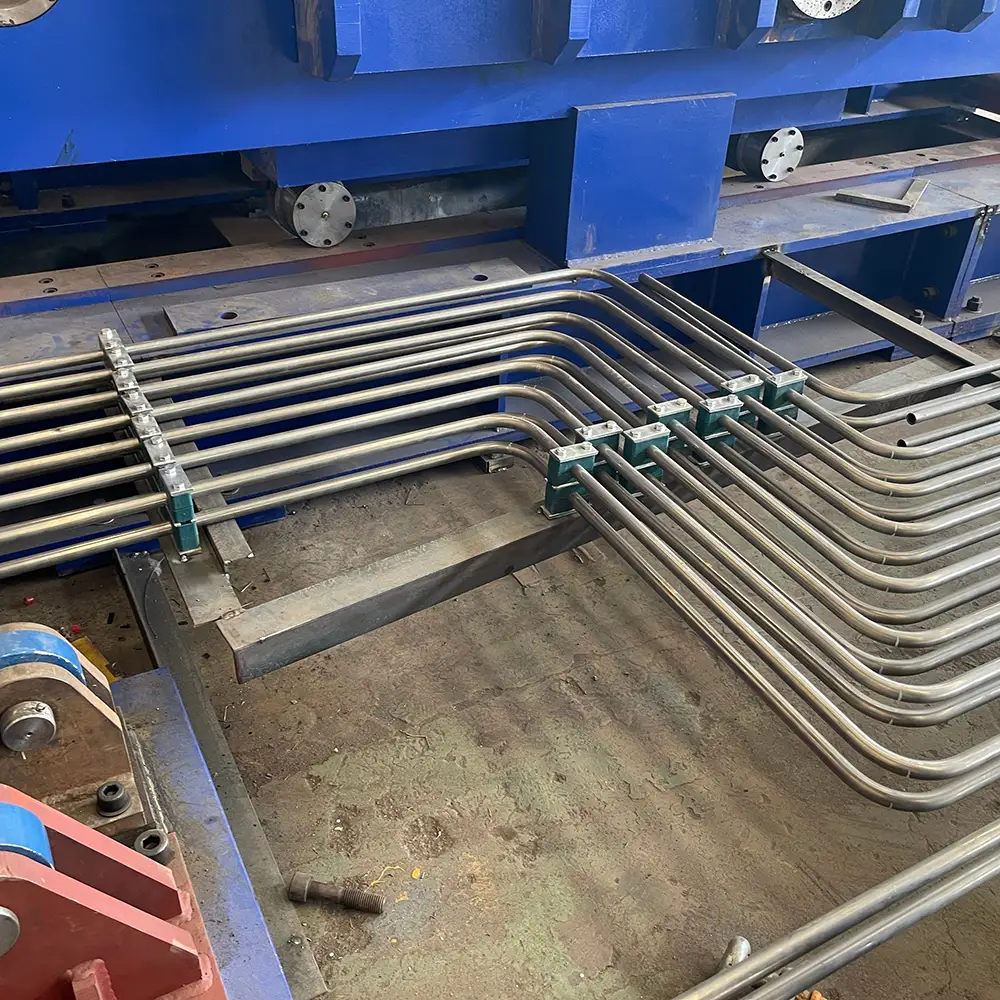

Hydraulic System Design

The hydraulic system provides the pressure required during the test cycle.

Pump capacity, valves, pressure sensors, hydraulic piping, seals, and other components can be selected according to the required test pressure and pipe specifications.

A properly configured hydraulic system can provide controlled pressure generation while supporting repeatable testing cycles.

The system can also be designed around different production capacities. For example, a factory performing occasional testing may require a different configuration from a steel pipe production line testing hundreds or thousands of pieces.

Intelligent Control System

The intelligent control system provides centralized management of the testing sequence.

Depending on the selected configuration, operators may be able to set or monitor parameters such as target pressure, pressure boosting process, pressure holding time, and test status through the control interface.

This can simplify operation and help standardize the testing procedure between different production batches.

For factories requiring production traceability, additional data monitoring or recording functions may also be considered according to the control system configuration.

Flexible Pipe Testing

Steel pipes can vary significantly in diameter, length, wall thickness, material, and application. Therefore, hydraulic test equipment should be selected according to actual pipe specifications.

The machine can be engineered around factors such as:

Pipe diameter
Pipe length
Wall thickness
Maximum test pressure
Test medium
Pressure holding time
Production capacity
Sealing method
Loading and unloading method
Automation requirements

For factories producing multiple pipe sizes, suitable test-head and sealing configurations can be considered to provide greater production flexibility.

Automatic and Semi-Automatic Operation

Depending on the customer's production requirements, the machine can be configured for manual, semi-automatic, or automatic operation.

Semi-automatic systems can reduce operator workload while maintaining flexibility for different products.

More automated systems may integrate pipe positioning, sealing, filling, pressure boosting, pressure holding, depressurization, and unloading functions.

The appropriate automation level depends on production volume, factory layout, pipe dimensions, available material-handling equipment, and desired cycle time.

Custom Hydraulic Pipe Testing Equipment

A standard machine may not be suitable for every steel pipe manufacturer. Different industries and pipe products have different testing requirements.

For this reason, the hydraulic test machine can be customized according to the customer's actual application.

Customers can provide pipe drawings, dimensions, material specifications, required test pressure, pressure holding time, production volume, and applicable testing standards.

Based on these requirements, the machine structure, hydraulic system, test heads, sealing arrangement, control system, and automation level can be evaluated.

Main Applications

The Intelligent Steel Pipe Hydraulic Test Machine can be used for:

Steel Pipe Hydrostatic Testing
Steel Tube Pressure Testing
Petroleum Pipe Testing
Natural Gas Pipe Testing
Oil and Gas Pipeline Testing
Seamless Steel Pipe Testing
Welded Steel Pipe Testing
Large Diameter Pipe Testing
Industrial Fluid Pipe Testing
Pipeline Leakage Detection
Hydraulic Pressure Testing
Steel Pipe Quality Control
Why Choose Us
1. Intelligent Pressure Control

The control system coordinates pressure boosting, maintaining, monitoring, and other test functions for a more standardized testing process.

2. Automatic Pressure Boosting

The hydraulic system can automatically increase pressure toward the required test value according to programmed parameters.

3. Automatic Pressure Maintaining

The system is designed to maintain the specified test pressure during the pressure-holding stage, reducing continuous manual adjustment.

4. Designed for Steel Pipe Testing

The machine can be configured specifically around steel pipe diameter, length, pressure, sealing, and production requirements.

5. Flexible Automation

Manual, semi-automatic, and automatic configurations can be considered according to production volume and factory requirements.

6. Industrial B2B Solution

The equipment is suitable for steel pipe mills, petroleum pipe manufacturers, natural gas pipe producers, industrial tube manufacturers, and pipeline suppliers.

7. Customized Engineering

Machine structure, hydraulic components, test heads, sealing systems, control functions, and automation can be evaluated according to customer requirements.

Frequently Asked Questions
1. What is an intelligent steel pipe hydraulic test machine?

It is a hydraulic pressure testing system designed to test steel pipes by applying controlled internal pressure while automatically managing pressure boosting and pressure maintaining functions.

2. What is automatic pressure boosting?

Automatic pressure boosting means the hydraulic system increases the pipe's internal test pressure toward a preset target without requiring continuous manual pressure adjustment.

3. What is pressure maintaining?

Pressure maintaining is the stage in which the system holds the pipe at the specified test pressure for a defined period while monitoring pressure conditions.

4. What is the difference between hydraulic testing and hydrostatic testing?

Hydrostatic testing is a type of pressure test that uses a liquid medium, typically water. Hydraulic pipe testing equipment is commonly used to perform this process.

5. Can this machine detect steel pipe leakage?

Yes. Hydraulic pressure testing can help identify leakage or abnormal pressure behavior during the test cycle. The exact detection capability depends on the test procedure and machine configuration.

6. Can it test seamless steel pipes?

Yes. The machine can be configured for suitable seamless steel pipes according to their dimensions, pressure requirements, and applicable testing standards.

7. Can it test welded steel pipes?

Yes. Suitable welded steel pipes can be tested when the machine is configured for the required pipe size and testing parameters.

8. Can it test oil and gas pipes?

Yes. The equipment can be designed for suitable petroleum and natural gas pipe testing applications.

9. Can the test pressure be customized?

Yes. The hydraulic pressure system can be configured according to the required test pressure and pipe specifications.

10. What information is needed for machine selection?

Important information includes pipe diameter, length, wall thickness, material, target test pressure, pressure holding time, production capacity, applicable standards, and desired automation level.

11. Can the machine test multiple pipe sizes?

Yes, depending on the machine design. Appropriate test heads, sealing systems, fixtures, and machine configurations can be used to accommodate different pipe dimensions.

12. Can the testing process be automated?

Yes. Depending on requirements, automatic or semi-automatic functions can be incorporated into the testing process.
