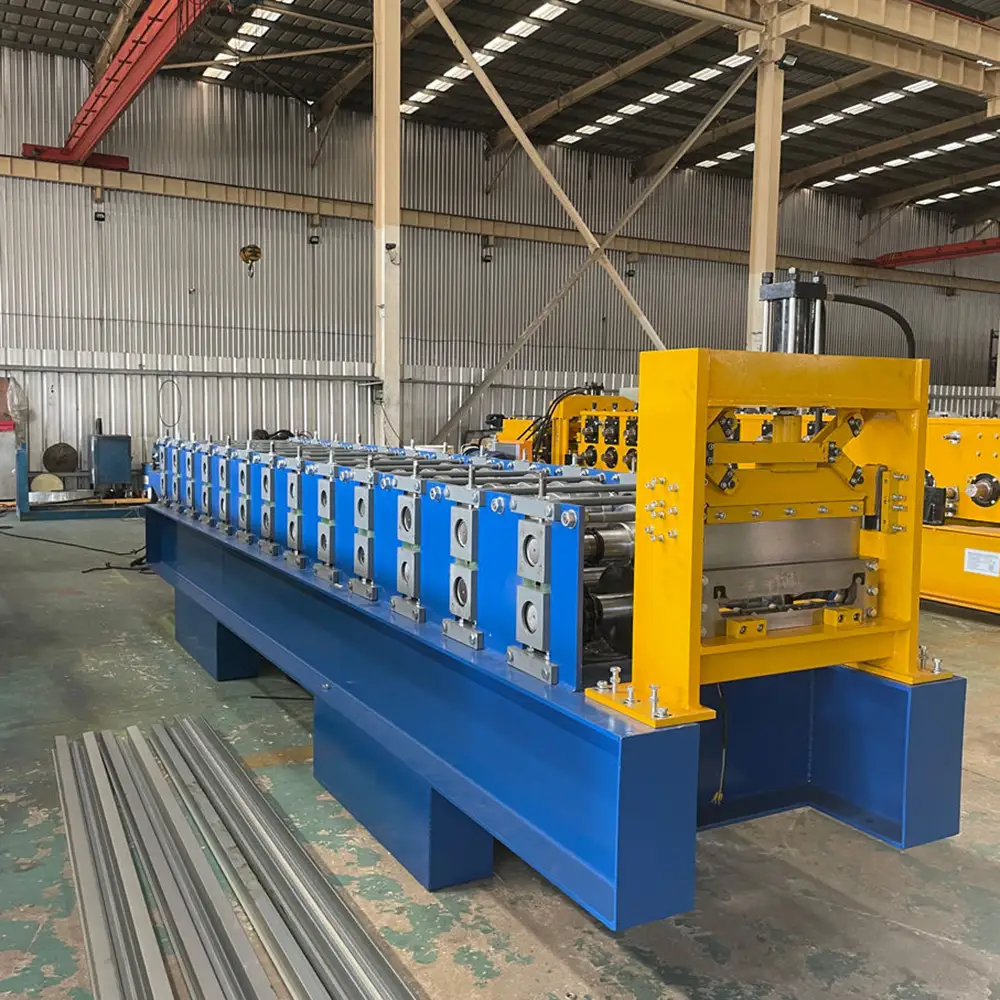

Standing Seam Profile Metal Roofing Sheet Roll Forming Machine

Standing Seam Profile Metal Roofing Sheet Roll Forming Machine

The Standing Seam Profile Metal Roofing Sheet Roll Forming Machine is a specialized industrial roll forming system designed to manufacture standing seam metal roofing panels from continuous steel coils. The machine progressively forms flat metal strips into precise standing seam profiles, producing long, durable roofing panels for residential, commercial, industrial, agricultural, and architectural construction.

Standing seam roofing is widely recognized for its clean appearance, weather-resistant design, and concealed fastening concept. Instead of relying on exposed fasteners across the main roofing surface, many standing seam systems use concealed clips or fastening arrangements that allow the finished roof to maintain a streamlined appearance.

This roll forming machine provides an efficient solution for manufacturers, roofing contractors, steel building suppliers, and metal fabrication companies that need consistent production of standing seam roofing panels.

Size	YX65-400-425
Dimension	5800*1600*1500mm
Motor Power	7.5KW*2
Hydraulic Power	2.2KW
Forming Steps	13Steps
Forming Speed	8-15m/min
Voltage	380V/50HZ/3PH
Effective Width	400mm,425mm
Material Width	575mm,600mm
Height of Roofing	65mm
Aluminum Thickness	0.7-1.0mm
Steel Thickness	0.5-0.8mm
Control System	PLC Control

What Is a Standing Seam Metal Roofing Roll Forming Machine?

A standing seam roll forming machine continuously transforms flat steel coil into a finished standing seam roof panel. The forming process uses multiple roller stations to gradually create the required profile without attempting to form the entire shape in one operation.

A typical production sequence includes:

Coil Loading → Decoiling → Feeding → Guiding → Roll Forming → Length Measurement → Cutting → Finished Panel Collection

Depending on the required production configuration, the line can be equipped with automatic control, programmable length setting, hydraulic cutting, automatic feeding, and other auxiliary equipment.

The forming rollers are designed specifically around the required standing seam profile. Different roof systems may have different seam heights, panel widths, rib shapes, locking structures, and connection designs, so customized tooling may be required.

Standing Seam Profile Production

The most important feature of this machine is its ability to form specialized standing seam profiles with consistent dimensions.

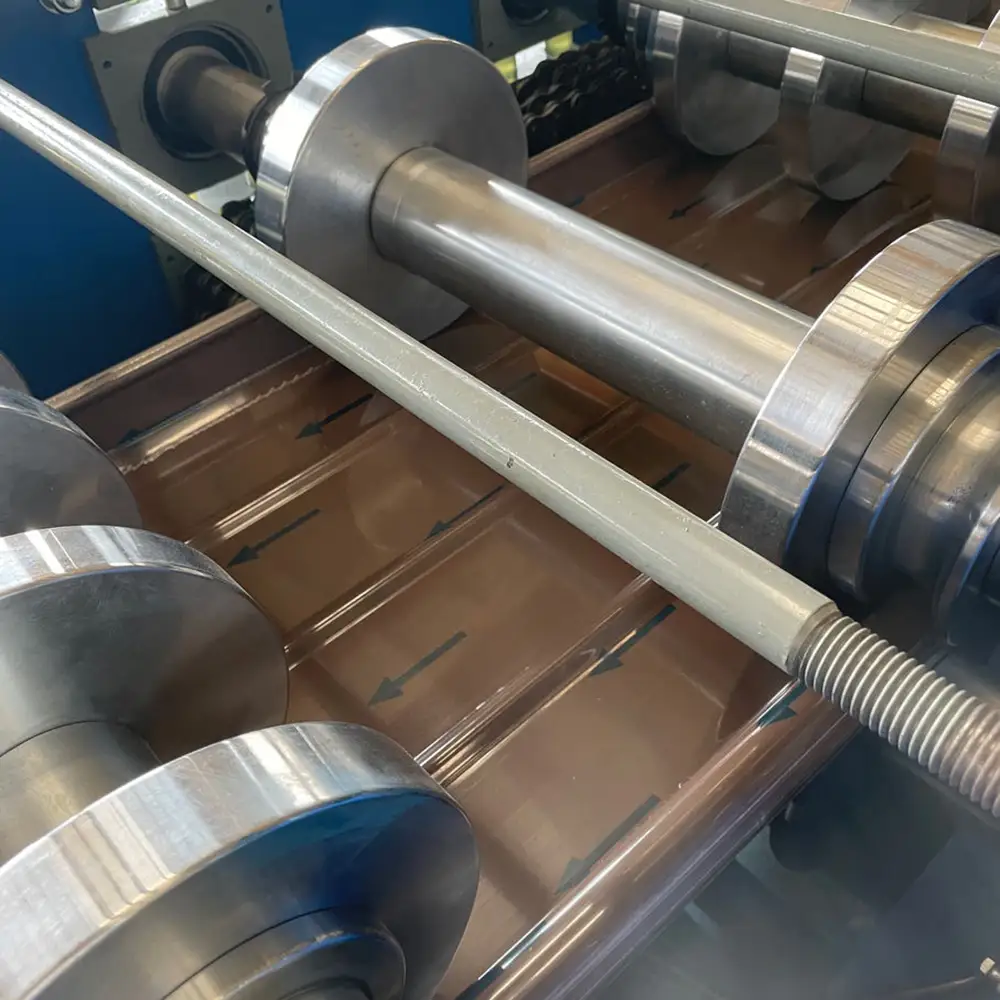

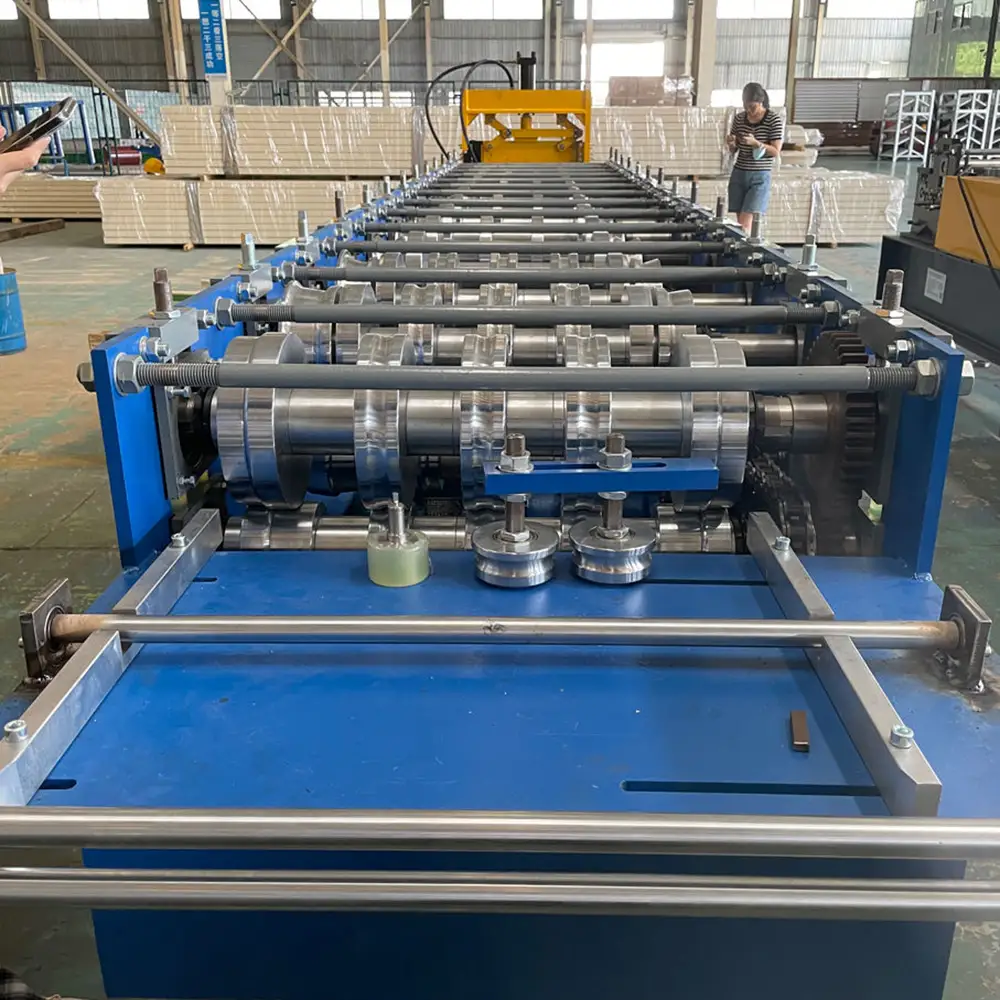

During the roll forming process, the steel strip passes through a series of forming stations. Each station gradually bends the material closer to the final roofing profile.

This progressive forming method helps maintain the shape of the panel while reducing sudden deformation.

Depending on the design, the finished panel may include:

Standing Seam Ribs
Vertical Seams
Locking Edges
Interlocking Connections
Side Profiles
Reinforcing Ribs
Custom Panel Geometry

The final profile is determined by the customer's roofing design and the machine's forming tooling.

Suitable Roofing Materials

The machine can be configured for commonly used roofing steel materials, depending on the required specifications and machine design.

Typical materials include:

Galvanized Steel
Prepainted Galvanized Steel
Color-Coated Steel
PPGI
PPGL
Galvalume Steel
Aluminum
Other Compatible Metal Coils

Material thickness, yield strength, coil width, coating type, and surface finish should be considered when designing the forming system.

For coated materials, proper material guiding and roller design are especially important for maintaining surface quality during production.

Continuous Metal Roofing Production

A major advantage of a standing seam metal roofing sheet roll forming machine is continuous production from coil.

Instead of manually cutting and forming individual sheets, the machine can process a continuous strip of metal and produce long roofing panels according to programmed requirements.

This is especially useful for:

Metal Roofing Manufacturers
Steel Building Suppliers
Roofing Contractors
Prefabricated Building Manufacturers
Construction Material Suppliers
Metal Fabrication Companies

Continuous roll forming can reduce repetitive manual operations and help maintain consistent panel dimensions across large production runs.

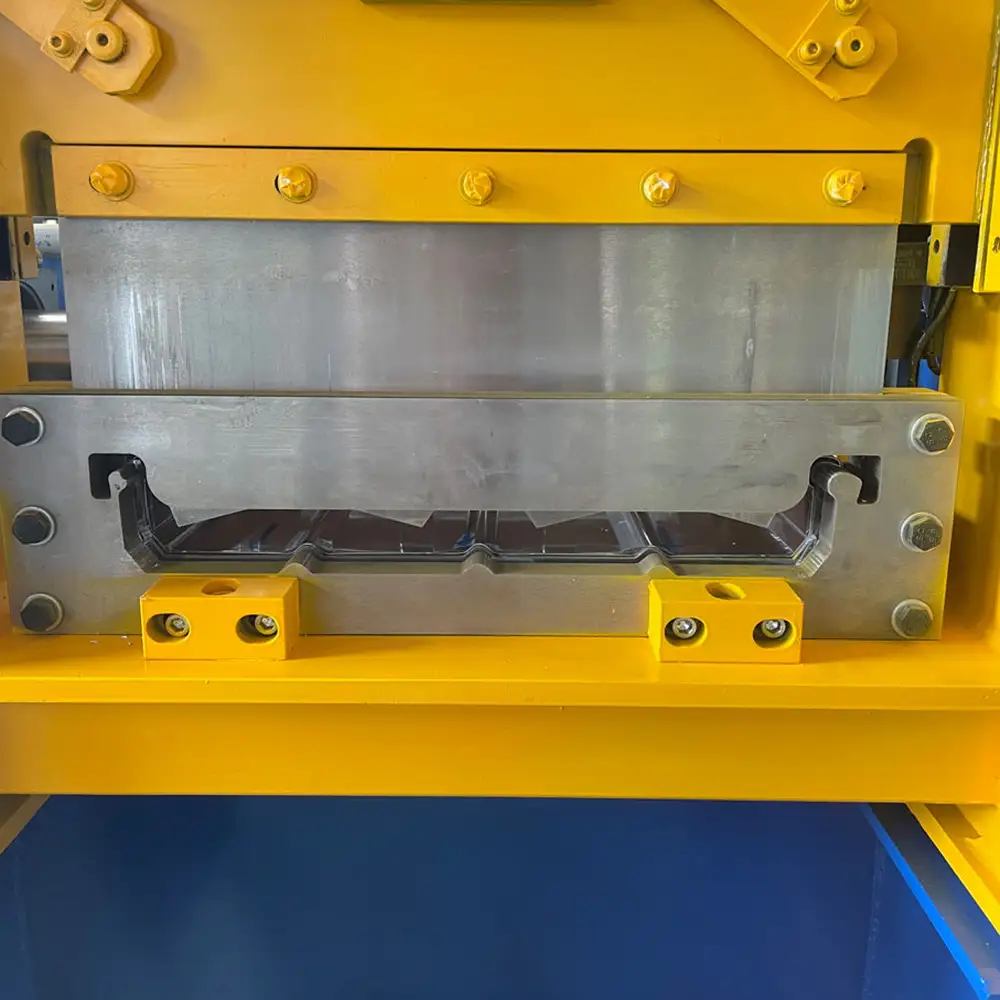

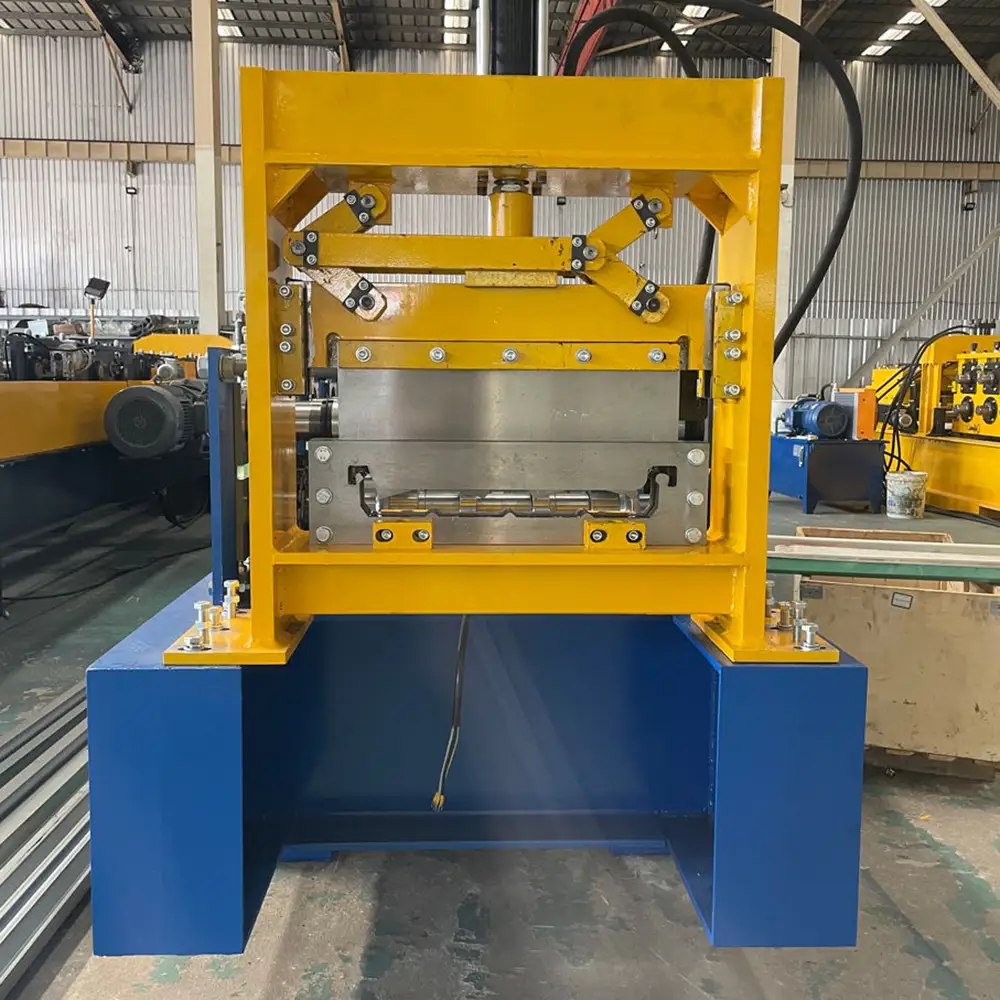

Automatic Length Control and Cutting

Standing seam roofing panels are often produced in different lengths depending on building design and installation requirements.

An automatic control system can be configured to measure the formed panel and activate the cutting process at the required length.

Typical control functions may include:

Panel Length Setting
Production Quantity Setting
Automatic Counting
Machine Start and Stop
Cutting Control
Production Parameter Adjustment
Manual and Automatic Operating Modes

The exact control system and cutting method can be customized according to production requirements.

PLC Control System

A PLC-based control system can provide centralized management of the roll forming process.

Through the operator interface, users can configure production parameters and monitor machine operation. This can make repetitive production orders easier to manage and help improve consistency between batches.

For manufacturers producing different standing seam panel lengths or multiple product specifications, programmable control can also simplify production adjustments.

The control configuration can be selected according to the required level of automation and customer preferences.

Standing Seam Roofing Applications

Standing seam metal roofing panels are suitable for a wide range of building projects.

Commercial Buildings

Standing seam panels can provide a modern architectural appearance for commercial facilities, retail buildings, offices, and other structures.

Industrial Buildings

Factories, workshops, warehouses, and manufacturing facilities can use standing seam metal roofing for large-area roof systems.

Agricultural Buildings

The panels can be used for barns, farm buildings, storage facilities, agricultural workshops, and other agricultural structures.

Residential Buildings

Standing seam roofing is also used in modern residential construction, garages, extensions, and custom homes.

Architectural Projects

The clean lines and concealed-fastener appearance of standing seam roofing make it suitable for architectural projects where both appearance and practical performance are important.

Customized Standing Seam Profiles

Roofing markets differ from country to country. Contractors and builders may require different panel widths, seam heights, rib shapes, and locking configurations.

For this reason, the machine can be customized around the required standing seam profile.

Customers can provide:

Profile Drawings
CAD Files
Finished Samples
Panel Dimensions
Material Specifications
Required Production Capacity

Based on this information, the forming rollers, machine structure, feeding system, cutting system, and control configuration can be developed around the required product.

Machine Structure and Forming Stability

The machine frame supports the forming stations and transmission system during continuous operation. A stable machine structure is important because unwanted movement or misalignment can affect the final roof panel profile.

Precision alignment of forming rollers also contributes to consistent production.

The machine should be selected according to the actual material thickness, coil width, profile complexity, and expected production volume rather than simply selecting equipment based on maximum theoretical speed.

Why Choose Our Standing Seam Roll Forming Machine?
1. Specialized Standing Seam Forming

The machine is designed around standing seam metal roofing profiles and can be configured for different seam and panel geometries.

2. Continuous Coil Processing

Continuous roll forming allows efficient production of long roofing panels from steel coils.

3. Custom Profile Tooling

Forming rollers can be engineered according to customer drawings, samples, and required standing seam dimensions.

4. Flexible Material Options

The system can be configured for galvanized, color-coated, prepainted, galvalume, aluminum, and other compatible roofing materials.

5. Automatic Cutting

Automatic length measurement and cutting can improve production consistency and reduce repetitive manual operations.

6. PLC Control Options

Programmable control can simplify production parameter setting, panel length management, counting, and machine operation.

7. OEM and Custom Solutions

Machine configuration can be customized according to profile requirements, material specifications, production capacity, and automation level.

8. Complete Roofing Production Solutions

The roll forming machine can be integrated with decoiling, feeding, forming, cutting, and finished-panel handling equipment for a complete roofing production line.

How to Choose a Standing Seam Roll Forming Machine

Before purchasing a standing seam roofing machine, buyers should first confirm the exact panel profile.

The profile drawing is particularly important because the seam height, panel width, rib geometry, and locking structure determine the forming roller design.

Material specifications should also be confirmed. Different steel thicknesses and material strengths can influence the forming process and machine configuration.

Production requirements should then be considered, including expected output, panel length, coil width, operating hours, and desired automation level.

For high-volume production, buyers may also want to consider automatic feeding, programmable control, automatic cutting, finished-panel handling, and other production-line functions.

Selecting a machine based on the complete production requirement helps ensure better long-term efficiency and more consistent panel quality.

FAQS
1. What does a standing seam roll forming machine produce?

It produces standing seam metal roofing panels from continuous steel or other compatible metal coils.

2. What is standing seam roofing?

Standing seam roofing is a metal roof system featuring raised seams between panels. Many systems use concealed clips or fasteners rather than exposed fasteners across the main panel surface.

3. What materials can the machine process?

Depending on the machine configuration, it can process galvanized steel, color-coated steel, PPGI, PPGL, galvalume steel, aluminum, and other compatible metal coils.

4. Can the standing seam profile be customized?

Yes. The forming tooling can be designed according to a customer's profile drawing, sample, dimensions, and technical requirements.

5. Can the machine produce long roofing panels?

Yes. Continuous roll forming is well suited for producing long metal roofing panels from coil material.

6. Can the panel length be automatically controlled?

Yes. An automatic measuring and cutting system can be configured to produce panels according to programmed lengths.

7. Is a PLC control system available?

A PLC-based control system can be integrated depending on the required machine configuration and automation level.

8. Can the machine produce different panel widths?

Different panel widths normally require corresponding forming tooling and machine configuration. Custom width solutions can be developed according to requirements.

9. Can it process color-coated steel?

Yes. The machine can be configured for compatible color-coated and prepainted steel coils.

10. Is the machine suitable for commercial and industrial roofing?

Yes. Standing seam panels are commonly used for commercial, industrial, agricultural, residential, and architectural applications.

11. What information is required for a quotation?

The main information includes the profile drawing, material type, material thickness, coil width, finished panel width, panel length, production requirements, and desired automation level.

12. Can the machine be integrated into a complete production line?

Yes. Decoiling, feeding, roll forming, cutting, control, and finished-panel handling equipment can be integrated into a complete production solution.

13. Do you provide OEM customization?

Yes. OEM and customized standing seam roll forming machines can be developed according to product drawings, materials, dimensions, production capacity, and customer requirements.
