Metal Tile Roll Forming Machine Corrugated Iron Roof Sheet Making Equipment

Metal Tile Roll Forming Machine Corrugated Iron Roof Sheet Making Equipment Glazed Tile Production Line for Building Roof Panel

The Metal Tile Roll Forming Machine is an industrial roofing sheet production solution designed to continuously form metal coils into finished roofing panels, corrugated iron sheets, metal roof tiles, and other roofing profiles. It is widely used by roofing manufacturers, steel processing companies, construction material suppliers, and metal fabrication businesses.

Also known as a Metal Roofing Sheet Roll Forming Machine, Corrugated Roof Sheet Making Machine, Roofing Sheet Roll Former, or Metal Roof Panel Roll Forming Machine, this equipment uses a series of forming rollers to progressively shape flat metal strip into a specified roofing profile.

Compared with manual sheet fabrication, continuous roll forming provides a more standardized production process. Once the coil is loaded and the required parameters are established, the machine can continuously form roofing sheets to the desired profile and length.

Depending on the configuration, the production line can include a decoiler, leveling or guiding system, roll forming unit, cutting system, control system, and finished-sheet output table.

Corrugated Iron Roof Sheet Production

The Corrugated Iron Roof Sheet Making Equipment is designed for producing corrugated roofing sheets with repeated ridges and valleys.

Corrugated metal roofing is widely used in residential, commercial, agricultural, industrial, and temporary construction projects because it offers a practical combination of strength, weather resistance, installation efficiency, and relatively low material weight.

The roll forming process gradually shapes the metal strip through multiple roller stations. Each station performs a controlled forming step until the final corrugated profile is achieved.

The resulting sheets can be produced in different lengths according to project requirements, subject to the machine's cutting and control configuration.

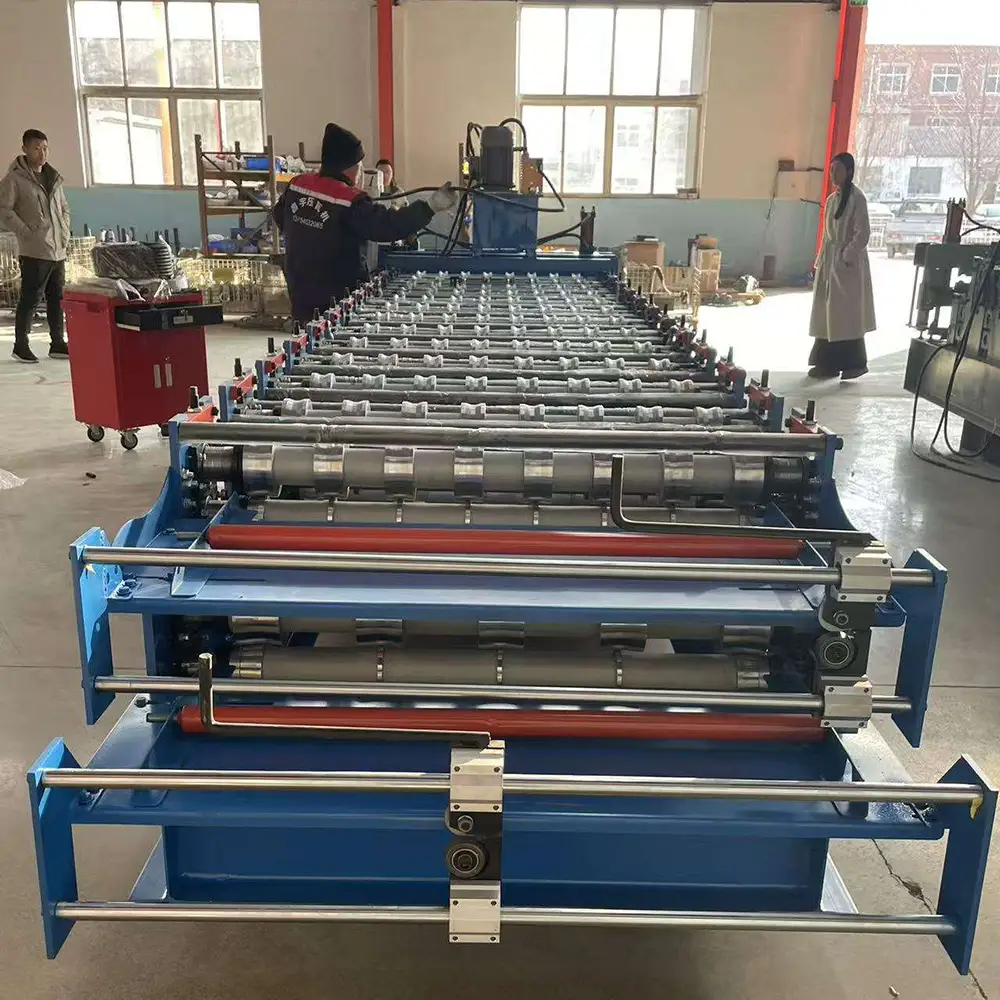

Metal Roof Tile Roll Forming

In addition to corrugated profiles, specialized roll forming lines can be configured to produce metal roof tiles and roofing panels with different surface patterns.

Depending on the selected machine and tooling, roofing profiles may include:

Corrugated Roofing Sheets
Trapezoidal Roof Panels
Ribbed Roofing Sheets
Metal Roof Tiles
Industrial Roof Panels
Wall Cladding Panels
Construction Roofing Profiles

Different profiles require different roller tooling. Therefore, the required finished profile should be confirmed before purchasing the machine.

For manufacturers offering several roofing products, interchangeable or dedicated forming tooling can be considered according to production requirements.

Continuous Roll Forming Process

The machine typically begins with a metal coil loaded onto a decoiler. The strip is then guided into the roll forming section.

A typical production process includes:

Coil Loading → Decoiling → Guiding → Roll Forming → Cutting → Finished Sheet Output

During roll forming, the material passes through multiple forming stations. Each roller station progressively changes the profile without requiring a separate bending operation for every section.

The continuous process is particularly suitable for producing long roofing sheets with consistent cross-sectional profiles.

A cutting unit can be configured to cut finished panels according to programmed or manually selected lengths.

Materials

The Metal Tile Roll Forming Machine can be configured for a variety of roofing sheet materials, depending on the machine design and forming requirements.

Common materials include:

Galvanized Steel
Prepainted Steel
Color-Coated Steel
Galvalume Steel
Carbon Steel
Other Suitable Coil Materials

The material thickness and yield strength are important factors when selecting the machine.

Different materials may require different roller designs, forming pressures, cutting systems, and machine configurations. Customers should provide the coil material, thickness range, width, and required finished profile when requesting a quotation.

Galvanized Roofing Sheet Machine

Galvanized steel is widely used in roofing applications because its zinc coating provides corrosion protection.

A Galvanized Roofing Sheet Roll Forming Machine can continuously form galvanized steel coils into corrugated or other roofing profiles.

The forming rollers should be properly designed for the selected material and profile to maintain stable production and help minimize unnecessary surface damage.

For coated or prepainted materials, appropriate material handling and forming conditions are also important for maintaining the appearance of the finished roofing sheet.

Automatic Roofing Sheet Production

Automation can be incorporated into the roll forming line to improve production efficiency.

Depending on the machine configuration, automatic functions may include:

Automatic Coil Feeding
Automatic Roll Forming
Automatic Length Measurement
Automatic Cutting
Automatic Sheet Discharge
Programmable Production Parameters

A PLC or other control system can coordinate the main production functions.

Automatic operation can reduce repetitive manual work and help manufacturers maintain a consistent production process, especially when producing large quantities of roofing panels.

Roof Sheet Cutting System

The cutting system is an important part of the roofing sheet production line.

After the metal strip has passed through the forming rollers, the finished profile can be cut into specified lengths.

Depending on the configuration, cutting can be performed before or after forming. The appropriate method depends on the roofing profile, material characteristics, production speed, and machine design.

For projects requiring multiple sheet lengths, programmable length control can make production more flexible.

Roofing Sheet Production Efficiency

Continuous roll forming is particularly suitable for manufacturers that need to produce large quantities of standardized roofing sheets.

Once the machine is properly configured, the production process can continuously transform metal coil into finished panels.

Production efficiency depends on:

Machine Speed
Coil Thickness
Material Strength
Roofing Profile
Sheet Length
Cutting Method
Operator Experience
Automation Level

The actual production speed should be evaluated according to the complete machine configuration rather than relying only on a nominal maximum speed.

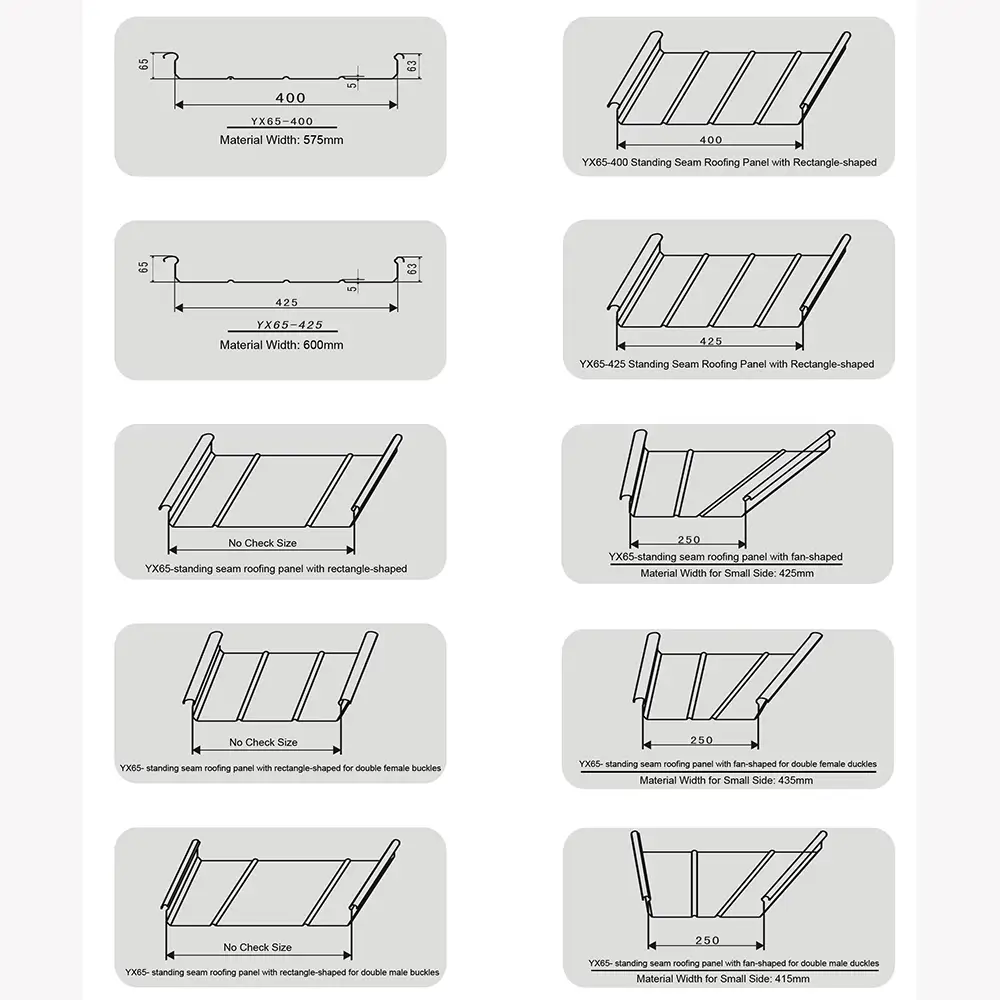

Customized Roofing Profiles

Different markets and construction projects use different roofing profiles.

Custom roller tooling can be developed according to a customer's required profile dimensions, including:

Profile Height
Rib Spacing
Sheet Width
Effective Cover Width
Material Thickness
Panel Length
Overlap Requirements

Customers can provide a profile drawing or sample sheet for technical evaluation.

This makes the equipment suitable for OEM roofing product manufacturers and companies that want to develop customized metal roofing profiles.

Applications

Metal roofing sheets produced by this equipment can be used for:

Residential Roofing
Commercial Buildings
Industrial Buildings
Warehouses
Workshops
Agricultural Buildings
Farm Structures
Garages
Carports
Storage Facilities
Temporary Buildings
Wall Cladding
Construction Projects

The specific roofing profile should be selected according to local construction standards, structural requirements, weather conditions, and installation methods.

Integrated Roofing Production Line

For larger manufacturing operations, the Metal Tile Roll Forming Machine can be integrated with other equipment to create a complete roofing sheet production line.

A typical line may include:

Hydraulic Or Manual Decoiler
Guiding And Feeding System
Roll Forming Machine
PLC Control System
Automatic Cutting Unit
Run-Out Table
Optional Packaging Equipment

Additional equipment can be selected according to coil weight, production volume, automation requirements, and factory layout.

Why Choose Our Metal Tile Roll Forming Machine?
1. Continuous Production

The machine is designed to continuously transform metal coils into finished roofing panels.

2. Consistent Roofing Profiles

Multiple forming stations progressively shape the material to produce repeatable roofing profiles.

3. Flexible Material Options

Suitable configurations are available for galvanized, prepainted, color-coated, galvalume, and other compatible steel coils.

4. Automatic Cutting

An automatic cutting system can produce roofing sheets according to programmed or selected lengths.

5. Custom Profiles

Roll tooling can be customized according to customer drawings and required roofing dimensions.

6. B2B & OEM Support

The equipment is suitable for roofing manufacturers, construction material suppliers, distributors, and OEM customers.

7. Complete Production Solutions

Decoilers, guiding systems, roll forming units, cutting systems, control systems, and output tables can be combined into an integrated production line.

FAQS
1. What is a Metal Tile Roll Forming Machine?

It is a machine that continuously forms metal coils into roofing tiles, corrugated sheets, trapezoidal panels, and other metal roofing profiles.

2. What is a Corrugated Iron Roof Sheet Making Machine?

It is roll forming equipment designed to produce corrugated metal roofing sheets from steel or other suitable coil materials.

3. What materials can the machine process?

Depending on the configuration, it can process galvanized steel, prepainted steel, color-coated steel, galvalume steel, and other suitable materials.

4. Can it produce galvanized roofing sheets?

Yes. The machine can be configured to form galvanized steel coils into corrugated or other roofing profiles.

5. Can the machine produce metal roof tiles?

Yes. Dedicated roller tooling can be designed for suitable metal roof tile profiles.

6. Can the roofing profile be customized?

Yes. Custom roller tooling can be designed according to profile drawings, dimensions, material thickness, and other requirements.

7. Can different sheet lengths be produced?

Yes. The cutting system can be configured to cut roofing sheets according to specified lengths.

8. Is automatic cutting available?

Yes. Automatic cutting can be integrated into the production line depending on the selected configuration.

9. Is the machine suitable for high-volume production?

Yes. Continuous roll forming is well suited to repetitive production of standardized roofing sheets and panels.

10. How do I select the correct machine?

Important parameters include material, coil thickness, coil width, finished profile, effective width, sheet length, production volume, and desired automation level.

11. Can the machine produce wall panels?

Suitable roll forming configurations can be used for certain wall cladding and panel profiles. The required profile should be provided for confirmation.

12. Can the production line be customized?

Yes. Decoiler capacity, roller stations, cutting system, control system, output table, and other components can be configured according to production requirements.

13. What information is needed for a quotation?

Please provide the raw material type, thickness, coil width, finished profile drawing, required sheet length, production capacity, and automation requirements.
