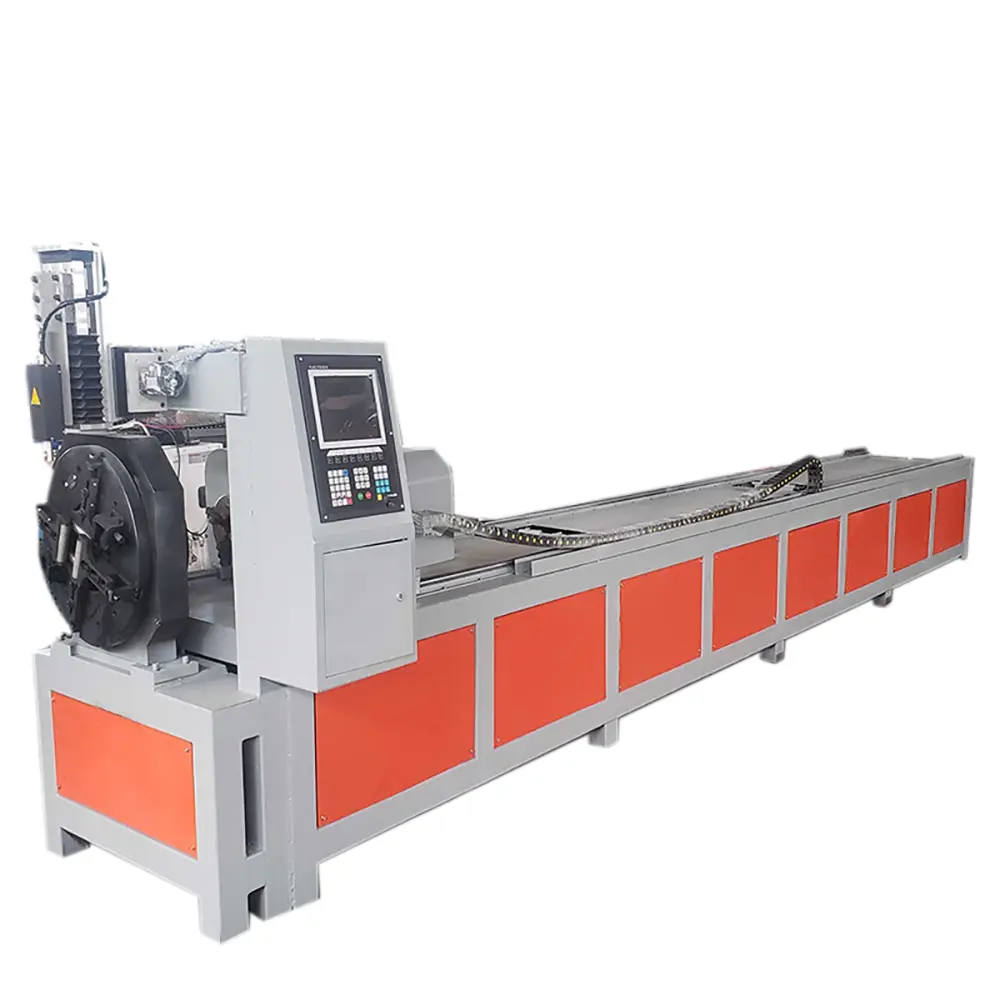

Square And Round Pipe Plasma Cutting Machine

The Square And Round Pipe Plasma Cutting Machine is a professional CNC plasma cutting system designed for high-efficiency processing of various metal pipes,tubes,and profiles. Combining advanced plasma cutting technology with intelligent CNC control,this machine provides accurate,faster,and cost-effective solutions for steel pipe fabrication and industrial metal processing.

Designed to cut both round pipes and square tubes,the machine offers excellent versatility for manufacturers requiring flexible tube cutting capabilities. It can perform pipe cutting,hole cutting,slotting,branch pipe processing,and customized profile cutting for different applications.

Compared with traditional manual cutting methods,the CNC pipe plasma cutting machine provides higher productivity,better cutting accuracy,and improved consistency. It is widely used in steel structures,metal fabrication,construction equipment,automotive parts,shipbuilding,and industrial machinery manufacturing.

Specification
Suitable pipe to cut		Pipe material: carbon steel, stainless steel, iron pipe
		Diameter: Round tube 25-160
		Square pipe: 25x25-160x160
		Thickness within 5mm (depending on plasma size)
		Effective stroke: ≥6100mm
Information
Model	Model:SP160(6000)
The name of the		Square pipe intersecting line cutting machine
volume		7400*1000*1700mm (in kind)
The weight of the		1600KG (based on the actual)
Input power supply		220V (control part) 380V (plasma)
Output power supply		24V
Size of guide rail		25 square guide rail
Rack type		24* 24-2m precision helical teeth
Mode of cutting		plasma
Gas cutting gun		Non-contact P80 (plasma)
Air supply		It should be brought by oneself (≥0.8MPa)
Machine frame steel size		100*100mm
Main component Settings and parameters
Electric control unit		chint
Control system		Fangling CNC system

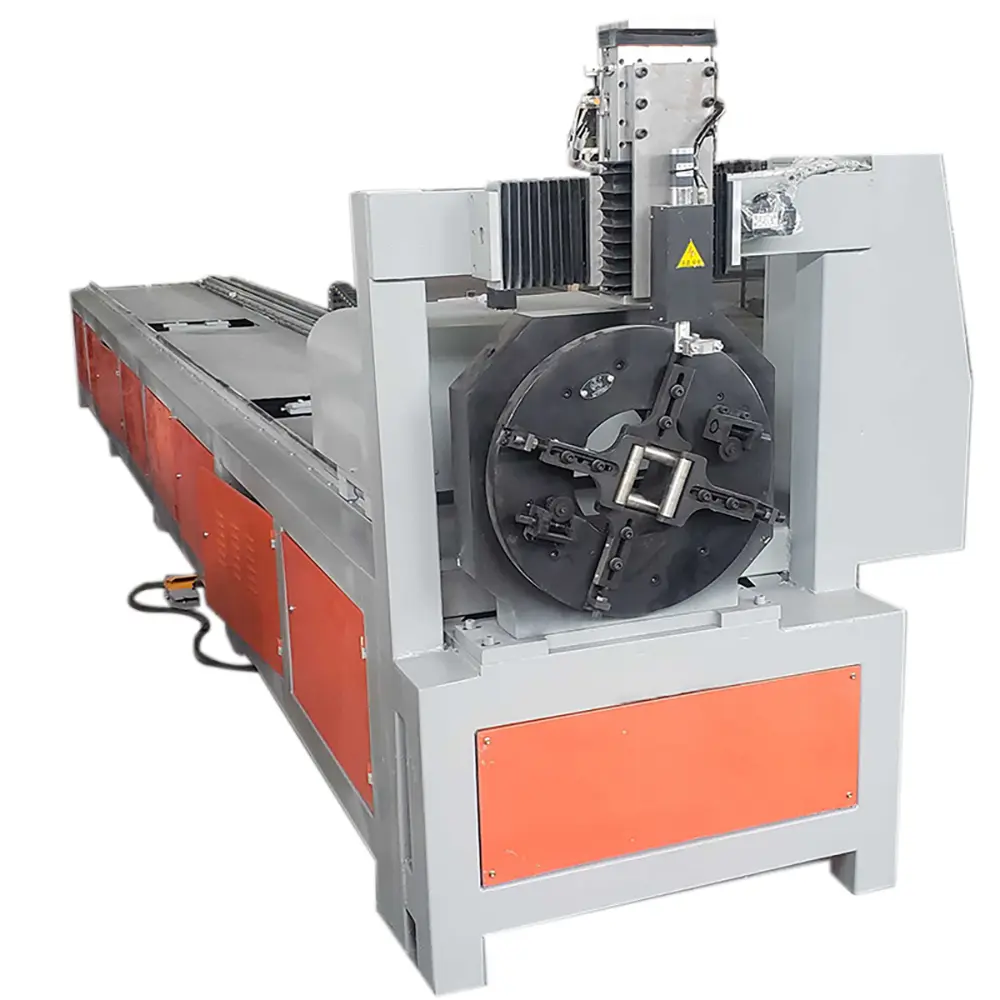

Four jaw chuck		Manual electric pneumatic
Auxiliary support system		Pneumatic takeoff and landing support frame
Servo servo system		Servo 750w/1.5kw*3 400w*2
Speed of movement		10-6000mm/min(can be adjusted according to processing requirements)
Speed of cutting		10-2000mm/min(can be adjusted according to processing requirements)
Chuck speed		2-6 seconds/RPM
Bear the weight of a single pipe		450KG

Advanced CNC Plasma Cutting Technology

The machine adopts advanced CNC plasma cutting technology to achieve efficient metal tube processing.

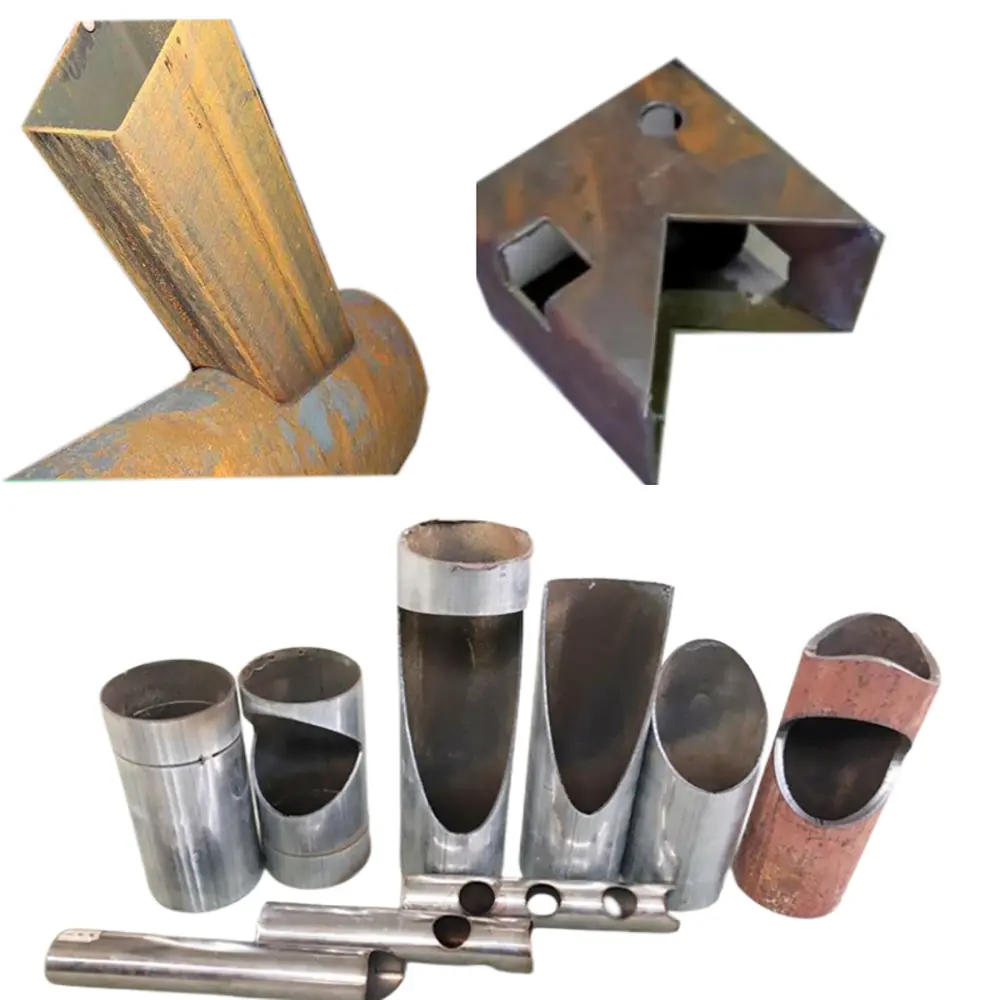

Main processing functions include:

Round pipe cutting
Square tube cutting
Pipe hole cutting
Slot cutting
Profile cutting
Angle cutting
Customized shape cutting

Plasma cutting advantages:

High cutting speed
Strong metal cutting capability
Low operating cost
Easy operation
Suitable for thick metal materials

The plasma arc provides powerful cutting performance for carbon steel and other conductive metals.

Dual Shape Pipe Processing Capability

The Square And Round Pipe Plasma Cutting Machine is specially designed for processing different tube shapes.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Pipe
Galvanized Steel Tube
Mild Steel Profiles
Conductive Metal Tubes

Suitable shapes:

Round Pipes
Square Tubes
Rectangular Tubes
Metal Profiles

One machine can handle multiple tube shapes,helping manufacturers reduce equipment investment and improve production flexibility.

CNC Intelligent Control System

The machine is equipped with an advanced CNC control system for accurate and convenient operation.

Main functions:

Automatic cutting path generation
CAD drawing import
Digital parameter adjustment
Intelligent positioning
Cutting process monitoring

Benefits:

Simple operation
Reduced manual workload
Higher production efficiency
Stable cutting quality
Easy program management

The CNC system allows operators to quickly create and modify cutting programs for different pipe designs.

Efficient Pipe Cutting Performance

The Square And Round Pipe Plasma Cutting Machine provides excellent performance for industrial tube fabrication.

Main advantages:

Fast Cutting Speed

Plasma technology delivers efficient cutting performance,especially for medium and thick metal pipes.

Strong Cutting Capability

Suitable for heavy-duty steel pipe processing.

Cost-Effective Operation

Lower equipment investment and maintenance costs compared with some laser cutting systems.

Flexible Processing

Supports different pipe shapes and customized cutting requirements.

Improved Production Efficiency

Reduces manual cutting time and improves production consistency.

Wide Application Industries
Steel Structure Manufacturing

Applications:

Steel frames
Structural pipes
Engineering components
Construction Industry

Used for:

Building structures
Metal supports
Pipe frameworks
Metal Fabrication

Applications:

Custom metal products
Industrial components
Welding preparation
Automotive Industry

Used for:

Vehicle structural parts
Exhaust components
Metal brackets
Machinery Manufacturing

Applications:

Equipment frames
Mechanical pipe parts
Fabricated structures
Suitable Materials

The Square And Round Pipe Plasma Cutting Machine can process:

Carbon Steel
Mild Steel
Stainless Steel
Galvanized Steel
Alloy Conductive Metals

Suitable applications:

Steel pipe fabrication
Tube cutting
Pipe joint preparation
Industrial metal processing
Advantages Compared With Traditional Pipe Cutting
Higher Cutting Efficiency

CNC plasma cutting significantly improves production speed.

Better Cutting Accuracy

Automatic CNC control ensures consistent cutting dimensions.

Lower Production Cost

Affordable consumables and easy maintenance reduce operating expenses.

Flexible Pipe Processing

One machine supports round and square tube cutting.

Reduced Labor Requirements

Automated operation improves productivity and reduces manual work.

Reliable Industrial Machine Structure

The machine adopts a strong industrial structure designed for long-term operation.

Main features:

Heavy-duty machine frame
Stable pipe rotation system
Precision CNC transmission
Reliable plasma power source
Intelligent control system

The durable construction ensures stable performance in demanding production environments.


Cutting diameter,pipe length,plasma power,and automation functions can be customized.

Why Choose Our Square And Round Pipe Plasma Cutting Machine?
Professional Pipe Cutting Equipment Manufacturer

We specialize in manufacturing CNC pipe cutting machines and metal fabrication equipment for global customers.

Reliable Plasma Cutting Technology

High-quality plasma systems provide stable cutting performance and long service life.

Efficient Industrial Solution

The machine improves production efficiency while reducing labor costs.

Customized Machine Design

Pipe diameter range,cutting length,plasma power,rotation system,and CNC configuration can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Service Support

We provide installation guidance,operator training,maintenance service,and spare parts supply.

FAQS
Q1: What is a Square And Round Pipe Plasma Cutting Machine used for?

It is used for CNC cutting of round pipes,square tubes,and metal profiles in industrial fabrication.

Q2: What materials can this machine cut?

It can cut carbon steel,stainless steel,galvanized steel,and other conductive metals.

Q3: Can it cut both round and square pipes?

Yes. The machine is designed for processing both round pipes and square tubes.

Q4: What are the advantages of plasma pipe cutting?

It provides fast cutting speed,strong cutting capability,and economical operation.

Q5: Which industries use this machine?

It is widely used in steel structures,construction,automotive,shipbuilding,and machinery manufacturing.

Q6: Can it cut holes and slots on pipes?

Yes. The CNC system supports pipe holes,slots,and customized cutting shapes.

Q7: Can the machine be customized?

Yes. Cutting size,plasma power,pipe length,and automation functions can be customized.
